Jet J-CK350-2 User manual

Operating Instructions and Parts Manual
Non-Ferrous Manual Cold Saw
Models: J-CK350-2, J-CK350-4
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-414203
Ph.: 800-274-6848 Revision B 02/2011
www.waltermeier.com Copyright © 2011 Walter Meier (Manufacturing) Inc.

2
Warranty and Service
Walter Meier (Manufacturing) Inc., warrants every product it sells. If one of our tools needs service or repair, one of
our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any
of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or
perform routine maintenance and major repair on your JET
® tools. For the name of an Authorized Service Center in
your area call 1-800-274-6848.
MORE INFORMATION
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with
your local WMH Tool Group distributor, or visit waltermeier.com.
WARRANTY
JET products carry a limited warranty which varies in duration based upon the product (MW stands for Metalworking,
WW stands for Woodworking).
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools,
abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
The general JET warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED?
Five Year and Lifetime Warranties do not cover products used for commercial, industrial or educational purposes.
Products with Five Year or Lifetime Warranties that are used for commercial, industrial or education purposes revert
to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence
or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or par t must be returned for examination, postage prepaid, to a location designated by us. For the name
of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the
merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price,
at our option. We will return the repaired product or replacement at our expense unless it is determined by us that
there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will,
at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be
responsible for the shipping and handling costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WALTER MEIER (MANUFACTURING) INC., LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE
LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR
MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
WALTER MEIER SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR
FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF
OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Walter Meier sells through distributors only. The specifications in Walter Meier catalogs are given as general
information and are not binding. Members of Walter Meier reserve the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever. JET
® branded products are not sold in Canada Walter Meier.

3
Table of Contents
Warranty and Service..............................................................................................................................2
Table of Contents....................................................................................................................................3
Warnings.................................................................................................................................................4
Introduction .............................................................................................................................................5
J-CK350 Features ...................................................................................................................................6
Specifications..........................................................................................................................................6
Features..................................................................................................................................................7
Miter Cutting Head...............................................................................................................................7
Miter Position Lock...............................................................................................................................7
Self-centering Vise...............................................................................................................................7
Blade Lock...........................................................................................................................................7
Controls...............................................................................................................................................7
Trigger Handle.....................................................................................................................................7
Mist Coolant System............................................................................................................................7
Installation...............................................................................................................................................8
Electrical Connections.............................................................................................................................8
Controls...................................................................................................................................................8
Control Panel.......................................................................................................................................8
Trigger Handle.....................................................................................................................................8
Operation................................................................................................................................................9
Operation.............................................................................................................................................9
Miter Adjustment..................................................................................................................................9
Depth Stop...........................................................................................................................................9
Maintenance..........................................................................................................................................10
Maintenance Requirements................................................................................................................10
Periodic Maintenance.........................................................................................................................10
Coolant System..................................................................................................................................10
Coolant..............................................................................................................................................10
Changing the Saw Blade....................................................................................................................10
Transmission Belts.............................................................................................................................10
Lubrication.........................................................................................................................................11
Air Prep Unit ......................................................................................................................................11
Blades...................................................................................................................................................12
Troubleshooting.....................................................................................................................................14
Parts .....................................................................................................................................................15
Ordering Replacement Parts..............................................................................................................15
Stand Assembly.................................................................................................................................17
Head Assembly..................................................................................................................................18
Base Assembly..................................................................................................................................20
Manual Vise Assembly.......................................................................................................................22
Guard Assembly ................................................................................................................................24
CK350 Mist Coolant Assembly...........................................................................................................26
In-Feed Table ....................................................................................................................................28
Out-Feed Table..................................................................................................................................29
Stock Stop Assembly.........................................................................................................................30
Wiring Diagram......................................................................................................................................31

4
Warnings
1. Read and understand the entire owner’s manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with
all of these warnings may cause serious injury.
3. Replace the warning labels if they become obscured or removed.
4. The cold saw is designed and intended for use by properly trained and experienced personnel only. If
you are not familiar with the proper and safe operation of a cold saw, do not use until proper training
and knowledge have been obtained.
5. Do not use this cold saw for other than its intended use. If used for other purposes, Walter Meier
(Manufacturing) Inc., disclaims any real or implied warranty and holds itself harmless from any injury
that may result from that use.
6. Always wear approved safety glasses/face shields while using this cold saw. Everyday eyeglasses
only have impact resistant lenses; they are not safety glasses.
7. Before operating the cold saw, remove tie, rings, watches and other jewelry, and roll sleeves up past
the elbows. Remove all loose clothing and confine long hair. Non-slip footwear or anti-skid floor strips
are recommended. Do not wear gloves.
8. Wear ear protectors (plugs or muffs) during extended periods of operation.
9. Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
•Lead from lead based paint.
•Crystalline silica from bricks, cement and other masonry products.
•Arsenic and chromium from chemically treated lumber.
10. Your risk of exposure varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area and work with approved safety
equipment, such as face or dust masks that are specifically designed to filter out microscopic
particles.
11. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.
12. Make certain the switch is in the OFF position before connecting the machine to the power supply.
13. Make certain the machine is properly grounded.
14. Make all machine adjustments or maintenance with the machine unplugged from the power source.
15. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting
wrenches are removed from the machine before turning it on.
16. Keep safety guards in place at all times when the machine is in use. If removed for maintenance
purposes, use extreme caution and replace the guards immediately.
17. Make sure the cold saw is firmly placed on a secure foundation.
18. Check damaged parts. Before further use of the machine, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting
and any other conditions that may affect its operation. A guard or other part that is damaged should
be properly repaired or replaced.
19. Provide for adequate space surrounding work area and non-glare, overhead lighting.
20. Keep the floor around the machine clean and free of scrap material, oil and grease.
21. Keep visitors a safe distance from the work area. Keep children away.
22. Make your workshop child proof with padlocks, master switches or by removing starter keys.

5
23. Make your workshop child proof with padlocks, master switches or by removing starter keys.
24. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are
careless acts that can result in serious injury.
25. Maintain a balanced stance at all times so that you do not fall into the blade or other moving parts. Do
not overreach or use excessive force to perform any machine operation.
26. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for
which it was not designed. The right tool will do the job better and safer.
27. Use recommended accessories; improper accessories may be hazardous.
28. Maintain tools with care. Keep saw blades sharp and clean for the best and safest performance.
Follow instructions for lubricating and changing accessories.
29. Turn off the machine before cleaning. Use a brush or compressed air to remove chips or debris — do
not use your hands.
30. Do not stand on the machine. Serious injury could occur if the machine tips over.
31. Never leave the machine running unattended. Turn the power off and do not leave the machine until it
comes to a complete stop.
32. Remove loose items and unnecessary work pieces from the area before starting the machine.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or
possible machine damage.
This means that if precautions are not heeded, it may result in serious injury or possibly
even death.
The specifications in this manual are given as general information and are not binding. Walter Meier
(Manufacturing) Inc., reserves the right to effect, at any time and without prior notice, changes or
alterations to parts, fittings, and accessory equipment deemed necessary for any reason whatsoever.
Introduction
The J-CK350 circular saw is designed to provide a reliable solution to the needs of machine shops and
production environments that work with aluminum or light alloys. The J-CK350 is manually operated: after
clamping the material in the vise, the operator presses the trigger handle starting the blade, and brings the
operating lever downward to cut the material. The saw performs miter cuts up to 45º to the right or left.

6
J-CK350 Features
Specifications
Model.........................................................................J-CK350-2.............................................J-CK350-4
Stock Number..................................................................414203.................................................. 414207
Disc Blade
Disc diameter ......................................................14" (350mm)..........................................14" (350mm)
Hole diameter........................................................1.3" (32mm)...........................................1.3" (32mm)
Blade thickness ..................................................0.14" (3.4mm)........................................0.14" (3.4mm)
Cutting Speed
Blade Speed (RPM).................................................1750/3500..............................................1750/3500
Motor
Motor........................................................................2HP, 3PH...............................................2HP, 3PH
Voltage........................................................................220VAC.................................................440VAC
Other
Miter stops......................................................... 90°, 45° R & L........................................90°, 45° R & L
Maximum Vise Opening........................................................ 6”...........................................................6”
Coolant Capacity.............................................................3 gal.......................................................3 gal.
Dimensions................................................25"L x 52"W x 73"H................................25"L x 52"W x 73"H
Weight.......................................................................... 683 lbs...................................................683 lbs
Cutting Capacity (All Models)
Degree Round Square Rectangle
Tubing 90° 4.5" 4.25" 5.5" x 3.75"
45° 3.5" 3.5" 3.5" x 3.5"
Solid 90° 3" 3" 3" x 3"
45° 2.5" 2.5" 2.5" x 2.5"

7
Features
Miter Cutting Head
The miter cutting head is the unit that cuts the
material and consists of a cast iron base, blade
support unit and guard, transmission unit, and
motor. The depth of cut is set by adjusting the
depth cut stop. The miter cutting head swivels
and locks into -45º, 90º, and +45º by means of a
locking mechanism. Depressing the mechanism
overrides the lock, permitting the head to adjust
to any position between -45º and +45°.
Miter Position Lock
The miter position lock secures the miter cutting
head from movement. The miter is secured
when the lock is pushed all the way to the left
and can be positioned when the lock is moved to
the right.
Self-centering Vise
The self-centering vise holds the work piece in
place during cutting. The work piece is secured
in the vise by turning the vise handles.
Blade Lock
The blade lock secures the arbor from rotation
when attempting to change blades. The blade
lock is pushed in when changing blades.
The blade lock is not spring
loaded and must be pulled out after the blade
has been replaced and before operating the
machine.
Controls
The control panel consists of the Power (On/Off)
switch and High/Stop/Low switch, and an
integral coolant system. To operate the
machine, the Power switch must be set to On
and the High/Stop/Low switch must be set for Hi
or Low. Then depress the trigger handle to start.
Trigger Handle

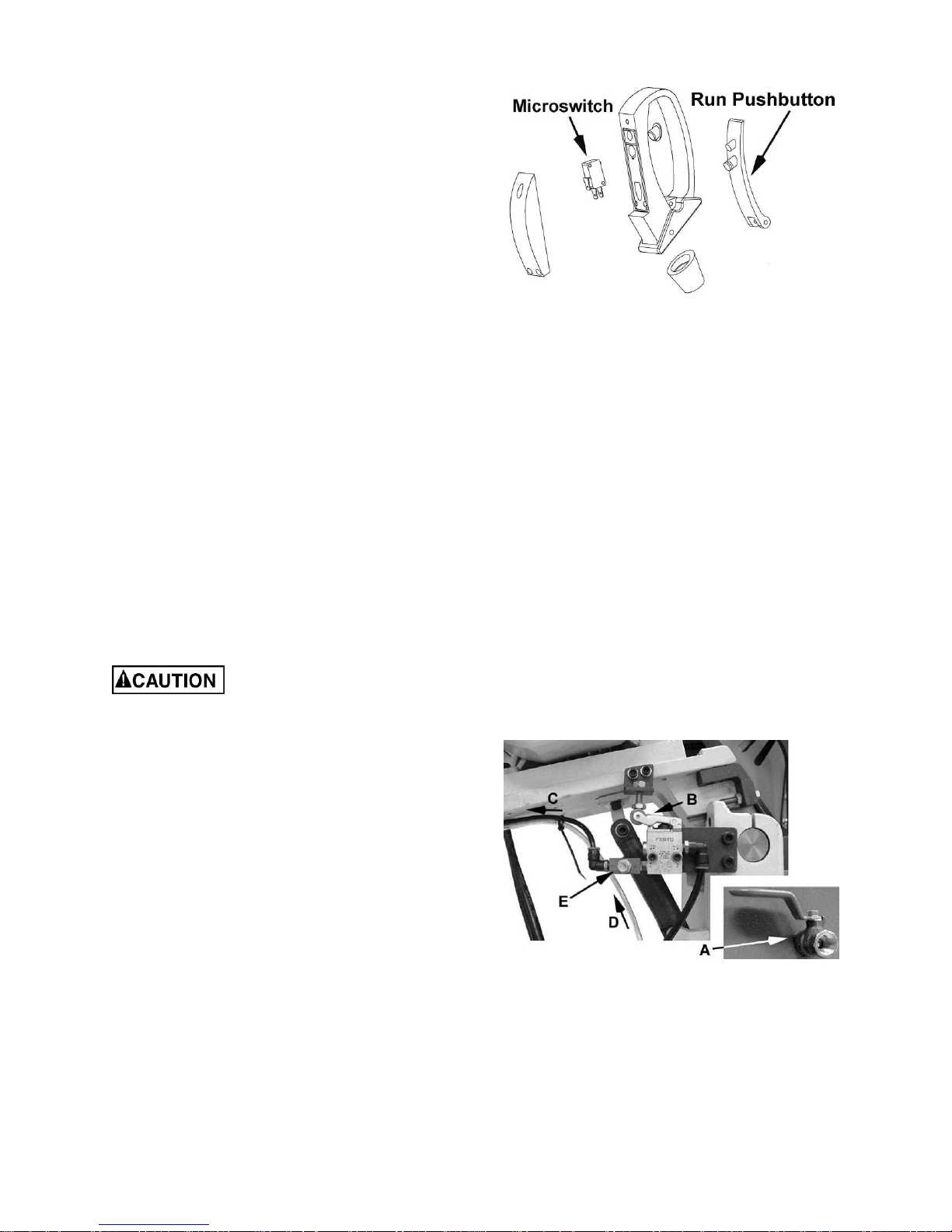

The trigger handle (Figure 1) is located on the
operating lever used to raise and lower the saw.
It contains a micro-switch, which is activated
when the operator depresses the run trigger.
Figure 1
Mist Coolant System
The mist coolant system sprays a coolant mist
onto the saw blade during the cutting operation,
cooling it and the work piece being cut. Air is
supplied from a compressor to the air intake
valve (A) located near the bottom of the cabinet
on the left side. When the head is moved off of
the top limit switch (Figure 2) when beginning a
cut, the pneumatic switch (B) is activated,
allowing air to flow through the air tube (C) and
into the orifice (not shown), causing coolant to
be drawn through the coolant tube (D). The
pneumatic valve (E) adjusts the amount of
airflow. Air and coolant is mixed in the orifice
and sprayed onto the saw blade.
Use a water-soluble synthetic coolant with this
mist coolant system. The ratio should be
between 7:1 to 10:1. Coolant should be changed
regularly. Some recommended brands are DoAll
and Lenox. These coolants are available at your
local industrial distributor.
Figure 2

8

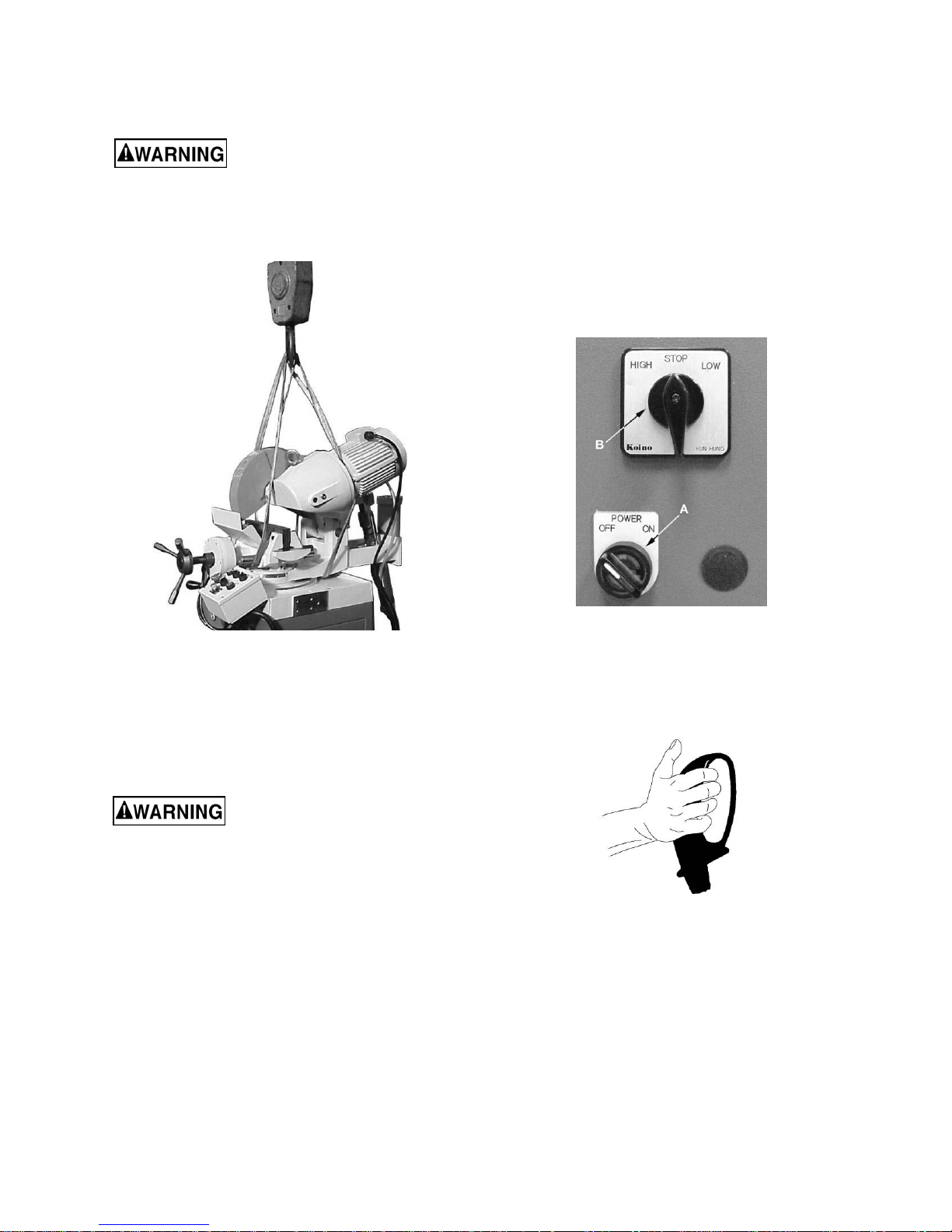

Installation
Unpacking the Machine
Do not handle the packed
machine using slings.
To install the machine, first remove the packing,
paying particular attention not to cut any electric
wires or hydraulic hoses. Lift using straps
(Figure 3).
Figure 3
Anchoring and Handling the Machine
The base of the machine must be anchored to
the floor by two lag bolts or studs properly
anchored into concrete.
Electrical Connections
All electrical connections
must be done by a qualified
electrician. All adjustments or repairs must
be done with the machine disconnected from
the power source, unplugged. Failure to
comply may result in serious injury!
J-CK350-2 is rated at 220V.
J-CK350-4 is rated at 440V.
These machines are not supplied with a plug.
Use a plug and outlet rated at least 20 amps.
The circuit for the machine should also be
protected by at least a 20 amp circuit breaker or
fuse.
Make sure that the blade turns in the correct
direction. If it does not, simply reverse two of
the phase wires on the supply input.
The cold saw is now ready for use.
Controls
Control Panel
The Control Panel (Figure 4) is located on the
front of the cabinet stand and consists of the
Power and High/Stop/Low switches, described
below.
Power Switch – The Power switch has two
positions, Off and On.
High/Stop/Low Switch – This switch controls
the blade speed. To operate the saw, the power
switch must set to on, High or Low must be
selected, and the Run Trigger depressed.
Figure 4
Trigger Handle
To operate, the Power switch must be set to on
a Hi or Low speed selection made, and the
trigger handle depressed.
Figure 5

9
Operation
Before using the machine:
 Check that safety devices, such as blade
guards, are in position and work perfectly
and that personal safety requirements are
complied with.
 Check the sharpness of the blade and verify
coolant flow.
Operation
1. Make sure the work piece is securely
clamped in the vise.
2. Turn the power on (A, Fig. 8).
3. Select the cutting speed (B, Fig. 8).
Figure 8
4. Grip the trigger handle (Figure 5) on the
control lever.
5. Start the blade by pressing the micro-switch
on the handgrip.
The down stroke speed of the head is controlled
manually by the operator. The mist coolant is
activated during the time that the head is below
the upper limit position.
When the cut is complete:
6. Raise the head.
7. Remove the work piece from the vise using
the vise hand wheels.
Miter Adjustment
To adjust the miter position follow the steps
below while referring to Figure 10:
1. Move the miter position lock (A) to the right
to release.
2. Adjust the head to the desired angle ranging
from –45º to +45º by pushing on the back of
the motor to the right or left. The miter
position is shown on the scale (B).
3. A detent mechanism locks the head in the -45º,
90º and +45º positions to prevent the head from
rotating. For a miter position other than -45º,
90º and +45º, press the lever (C) to release
while rotating the head.
4. When the desired cutting angle is set, move
miter position lock (A) to the left to secure.
Figure 10
Depth Stop
The depth cut stop adjustment limits the lower
travel of the saw blade during a cutting
operation.
Remove power when
making this adjustment.
Failure to comply may result in serious
injury!
To adjust the depth of cut (refer to Figure 12):
1. Using two 13mm wrenches, loosen the lock
nut (A).
2. With the saw in the fully lowered position,
turn the screw (B) until the saw blade
bottoms out at the desired level.
3. Tighten the lock nut.
Figure 12

10
Maintenance
Maintenance Requirements
All maintenance must be
carried out with the power switched off.
Failure to comply may result in serious
injury!
On completion of maintenance, ensure that
replaced parts and/or any tools used have been
removed from the machine before starting it up.
Periodic Maintenance
 Remove chips from the machine, preferably
with a cloth
 Remove chips from the coolant tank and
change coolant regularly (see Coolant
section)
 Top up the coolant level (see Coolant)
 Check the wear of the blade and change if
necessary (see Changing the Saw Blade)
 Empty the chips out of the base.
 Clean the vise and lubricate all the joints
and sliding surfaces, using good quality oil.
 Check transmission belts for wear (see
Transmission Belts)
 Attend to daily, weekly and annual
lubrication recommendations (see the
Lubrication section)
Coolant System
The coolant tank access door is located on the
back of the cabinet stand. Remove four hex cap
screws with a 5mm hex wrench. Check coolant
level in the coolant tank periodically and top off if
necessary. Coolant can also be added by
pouring directly on the table, which will drain into
the tank through the chip strainer.
Remove excess chips periodically from the tank.
Use the coolant level gauge to check the coolant
level.
Coolant
Use a water-soluble synthetic coolant with this
mist coolant system. The ratio should be
between 7-10 to 1. Coolant should be changed
regularly. Some recommended brands are DoAll
and Lenox. These coolants are available at your
local industrial distributor.
Coolant Type:
 Water-Soluble Synthetic Coolant
Changing the Saw Blade
The cold saw must not be
connected to the power source when
changing saw blades. Failure to comply may
result in serious injury!
To change the saw blade:
1. Switch off the machine.
2. Release the lower disc guard.
3. Move the lower guard upwards.
4. Push the blade lock in.
Note: The J-CK350 bolt is a left-hand thread;
rotate clockwise to loosen.
5. Remove the blade and replace it with a new
one.
6. To secure the saw blade, reverse the
preceding steps.
Transmission Belts
The J-CK350 uses a V-belt transmission
system. After the first 100 working hours,
remove the transmission belt protective cover
and check the tension and wear of the belts.
Repeat the operation after every 500 working
hours of the machine.
To tighten the transmission belts:
1. Remove the transmission belt protective
cover.
2. Loosen four bolts (A, Fig. 13) and slide
motor back.
Figure 13
