Jet JWBS-14Q User manual
CE-Conformity Declaration
CE-Konformitätserklärung
Déclaration de Conformité CE
Product / Produkt / Produit:
Woodworking Band Saw / Holz-Bandsäge / scie à ruban à bois
JWBS-14Q
Brand / Marke / Marque:
JET
Manufacturer / Hersteller / Fabricant:
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden
Schweiz / Suisse / Switzerland
We hereby declare that this product complies with the regulations
Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht
Par la présente, nous déclarons que ce produit correspond aux directives suivantes
2006/42/EC
Machinery Directive / Maschinenrichtlinie / Directive Machines
2014/30/EU
electromagnetic compatibility / elektromagnetische Verträglichkeit / compatibilité électromagnétique
designed in consideration of the standards
und entspechend folgender zusätzlicher Normen entwickelt wurde
et été développé dans le respect des normes complémentaires suivantes
EN 1807-1:2013
EC type examination performed by / EG-Baumusterprüfung durchgeführt von / examen CE de type par
DGUV Test, Prüf- und Zertifizierungsstelle Holz, Fachbereich Holz und Metall,
Vollmoellerstraße 11, 70563 Stuttgart, Germany (notified body No: 0392)
certificate number / Zertifikat Nummer/ numéro de certificat
HO 151053
Responsible for the Documentation / Dokumentations-Verantwortung / Résponsabilité de Documentation:
Hansjörg Meier
Head Product-Mgmt. / Leiter Produkt-Mgmt. / Resp. Gestion des Produits
JPW (Tool) AG
2016-07-22 Alain Schmid, General Manager
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden
Schweiz / Suisse / Switzerland
2
GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been prepared
for the owner and operators of a JET JWBS-14Q band saw to promote safety during installation, operation and maintenance
procedures. Please read and understand the information contained in these operating instructions and the accompanying
documents. To obtain maximum life and efficiency from your machine, and to use the machine safely, read this manual thoroughly
and follow instructions carefully.
…Table of Contents
1. Declaration of conformity
2. Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Machine description
Technical data
Noise emission
Dust emission
Contents of delivery
5. Transport and start up
Transport and installation
Assembly
Mains connection
Dust connection
Starting operation
6. Machine operation
7. Setup and adjustments
Saw blade selection
Changing the saw blade
Blade tracking adjustment
Blade tension adjustment
Blade guide adjustment
Folding the bandsaw blade
8. Maintenance and inspection
9. Troubleshooting
10. Environmental protection
11. Available accessories
12. „Safe operation”........ appendix A
1. Declaration of conformity
On our own responsibility we hereby declare that this product
complies with the regulations* listed on page 2. Designed in
consideration with the standards**. CE type examination***
performed by****.
2. Warranty
The Seller guarantees that the supplied product is free from
material defects and manufacturing faults. This warranty does
not cover any defects which are caused, either directly or
indirectly, by incorrect use, carelessness, accidental damage,
repair, inadequate maintenance or cleaning and normal wear
and tear.
Guarantee and/or warranty claims must be made within twelve
months from the date of purchase (date of invoice). Any
further claims shall be excluded.
This warranty includes all guarantee obligations of the Seller
and replaces all previous declarations and agreements
concerning warranties.
The warranty period is valid for eight hours of daily use. If this
is exceeded, the warranty period shall be reduced in
proportion to the excess use, but to no less than three
months.
Returning rejected goods requires the prior express consent
of the Seller and is at the Buyer’s risk and expense.
Further warranty details can be found in the General Terms
and Conditions (GTC). The GTC can be viewed at
www.jettools.com or can be sent by post upon request.
The Seller reserves the right to make changes to the product
and accessories at any time.
3. Safety
3.1 Authorized use
This machine is designed for sawing wood, wood derived
materials as well as similar to be machined hard plastics only.
Machining of other materials is not permitted and may be
carried out in specific cases only after consulting with the
manufacturer.
No metal workpieces may be machined.
The workpiece must allow to safely be loaded, supported and
guided.
The proper use also includes compliance with the operating
and maintenance instructions given in this manual.
The machine must be operated only by persons familiar with
its operation and maintenance and who are familiar with its
hazards.
The required minimum age must be observed
The machine must only be used in a technically perfect
condition
When working on the machine, all safety mechanisms and
covers must be mounted.
In addition to the safety requirements contained in these
operating instructions and your country’s applicable
regulations, you should observe the generally recognized
technical rules concerning the operation of woodworking
machines.
Any other use exceeds authorization.
In the event of unauthorized use of the machine, the
manufacturer renounces all liability and the responsibility is
transferred exclusively to the operator.
3.2 General safety notes
Woodworking machines can be dangerous if not used
properly. Therefore the appropriate general technical rules as
well as the following notes must be observed.
Read and understand the entire instruction manual before
attempting assembly or operation.
Keep this operating instruction close by the machine,
protected from dirt and humidity, and pass it over to the new
owner if you part with the tool.
No changes to the machine may be made.
Daily inspect the function and existence of the safety
appliances before you start the machine.
Do not attempt operation in this case, protect the machine by
unplugging the mains cord.
Remove all loose clothing and confine long hair.
Before operating the machine, remove tie, rings, watches,
other jewellery, and roll up sleeves above the elbows.
Wear safety shoes; never wear leisure shoes or sandals.
Always wear the approved working outfit
- safety goggles
- ear protection
- dust protection
Do not wear gloves while operating this machine.
For the safe handling of saw blades wear work gloves.
Observe the chapter “save operation” in this manual.
Control the stopping time of the machine, it may not be longer
than 10 seconds.
Work only with a sharp and flawless sawblade.
Work only with fence well tightened.
Insure that the workpiece does not roll when cutting round
pieces.
Use suitable table extensions and supporting aids for difficult
to handle workpieces.
Always lower the blade guide close to the workpiece.
With the machine table is inclined use the fence and position it
on the bottom side only.
Always hold and guide the workpieces safely during
machining.
Remove cut and jammed workpieces only when motor is
turned off and the machine is at a complete standstill.
Install the machine so that there is sufficient space for safe
operation and workpiece handling.
Keep work area well lighted.
The machine is designed to operate in closed rooms and must
be placed stable on firm and levelled ground.
Make sure that the power cord does not impede work and
cause people to trip.
Keep the floor around the machine clean and free of scrap
material, oil and grease.
Stay alert!
Give your work undivided attention. Use common sense.
Keep an ergonomic body position.
Maintain a balanced stance at all times.
Do not operate the machine when you are tired.
Do not operate the machine under the influence of drugs,
alcohol or any medication. Be aware that medication can
change your behaviour.
Keep children and visitors a safe distance from the work area.
Never reach into the machine while it is operating or running
down.
Never leave a running machine unattended. Before you leave
the workplace switch off the machine.
Do not operate the electric tool near inflammable liquids or
gases.
Observe the fire fighting and fire alert options, for example the
fire extinguisher operation and place.
Do not use the machine in a dump environment and do not
expose it to rain.
Wood dust is explosive and can also represent a risk to
health.
Dust form some tropical woods in particular, and from
hardwoods like beach and oak, is classified as a carcinogenic
substance.
Always use a suitable dust extraction device
Before machining, remove any nails and other foreign bodies
from the workpiece.
Use a push block when working the ends of narrow stock.
Always store the push stick or the push wood handle with the
machine, also when not in use.
Specifications regarding the maximum or minimum size of the
workpiece must be observed.
Do not remove chips and workpiece parts until the machine is
at a complete standstill.
Do not stand on the machine.
Connection and repair work on the electrical installation may
be carried out by a qualified electrician only.
Have a damaged or worn cord replaced immediately.
Make all machine adjustments or maintenance with the
machine unplugged from the power source.
Remove defective saw blades immediately.
3.3 Remaining hazards
When using the machine according to regulations some
remaining hazards may still exist
The moving saw blade in the work area can cause injury.
Broken saw blades can cause injuries.
Thrown workpieces can lead to injury
Wood chips and sawdust can be health hazards. Be sure to
wear personal protection gear such as safety goggles ear-
and dust protection.
Use a suitable dust exhaust system.
The use of incorrect mains supply or a damaged power cord
can lead to injuries caused by electricity.
4. Machine specifications
4.1 Machine description
Fig 1
A Blade tension handwheel
B Height adjust hand wheel
C Height scale
D Upper blade guides
E Saw blade
F Table pin
G Dust port
HWheel cover
I Mitre gauge
J Fence carrier rail
K Fence
L On/Off magnetic switch
M Parallel cutting device
N Wheel cover
P Wheel cover micro switch
4.2 Technical data
Wheel diameter 355 mm
Cutting width max 350 mm
Cutting height max 200 mm
Sawblade length 2560 mm
Blade width 3 - 25 mm
Blade thickness 0,4 – 0,7 mm
Cutting speed 800 m/min
Machine Table(Lx W) 385x500 mm
Table tilting range -10° to 45°
Working height 1055mm
Dust port diameter 100mm
Overall (LxWxH) 830x785x1750mm
Weight 93 kg
Mains 230V ~1/N/PE 50Hz
Output power 0,5 kW (0,75HP)S1
Reference current 3,5 A
Extension cord (H07RN-F): 3x1,5mm²
Installation fuse protection 10 A
4.3 Noise emission
Determined according to EN 1807
(Inspection tolerance 4 dB)
Workpiece beech:
T=30mm, L=1500mm, moisture 8,5%
Acoustic power level
(according to EN ISO 3746):
Idling LwA 82 dB(A)
Operating LwA 93 dB(A)
Acoustic pressure level
(EN ISO 11202):
Idling LpA 74 dB(A)
Operating LpA 87 dB(A)
The specified values are emission levels and are not
necessarily to be seen as safe operating levels. Although
there is a correlation between emission and imission levels,
these do not constitute a basis for determining the necessity
of additional safety measures. Workplace conditions which
could influence the noise imission level include the duration of
resonance, spatial particulars, other noise sources etc. For
example, the number of machines and other work being
performed. The permissible workplace levels can vary from
country to country.
This information is intended to allow the user to make a better
estimation of the hazards and risks involved.
4.4 Dust emission
The band saw JWBS-14Q has been dust emission inspected.
At an air velocity of 20 m/s on the dust port dia 100mm:
Vacuum pressure 1250 Pa
Volume flow 565 m³/h
The machine meets a workplace dust emission limit of 2
mg/m³.
4.5 Content of delivery
Machine table
Fence
Fence support rails
Parallel cutting device
Mitre gauge
Dust port 100mm
Assembly bag
Saw blade 10 mm
Operating manual
Spare parts list
5. Transport and start up
5.1 Transport and installation
For transport use a forklift or hand trolley. Make sure the
machine does not tip or fall off during transport.
The machine is designed to operate in closed rooms and must
be placed stable on firm and levelled ground.
The machine can be bolted down if required.
For packing reasons the machine is not completely
assembled.
5.2 Assembly
If you notice any transport damage while unpacking, notify
your supplier immediately. Do not operate the machine!
Dispose of the packing in an environmentally friendly manner.
Clean all rust protected surfaces with a mild solvent.
Mount the machine table to the trunions and attach the lock
knobs (A, Fig 2).
Fig 2
Set the table to be square to the sawblade and reference the
table stop (B) and the tilting scale (D).
Attach the support rails (G, Fig 3) to the machine table with 4
hex cap screws, 4 spring washers and 4 washers and align
them parallel to the table surface.
Fig 3
Attach the guide rail (H) with 5 hex cap screws, 5 spring
washers and 5washers.
Place the fence assembly (B, Fig 4) on the guide rail and align
the fence profile (A) to be parallel to the mitre groove in the
table.
Fig 4
Move the fence assembly flush to the sawblade and set the
pointer (C) to zero.
Check the clearance between the table and the fence. The
gap should be appr. 1mm. Use the support rails and the rear
glide piece (E, Fig 5) to adjust.
Fig 5
5.2 Mains connection
Mains connection and any extension cords and plugs used
must comply with the information on the machine licence
plate.
The mains connection must have a 10A surge-proof fuse.
Only use extension cords marked H07RN-F, with wires
1,5mm2 or more.
Power cords and plugs must be free from defects.
Connections and repairs to the electrical equipment may only
be carried out by qualified electricians.
ATTENTION:
-Check first if the saw blade is tensioned and runs freely and if
all safety devices are fitted before starting the machine.
Mains connection and any extension cords used must comply
with applicable regulations.
The mains voltage must comply with the information on the
machine licence plate.
The mains connection must have a 16 A surge-proof fuse.
Only use power cords marked H07RN-F
Connections and repairs to the electrical equipment may only
be carried out by qualified electricians.
5.3 Dust connection
Before initial operation, the machine must be connected to a
dust extractor. The suction should switch on automatically
when the bandsaw is switched on.
The flow rate on the suction port must be 20m/sec.
Flexible hoses must be of non-flammable quality, and must be
connected to the machine ground system.
5.4 Starting operation
You can start the machine with the green on button. The red
button on the main switch stops the machine.
6. Machine operation
Correct working position:
In front of the machine standing in the direction of cutting.
Workpiece handling:
Hands placed flat on the workpiece outside the cutting area.
Feed the workpiece towards the saw blade in the direction of
the saw line, and cut as required by turning to follow the line
drawn. Push the workpiece steadily forward; complete the cut
as a single movement. Do not draw the workpiece back, as
this could cause the sawblade to run off its wheels.
Support long and wide workpieces with helping roller stands.
Operating hints:
Work only with a sharp and flawless sawblade.
Near the cutting area use a push stick to feed.
Bring the upper blade guide to a distance of approx 0,5 cm to
the workpiece.
Use a feeding template to safely guide small and narrow
workpieces.
Use a suitable wedge to prevent round timber from turning
under the pressure of the cut
Blade Drift:
Blade drift is a frequent problem on rip cuts and during
resawing.
Blade drift may occur when the fence is being used, the blade
begins to wander off the cutting line (Fig 6).
.
Fig 6
Blade drift can be caused by a number of factors.
- The saw blade follows the grain
- The saw blade is dull.
- Blade guides not adjusted correctly.
- Blade tension unsufficient.
- Blade-teeth have asymmetric“set”
Resaw guide:
The resaw guide allows you to compensate blade drift.
The feed direction can be lined up to follow the cut.
For resawing attach the post (A, Fig 7) to the fence with the
lock knob (B). Position the post so that it is centered with the
blade teeth.
Fig 7
Auxiliary fence for rip fence:
For your own safety always set the upper saw guide as close
to the workpiece as possible.
For narrow shallow cuts on the rip fence a self-made auxiliary
fence (E, Fig 8) made of cutable material ( e.g. wood, plastic,
aluminium) must be used.
Length same as rip fence.
Fig 8
Mitre gauge:
Place the mitre gauge in the table
T-slot.
If the mitre gauge is not square loosen the lock knob (C, Fig
7) and adjust the pointer (D).
For the authorized use of the machine observe the
appendix A
“safe operation“
(on the last pages of this operating manual)
A.1: Performing high cuts
A.2.: Performing diagonal cuts
A.3.: Tenon cutting
A.4.: Cutting of wedges
A.5.: Curved cuts
A.6.: Arc cuts
A.7.: Cutting with template
A.8.: Circular cutting
A8.1 Set up without workpiece
A8.2 Placing the workpiece
A8.3 Machining
7. Setup and adjustments
General note:
Setup and adjustment work may only be carried out after
the machine is protected against accidental starting by
pulling the mains plug.
7.1 Saw blade selection
The sawblade has to meet the technical specification.
Choose a suitable sawblade, according to the cutting
operation and according to the material to be cut.
For a high rip cut:
- use a wide sawblade, coarse teethed
(e.g. 20mm, 3 T/”)
For a narrow curved cut:
- use a narrow sawblade
(e.g. 3mm, 14 T/”).
Pitch:
The pitch should not be smaller than necessary, as the feed
speed is reduced if there are too many teeth working on the
workpiece simultaneously, which causes the saw blade to
wear more quickly.
Ideally, 3 to 12 teeth should be in action at the same time (Fig
9).
Fig 9
The following table shows recommended saw blade pitch in
relation to workpiece thickness (Fig 10).
Fig 10
Tooth Shape:
The tooth shape effects the chip capacity and the feed rate.
The following table shows common tooth shapes (Fig 11):
Fig 11
A- Regular tooth:
The most common used tooth shape. 0° rake angle.
Suited for cut-off and contour sawing of most materials. For
cutting materials where a fine cut is required.
B- Skip tooth:
Widely spaced teeth, to prevent clogging. 0°rake angle.
For resawing and ripping thick stock, especially soft woods.
C- Hooked tooth:
Large teeth and a positive rake angle, for aggressive, faster
cutting.
For resawing and ripping thick stock, especially hard woods.
D- Variable tooth:
Variable tooth shape and spacing produces smooth cuts and
dampens vibrations.
Set:
Saw teeth are bent out of the plane of the saw body, resulting
in a wide cut in the workpiece.
This helps reduce friction and allows curve cuts).
The alternate set (Y, Fig 12) is the most used for woodworking
blades.
Fig 12
X- Raker set
Y- Alternate set
Z- Wavy set
Blade width:
Use a possibly wide blade, except for contour cutting.
The following table shows relation between saw blade width
and smallest cutting radius (Fig 12).
Fig 13
Blade material:
- carbon steel
- alloy steel
- bimetal (HSS teeth welded onto alloy steel blade body)
-carbide tipped.
7.2 Changing the sawblade
Check sawblade for flaws (cracks, broken teeth, bending)
before installation. Do not use faulty sawblades.
The sawblade teeth must point in cutting direction (down)
Always wear suitable gloves when handling sawblades.
To remove the blade:
Open the wheel covers.
Remove the table pin (F, Fig 14) and the table insert.
Fig 14
Release the blade tension by operating the quick blade
tension lever (Q, Fig 16) and by turning the blade tension
handwheel (A) on top of the machine.
After the new saw blade is installed, tighten the sawblade
sufficiently. Follow the scale (S).
7.3 Blade tracking adjustment
Blade tracking shall never be performed when the machine is
running.
The sawblade must run on the centre of the rubber tyres (Fig
15.
Fig 15
With the knob (T, Fig 16) on the back of the machine the
blade tracking can be adjusted.
Fig 16
7.4 Blade tension adjustment
Quick blade tension lever:
Place the quick blade tension lever (Q, Fig 16) in the
“tensioned” position (X).
Set the blade tension by rotating the handwheel (A).
Tighten the sawblade sufficiently. Follow the scale (S).
Note:
When the band saw is not in use, place the quick blade
tension lever to the Partial-Tension position (Y),
this will prolong the blade’s life.
Also for blade changing this allows quick blade tension
release.
7.5 Blade guide adjustment
Blade guide adjustment shall never be performed when the
machine is running.
Position the guide assembly forward/ backward so that the
teeth keep a distance of appr. 2mm to the guide elements.
Secure the back guide roller so that the distance to the saw
blade is 1mm (Fig 17).
Fig 17
Set the lateral guide elements so that they contact the
sawblade lightly.
The sawblade may not be pushed out of place.
Test run:
Turn the wheels by hand and inspect the adjustments made.
Start the machine with care.
Workpiece setup:
Bring the upper blade guide to a distance of 0,5cm to the
workpiece (Fig 18).
Fig 18
For your own safety, always set the saw guide as close to the
workpiece as possible.

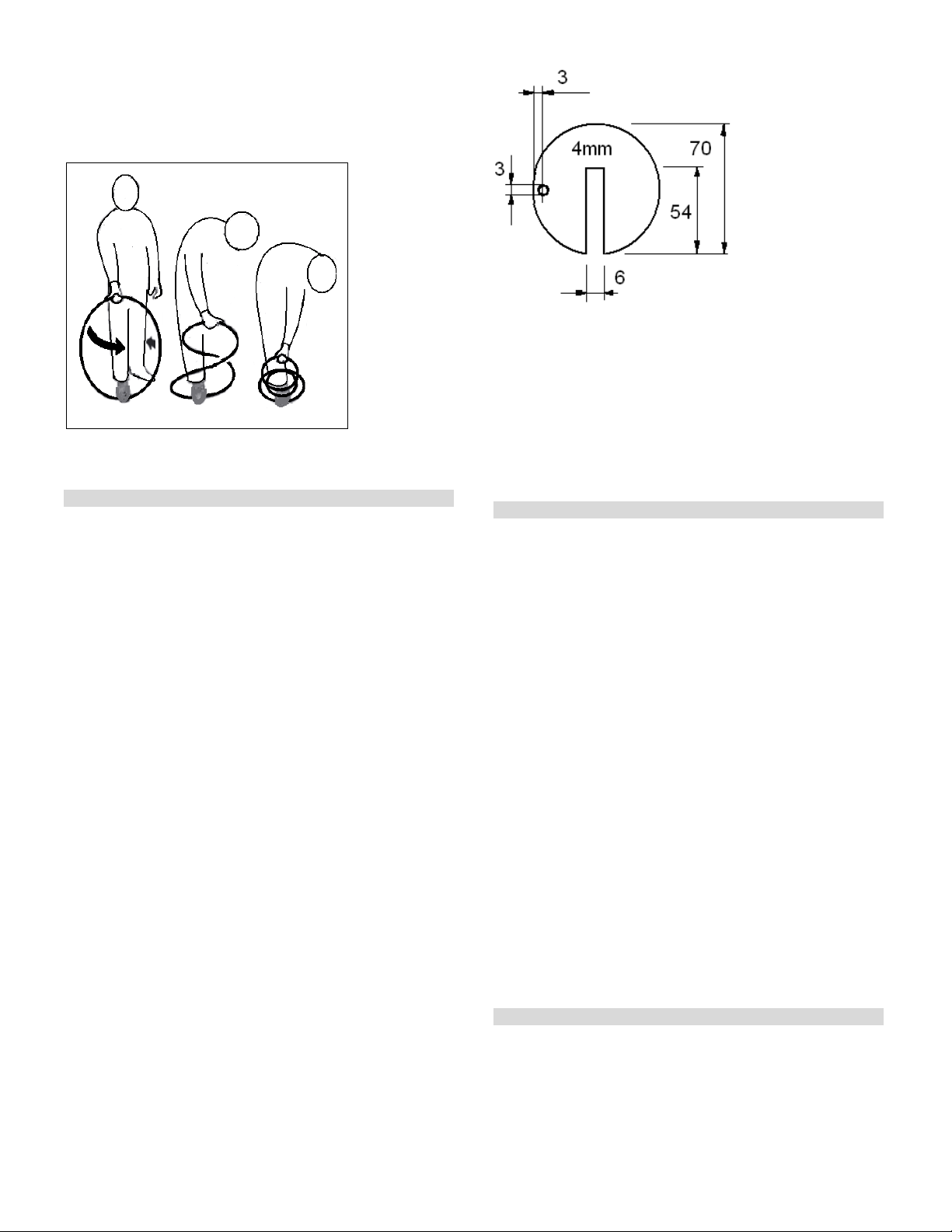

7.6 Folding the bandsaw blade
A folded saw blade needs less space.
Wear heavy gloves.
Hold the bandsaw blade in one hand. Let it hang down
vertically and hold it to the floor with a foot. Turn your hand
through 360°, a complete circle, as you move it down towards
the floor
(Fig 19).
Fig 19
8. Maintenance and inspection
General notes:
Maintenance, cleaning and repair work may only be
carried out after the machine is protected against
accidental starting by pulling the mains plug.
Repair and maintenance work on the electrical system may
only be carried out by a qualified electrician.
Clean the machine regularly.
Inspect the proper function of the dust extraction daily.
All protective and safety devices must be re-attached
immediately after completed cleaning, repair and maintenance
work.
Defective safety devices must be replaced immediately.
Inspect the correct blade tension regularly. Take away the
blade tension if the machine is not in use for a longer time
period.
Inspect the blade guide adjustment regularly.
Wheels:
The rubber tyre of the wheels must be cleaned regularly.
The upper wheel support must be lubricated regularly.
Drive:
The belt tension must be inspected regularly.
Table insert:
Replace a worn table insert.
The table insert may not project above table surface.
The table insert (Fig 20) must be made out of cutable material
(e.g. wood, plastic, aluminium)
Fig 20
JET Stock number: 135010
The table insert may not project above table surface.
Saw blades:
The servicing of saw blades should only be performed by a
trained person.
Only use sharp and properly set saw blades.
9. Trouble shooting
Motor doesn’t start
*No electricity-
check mains and fuse.
*Defective switch, motor or cord-
consult an electrician.
Machine vibrates excessively
*Stand on uneven floor-
adjust stand for even support.
*dust on wheel-
clean tires.
*sawblade has cracks-
replace sawblade immediately
Cut is not square
*Table stop setting wrong.
*Blade guide setting is bad
Cutting surfaces is bad
*Wrong sawblade used
*resin collection on sawblade
*sawblade is dull
*Blade guide setting is bad
*Blade tension too low
*workpiece inhomogeneous
*Feed pressure too high-
Do not force the workpiece.
10. Environmental protection
Protect the environment.
Your appliance contains valuable materials which can be
recovered or recycled. Please leave it at a specialized
institution.
11. Available accessories
Refer to the JET-Pricelist
for various saw blades.
Stock number 709209
Foldable roller stand.

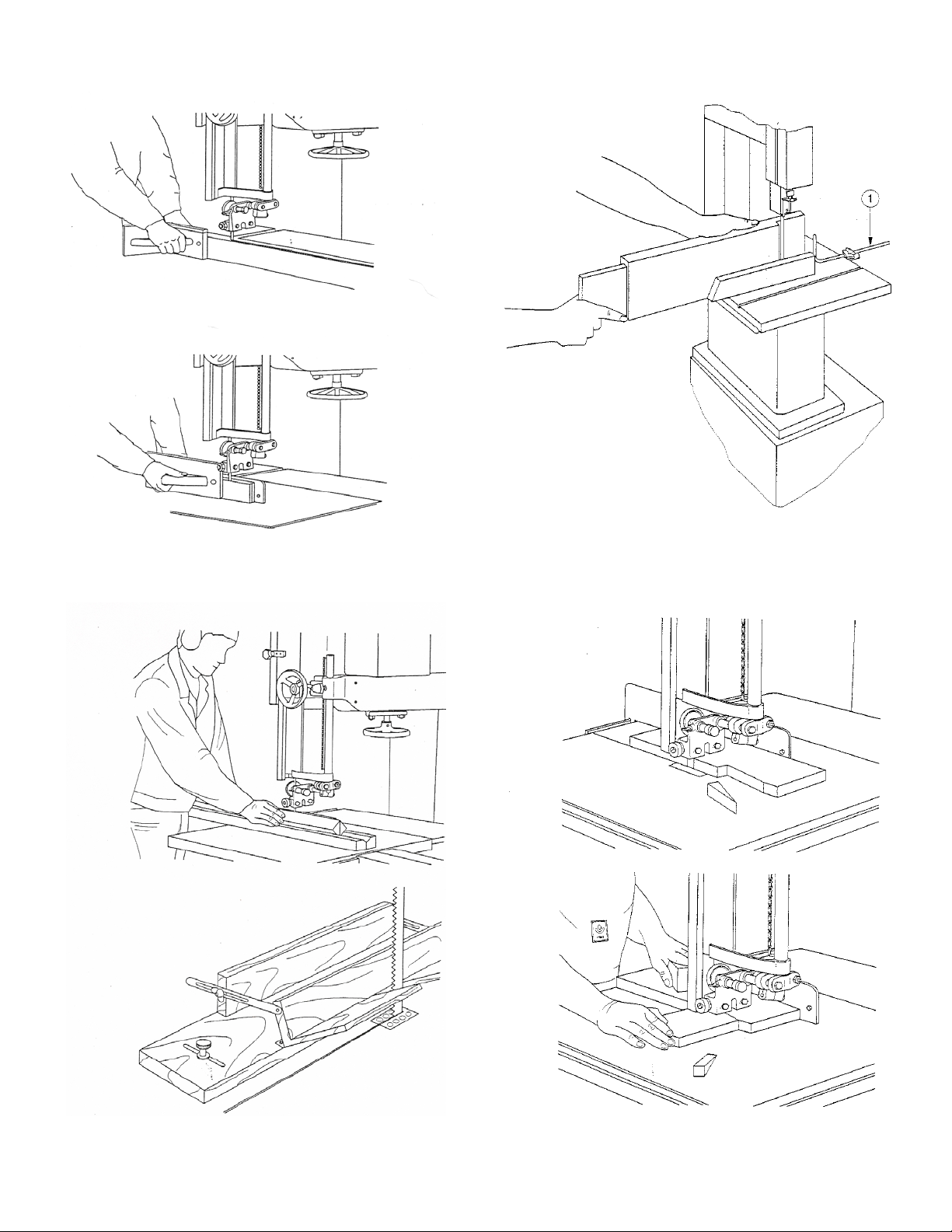

12. Safe operation
See appendix A (on the last pages of this operating manual)
A.1: Performing high cuts
A.2.: Performing diagonal cuts
A.3.: Tenon cutting
A.4.: Cutting of wedges
A.5.: Curved cuts
A.6.: Arc cuts
A.7.: Cutting with template
A.8.: Circular cutting
A8.1 Set up without workpiece
A8.2 Placing the workpiece
A8.3 Machining
1
A1
A2
A3
A4
2
A5
A6
A7
3
A8.1
A8.2
A8.3
Other manuals for JWBS-14Q
2
Table of contents
Other Jet Saw manuals
