JETWAY S755TWIN User manual

S755TWIN
USER'S MANUAL
M/B For Socket 754 AMD Athlon64
Processor
NO. G03-S755T8
Rev:1.0
Release date: April 2003
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

i
USER’S NOTICE ................................................................................................................ ii
MANUAL REVISION INFORMATION................................................................................ ii
COOLING SOLUTIONS...................................................................................................... ii
CHAPTER 1 INTRODUCTION OF S755TWIN MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ......................................................................... 1
1-2 SPECIFICATION................................................................................................... 2
1-3 PERFORMANCE LIST ......................................................................................... 3
1-4 LAYOUT DIAGRAM & JUMPER SETTING......................................................... 4
CHAPTER 2 HARDWARE INSTALLATION
2-1 HARDWARE INSTALLATION STEPS................................................................. 6
2-2 CHECKING MOTHERBOARD'S JUMPER SETTING ........................................ 6
2-3 INSTALL CPU ....................................................................................................... 7
2-3-1 GLOSSARY ............................................................................................... 7
2-3-2 ABOUT INTEL AMD K8 754-PIN CPU..................................................... 8
2-4 INSTALL MEMORY .............................................................................................. 8
2-5 EXPANSION CARD .............................................................................................. 9
2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION...................... 9
2-5-2 ASSIGNING IRQ FOR EXPANSION CARD............................................. 9
2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD .............. 10
2-5-4 AGP SLOT ................................................................................................. 10
2-6 CONNECTORS, HEADERS ................................................................................. 11
2-6-1 CONNECTORS ......................................................................................... 11
2-6-2 HEADERS.................................................................................................. 14
2-7 STARTING UP YOUR COMPUTER..................................................................... 18
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP............................................................................................... 19
3-2 GETTING HELP .................................................................................................... 19
3-3 THE MAIN MENU.................................................................................................. 20
3-4 STANDARD CMOS FEATURES.......................................................................... 21
3-5 ADVANCED BIOS FEATURES............................................................................ 22
3-6 ADVANCED CHIPSET FEATURES..................................................................... 24
3-6-1 DRAM TIMING SETTINGS ....................................................................... 25
3-7 INTEGRATED PERIPHERALS ............................................................................ 26
3-7-1 ONBOARD IDE FUNCTION ..................................................................... 26
3-7-2 ONBOARD DEVICE FUNCTION.............................................................. 27
3-7-3 ONBOARD SUPER IO FUNCTION.......................................................... 28
3-8 POWER MANAGEMENT SETUP ........................................................................ 29
3-8-1 PM TIMER RELOAD EVENTS ................................................................ 30
3-9 PNP/PCI CONFIGURATION SETUP ................................................................... 30
3-9-1 IRQ RESOURCES.................................................................................... 31
3-10 PC HEALTH STATUS ......................................................................................... 32
3-11 MISCELLANEOUS CONTROL ........................................................................... 32
3-12 LOAD STANDARD/OPTIMIZED DEFAULTS..................................................... 33
3-13 SET SUPERVISOR/USER PASSWORD............................................................ 34
CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION
MAGIC INSTALL SUPPORTS WINDOWS 98SE/ME/NT4.0/2000/XP ........................ 35
4-1 AGPVXD INSTALL SIS AGPVXD DRIVER .................................................... 36
4-2 IDE INSTALL SIS MINI IDE DRIVER..................................................... 37
4-3 SOUND INSTALL ALC AUDIO CODEC DRIVER........................................ 37
4-4 LAN INSTALL LAN CONTROLLER DRIVER ........................................ 38
4-5 PC-HEALTH INSTALLS SMART GUARDIAN SOFTWARE FOR HARDWARE
MONITORING DEVICE .............................................................. 39
4-6 PC-CILLIN INSTALL PC-CILLIN2002 ANTI-VIRUS PROGRAM .................... 40
4-7 USB2.0 INSTALL SIS USB2.0 DEVICE DRIVER........................................ 41
4-8 RAID INSTALL SIS 180 RAID DRIVER AND UTILITY ........................... 42
4-9 HOW TO DISABLE ON-BOARD SOUND ................................................................. 43
4-10 HOW TO UPDATE BIOS.............................................................................................. 43
TABLE OF CONTENT

ii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED,
TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT
WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE S755TWIN MOTHER-BOARD AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Release April 2003
Item Checklist
5S755TWIN Motherboard
5Cable for IDE/Floppy
5CD for motherboard utilities
□ Cable for USB Port 3/4 (Option)
5Cable for Serial ATA IDE Port
5SPDIF-IN/SPDIF-OUT Adaptor
5S755TWIN User’s Manual
AMD K8 Processor Family
Cooling Solutions
As processor technology pushes to faster speeds and higher performance with increasing operation
clock, thermal management becomes increasingly crucial while building computer systems. Maintaining
the proper computing environment without thermal increasing is the key to reliable, stable, and 24
hours system operation. The overall goal is keeping the processor below its specified maximum case
temperature. Heatsinks induce improved processor heat dissipation through increasing surface area
and concentrated airflow from attached active cooling fans. In addition, interface materials allow
effective transfers of heat from the processor to the heatsink. For optimum heat transfer, AMD
recommends the use of thermal grease and mounting clips to attach the heatsink to the processor.
Please refer to the website below for collection of heatsinks evaluated and recommended for Socket-A
processors by AMD. In addition, this collection is not intended to be a comprehensive listing of all
heatsinks that support Socket-754 processors.
For vendor list of heatsinks and Active cooling fans, please visit：
http://www.amd.com/us-en/Processors/DevelopWithAMD/0,,30_2252_869_9460^9515,00.html

m1
Introduction
MagicTwin is a 2-User-System solution built on this special designed motherboard with a dual headed AGP
graphic card, two PS/2 keyboard and mouse Y-cables and one piece of software (Driver and Tools). It allows you
to add one additional station simultaneously running Windows XP Home or XP-Professional (Service Pack 1).
System Requirement
Jetway MagicTwin Motherboard:
2 x PS/2 Y-cable
Install CD (Driver and MagicTwin)
Serial Number and Activation Key
Purchased Separately from Dealer:
>=1.2 GHz Processor
Min 256MB DRAM
NVIDIA Dual Head AGP Graphic Card
Windows XP Home, Prof. w/ SP1
2 x PS/2 Keyboards
2 x PS/2 Mice
2 x Monitors
Necessary Components to Configure 2-User-System
¾one special designed Motherboard with connectivity hardware onboard
¾one dual head AGP graphic card (purchased separately from your dealer)
¾two Y-cables for two PS/2 Keyboards and two PS/2 Mice
¾MAGIC INSTALL CD (incl. all DRIVERS you need and some TOOLS to enable the 2-User function of
the motherboard). In addition this CD includes an auto detect software, which detects, installs and
assigns the related 2nd video display and the 2nd PS/2 keyboard and PS/2 mouse.
¾one serial number and activation key (printed on the sticker label on top of the CD package folding seal)
¾two monitors
¾two speaker systems (optional)
Recommendations
¾CPU: >1GHz
¾minimum 256 MB RAM for two Stations, running simultaneously
¾two Standard PS/2 Keyboards, -Mice and two Monitors (Sound: optional)
¾Hard disk and CD-ROM drive
Installation of MagicTwin
¾We recommend to install Windows XP and all related drivers from the scratch
¾Switch off your PC and open the computer case
¾Remove the AGP slot bracket and insert a dual headed AGP
Video Card purchased separately from your dealer into the AGP-
slot. If the delivered motherboard comes with dual VGA port
onboard, please skip this step.
Dual Port AGP VGA Card
¾As well attach the delivered Y-cables to the “green” port (former PS/2 Mouse port) and into the “violet”
port (former PS/2 Keyboard port) at the rear side of the motherboard.
¾Connect the 1st and 2nd mouse to the Y-cable, which is also linked to the “green” PS/2 connector and
the 1st and 2nd keyboard to the other Y-cable, which is also connected to the “violet” port. The additional
monitor MUST be attached otherwise windows will not detect and enable the 2nd monitor. Make sure the
additional keyboards and mice work; they should affect the host console.
¾Start your PC. Windows will automatically detect the new AGP Video device as a standard VGA-card.
Please install first all drivers before installing “MagicTwin” of the MAGIC INSTALL CD. Insert the CD,
wait for the automatic start and run the Installation of all other drivers beside the MagicTwin from the
Magic Install CD. If the CD does not run automatically, please click to Start-> Run-> CD-Drive->
SETUP.EXE.

m2

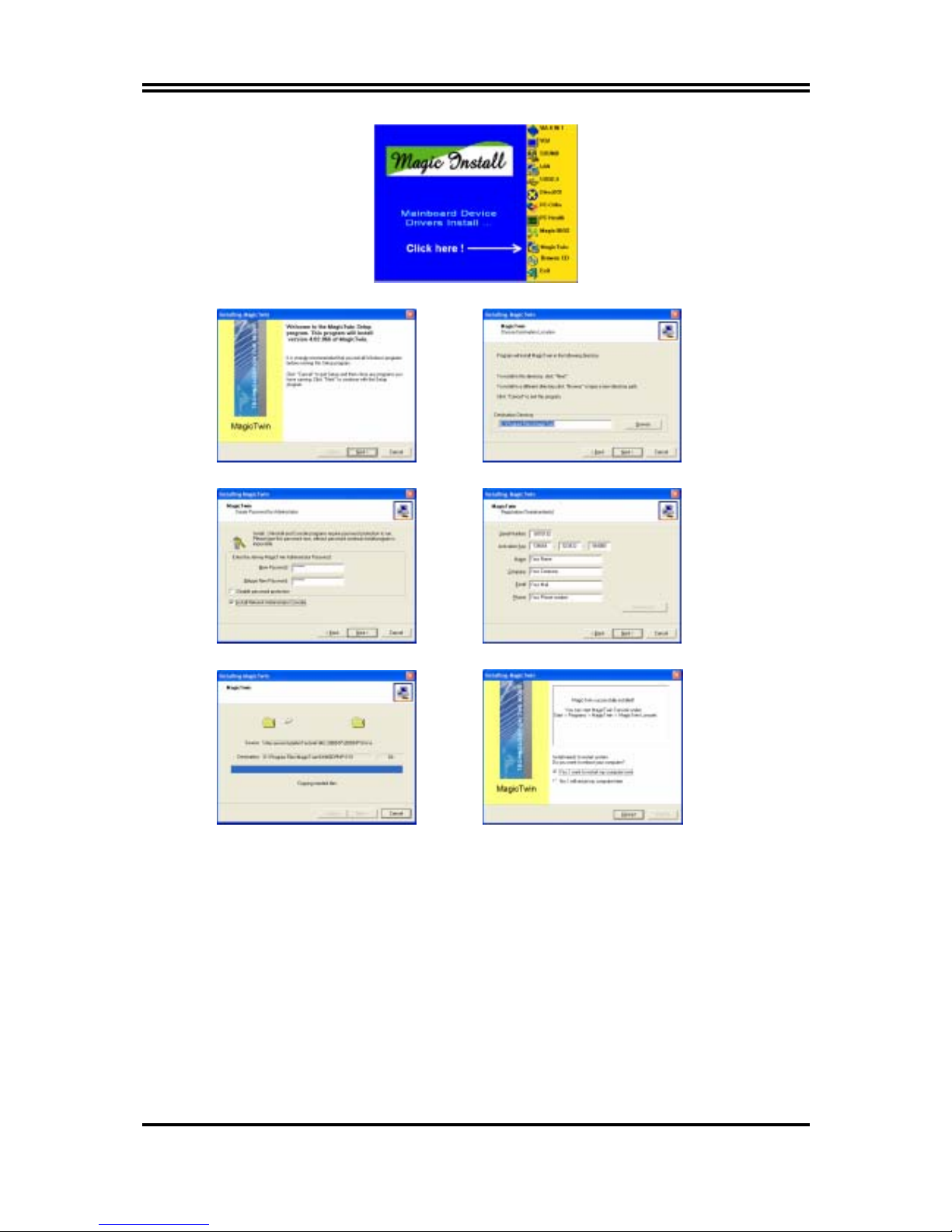

¾After all other drivers have been installed, lastly install the MagicTwin as follow:
Click “MagicTwin” when the MAGIC INSTALL MENU appears. The Installation-routine will start…
Welcome- Mask, click “Next” Option: Change destination path or click “Next”
Password and Network Console, click “Next” Type in the Serial and Address, click “Next”
Installation in process, please wait… Afterwards “Reboot your PC”.
¾Windows is restarting and loading the new installed drivers. The MagicTwin will be activated and assign
automatically the 2nd Station to the 2nd monitor, -PS/2-keyboard and PS/2 mouse.
¾Please login in to Windows and add one or more additional users under the control panel.
Dual Head AGP-card
The NVIDIA MX 440-8X, MX-4000, FX 5200 and FX5600 dual-head graphic cards are supported under
MagicTwin. One display can be used by the host and the second by the MagicTwin station. Contact your dealer
for purchasing of the validated NVIDIA dual head AGP VGA card. Among them are:
1. Jetway NV18-A2-64B 2. Jetway NV34-AD-128B 3. Jetway N31X-AD-128B
4. Asustek V9520 5. Leadtek A340 6. Leadtek A180
7. MSI FX5600-TD128 8. MSI FX5200-TD128

m3
Einführung
Dieses Barebone-System ist eine Multi-User-Plattform, welche die Verbindung zweier Benutzer zum System
ermöglicht. Mit einer Anschlusshardware onboard und einer innovativen Software, erlaubt das MagicTwin®Series
Barebone System zwei Benutzern verbunden zu sein und simultan eine Windows – Session zu betreiben. Jeder
der zwei Benutzer hat dabei das Gefühl, seinen eigenen Windows-XP Rechner zu haben. Jeder Benutzer
benötigt seine eigene Tastatur, seine eigene Maus, Soundkarte und seinen eigenen Monitor. Die übrige PC
Hardware wird geteilt, sogar die IP. Alles was Sie brauchen ist ein einzelnes MiniQ MagicTwin System mit
minimal einem 1.0 GHz oder einem höherem Prozessor, 256M RAM - Speicher (128MB pro Arbeitsstation/
Benutzer) und einem zweifachen VGA-Port. Sie können sofort dem einzelnen PC eine zusätzliche
Benutzerstation hinzufügen und aus eins zwei machen!
Systemvorraussetzungen bzw. Empfehlungen
MiniQ MagicTwin Series Barebone System
2 x Oktopus- Kabel for PS/2 keyboard and PS/2 mouse
1 x MagicTwin Installation CD (driver and digital description)
1 x Serien- Nummer mit Authorisationscodes und Linzenzvereinbarung
Purchased Parts
>= 1.2GHz Prozessor
256MB Systemspeicher
Windows XP Home oder Professional, sowie das installierte Service Pack 1
Dual- Head- VGA- AGP Grafikkarte von Ihrem Händler beziehen
2 x PS/2 Tastatur (Kabel oder Kabellos)
2 x PS/2 Maus (Kabel oder Kabellos)
2 x SVGA Standard Monitor (CRT Monitor oder TFT Flachbildschirm)
Installation der MagicTwin
Wir weisen ausdrücklich darauf hin, das Ihr Gerät alle Systemvorraussetzungen für die MagicTwin Technologie
gegeben sind. Jedes MagicTwin System benoetigt zwei VGA- Ports. Sie können eine Dual- Head- VGA- AGP
Grafikkarte von Ihrem Händler beziehen. Bereiten Sie die Installation vor, in dem Sie sicherstellen, das Sie in
Ihrem Barebone- Pcs Prepare eine der folgenden Komponenten benutzen: a). hinzugefügt Dual Head AGP VGA
Karte (2 VGA Ports) b). Dual Port VGA- Grafik onboard
Überprüfen Sie das Mainboard und die Barebone- Verpackung und folgen Sie der Installation für die
Bereitstellung des 2. VGA- Ports.
Schalten Sie Ihren PC aus und öffnen Sie das Gehäuse. Entfernen Sie das Slotblech für den VGA- Port und
setzen Sie an dieser Stelle eine Dual Head AGP Grafikkarte, welche Sie separat erworben haben, in den AGP-
Slot. Wenn Ihr geliefertes Mainboard mit zwei VGA- Ports onboard geliefert wurde, überspringen Sie bitte diesen
Schritt.
Onboard Dual Port VGA Dual Port AGP VGA Card
Nun schliessen Sie die zwei mitgelieferten Oktopus Kabel auf der Rückseite des Mainboards an, eines an den
“gruenen” Port (normalerweise PS/2 Maus Port) und den Anderen an den “violetten” Port (normalerweise PS/2
Tastatur Port). Verbinden Sie nun die erste und zweite Maus mit dem Oktopus Kabel, welches bereits mit dem
“gruenen” PS/2 Anschluss, und die erste und zweite Tastatur, welches bereits mit dem “violetten” Port verbunden
ist. Der zusätzliche Monitor muss angeschlossen sein, da Windows den 2. Monitor sonst nicht erkennt und
aktiviert. Starten Sie nun Ihren Computer neu.

m4
Software Installation
Starten Sie Ihren Computer neu. Windows erkennst automatisch die neue AGP Grafikkarte als eine standard
VGA- Garfikkarte. Bitte installieren Sie zunächst alle anderen aktuellen Treiber und erst danach den Treiber
“MagicTwin” der MAGIC INSTALL CD. Legen Sie die CD ein, und warten auf den automatischen Start und
starten die Installation der MagicTwin- Software von der Magic Install CD. Falls die CD nicht automatisch startet,
klicken Sie bitte auf Start-> Ausführen-> CD-Laufwerk-> SETUP.EXE.
Klicken Sie auf “MagicTwin” wenn das MAGIC INSTALL MENUE erscheint. The Installationsroutine startet
Willkommensbildschirm, klicken Sie auf “Next” Option: Ändern Sie den Zielpfad oder klicken auf “Next”
Passwort und Netzwerk- Konsole, klicken Sie “Next” Geben Sie Seriennummer und Adresse ein, auf “Next”
Die Installation wird ausgeführt, bitte warten… Danach “Starten Sie Ihren Computer neu”.
Windows startet neu und lädt die neu installierten Treiber. MagicTwin ist nun aktiv und weist automatisch die 2.
Arbeitsstation dem zweiten Monitor , -PS/2-Tastatur und PS/2 Maus zu.
Bitte loggen Sie sich nun bei Windows ein, und fügen Sie ein oder mehrere Benutzerkonten in der
Systemsteuerung hinzu.

m5
Installation de MAGIC TWIN
Magic Twin est une solution « 2 postes en 1 », grâce à une carte mère conçue tous spécialement à cet effet, elle
comporte 2 connecteurs vidéo, 2 ports pour les claviers et les souris, deux câbles en Y sont fournis afin de
dupliquer les ports PS/2, ainsi que le logiciel nécessaire au bon fonctionnement de l’ensemble ( driver et
utilitaire ).
Composants nécessaires à l’utilisation de deux systèmes
−Une carte mère de conception spéciale ( tous les câbles inclus ).
−Deux câbles Y pour deux claviers et deux souris PS/2.
−Le CD « Magic Install » En supplément dans ce CD un logiciel d’auto détection pour l’installation et
l’assignation du second écran, du second clavier, de la seconde souris.
−Deux moniteurs.
−Deux haut-parleurs systèmes ( option ).
−CPU > 1Ghz.
−256 Mo de RAM minimum pour les deux postes de travail fonctionnant simultanément.
−Deux claviers PS/2 standard, deux souris PS/2 standard et deux moniteurs. ( Son en option ).
−Disque dure et lecteur de cd-rom.
Installation de « Magic Twin »
−Dans un 1er temps nous vous recommandons d’installer Windows XP ainsi que tous les drivers du matériel
installé.
−Eteignez votre PC (débranchez le) et ouvrez votre boîtier.
−Connecter les deux moniteurs aux deux connecteurs VGA de la carte mère.
−Connecter les deux duplicateurs de ports PS/2.
- Vert pour les souris.
- Violet pour les claviers.
A l’arrière de la carte mère
−Puis connecter les claviers et les souris se rapportant aux duplicateurs de ports.
−-Après avoir connecté le second moniteur et vous être assuré que celui-ci était bien reconnu par Windows,
assurez-vous que le second clavier influe bien sur le second bureau et affecte bien le bon poste de travail.
−Allumer votre pc, Windows détecte automatiquement le nouveau périphérique vidéo AGP relié à la carte
vidéo.
−En 1ers lieux installer le driver « Magic Twin » situé sur le CD « Magic Install ».
−Placer le CD dans le lecteur et attendre le démarrage automatique de l’installation du logiciel « Magic Twin ».
−Si le CD ne démarre pas correctement, cliquer sur :
START > RUN > CD-DRIVE > SETUP.EXE
Lorsque le menu “ Magic Install” apparaît, cliquer sur « Magic Twin ».
Puis suivre les indications données a l’écran. ( En règle générale cliquer sur « NEXT »).
Cliquez sur “MagicTwin” a l’apparition du menu MAGIC INSTALL . La routine d’installation commence…

m6
Message de bienvenue click Next” Option: Changer de destination path ou cliquer “Next”
Mots de passe et cliquez “Next” Taper le n°de Série et votre Adresse, cliquez “Next”
Installation en cour merci de patienter. Installation terminée, rebooter votre PC.
−Après avoir installé les nouveaux drivers et relancé votre PC, « Magic Twin » est activé, et assigne
automatiquement le second poste de travail au second moniteur, le second clavier et la seconde souris.
−Relancer à nouveau Windows et ajouter un ou plusieurs utilisateurs additionnels dans le panneau de
configuration.

m7
Introduzione
Il sistema barebone è una piattaforma multiutente che consente la connessione al sistema da parte di due utenti.
Grazie all'hardware di connettività integrato e al software innovativo, il sistema barebone della serie Digybox
MagicTwin® consente a 2 utenti di connettersi e di lavorare contemporaneamente su 2 stazioni con sessioni
Windows separate. Ciascuno dei 2 utenti ha l'impressione di disporre di un proprio computer dotato di
Windows XP. Ogni utente deve avere a disposizione tastiera, mouse, periferica audio e monitor propri. Il resto
dell'hardware del PC è condiviso, incluso l'indirizzo IP. Tutto ciò che è necessario è un singolo sistema Digybox
MagicTwin dotato almeno di un processore da 1,2 GHz o superiore, di 256 MB di RAM (128 MB per
workstation/utente) e di una doppia porta VGA. La seconda stazione utente può essere aggiunta al sistema
singolo in pochi istanti, trasformando di fatto un PC in due.
Requisiti hardware minimi con caratteristiche flessibili di espansibilità
sistema della serie MagicTwin
2 x cavo Octopus per tastiera PS/2 e mouse PS/2
1 x CD di installazione MagicTwin (driver e manuali digitali)
1 x numero di serie con Codice di autorizzazione e Contratto di licenza 1.
Purchased parts
>= 1 GHz Processore
256 MB di memoria di sistema
Windows XP Home oppure Professional, con Service Pack 1
2 x tastiera PS/2 (con cavo o wireless)
2 x mouse PS/2 (con cavo o wireless)
2 x monitor standard SVGA (monitor CRT o LCD TFT)
Installazione di MagicTwin
È molto importante che siano rispettati i requisiti di sistema indicati. Ogni sistema MagicTwin necessita di due
porte VGA. È possibile acquistare separatamente la scheda AGP VGA Dual Head dal proprio rivenditore.
Preparare l'installazione utilizzando una scheda madre o un sistema barebone con: a) una scheda AGP VGA
Dual Head aggiuntiva (con 2 porte VGA) b) una doppia porta VGA integrata su scheda
Controllare la confezione della scheda madre e del sistema barebone, quindi procedere con l'installazione sulla
base dello stato di una doppia porta VGA.
Spegnere il PC e aprire il case del computer.
Rimuovere la staffa dello slot AGP e inserire nello slot una scheda video AGP Dual Head acquistata
separatamente dal proprio rivenditore. Se la scheda madre è fornita con una doppia porta VGA integrata su
scheda, ignorare questo passaggio.
Doppia porta VGA su scheda Doppia porta AGP VGA V
Collegare i due cavi Octopus forniti, uno alla porta "verde" (prima porta del mouse PS/2) e l'altro alla porta "viola"
(prima porta della tastiera PS/2) sul retro della scheda madre.
Collegare il primo e il secondo mouse al cavo Octopus collegato al connettore PS/2 "verde", quindi collegare la
prima e la seconda tastiera all'altro cavo Octopus collegato alla porta "viola". Il monitor aggiuntivo DEVE essere
collegato, altrimenti Windows non potrà rilevare e attivare il secondo monitor. A questo punto, riavviare il PC.
1. Tastiera
2. Tastiera
1. Tastiera
2. Tastiera
