Jobsite M-10kp Operation manual

M-4KP/M-10KP

For Enhanced Control

of a Multizone System/

for Controlling Four Sources

in a Multizone System

INSTALLATION & USER GUIDE

FOUR SOURCE MULTIZONE KEYPAD/

TEN KEY MULTIZONE KEYPAD

M-4KP/M-10KP

FOUR SOURCE MULTIZONE KEYPAD/

TEN KEY MULTIZONE KEYPAD

TABLE OF CONTENTS

Features............................................................................................................................1

Product Overview...........................................................................................................2

Package Contents ..........................................................................................................3

Preparing for Installation..............................................................................................3

Installation.......................................................................................................................4

Specifications.................................................................................................................6

Warranty...........................................................................................................................7

FEATURES: M-4KP

nIncludes Decora®style inserts in White, Bone

and Almond

nIncludes 200 key labels

nOperates 1 zone of a Multizone receiver

nSource in use indication

nSource and cursor keys

Installation friendly design:

nRJ45 connector for system connection

and expansion

FEATURES: M-10KP

nIncludes Decora®style inserts in White, Bone

and Almond

nWorks with a M-4KP keypad to expand the control

of a multizone system

n12 numeric keys for direct access for

sources components

nRandom, disc group and favorite keys

Installation friendly design:

nRJ45 connector for system connection

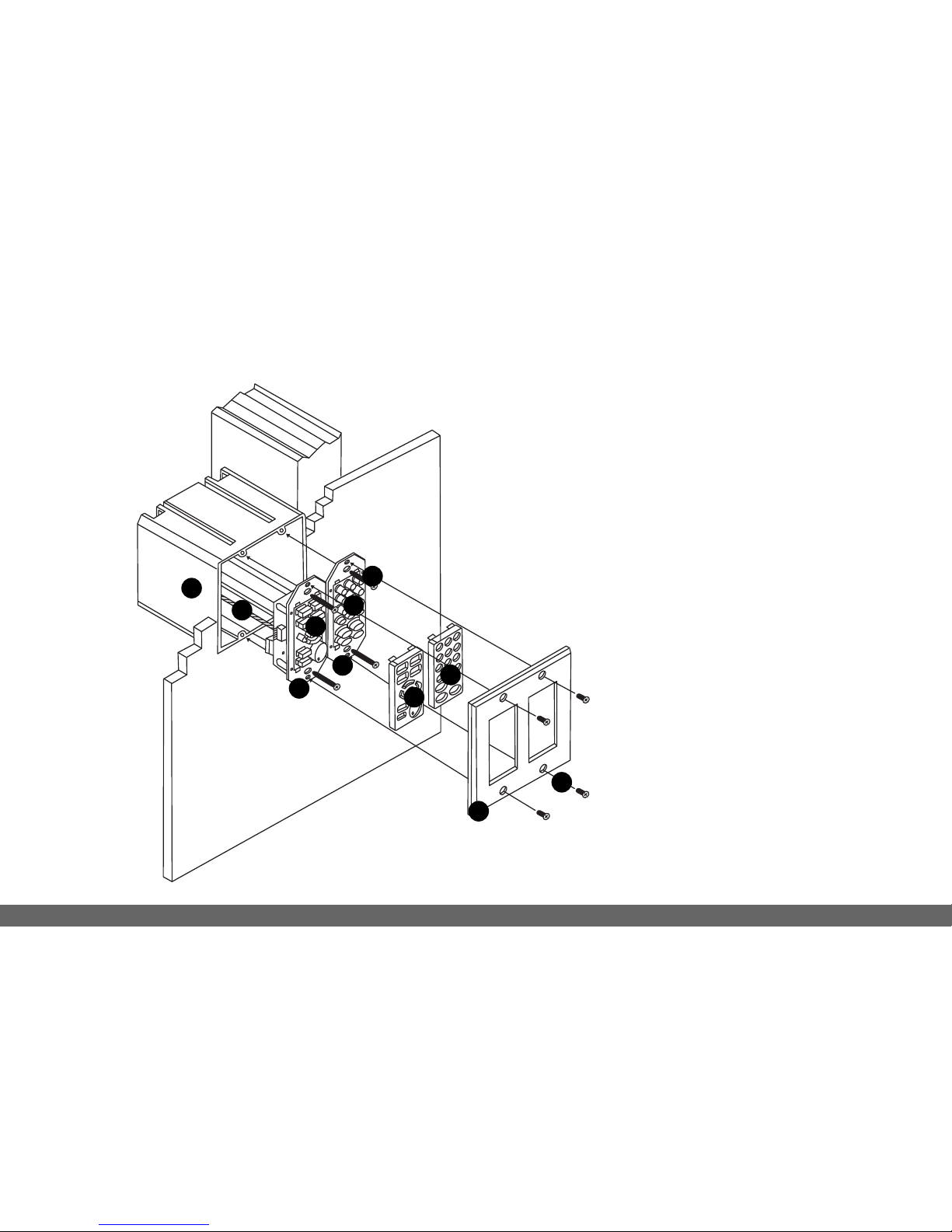

PRODUCT OVERVIEW

Figure 5

(a) Electrical box (J-box)

(b) Four pair twisted cable

(d) M-10KP

(e) Master Keys

(f) Function Keys

(g) Device screws (4 supplied)

(h) Decora® style insert

(i) Decora® style insert

(j) Decora® style two-gang

faceplate (not supplied)

(k) Faceplate screws (not supplied)

PACKAGE CONTENTS M-4KP

nM-4KP x 1

nDecora®style Inserts x 3 (White, Bone, Almond)

nDevice Mounting Screws x 2

nFaceplate Screws x 2

nKey Label Sheet x 1

PACKAGE CONTENTS M-10KP

nM-10KP x 1

nDecora®style Inserts x 3 (White, Bone, Almond)

nDevice Mounting Screws x 2

nFaceplate Screws x 2

nCAT-5 Jumper Cable

PREPARING FOR INSTALLATION

If you are installing the M-4KP and M-KP10 into an

existing wall, take time to consider any possible

obstructions which may be hidden inside the wall,

such as wood or metal studs, electrical, telephone or

other types of wiring, plumbing, AC or heating conduit.

The M-10KP Keypad operates in conjunction with a

M-4KP, giving the end user direct access to a DSS

Receiver, CD/DVD Changer, AM/FM Tuner or any

other component that requires a numeric address.

Tools Required

nRJ45 Crimper and RJ45 connectors

n1/4" Slotted screwdriver

nNo.2 Phillips screwdriver

nWire stripper

nWire labels

INSTALLATION: M-4KP

1. Identify the Keypad wire. Label the wire for future

reference.

2. Terminate the CAT5 Keypad wire with a RJ-45

connector. See Figure 2.

3. Locate the preprinted label sheet.

4. Detach the labels you will be using.

5. Remove the Decora®style insert. See Figure 4.

6. Remove the plastic key caps. See Figure 5.

7. Insert the labels in the keycaps and position them

in the appropriate Master key locations.

See Figure 6 & 7.

8. Replace the Decora®style insert. See Figure 8.

Figure 2

1 = Green/White

2 = Green

3 = Orange/White

4 = Blue

5 = Blue/White

6 = Orange

7 = Brown/White

8 = Brown Figure 4

Removing the insert.

VOL

UME

OFF

MUTE

VOL

UME

MUTE

VOL

UME

OFF

MUTE

Figure 5

Removing key caps.

Figure 6

Dropping in labels.

Figure 7

Replacing key caps.

Figure 8

Replacing the insert.

9. Connect the terminated Keypad wire to the M-4KP

terminal labeled SYSTEM.

10. Install the M-4KP into the device ring.

11. Attach a cover plate

INSTALLATION: M-10KP

1. Identify the Keypad wire. Label the wire for future

reference.

2. Terminate the CAT5 wire with a RJ-45 connector.

See Figure 2.

3. Connect the terminated Keypad wire to the M-4KP

Keypad terminal labeled SYSTEM.

4. Locate the supplied CAT5 cable included in the

M-10KP package.

5. Connect one end of the cable to the M-4KP

terminal labeled ACCESSORY KEYPAD.

6. Connect the other end of the cable to the M-10KP

terminal labeled OUTPUT

7. Install the M-4 KP and M-10KP into the device ring.

8. Attach a cover plate

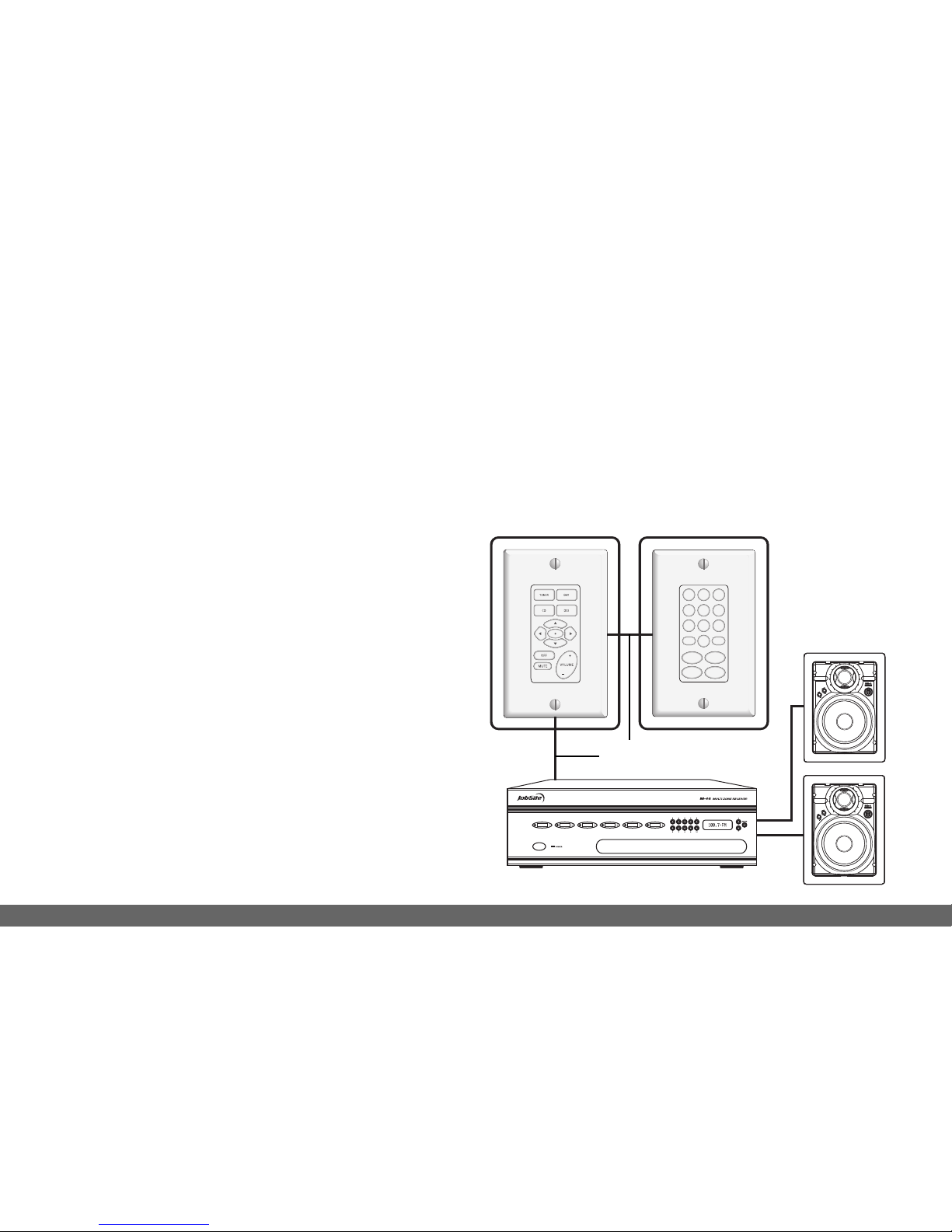

INSTALLATION DIAGRAM

1 2 3

456

78 9

-- +

RANDOM GROUP

DISC FAV

Required

M-4KP

M-10KP

M-64 Multizone Receiver

Speakers

Category

5 Wire

OPERATION

Refer to the JobSite Multizone Receiver M-64

manual for information on how to operate the

Keypads once installed.

SPECIFICATIONS M-4KP:

nCompatible with M-64 Multizone receiver

n4 backlit control keys

n5 cursor keys

nVolume, mute and zone off keys

Wiring requirements:

Individual home runs of Category 5 or better

Mounting:

Fits most single gang junction boxes

Dimensions:

1-3/4" wide x 4" high x 1-5/8" deep

Depth behind faceplate:

2-9/16"

Warranty: 2 year limited.

SPECIFICATIONS M-10KP:

nCompatible with M-64 Multizone receiver

n10 numeric keys

nRandom, disc, group and favorite keys

nConnects to M-4KP keypad using Category 5

or better cable

Wiring requirements:

Individual home runs of Category 5 or better to

M-4KP Keypad

Mounting:

Fits most single gang junction boxes

Dimensions:

1-3/4" wide x 4" high x 1-5/8" deep

Depth behind faceplate:

2-9/16"

Warranty: 2 year limited.

LIMITED WARRANTY

JobSite Systems (“JOBSITE”), a Niles Audio

Corporation company, warrants its passive products

(those not requiring AC or battery power) to the

original purchaser to be free of manufacturing

defects in material and workmanship for a period of

ten years from date of purchase.

JOBSITE warrants its passive loudspeaker products

(those not requiring AC or battery power) to the

original purchaser to be free of manufacturing

defects in material and workmanship for a period of

five years from date of purchase.

JOBSITE warrants its indoor/outdoor loudspeaker

products to the original purchaser to be free of

manufacturing defects in material and workmanship

for a period of two years from date of purchase.

JOBSITE warrants its all weather rock loudspeaker

products to the original purchaser to be free of

manufacturing defects in material and workmanship

for a period of five years from date of purchase.

JOBSITE warrants its active products (those requiring

AC or battery power) to the original purchaser to be

free of manufacturing defects in material and

workmanship for a period of two years from date of

purchase.

This Warranty is subject to the following additional

conditions and limitations. The Warranty is void and

inapplicable if JOBSITE deems that the product has

been used or handled other than in accordance with

the instructions provided by the manufacturer,

including, but not limited to, damage caused by

accident, mishandling, improper installation, abuse,

negligence, or normal wear and tear, or any defect

caused by repair to the product other than by JOBSITE

or an authorized JOBSITE wholesale distributor.

To obtain warranty service, you must write to

JOBSITE: Include your name, address, telephone

number, model number and serial number of your unit,

and a brief description of the problem.

A factory Return Authorization Number will be sent to

you. DO NOT RETURN ANY UNIT WITHOUT FIRST

RECEIVING WRITTEN AUTHORIZATION AND

SHIPPING INSTRUCTIONS FROM JOBSITE.

If the above conditions are met, the purchaser’s sole

remedy shall be to return the product to JOBSITE, in

which case JOBSITE will repair or replace, at its sole

option, the defective product without charge for parts

or labor. JOBSITE will return the unit repaired or

replaced under warranty by shipping it by its usual

shipping method from the factory (only) at its expense

within the United States of America. THERE ARE NO

OTHER WARRANTIES, INCLUDING, WITHOUT

LIMITATION, EITHER EXPRESS OR IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, WITH RESPECT TO

THE PRODUCT.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER/PURCHASER. NILES SHALL NOT BE

RESPONSIBLE FOR ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES EXCEPT TO THE

EXTENT PROVIDED (OR PROHIBITED) BY

APPLICABLE LAW.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above

limitation may not apply to you. This warranty gives

you specific legal rights, and you may also have other

rights, which vary from state to state.

For the name of the nearest authorized JOBSITE

wholesale distributor, contact:

JobSite Systems

12331 S.W. 130 Street, Miami, Florida 33186

WWW.JOBSITESYSTEMS.COM

JOBSITE SYSTEMS

12331 S.W. 130 STREET, MIAMI, FLORIDA 33186

P 866.4JB.SITE (866.452.7483) – F 305.238.0185

WWW.JOBSITESYSTEMS.COM
