Joerns Healthcare ELEVATE Operator's manual

User Instruction Manual
Oxford®Elevate
To avoid injury, read user manual prior to use.
Manuel de l’utilisateur
Oxford®Elevate
Afin d’éviter tout accident, veuillez lire
attentivement la notice avant utilisation.
Manual de Instrucciones
Oxford®Elevate
Para evitar posibles daños, lea
previamente el manual de usuario.
Benutzerhandbuch
Oxford®Elevate
Um Verletzungen zu vermeiden, lesen Sie bitte die
Gebrauchsanweisung vor der ersten Benutzung.

Oxford®
Elevate
2
English
Contents
1. Oxford Elevate Patient Lift..................................................................................... 3
2. Introduction: About Your Lift.................................................................................. 4
3. Assembly and Commissioning Instructions........................................................... 5
4. Sling Guide............................................................................................................ 9
5. Lifting with the Oxford Elevate .............................................................................. 11
6. Safety Precautions ................................................................................................ 12
7. Smart Monitor and Handset .................................................................................. 14
8. Operating Instructions ........................................................................................... 18
9. Charging Instructions............................................................................................. 20
10. Digital Weigh Scale ............................................................................................... 22
11. Maintenance schedule & Daily Check List............................................................ 25
12. Technical Specifications........................................................................................ 27
13. Warranty................................................................................................................ 30
14. Logbook for Scale ................................................................................................. 31

Oxford®
Elevate
3
English
1. The Oxford Elevate Patient Lift
Removable
Foot Plate
Electric Actuator
Adjustable Knee Pad
Sling Attachment
Points
Spreader Bar
(Cow-horns)
Mast Extrusion
Rear Castor
(braked)
Push
Handle
Battery/
Control Pack
Front Castor
(non-braked)
Digital Weigh
Scale

Oxford®
Elevate
4
English
2. Introduction: About Your Lift
Each Elevate lift is fully assembled, load tested and certified before being packed/shipped.
The packing consists of a strong, purpose built carton to ensure the safe arrival of the lift. A
number of documents are supplied in a wallet, and packed with each lift and should be kept
safely for future reference:
• TEST CERTIFICATE • DEALER GUARANTEE CARD (Europe only)
• USER MANUAL • CUSTOMER SATISFACTION CARD (Europe only)
• PACKING CHECK LIST
The TEST CERTIFICATE is an important document and will be required for your insurance
records. It is valid for six months and after it has expired the lift should be inspected and serviced
per the maintenance schedule.
Your authorised dealer can carry out servicing and periodic testing for those countries where this
is a requirement (Europe). Please ensure your lift is included in their maintenance schedule. If
you are at all unsure what your local market servicing requirements are, please check with your
dealer, a local government agency and/or Joerns Healthcare.
The CE mark:
Statement of Intended Use
The intended use of this lifting device is for the safe lifting and transfer of an individual from one
resting surface to another (such as a bed to a wheelchair). Joerns Healthcare recommends that
the transfer of a patient is fully risk assessed and conducted safely over a short distance only.
The Oxford Elevate is suitable for patients in the SITTING position only who have a degree
of weight-bearing ability but require assistance to stand. By removing the foot tray, the Oxford
Elevate patient lift can also be used as a walking aid following a careful risk assessment.
The Oxford Elevate is designed to support and promote safe patient handling and transfer for
both the patient and carer. It incorporates a fully calibrated digital weigh-scale for patient weight
monitoring.
The Oxford Elevate stand aid is designed to be used in conjunction with the Oxford range of
slings. The examples of slings suitable for use with this device are listed as follows:
• Oxford Standing Sling
• Oxford Transport Sling
Expected Service Life
Oxford Professional lifts are designed and tested for a minimum service life of ten (10) years,
subject to the use and maintenance procedures stated in this manual. Use, other than in accordance
with these instructions, may compromise service life.
The Oxford Elevate carries the CE mark and complies with the following
EC directives:
• Medical Device Directive (93/42/EEC)
• EMC Directive (89/336/EEC) (Electrics only)
• Low Voltage Directive (73/23/EEC) (Electrics only)

Oxford®
Elevate
5
English
3. Assembly and Commissioning Instructions
Carton Contents
Place the carton in a clear working area and open carefully. The carton contains:
•OXFORD ELEVATE LIFT
•WALLET CONTAINING DOCUMENTS
•HAND CONTROL
•BATTERY PACK
WARNING
The Oxford Elevate is heavy and will need to be lifted with care. You may need assistance
to lift the Oxford Elevate from the carton.
Assembly
Remove the Elevate from the carton and place on the floor.
•CHARGING LEAD
•DESK TOP CHARGER/STAND
•SPIRIT LEVELLING DEVICE

Oxford®
Elevate
6
English

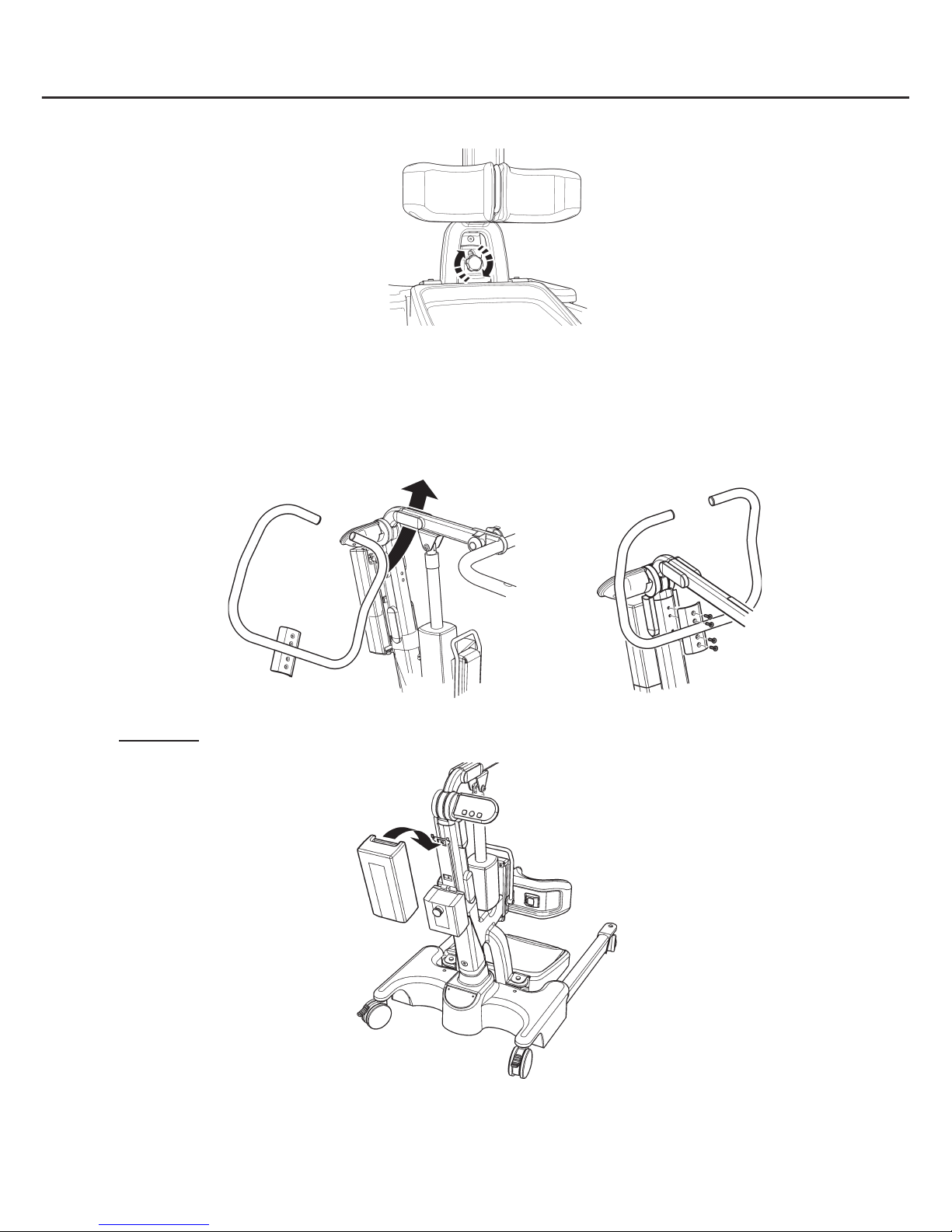

1. Tighten the mast assembly with the mast-locking device, which is located at the front of the chassis.
2. Turn the locking knob until hand tight.
3. Line the handle assembly up to the mast, and attach using the fasteners provided (these can be
found in the mast). The wrench needed to attach the handle is kept in the user instruction
wallet for safe keeping.
CAUTION: Ensure that the handle is secure and in place prior to using lift.
4. Fit power pack to the lift and make sure the latch holding the pack in place is fully engaged.
“Click” in place.

Oxford®
Elevate
7
English
5. Fit the hand control to the lift as shown. Once complete, check the hand control is
functioning correctly by referring to page 8.
6. A self adhesive spirit levelling device is supplied as a reference tool for use when
maximum weighing accuracy is required. For maximum accuracy when weighing,
centre the spirit level prior to weighing the patient.
Disassembly
The lift should not be disassembled unless for service, repair or transport if necessary.
Therefore follow the assembly instructions in reverse sequence.
Spirit levelling
device

Oxford®
Elevate
8
English
ALWAYS CHECK THE FOLLOWING BEFORE OPERATION
• The mast is fully locked into position.
• The red emergency stop button, located on the rear of the control box, is in the OFF (out)
position.
• The legs of the lift open and close satisfactorily (This is done via the hand control).
• Push the up and down buttons on the hand control and confirm the boom rises and lowers.

Oxford®
Elevate
9
English
4. Sling Guide
The Oxford Elevate is suitable for patients in the SITTING position. The slings suitable for this
device are listed as follows:
• Oxford Transport sling
• Oxford Standing sling
User Guide For Standaid Slings
The Transport and Standing sling is an easy fit sling, suitable for standing and supporting. It is
not a general purpose sling and patients must be assessed for suitability by a qualified person.
Transport Sling
Feed the sling down the back of the patient leaving the top of the commode aperture at the base of
the spine. Check the roll part of the sling is square across the patient’s back.
Attach the support strap around the chest of the patient. This strap need not be tight. It is there to
hold the sling in position whilst attaching the loops to the Standaid. It may be left off altogether if
preferred. Ensure patient’s arms are on the outside of the sling.
Raise the patient’s leg and feed the leg strap under and up between the legs. Ensure the sling is
not twisted or creased under the thigh. Repeat this procedure for the other leg. Attach the loops
on the roll parts of the sling to the white hooks at the end of the hand grips.
Without crossing the loops on the leg straps, attach to left and right black knobs on the lifting
fork. You would normally use the middle of the three loops. The patient is now ready to be raised
from the seat. Once clear of the seat, the patient will be more comfortable if lowered back in to
the sitting position.
Attachment Loop Straps:
Shoulder
Attachment Loop Straps:
Legs
Chest Supports and Buckle
Leg Supports

Oxford®
Elevate
10
English
Standing Sling
Place the sling down behind patient’s back between base of shoulder blades and bottom of rib
cage. Attach the support straps around the front of the patient. This strap need not be tight. It is
there to hold the sling in position whilst attaching the sling to the Standaid. It may be left off
altogether if preferred. Ensure that the patient’s arms are outside the sling.
NOTE: For detailed fitting instructions, please refer to the user guide supplied with each sling.
WARNING
Joerns Healthcare recommends that slings be checked regularly and particularly before
use for signs of fraying or damage. DO NOT use slings that are worn or damaged.
WARNING
OXFORD RECOMMENDS THE USE OF GENUINE OXFORD PARTS. Oxford sling and lift
products are designed to be compatible with one another. For country specic guidance on
sling use and compatibility, please refer to the sling label or contact your local market
distributor or Joerns Healthcare.
WARNING
Refer to maximum weight capacity of lift. Sling capacity is limited by the maximum
capacity of the lift.
Attachment Loop Straps
Chest Support

Oxford®
Elevate
11
English
5. Lifting with the Oxford Elevate
Position the Elevate so that the patient’s feet fit in the foot tray and knees rest against the knee
pad. Attach the loops of the sling to the hooks at the end of the Elevate hand grips. The patient’s
hands should be placed on the handgrips (see Fig. A or C). Then push the UP button on the
hand control to raise the patient to the standing position (see Fig. B or D).
Note: For lifts sold outside of the US, dedicated hand grips are not incorporated. Patients are
therefore encouraged to use the cow-horn if additional support is required.
Standing Sling
Transport Sling
WARNING
If using the Oxford Elevate for gait training, the foot tray should be removed and a
thorough risk assessment carried out to ascertain suitability prior to lifting.
Fig. A Fig. B
Fig. C Fig. D

Oxford®
Elevate
12
English
6. Safety Precautions
Please read and follow the safety precautions listed below. The operation and use of Oxford
patient lifts is simple and straightforward. Following these few basic safety precautions will make
lifting operations easy and trouble free.
READ AND UNDERSTAND THE USER INSTRUCTION MANUAL BEFORE USING
YOUR “ELEVATE”
WARNING
• ALWAYS plan your lifting operations before commencing.
• ALWAYS carry out the DAILY CHECK LIST before using the lift.
• ALWAYS familiarise yourself with the operating control and safety features of a lift
before lifting a patient.
• DO NOT use a sling unless it is recommended for use with the lift.
• ALWAYS check the sling is suitable for the particular patient and is of the correct size and
capacity.
• NEVER use a sling, which is frayed or shows signs of damaged.
• ALWAYS fit the sling according to the instructions provided (user instructions).
• DO NOT exceed the safe working load.
• ALWAYS check the safe working load of the lift is suitable for the weight of the patient.
• ALWAYS carry out lifting operations according to the instructions in the user manual.
• NEVER disconnect or bypass a control or safety feature because it seems easier to operate
the lift.
• DO NOT attempt to manoeuvre the lift by pushing on the mast, boom or patient.
• ALWAYS manoeuvre the lift with the handle / foot push pad provided.
• ALWAYS lower the patient to the lowest comfortable position before transfers.
• DO NOT push a loaded lift at speed, which exceeds a slow walking pace (3 Km/hour 0.8
metres/second).
• DO NOT push the lift over uneven or rough ground. Particularly if loaded.
• DO NOT attempt to push/pull a loaded lift over a floor obstruction.
• NEVER force an operating/safety control. All controls are easy to use and do not
require excessive force.
• The MINIMUM load required to manually lower the hoist using the mechanical emergency
down function is 30 kg.
• DO NOT park a loaded lift on ANY sloping surface.

Oxford®
Elevate
13
English
• DO NOT use electric lifts in a shower.
• DO NOT charge an electric lift in a bathroom or shower room.
• DO NOT lift a patient unless you are trained and competent to do so.
• DO NOT use the lift, or allow the lift to be used, for any other purpose.
• DO NOT bump the lift down steps, loaded or unloaded.
• DO NOT attempt to negotiate a loaded lift on a slope, which exceeds 1:12 (approximately 5
degrees).
• DO NOT attempt to negotiate a slope without a second helper being present.
• DO NOT use in a wet or corrosive environment such as poolside locations.

Oxford®
Elevate
14
English
7. Smart Monitor & Handset
Emergency Stop Button
Emergency Raise & Lower
Redundant Controls
LCD
Information
Screen
Handset
Connection
Socket
Actuator
Connection
Socket
Handset
Connection
Plug
Raise & Lower
Buttons
Handset
Actuator
Detachable Battery
Pack
Smart Monitor
Legs Open /
Close Buttons
Legs Open / Close
Redundant Controls

Oxford®
Elevate
15
English
Intended Use
The Oxford Smart Monitor is a control system for Oxford Hoists. The Smart Monitor stores useful
servicing information about the hoist that can be recalled when required. This servicing information
includes:
• Number of patient lift cycles
• Total work done by actuator
• Number of lift overloads (attempted lifts above the safe working load)
• Number of days since last service interval
The Oxford Smart Monitor contains a microprocessor inside making it possible to read out service
data via the on-board LCD screen.
Features
• Data collection in the control box with data display via LCD screen
• Work counter
• Intelligent cycle counter
• Service indicator
• Service interval indicator
• Overload information
• 3 step battery indicator
Benefits
• Improved safety for both patient and carer
• Accurate service data available at the touch of a button
• Optimised product life time
• Ease of maintenance for engineers and service technicians
• Fast and easy error identification

Oxford®
Elevate
16
English

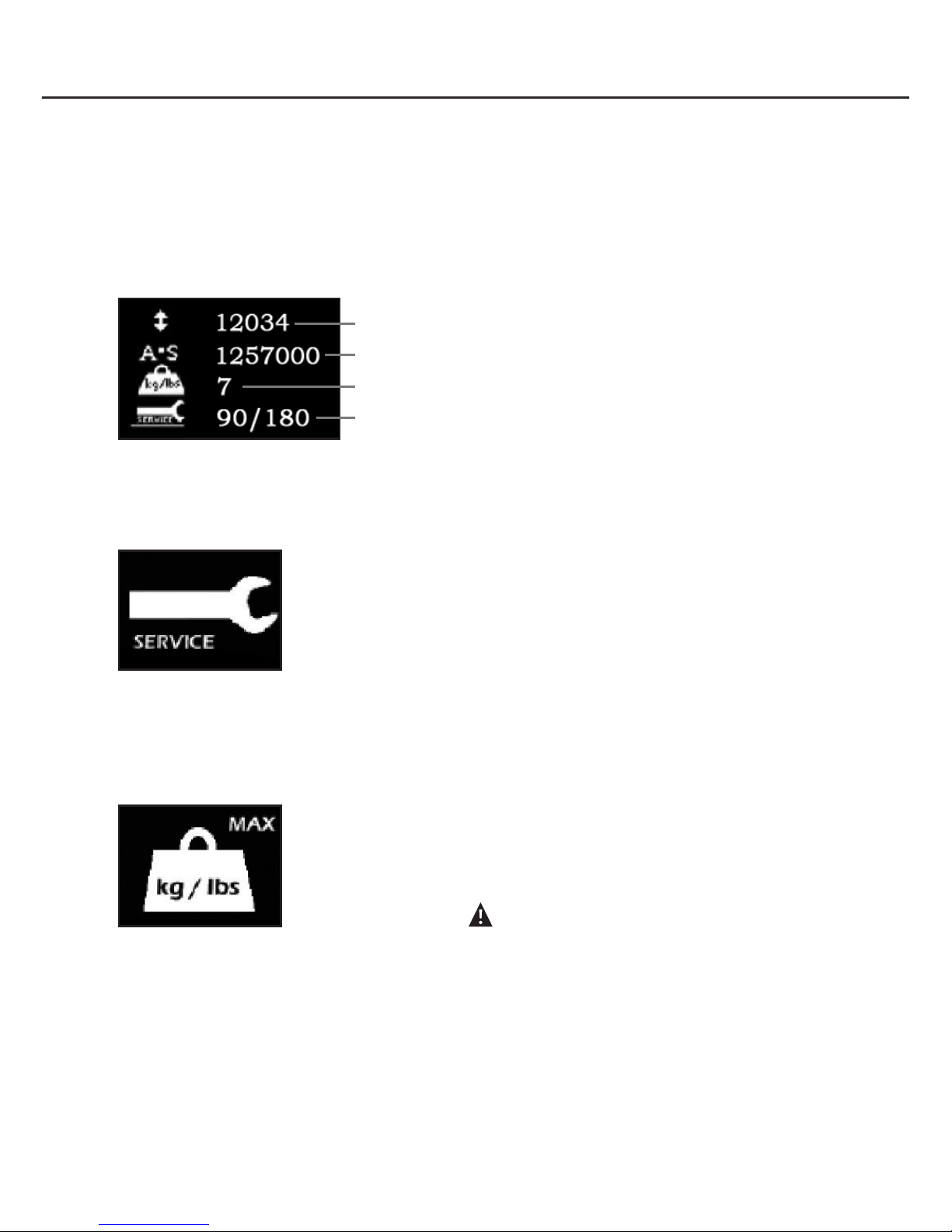

LCD Display Screen
The Oxford Smart Monitor has the option to read out information via the LCD display screen. It is
possible to read out total lifting cycles, total work done, overloads and number of days since last
service, which can be used to quickly and easily evaluate the condition of the lift actuator.
This information is accessed by a ½ second press on the ‘UP’ button on the User handset or
redundant ‘UP’ button on the Smart Monitor.
Service & Usage Information
When it is time for a service, the service symbol will appear on the
display. In addition, when the user handset is activated, the Smart
Monitor will give an audible signal giving notice to users that a service
is required.
The service symbol will be displayed each time the raise or lower keys
are depressed on the User handset. When the service symbol is displayed,
contact your authorised service provider immediately to arrange a service.
You may continue to use your lift for a short period of time until a service
has been carried out.
If the lift stops because of an overload (an attempt to lift more than the
safe working load) the overload symbol will appear on the LCD display
and the lift will cease to operate until the additional load (above the
SWL) has been removed.
WARNING
If the LCD display screen on your Smart Monitor has recorded
an overload, Joerns Healthcare recommend that ALL routine
daily checks are carried out on the lift prior to further use (for a
list of daily checks, please refer to your lift user manual). Joerns
Healthcare also recommend that you contact your authorised
Oxford service provider for additional guidance.
Total Lifting Cycles
Total Work Done (Amps * Seconds)
Number of Overloads
Number of Days (since last service) /
Number of Days (between services)

Oxford®
Elevate
17
English

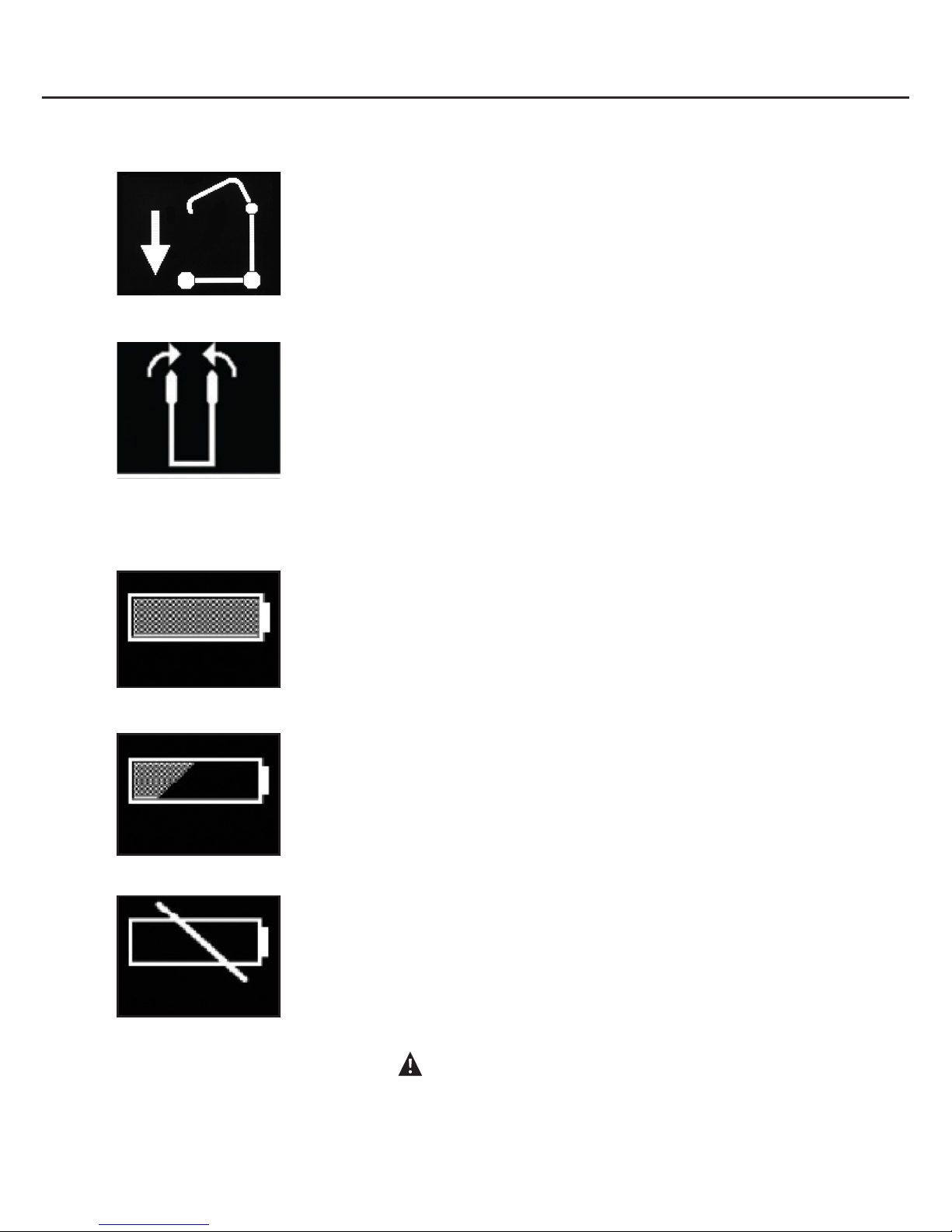

On-Board Redundant Controls
On-board redundant controls enable the lift to be raised or lowered in
the event of an emergency.
If your lift incorporates powered leg positioning, there are redundant
controls to both open and close the legs.
Battery Information
The display showing full battery means that the battery is fully charged
and the lift is ready for use.
The display showing a half empty battery indicates that it is time to
charge the battery.
The empty battery symbol showing on the display indicates that the
battery has no capacity left and should be placed on charge immediately.
WARNING
To avoid possible permanent damage to the battery, the battery should be placed on
charge as soon as the display indicates the half empty battery symbol.

Oxford®
Elevate
18
English
8. Operating Instructions
1. Leg adjustment
The legs on the Oxford Elevate are electrically adjustable for width. The legs can be opened to
enable access around armchairs or wheelchairs. For transferring and negotiating narrow door-
ways and passages the lift legs should be in the closed position.
Electric leg adjustment - is achieved by pressing the appropriate buttons on the handcontrol. The
legs will be locked whenever the handcontrol switch is released.
2. Castors and Braking
The lift has two braked castors which can be applied for parking. When lifting, the castors should
be left free and un-braked. The lift will then be able to move to the centre of gravity of the lift. If
the brakes are applied it is the patient that will swing to the centre of gravity and this may prove
disconcerting and uncomfortable.
3. Raising & Lowering The Boom
A powerful electric actuator that is controlled by a simple hand control unit achieves the
movement of the boom. The hand control has two buttons with directional arrows UP and DOWN
áâ. The actuator stops automatically at its limit of travel in both directions. The hand control
plugs into a socket at the base of the control box.
4. Emergency Stop
The red Emergency Stop Button is located on the front of the control box and is activated by
pressing in. This will cut all power to the lift and only be reset by twisting the button anti-clock-
wise and releasing.
5. Redundant controls
All Oxford lifts are fitted with raise and lower buttons on the control box. These are located
underneath the emergency stop button and can be used to lower/raise the patient should the
hand control fail.
6. Mechanical Emergency Down
In the case of a complete electrical failure the electrical actuator is fitted with mechanical lowering
device (RED BOSS). This will only operate when the lift is under load. The device must be pulled
upwards to activate, and a slow decent will commence.
Note: The MINIMUM load required to manually lower the hoist using the mechanical emergency
down function is 30 kg. This is an emergency device and not intended for repetitive use.
7. Batteries
A LOW VOLTAGE ALARM protects the batteries from deep discharge. This will sound when the
batteries need recharging and the hand control is being operated. It will not sound independently
of the hand control being operated. DO NOT IGNORE THIS WARNING ALARM. Complete the
lifting operation and place the battery on charge (see charging instructions). The battery charge
level is displayed by the indicator on the control box.
CAUTION
The battery, charger, hand control, control box and actuator should not to be opened by
unauthorised personnel. (Contact your distributor for warranty and repairs).

Oxford®
Elevate
19
English
8. Slings
The Oxford Elevate is suitable for patients in the SITTING, position. The slings suitable for this
device are listed as follows:
• Oxford Transport sling
• Oxford Standing sling

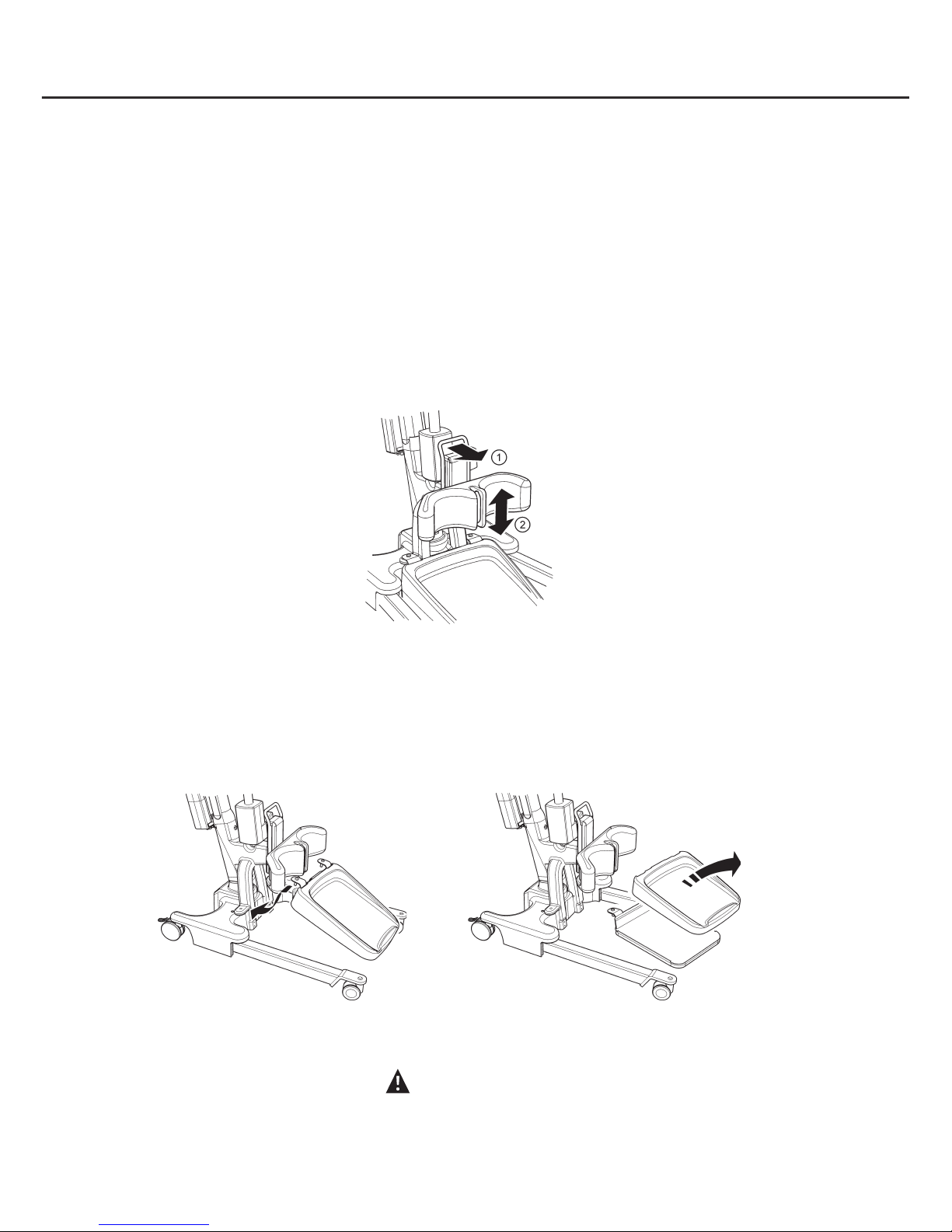

9. Knee pad adjustment
The Elevate has an adjustable kneepad. It is recommended for safety reasons that adjustment is
carried out by holding the top of the adjustment handle. The range of travel is approx 7 inches.
Adjustment is achieved by following two easy steps. STEP 1 pull handle towards you, STEP 2
either push handle downwards or pull handle upwards to select the kneepad position. Once the
ideal position is found release handle and the kneepad will automatically lock into position.
10. Removable footplate
The Elevate has a removable footplate. To remove the footplate, move to the front of the prod-
uct, and lift the footplate upwards from the middle of the assembly (see Fig. E). Additionally you
can also remove the footplate cover to aid in cleaning and disinfecting of the footplate area. This
is achieved by removing the footplate and unclipping the cover from the back of the footplate (see
Fig. F).
NOTE: Be careful when lifting the footplate from its low-seated position.
WARNING
If using the Oxford Elevate for gait training, the foot tray should be removed and a
thorough risk assessment carried out to ascertain suitability prior to lifting.
Fig. E Fig. F

Oxford®
Elevate
20
English
9. Charging Instructions
When the power pack needs charging it is removed from the lift and fitted to an off board charging unit.
Joerns Healthcare recommend an additional battery pack is purchased, so that one pack can be
on charge at all times.
1. Remove the power pack from the lift. The pack is retained by a simple latch at the top of the
power pack. Lift the latch and the power pack will be released.
2. Fit the power pack to the charging unit. The location and latching of the power pack to the
charger is the same system as used on the lift.
3. Plug the charger mains plug into a suitable mains outlet and switch the mains supply ON.
4. Charging is automatic and will fully charge the batteries over a period of four (4) hours.
NOTE: Even if the charger is left plugged in for extended periods it will not allow the batteries
to overcharge.
a) Green Light - Indicates main power is on.
b) Yellow Light - Indicates battery is charging.
c) Battery will be fully charged when yellow light goes off.
NOTE: It is recommended that the battery be charged immediately upon receipt.
5. To return the lift to service, switch OFF the mains supply and remove the power pack from the
charger. Fit the power pack to the lift and make sure the latch holding the pack in place is fully
engaged. “Click” in place. The charging of Oxford electric lifts is simple and straightforward,
but it is important to follow the charging instructions closely. Please pay particular attention to
the following points, they will help you avoid problems with discharged batteries.
WARNING
• The battery, charger, hand control & control box are NOT to be opened by
unauthorised personnel. (Contact your distributor for warranty and repairs).
• DO NOT touch battery/charger terminals.
• KEEP the batteries fully charged. Place the battery on charge whenever it is not in use.
If it is more convenient to do so, place on charge every night. The charger will not allow
the batteries to overcharge.
• NEVER run the batteries completely flat. As soon as the audible warning sounds,
complete the lifting operation in hand and place on charge.
• To avoid possible permanent damage to the battery, the battery should be placed on
charge as soon as the display indicates the half empty battery symbol.
• NEVER store the battery for long periods without regular charging throughout the storage
period.
