Joerns Hoyer Calibre Operator's manual

User Instruction Manual
Hoyer®Calibre
To avoid injury, read user manual prior to use.

Hoyer®
Calibre
2
English
Contents
1. The Hoyer Calibre Patient Lift........................................................................... 3
2. Introduction: About Your Lift ............................................................................. 4
3. Assembly and Commissioning Instructions ...................................................... 5
4. Safety Precautions ............................................................................................ 10
5. Standard Control Box & Handset...................................................................... 12
6. Smart Monitor & Handset .................................................................................. 13
7. Operating Instructions ....................................................................................... 17
8. Removal of 6-point Cradle System ................................................................... 19
9. Charging Instructions ........................................................................................ 21
10. Maintenance Schedule & Daily Check List ....................................................... 22
11. Technical Specifications.................................................................................... 24
12. Warranty............................................................................................................ 27

Hoyer®
Calibre
3
English
1. The Hoyer Calibre Patient Lift
Boom
6-point Cradle
Electric Actuator
Mast
Rear Castor
(braked)
Push Handle
Battery/
Control Pack
Front Castor
(non-braked)
Foot Push Pad
Straight Line
Steering Device

Hoyer®
Calibre
4
English
2. Introduction: About Your Lift
Each Calibre lift is fully load tested and certified before being packed/shipped.
The packing consists of a strong, purpose built carton that is used for both export and domestic
markets to ensure the safe arrival of the lift. A number of documents are supplied in a wallet, and
packed with each lift and should be kept safely for future reference.
• TEST CERTIFICATE
• USER MANUAL
The TEST CERTIFICATE is an important document and will be required for your insurance
records. It is valid for six months and after it has expired the lift should be inspected and serviced
per the maintenance schedule.
To properly maintain your lift please refer to the maintenance schedule included in this document. If
you are at all unsure what your country’s servicing requirements are, please check with your dealer
and/or a local government agency.
Statement of Intended Use
The Hoyer Calibre lift is a passive patient handling device intended for the safe lifting and
transferring of patients up to a safe working load of 385 kg (850 lbs).
The Hoyer Calibre lift is intended for INDOOR USE ONLY and must be operated by a MINIMUM
of two people/carers.
The Hoyer Calibre is an electrically operated patient lift, designed to support and promote safe
patient handling and transfer for both the patient and carer.
The Hoyer Calibre is suitable for patients in the SITTING, SITTING/RECUMBENT and
RECUMBENT positions. The slings suitable for use with this device are listed as follows:
• Hoyer Bariatric Hammock Sling (Safe working load - 385kg / 850lbs)
Expected Service Life
Hoyer Professional lifts are designed and tested for a minimum service life of ten (10) years,
subject to the use and maintenance procedures stated in this manual. Use, other than in accordance
with these instructions, may compromise service life.

Hoyer®
Calibre
5
English
3. Assembly and Commissioning Instructions
Carton Contents
Place the carton in a clear working area and open carefully. The carton contains:
•HOYER CALIBRE LIFT •WALLET CONTAINING DOCUMENTS
•HAND CONTROL •BATTERY PACK
•CHARGING LEAD •DESK TOP CHARGER/STAND
Tools required
The following tools will be required for assembly:
•13MM SOCKET •TORQUE WRENCH
WARNING
Assembly and commissioning must be carried out by a competent engineer from an
authorised Hoyer Service Agent/Dealer.
WARNING
A MINIMUM OF 2 PERSONS REQUIRED. The Hoyer Calibre is heavy and will need to be
lifted with care. You will need assistance to lift the Hoyer Calibre from the carton.
Assembly Instructions
Remove all the parts from the carton and place on the floor, taking care to protect the paint finish
from damage.
1. Place the mast/base assembly in a clear space and lay with rear castors and push handle on floor.
2. Fit the left and right hand legs (check correct orientation) onto the chassis using two M10
screws per leg as provided.

Hoyer®
Calibre
6
English
3. Tighten the M10 screws to secure each leg using a socket and torque wrench.
WARNING
Ensure the screws are secured firmly. It is recommended to tighten these to 10Nm
WARNING
Avoid trapping fingers. Keep fingers away from the end of the leg when inserting into the leg
socket. Keep fingers away from the front castor bracket during assembly of the legs to the base.
4. Lift the Calibre onto its castors.
NOTE: On a flat surface, all 6 castors must be in contact with the floor.
WARNING
The Calibre is extremely heavy, a minimum of 2 people will be required to lift the hoist.
5. Insert the two bushings into the outside of the mounting brackets on either side of the boom.
Lift the boom and position the actuator so that the upper fixing hole align with the mounting
bracket holes on the boom.

Hoyer®
Calibre
7
English
6. Insert quick-release pin sleeve into mounting bracket/actuator hole. make sure the sleeve is
fully engaged in the hole on both mounting brackets.
7. Insert the quick-release pin through the quick-release pin sleeve until it is fully located.
WARNING
Check that the quick-release pin has been fully inserted by trying to push the pin back out.
8. Fit power pack to the lift and make sure the latch holding the pack in place is fully engaged.
“Click” in place. Check that the battery is fully charged.
9. Plug the handset and actuator cables into the bottom of the controller. Refer to the figures on
page 12 or 13 for correct positions.

Hoyer®
Calibre
8
English
Disassembly
WARNING
Disassembly must be carried out by a competent engineer from an authorised Hoyer Service
Agent/Dealer.
The lift should not be disassembled unless for service, repair or transport if necessary. Therefore
follow the assembly instructions in reverse sequence.
ALWAYS CHECK THE FOLLOWING BEFORE OPERATION
• The mast is fully locked into position by checking the grub screws at the front and rear of the
base are tight.
• The red emergency stop button, located on the rear of the control box, is in the OFF (out)
position.
Front grub screw
Rear grub
screw

Hoyer®
Calibre
9
English
• The legs of the lift open and close satisfactorily (This is done via the hand control).
• Push the up and down buttons on the hand control and confirm the boom rises and lowers.

Hoyer®
Calibre
10
English
4. Safety Precautions
Please read and follow the safety precautions listed below. The operation and use of Hoyer
patient lifts is simple and straight-forward. Following these few basic safety precautions will make
lifting operations easy and trouble free.
Please read and follow the safety precautions listed below. The operation and use of Hoyer
patient lifts is simple and straightforward. Following these few basic safety precautions will make
lifting operations easy and trouble free.
READ AND UNDERSTAND THE USER INSTRUCTION MANUAL BEFORE USING THE
HOYER CALIBRE LIFT
WARNING: Important safety information for hazards that might cause serious injury.
CAUTION: Information for preventing damage to the product.
NOTE: Information to which you should pay special attention.
WARNING
• DO NOT lift a patient unless you are trained and competent to do so.
• ALWAYS carry out the DAILY CHECK LIST located towards the end of the manual
before using the lift.
• DO NOT exceed the safe working load of the lift.
• ALWAYS plan your lifting operations before commencing.
• ALWAYS familiarize yourself with the operating control and safety features of a lift
before lifting a patient.
• DO NOT use a sling unless it is recommended for use with the lift.
• ALWAYS check the sling is suitable for the particular patient and is of the correct
size and capacity.
• NEVER use a sling, which is frayed or damaged.
• ALWAYS fit the sling according to the instructions provided (user instructions).
• ALWAYS check the safe working load of the lift is suitable for the weight of the
patient.
• ALWAYS carry out lifting operations according to the instructions in the user manual.
• NEVER disconnect or bypass a control or safety feature because it seems easier to
operate the lift.
• ALWAYS lock the wheels when lifting from the floor.
• DO NOT attempt to manoeuvre the lift by pushing on the mast, boom or patient.
• ALWAYS manoeuvre the lift with the handle provided. A foot push pad is also
provided.

Hoyer®
Calibre
11
English
• DO NOT push a loaded lift at speeds, which exceed a slow walking pace (2.6 ft/sec).
• DO NOT push the lift over uneven or rough ground. Particularly if loaded.
• DO NOT attempt to push/pull a loaded lift over a floor obstruction.
• NEVER force an operating/safety control. All controls are easy to use and do not
require excessive force.
• DO NOT park a loaded lift on ANY sloping surface.
• DO NOT use electric lifts in a shower.
• DO NOT use or store a lift in a wet or corrosive environment such as shower, bath or
pool locations.
• DO NOT charge batteries in a bathroom or shower room.
• DO NOT place or store batteries under direct sunlight or near a heat source.
• YOUR lift is for patient lifting. DO NOT use it, or allow it to be used, for any other
purpose.
• DO NOT bump the lift down steps, loaded or unloaded.
• DO NOT attempt to negotiate a loaded lift on a slope, which exceeds 1:12
(approximately 5 degrees)
• DO NOT attempt to negotiate a slope without a second helper being present.
• DO NOT use a loaded lift on thick pile carpet.
• NEVER operate the lift with loose or missing parts or fasteners.
• INSPECT all precautionary labels on the lift. Order and replace all labels that cannot
be easily read.

Hoyer®
Calibre
12
English

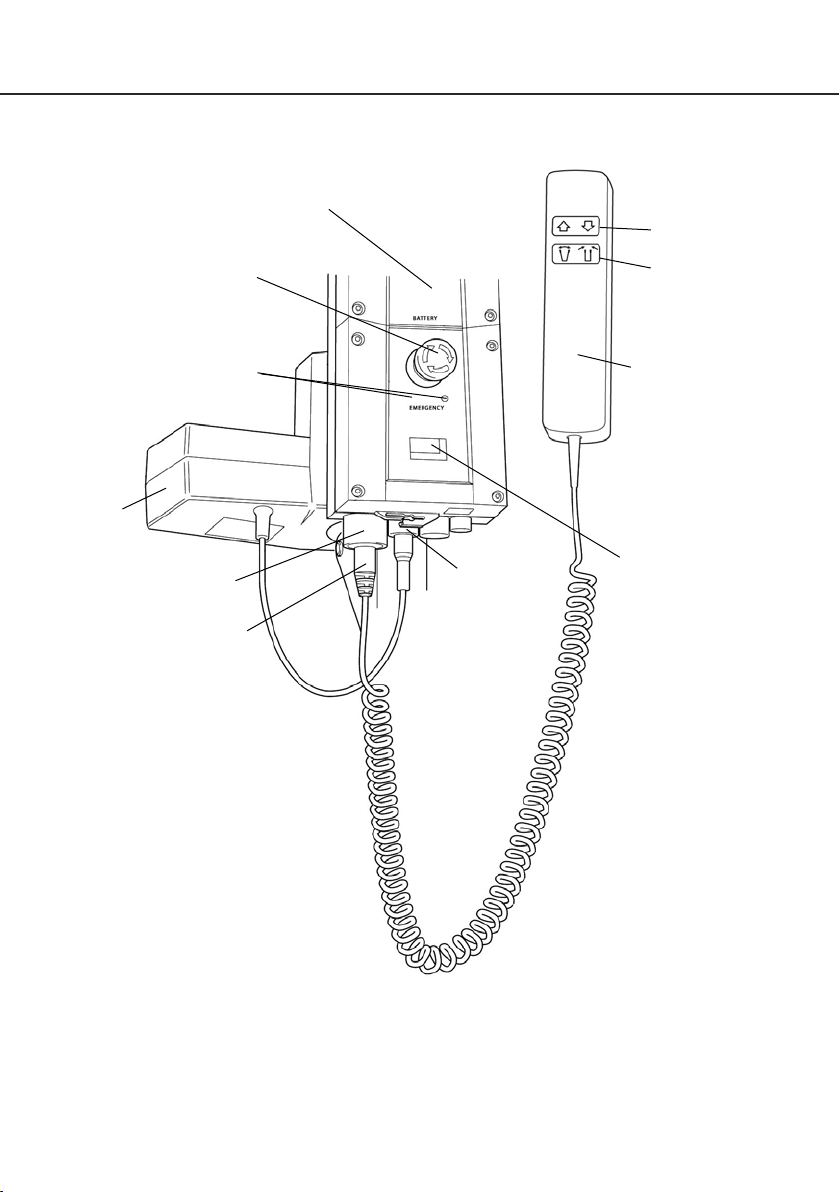

5. Standard Control Box & Handset
Emergency Stop Button
Emergency Raise & Lower
Redundant Controls
LCD
Information
Screen
Handset
Connection
Socket
Actuator
Connection
Socket
Handset
Connection
Plug
Raise & Lower
Buttons
Handset
Actuator
Detachable Battery Pack
Legs Open /
Close Buttons

Hoyer®
Calibre
13
English
6. Smart Monitor & Handset
Emergency Stop Button
Emergency Raise & Lower
Redundant Controls
LCD
Information
Screen
Handset
Connection
Socket
Actuator
Connection
Socket
Handset
Connection
Plug
Raise & Lower
Buttons
Handset
Actuator
Detachable Battery
Pack
Smart Monitor
Legs Open /
Close Buttons
Legs Open / Close
Redundant Controls

Hoyer®
Calibre
14
English
Intended Use
The Hoyer Smart Monitor is a control system for Hoyer lifts. The Smart Monitor stores useful
servicing information about the lift that can be recalled when required. This servicing information
includes:
• Number of patient lift cycles
• Total work done by actuator
• Number of lift overloads (attempted lifts above the safe working load)
• Number of days since last service interval
The Hoyer Smart Monitor contains a microprocessor inside making it possible to read out service
data via the on-board LCD screen.
Features
• Data collection in the control box with data display via LCD screen
• Work counter
• Intelligent cycle counter
• Service indicator
• Service interval indicator
• Overload information
• 3 step battery indicator
Benefits
• Improved safety for both patient and carer
• Accurate service data available at the touch of a button
• Optimised product life time
• Ease of maintenance for engineers and service technicians

Hoyer®
Calibre
15
English
LCD Display Screen
The Hoyer Smart Monitor has the option to read out information via the LCD display screen. It is
possible to read out total lifting cycles, total work done, overloads and number of days since last
service, which can be used to quickly and easily evaluate the condition of the lift actuator.
This information is accessed by a ½ second press on the ‘UP’ button on the user handset or
redundant ‘UP’ button on the Smart Monitor.
Service & Usage Information
When it is time for a service, the service symbol will appear on the dis-
play. In addition, when the user handset is activated, the Smart Monitor
will give an audible signal giving notice to users that a PM check is
recommended (see recommended maintenance schedule later in this
manual).
The service symbol will be displayed each time the raise or lower keys
are depressed on the user handset.
To reset the service interval to one year, depress the leg open and leg
close keys simultaneously for five seconds.
If the lift stops because of an overload (an attempt to lift more than the
safe working load) the overload symbol will appear on the LCD display
and the lift will cease. Lower the boom and remove excess weight.
WARNING
If the LCD display screen on your Smart Monitor has recorded
an overload, Joerns Healthcare recommend that ALL routine
daily checks are carried out on the lift prior to further use (for a
list of daily checks, please refer to your lift user manual). Joerns
Healthcare also recommend that you contact your authorised
Hoyer service provider for additional guidance.
Total Lifting Cycles
Total Work Done (Amps * Seconds)
Number of Overloads
Number of Days (since last service) /
Number of Days (between services)

Hoyer®
Calibre
16
English
On-Board Redundant Controls
On-board redundant controls enable the lift to be raised or lowered in
the event of an emergency.
If your lift incorporates powered leg positioning, there are redundant
controls to both open and close the legs.
Battery Information
The display showing full battery means that the battery is fully charged
and the lift is ready for use.
The display showing a half empty battery indicates that it is time to
charge the battery.
The empty battery symbol showing on the display indicates that the
battery has no capacity left and should be placed on charge immediately.
WARNING
To avoid possible permanent damage to the battery, the battery should be placed on
charge as soon as the display indicates the half empty battery symbol.

Hoyer®
Calibre
17
English
7. Operating Instructions
1. Leg adjustment
The legs on the Hoyer Calibre are electrically adjustable for width. The legs can be opened to
enable access around armchairs or wheelchairs. For transferring and negotiating narrow doorways
and passages the lift legs should be in the closed position.
Electric leg adjustment - is achieved by pressing the appropriate buttons on the handcontrol. The
legs will be locked whenever the handcontrol switch is released.
2. Castors and Braking
The lift has two braked castors which can be applied for parking. When lifting, the castors should
be left free and un-braked. The lift will then be able to move to the centre of gravity of the lift. If
the brakes are applied it is the patient that will swing to the centre of gravity and this may prove
disconcerting and uncomfortable.
3. Raising and lowering the boom
The movement of the boom is achieved by a powerful electric actuator which is controlled by
a simple hand control unit. The hand control has two buttons with directional arrows UP and
DOWN áâ. The actuator stops automatically at the limit of travel in both directions. The hand
control plugs into a socket at the base of the control box.
4. Emergency Stop
The red Emergency Stop Button is located on the front of the control box and is activated by
pressing in. This will cut all power to the lift and only be reset by twisting the button anticlockwise
and releasing.
5. Redundant controls
All Hoyer lifts are fitted with raise and lower buttons on the control box. These are located
underneath the emergency stop button and can be used to lower/raise the patient should the
hand control fail.
6. Mechanical Emergency Down
In the case of a complete electrical failure the electrical actuator is fitted
with a spring loaded mechanical lowering device (RED BOSS). This
will only operate when the lift is under load. The device must twisted by
hand and released to activate. A slow decent will commence. Repeat
this process until the patient has been safely lowered.
WARNING
If this feature is used, the lift MUST be subsequently checked out by a competent engineer.

Hoyer®
Calibre
18
English
7. Batteries
The batteries are protected from deep discharge by a LOW VOLTAGE ALARM. This will sound
when the batteries need recharging and the hand control is being operated. It will not sound
independently of the hand control being operated. DO NOT IGNORE THIS WARNING ALARM.
Complete the lifting operation and place the battery on charge (see charging instructions).
8. Slings
The Hoyer Calibre has a 6-point cradle.
The 6-point system uses slings with webbing loops, which allow positioning adjustment by selecting
different coloured loops.
Loop strap slings: Bariatric Hammock
The sling attaches to the 6-point cradle hooks via loop straps (shown below). Each sling is supplied
with comprehensive user instructions. Please ensure you have read and fully understand the
user instructions prior to use.
6-point cradle. Example of the 6-point cradle sling with loop attachments.
NOTE: For detailed fitting instructions, please refer to the user guide supplied with each sling.
WARNING
Joerns Healthcare recommends that slings be checked regularly and particularly before
use for signs of fraying or damage. DO NOT use slings that are worn or damaged.
WARNING
HOYER RECOMMENDS THE USE OF GENUINE HOYER PARTS. Hoyer slings and lifters
are not designed to be interchangeable with other manufacturer’s products. Using other
manufacturer’s products on Hoyer products is potentially unsafe and could result in
serious injury to patient and/or caregiver.
WARNING
Refer to maximum weight capacity of lift. Sling capacity is limited by the maximum
capacity of the lift.
Shoulder Straps
Attachment
Points
Leg Straps
Attachment
Points
Hip Straps
Pommel

Hoyer®
Calibre
19
English
8. Removal of 6-point Cradle System
FOLLOW THESE INSTRUCTIONS EXACTLY
Your Calibre lift uses the 6-point cradle. The removal of this systems is completed by the use
of a quick-release pin. This is done quickly and easily, but you must read the following safety
instructions to ensure the 6-point cradle is safely locked into position before use.
Connection
WARNING
Two persons are required to fit the 6-point cradle OR a support table can be used.
To connect, raise the 6-point cradle up toward the boom slot.
Insert the pin sleeve through the plastic end cap to support the 6-point cradle.
Once aligned in the boom slot, reinsert the quick-release pin fully into the sleeve until it locks into
position. YOU MUST CHECK THAT THE PIN IS SECURELY FITTED.
To do this, press your finger into the barbed end. If the pin remains stationary the lift is safe to use.

Hoyer®
Calibre
20
English
Removal
CAUTION: Be sure to support the weight of the 6-point cradle before removing pin.
To detach pin, depress the spring barb (using a flat blade electrical screw driver or similar) and
pull the pin out.
Support the 6-point cradle, and then pull the pin sleeve in the opposite direction, removing it
completely from the boom. This will release the 6-point cradle completely.
