Johnny Vac JVC56RIDERN User manual

USER GUID E
JVC56RIDERN
Rider Scrubber - 22"

- 2 - User GuideJVC56RIDERN
This unit is a commercial product designed for indoor hard surface cleaning only. It is
not recommended for any operations other than those described in this operator's
manual. Make sure that the pads, brushes and detergents used with this machine are
compatible with this machine before using them.
DANGER - WARNING
DANGER
WARNING
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and
others.
All safety messages will follow the safety alert symbol and either the word
« DANGER » or « WARNING » These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is,
tell you how to reduce the chance of injury, and tell you what
can happen if instructions are not followed.
READ ALL INSTRUCTIONS BEFORE USING THE UNIT
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual.
Always read and comply with all safety messages.

- 3 - User GuideJVC56RIDERN
All units sold by Johnny Vac have a user manual that is an integral part of the device
sold. Please read this instruction manual carefully before using your device. Photos
are included in this manual to help you visualize the informations.
In addition to the great service this device can provide, taking the following
precautions will only improve your performance with less effort. This guide provides
you with excellent information to help you:
• To identify and recognize the specificities of the
JVC56RIDERN ;
• To use the device in complete safety and in the best possible conditions;
• To maintain the device periodically for maximum performance;
• To find out what parts you might need and order them from Johnny Vac.
PROTECT THE ENVIRONMENT
The materials used for packaging your unit as well as used parts, batteries and their
liquids such as oil or antifreeze must always be collected and recycled, or taken to the
appropriate disposal sites in accordance with the laws in force in your area.
PROTECT THE ENVIRONMENT
Please dispose of the materials,
parts of old appliances and batte-
ries according to the regulations in
force in accordance with the
environmental protection methods.
Remember to recycle as many
parts as possible.
MACHINE DATA
Please fill this form at the time of installation for
future references.
Model No:___________________________
Serial No:____________________________
Installation Date: ______________________

- 4 - User GuideJVC56RIDERN
Safety Precautions......................5 - 6
Safety Labels ...............................7
Machine Components ............8 - 9
Symbols On Control Panel ...........9
How This Machine Works .....10 - 11
• Usage........................................................... 10
• Scrubbing Method ....................................... 10
• Cleaning Brushes And Pads ......................... 10
• Brush Information........................................ 11
Components Installation ......12 - 13
• Battery Installation ...................................... 12
• Install Squeegee Assembly ......................... 13
• Brush And Cleaning Pad Installation ............ 14
• Fill Solution Tank ......................................... 15
Machine Operation ............16 - 28
• Pre-operational Check.................................. 16
• Before Operation ......................................... 16
• Scrubbing ............................................ 17 - 18
• During Operation ......................................... 19
• Scrubbing Method ...................................... 19
• Water Gauge Tube Of Solution Tank ............ 20
• Recovery Tank Sewage Sensor.................... 20
• Battery Discharge Indicator.......................... 21
• Overload Reset Switch................................. 21
• Reversing Indicator...................................... 22
• Timer............................................................ 22
• Drain The Recovery Tank ...................... 22 - 24
Drain The Tanks.................23 - 25
• Drain The Recovery Tank ...................... 23 - 25
Battery Charge ..................25 - 26
• Intelligent Charger Led Indicator.................. 25
• Battery Charger Fault - Codes ...................... 26
Machine Maintenance ..............27 - 35
• Machine Overview ....................................... 27
• Maintenance List ......................................... 28
• Brush, Pad Holder, Cleaning Pad ................. 39
Replacement
• Squeegee Blade ........................................... 30
• Squeegee Blade Replacement .............. 31 - 33
• Squeegee Blade Adjustement ............... 34 - 35
Push, Tow And Transport ........... 36
The Machine
• Transport The Machine ................................ 36
• Push Or Tow The Machine ........................... 36
• Machine Storage.......................................... 36
• Frost Protection ........................................... 36
Troubleshooting ...................... 37
Specications ...................38 - 39
• Machine Dimensions And Capacity....... 38 - 39
CONTENTS

- 5 - User GuideJVC56RIDERN
WARNING: To warn the hazards or unsafe operations that may cause severe
personal injury or death.
- FOR SAFETY: Underline and remember the steps to follow for safe operation of the unit.
- The following symbols indicate a potential hazard to you and the unit.
WARNING: To warn the danger of fire or explosion.
- Do not use inammable liquids; do not operate the machine near or in places with inflammable
liquids, gas, or combustible dust.
- Since this machine is not equipped with an explosion-proof motor, the stops generated by its
electro-motor may cause a flash fire or explosion if it is operated in places with inflammable liquids,
gas, or combustible dust.
- Do not pick up any inflammable materials or reactive metal.
WARNING: To warn electric shock hazard.
- Disconnect the batteries and unplug the charger plug before repairing the machine.
- Do not charge the batteries with damaged cables. Any modification of the plug is not allowed. In
case the charge cable is damaged or broken, to avoid risks, it must be replaced by its manufacturer,
the servicing agents or similar qualified personnel.
WARNING: It is important not to touch the brushes when they are in operation.
Please turn off the unit before performing any repairs.
SAFETY PRECAUTIONS

- 6 - User GuideJVC56RIDERN
SAFETY PRECAUTIONS
1. Do not operate the machine:
- Near or in places with inflammable liquids or gas in case of explosion or flash fire.
- Unless trained or authorized.
- Unless operation manual is carefully read and fully understood.
- When you feel unable to use this device.
2. Before operating the machine:
- Please ensure that all safety precautions are understood and followed.
3. When operating the machine:
- Avoid wearing loose items such as jewelry or a tie. Do not wear loose jackets, shirts or sleeves
while working on the unit.
- Disconnect the battery before servicing the unit.
- Wear safety gloves and protective gear such as work shoes and eye protection before servicing or
connecting the batteries.
- Do not power spray or hose off the machine. Electrical malfunction may occur.
- Use the parts provided or approved by Johnny Vac.
- Maintenance should be performed by qualified maintenance personnel.
- Never repair any part of the unit that differs from its original design.
- It is important to proceed slowly on sloping surfaces and wet floors.
- Wear non-slip shoes.
- Always operate the unit slowly when turning;
- Report machine damage or fault operation immediately.
- Children are forbidden to play on or near the machine.
- Follow the mixing and handling instructions on chemical containers.
- Do not operate the machine on inclines exceeding 5% (3°).
4. Before leaving or servicing the machine:
- Stop the machine on level surfaces.
- Turn off the machine.
- Remove the key.
5. When loading/unloading the machine onto/off a truck or trailer:
- Drain the tanks before loading the machine.
- Use the suggested cargo handling apron when loading/unloading the machine onto/off a truck or
trailer.
- Remove the batteries before loading the machine.
- Carry the machine with the assistance of other personnel.
- Turn off the machine.
- Lower the brush motor.
- Attach the unit to the box on the transport truck.

- 7 - User GuideJVC56RIDERN
SAFETY LABELS
Located on the seat panel
WARNING LABEL
- Flammable materials or
reactive materials can
cause explosion or fire.
DO NOT pick up.
WARNING LABEL
Please read the manual
when operating the
machine.
WARNING LABEL
Authorized service
technicians only
Located on the seat panel
Located on the seat panel
WARNING LABEL
- The battery emits hydrogen,
which may cause explosion
or fire. Keep away from
sparks and open flames.Keep
the cover open while
charging.
WARNING LABEL
DO NOT use flammable
materials in the tank in case
of explosion or fire.

- 8 - User GuideJVC56RIDERN

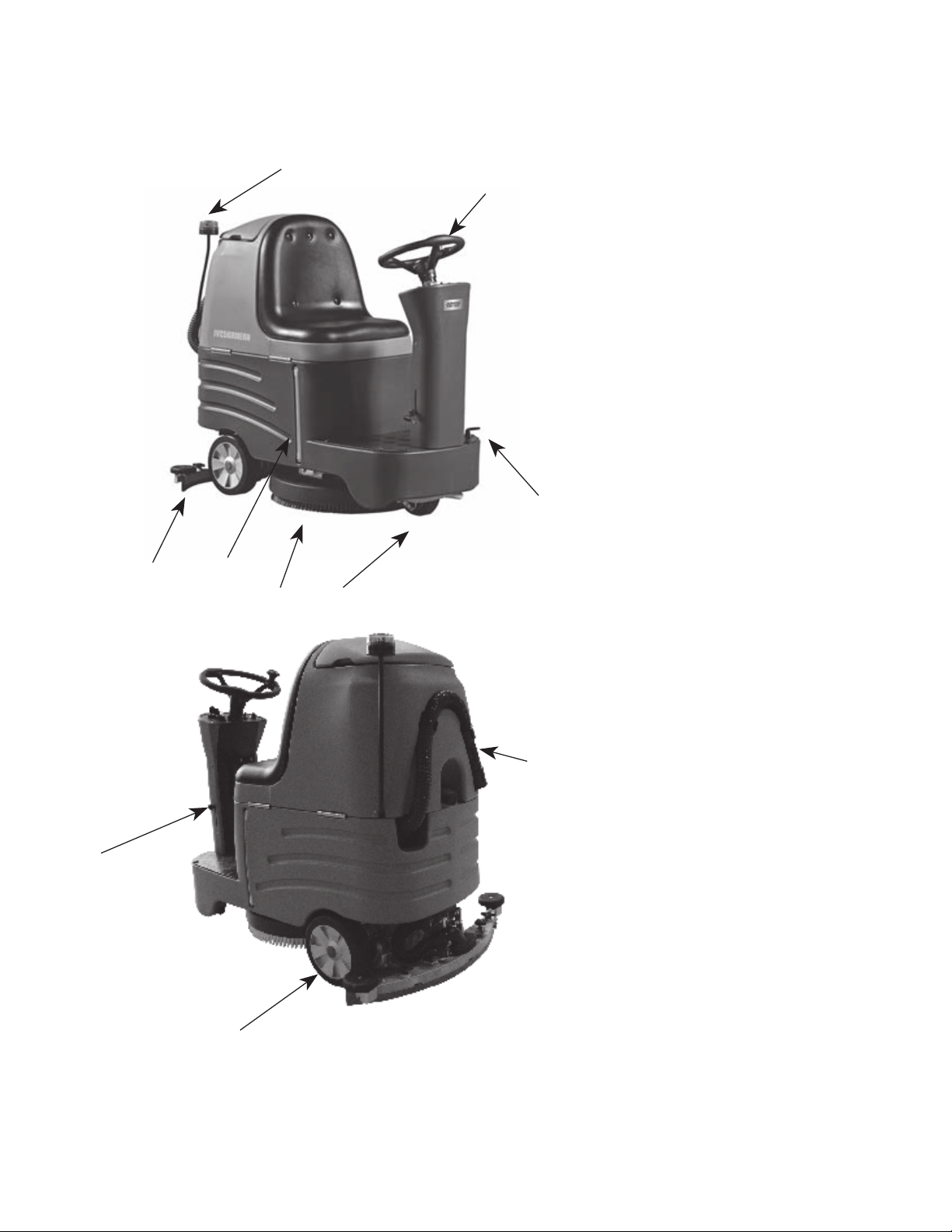

MACHINE COMPONENTS
1
7
65
4 3
10
2
8
9
1. Steering wheel
2. Foot pedal
3. Front wheel
4. Brush disc
5. Water level tube
6. Squeegee assembly
7. Reversing light
8. Discharge hose
9. Large wheel
10. Water valve handle

- 9 - User GuideJVC56RIDERN
MACHINE COMPONENTS

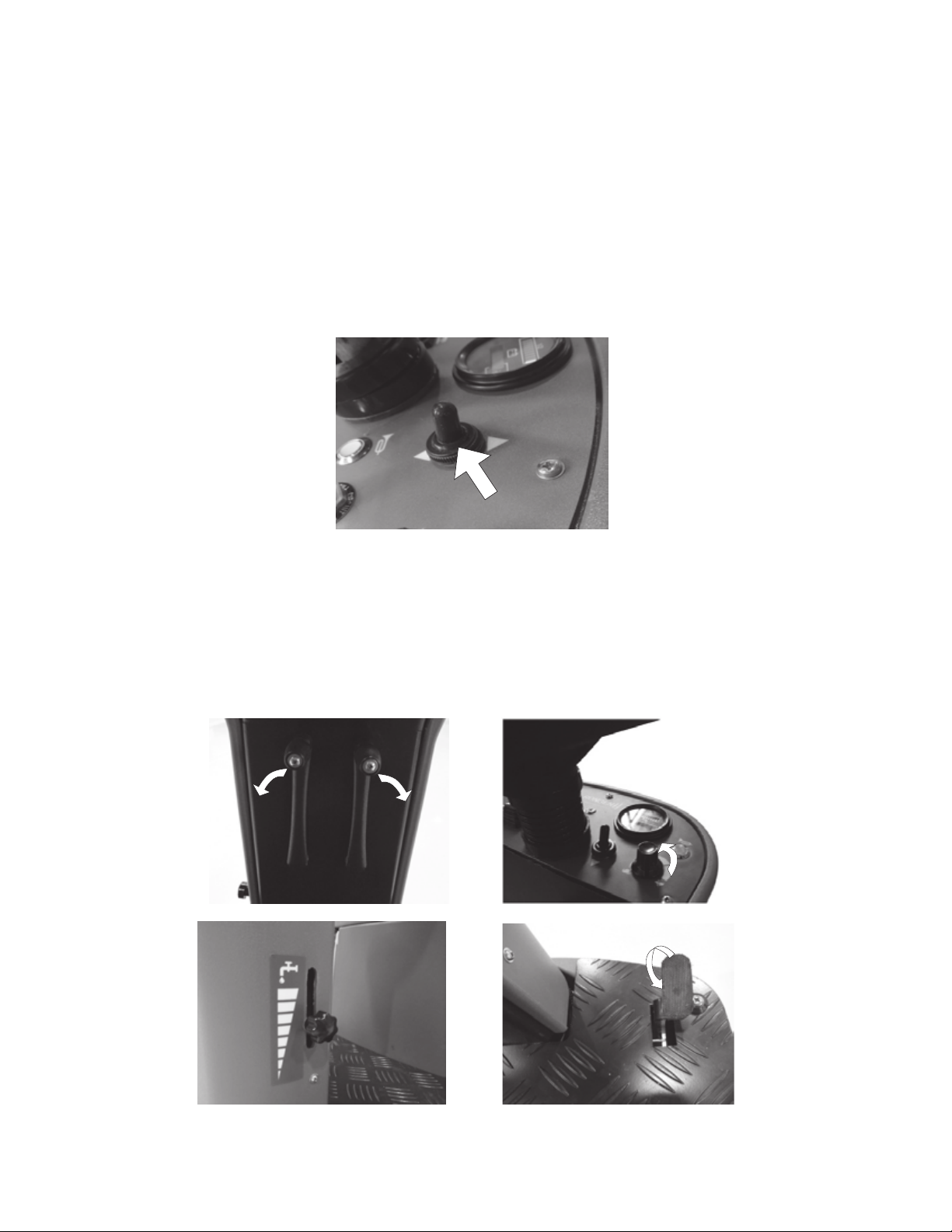

SYMBOLS ON CONTROL PANEL
Main power
switch
Forward and
backward
button
Speed control
switch
28
21
22 23 24 25 26 27
31
31
30
29
20
19
11.Speed control switch
12.Horn button
13.Battery electricity meter
14.Forward / Backward switch
15.Malfunction indicator lights
16.Overload reset switch
17.Brush Loading / Unloading
switch
Brush Loading /
Unloading switch
Horn button
18.Main power switch
19. Squeegee lifting rocker arm
20.Brush lifting rocker arm
21.Guide wheel
22.Driving motor
23.Suction nozzle
24.Squeegee lifting chain
25.Squeegee bracket
26. Squeegee assembly retaining nut
27. Retaining nut
28.Solution tank cover
29.Batteries
30.Battery charge interface
31.Battery compartment bracket
17
18
13
16
14
15 12
11

- 10 - User GuideJVC56RIDERN
HOW THE MACHINE WORKS
USAGE
JVC56RIDERN is a ride-on industrial / com-
mercial machine used to scrub rough and
smooth
hard surfaces such as concrete, ceramic tile
floor, stone, and synthetic materials, etc. Typi-
cally, this machine is designed solely for clea-
ning smooth flooring in an indoor environment
like schools, hospitals/health care facilities,
office buildings, and marketplace, but it is not
allowed to use it on earth surface, grassland,
artificial turf, or carpeted areas, neither can it
be used for road cleaning. Any operation other
than those stated in the operator manual is not
recommended.
SCRUBBING METHOD
Water and detergent in solution tank flow to the brush and ground via the magnetic valve. The
solution of water and detergent is used to scrub the ground by brush head rotation. The squeegee
will take up the waste water into solution tank with vacuum motor while the machine is operating.
CLEANING BRUSHES AND PADS
The solution tank, brush, pad holder and/or pad, squeegee, vacuum motor, recovery tank and drive
motor must be cleaned.
Brushing function is controlled by the buttons on the control panel. Turn on brush motor switch and
squeegee lifting switch, lay the brush and squeegee down. Set forward/backward switch to "forward"
position, adjust the speed switch appropriately (turn the switch to proper speed and water yield
based on different types of ground).
Release the manual brake and depress the pedal to start washing. There are two brushes available,
and the width of brush head is 350 mm (13 inches).
NOTE: The type of brush head or cleaning pad is determined by the quantity and type of
contamination particles and type of dirt. For special suggestions, please refer to the brush
information section of this manual or contact the Johnny Vac service team.
BRUSH INFORMATION
For best results, use the appropriate type of brushes for scrubbing. Recommended brushes and
pads are listed as follows:
Synthetic resin brushes - Soft synthetic resin brushes are generally used to scrub particles without
scratching the lighted side finishes of the floor and ground.
Nylon brush - The nylon brush is recommended for scrubbing floors without scratching them.
Pad holder and pad - It is used to scrub floor and painted ground to make it bright and clean.
Attached information:
• Pad holder and pad: 350mm, 13 inches pad holder.
• Brush model: 350mm, 13 inches brush.

- 11 - User GuideJVC56RIDERN
HOW THE MACHINE WORKS
USAGE
JVC56RIDERN is a ride-on industrial / com-
mercial machine used to scrub rough and
smooth
hard surfaces such as concrete, ceramic tile
floor, stone, and synthetic materials, etc. Typi-
cally, this machine is designed solely for clea-
ning smooth flooring in an indoor environment
like schools, hospitals/health care facilities,
office buildings, and marketplace, but it is not
allowed to use it on earth surface, grassland,
artificial turf, or carpeted areas, neither can it
be used for road cleaning. Any operation other
than those stated in the operator manual is not
recommended.
SCRUBBING METHOD
Water and detergent in solution tank flow to the brush and ground via the magnetic valve. The
solution of water and detergent is used to scrub the ground by brush head rotation. The squeegee
will take up the waste water into solution tank with vacuum motor while the machine is operating.
CLEANING BRUSHES AND PADS
The solution tank, brush, pad holder and/or pad, squeegee, vacuum motor, recovery tank and drive
motor must be cleaned.
Brushing function is controlled by the buttons on the control panel. Turn on brush motor switch and
squeegee lifting switch, lay the brush and squeegee down. Set forward/backward switch to "forward"
position, adjust the speed switch appropriately (turn the switch to proper speed and water yield
based on different types of ground).
Release the manual brake and depress the pedal to start washing. There are two brushes available,
and the width of brush head is 350 mm (13 inches).
NOTE: The type of brush head or cleaning pad is determined by the quantity and type of
contamination particles and type of dirt. For special suggestions, please refer to the brush
information section of this manual or contact the Johnny Vac service team.
BRUSH INFORMATION
For best results, use the appropriate type of brushes for scrubbing. Recommended brushes and
pads are listed as follows:
Synthetic resin brushes - Soft synthetic resin brushes are generally used to scrub particles without
scratching the lighted side finishes of the floor and ground.
Nylon brush - The nylon brush is recommended for scrubbing floors without scratching them.
Pad holder and pad - It is used to scrub floor and painted ground to make it bright and clean.
Attached information:
• Pad holder and pad: 350mm, 13 inches pad holder.
• Brush model: 350mm, 13 inches brush.

- 12 - User GuideJVC56RIDERN
COMPONENTS INSTALLATION
NOTE : Do not disconnect the DC cable with the charging port during charging period to avoid arc
strike. Unplug the AC power cable in case of forced charging disable.
BATTERY INSTALLATION
1. Check each battery for damage, cleanliness and visible marks before use. Clean the surface of the
battery with a dry cloth, check the battery cells for open circuit voltage, whether the anode/cathode
are properly identified and whether they are properly connected.
2. Make sure each battery is fixed uprightly without inversion in accordance with drawings; interval
between two neighboring battery cells should be at least 5 mm. Check whether the anode/cathode is
correct according to the drawings after installation, then connect the battery cells with cables.
3. Check each part of all the battery cells for looseness after installation. DO NOT tighten the joints
with excessive force in case of damages to poles.
4. When fixing the whole set of battery cells to the machine, adjust the chocks between two
neighboring battery cells to make sure all the battery cells stand uprightly. Tighten the battery to
avoid shock or bumping.
5. Isolate the components that generate sparks such as main switch, fuse holder, etc from the battery
cells.
6. The battery cells can be fixed to the machine directly since they are at the state of charge before
delivery; when out of service for a long period (more than 2 months), please recharge the battery
cells before use.
7. Keep batteries away from fire , heat, or direct sunlight during summer, nor can the battery cells be
shocked or bumped violently, or short-circuited.
8. Battery capacity is measured at an environment temperature of 25°C . The capacity will drop by
1% every 1°C the temperature declines. So take the impact temperature variation into consideration
during use. DO NOT use batteries when the temperature declines below -10°C.
9. No arbitrary disassembly of battery is allowed in case of danger.
10. Waste batteries must be recycled. DO NOT abandon them to avoid pollution to the environment.
11. Notice battery temperature when charging in case of danger and damages to the batteries cause
by excessive heat.
12. DO NOT use batteries at insufficient voltage. Charge the batteries to full capacity before using.

- 13 - User GuideJVC56RIDERN
COMPONENTS INSTALLATION
INSTALL SQUEEGEE ASSEMBLY
1. Stop the machine on a smooth surface.
2. Turn the ON/OFF key switch off.
FOR SAFETY: Stop the machine on a smooth surface when leaving or servicing it, turn it off and remove
the key.
3. Install squeegee to squeegee support and tighten the two screw nuts.
4. As is shown in the following figure, connect suction hose with the squeegee assembly.
Squeegee assembly has been set up before delivery. For any adjustment of squeegee assembly,
please refer to Section Install Squeegee in this manual.
PROPER INSTALLATION OF SUCTION PIPE WRONG INSTALLATION OF SUCTION PIPE

- 14 - User GuideJVC56RIDERN
COMPONENTS INSTALLATION
BRUSH AND CLEANING PAD INSTALLATION
FOR SAFETY: Stop the machine on a level surface, turn it off, and remove the key before leaving or
servicing.
Scrub brush shall be replaced if a great number of bristles are missing or bristle length is less than
10 mm (0.38 inch).
Cleaning pad must be fixed on the pad drive hubs before using. Pad holder is used to fix the pad.
Cleaning pad must be cleaned immediately with soap and water after using. DO NOT wash them with
high pressure water. Hand the pads or lay them flat to dry.
NOTE: Replace the brush and pad in whole set, otherwise on brush or pad will be more aggressive
than the other.
Install the brush and cleaning pad, firstly, place the brush a the middle of the brush motor (as shown
in Figure 1). Put down the lifting rocker arm of brush and the brush motor sinks to the brush and
pad holder (as shown in Figure 2). Press the uninstall/install brush switch and the brush motor
starts to rotate and then the brush is installed successfully (as shown in Figure 3 and 4).
Figure 1 Figure 2
Figure 3 Figure 4

- 15 - User GuideJVC56RIDERN
FILL SOLUTION TANK
FOR SAFETY: Stop the machine on a smooth surface when leaving or servicing it, turn it off and remove
the key.
The fill-port tank for solution is located at the back of machine.
COMPONENTS INSTALLATION
WARNING:
DO NOT use flammable materials in the tank in case of explosion or fire.
Scrubbing method: Open water injection hole of solution tank and inject some water (water temperature
should not be higher than 60°). Pour the detergent into tank based on the mixture ratio specified on tank.
Fill warm water into the tank. Defoamer is needed in recovery tank (please refer to the mixture ratio on the
package).
FOR SAFETY: When using machine, follow mixing and handling instructions on chemical containers.
NOTE: When filing the solution tank with a bucket,, make sure that it is clean. DO NOT use the same bucket
for filling and draining he machine.
ATTENTION: For conventional scrubbing, only use recommended cleaning detergents. Machine damage
due to improper detergent usage, such as washing powder, will void the manufacturer's warranty.

- 16 - User GuideJVC56RIDERN
MACHINE OPERATION
PRE-OPERATIONAL CHECK
❑ Check whether there is liquid leakage on the machine.
❑ Check tank cover seals for damage and wear.
❑ Check the sewage filter for blockage.
❑ Check the conditions of scrubbing brushes. Remove any string, banding, plastic wrap, or other
debris wrapped around them.
❑ Check the squeegees for damage, wear, and for deflection adjustment.
❑ Check the suction hose and sewage inlet of squeegee for blockage or rupture on the pipe.
❑ Drain and clean recovery tank.
❑ Check brake and steering for proper operation.
❑ Check horn and backup light for proper operation.
❑ Check maintaining records to determine maintenance requirements.
BEFORE OPERATION
Pick up oversized debris in advance before cleaning. Pick up pieces of wire, string ,twine, etc (that
may be wrapped around the scrubbing brush).
Make a plan for scrubbing in advance. Try to arrange long runs with minimum stopping and starting.
Do an entire floor or section at one time.

- 17 - User GuideJVC56RIDERN
MACHINE OPERATION
SCRUBBING
FOR SAFETY: DO NOT operate the machine unless operator manual is read and understood.
1. Turn the ON/OFF key switch on.
2. Set direction switch (forward/backward) according to the direction the machine moves to.
NOTE 1: The machine is in normal scrubbing state when forward/backward switch is set to "forward"
position.
NOTE 2: When the forward and backward switch is set to the "backward" position, the squeegee
lifting rocker arm shall be used to lift the squeegee and the vacuum motor shall be automatically
closed. At the same time, the brush shall be lifted with the brush lifting rocker arm and the manual
reversing lamp shall be lit up for warning.
3. Lay the brush and squeegee assembly down manually. Tum the water valve switch to an
appropriate water flow and adjust to appropriate driving speed. Step down the pedal to start
scrubbing the floor.

- 18 - User GuideJVC56RIDERN
MACHINE OPERATION
WARNING: Flammable materials or reactive metals can cause explosion or fire.
DO NOT pick up.
4. Release the pedal, machine will be stop automatically. Lifting the squeegee lifting rocker arm on
to rise the squeegee assembly, lifting the brush lifting rocker arm on to rise the brush disc. Turn the
power supply off, and stop the machine.
5. This floor scrubber has automatic speed reduction function in sharp turn. For example, once
taking a sharp turn, the machine will automatically reduce the speed to ensure the personal safety of
operators and improve the safety index.
6. Automatic braking function when the pedal switch is off: when releasing the pedal switch, the
machine will automatically brake, more convenient than other machines and reducing the operation
steps.
7. If you want to move the machine, push the electromagnetic brake handle forward to remove the
electromagnetic brake function and then it can be easily pushed, as shown in the figure below. ( If
the power is turned on, fault indicator on the panel shows the light flashes for 3 times and then
flashes for 2 times after a pause and the machine still cannot run, which indicates that the automatic
brake does not reset, pulling t he electromagnetic brake handle back once, the automatic brake will
reset and the machine can be used normally.)

- 19 - User GuideJVC56RIDERN
MACHINE OPERATION
DURING OPERATION
Drive as straight a path as possible. Avoid bumping into the posts or scraping the sides of machine.
Overlap the scrub paths for several cent imeters (several inches).
Avoid turning the steering wheel substantially since the machine is sensitive to steering wheel
rotation. Avoid sudden turning unless emergency.
Adjust machine speed and water flow as needed during scrubbing. Keep driving at a moderate speed
with minimum water flow.
Keep the machine running to avoid damages to the ground.
If poor scrubbing performance is observed, stop scrubbing and refer to troubleshooting.
SCRUBBING METHOD
Pour a recommended foam control solution into recovery tank if excessive foam occurs. Otherwise
the vacuum motor may be damaged if the foam is sucked into the motor.
Change the pad holder or cleaning pad as necessary for better scrubbing performance.
Observe the battery indicator to ensure there is adequate power for machine to operate.
Observe the solution tank indicator to ensure the solution does not run out. Please clean the tank
before refilling.
Remove the key when leave the machine unattended.
Perform daily maintenance after scrubbing (see Maintenance Form).
Drive the machine slowly on inclines: press brake pedal to control the machine and turn down speed
switch when driving down. Do scrubbing when machine goes upward instead of downward.
FOR SAFETY: Drive slowly when using machine on inclines or smooth surfaces.
DO NOT operate the machine in areas where the temperature exceeds 43°C (110°F).
Scrubbing function cannot be used in areas where the temperature is lower than 0°C (32°F).
Maximum rated slope is 7% during operation. Maximum rated inclination for transporting the
machine is 19.25%.

- 20 - User GuideJVC56RIDERN
MACHINE OPERATION
WATER GAUGE TUBE OF SOLUTION TANK
Water gauge tube of solution tank can roughly indicate the real-time water level so as to ensure
proper operation of machine.
Water level of solution tank is suggested to be kept above half the height of water gauge tube to
guarantee water pressure and water flow.
RECORERY TANK FULL INDICATOR
The recovery tank full indicator will shut off the power supply of vacuum motor without disabling
scrubbing functions when the tank is full. Please drain it timely to guarantee scrubber's proper
operation.
Water level tube of solution tank
Full indicator shield Recovery tank full indicator
