Johnson Controls UZC-256 User manual

JCI-60041:A1 • 10/20/09 — Page 1 of 2
UZC-256
Universal Zone Coder
Software Release 2.0
JCI-60041:A1
General
The UZC-256 Universal Zone Coder enables the Johnson
Controls intelligent fire alam control panels (FACPs), network
control annunciators and compatible legacy systems to pro-
vide positive non-interfering successive zone coded outputs.
Up to 256 separate codes may be programmed to operate on
the three coded outputs. Each output is used to code or pulse
up to 3 Amps of Notification Appliance power.
Features
• Coded output from the UZC-256 can be fed to multiple out-
put circuits.
• Up to 256 individually programmed codes.
• Three 3-Amp outputs.
• Programmable rounds of code (1 to 99 rounds).
• Up to four digits per round.
• Up to 15 pulses per digit of code.
• Optional general alarm.
• Programmable code and round(s) delay.
• Programmable pulse and digit pause times.
• Connects and communicates over panel EIA-485 interface.
• Programmable for California code.
• Weight 1.75 lbs.
Release 2.0 Features
• Secondary UZC use: counting alarm operation activates
UZC relays after specified number of alarms.
• Programmable address EIA-485 range (1-32).
• No code/counting selection for non-fire points.
Applications
The UZC-256 provides three outputs that supply unique coded
information to certain output circuits, depending on the alarm
initiation condition. This can be useful when employing coded
outputs in floor-above, floor-below applications, or to provide
various numbers of rounds for bell circuits and strobe or lamp
circuits.
NOTE: Due to the nature of coded outputs, the UZC-256 is not
compatible with notification devices which do not produce a steady
or non-periodic sound. Periodic appliances that produce their own
code (such as some codes available with electronic sounders) will
not be compatible with the UZC-256. Refer to the UZC-256 Instal-
lation Manual for a list of compatible panels.
Construction & Operation
The UZC-256 provides three coded output relays, each rated
for three amps at 30 VDC. These relays are controlled by a
predefined program, and can be set to respond to general
alarm conditions with the fire alarm system.
The UZC-256 and the CPU use the EIA-485 circuit for commu-
nication. When installed, the zone coder has a programmable
address on the EIA-485 interface.
Assignment of points to zone codes within the UZC-256 is
automatic in the FC2000; it is programmable in the IFC-2020/
1010, IFC-3030, IFC2-3030, JNCA, and JNCA-2 (see pro-
gramming manuals for details).
Electrical Specifications
Standby current: 35 mA.
Alarm current: 55 mA.
Installation
Locate the system, including components and peripheral
equipment in the following nominal environment:
Temperature: 60° to 80°F (15.6° to 26.7°C).
Relative humidity: 40% to 60% (non-condensing).
Agency Listings and Approvals
In some cases, certain modules or applications may not be
listed by certain approval agencies, or listing may be in pro-
cess. Consult factory for latest listing status.
•UL Listed: S624
•ULC Listed: CS118/CS733/CBP696
•MEA: 317-01-E2 (IFC-640, IFC2-3030); 345-02-E Vol. II
(IFC--3030); 232-06-E Vol. III (IFC2-3030)
•CSFM: 7165-0554:143 (IFC-640); 7170-0554:142 (IFC-
640); 7165-0554:149 (IFC-3030, IFC2-3030); 7165-
0554:153 (IFC2-640)
•FDNY: COA #6010
UZC-256 Universal Zone Coder
0704uzc.wmf
Page 2 of 2 — JCI-60041:A1 • 10/20/09
NOTI•FIRE•NET™ is a trademark of Honeywell International Inc, IBM® is a
registered trademark of IBM Corporation.
©2009. All rights reserved. Unauthorized use of this document is strictly pro-
hibited.
This document is not intended to be used for installation purposes.
We try to keep our product information up-to-date and accurate.
We cannot cover all specific applications or anticipate all requirements.
All specifications are subject to change without notice.
For more information, contact Johnson Controls Field Support Center.
507 East Michigan Street, Milwaukee, WI 53202 www.johnsoncontrols.com
Made in the U.S. A.
UZC-256 Programming
Programming the UZC-256 is accomplished through the serial port of an IBM®-compatible PC. The Software Interface (UZC-SI)
enables the user to select from a variety of code options (see software coding). The UZC requires power from the control panel to
download the programmed code. Alternately, it may be powered “remotely” with a 9 VDC power transformer which is included
with the UZC Hardware Interface (UZC-HI).
UZC Software Coding
Each code (up to 256) may be up to four digits long and each
digit can be from 0 to 15 pulses. User-selectable times and
delays may also be programmed.
Delay Time: The period from when the alarm is received at
the control panel and the code begins. Value can be 0 to 99
seconds.
Number of Rounds: The number of times the code will
sound. Value can be 1 to 99.
Pulse Time: The period each pulse will sound. Value can be
0 to 1 second in 1/100th of a second increments.
Digit Pause: The pause between digits of the code. Value
can be 0 to 10 seconds in 1/10th of a second increments.
Pulse Pause: The pause between pulses of the digit. Value
can be 0 to 1 second in 1/100th of a second increments.
Round Pause: The pause between the round(s) of the code.
Value can be 0 to 10 seconds in 1/10th of a second incre-
ments.
General Alarm: Provides the UZC with the capability to turn
on selected Indicating Circuits (general alarm) after complet-
ing its code. See the appropriate installation manual for infor-
mation on the “General Alarm” feature.
Product Line Information
UZC-256: Universal Zone Coder, power cable and mounting
hardware.
UZC-SI: UZC-256 Software Interface Version 2.0 (must be
used with UZC-256 EPROM 73712 or greater). Provides the
capability to program the UZC. Includes programming instruc-
tions and programming software.
UZC-HI: UZC-256 Hardware Interface. Includes null modem
cable, 9-pin to 25-pin adapter, and a 9 VDC power transformer.
BB-UZC: Backbox for housing the UZC for applications where
the UZC will not fit in the panel enclosure. Black casing.
BB-UZC-R: same as BB-UZC, but with a red casing.
75100: Power Harness. Order when mounting the UZC-256 in
the BB-17 (FC2000 applications).
NOTE: A JSIB-2048/A (stand alone) or JSIB-NET
(NOTI•FIRE•NET™MULTI•NET™) is required to facilitate connec-
tion to an AM2020/AFP1010Unimode 2020/1010IFC-2020/1010
fire control panel.
IBM® Compatible PC UZC-256
3404pc.wmf
0704uzc.wmf

Other Johnson Controls Controllers manuals

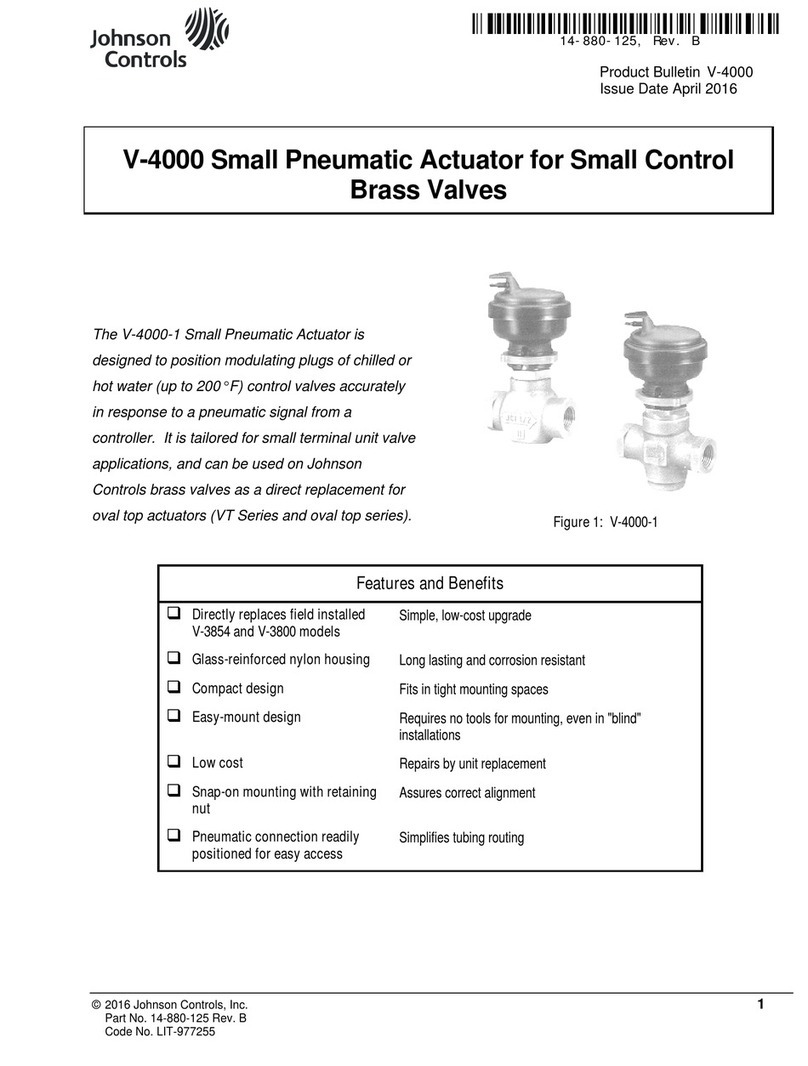

Johnson Controls V-4000-1 User manual

Johnson Controls

Johnson Controls V-4000-1 User manual

Johnson Controls CK721-A Assembly instructions

Johnson Controls

Johnson Controls CK721-A Assembly instructions

Johnson Controls LX Series User manual

Johnson Controls

Johnson Controls LX Series User manual

Johnson Controls METASYS VAV110 User manual

Johnson Controls

Johnson Controls METASYS VAV110 User manual

Johnson Controls M4-CGM Series User manual

Johnson Controls

Johnson Controls M4-CGM Series User manual

Johnson Controls FX-PCA4911 User manual

Johnson Controls

Johnson Controls FX-PCA4911 User manual

Johnson Controls MS-FEC1611-1U User manual

Johnson Controls

Johnson Controls MS-FEC1611-1U User manual

Johnson Controls PENN P70 Series User manual

Johnson Controls

Johnson Controls PENN P70 Series User manual

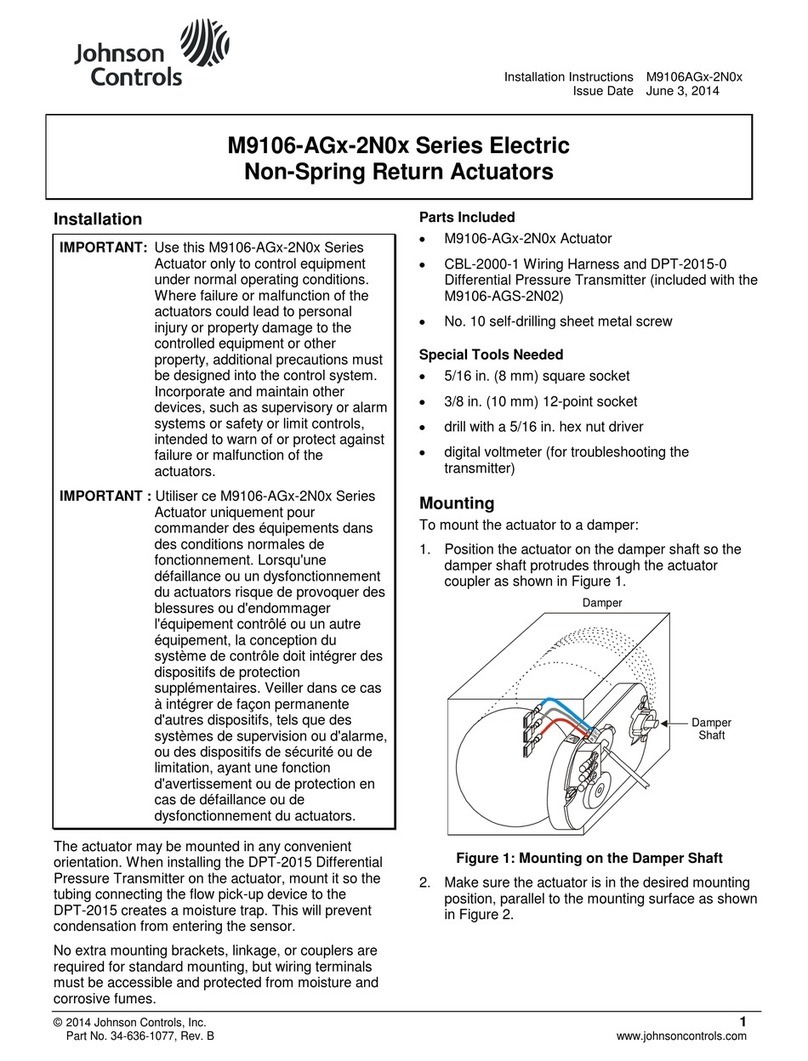

Johnson Controls M9106-AG 2N0 Series User manual
