Damper and Actuator Product Guide 268.1
Fire/Smoke Section
Product Bulletin FS-1300
Issue Date 0499
© 1999 Johnson Controls, Inc. 1
Code No. LIT-2681190 www.johnsoncontrols.com
Since 1915, Johnson Controls has provided
high-quality dampers that fit customer size and
application requirements. Continuing the legacy, a
fire-and-leakage-rated damper for dynamic life safety
smoke management and fire-resistant systems, that
meets new UL leakage-testing procedures, is now
offered.
•
UL File No. R11172
•
CSFM3230-0554:128
•
1-1/2 Hour Fire Rating
•
Class II leakage resistance
These UL/cUL leakage-rated FS-1300 Combination
Fire/Smoke Dampers are listed under
UL Standard 555, fifth edition, dated May 31, 1995,
and under UL Standard 555S, second edition, dated
November 1993, including all paragraphs effective
May 1995 and California State Fire Marshal listed.
All FS-1300 Combination Fire/Smoke Dampers include
2-position electric or pneumatic actuators that have
been tested and approved as a matched set rated for
350°F temperature degradation
.

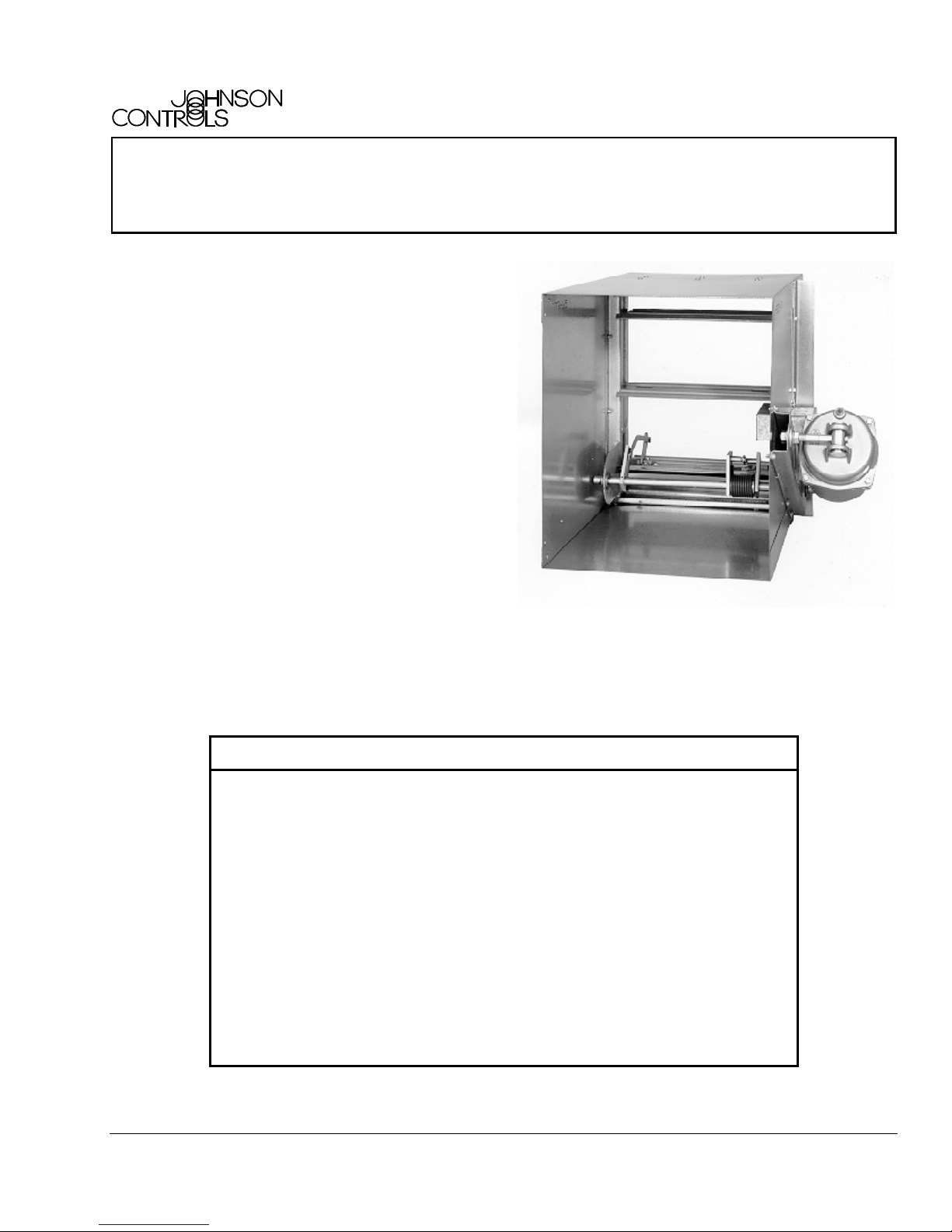

Figure 1: FS-1300 Combination Fire/Smoke Damper
Features and Benefits
❑High-Torque Spring Ensures closure during dynamic airflow and
acts as the latch with additional torque to keep
blades closed
❑3-Year Warranty on
Materials and Workmanship Confidence of company standing behind
product
❑Dual Linkage Standard Ensures complete rotation of all blades
❑Sensor Temperature
Combinations of 165°F and
250°F (74°C and 121°C) or
212°F and 350°F (100°C and
177°C)
Combinations of heat-sensing devices to meet
job requirements
❑16-Gauge Galvanized Steel
Blades One blade profile provides the correct product
performance
FS-1300 Combination Fire/Smoke Dampers
1-1/2 Hour/Class II Leakage

2 FS-1300 Combination Fire/Smoke Dampers Product Bulletin
A
pplications
The FS-1300 Combination Fire/Smoke Damper is
designed to meet design specifications requiring one
damper to provide both a 1-1/2 hour fire rating and a
Class II leakage-rating at 350°F.
The FS-1300 Combination Fire/Smoke Damper is
tested according to UL Standard 555 for dampers
intended for use in HVAC duct systems passing
through fire-resistive partitions, and UL Standard 555S
for dampers that are used in HVAC smoke systems.
When multiple assemblies incorporate individual
sections operated by their own closure mechanism or
actuator, each individual section is to be operated at
the maximum specified airflow for the multiple
assembly, with all other sections closed.
The FS-1300 Combination Fire/Smoke Damper must be
installed in accordance with the Standard
NFPA-90A
and SMACNA Fire Damper Guide , at the point where a
duct passes through a required fire barrier. The blades,
when closed, shall be within the plane of the fire barrier
(wall or floor).
The standard FS-1300 Combination Fire/Smoke
Damper includes a 24-inch-long, 18-gauge galvanized
steel sleeve, 165°F primary heat sensor, 250°F fusible
link, actuator, and dual linkage.
212°F primary heat sensor and 350°F fusible link are
optional.
Single-section dampers are approved for the following:
Figure 2: Wall Mounting
FS-1300 Combination Fire/Smoke Dampers, up to
32 inches wide x 48 inches high, are rated for
mounting in masonry or metal stud gypsum wallboard
fire-rated walls.
Figure 3: Floor/Ceiling Mounting
FS-1300 Combination Fire/Smoke Leakage-rated
Dampers, up to 32 inches wide x 36 inches high, are
rated for mounting in cement floors or ceilings.
M
aintenance
Johnson Controls FS-1300 Dampers have no
components that require routine scheduled maintenance.
G
uide Specification
Furnish and install Johnson Controls FS-1300
dynamically tested, multi-blade, 1-1/2 hour fire-rated
and Class II leakage-rated dampers, approved under
UL Standard 555 and UL Standard 555S, dated
May 1995 and California State Fire Marshal listed.
Primary heat sensor shall respond at 165°F or 212°F
to remove power to an electric or pneumatic actuator
and to close the damper blades for smoke protection.
Fusible Link with high-torque spring releasing at
either 250°F or 350°F shall be used to close the
damper blades and lock them closed for fire protection.
Frames are to be constructed of formed, 13-gauge
galvanized sheet steel, with concealed linkage in both
side channels to provide positive blade motion and
eliminate noise and friction within the airstream.
Compressible spring stainless steel side seals and
bronze bearings shall be provided.
Blades are to be constructed with 16-gauge
galvanized steel, and blade width not exceeding
8 inches. Blades shall have 3/8-inch square steel
zinc-plated pins.

FS-1300 Combination Fire/Smoke Dampers Product Bulletin 3
O
peration
After installation, when power (electric or pneumatic) is
applied to the actuator, the damper blades will be
driven to the open position by the actuator.
When the primary temperature sensor detects heat, it
breaks power to the actuator, closing the damper
blades through the spring-return mechanism of the
actuator. The damper is now in the smoke protection
mode (damper closed via actuator).
If the air temperature reaches the fusible link
temperature (secondary temperature sensor), the link
fuses. The damper linkage disengages from the
actuator, allowing the blades to close by a torsion
spring. The damper is now in fire protection mode
(damper closed via torsion spring) and further
operation is not possible.
C
onstruction
Airflow
Primary
Temperature
Sensor
Factory-installed
Angle
Sleeve
Fusible Link
and Spring
Jackshaft
Linkage
Actuator

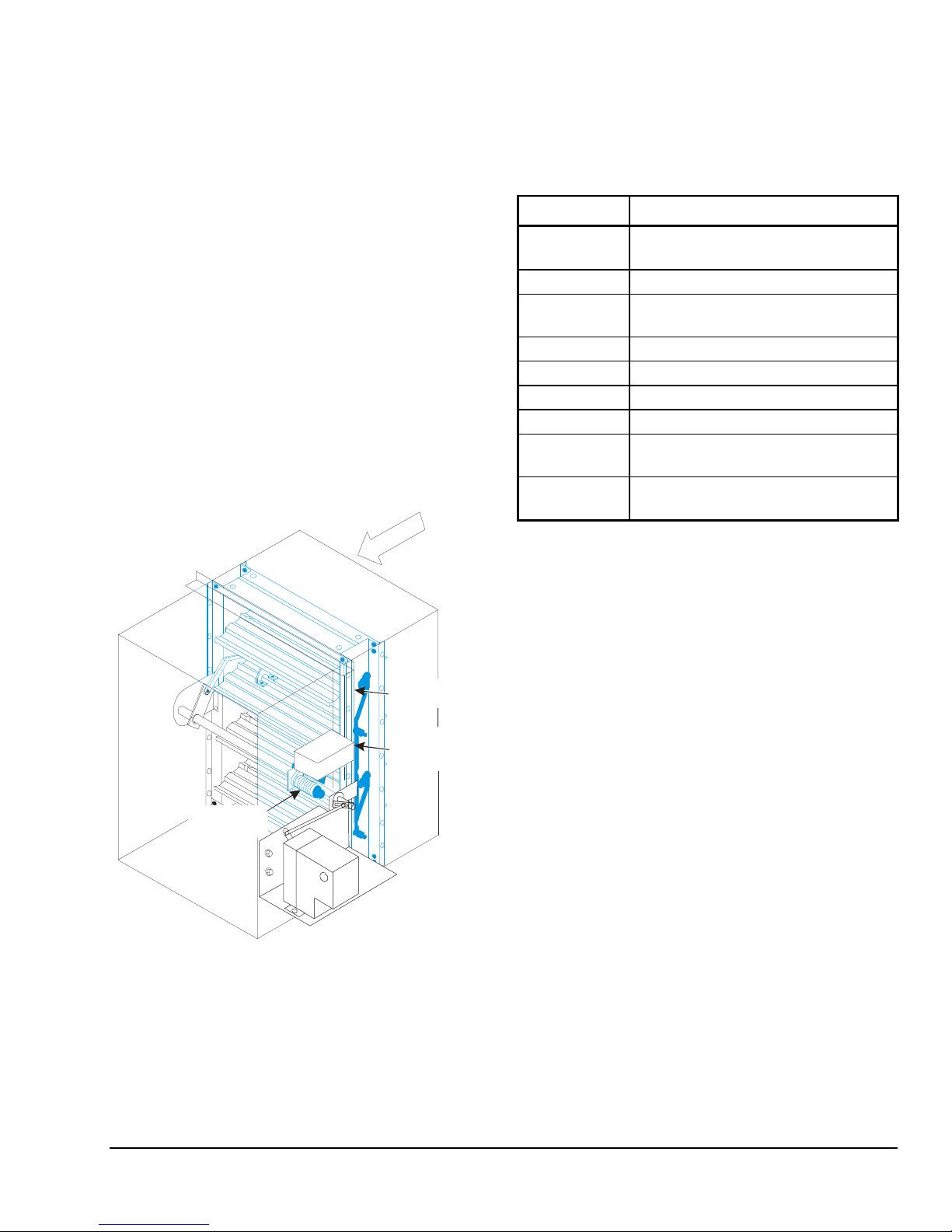

Figure 4: Damper Components
Table 1: Damper Construction
Component Description
Frame 13-gauge galvanized steel,
mechanically joined
Blades 16-gauge galvanized steel
Linkage 1/8 inch rolled steel, zinc plated,
concealed in both channels of the frame
Blade Pin 3/8 inch square steel, zinc plated
Bearings Oil-impregnated bronze
Side Seal Self-compensating stainless steel
Blade Seal Stainless steel with extruded silicone
Sleeve 18-gauge galvanized sheet metal,
24-inches-long standard
Angles 16-gauge galvanized steel,
1.5 inch x 1.5 inch
Notes: The sleeve is designed for use with standard
breakaway connectors.
Mounting angles are provided with the damper. The
side containing factory-installed hardware has an
angle mounted as a guide for remaining angles on
that side.
L
abeling
All damper assemblies include an identification label,
which provides the following information:
•damper model and size
•manufacturing date code (year/week)
•air leaving side
Other labels include:
•intended mounting position
•UL/cUL classification of damper
•temperature rating
•top of damper
•direction of airflow
•maximum rated airflow and static pressure

4 FS-1300 Combination Fire/Smoke Dampers Product Bulletin
A
ctuators
All actuators are factory mounted and tested with the
damper prior to shipment.
Electric
FS-1300 Combination Fire/Smoke Dampers are
available with Johnson Controls UL Listed/
CSA Certified electric actuators; 120 VAC actuator is
standard. Other actuator options are available.
Table 2: Electric Actuator
Code Number Description Maximum
Damper
Area
DMPR-S60024 60 lb·in, 24 VAC
DMPR-S60024S 60 lb·in, 24 VAC
w/auxiliary switch 16 sq ft
DMPR-S60120 60 lb·in, 120 VAC
DMPR-S60120S 60 lb·in, 120 VAC
w/auxiliary switch
Note: Maximum size and area limitations are determined
by UL testing. Future testing may include additional
actuators, or expand present limits.
For more detailed information on the electric actuator,
refer to the
High Temperature Electric Actuator for
Smoke Dampers Submittal Data
in the Damper and
Actuator Product Guide (FAN 268.1
).
Pneumatic
FS-1300 Combination Fire/Smoke Dampers are
available with Johnson Controls UL Component
Recognized pneumatic actuators.
Table 3: Pneumatic Actuator
Actuator Maximum
Damper
Area
Maximum
Size Temperature
DS-3153-2 25.3 sq ft 32 x 48 in. 350°F
Note: Maximum size and area limitations are a function of
past UL testing. Future testing may include
additional actuators, or expand present limits.
For more detailed information on the pneumatic
actuators, refer to the
DS-3153 Pneumatic Actuator
Product Bulletin
in the Damper and Actuator Product
Guide (FAN 268.1)
.
S
izing
Table 4: Damper Size Limits
Size Limits Width, in. Height, in.
Minimum 15 14
Maximum Single Panel 32 48
Damper Maximum
(Wall Installation) 64 96
Damper Maximum,
(Floor Installation) 64 72
FS-1300 size limits are a function of past UL tests.
Note: All FS-1300 Combination Fire/Smoke
Dampers will be provided with an actuator
from either Table 2 or 3, determined by the
fifth character in the code.
FS-1300 Combination Fire/Smoke Dampers are
available in nominal 1-inch increments only. Actual
damper size is 0.99479 inch less than nominal.
Note: Proper sleeve length is determined by adding
18 inches to the wall or floor thickness.
For example, a 6-inch fire wall would require a
24-inch-long minimum sleeve.
D
imensional Data
Airflow
11
16
3.5 4.5, 8.5,
or 12.5
Width
Height
Figure 5: Mounting Dimensions with
Electric Actuator, inches

FS-1300 Combination Fire/Smoke Dampers Product Bulletin 5
7
Airflow
16
3.5 4.5, 8.5,
or 12.5
Width
Height
Figure 6: Mounting Dimensions with
Pneumatic Actuator, inches
S
election Information
1. Determine required size and type of damper.
2. Select the features from
Table 5: FS-1300
Combination Fire/Smoke Damper Ordering
Template
that match the operation and
performance required.
3. Enter width and height of damper.
Note: To find actual damper size, multiply the
nominal size by 0.99479.
4. Enter options required.
FS-1300 Combination Fire/Smoke Dampers include
opposed 16-gauge blades, bronze bearings, side
seals, and dual linkage.
Example
: TOVLE-200 x 200X is a combination
fire/smoke damper that has 16-gauge blades, opposed
blade operation, dual linkage, bronze bearings,
high-temperature blade seals, and side seals. Its
dimensions are 20 inches wide x 20 inches high, with a
24-inch-long sleeve, 24 VAC electric actuator, 165°F
primary heat sensor, and 250°F fusible link. (Unless
otherwise ordered, the system defaults to a
24-inch-long sleeve.)
Table 5: FS-1300 Combination Fire/Smoke Damper Ordering Template
Ordering Code Number TOV-0x0
Application T = Fire/Smoke
Blade Operation O = Opposed
Blade Type V = 16-gauge
Bearing/Seal Type L = 165°F Primary Sensor/250°F Fusible Link
H = 212°F Primary Sensor/350°F Fusible Link
Actuator Type E = Electric
P = Pneumatic
Width Dimensions 15 to 64, 1 inch increments
Height Dimensions 14 to 96, 1 inch increments
Factory-installed
Options Refer to Table 6 for selection and
combinations.
Note: Actual damper size is 0.99479 less than nominal. For example a damper ordered 24 inches wide x 32 inches high will
be shipped 23-7/8 inches wide x 31-27/32 inches high.
O
ptions
Table 6: Option List
Code Option Description
PPilot Positioner (cannot be used with options X, Y, and Z)
R32-inch-long Sleeve
TLeft-side Actuator Mounting
X24 VAC Electric Actuator (cannot be used with options P, Y, and Z)
Y120 VAC Electric Actuator with Switches (cannot be used with options P, X, and Z)
Z24 VAC Electric Actuator with Switches (cannot be used with options P, X, and Y)
Note: Limit of two factory-installed options.

6 FS-1300 Combination Fire/Smoke Dampers Product Bulletin
T
echnical Data
110 100
0.00
0.01
0.10
1.00
Approach Velocity (fpm x 100)
Static Pressure (inches W.C.)
24x24in.
Figure 7: Pressure Drop Curve,
24 x 24 inch Damper
110 100
1.00
Leakage Rate (cfm/sq ft)
Static Pressure (inches W.C.)
15x48in.
10.00
32x48in.
Figure 8: Leakage Curve
Table 7: Damper Weights, lb (kg)
Height, Width, in. (cm)
in. (cm) 10 (25) 18 (46) 26 (66) 32 (81)
10 (25) 24 (10.9) 27 (12.2) 30 (13.6) 33 (15)
18 (46) 27 (12.2) 32 (14.5) 37 (16.8) 39 (17.7)
26 (66) 29 (13.1) 36 (16.3) 44 (20.0) 46 (20.9)
34 (86) 31 (14.1) 40 (18.1) 50 (22.7) 60 (27.2)
42 (107) 34 (15.4) 44 (20.0) 55 (25.0) 65 (29.5)
48 (122) 37 (16.8) 53 (24.0) 61 (27.7) 67 (30.4)
Note: Weight includes actuator, fusible link, spring, and
mounting hardware, and does not include the weight
of sleeve material or shipping crate.

FS-1300 Combination Fire/Smoke Dampers Product Bulletin 7
Table 8: FS-1300 Dynamic Rating - Electric Actuator
Width x Height, in. Mounting Ordering
Code Maximum Flow, fpm* Maximum SP, in. WG** Actuator, Tested as Matched Set with
Damper (350°F)
Minimum: 15 x 14 Wall or Floor DMPR-S60024,
Maximum: 32 x 48 Wall TOVLE, 2500 4 DMPR-S60024S,
Maximum: 32 x 36 Floor TOVHE DMPR-S60120,
DMPR-S60120S
* Maximum Flow is the velocity against which the actuator listed in Table 8 will be able to operate the damper to the fully
closed position and provide the rated leakage in the marked direction of airflow.
** Maximum SP is the static pressure against which the actuator listed in Table 8 will be able to operate the damper from
the fully closed position in the marked direction of airflow.
Table 9: FS-1300 Dynamic Rating - Pneumatic Actuator
Width x Height, in. Mounting Ordering Code Maximum
Flow, fpm* Maximum SP, in. WG** Actuator, Tested as Matched Set with
Damper (350°F)
Minimum: 15 x 14 Wall or Floor TOVLP,
Maximum: 32 x 48 Wall TOVHP 2800 8 DS-3153-2
Maximum: 32 x 36 Floor
* Maximum Flow is the velocity against which the actuator listed in Table 9 will be able to operate the damper to the fully
closed position and provide the rated leakage in the marked direction of airflow.
** Maximum SP is the static pressure against which the actuator listed in Table 9 will be able to operate the damper from
the fully closed position in the marked direction of airflow.
Table 10: FS-1300 Dynamic Rating - Fire Mode
Width x Height, in. Mounting Ordering Code Maximum
Flow, fpm* Maximum SP, in. WG** Actuator
Minimum: 15 x 14 Wall or Floor TOVLE, TOVHE,
Maximum: 32 x 48 Wall TOVLP, TOVHP 3500 8 Jackshaft Spring
Maximum: 32 x 36 Floor
Note: Table 10 information is based on a 20 psi minimum supply pressure for pneumatic actuators.
When multiple assemblies incorporate individual
sections operated by their own closure mechanism or
actuator, each individual section is to be operated at
the maximum specified airflow for the multiple
assembly with all other sections closed.
Table 11: UL Leakage-rated
Classifications
Class Static Pressure (SP), inches Water
14812
II 10 20 28 35
Note: The ratings in Table 11 are valid in either direction of
airflow.
Leakage in cfm/sq ft

8 FS-1300 Combination Fire/Smoke Dampers Product Bulletin
P
erformance Data
Temperature Rating 165°F (74°C) primary sensor with 250°F fusible link, or
212°F (100°C) primary sensor with 350°F fusible link
Electric Actuator Control Circuit: 2-wire plus a ground wire
Input Voltage: 120 VAC @ 60 Hz (24 VAC @ 60 Hz optional)
Operating Time: Open, 20 seconds; Closed, 15 seconds
Auxiliary Switch: Single-Pole, Double-Throw (SPDT) makes or breaks circuit at powered
end of stroke.
Connections: Coded screw terminals
Rotation: Approximately 180 degrees
Power Requirements: 70 VA running, 25 VA holding
Pneumatic Actuator Stroke: 3 in. (7.6 cm)
Supply Air Pressure: 20 psig (138 kPa) minimum compression fitting for copper tubing
Replacement Parts DMPR-RS005: DMPR-S60024 - 60 lb·in, 24 VAC
DMPR-RS006: DMPR-S60024S- 60 lb·in, 24 VAC with Auxiliary Switch
DMPR-RS007: DMPR-S60120 - 60 lb·in, 120 VAC
DMPR-RS008: DMPR-S60120S - 60 lb·in, 120 VAC with Auxiliary Switch
DMPR-RS301: 250°F fusible link
DMPR-RS302: 350°F fusible link
DMPR-RS303: 165°F primary sensor
DMPR-RS304: 212°F primary sensor
All technical information is compiled from test data, corrected to standard temperature and pressure conditions,
determined using instrumentation and procedures in accordance with AMCA Standard for Test Methods for
Louvers, Dampers, and Shutters No. 500-89.
For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable
for damages resulting from misapplication or misuse of its products.
R
eturn Policy
All Johnson Controls Dampers are built to order, just in time and cannot be returned due to customer ordering
errors. All dampers are backed by a 3-year warranty, which covers defects in materials or workmanship. Refer to
terms and conditions of sale for specifics.
At Johnson Controls, delivering environmentally sound products and services is part of our corporate-wide
commitment to continuous improvement. We do this by reducing raw material consumption, recycling, eliminating
the use of toxins, and conserving and preserving natural resources. We believe that what is good for the
environment and the safety and health of all people is good for Johnson Controls. And we never forget that clean
water, air, and land is everyone’s business.
Controls Group www.johnsoncontrols.com
507 E. Michigan Street FAN 268.1
P.O. Box 423 Damper and Actuator Product Guide
Milwaukee, WI 53201 Printed in U.S.A.
