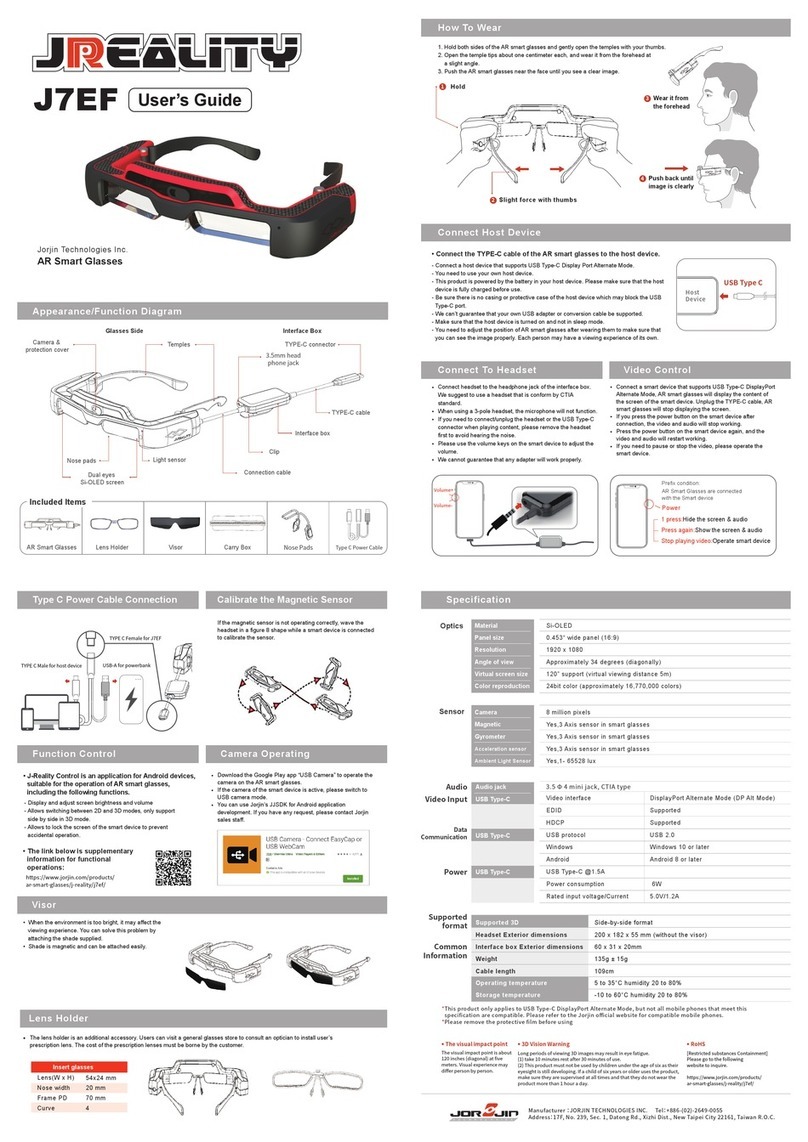

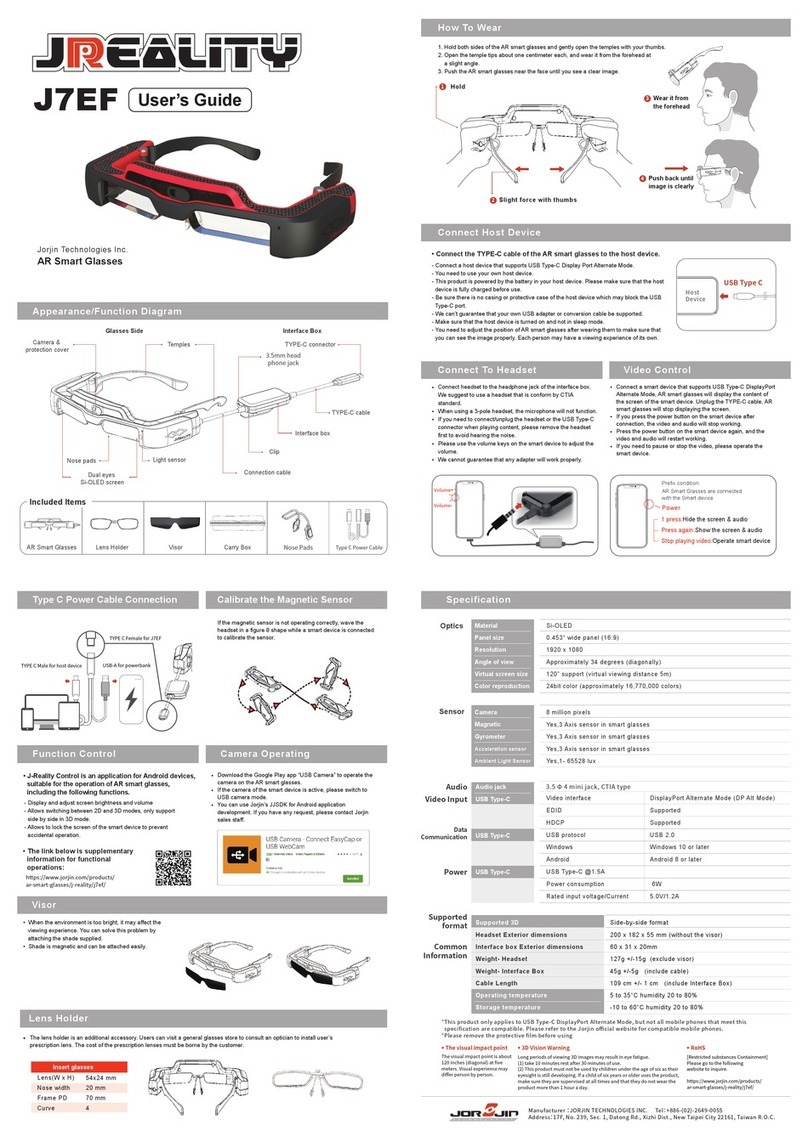

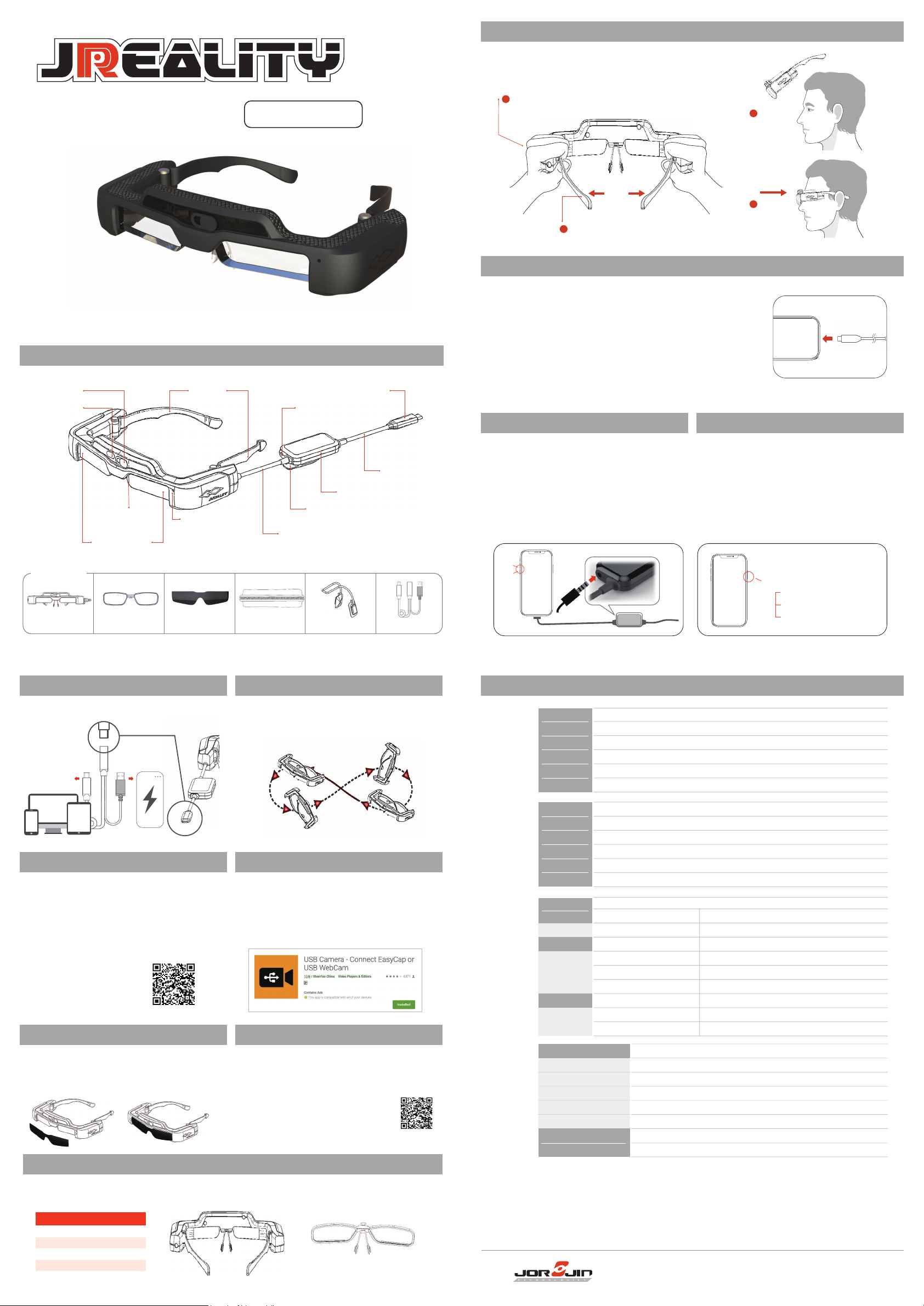

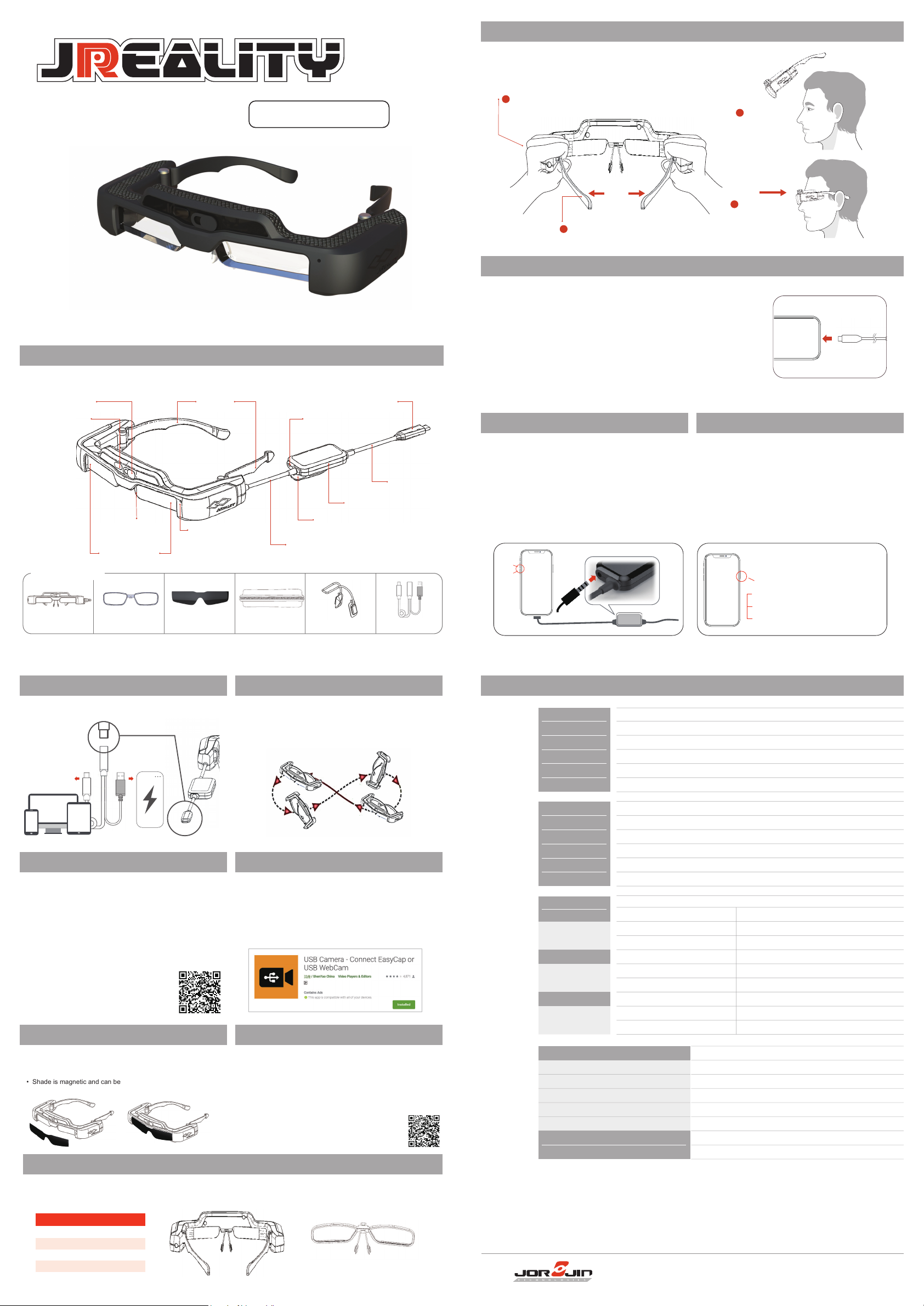

Jorjin J-Reality J7EF Plus User manual

Jorjin Technologies Inc.
AR Smart Glasses
Appearance/Function Diagram
How To Wear
1. Hold both sides of the AR smart glasses and gently open the temples with your thumbs.
2. Open the temple tips about one centimeter each, and wear it from the forehead at
a slight angle.
3. Push the AR smart glasses near the face until you see a clear image.
Connect Host Device
• Connect the TYPE-C cable of the AR smart glasses to the host device.
Connect To Headset Video Control
Connect headset to the headphone jack of the interface box.
We suggest to use a headset that is conform by CTIA
standard.
When using a 3-pole headset, the microphone will not function.
If you need to connect/unplug the headset or the USB Type-C
connector when playing content, please remove the headset
first to avoid hearing the noise.
Please use the volume keys on the smart device to adjust the
volume.
We cannot guarantee that any adapter will work properly.
•
•
•
•
•
Connect a smart device that supports USB Type-C DisplayPort
Alternate Mode, AR smart glasses will display the content of
the screen of the smart device. Unplug the TYPE-C cable, AR
smart glasses will stop displaying the screen.
If you press the power button on the smart device after
connection, the video and audio will stop working.
Press the power button on the smart device again, and the
video and audio will restart working.
If you need to pause or stop the video, please operate the
smart device.
•
•
•
•
Prefix condition:
AR Smart Glasses are connected
with the Smart device
1 press:Hide the screen & audio
Press again:Show the screen & audio
Stop playing video:Operate smart device
Nose pads
Light sensor
Connection cable
Clip
3.5mm head
phone jack
Interface box
TYPE-C cable
TYPE-C connectorTemples
Camera &
protection cover
Dual eyes
Si-OLED screen
TOF (Time of Flight)
Host
Device
USB Type C
Power
Lens HolderAR Smart Glasses Carry BoxVisor Type C Power Cable
Nose Pads
J7EF Plus User’s Guide
Hold
1
2Slight force with thumbs
3Wear it from
the forehead
4Push back until
image is clearly
Volume+
Volume-
Included Items
Glasses Side Interface Box
- Connect a host device that supports USB Type-C Display Port Alternate Mode.
- You need to use your own host device.
- This product is powered by the battery in your host device. Please make sure that the host
device is fully charged before use.
- Be sure there is no casing or protective case of the host device which may block the USB
Type-C port.
- We can’t guarantee that your own USB adapter or conversion cable be supported.
- Make sure that the host device is turned on and not in sleep mode.
- You need to adjust the position of AR smart glasses after wearing them to make sure that
you can see the image properly. Each person may have a viewing experience of its own.
Specification
Visor Gesture Control
Lens Holder
Type C Power Cable Connection Calibrate the Magnetic Sensor
The lens holder is an additional accessory. Users can visit a general glasses store to consult an optician to install user’s
prescription lens. The cost of the prescription lenses must be borne by the customer.
•
Lens(W x H)
Nose width
Frame PD
Curve
54x24 mm
20 mm
70 mm
4
Insert glasses
*This product only applies to USB Type-C DisplayPort Alternate Mode, but not all mobile phones that meet this
specification are compatible. Please refer to the Jorjin official website for compatible mobile phones.
*Please remove the protective film before using
Supported
format
Common
Information
Supported 3D
Headset Exterior dimensions
Interface box Exterior dimensions
Weight- Headset
Weight- Interface Box
Cable Length
5 to 35°C humidity 20 to 80%
-10 to 60°C humidity 20 to 80%
Side-by-side format
200 x 182 x 55 mm (without the visor)
60 x 31 x 20mm
127g +/-15g (exclude visor)
45g +/-5g (include cable)
109 cm +/- 1 cm (include Interface Box)
Operating temperature
Storage temperature
Manufacturer ：JORJIN TECHNOLOGIES INC. Tel：[phone]
Address：17F, No. 239, Sec. 1, Datong Rd., Xizhi Dist., New Taipei City 22161, Taiwan R.O.C.
[Restricted substances Containment]
Please go to the following
website to inquire.
• RoHS
https://www.jorjin.com/products/
ar-smart-glasses/j-reality/j7ef-plus/
The visual impact point is about
120 inches (diagonal) at five
meters. Visual experience may
differ person by person.
• The visual impact point
•J-Reality Control is an application for Android devices,
suitable for the operation of AR smart glasses,
including the following functions.
Function Control Camera Operating
Download the Google Play app “USB Camera” to operate the
camera on the AR smart glasses.
If the camera of the smart device is active, please switch to
USB camera mode.
You can use Jorjin’s JJSDK for Android application
development. If you have any request, please contact Jorjin
sales staff.
If the magnetic sensor is not operating correctly, wave the
headset in a figure 8 shape while a smart device is connected
to calibrate the sensor.
•
•
•
• The link below is supplementary
information for functional
operations:
- Display and adjust screen brightness and volume
- Allows switching between 2D and 3D modes, only support
side by side in 3D mode.
- Allows to lock the screen of the smart device to prevent
accidental operation.
J-Reality Gesture is an application for Android devices.
It enables the gesture feature on J7EF plus and
supports the following gestures.
• Upward moving - a hand moves from bottom to top
• Downward moving - a hand moves from top to bottom
• Leftward moving - a hand moves from left to right
• Rightward moving - a hand moves from right to left
• Forward moving - a hand move from near to far
• Backward moving - a hand move from far to near
• When the environment is too bright, it may affect the
viewing experience. You can solve this problem by
attaching the shade supplied.
• Shade is magnetic and can be attached easily.
• 3D Vision Warning
Long periods of viewing 3D images may result in eye fatigue.
(1) take 10 minutes rest after 30 minutes of use.
(2) This product must not be used by children under the age of six as their
eyesight is still developing. If a child of six years or older uses the product,
make sure they are supervised at all times and that they do not wear the
product more than 1 hour a day.
TYPE C Female for J7EF Plus
TYPE C Male for host device USB-A for powerbank
https://www.jorjin.com/products/
ar-smart-glasses/j-reality/j7ef-plus/
Material
Panel size
Resolution
Angle of view
Virtual screen size
Color reproduction
Si-OLED
0.453“ wide panel (16:9)
1920 x 1080
Approximately 34 degrees (diagonally)
120” support (virtual viewing distance 5m)
24bit color (approximately 16,770,000 colors)
Optics
8 million pixels
Yes,3 Axis sensor in smart glasses
Yes,3 Axis sensor in smart glasses
Yes,3 Axis sensor in smart glasses
Yes,1- 65528 lux
Yes, Multi object distance detection and support gesture recognition
Camera
Magnetic
Gyrometer
Acceleration sensor
Ambient Light Sensor
TOF (Time of Flight)
Sensor
Audio jack
USB Type-C
USB Type-C
USB Type-C
3.5 Φ 4 mini jack, CTIA type
DisplayPort Alternate Mode (DP Alt Mode)
Supported
Supported
USB 2.0
Windows 10 or later
Android 8 or later
8W
5.0V/1.6A
Audio
Video Input
Power
Data
Communication
Video interface
EDID
HDCP
USB protocol
Windows
Android
USB Type-C @1.5A
Power consumption
Rated input voltage/Current
The link below is supplementary information for functional operations:
https://www.jorjin.com/products/ar-smart-glasses/j-reality/j7ef-plus/

Jorjin Technologies Inc.
AR智慧眼鏡
AR智慧眼鏡 - 外型/功能圖
穿戴方式
連接裝置
連接耳機影音控制
J7EF Plus 使用說明書
產品規格 - 型號 - J7EF Plus
使用遮光片
配戴鏡框
TYPE C Power Cable 串接方式
功能控制操作相機
磁力計校正
Type C 母座連接J7EF Plus
收納包鏡 框AR智慧眼鏡 遮光片 TYPE C Power Cable
眼鏡用鼻墊
包裝內容物
雙手握住AR智慧眼鏡兩側，以大拇指將鏡腿輕輕扳開。
扳開至適合頭部寬度之後，以略微傾斜角度自前額處戴入。
將AR智慧眼鏡往後推至看到清楚影像為止。
3自頭頂處
戴入
4向後推至
定位
- 連接支援USB Type-C DisplayPort Alternate Mode的裝置。
- 您需要提供自己的裝置。
- 本產品使用裝置中的電池供電，使用前請先確認裝置電量。
- 無法保證可以使用USB轉接器或轉換線，使用AR智慧眼鏡。
- 使用時請確認裝置不在睡眠模式。
- 配戴後請調整AR智慧眼鏡的位置，確保能看到影像，影像觀看效果將因人而異。
• 請將AR智慧眼鏡的TYPE-C連接線連接至裝置
裝置
USB Type C
將市售耳機連接至介面盒的耳機插孔，建議使用符合CTIA
標準的耳機。
使用3-pole耳機時，麥克風功能無法使用。
在播放內容時連接或拔除耳機或USB Type-C接頭，您可
能會聽到一些雜音，因此請確定先取下耳機。
請使用裝置上的音量鍵來調整音量大小。
無法保證可以使用轉接器。
•
•
•
•
•
音量+
音量-
接上支援USB Type-C DisplayPort Alternate Mode的智慧裝
置，AR智慧眼鏡會顯示影像畫面。拔除TYPE-C連接線，AR智慧
眼鏡將無法顯示畫面。
連接後若按壓裝置上的電源鍵，影像與音訊將無法作用。
再次按壓裝置上的電源鍵，影像與音訊將恢復運作。
若需暫停或離開影片播放狀態，請操作裝置。
•
•
•
•
•
前置條件：AR智慧眼鏡已連結裝置
按一次：隱藏畫面與音訊
再按一次 : 恢復畫面與音訊
停止播放影片：操作裝置
電源鍵
• J-Reality Control為Android裝置的應用程式，
適用於此AR智慧眼鏡之操作，包含以下功能。
- 顯示與調整螢幕亮度及音量
- 切換2D與3D模式，支援的3D格式為並排格式。
- 裝置的螢幕鎖，以防止不慎操作。
• 關於功能操作之相關補充資料，
請從以下連結觀看。
• 環境過於明亮時，可能影響觀看效果。
可安裝隨附的遮光片，觀看螢幕。
• 遮光片具有磁性，可以直接裝上。
隨附鏡框為額外配件，依照使用者需求，可於一般眼鏡行由配鏡師安裝特定度數之鏡片，鏡片的成本需由客戶承擔，
視配鏡師而定，配鏡師可能無法提供此服務，須諮詢眼鏡行。
鏡片(寬 x 高)
鼻 寬
鏡框PD
曲 線
54x24 mm
20 mm
70 mm
4
鏡架可調式鏡片
*本產品僅適用USB Type-C DisplayPort Alternate Mode，但非所有符合此規格之手機皆相容，可相容手機請見Jorjin官網說明。
*使用前請先移除保護膜
視覺落點五米處約有120吋，
此為一般視覺體驗，依個人視
覺感受不同。
使用過度恐傷害視力
(1) 使用30分鐘，請休息10分鐘。
(2)
• 3C視力警語
[限用物質含有情況]標示內容，
請至下列網址查詢
• RoHS
https://www.jorjin.com/products/
ar-smart-glasses/j-reality/j7ef-plus/
• 視覺落點
未滿六歲的幼童不應使用本產品，六歲以上
的幼童使用本產品，應有人在旁全程看管，
且不得長時間配戴。
製造商：佐臻股份有限公司
地址：新北市汐止區大同路一段239號17樓 電話：[phone]
•
•
•
如果磁力計異常時，請在連接裝置後開啟磁力傳感器相關應
用工具(例：指南針)，同時以8字形移動智慧眼鏡校正。
可透USB相機應用程式，操作AR智慧眼鏡上的相機。
(例：USB Camera)
使用時，若出現裝置本身的相機，請切換為USB相機模式。
佐臻JJSDK適用於進行Android應用程式之開發，若有需求請洽
佐臻業務人員。
Type C公頭連接裝置 USB-A 連接行動電源
顯示裝置類型
面板尺寸
解析度
視角
虛擬螢幕尺寸
色彩再現
Si-OLED (矽基有機發光二極體)
0.453“ 寬面板 (16:9)
1920x1080
約 34度 (對角)
支援 120吋 (虛擬觀看距離5公尺)
24位元色彩 (約16,770,000色)
光 學
8百萬畫素
有，眼鏡端(頭戴式顯示器)中配備 3 軸感應器
有，眼鏡端(頭戴式顯示器)中配備 3 軸感應器
有，眼鏡端(頭戴式顯示器)中配備 3 軸感應器
有，1- 65528 lux
有，具備多點距離感應器並支援手勢辨識功能
相機
磁力計
陀螺儀
加速感測器
照度感應器
飛時測距
感應器
音頻插孔
USB Type-C
USB Type-C
USB Type-C
3.5 Φ 4極迷你插孔，CTIA類
視頻介面
EDID
HDCP
USB通訊協定
支援作業系統
支援作業系統
USB Type-C @1.5A
額定耗電量
額定電壓 / 額定電流
DisplayPort 替代模式 (DP Alt模式)
支 援
支 援
USB 2.0
Window 10 以上版本
Android 8 以上版本
8W
5.0V/1.6A
音 訊
視頻輸入
資料通訊
電 源
https://www.jorjin.com/products/
ar-smart-glasses/j-reality/j7ef-plus/
握住後，大拇指輕輕向外側施力
1
2左右各拉開約1公分
相機與保護蓋
飛時測距
鼻墊
雙眼Si-OLED
顯示器
環境光感測器
鏡 腿
3.5mm 耳機孔
TYPE-C 連接器
頭帶裝置連接線
背夾
介面盒
TYPE-C 連接線
手勢控制
J-Reality Gesture為Android裝置的應用程式，
用於進行J7EF Plus之手勢操作，手勢包含以下項目。
• 上移 (手掌由下往上移動)
• 下移 (手掌由上往下移動)
• 左移 (手掌由左往右移動)
• 右移 (手掌由右往左移動)
• 前移 (手掌由近往遠移動)
• 後移 (手掌由遠往近移動)
關於功能操作之相關補充資料，請從以下連結觀看。
https://www.jorjin.com/products/ar-smart-glasses/j-reality/j7ef-plus/
支援格式
一般資料
3D支援
頭戴顯示器外觀尺寸
介面盒外觀尺寸
5°C至35°C，濕度20%至80%
-10°C至60°C，濕度20%至80%
併列
200 x 182 x 55 mm (不含遮光片)
60 x 31 x 20mm
操作溫度
存放溫度
頭戴顯示器重量
介面盒重量
總線長
127g +/-15g (不含遮光片)
45g +/-5g
109 cm +/- 1 cm (含介面盒)
