1 GENERAL DESCRIPTION
Tron SART20 is emergency equipment consisting of:
1. Tron SART20 radar transponder.
2. Mounting rope for life rafts / life boats.
The 9 GHz radar transponder type Tron SART20 is developed by Jotron AS to
meet the rules and regulations for use on vessels and life rafts in the maritime
service. Tron SART20 meets the specifications for 9 GHz radar transponders
for use in search and rescue operations at sea.
The operating range of the Tron SART20 is up to 30 nautical miles, depending
on the height of the electronic unit and the radar height of the search and res-
cue unit (sea or airborne). With a radar height of 20m and the Tron SART20
placed at 1m above sea level, the range will be up to 10 nautical miles.
Tron SART20 is buoyant, however to obtain maximum performance the tran-
sponder should be placed in a vertical position and as high up as possible in
order to achieve maximum coverage.
Several mounting brackets and mounting aids are available to ensure correct
mounting and use of the radar transponder.
The purpose of the Tron SART20 is to perform a secondary alarm when se-
arch and rescue units are searching for a life raft / lifeboat in distress. The Tron
SART20 will help the units to pinpoint exactly where the distressed boat is lo-
cated in a larger area. This is done with the help of the radar on the searching
ship or helicopter.
When the Tron SART20 is interrogated (hit) by a radar signal, it will immediately
start to transmit a number of sweeps covering the complete maritime 3 cm
radar band.
These sweeps are detected on the radar screen and are used to navigate di-
rectly towards the distressed life raft, for details on radar display see chapter
5.3.
8

www.jotron.com
84145_UM_SART20_G
www.jotron.com
9
Maximum distance to a ship will normally be about 10 nm and approximately
30nm to a helicopter, dependent on the helicopters altitude. The transponder
will not give any alarms further away than this.
The primary alarm will usually be an Emergency Position Indicating Radio
Beacon (EPIRB) or distress call on VHF / HF - manual or via digital selcall.
The Tron SART20 should be activated immediately after activation of the EPIRB
or by instruction from the rescue control centre.
The batteries of the Tron SART20 will last at least 96 hours in standby after
activation and then minimum 8 hours of continuous operation.
Although the transponder does not send any alarm via satellite, VHF or other
radio communication, the use should be limited to short tests and emergency
situations.
This is to save battery capacity in case of a situation where the transponder is
needed.
1.1 Tron SART20 features
Watertight:
Tron SART20 is watertight to a depth of minimum 1 meter.
Buoyant:
Tron SART20 is buoyant in case the transponder is accidentally dropped into
the water. To increase coverage the SART20 should always be held or mounted
as high as possible.
Rugged design:
The Tron SART20 will withstand a drop from 20 meters into the water. It is re-
sistant to seawater, oil and sunlight.
Handling:
Tron SART20 is designed for easy operation, with a brief operating instruction
printed on the unit. It comes standard with a 10 meter rope and a shackle hook
to be used for hanging the SART20 on the inside of a life raft.

84145_UM_SART20_G
www.jotron.com
www.jotron.com
Indicators:
Tron SART20 is equipped with an LED and a built in buzzer to indicate operation.
The LED will normally give a flash each 4 seconds to show that the Tron SART20
is activated.
When a search and rescue unit is approaching the buzzer will sound each time
the SART20 is hit by the radar. A continuous sound from the buzzer means that
the ship or helicopter is close to the Tron SART20 and the radar is hitting the
Tron SART20 continuously.
Battery unit.
The battery module is to be replaced every 5.year. A battery expiry label on the
Tron SART20 housing displays the expiry date.
A new battery comes complete with cable and connector.
Figure 1.1, Battery expiry label
10

www.jotron.com
84145_UM_SART20_G
www.jotron.com
2 TECHNICAL SPECIFICATIONS
2.1 ELECTRICAL SPECIFICATIONS
Frequency: X-band (3 cm) (9.2 - 9.5 GHz)
Temperature range: Operating: -20 to +55°C
Storage: -30 to +65°C
Radiated power: > 400 mW e.i.r.p (+26 dBm)
Sweep type: 12 sweep sawtooth type
Forward 7.5 us ±1 ms
Return 0.4 us ±0.1 ms
Starts with return sweep.
Receive sensitivity: Better than -50 dBm e.r.s.
Response delay: Max 0.5 ms
Antenna pattern: Horizontal polarization.
Omni directional radiation in the horizontal plane.
Greater than ±12.5 degrees elevation angle in the
vertical plane.
Battery: Two C-size SAFT LSH 14 light Lithium batteries,
5 years service life.
Battery capacity: 96 hours standby +8 hours continuous operation
when activated by a radar with 1 kHz prf at -20°C.
5 years storage.
2.2 MECHANICAL SPECIFICATION
Materials used:
Transponder housing: Polycarbonate with 10% fiberglass.
Bracket: Anodized aluminum.
Transponder dimensions:
Max diameter: 89 mm
Length: 250 mm
Weight: 482 g
Transponder with standard storage bracket:
Max diameter: 90 mm
Length: 250 mm
11

84145_UM_SART20_G
www.jotron.com
www.jotron.com
3 FUNCTIONAL DESCRIPTION
3.1 GENERAL
Tron SART20 consists of a housing sealed at the lower end with a bottom lid
and may be split into the following main parts:
1. Bottom lid.
2. Housing with Tron SART20 electronic assembly and battery module.
The housing is made of polycarbonate.
Figure 3.1, Tron SART20 disassembled
3.1.1 Tron SART20 electronic assembly
Tron SART20 electronic assembly is inserted into the Tron SART20 housing.
It consists of the transceiver module and antenna.
1. Transceiver Board in metal box
2. Antenna (9GHz).
Figure 3.1.1 Tron SART20 electronic assembly
12
1 2
1 2

www.jotron.com
84145_UM_SART20_G
www.jotron.com
3.1.2 BATTERY MODULE
The battery module is inserted into the Tron SART20 housing.
A battery expiry label on the Tron SART20 housing displays the battery expiry
date.
A new battery module comes complete with cable and connector and can be
changed by opening the bottom lid at of the Tron SART20.
Figure 3.1.2 TRON SART20 BATTERY
- module without cable and connector
3.1.3 BOTTOM LID
The Bottom lid includes four items:
1. The winder hook
2. The screw ring
3. The light tower
4. The O-ring
Figure 3.1.3 Bottom lid
13
1
2
3
4
Battery expiry
label

84145_UM_SART20_G
www.jotron.com
www.jotron.com
4 INSTALLATION
Tron SART20 can be mounted several ways, depending on the options availa-
ble. As a general rule, the transponder should be mounted as high as possible
to increase line of sight to the search and rescue units.
Metal objects close to the transponder should be avoided, these will limit the
performance in the directions they are located.
4.1 BRACKETS
There are two different mounting brackets available.
1. Wall bracket
2. Lifeboat bracket (optional)
4.1.1 WALL BRACKET
A wall bracket is delivered with the Tron SART20 and should be used for sto-
rage of the transponder. The bracket should preferably be mounted in a vertical
position and in a place where the Tron SART20 is easily available in case of an
emergency.
Figure 4.1.1a, wall bracket. Figure 4.1.1b, Tron SART20
mounted in wall bracket.
The bracket should be mounted with four screws (Ø 4 mm).
14

www.jotron.com
84145_UM_SART20_G
www.jotron.com
15
4.1.2 LIFEBOAT BRACKET (optional)
The outdoor lifeboat bracket should be mounted vertically on the roof of the
lifeboat (as high as possible).
Activate the transponder and put it into the bracket. Secure the transponder
to the bracket. The bracket will fit a pipe with a maximum diameter of 50mm.

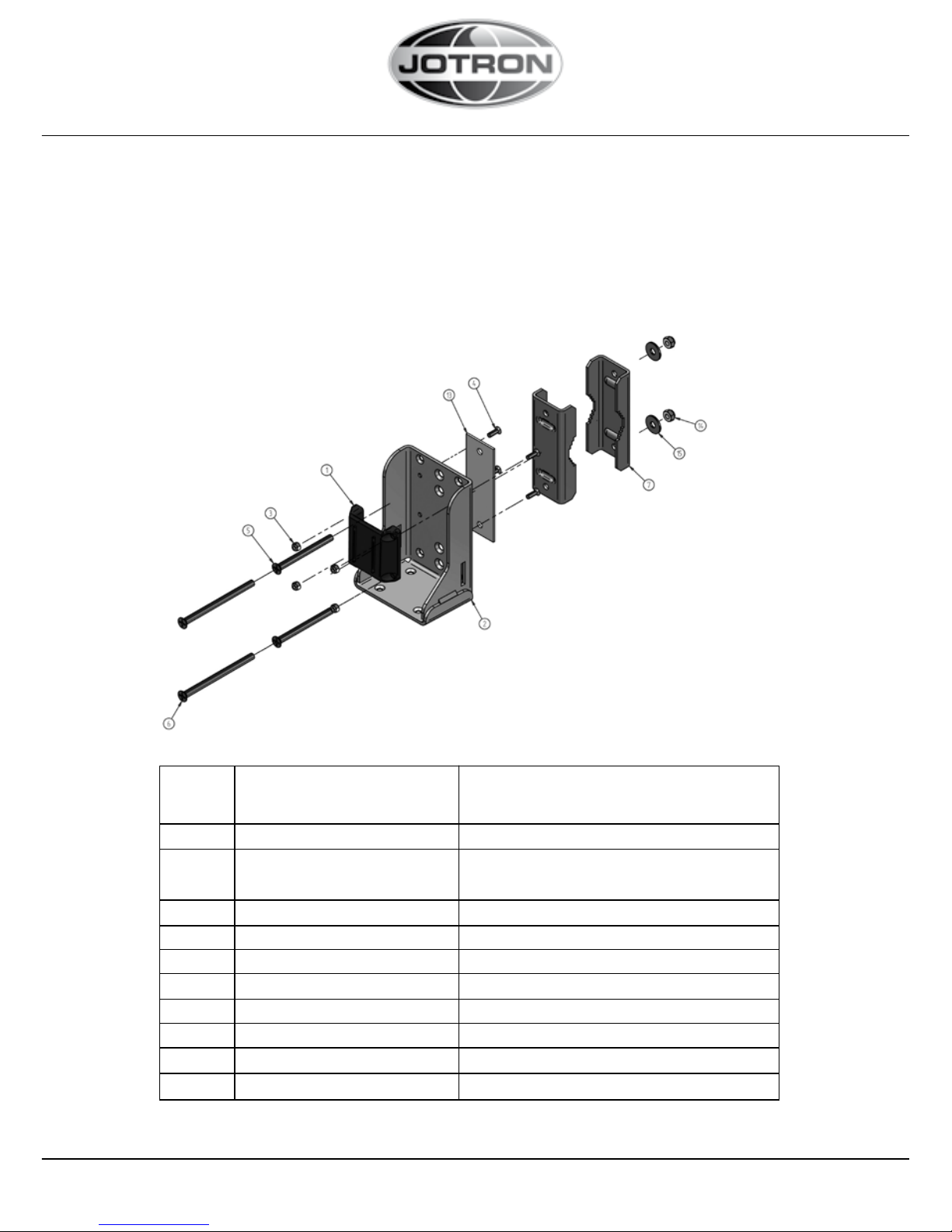

Figure 4.1.2a, Lifeboat bracket.
Item Document Title
nr. nr.
1 M-82746 WALL BRACKET
2 M-84163_WELDAMENT M-84163_BRACKET_UNIVERSAL_
WELDAMENT D 1
3 M-80312 Nut nylock M4 DIN 985
4 M-84676 Screw, DIN965 - Pozidrive M4x12
5 M-84854 Screw, DIN965 - Pozidrive M6x70
6 M-84855 Screw, DIN965 - Pozidrive M6x90
7 M-84838 PIPE CLAMP
13 M-84875 WASHER PLATE
14 M-91469 Nut nylock M6 DIN 985
15 M-82275 WASHER, DIN9021 Ø6mm

84145_UM_SART20_G
www.jotron.com
www.jotron.com
Figure 4.1.2a, Tron SART20 lifeboat bracket. Figure 4.1.2b, Tron SART20 to
put into lifeboat bracket.
Figure 4.1.3 Example of Mounting the Bracket on
Interior and Exterior Walls of a Lifeboat
16

www.jotron.com
84145_UM_SART20_G
www.jotron.com
Entrance/Exit
Tent air tube
SART20 main unit
Hang the SART20 from the SART20
installation seat or radar reflector
Pole
SART20 main unit
Figure 4.2.1, How to mount Tron SART20 to a life raft
4.2 INSTALLATION TIPS
4.2.1 How to use the bracket in life rafts
17

84145_UM_SART20_G
www.jotron.com
www.jotron.com
Tron SART20 main unit
The state when inserted
into the wall bracket
Clip
Insert the clip of the
SART20 main unit into the
wall bracket from a top
Wall
Wall bracket:
- For mounting, use 3 mm
screws or wood screws,
depending on the wall type
4.2.2 Installation diagram
4.2.3 Mounting to a pipe

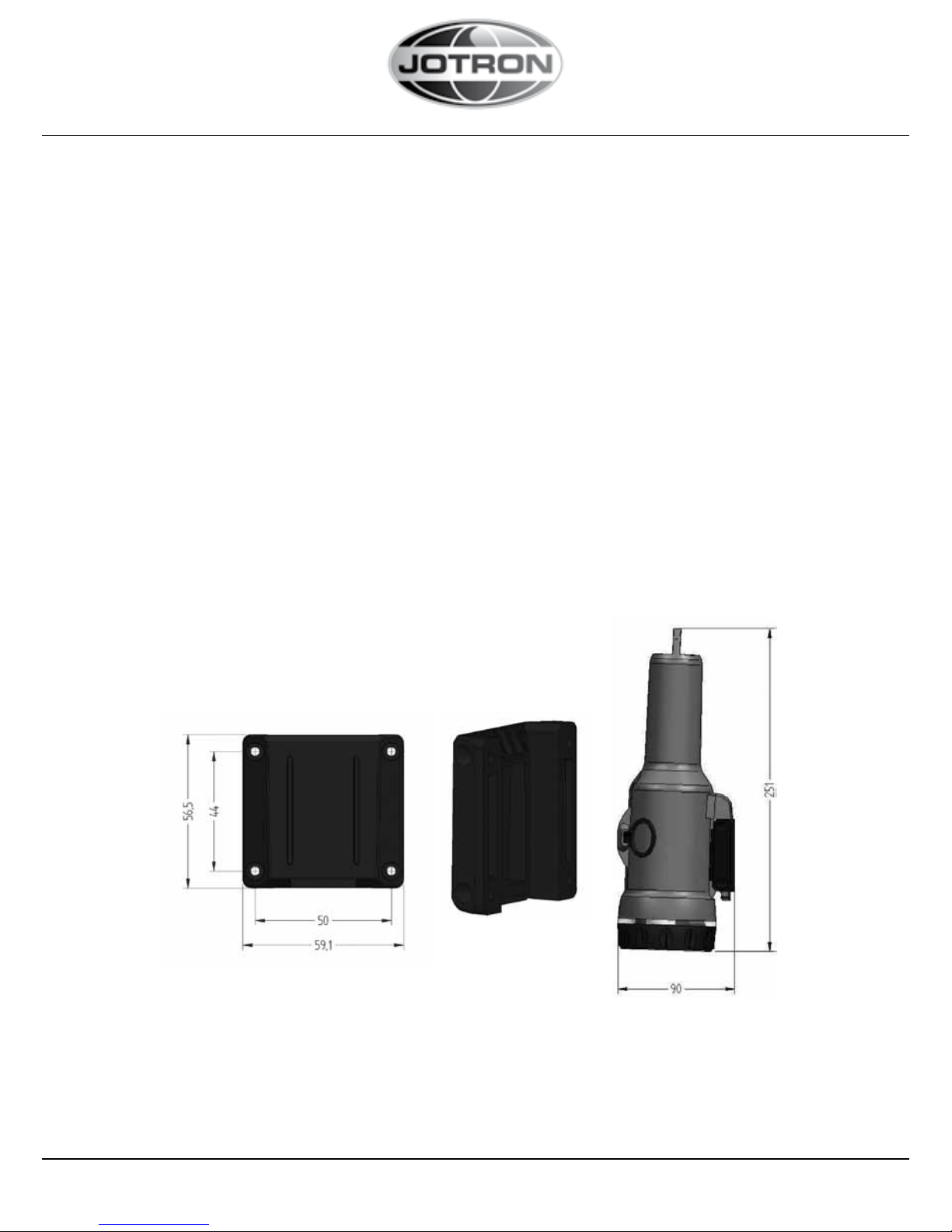

Figure 4.2.2, Installation diagram of the SART20 main unit and the wall bracket
Figure 4.2.3, Examples of pipe mounting
18

www.jotron.com
84145_UM_SART20_G
www.jotron.com
Figure 4.2.4, Mounting to a pipe, example of reference
19

84145_UM_SART20_G
www.jotron.com
www.jotron.com
4.3 USING THE TELESCOPIC POLE

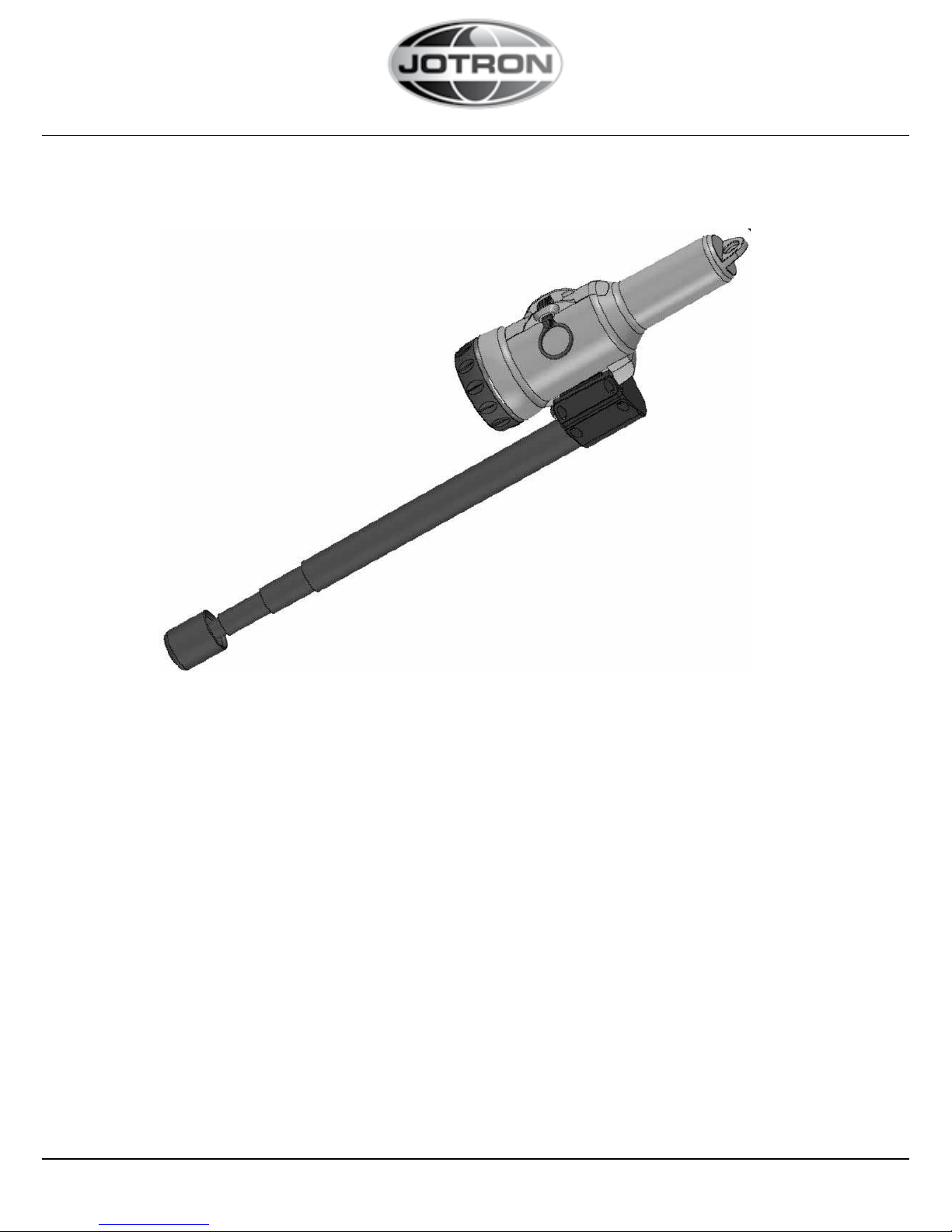

Figure 4.3, Tron SART20 with telescopic pole attached.
A telescopic pole can be used to extend the height of the Tron SART20, inside
or outside the life raft/boat. Simply extend the attached pole to the full length
(app. 1,2m from the top of the Tron SART20). Make sure that the rod is locked
by pulling hard when it is fully extended. The rod can now be fastened or held
by a person. Ensure the rod is held as vertical as possible when activating the
Tron SART20.
20
