Joy-it DPS5015 User manual

DPS5015
Programmable power supply
1. GENERAL INFORMATION
Dear customer,
thank you for purchasing our product. In the following, we will show you
how to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
This power supply unit is characterized by its outstanding precision and
accuracy and combines analog and digital technologies in an advanced
design. The adjustable output reaches up to 50V or 15A and can be
precisely congured in 0.01A steps. The power supply is additionally
equipped with a switch-o parameter memory and ten programmable data
memories. The operation of the device has been optimized for particularly
easy operation and the colour display oers particularly detailed and
comprehensive information. Among other things, the current voltage
and current values, presettings and output powers can be displayed
here. Dynamic notication symbols also facilitate clarity. The additional
settings menu oers maximum control of overcurrent and overvoltage
values as well as other parameters. The DPS5005 oers modern design
and advanced technology in a compact package, making it the ideal power
supply.

2. TECHNICAL DETAILS
Connect the display module with the included cables to the
according LCD and Key interfaces. The next step is the connection of the
inputs and outputs via screw terminals.
Input voltage
Output voltage
Output current
Output power
Weight
Display size
Display module size
Power module size
Accuracy of
output voltage
Accuracy of
output current
6 - 60 V
0 - 50 V
0 - 15 A
0 - 750 W
152 g
1,44“
80 x 42 x 45 mm
40 x 67 x 91 mm
± 0,5 %
± 0,5 %
3. CONNECTION DETAILS
IN +
IN -
OUT +
OUT -
IN +
IN -
OUT +
OUT -
Positive input
Negative input
Positive output
Negative output

4. PANEL AND DISPLAY
Aer the rst start, the welcome screen is displayed, followed by the main
screen. The main screen displays selected voltage and current limits.
When the output is active, the current actual values are also displayed.
On the right side of the screen there are icons and prompts that indicate
the system status. For a detailed description of the display, refer to the
following diagram.
Attention! Make sure that the input voltage is always at least 1.1
times the output voltage. In addition, always ensure suicient
ventilation of the device for heat dissipation.
The permissible range of the input voltage is 6 - 60 V (DC).
Always ensure a suicient safety distance and never exceed the
maximum permissible input voltage. Non-observance can cause
substantial damage at your device.
Operate the device exclusively with direct current! Operating
the device with alternating current can lead to fatal electric
shocks and irreparable damage to the device.

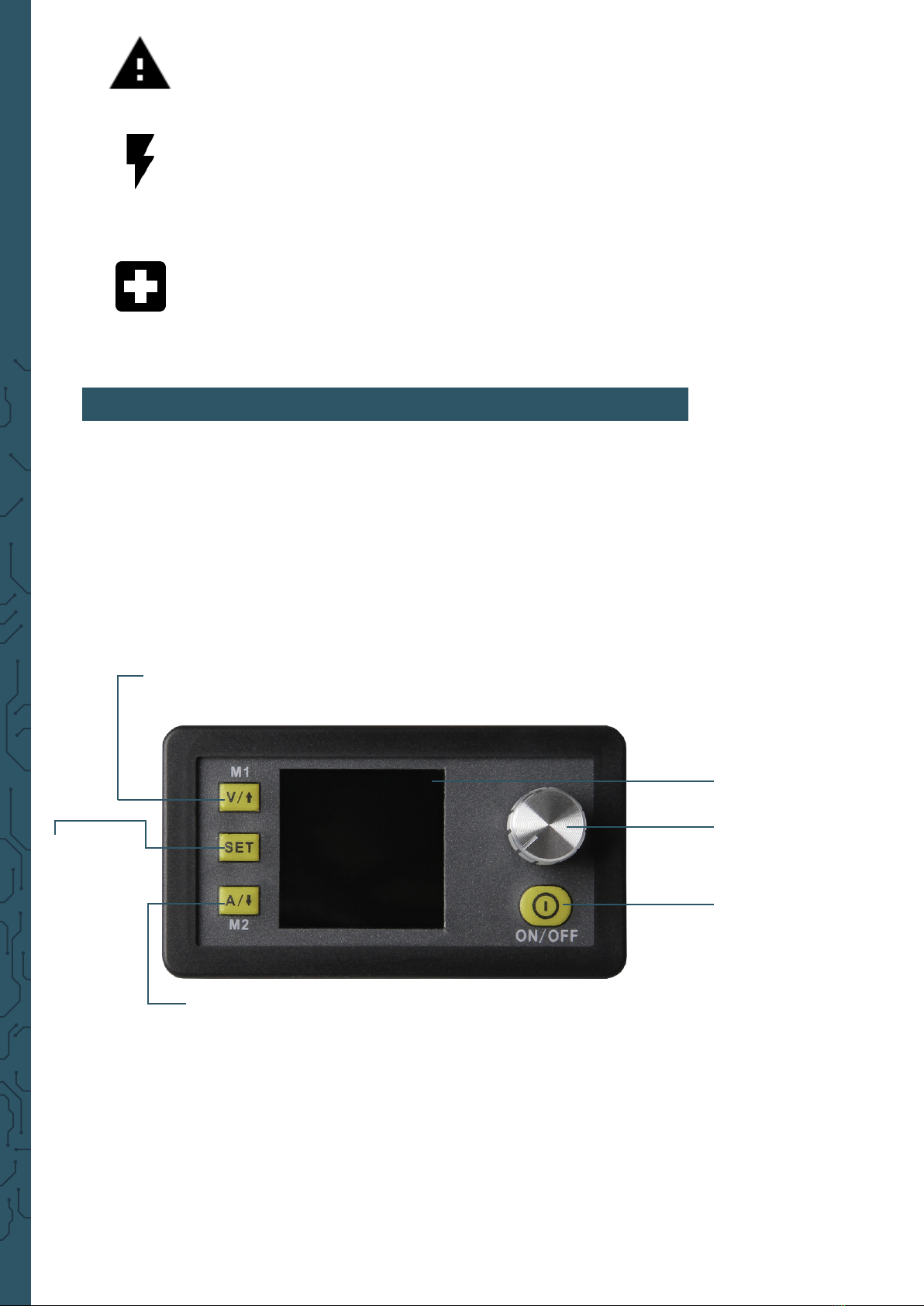

Voltage settings, arrow
upwards, M1 data group
Data input,
extract / save
data from /
in data group
Current settings, arrow
downwards, M2 data group
1,44“ LCD-Display
Rotrary switch,
key lock
Activate / deactivate
output

Main menu Settings
14
7
8
9

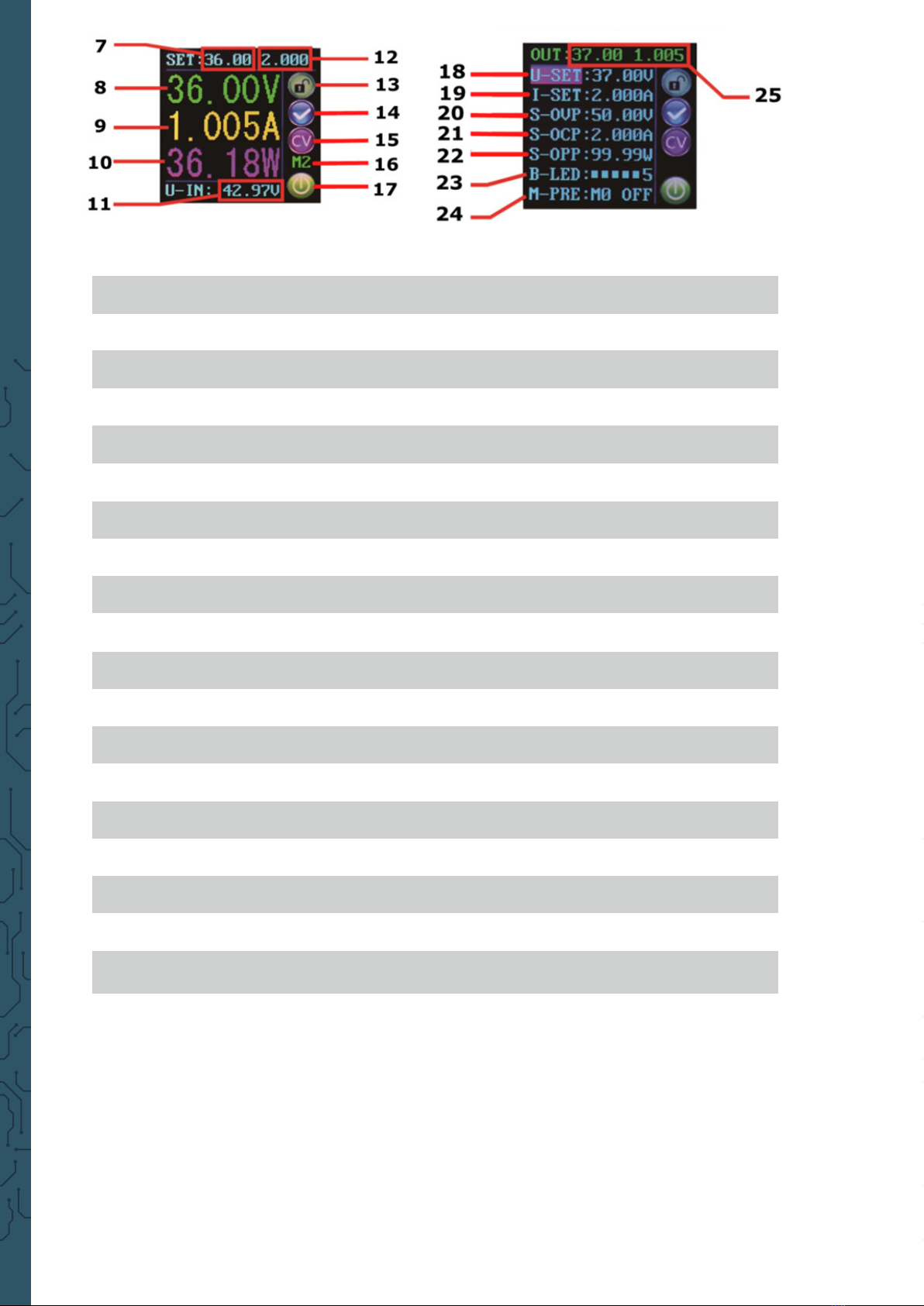

Output voltage (default)
Output voltage (current value)
Output current (current value)
10
11
12
13
15
16
17
18
19
20
21
22
23
24
25
Output power (current value)
Input voltage
Limit of output current
Lock / enlock keys
Normal / abnormal status
Constant voltage / current
Number of data group
Active / inactive output
Preset output voltage
Preset limit of output current
Preset limit of overvoltage
Preset limit of overcurrent
Preset limit of overload
Preset screen brightness
Preset number of data group
Actual value of output voltage / current

5. USE OF DEVICE
Output voltage and current limit
Press V/↑ to enter the voltage setting mode. Press the Rotary encoder to
move the cursor to the numeric value you want to change. Turning the
knob clockwise increases the value and counterclockwise decreases the
value. Press V/↑ again to exit. Alternatively, aer 30 seconds of inactivity,
the setting mode will automatically exit. Press A/↓ to set the output current
limit in the same way.
Conguration of data and conservation values
Press SET in the main screen to enter the data settings menu.
Setting the voltage and current limits
Navigate through the menu to go to the U-SET (Voltage) or I-SET
(Voltage Limit) option. Set the
Output voltage and/or output current limitation according to your
requirements. You can then use the SET button to return to the
menu options. Press the SET button again to exit the menu.
Setting the protection values
Navigate through the menu to go to the limit options Option
S-OVP (overvoltage protection), S-OCP (overcurrent protection) or
S-OPP (overpower protection). Use the knob to set the desired
value. Press the SET button to return to the menu options and press
the SET button again to exit. The output is automatically deactivated
when one of the protection value limits is reached.
Attention! These are global limit values and should not be
confused with the preset voltages and currents.
Adjusting the screen brightness
Navigate to the option B-LED to congurate the screen brightness.
Rotate the rotary switch to adjust the brightness from level 0 to 5.
0 denes the darkest level and 5 the brightest. Press SET to return to
the menu and press it again to leave the menu.

Conguration of the data groups
Data group M0
The M0 data group is a special case. It is the standard data group.
Each time an alternative data group is selected or changes are
made to the existing settings, M0 is immediately overwritten
with the newly selected data. M0 is therefore a real-time duplicate of
the currently selected data group. It is also the data set that is stored
when the power is turned o and recalled the next time the power is
turned on. This is done automatically and transparently without
user input.
Selecting the processing data group
Navigate to the option M-PRE to edit a data group. Rotate the rotary
switch to choose the number of the data group which should be
edited. Aer nishing the settings hold down SET until the number
of the data group is shown on the right side of the screen. By
pressing SET again, you leave the data group settings.
Activation / deactivation
Navigate to the option M-PRE and press the rotary switch. Aer that
rotate the switch to choose the data group by its number which you
want to edit. Press it again to change the status of the option
M-PRE.
By activating this option, the output stays the same by selecting
a data group. By deactivating this option, the output is
automatically switched o by selecting a data group. Hold down
SET until the number of the data group is shown on the right side of
the screen. The data value will be saved in the data group of the
shown. Press SET again to return to the menu. To leave this menu
press SET.
Data group quick selection
Key combination to choose M1 / M2
Hold down V/↑ or A/↓ for longer than 3 seconds to select the data
group M1 or M2 as a quick selection. The number of the according
data group will be shown on the right side of the screen. The data
groups M1 and M2 are perfect for frequently used settings because
of their quick selection function.
Selecting an arbitrary data group
Hold down SET for more than 3 seconds to show M0 on the right
side of the screen. Through rotating the rotary switch, it is possible
to choose the requested data group (M0 - M9). To activate the
chosen data group, press SET.

Editing the chosen data group
To edit the chosen data group press V/↑ or A/↓ to navigate upwards
or downwards through the menu options. Press the rotary switch
and the selected numerical value will be highlighted with the cursor.
More actuations of the rotary switch will lead to scrolling through
the possible characters. Aer the desired value is selected, hold
down SET until the number of the data group is shown on the right
side of the screen. The value of the data will now be saved in the
selected data group. By pressing SET again, you return to the menu.
You can leave the menu by pressing SET again.
Status of the selected data group at the start of the device
You can congure the device to automatically activate the output
when the device is turned on. Navigate to do this in the S-INI option
and set the value to ON to activate the option. Once you have
selected the desired setting, press and hold the SET button until the
data group number is displayed on the right side of the screen.
The data value is now stored. Press the Set button again to return to
the previous menu. To exit the menu, press the Set button again.
Activating and deactivating the ouput
You can press the ON/OFF button to activate or deactivate the output at any
time.
Key lock
The keys can be deactivated to avoid unintentional changes. You can hold
the rotary switch longer than 3 seconds to block the keys or to unlock them
again at any time . The status of the key lock is shown with the lock symbol
on the right side of the screen.
