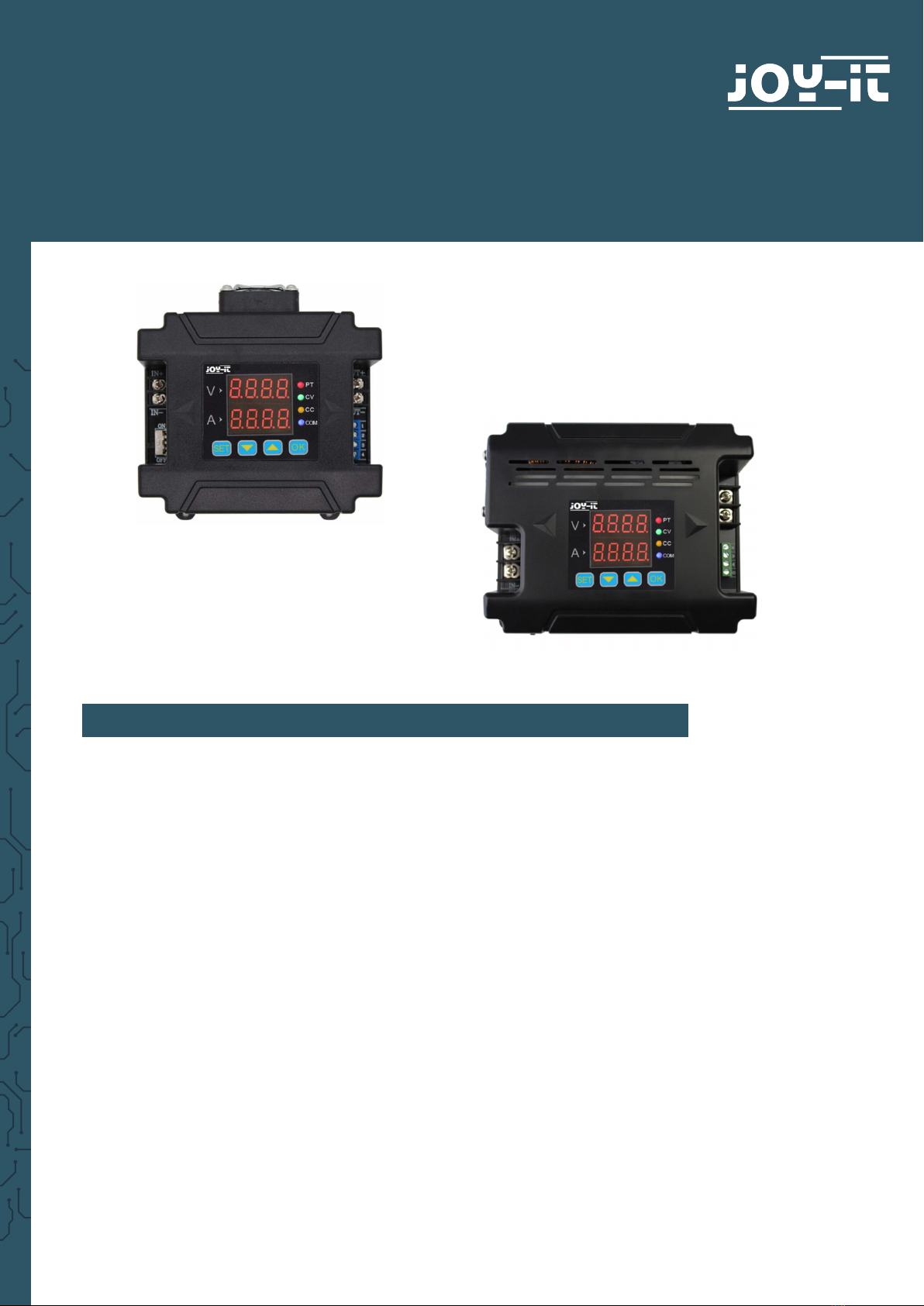

Joy-it JT-DPM8600 User manual

JT-DPM8600
Programmable lab power supplies
1. GENERAL INFORMATION
Dear customer,
thank you for choosing our product. In the following, we will show you how
to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
The DPM8600 series are programmable power supplies which have a large
output power, are compact and are well structured. At the same time, it is
equipped with TTL serial communication interface or RS485 communication
interface, which provides a serial communication protocol.
It can also be applied to modbus-RTU communication protocol and supports
further development from users. Moreover, it can provide multi-purpose
solution according to your design and testing requirements.
Also, DPM8600 series can be equipped with a wireless remote control. The
wireless controller adopts 2.4-inch LCD screen. It has many display values,
a simple operation, a built-in lithium battery which can be recharged and it
can control the power supply from up to 10 meters wirelessly. The wireless
controller can control multiple power supplies simultaneously.

Model
2. TECHNICAL PARAMETERS
This modular power supply can be applied in several aspects. It can be used
for example as an ammeter, a smartmeter, a LED driver, a volatge regulator
for solar panels or in an industrial control.
If the device is damaged or the scope of delievery incomplete, do not use it
and contact our support. Otherwise, if the device is damaged, it could cause

NOTE: The following description uses the DPM8624 as an example.
The DPM8605 works similar to the DPM8624.
DPM-8605 DPM8624-485
Input voltage 10 - 75 V 10 - 75 V
Output voltage 0 - 60 V 0 - 60 V
Output current 0 - 5 A 0 - 24 A
Output power 0 - 300 W 0 - 1440 W
Communication
interface
DPM-8605 TTl serial communication interface
DPM8624-485 RS-485 communictaion interface
Voltage resolution 10 mV
Current resolution 1 mA 10 mA
Output ripple < 50 mVpp
 92 %
Display accuracy 10 mV, 1 mA 10 mV, 1 mA
Output tolerance voltage: ± 2 %/ current: ± 5 %
Response time < 50 ms
Dimension 120 · 131 · 55 mm 150 · 120 · 59 mm
Applied ambient
temperature
-25 - 60 °C

3. MODULE
4. DISPLAY
Power Switch
Negative input
Positive input
LED digital tube
Fan
Working status
indicator
Positive output
Negative output
Communication
interface
Function
buttons
05.00
03.00
I-SA
_10_
I-SA
_11_
I-SA
_12_
2-dF
__N_
2-dF
__Y_
3-ON
__0_
3-ON
__1_
4-Fd
__0_
4-Fd
__1_
5-CS
__0_
5-CS
__1_
6-bd
0096
7-Ad
_01_
8-CH
_01_
-Ld-
__0_
-SA-
__0_
Corr
-°C-
0280
shows voltage values
shows current values
Sets upper limit of voltage and current
Activates quick response
Sets lower limit of voltage and current
Cancels the limits of voltage and current
No factory settings
Sets device to factory settings

activating it

Deactivates quick response
Simple communication
Communication with modbus
Possible to select 2.4, 4.8, 9.6, 19.2, 38.4,
57.6, 115.2 (Kbps) as the baud
99 communication addresses
31 communication channels from 00 to 30
(00 means no connection)
Calls parameter from a storage location
0 - 9
Saves parameters to storage location
Calibrate voltage and current
Displays temperature of the device

Constant voltage indicator
The CV indicator light indicates constant voltage
output.

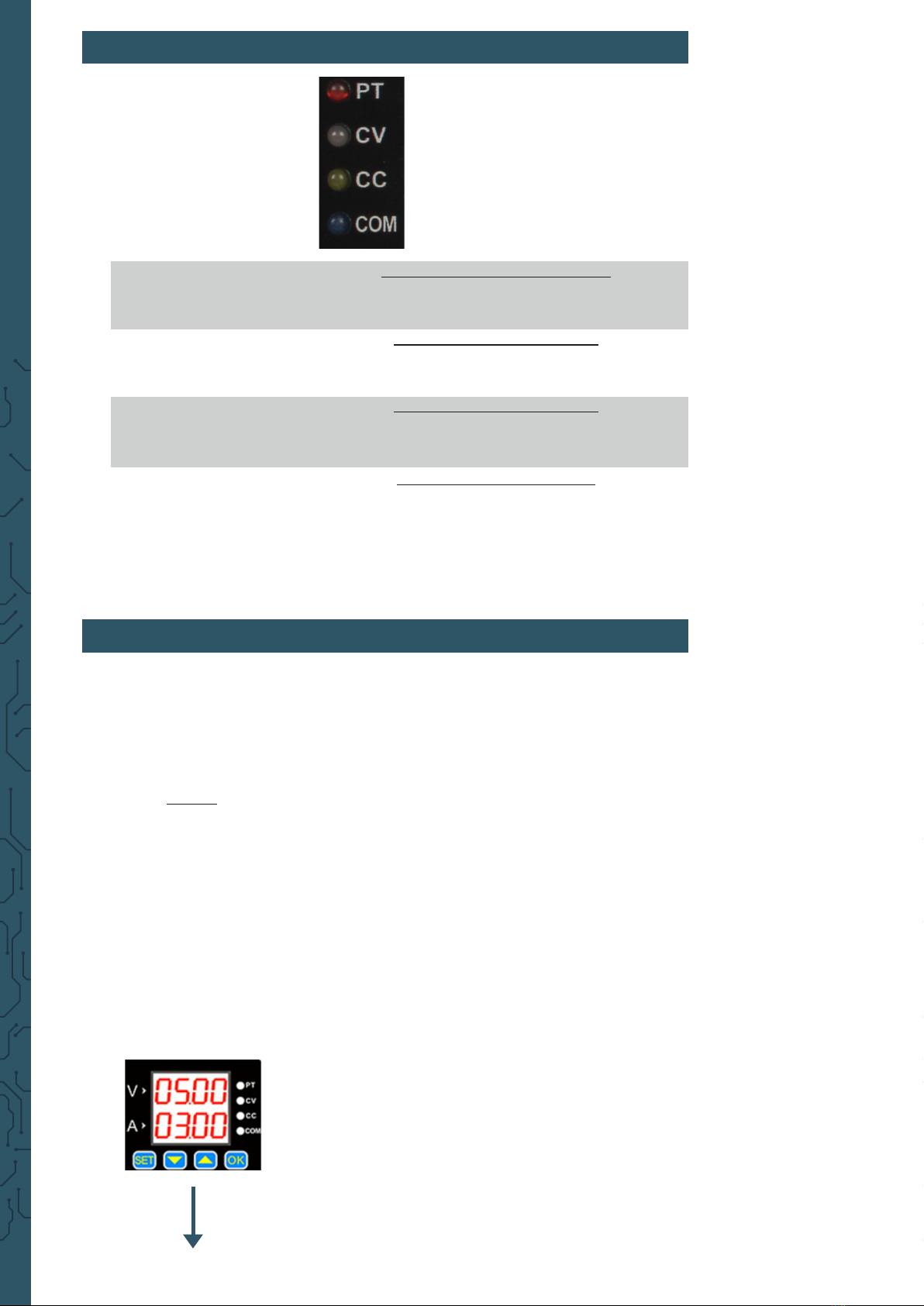

5. INDICATOR
PT
Overheat protection indicator
If the temperature is greater than 80 °C, the light
is activated to indicate the overheat protection.
CV
Constant current indicator
The CC indicator light indicates constant current
output.
CC
Communication indicator
The COM-LED will light up if teh device is
communicating.
COM
6. SETUP
First, you have to connect the input and the output correctly to ensure that
the input voltage is high enough for operation. A reverse polarity can cause
damage to the device.
NOTE: The input voltage must be higher than the output voltage by
more than 0.5 V.

The “V“ on the digital tube display shows the voltage and “A“ the current.
The LCD displays the voltage with 2 decimal digits (00.00) and the

activate the device. Then the CV or the CC lights up to indicate that the is
active.

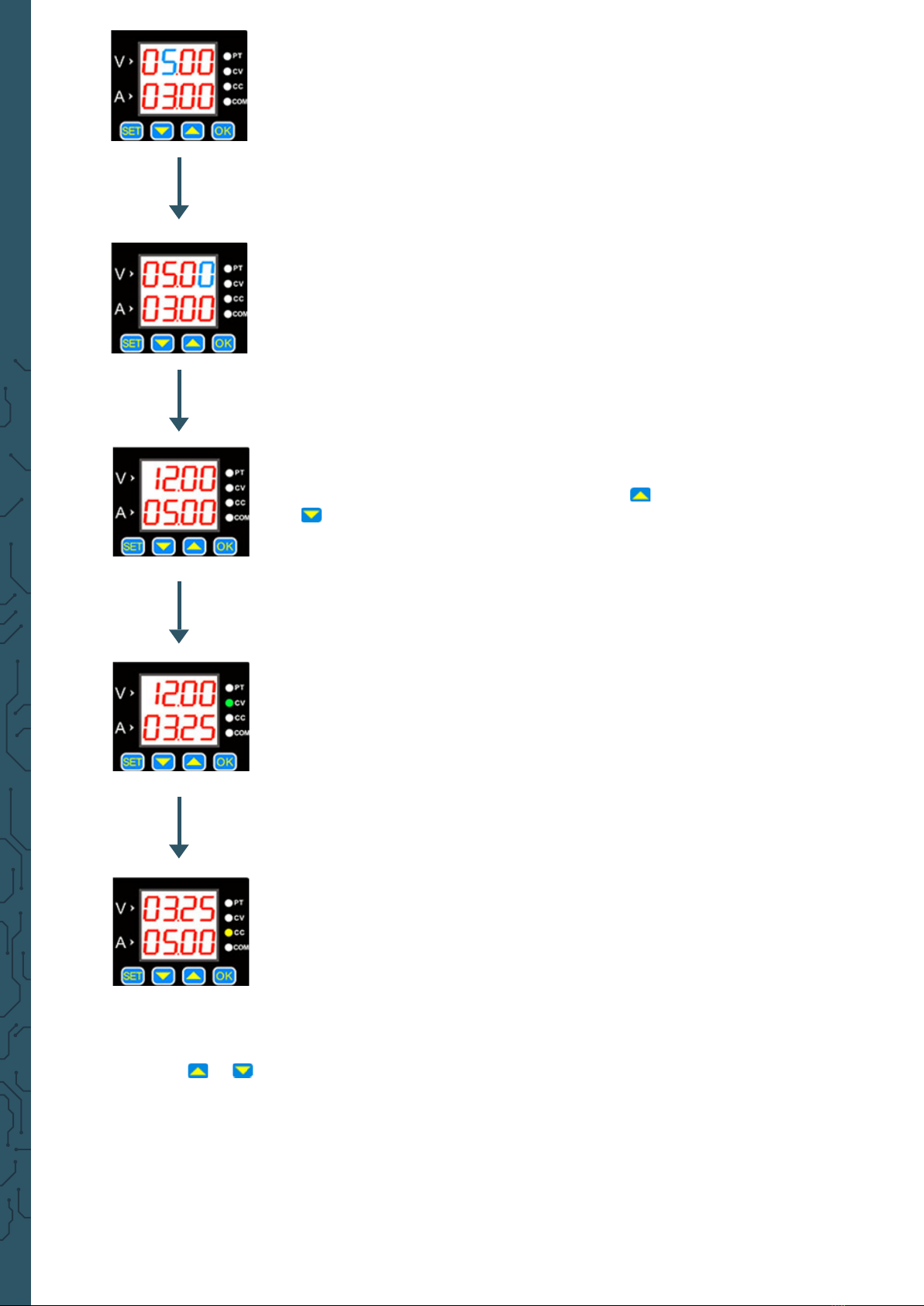

In the following is explained in detail how to set the voltage and current
value:
The default is 5 Volt and 3 Ampere.

Press “SET“ that this value lights up.
If you press this button again the selected digit will
move one further.
The value can be changed with the buttons and
.

current is below the set current, the output is a cons-
tant voltage. The CV light comes on.
If the load current reaches the set current, the out-
put is at the same level as the set current and cons-
tant current. Then the CC light comes on.
Press the or to enter the save and load menu as well as the tempe-
rature display and calibration menu.

Press to return to the menu. To
calibrate the device press . In the
following is the function of the calibration
explained.

can be selected with and . With 
Press to exit the temperature display.
Calibration
1. If the set voltage is higher than 20 V, the output is switched on and
there is no load connected, the output current can be calibrated to
zero with the function “Corr.“.
For example if you set 25 V as the output voltage, the zero calibration
for the voltage is still by 25 V.
 
points of voltage and current are set.
3. If you short-circuit the enabled output and the maximal output current
 
For example if you set the output current to 3 A, then you calibrate the
output to 3 A.

Temperature display
The temperature display shows the temperature of the device which is con-
trolled by the fan speed and overheat protection. If the temperature is higher
than 40°C then the fan starts working. With each 5 °C the fan speed increases
by one level. If the temperature reaches 60 °C, the fan is at its maximal speed.


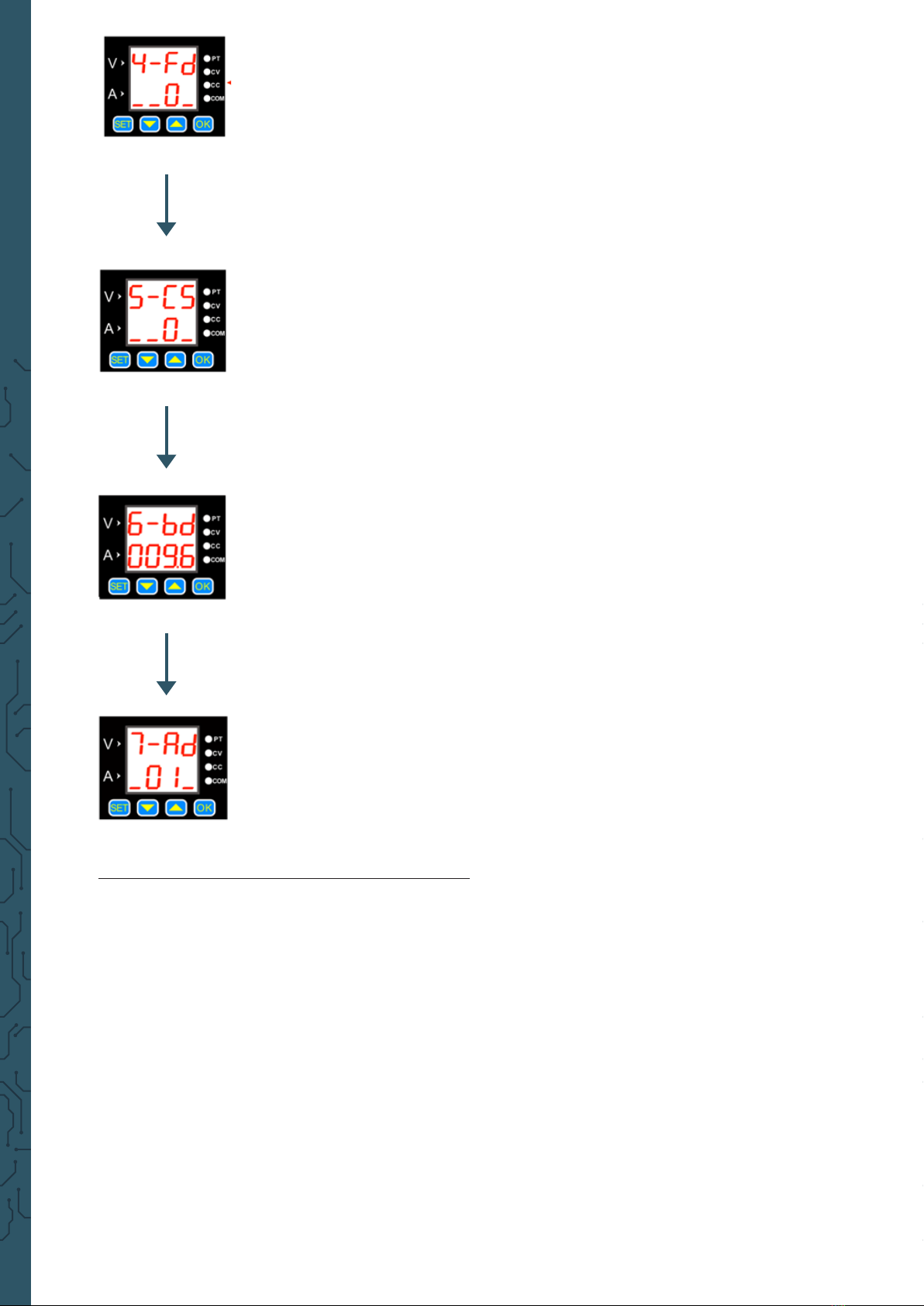

SET menu
Press the SET button long , then you enter the SET menu. With pressing the
SET button you switch between each menu point. You can change every value
in this menu by pressing and 
settings.
This menu point declares the limit of volatge as well as cur-
rent. The “10“ means the upper limit, “11“ the lower limit
and “12“ the cancelation of the limits.
In this menu point, you can reset your device to the factory
settings with “Y“ you reset the device and with “N“ you stay
with your settings.
This menu point is the status interface. It accomplishes that
when the power supply starts it can start automatically the
output or you must turn it on manually. The “0“ means the
function is deactivated and “1“ means it is activated.

This menu point declares the response time of the interface
when it is decharging. In that case “0“ means slow and “1“
fast.
This menu point declares the communication protrocol.
Here the “0“ is for the simple communication protocol and
“1“ for the modbus communication protocol.
In this menu point you can enter the baud rates. There are

In this menu point you can enter the local addresses. There
are 99 communication addresses.
Upper and lower limits of voltage and current
These limits can be adjusted in the SET menu. For example you set 30 V and
5 A in the main interface. If you now activate the upper limit, you can not
adjust the voltage and the current over the 30 V and the 5 A anymore. Only
lower values are now possible to choose for example 20 V and 4.5 A. The lower
limit works the same way in reverse. You can adjust the voltage and the
current only higher then the chosen values. If you set both limits, the device
can only be in operation in the range from lower limit to upper limit.

Communication protocol
There are two options for the communication protocol the simple and the
Modbus communication. These can be selected in the SET menu.
The simple communication protocol is our custom communication protocol
which is easy to undestand.
The Modbus communication protocol is the standard Modbus communication
protocol.
Quick response

adjust the voltage lower than before. For example the output voltage is set on
30 V and you adjust it down to 5 V directly. If the quick response is not
operating, it takes 5 seconds to reduce the voltage from 30 V to 5 V. If it is
active, it takes less than 1 second to reduce the same amount.
Power-on default status

device. If this function is activated and the device goes into operation, the
output automatically starts without any adjustments. If the function is

manually.
Key lock
If you press long on the OK button , then you activate the key lock. If you press
it long again, it will reverse it again.
7. DECLARATION OF CONFORMITY
Hereby, Simac Electronics Handel GmbH declares that the radio equipment
type JT-DPM8605 and JT-DPM8624 are in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at
the following internet addresses:
www.simac-gmbh.de/CE/jt-dpm8605.pdf
www.simac-gmbh.de/CE/jt-dpm8624.pdf
information on transmission power and frequency band of DPM8605:
frequency band: 2412~2472 MHz
max. transmisson power: 11.93 dBm
information on transmission power and frequency band of DPM8624:
frequency band: 2412~2472 MHz
max. transmisson power: 11.93 dBm

7. SUPPORT
I
available by e-mail, telephone and with a ticket support system to answer
these.
E-Mail: servic[email protected]
Ticket-System: http://support.joy-it.net
Telephone: [phone] – 66 (10 - 17 o‘clock)
For further information visit our website:
www.joy-it.net
