JUKI AMB-289/IP-420 User manual

CHAPTER !
Mechanical section
AMB-289/IP-420
INSTRUCTION MANUAL
* "CompactFlash(TM)" is the registered trademark of SanDisk Corporation, U.S.A.

CONTENTS
1. SPECIFICATIONS..........................................................................................Ⅰ–1
(1) Specications ................................................................................................................. Ⅰ–1
(2) Shapes of buttons .......................................................................................................... Ⅰ–2
1) Specications for 4-holed and 2-holed buttons .............................................................................. Ⅰ–2
2) Specications for shank button and marble button ........................................................................ Ⅰ–2
3) Specications for stay button ......................................................................................................... Ⅰ–3
4) Counter button specications......................................................................................................... Ⅰ–3
(3) Conguration .................................................................................................................. Ⅰ–4
2. INSTALLATION..............................................................................................Ⅰ–5
(1) Set-up of the table .......................................................................................................... Ⅰ–5
(2) Connecting the power source cord .............................................................................. Ⅰ–6
1) Voltage specications..................................................................................................................... Ⅰ–6
2) Connecting single phase 200V, 220V, 230V and 240V .................................................................. Ⅰ–6
3) Connecting three phase 200V, 220V and 240V ............................................................................. Ⅰ–6
(3) Changing the voltage of 100 / 200V .............................................................................. Ⅰ–7
(4) Installing the sewing machine main unit...................................................................... Ⅰ–8

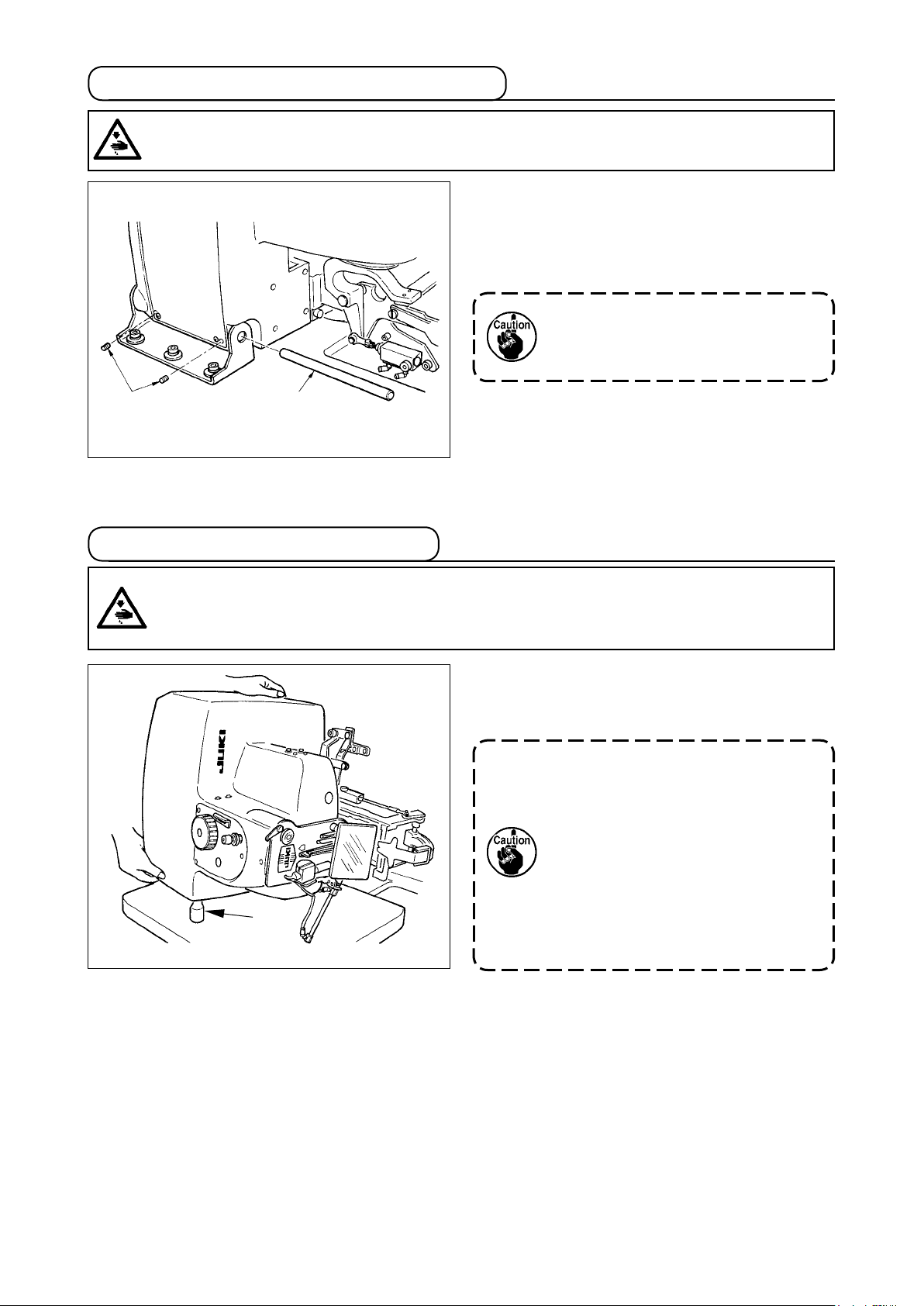

(5) Tilting the sewing machine head .................................................................................. Ⅰ–8

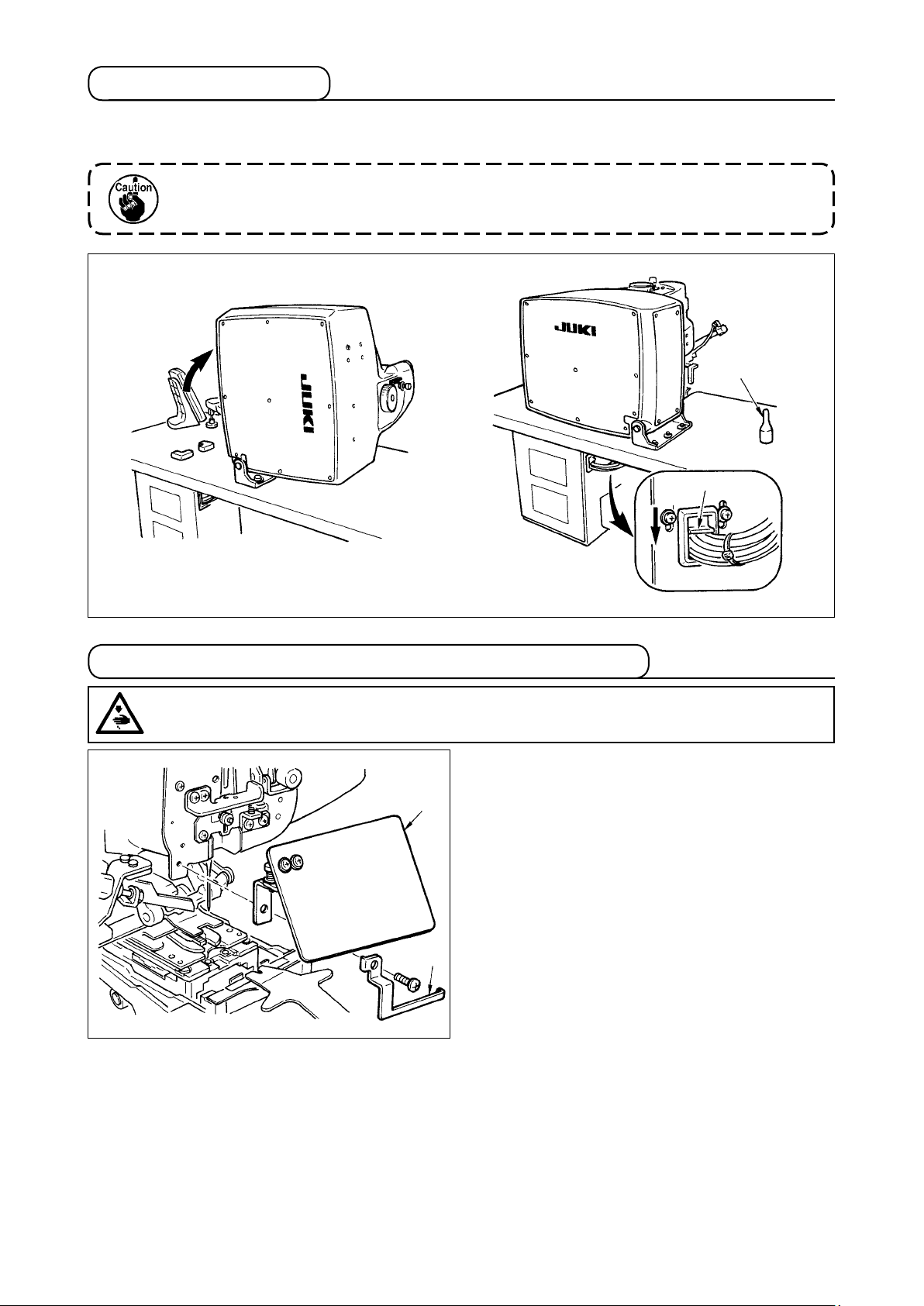

(6) Removing the xed plate for transport ........................................................................ Ⅰ–9

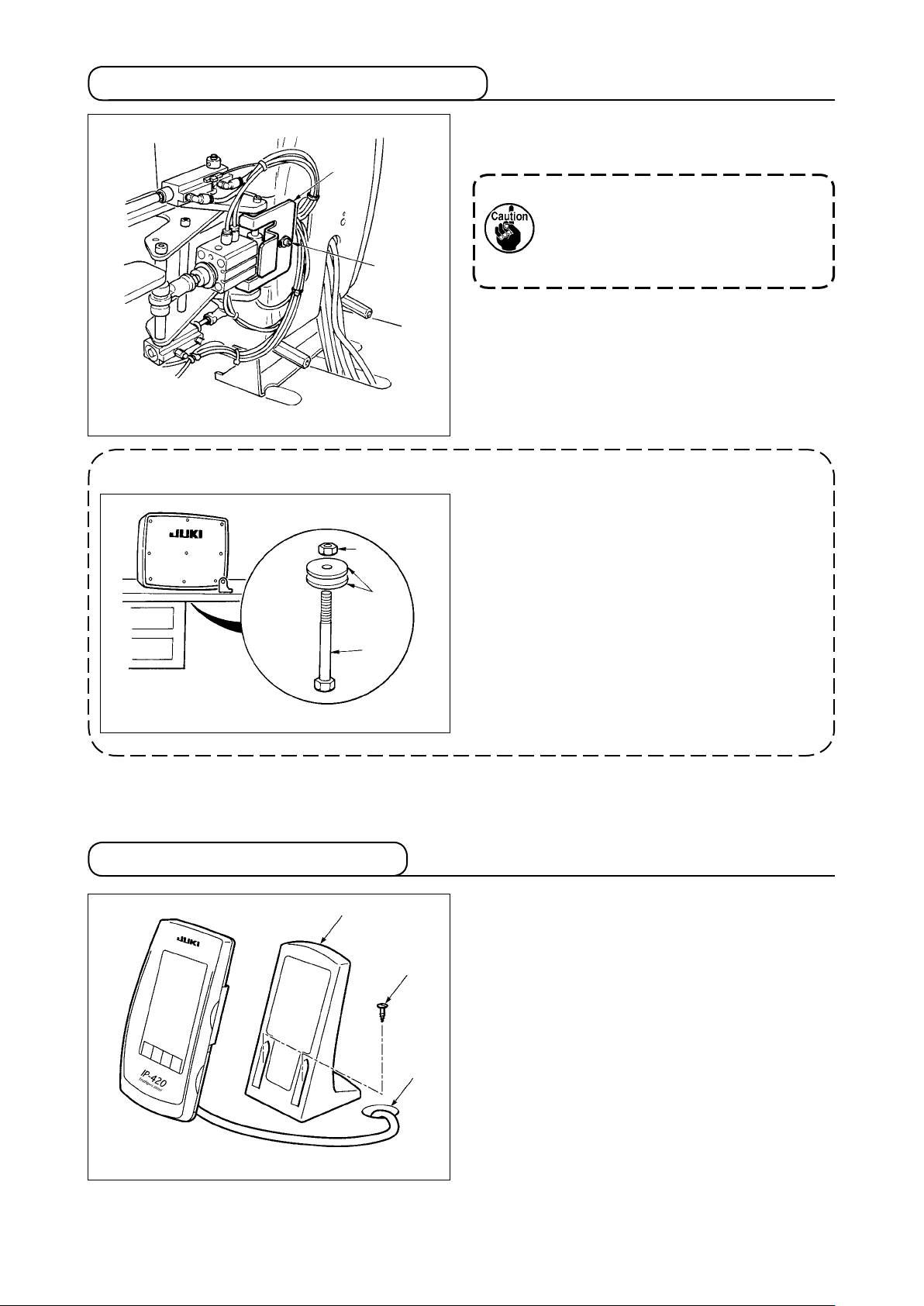

(7) Installing the operation panel........................................................................................ Ⅰ–9
(8) Installing the air regulator ........................................................................................... Ⅰ–10

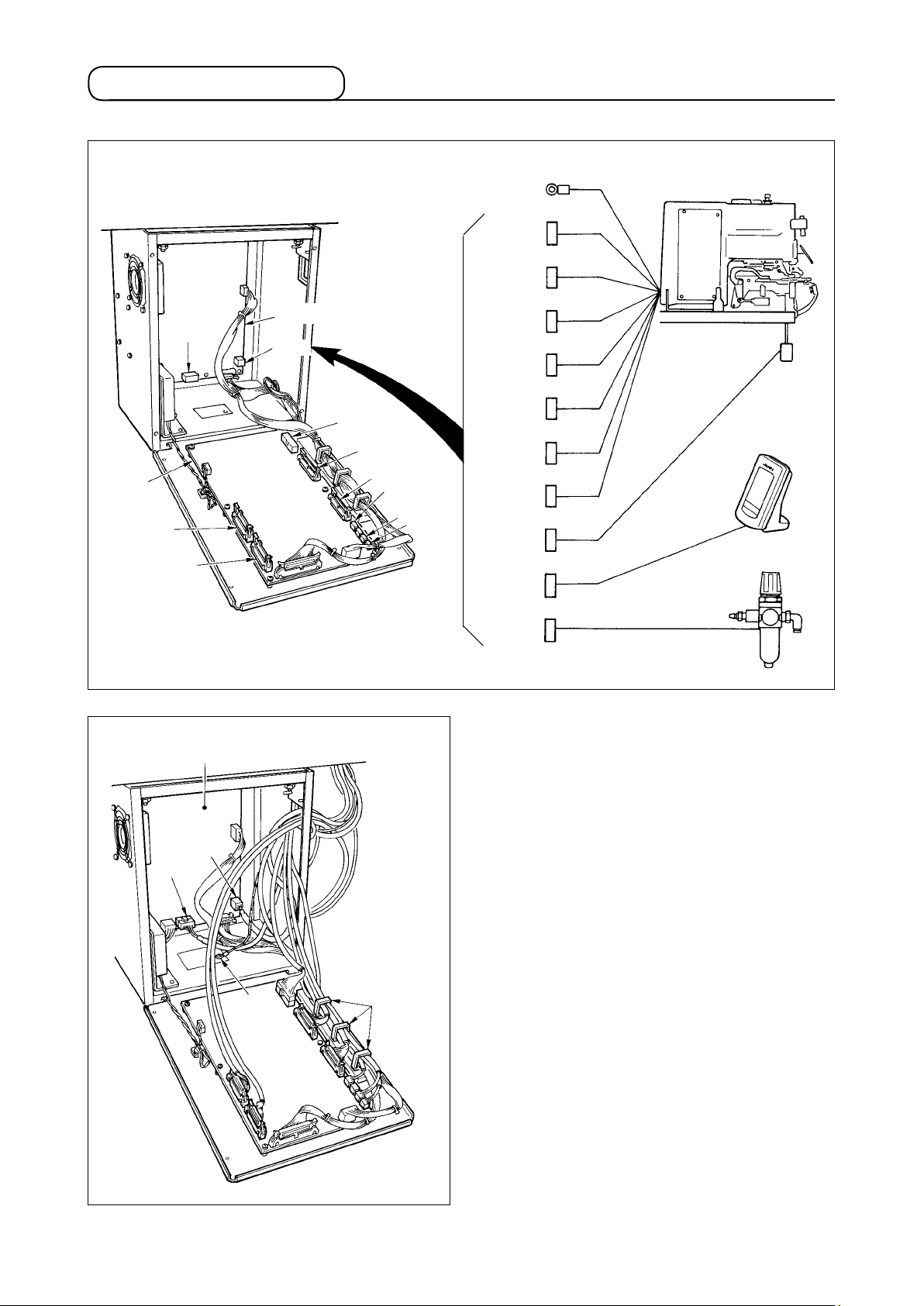

(9) Connecting the cords....................................................................................................Ⅰ–11
(10) Managing the cord...................................................................................................... Ⅰ–12
(11) Installing the eye protection cover and the nger guard........................................ Ⅰ–12
(12) Installing the thread stand......................................................................................... Ⅰ–13
(13) Attaching the button tray ........................................................................................... Ⅰ–13
3. PREPARATION BEFORE OPERATION......................................................Ⅰ–14
(1) Inserting the needle...................................................................................................... Ⅰ–14
(2) Threading the needle-thread ....................................................................................... Ⅰ–14
(3) Adjusting the stay (counter) button stopper.............................................................. Ⅰ–15
(4) Replacing the button chuck ........................................................................................ Ⅰ–16
(5) Set of the button neck wrapping................................................................................. Ⅰ–17
(6) Set of the sewing at button with blindstitch ............................................................ Ⅰ–17
4. ADJUSTMENT OF THE SEWING MACHINE..............................................Ⅰ–18
(1) Adjusting the needle and the looper........................................................................... Ⅰ–18
1) Adjusting the needle bar height.................................................................................................... Ⅰ–18
2) Adjusting the clearance between the needle and the looper........................................................ Ⅰ–18
(2) Adjusting the position of the york slide ..................................................................... Ⅰ–19
(3) Adjusting the needle and the needle guide................................................................ Ⅰ–20
1) Adjusting the position of the needle and the throat plate.............................................................. Ⅰ–20
2) Adjusting the clearance between the needle and the needle guide ............................................ Ⅰ–20
(4) Adjusting the thread trimmer mechanism.................................................................. Ⅰ–21
1) Adjusting the position of the moving knife .................................................................................... Ⅰ–21

2) Adjusting the moving knife thread separation nail........................................................................ Ⅰ–21
(5) Adjusting the wiper mechanism.................................................................................. Ⅰ–22
(6) Adjusting the chuck open mechanism ....................................................................... Ⅰ–22
5. MAINTENANCE ...........................................................................................Ⅰ–23
(1) Replacing the attachments.......................................................................................... Ⅰ–23
1) Replacing the button set pin (optional)......................................................................................... Ⅰ–23
2) Replacing the carrier pin .............................................................................................................. Ⅰ–23
3) Replacing the tongue stopper ...................................................................................................... Ⅰ–24
(2) Replacing the fuse........................................................................................................ Ⅰ–25
(3) Greasing parts .............................................................................................................. Ⅰ–26
6. AIR CIRCUIT DIAGRAM..............................................................................Ⅰ–28
7. DRAWING OF THE TABLE .........................................................................Ⅰ–29
(1) Table............................................................................................................................... Ⅰ–29
(2) Auxiliary table ............................................................................................................... Ⅰ–30

Ⅰ–1
1. SPECIFICATIONS
(1) Specications
!. Mechanical section
Model AMB-289
Name of model Computer-controlled, high-speed, single-thread, chainstitch, button-neck-wrapping
machine
Application Various buttons sewing (Buttons which can be sewn with the sewing machine)
Feature
The machine comes standard with plural sewing patterns by computer-controlled feed,
needle throwing, thread tension and thread trimmer. It can perform efficiently high-
quality button sewing and a multipurpose button sewing machine that can be used as the
general machine.
Sewing speed Max. 1,800 sti/min (buttons with neck wraps), 1,200 sti/min (button sewing)
Normal speed 1,500 sti/min (buttons with neck wraps), 1,000 sti/min (button sewing)
Button size
Sewing buttons without button neck : 8 mm to 38 mm
Sewing buttons with neck wraps : Max. 32 mm
Counter button : 8 mm to 25 mm
Counter button neck wrapping : Total of material and front button is up to 32 mm.
Needle SM332EXTLG-NY (Standard) #12 to #18
Thread take-up lever Needle bar thread take-up lever : Stroke 60 mm
Needle throwing method Stepping motor drive
Feed method Stepping motor drive
Presser lifting method Stepping motor drive
Cloth presser method Air drive
Thread trimmer method Air drive
Thread tension adjustment Active tension (VCM) method
Dimensions Width : 600 x Height : 400 x Length : 600 (mm)
Weight of head 65kg
Number of data that can be
stored in memory Max. 99 patterns
Number of times of cycle
sewing Number of registered patterns : 20 patterns (1 cycle 30 patterns)
Basic shape setting range
Interval between buttonholes : 1.5 to 6.0 mm (in increments of 0.1 mm)
Height of neck wraps : 0, 1.5 to 10.0 mm (in increments of 0.1 mm)
Number of crossover threads : 2 to 64 threads (in increments of 2 threads)
Pattern selection Pattern No. designation method (scroll 1 to 99 patterns)
Memory backup Pattern data, sewing data, cycle sewing data
Sewing count Number of times of sewing count method (0 to 9999) up/down
Sewing counter is possible.
Power requirements Single phase 200V, 220V, 230V and 240V, Three phase 200V, 220V and 240V 400VA
Noise
- Equivalent continuous emission sound pressure level (LpA) at the workstation :
A-weighted value of 77.0 dB; (Includes KpA = 2.5 dB); according to ISO 10821- C.6.3
-ISO 11204 GR2 at 1,800 sti/min.

Ⅰ–2

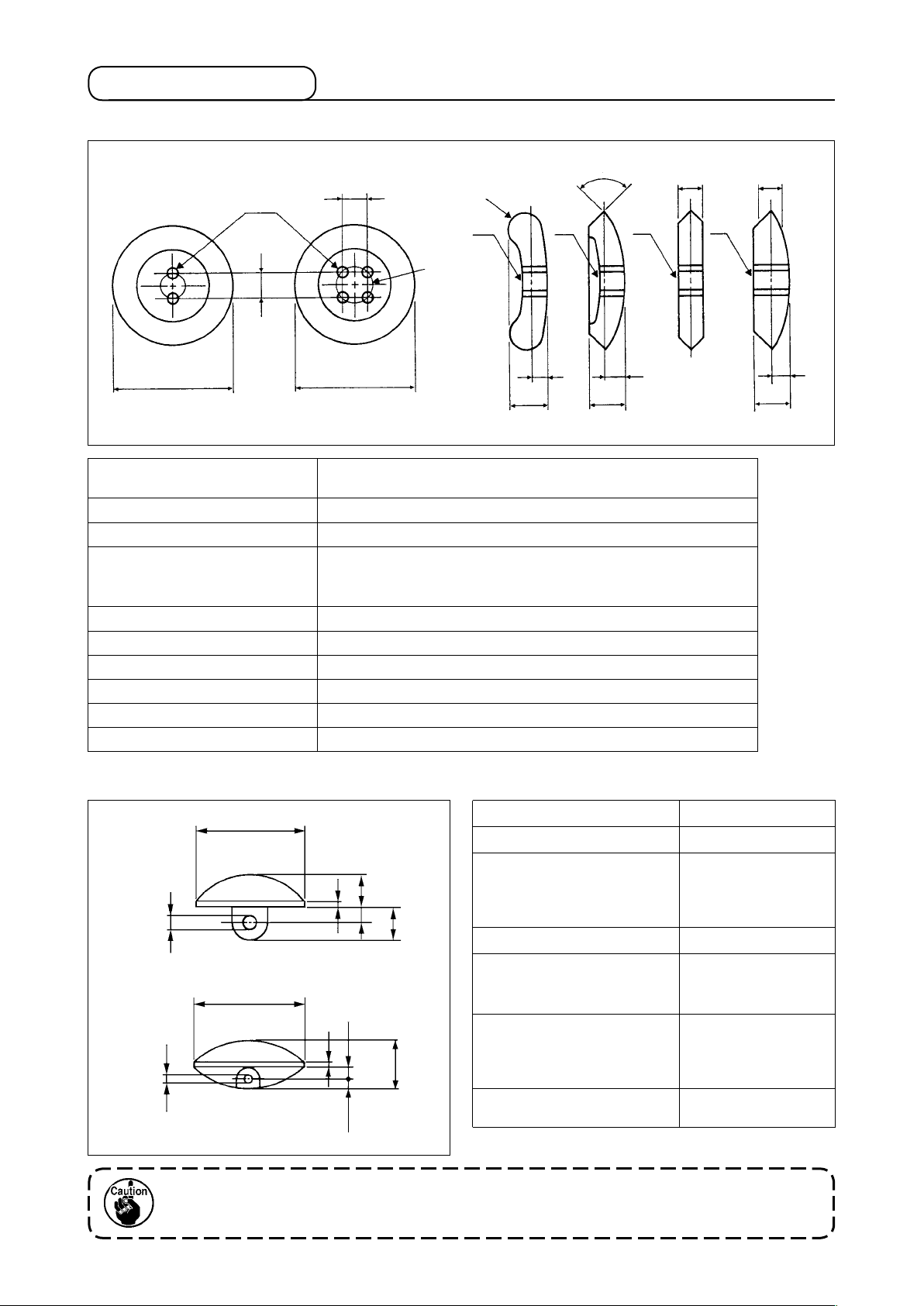

(2) Shapes of buttons
B
A
C
B
DD
H
F
G
E1
H
F
G
E2
G
E3
H
F
G
E3
1) Specications for 4-holed and 2-holed buttons
2) Specications for shank button and marble button
A
C
F
E
A
F
E
B
B
D
C
G
When the button loader is used, there are cases where the buttons cannot be used due to the
shape. So, be careful.
A : Buttonhole diameter Needle used : ø 1.5 mm or more when using #12 to #16
Needle used : ø 2 mm or more when using #16 to #18
B : Distance between buttonholes 1.5 to 6.0 mm (in increments of 0.1 mm)
C : Location of buttonholes All holes must be located equidistant from the center of each button.
D : Outside diameter
Min. outside diameter : ø 8 mm
Max. outside diameter : ø 32 mm
Line height : within ± 0.25 mm
E1 : Button with a round edge R (roundness) of button edge must be a 3 mm radius or less.
E2 : Button with a V-shaped edge Within 120˚ angle
E3 : Button with an angular edge The thickness must be 5 mm or less.
F : Bulge 5 mm or less
G : Area around buttonholes Must be smooth
H : Thickness of button 8 mm or less
A : Buttonhole diameter ø 1.5 mm or more
B : Thickness of button 6.8 mm or less
C : Distance from the bottom
of the button head to the
center of the buttonhole
Shank button :
1 mm to 6 mm
Marble button :
1.5 mm or more
D : Length of shank 8 mm or less
E : H ei g ht o f t he s tr a i g h t
section on the side face of
button
3.5 mm or less
F : Outside diameter
Min. outside diameter:
ø 8 mm
Max. outside diameter:
ø 32 mm
G : Distance from the center of
the hole to the button edge 2 mm or less

Ⅰ–3

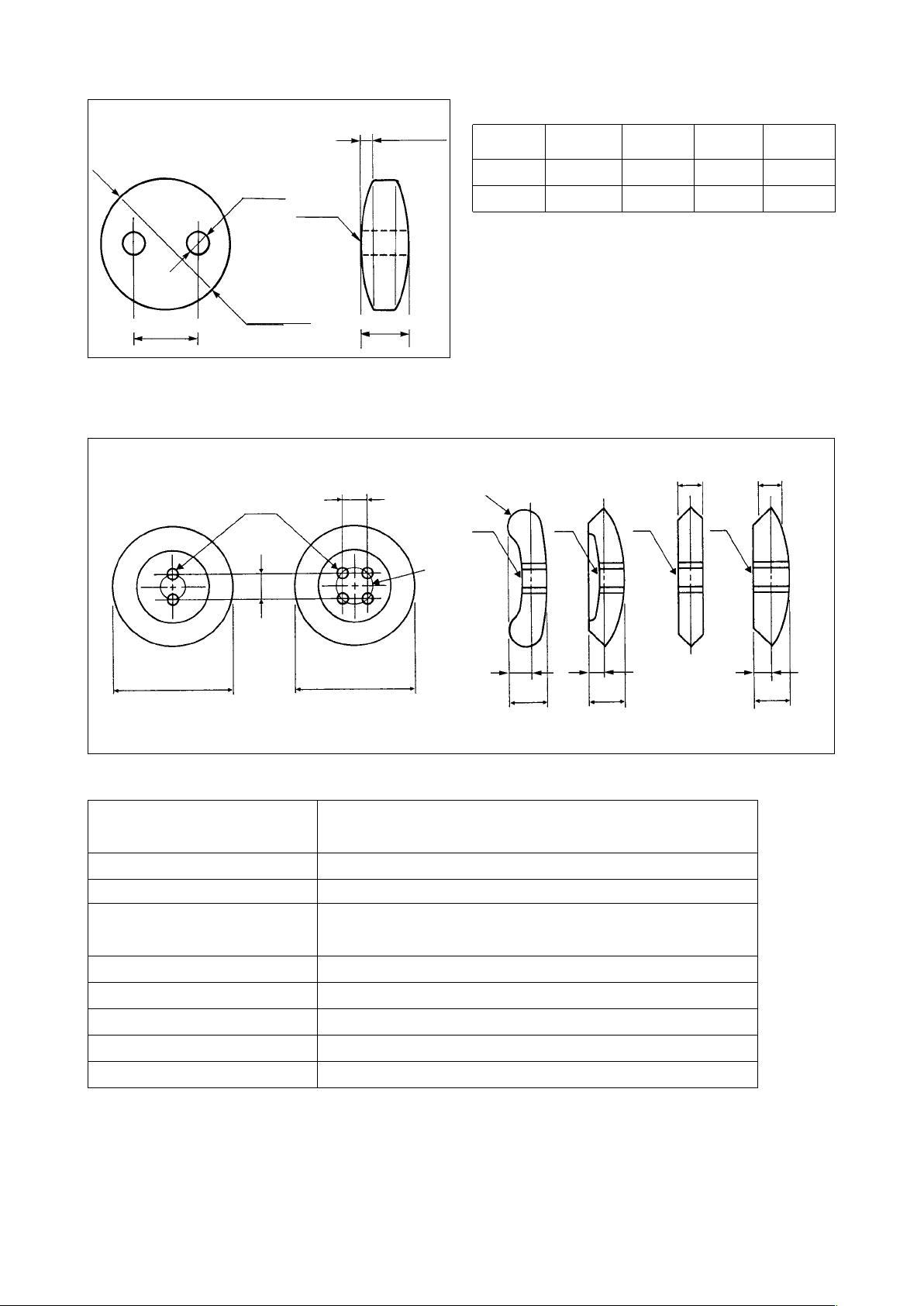

4) Counter button specications
B
A
C
B
DD
H
F
G
E1
H
F
GG
E2
H
F
G
E2
Commendable dimension
3) Specications for stay button
Right
side
1 mm or *1
less
Buttonhole
diameter
Outside
diameter
Commendable dimension
*1 For the stay buttons, use those, the amount
of convex on the right side of which is 1 mm
or less.
Thickness of button
Buttonhole pitch
Outside
diameter
Buttonhole
diameter
Buttonhole
pitch
Thickness
of button
Type A 8.5mm 2.5mm 3.1mm 2.0mm
Type B 10.2mm 3.2mm 4.0mm 2.0mm
A : Buttonhole diameter Needle used : ø 1.5 mm or more when using #12 to #16
Needle used : ø 2 mm or more when using #16 to #18
B : Distance between buttonholes 1.5 to 6.0 mm
C : Location of buttonholes All holes must be located equidistant from the center of each button.
D : Outside diameter Min. outside diameter : ø 8 mm
Max. outside diameter : ø 25 mm
E1 : Button with a round edge R (roundness) of button edge must be a 2 mm radius or less.
E2 : Button with an angular edge The thickness must be 5 mm or less.
F : Height of button edge 2 mm or less
G : Area around buttonholes Must be smooth
H : Thickness of button 5 mm or less

Ⅰ–4

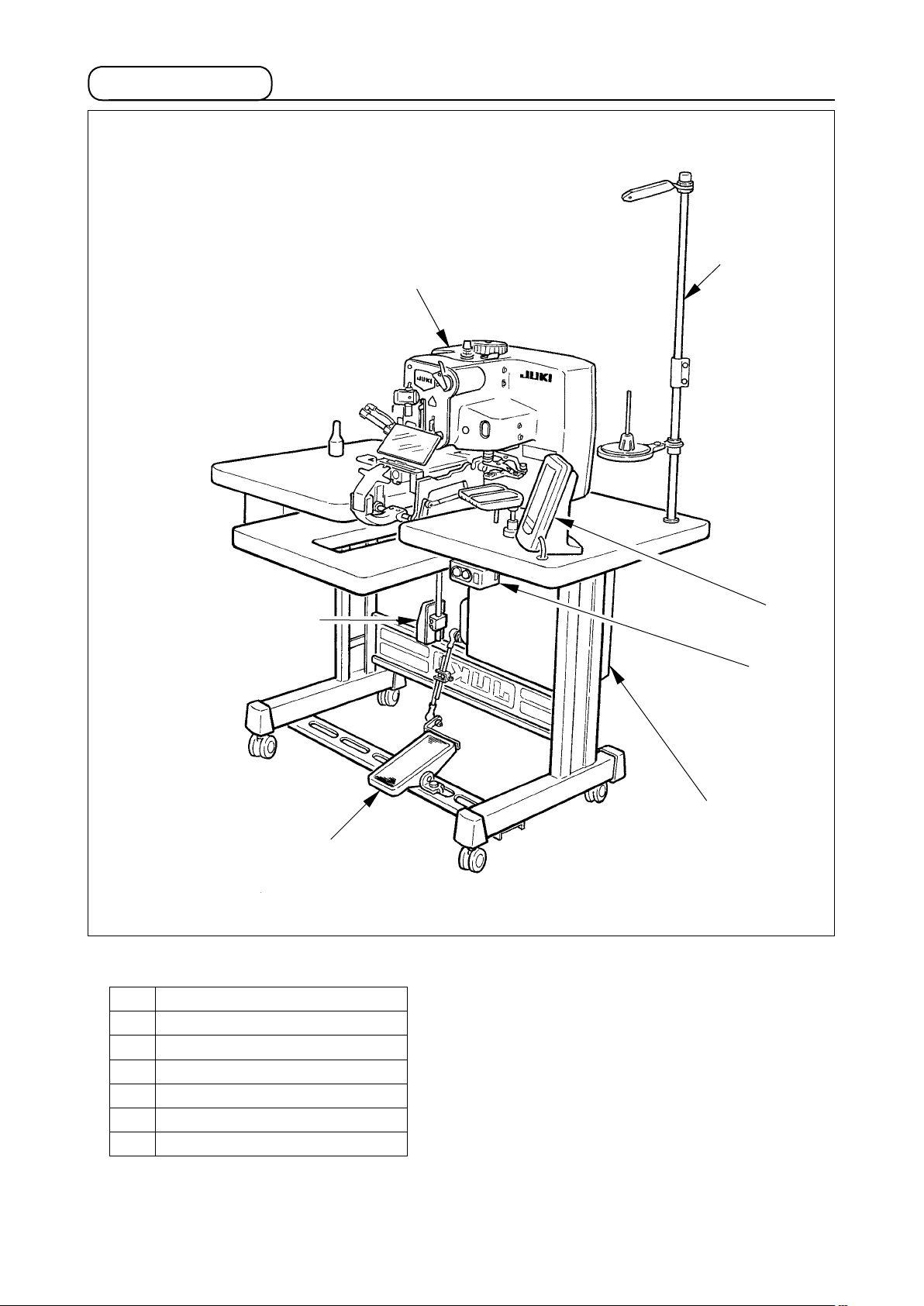

(3) Conguration
AMB-289 consists of the following components.
1
2
5
4
3
6
7
1Power ON/OFF switch
2Machine head (AMB-289)
3Operation panel (IP-420)
4Control box (MC-640)
5Foot pedal
6Start switch
7Thread stand device

Ⅰ–5

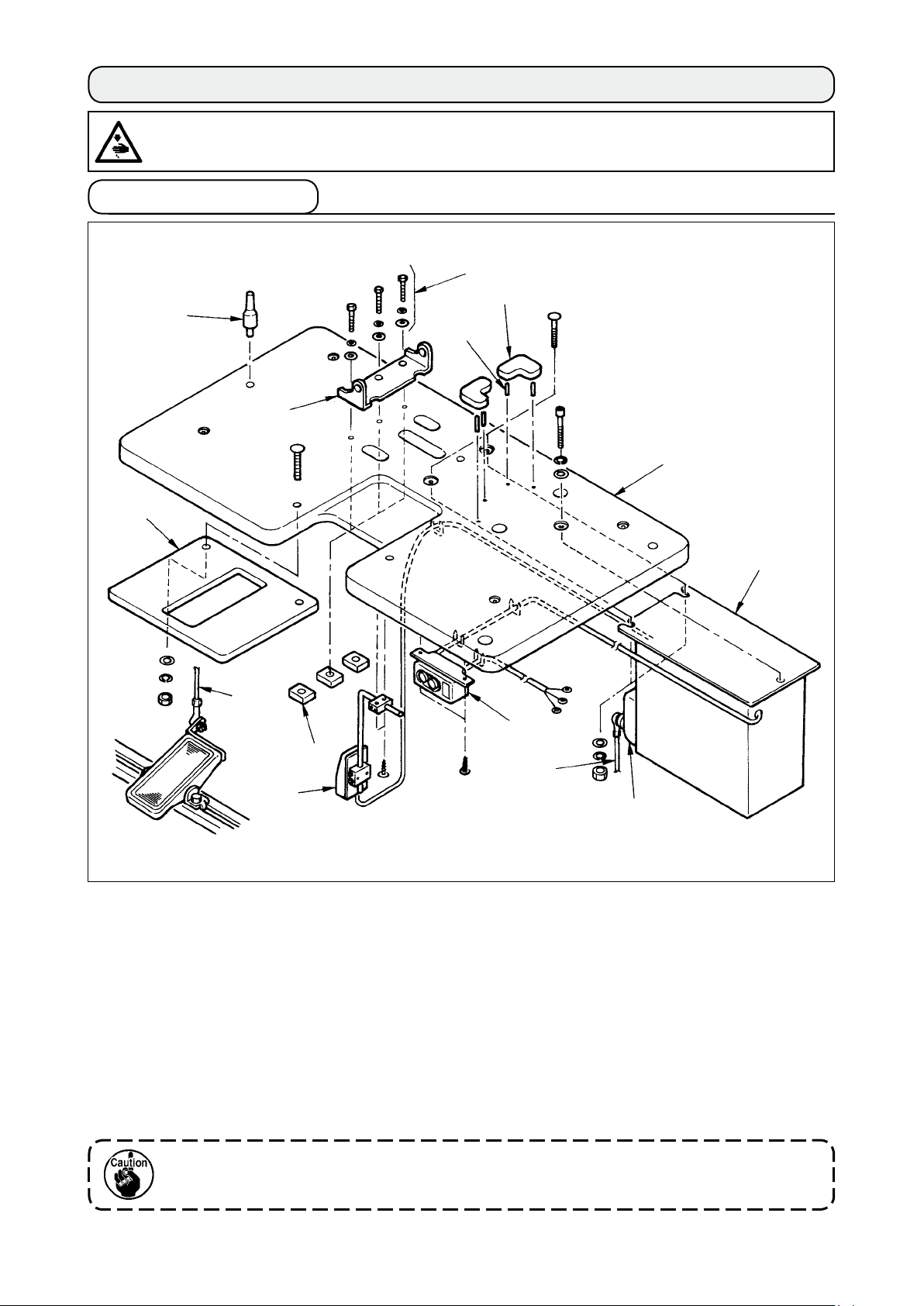

(1) Set-up of the table
2. INSTALLATION
DANGER :
To prevent possible accidents caused by the fall of the sewing machine, perform the work by two
persons or more when the machine is moved.
1) Fix control box 2, power switch 3, auxiliary table !3 and start switch 4 to table 1.
Note) Install auxiliary table !3 before installing start switch 4.
2) Fix the cables of power switch 3 and start switch 4 with staples.
3) Pass arm stay xing screws !1 (3 pcs.) through arm stay 5, instal on the table, and x them with
nuts !2.
4) Drive pins 6 to the table, and insert rubber cushions 7.
5) Fix head support bar 8 on table 1.
6) Connect the pedal (left-hand side) and control box pedal sensor !0 with connecting rod 9
supplied as accessories.
Adjust the positions of the pedals so that connecting rods 9 and control box 2do not come in
contact with each other.
1
2
5
4
3
6
7
8
!1
!0
9
9
!2
!3

Ⅰ–6

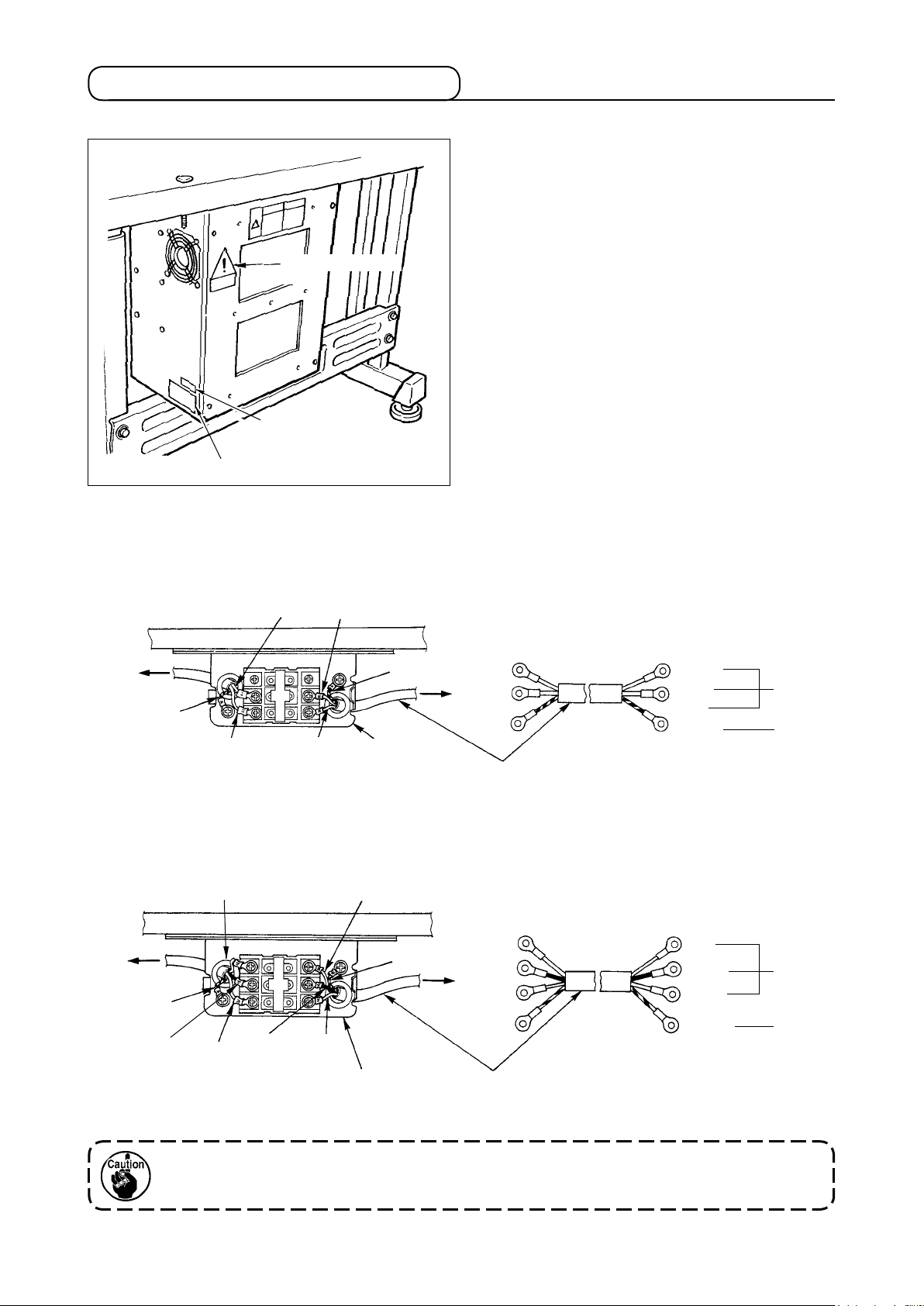

(2) Connecting the power source cord
1) Voltage specications
1. Never use under the wrong voltage and phase.
2. When changing the voltage, refer to the item of "Changing the voltage of 100 / 200V".
2) Connecting single phase 200V, 220V, 230V and 240V
Connect so as to supply the power to the white wire and the black wire as shown in the illustration.
3) Connecting three phase 200V, 220V and 240V
Power source specications are indicated on the
voltage indication seal. (3-phase type only)
For other type machines, power source
specications are indicated on the voltage caution
seal and the rating label.
Connect the cord in accordance with the
specications.
Voltage indication seal
(3-phase type only)
Rating label
Voltage caution
seal
Table
Brown Brown
Brown
Light blue Light blue
Light
blue
Green/Yellow Green/
Yellow
Control box
Green/Yellow
Plug
Power source cord
Power switch
GND
AC200 V
AC220 V
AC230 V
AC240 V
Table
Red
Black
Green/Yellow
White
Control box
Power source cord
Plug
Power switch
GND
AC200 V
AC220 V
AC240 V
Green/Yellow
Black
Red
White
Green/
Yellow
Red
Black
White

Ⅰ–7
Changing procedure of the changeover connector
1. Turn OFF the power source with the power
switch after conrming that the sewing machine
has stopped.
2. Draw out the power cord from the power plug
socket after conrming that the power switch is
turned OFF. Then wait for ve minutes or more.
3. Remove the front cover.
4. Remove four screws xing the rear cover of the
control box and slowly open the rear cover.
A. In case of using with 3-phase 200V to 240V
• Changing the changeover connector
Connect to 200V the 100/200V changeover
connector of FLT p.c.b. 1 located on the side
of the Box Side of the control box.
• Connect the crimp style terminal of AC input
cord to the power plug as shown in the gure.
B.
In case of using with single phase 100V to 120V
• Changing the changeover connector
Connect to 100V the 100/200V changeover
connector of FLT p.c.b. 1 located on the side
of the Box Side of the control box.
• Connect the crimp style terminal of AC input
cord to the power plug as shown in the gure.
(Caution) Securely perform the insulation
treatment to the red terminal which is
not used with insulation tape or the like.
(When the insulation is insufcient,
there is a danger of electric shock or
leakage current.)
C.
In case of using with single phase 200V to 240V
• Changing the changeover connector
Connect to 200V the 100/200V changeover
connector of FLT p.c.b. 1 located on the side
of the Box Side of the control box.
• Connect the crimp style terminal of AC input
cord to the power plug as shown in the gure.
(Caution) Securely perform the insulation
treatment to the red terminal which is
not used with insulation tape or the like.
(When the insulation is insufcient,
there is a danger of electric shock or
leakage current.)
5. Check that the change has been performed
without fail before closing the rear cover.
6. Be careful that the cord is not pinched between
the rear cover and the control box main unit.
Close the rear cover while pressing the lower
side of rear cover, and tighten four screws.
(3) Changing the voltage of 100 / 200V
DANGER :
To prevent personal injuries caused by electric shock hazards or abrupt start of the sewing
machine, carry out the work after turning OFF the power switch and a lapse of 5 minutes or more.
To prevent accidents caused by unaccustomed work or electric shock, request the electric expert
or engineer of our dealers when adjusting the electrical components.
It is adaptable to the voltage of single phase 100V to 120V/3-phase 200V to 240V by changing the
voltage changeover connector mounted on FLT p.c.b.
(Caution) When the changing procedure is wrong, the control box will be broken. So, be very
careful.
1
GREEN/
YELLOW
(Plug side)
WHITE
BLACK
RED
WHITE
BLACK
RED
GREEN/
YELLOW
GREEN/
YELLOW
(Plug side)
WHITE
BLACK
RED
WHITE
BLACK
RED
GREEN/
YELLOW
A
B
C
GREEN/
YELLOW
GREEN/
YELLOW
(Plug side)
WHITE
BLACK
RED
WHITE
BLACK
RED

Ⅰ–8
When tilting the sewing machine head, tilt quietly
the sewing machine until head support bar 1
comes in contact with it.
1. Make sure that sewing machine
head support bar 1 is placed on
the table before tilting the sewing
machine.
2. To protect fall-down, be sure to
tilt the sewing machine in a level
place.
3. Keep the table in the state that
anything is not put on the top
surface of table
Adjust the sewing machine head to the hole of
arm stay, and insert shaft 1. Fix shaft 1 with
screws 2 in the state that the end faces of shaft
1 are protruded on the both sides.
Be careful that wiring and air pipe
coming out from the bottom face of
the sewing machine are not crushed.
(4) Installing the sewing machine main unit
(5) Tilting the sewing machine head
DANGER :
When tilting/raising the sewing machine head, perform the work so as not to allow your ngers to
be caught in the machine. In addition, to avoid possible accidents caused by abrupt start of the
machine, turn OFF the power to the machine before starting the work.
21
1
WARNING :
To prevent possible accidents caused by the fall of the sewing machine, perform the work by two
persons or more when the machine is moved.

Ⅰ–9
(6) Removing the xed plate for transport
Remove xed screw 1 and remove xed plate for
transport 2.
Fixed screw 1 and fixed plate for
transport 2 are necessary when
transporting with the machine head
single unit. So, keep them with care.
1
2
1
2
3
[Reference]
¡In case of the complete transport
In case of the complete transport, x the sewing
machine to the table with screw 1, two flat
washers 2 and nut 3 supplied as accessories
in order to safely transport the sewing machine.
(7) Installing the operation panel
Fix operation panel attaching plate 1 on the
table with woodscrew 2 and pass the cable
through hole 3 in the table.
1
2
3

Ⅰ–10
1) Install lter installing plate 1 on the right side of the stand side support with screw 3.
2) Fix air regulator 2 on lter installing plate 1 with screw 4.
3) Fix elbow union 5 on the right section of air regulator 2.
4) Insert air hose 6 into elbow union 5.
5) Insert reducing union T 7 into the top end of the air hose, and insert stop plug 8 into the hole of
ø6.
Use the branch section (ø6) of reducing union T 7 when using the air gun.
Air gun set (G57602540A0) is available as optional.
6) Insert air tube 9 coming from the main unit of machine head into reducing union T 7.
7) Insert pressure sensor relay cord !0 into connector !1 of air regulator 2.
8) Winding pressure sensor relay cord !0 around air tube 9, insert it into the control box (CN41).
9) Supply air, and adjust the air pressure to 0.5 Mpa.
(8) Installing the air regulator
5
!0
!1
2
1
9
6
8
7
3
4

Ⅰ–11
Filter regulator
Operation panel
Sewing machine head
CN34
CN44
CN43
CN40
CN39
CN38
CN33
CN16
CN14
Cord
clamp A
CN16
SDC circuit board
CN14
1
(9) Connecting the cords
Perform the connection of the cords as shown in the gure below.
CN41
1) Pass 5 cords (CN39, 40, 41, 43 and 44)
connecting to the right side among the cords
connecting to MAIN circuit board through cord
clamp A as shown in the gure, and connect
them to the respective connectors. Connect
CN38 to the connector without passing
through cord clamp A.
2) Directly connect two cords connecting to the
left side of MAIN circuit board to CN33 and
CN34.
3) Connect the cords connecting to SDC circuit
board directly to CN14 and CN16.
4) Fix the earth wire with the setscrew 1.
Start
switch
SDC circuit board
MAIN
circuit
board
CN34
CN40
CN41
CN38
CN39
CN16
CN14
CN33
CN43
CN44

Ⅰ–12
(11) Installing the eye protection cover and the nger guard
(10) Managing the cord
1) Slowly tilting the sewing machine, check that the cords are not forcibly pulled.
2) Fix the cords with cord setting plate 1 as shown in the gure.
DANGER :
Be sure to attach this cover to protect the eyes from the disperse of needle breakage.
1
2
When you tilt the sewing machine, make sure that the sewing machine head
support bar 2 is placed on the table.
Be sure to install eye protection cover 1 and
nger guard 2, and use the sewing machine.
1
2

Ⅰ–13
1) Fix base 1 on the table with wood screw 2.
2) Insert button tray 4 in the hole of base 1
and fix it with setscrew 3 after adjusting
the position to that where the button can be
taken with ease.
It is possible to change the loader set
position as well. It is recommended
to perform positioning them together.
(Memory switch )

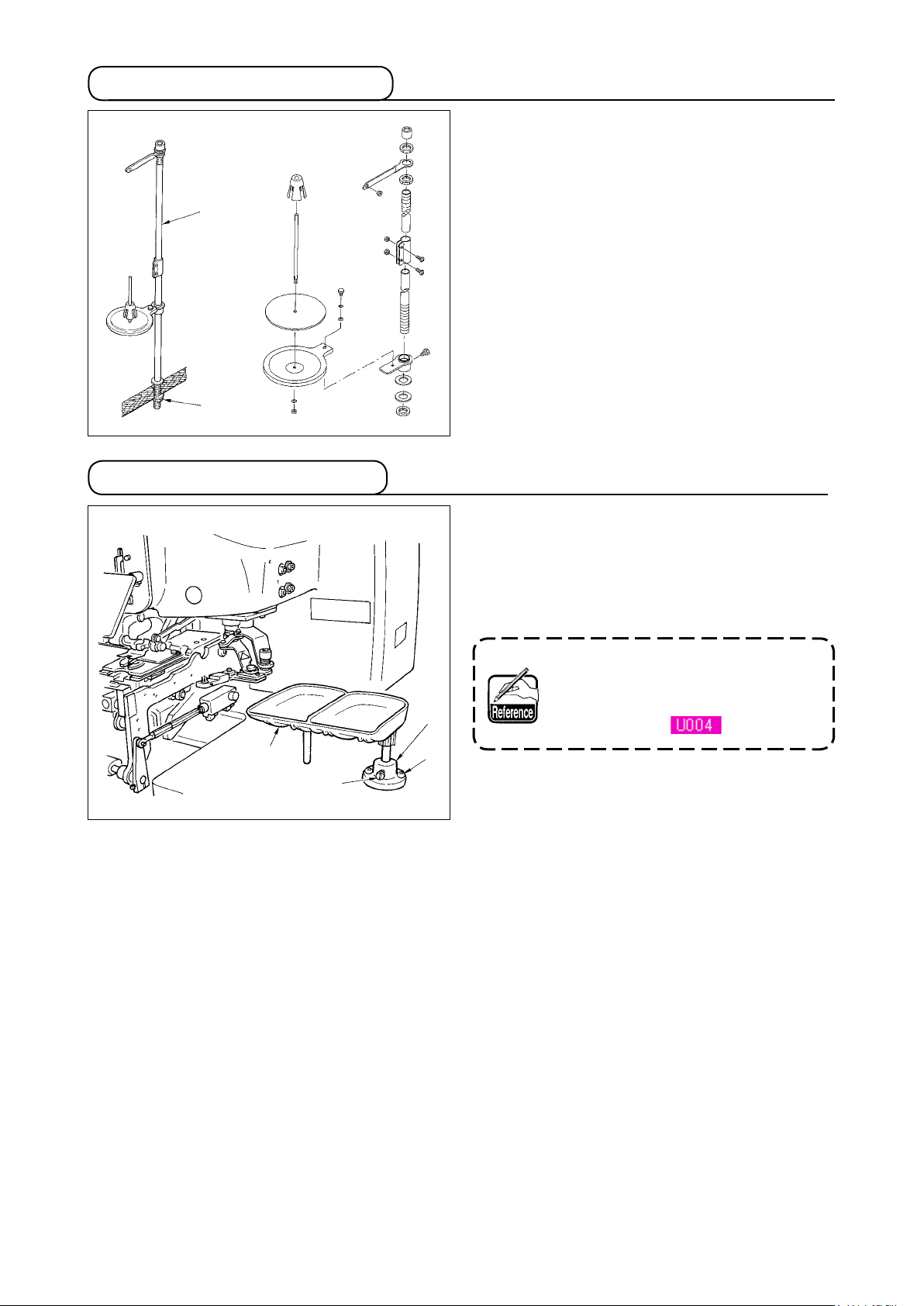

(12) Installing the thread stand
1) Assemble the thread stand, and set it in the
hole in the top right corner of the machine
table.
2) Tighten locknut 1 to x the thread stand.
3) When ceiling wiring is possible, pass the
power cable through spool rest rod 2.
(13) Attaching the button tray
1
2
4
3
1
2

Ⅰ–14
When attaching the needle, turn OFF
the power to the motor.
Attach stop plug 2 supplied as
accessories (insert magnet 3
supplied as accessories into the top
end) to the needle. It is recommended
to conrm that the needle is vertical.

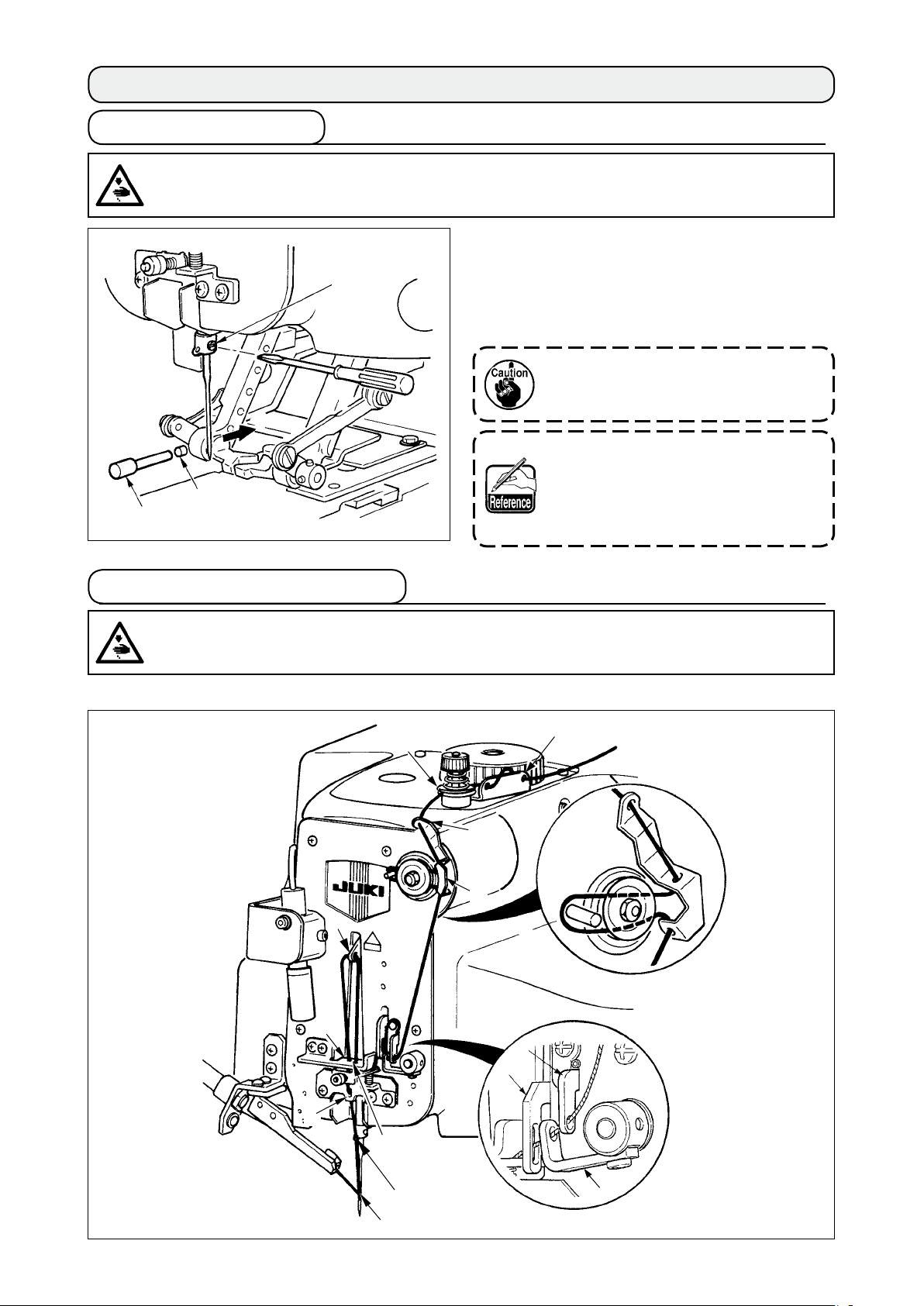

3. PREPARATION BEFORE OPERATION
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
(1) Inserting the needle
Hold needle with its recessed part facing toward
side "A" as observed from the front of the sewing
machine, insert the needle into the needle hole
of needle bar until it will go no further, and tighten
setscrew 1 with a at-blade screwdriver.
Use a SM332EXTLG-NY(#11 to #18).
A
1
2
3
1
2
3
Pass the needle thread in the order 1 to !3 as shown in the gures.
(2) Threading the needle-thread
3
7
5
9
4
2
1
!3
!2
!1
!0
8
6

Ⅰ–15

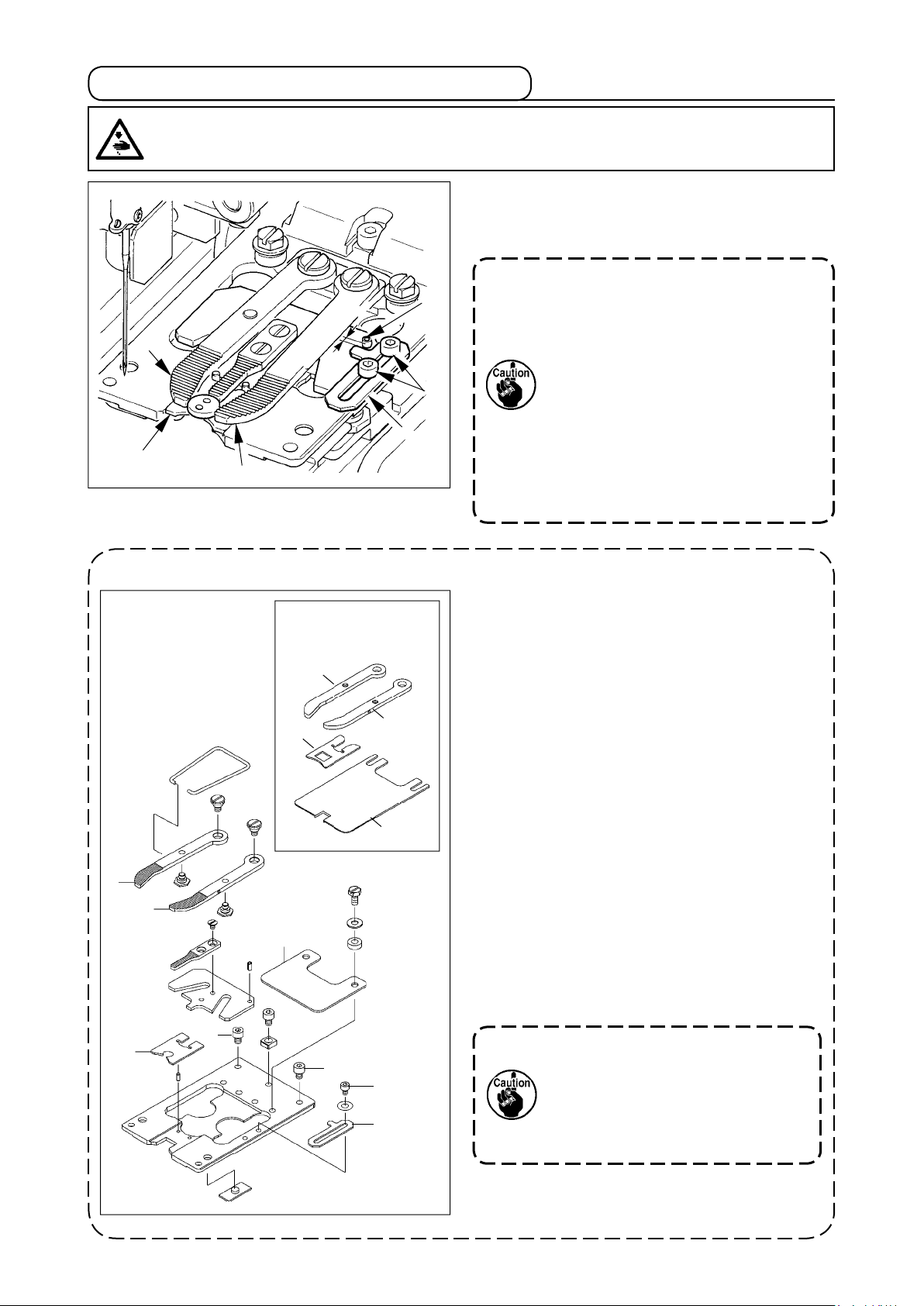

1. Maximum size to be applied is
ø25.
2. When installing the feed plate,
insert it until it goes no further
and x it.
[Reference]
To change the feed plate to the feed plate
for counter button, there are two kinds of
methods ; changing as a set and replacing the
components.
¡In case of replacing as a set
1) Purchase the set (40020807) of feed plate
for counter button. Loosen two screws 8
and replace the feed plate.
¡In case of replacing the components
1) Purchase the counter button B set
(40021447), loosen two screws 8, and
remove the feed plate from the machine
head.
2) Replace the components 4, 5, 6, and
7 with counter button B set (40021447).
1. The size applicable to the stay
button is ø8 to ø25, and the
thickness is 2 mm or less.
2. Feed plate is made so as to make
it easy to set the stay button of ø8
to ø10. Replace the feed plate with
the feed plate for counter button
when using the button which is not
clamped with stay button clamps
5 and 6, or using the button, the
needle entry position of which is not
t to the window of gauge 4.
Loosen screws 3 and adjust so that the clearance
between stopper 1 and pin 2 is 0.5 to 1 mm with
the button used set. Then x the stopper.
(3) Adjusting the stay (counter) button stopper
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
4
5
6
7
8
3
1
8
0.5 to 1mm
3
2
1
4
5
6
5
6
4
7
Counter button B set
(40021447)

Ⅰ–16

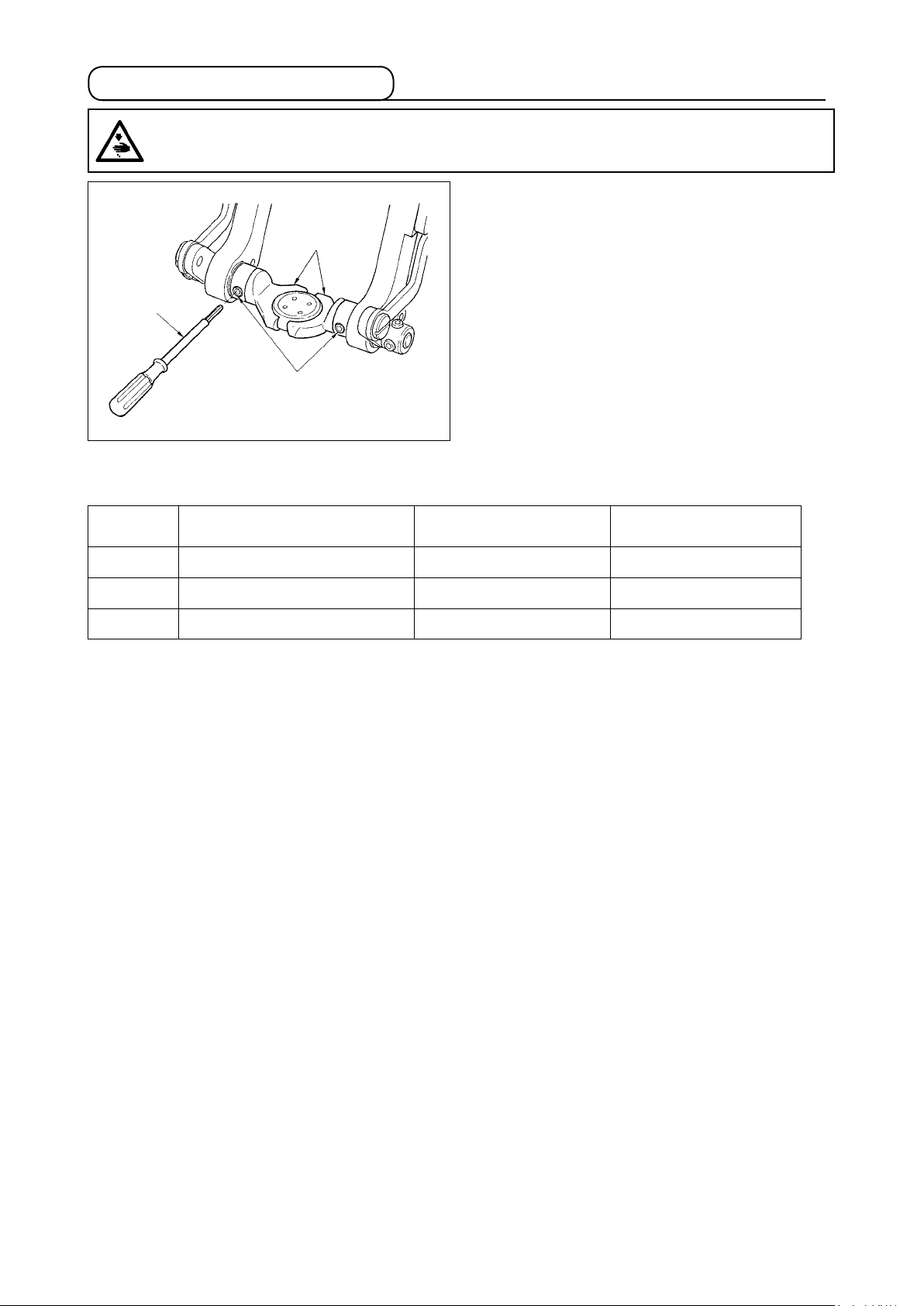

When replacing chuck 1, loosen screws 2 and
replace it with exclusive screwdriver 3 supplied
as accessories.
(4) Replacing the button chuck
<Button chuck correspondence table>
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
1
2
3
Part No. Description Outside diameter of button
that can be used Remarks
40020932 Button chuck (small) ø 8 to 16 mm Accessory
40020931 Button chuck (medium) (standard) ø 14 to 25 mm Installed on machine head
40020930 Button chuck (large) ø 25 to 38 mm Accessory

Ⅰ–17

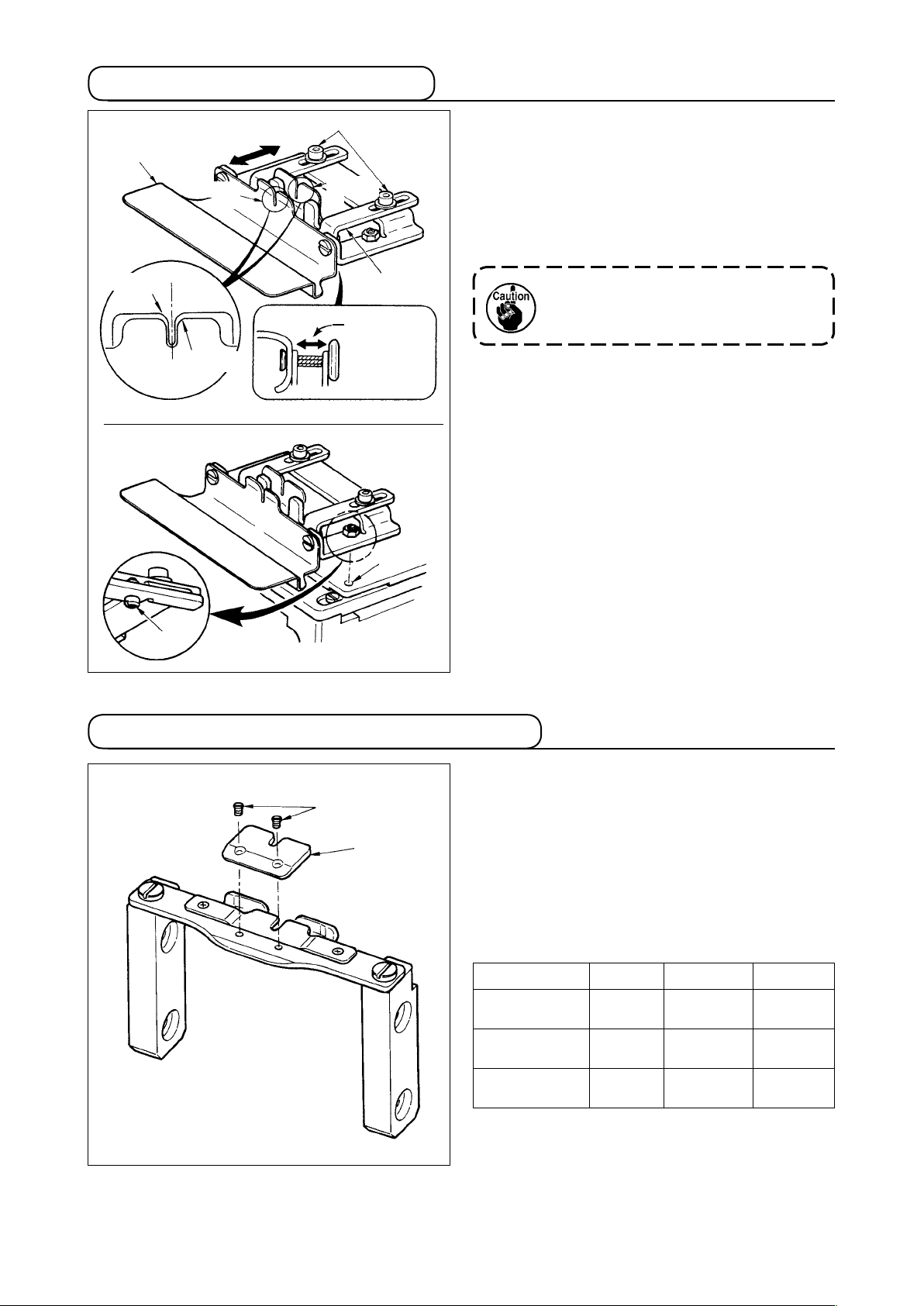

(5) Set of the button neck wrapping
When performing the button neck wrapping
process of stay (counter) button, use the button
neck wrapping attachment (accessories) 1.
Loosen screws 2 and move holder plate 3 to
and fro to perform the adjustment of the height of
button neck wrapping attachment.
[Setting procedure of the button neck wrapping
attachment]
Insert convex 4 of the attachment to concave 5
of the feed plate at the time of the button neck
wrapping process pattern.
Conrm that button neck wrapping
positioning grooves A and B are
straight front and rear.
1
2
4
5
(6) Set of the sewing at button with blindstitch
When performing the sewing flat button with
blindstitch, insert underplate spacer A 1 supplied
as accessories (Part No. : 40020764) to the pin
position. In addition, fix it with screws 2 when
using it always.
Select and use a proper underplate spacer from
among the underplate spacers below according to
the thickness of cloth.
1
2
Height of
button neck
wrapping
3
Groove B
Groove A
Groove
A
Groove
B
Discription Thickness Part No. Remarks
UNDER_PLATE_
SPACER A
t=1.6 40020764 Accessory
UNDER_PLATE_
SPACER B
t=2.0 40020769 Optional
UNDER_PLATE_
SPACER C
t=2.6 40020770 Optional
