The machine produces
high-quality soft seams.
High-speed, 1-needle, Lockstitch,
Zigzag Stitching Machine
LZ-2280A
Series
The machine produces
high-quality soft seams.
LZ-2280A Series
High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine

JUKI ECO PRODUCTS The LZ-2284A-7 is an eco-friendly product which complies with
JUKI ECO PRODUCTS standards for protecting the environment.
This sewing machine reduces power consumption by 8.6% as compared with the conventional models※.
The sewing machine complies with the "Juki Group Green Procurement Guidelines" on the use of hazardous substances,
which is stricter than other restrictions, such as those of the RoHS Directive.
For details of JUKI ECO PRODUCTS, refer to : http://www.juki.co.jp/eco_e/index.html
The RoHS Directive is an EU Directive limiting the use of 6 hazardous substances (lead, hexavalent chromium, mercury, cadmium, PBB and PBDE) in electrical and electronic equipment.
The Juki Green Procurement Guideline is the voluntarily established criteria to eliminate not only the aforementioned six substances, but also other ones which also adversely affect the environment.
LZ-2280A Series
LZ-2280A Series is the latest model of highly-evaluated JUKI's zigzag stitch machines.
The sewing machine produces soft seams with consistency with
a low tension applied to the thread.
Problems which are associated with low-tension sewing such as "double-catching" and "irregular stitches", as well as factors which affect
seam quality such as "thread path", "thread bending resistance", "feed locus", "needle locus" and "timing" have been thoroughly reviewed,
thereby successfully producing soft seams. The machine has adopted JUKI's established genuine hook and thread take-up lever.
Bobbin thread winder
The bobbin thread winder is built-in at the top surface of the machine
head. The bobbin winder incorporates a thread cutting knife for cutting
the thread after the completion of bobbin winding.
※Applied only to 00, 0B and models with automatic thread trimmer
Presser adjustment screw add scale line
Presser adjustment screw attached the scale line at standard.
1
The compact-size servomotor
※
The LZ-2284A-7 has installed with the compact servomotor which has
directly connected to the main shaft.
Micro-lifter
It works to constantly material or other difficult-to-sew ones,thereby
helping effectively reduce material slippage as well as damages made
by the presser foot on the material.
Screw for the attachment is provided as standard
The machine is provided as standard with a screw which is necessary
for attaching the guide device. This facilitates response to various
processes.
Easy-to-operate adjustment mechanism
For the adjustment of the needle position, needle throwing width and
stitch base line, an easy-to-operate lever style has been adopted. In
addition, the feed amount and the condensation mechanism for
fastening stitches can be easily adjusted since an adjustment dial has
been adopted.
Attachment-mounting seat
Installation of an attachment-mounting seat improves operability when
replacing the attachment and increases the durability of the machine
bed surface.
Automatic reverse feed function
The automatic reverse feed switch can be re-positioned to best match
the operator.
Silent and low-vibration operation
The needle rocking cam has been totally reviewed to enable
comfortable sewing even during high-speed sewing.
2
4
1
1
3
5
6
7
8
9
10
2
43
5
7The lift of the presser foot has been increased and
the LED has been provided as standard
※
The visible area around the needle entry point has been increased and
the LED light has been installed, thereby helping reduce the operator's
fatigue when sewing small parts. The illuminance of the LED light can be
adjusted near the needle entry point.
8
910
※LED : Applied only to 00, 0B and models with automatic thread trimmer
※Compact AC servomotor (direct-drive system)
6

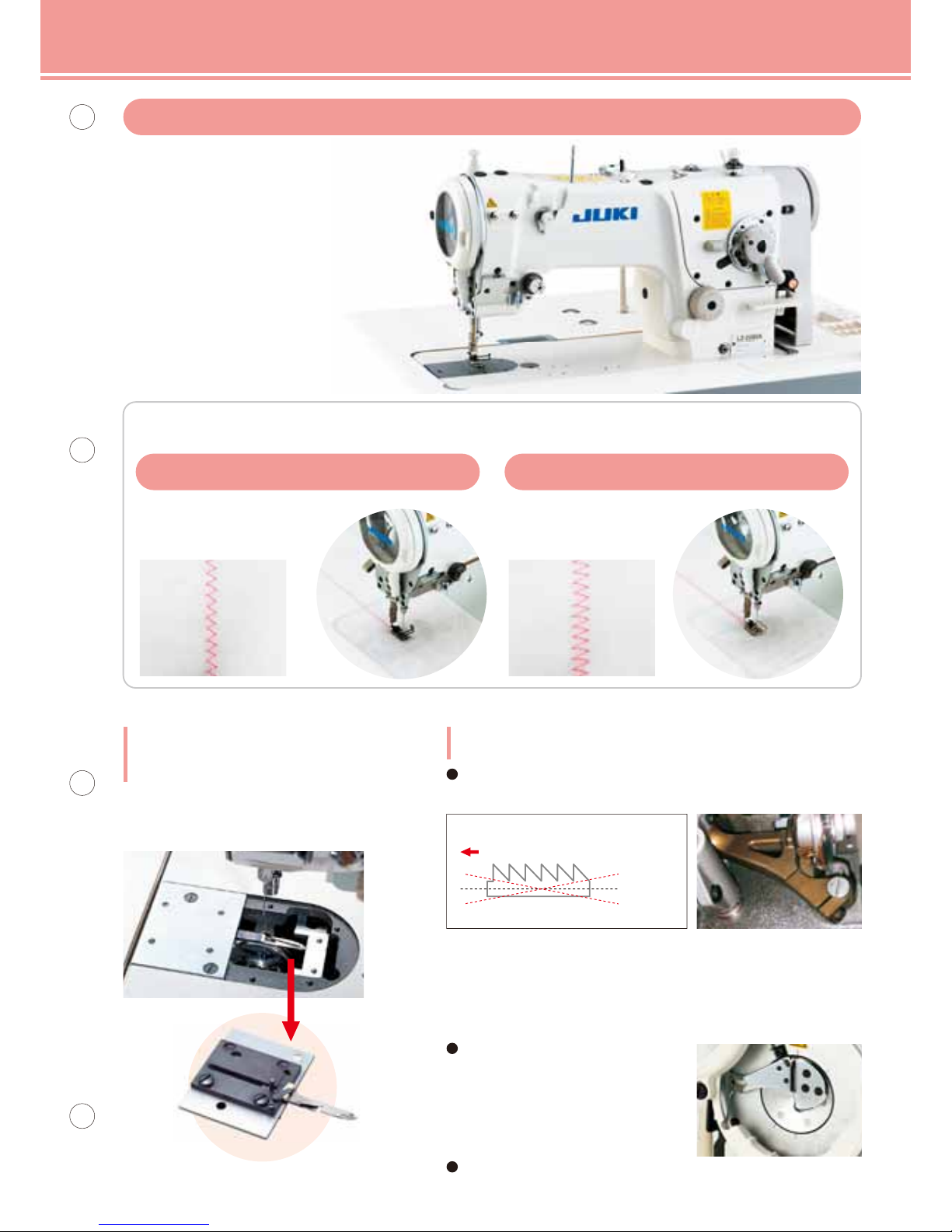

Standard zigzag stitching machine
High-speed, 1-needle, Lockstitch,
Zigzag Stitching Machine
Standard / Standard wider zigzag
LZ-2280A
The feed mechanism has been improved by widening the adjustable range of
the height and inclination of the feed dog. The feed locus has been optimized
while placing great emphasis on the feed locus at the moment the needle
penetrates the material to form a stitch. The weight of the feed mechanism has
been reduced by using parts most of which are made of aluminum material. This
facilitates sewing of overlapped sections of material that have to be securely
held between the presser foot and the feed dog during sewing.
LZ-2280A
The standard zigzag stitching machine creates softly
finished seams. The needle rocking mechanism is
provided with a triangular cam which helps produce
beautiful seams with consistency.
Inclination of the feed dog
Sewing direction
Level position
This-side-raisedposition
This-side-lowered position
JUKI-specific loop spreading-structure knife
sliding system enables thread trimming
without fail whether needle throws to the right
or the left.
JUKI's unique thread
trimming mechanism
Maintenance
LZ-2280AA
High-speed, 1-needle, Lockstitch,
Zigzag Stitching Machine
LZ-2280AB
High-speed, 1-needle, Lockstitch,
Standard wider zigzag stitching machine
Zigzag width:
mm
5
Zigzag width:
mm
8
Marker lines engraved on the face plate and
the pictorial indication facilitate adjustment of
the needle-to-feed timing and the hook timing.
Adjustment for various feed timings
The adjustable range of the feed mechanisms
has been widened, thereby upgrading the machine's
responsiveness to materials
Oil feeding path of the LZ-2280A Series has been reviewed to enable feeding of
consistent quantity of oil.
Adjustment of oil quantity in the hook
Two kinds of gauges can be selected in accordance with the application of the machine:
an A-type gauge with a zigzag width of 5 mm, and a B-type gauge with a zigzag width of 8 mm.

LZ-2284A (Standard/3-step Zigzag) and LZ-2287A (3-step Zigzag/Scallop) can perform two stitching patterns by one machine,
thereby increasing the machine operation rate.
Stitching Pattern Changeover Function
High-speed, 1-needle, Lockstitch,
Zigzag Stitching Machine
Standard/3-step Zigzag Stitching Pattern Changeover Function
LZ-2284A-7
High-speed, 1-needle, Lockstitch,
Zigzag Stitching Machine
LZ-2287A
LZ-2284A
Switch between the standard zigzag stitching pattern and
3-step zigzag stitching pattern with simple one-touch control
3-step zigzag stitching and scallop stitching can be changed
over through fingertip control
The mechanism for changing over the type of stitching between standard zigzag
stitching and 3-step zigzag stitching has been well-received in the market. Now, the
sewing machine which is able to change over the type of stitching between 3-step
zigzag stitching and scallop stitching which are frequently used for sewing girdles
has been added to the LZ Series.
The operator can easily switch the needle-throwing pattern between the
standard and 3-step zigzag stitching patterns using the lever located in the
free space under the arm. When changing the sewing product or design,
there's no need to adjust the sewing machine head or machine layout.
Standard zigzag
stitching
Standard/3-step zigzag stitching pattern
changeover lever
3-step zigzag
stitching
3-step zigzag
stitching
Scallop
stitching
3-step zigzag
stitching
Standard zigzag
stitching
The world's
fastest
LZ-2284A-7/CP-180A
Pattern Changeover Function
LZ-2287A
Pattern Changeover Function
Equipped with two different functions, the machine is
available to handle a wider range of application
scallop stitching pattern with simple one-touch control
Switch between the 3-step zigzag stitching pattern and

Options
Feature
This device allows a machine without thread trimmer to perform automatic reverse feed function.
Prevents the blade point of the hook from wearing out
This is the spring which strongly holds down the material when sewing a heavy weight material.
Tightly tensed seams can be produced by increasing the tension applied to the needle thread.
Thread breakage and stitch skiping can be prevented by stabilizing the needle thread loops.
Description
Automatic reverse
feed Kit
Hook with
a hard blade point
Presser spring
Tension spring
Auxiiary Thread
take-up Kit
Part No.
40135177
225-26578
229-07406
B3129012A00
40135178
235-23152 Hook
235-22550 Bobbin case (asm.)
235-23004 Bobbin
Application
Precaution
The hook with non-rotational bobbin eliminates sewing troubles resulting from bobbin idling.
It provides a uniform bobbin thread tension at all times, thereby guaranteeing a consistent stitch formation.
Hook with non-rotational bobbin
※If you want to use a non-rotational bobbin, consult your distributor beforehand.
＊When using the oilless bobbin and hook, a hook driving shaft front setscrew
(part number: 110-79506) is necessary.
Mainly for the standard zigzag stitch: Effectively prevents the material swelling at the sewn
part, as well as irregular stitches when sewing lace to slips, camisoles and shorts.
Applicable thread Thread specifically developed for sewing foundation garments and lingerie such as Resilon,
Poelon, Satin, and Berlon (#50, #60)
Not-applicable thread Thread which has naps, decorative yarn of multi-fiber thread such as woolly thread, Berlon
D420 and D300, and spun thread
The quantity of thread to be wound around this bobbin is approximately 60% of that wound
around the conventional bobbin. Therefore, this bobbin is not recommended for pattern
stitching such as three-point zigzag stitching and scallop stitching, or intape-attaching
processes, even if the stitch system is the standard zigzag stitch.
225-56054 Knife unit
D1440-583-H00 Needle thread guide
400-17095 Thread tension disk (asm.)
225-80369 Presser foot (asm.)
Parts for sewing with thick thread (recommended needle: DP×5 #21, 134SUK Nm130)
GRF0100000B0 (asm.)
Presser foot connecting components
①B1551-586-000
Presser foot connecting foot
②SS-7090910-TP
Screw
1
2
Presser foot
connecting components
235-57259 Hook compl. D
400-03609 Bobbin case D3 (compl.)
400-03610 Bobbin case D3 (asm.)
400-16408 Hook gib VS
The oilless bobbin case and hook effectively prevent oil stains.
Soft seams can be produced by lowering
the bobbin thread tension.
Oilless bobbin case / Hook
(special race surface plastic hook) Hook gib
The aforementioned parts are used when a lockstitching type
presser foot is installed on the machine. Select a parts set of
either the presser-bar changing type or the presser bar joining
type, according to the type of presser foot of your machine.
Pedal-operated reverse feed
stitching device (RF-1)
The device enables the operator to perform reverse feed
stitching using the pedal without using the right hand.

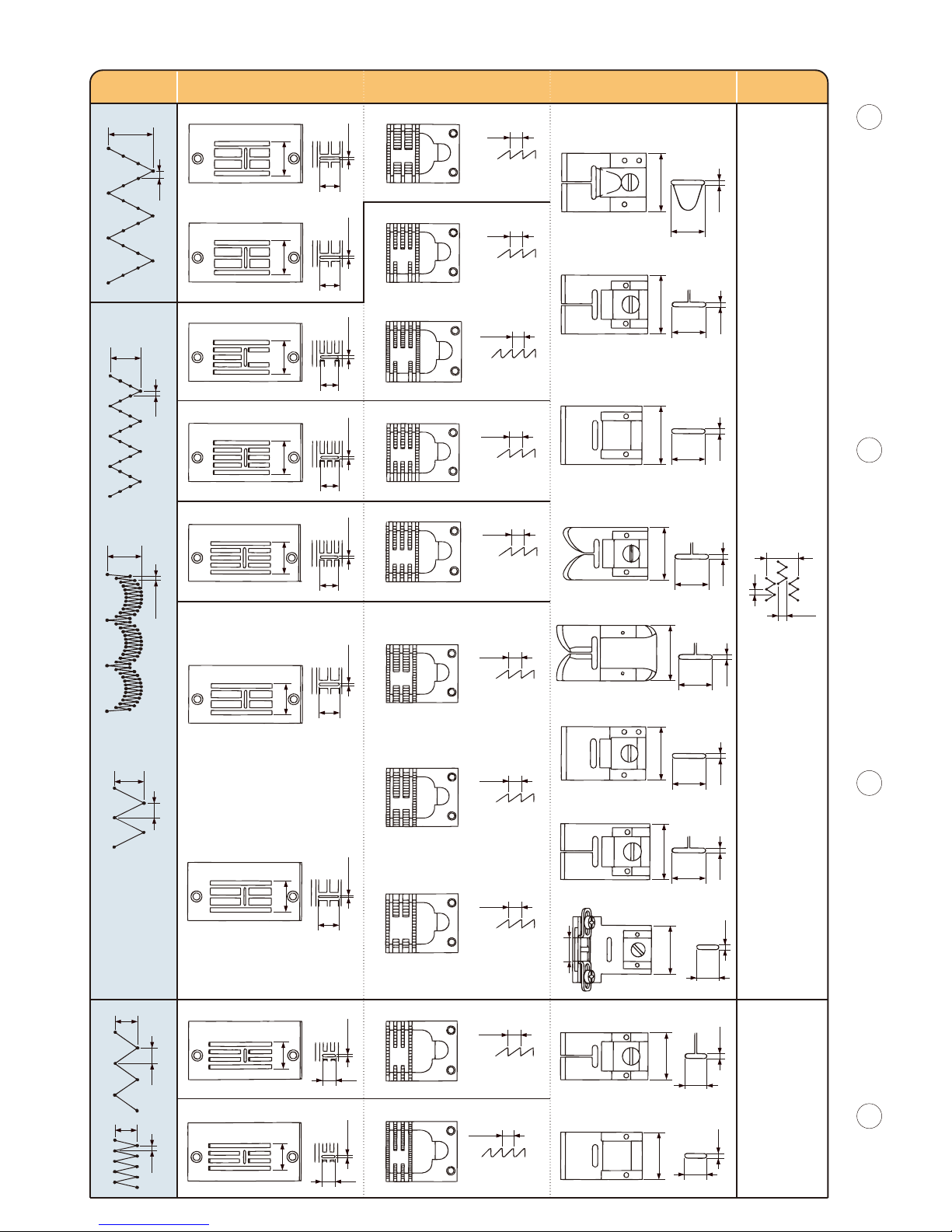

List of the major gauges
Max. zigzag width
/ Max. feed pitch
Throat plate Feed dog Presser foot (with figer guard) Remarks
10
2
8
2
8
5
5
2.5
5
1.6
8
Max. 2
19
10041010
20
2020
18.6
18.6
18.6
18.6
20.6
16
16
Max. 15.6
19
10041101
22580005
22582100
22582704
22582407
22582506
22545008
22545511
10047017
22580369
22580260 Light-in-weight type
22580765
Light-in-weight type with the
front fulcrum
23503154 Light-in-weight type
22584965 Light-in-weight type
22545362 Light-in-weight type
22545867
Light-in-weight type with the
front fulcrum
Presser foot with tape guide
MAB109000B0
23503253 Front fulcrum type
22580864
10055051
(finger guard: small)
23503162
(finger guard: small)
10045052
(finger guard: small)
22580104
22580500
22582209
22582803
22581508
22548804
22540009
22545107
22545610
191919
17.6
17.6
15
15
11.6
Max.
feed amount: 2mm
Max.
feed amount: 2mm
Max.
feed amount: 2mm
Max.
feed amount: 2mm
Max.
feed amount: 2mm
Max.
feed amount: 2mm
Max.
feed amount: 1.3mm
Max.
feed amount: 5mm
Max.
feed amount: 2.5mm
Max.
feed amount: 1.6mm
1.4
11.6
1.6
10.2
1.8
10.2
1.8
2
8
2~3
10.2
1.8
10.2
1.8
7.6
1.8
1.6
1.6
1.15
1.6
1.5
1.5
1.5
1.7
1.7
1.15
11.6
1.15
10.2
1.4
10.2
1.4
11.7
1.4
10.2
1.4
10.2
1.15
7.6
1.4
7.6
1.15
10.2
1.8
10.2
1.6
10.4
1.8
7.6
1.8
With a recess on the reverse side of
the presser foot
• Suited to sewing
tasks that require
frequent changes
in the needle throw
position.
• Light -in-weight
presser foot
prevents jumping
at the time of
high-speed
sewing.

• In addition to the above-listed ones, many different gauges and attachments for zigzag stitching are available.
Please contact us for details.
4
1.3
4
2.5
4
5
3
1.6
3
2.5
22548705
22548507
22548010
22549000
22549208
22546519
22546212
MAD04060000
22549604
17.6
13.6
13.613.6
13.6
11
11
1110
6.8
1.4
6.8
1.15
6.8
1.4
6.8
1.4
6.8
1.4
5
1.15
5
1.15
5
1.4
5
1.4
22548804
22548408
22548119 22541601
22549109 22541809
22549307 22541700
22546717 22546618
22546410
MAD04070000
22549703
22546311
Max.
feed amount: 1.3mm
Max.
feed amount: 2.5mm
Max.
feed amount: 2.5mm
Max.
feed amount: 5mm
Max.
feed amount: 2.5mm
Max.
feed amount: 5mm
Max.
feed amount: 2.5mm
Max.
feed amount: 5mm
1.5
1.15
1.5
1.5
1.15 1.5
1.15 1.5
1.5
1.15
18.6
14
14
12
12
10.610
22548960 Light-in-weight type
22547962 Light-in-weight type
22547970
(finger guard: small)
22548663 Light-in-weight type
22546964 Light-in-weight type
22549869 Light-in-weight type
MAD040500A0
22547269
Light-in-weight type with the front
fulcrum
22548671
(finger guard: small)
7.6
1.8
7.6
1.8
5.4
1.8
5.4
1.8
7.6
1.8
5
1.6
5.4
1.8
Max. zigzag width
/ Max. feed pitch
Throat plate Feed dog Presser foot (with figer guard) Remarks
• For standard
zigzag stitching
• The 5mm-feed is
suited to
tape-attaching
process where the
elastic tape is
sewn with
stretched.
• For attaching tape
to brassieres, etc.

SEWING MACHINERY BUSINESS UNIT
SEPTEMBER, 2013 Printed in Japan(C)
2-11-1, TSURUMAKI, TAMA-SHI,
TOKYO 206-8551, JAPAN
PHONE : [phone]
FAX : [phone]
http://www.juki.com
✽ Specifications and appearance are subject to change without prior notice for improvement.
✽ Read the instruction manual before putting the machine into service to ensure safety.
✽ This catalogue prints with environment-friendly soyink on recycle paper.
Juki Corporation operates an environmental management system
to promote and conduct the following as the company engages in
the research, development, design, sales, distribution,and
maintenance of industrial sewing machines, household sewing
machines, industrial robots, etc., and in the provision of sales and
maintenance services for data entry systems:
(1) The development of products and engineering processes
that are safe to the environment
(2) Green procurement and green purchasing
(3)
Energy conservation (reduction in carbon-dioxide emissions)
(4) Resource saving (reduction of papers purchased, etc.)
(5) Reduction and recycling of waste
(6) Improvement of logistics efficiency (modal shift and
improvement of packaging, packing, etc.)
Type
Standard wider zigzag (with a gauge for 5mm zigzag width)
Code
0AA
Standard wider zigzag (with a gauge for 8mm zigzag width) 0AB
Standard/3-step zigzag 4A
Standard/3-step zigzag (with anti-material-slip type) 4AT
3-step zigzag / scallap 7A
Model name
Max. sewing speed
Lift of the presser foot
Hook
Thread take-up
Lubrication
Lubricating oil
Needle (at the time of delivery)
Needle position changing mechanism
Reverse feed stitching mechanism
Max. feeding amount
Stitch system
Stitch pattern
Max. zigzag width
By hand: 5.5 mm, By knee: 10 mm
DP hook (with titanium-treated inner hook)
Rotary type
Fully automatic
JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
134SUK (Nm70)
Provided as standard
Provided as standard
LZ-2287A
—
3-step zigzag / scallap
10 mm
2.5 mm
Without automatic
thread trimmer
With automatic
thread trimmer
LZ-2280A (A)
—
Standard zigzag
5 mm
2.5 mm
LZ-2280A (B)
—
Standard wider zigzag
5,000 sti/min
8 mm
5 mm
LZ-2284A
LZ-2284N-7
Standard / 3-step zigzag
5 mm (standard)
10 mm (3-step)
2.5 mm
※
※
"0B" is applied only to LZ-2284A and 2284AT
"0B"and "00" are Direct-Drive head
Automatic reverse feed function
Not provided
Code
without automatic reverse feed function 00
with automatic reverse feed function 0B
Type Code
Standard /
3-step zigzag 4A Wiper
Wiper and automatic reverse feed function
Code
Provided
Automatic reverse feed function
Provided WB
LZ228
LZ2284A7WB
Triangular cam Grooved cam
SPECIFICATIONS
WHEN YOU PLACE ORDERS
Please note when placing orders, that the model name should be written as follows:
＊sti/min stands for Stitches per Minute.
Needle throw pattern cam
To order, please contact your nearest JUKI distributor.
SC-920A
CP18A
CP180A
Control boxLZ-2280A series (without automatic thread trimmer)
LZ-2280A-7 series (with automatic thread trimmer)
Operation panel
Auto-lifter Code
Not provided
Provided AK
