JUKI TL-2200QVP Mini User manual

Lockstitch machine with a long arm and a thread trimmer
INSTRUCTION MANUAL
TL-2200QVP
NOTE:
Congratulations on your purchase of a JUKI sewing machine.
Please be sure to read this Instruction Manual before operating the sewing machine
to ensure safe operation. Please be sure to keep the Instruction Manual so that you
can read it whenever necessary.
EN
ES
FR
IT
NL
DE
CS
PL
RU
JA

– 1 –
“IMPORTANT SAFETY INSTRUCTIONS”
When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all
instructions before using this sewing machine.
“DANGER ____ To reduce the risk of electric shock:”
1. The appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electric outlet immediately after using and before cleaning.
“WARNING ____ To reduce the risk of burns, re, electric shock, or injury to persons:”
1. Do not allow this appliance to be used as a toy. Close attention is necessary when this appliance is used by or near
children. This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Use this appliance only for its intended use as described in this manual. Use only attachments recommended by the
manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Return the appliance to the nearest authorized dealer or service center for
examination, repair, electrical or mechanical adjustment.
4. Never operate the appliance with any air openings blocked. Keep ventilation openings of the sewing machine and foot
control free from the accumulation of lint, dust, and loose cloth.
5. Keep ngers away from all moving parts. Special care is required around the sewing machine needle.
6. Always use the proper stitch plate. The wrong plate can cause the needle to break.
7. Do not use bent needles.
8. Do not pull or push fabric while stitching. It may deect the needle causing it to break.
9. Switch the sewing machine off “O” when making any adjustments in the needle area, such as threading needle,
changing needle, threading bobbin, or changing presser foot.
10. Always unplug the machine from the electrical outlet when removing covers, when lubricating or when making any
other user servicing adjustments mentioned in the instruction manual.
11. Never drop or insert any object into any opening.
12. Do not use outdoors.
13. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
14. To disconnect, turn all controls to the off “O” position, then remove plug from outlet.
15. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
16. Turn OFF the power switch before insertion/removal of any cord and any plugs.
“SAVE THESE INSTRUCTIONS”
“This sewing machine is intended for household use.”

– 2 –
Congratulations on your purchase of a JUKI sewing machine.
Please be sure to read safety precautions in “To use the sewing machine safely” in the Instruction Manual before use to fully
understand the functions and operating procedures of the sewing machine so as to use the sewing machine for a long time.
After you have read the Instruction Manual, please be sure to keep it together with the warranty so that you can read it
whenever necessary.
To use the sewing machine safely
Marks and pictographs included in the Instruction Manual and shown on the sewing machine are used so as to ensure safe
operation of the sewing machine and to prevent possible risk of injury to the user and other people.
Warning marks are used for different purposes as described below.
WARNING Indicates that there is a possible risk of death or serious injury if this mark is ignored and
the sewing machine is used in a wrong manner.
CAUTION Indicates the operation, etc. which can cause a possible risk of personal injury and/or
physical damage if this mark is ignored and the sewing machine is used in a wrong manner.
Pictographs mean the following:
Danger
warning
which is not
specied
There is a risk
of electrical
shock
There is a risk
of re
There is a risk
of injury to
hands, etc.
Prohibited
matter
which is not
specied
Disassembly/
alteration is
prohibited
Do not place
ngers under
the needle
Do not pour
oil, etc.
Generally
required
behavior
Disconnect
the power plug

– 3 –

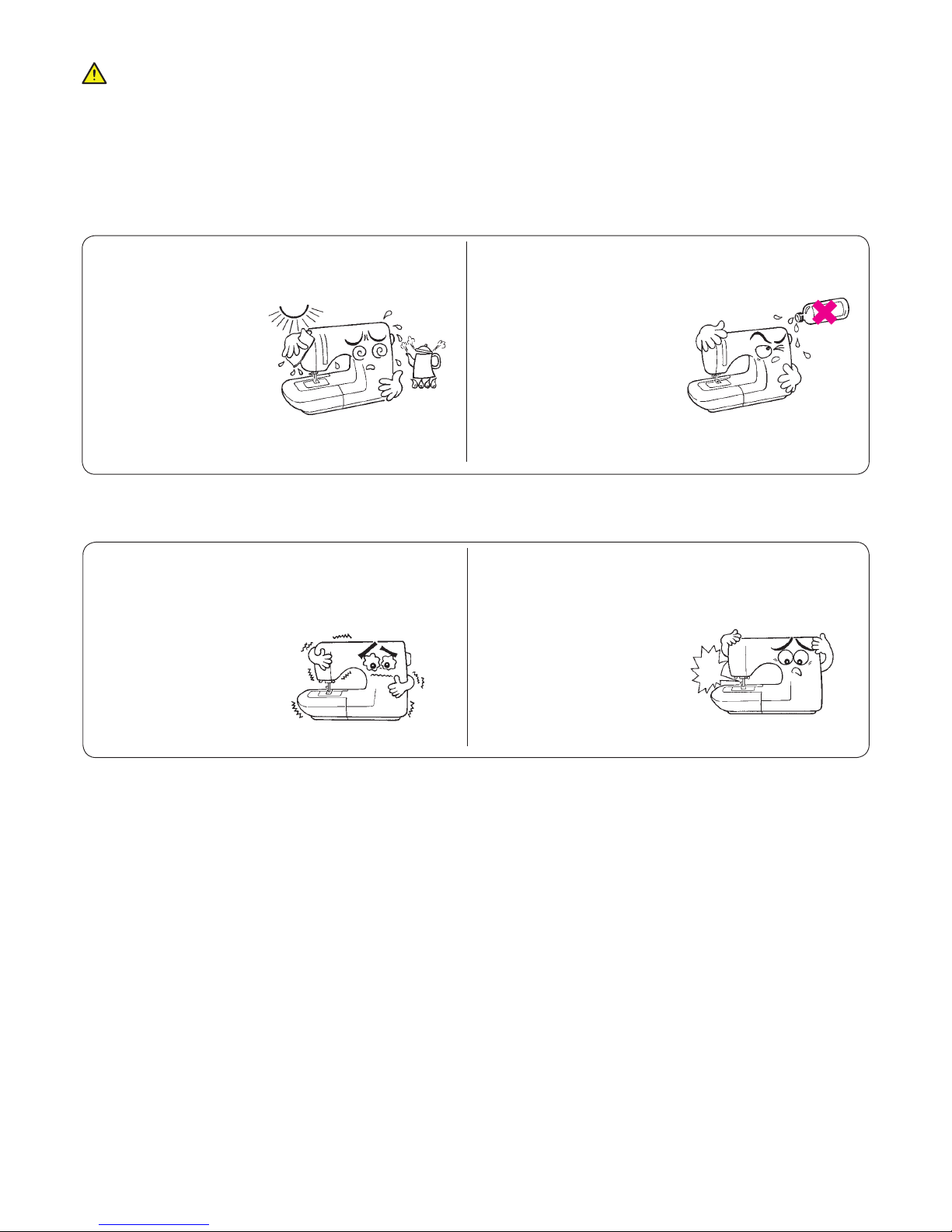

● Do not put the sewing machine under the direct
sunlight or in a humid place.
● Be sure to use the sewing machine in the temperature
range from 5ºC to 40ºC.
If the temperature is excessively low, the machine
can fail to operate normally.
* The operating temperature of the sewing machine is between 5ºC and 40ºC. Do not use the sewing machine under the
direct sunlight, near the burning things such as a stove and candle, or in a humid place. By so doing, the temperature
in the interior portion of the sewing machine can rise or the coating of the power cord can melt, causing re or electrical
shock.
● Do not wipe the sewing machine with solvent such as
thinner.
● This sewing machine will stop due to safety mechanism
to prevent the machine from overheating, when it sews
slowly and for a long time.
When the sewing
machine is soiled, put a
small quantity of neutral
detergent on a piece of
soft cloth and carefully
wipe off the sewing
machine with it.
At this time, turn off the
power switch, after a while
please be ON the power
switch.
Be aware that the following state can take place since the sewing machine incorporates semi-conductor electronic parts
and precise electronic circuits.
Stop!
WARNING
For the combination of the material and the thread and needle, in particular, refer to the explanation table in “Replacement
of the needle”.
If the needle or thread does not match the material used such as in the case that an extra heavy-weight material (e.g.,
denim) is sewn with a thin needle (#11 or higher), the needle can break resulting in an unexpected personal injury.
Other precautions

A
– 4 –
How to carry the sewing machine
■How to take out the sewing machine
If you pull up the sewing machine by holding presser regulating
screw section A, the sewing machine can break.
In addition, be aware that the presser regulating screw can break if a
physical impact is given to it.
CAUTION

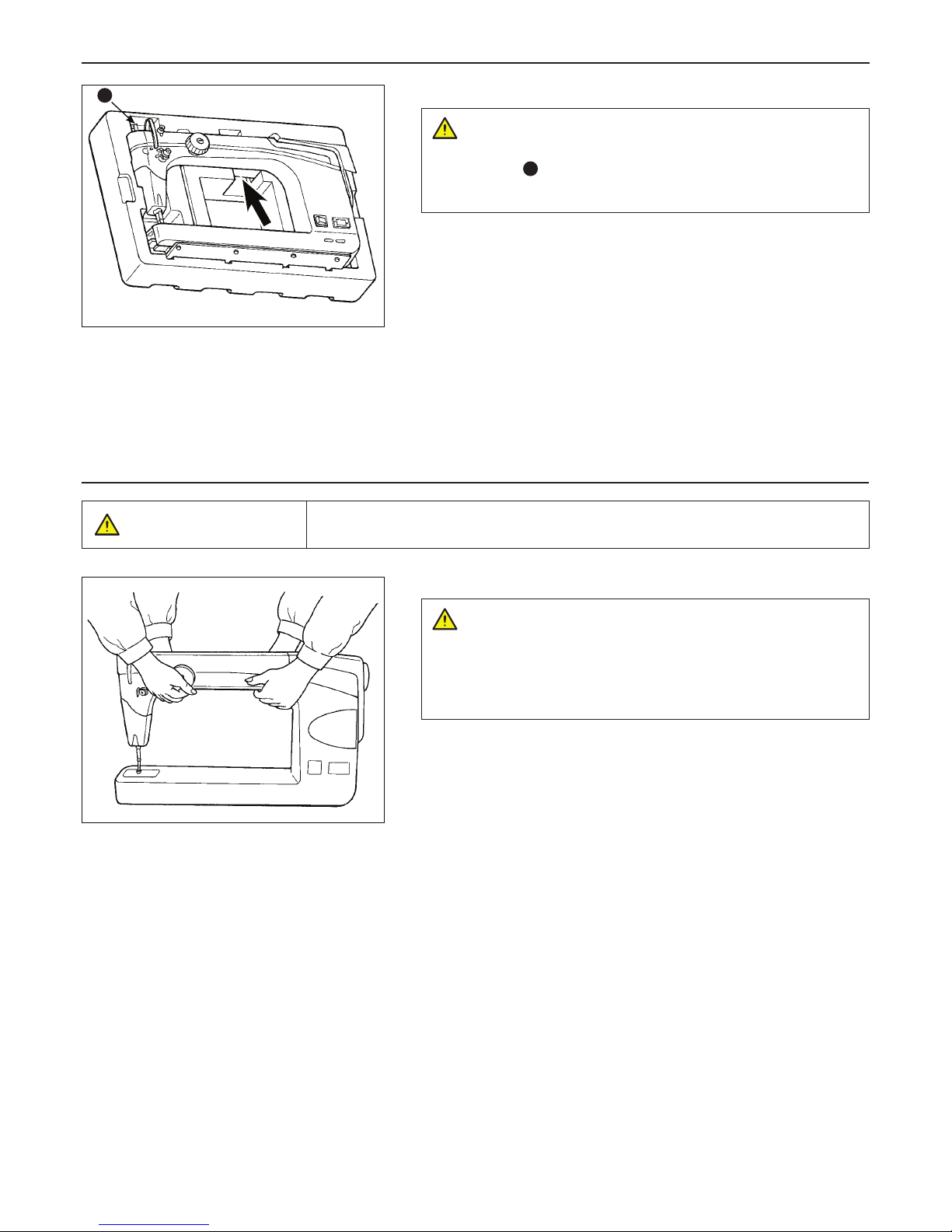

Pull out the sewing machine from the cutout of styrene foam by holding
the main body of the arm.
■How to hold the sewing machine
1. Never hold the handwheel since it rotates.
2. Always must be handle the sewing machine with two persons or
more since the sewing machine weighs 26 kg or more.
3. Do not hold the sewing machine by placing hands near the needle
bar and the presser bar to avoid the risk of injury.
CAUTION
Carry the sewing machine while holding the machine arm with two
persons as shown in the gure.
CAUTION Turn OFF the power switch. Always must be disconnected plug from socket-
outlet.

– 5 –
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance
for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding
conductor. If repair or replacement of the cord or plug is necessary, do not connect the equipment-grounding conductor to
a live terminal.
Check with a qualied electrician or serviceman if the grounding instructions are not completely understood, or if in doubt
as to whether the product is properly grounded.
Do not modify the plug provided with the product. if it will not t the outlet, have a proper outlet installed by a qualied
electrician.

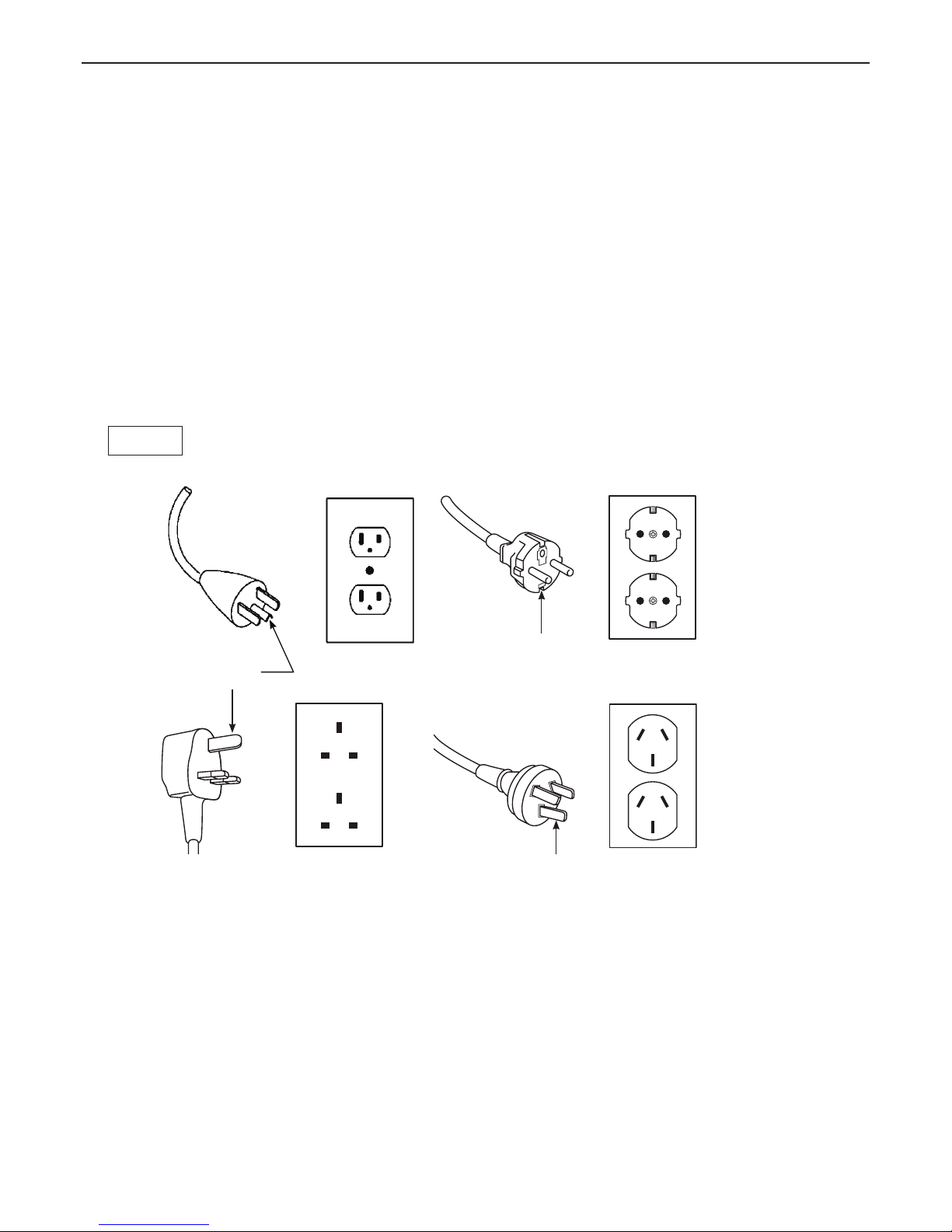

Grounding pin
Figure 1
Grounding pin
Grounding pin (D)
(B)
(A)
(C)

– 6 –
CONTENTS
Safety regulations......................................................................................1-3
How to carry the sewing machine................................................................. 4
GROUNDING INSTRUCTIONS ................................................................... 5
Specications ............................................................................................... 7
Accessories .................................................................................................. 8
Setup and operation ................................................................................9-11
Principal Parts ............................................................................................ 12
Name and Function of each component................................................13-17
Winding the bobbin................................................................................18-21
Threading the machine (needle thread) ..................................................... 22
Adjusting the thread tension....................................................................... 23
Tabulated relationship between material, thread and needle..................... 24
Presser foot lifting lever.............................................................................. 24
Attaching the needle .................................................................................. 25
Maintenance............................................................................................... 25
Maintenance and lubrication....................................................................... 26
Troubles and Corrective measures ............................................................ 27

– 7 –
Specications
Description Specication
Sewing speed Max. 2,200 sti/min
Needle bar stroke 35mm
Lift of presser foot 5.5mm
Needle GB 134R
Lubricating oil New Defrix Oil No.1
Dimensions of sewing machine 22.2W x 46.0H x 73.0L (cm)
Weight of sewing machine 26 kg
Rated power supply / Power consumption AC100V-AC240V/1.2A-0.8A, 50/60Hz

1
2
3
4
5
6
7
8
11 12
9
10
– 8 –
Accessories
1. Power cord
2. Exclusive screwdriver
3. Screwdriver (small)
4. Cleaning brush
5. Bobbins (4pcs.)
6. Oiler
7. Needles (GB 134R #18)
8. Spool cap
9. Thread stand components
(spool holder, thread stand thread guide, bobbin winder spool pin,
bobbin winder seat, anti-vibration cone (2 pcs.), setscrew large,
setscrews small (2 pcs.))
10. Eye protection cover components
(safety plate, safety plate mounting plate, washers (2 pcs.),
setscrews large (2 pcs.), setscrews small (2 pcs.))
11. Thread guide pin
12. Masking seal

–9–
■Basic Operating Procedures

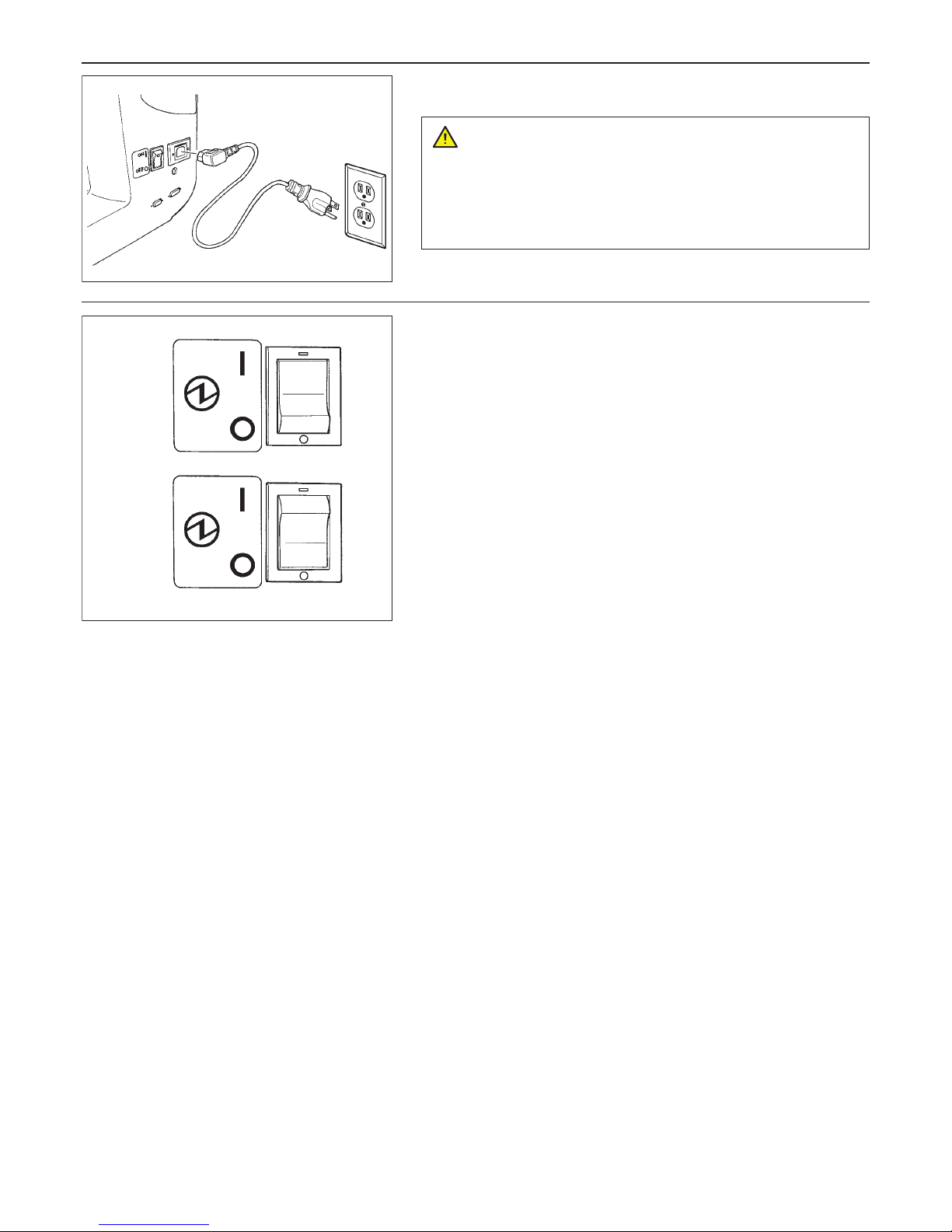

1) Insert the electric power cord plug into the
corresponding inlet.
Turn ON the power switch.
This is described in the Instruction Manual.
2) Set the machine settings from the LCD screen.
You can set the maximum sewing speed and the automatic
thread trimming at the end of sewing.
For details,
please refer to the "Stitch Regulator User Manual".
85%
15%
60%
85%
<1. Stand-up type>
1 Setting the Maximum Sewing Speed
You can set the maximum sewing speed in 5% increments.
2Setting the Stitch Mode
• Cruise Stitch Mode
When you press the "start button" on the right handlebar,
the machine will sew at the maximum sewing speed that
has been set.
When you move the sewing machine by the handles, the
machine will sew automatically with a sewing speed so
that the set "Stitch per Inch" (SPI) can be maintained.
• Baste Stitch Mode
When you press the "start button" on the right handlebar
and move the sewing machine by the handles, it will sew
with the stitch length that has been set.
Screen of sit-down typeScreen of stand-up type
Setup and operation

–10–
• Precise Stitch Mode
The sewing machine won’t sew, even if you press the
"start button" on the right handlebar. When you move
the sewing machine by the handles, the machine will
automatically sew a constant stitch length according to
the distance moved.
• Manual Stitch Mode
When you press the "start button" on the right handlebar,
the machine will sew at the maximum sewing speed that
has been set.
3Trimming Thread
When you press this button, threads are trimmed
automatically.
* Start sewing.
In a "stand-up" setup, you can stitch by moving the machine.
When you press the "start button" on the right handlebar, the
sewing machine will start sewing according to your settings.
When you press the "start button" again, the sewing machine
will stop sewing.
• Don't put any heavy objects on the quilting frame and
don't put a load heavier than normal sewing.
• Be careful of surrounding people and objects since you
move the machine and sew.
• If you move the assembled quilting frame, some parts
may be damaged or bent.
When moving the quilting frame, disassemble it, and
then reassemble it correctly after it has been delivered.
*Use the screwdriver included with the sewing machine
to remove any hazardous sharp shavings from the
disassembled quilting frame and other components,
as there is a risk of injury from such hazardous sharp
points.
Caution
LCD Screen
Left Button
needle up/down
Right Button
Starts/Stops
Left Handlebar Right Handlebar
Head of the machine
LED Lights LED Lights

–11–
3Sewing and Manual Thread Trimming
When you press part A of the foot controller (pedal), the
sewing machine will start sewing.
The sewing machine sews at a faster speed according to
the amount that part A is pressed.
When you release your foot from part A, the machine will
stop.
When you press part B, the machine will trim the threads.
*Start sewing.
While pressing the foot controller (pedal), move the fabric to
form stitches.
* While sewing, don't pull or push the fabric with force,
as it will cause the needle to break or cause injuries.
Caution
A
B
2Auto Thread Trimming Function
The sewing machine will trim the threads automatically
when it stops.
<2. Sit-down type>
85%
15%
60%
85%
85%
15%
60%
85%
1 Setting the Maximum Sewing Speed
You can set the maximum sewing speed in 5% increments.

5
3
6
4
2
1
7
2
3
7
8
11
10
1
6
18
9
4
512
13
14
15
16
17
21
20
19
22 24
23
–12–
Principal Parts
1. Thread trimmer retaining plate
2. Bobbin winder guide
3. Presser foot pressure regulator
4. Thread tension dial
5. Lamp (built-in type)
6. Hand pulley
7. Support rod
8. Spool pin
9. Anti vibration cone
10. Bobbin presser
11. Bobbin thread winding shaft
12. Power switch
13. Inlet of electric power cord
14. Presser foot lifting lever
15. Thread guide pin
16. Eye protection cover
17. Tension controller No. 1
18. Hand wheel
19. Presser regulator cover
20. Stitch regulator connec tion connector
21. Panel junction cable connection connector
22. Hook cover
23. Connecting plate (large)
24. Connecting plate (small)
1. Screw in the presser foot
2. Presser foot
3. Throat plate
4. Needle clamp
5. Needle bar thread hook
6. Needle
7. Needle bar thread guide

–13–
Name and Function of each component
■Power cord
Insert the electric power cord plug into the corresponding inlet.
■Power switch
Turn ON the machine, set the power switch to “I”.
Turn OFF the machine, set the power switch to “O”.
Turn OFF the power switch before insertion/removal of any cords
and any plugs.
Perform these following steps before you are not using your sewing
machine.
1. Turn OFF the power switch.
2. Remove the power plug from the wall outlet.
CAUTION
ON
OFF

1
2
4
6
5
3
7
89
1
2
–14–
1. Insert bobbin winder spool pin 2into spool holder 1. Fix the
former with setscrew 3.
2. Set bobbin winder seat 4 and two anti-vibration cones 5on
spool holder 1.
3. Set thread stand thread guide 6on the top of bobbin winder
spool pin 2.
4. Install thread stand 7on frame 9with two setscrews 8.
Insert thread guide pin 1into the frame with the holes in the pin faced
to tension controller No. 1 2. Pat the top of the thread guide pin with
the handle of screwdriver to prevent the pin from slipping off easily.
■Installing the thread stand
■Installing the thread guide
Turn OFF the power switch.
Always must be disconnected plug from socket-outlet.
CAUTION
Turn OFF the power switch.
Always must be disconnected plug from socket-outlet.
CAUTION

1
3
2
4
1
2
4
3
–15–
1Remove two setscrews from the presser regulator cover.
Remove the presser regulator cover.
2Place the panel cord as illustrated in the gure.
It is necessary to place the panel cord at a position where the
cord does not come in contact with the mechanical parts.
3Align the notch in the cover with the panel cord.
4 Fix the presser regulator cover with the setscrews.
■Panel cord binding procedure
Turn OFF the power switch.
Always must be disconnected plug from socket-outlet.
CAUTION

5
1
234
6
1
2
3
–16–
1. Place eye protection cover 2and washer 3in the written order
on eye protection cover mounting plate 1 and x them with
setscrew 4.
2. Install eye protection cover mounting plate 1on frame 6with
two setscrews 5.
■Installing the eye protection cover
Be sure to install the eye protection cover since the cover protects
eyes from being injured by a fragment of a broken needle.
DANGER
Turn OFF the power switch.
Always must be disconnected plug from socket-outlet.
CAUTION
Minimum clearance between the throat plate
and the presser foot: 0.5 mm (at the time of
shipment)
Decrease Increase
Turn OFF the power switch.
CAUTION
■Presser foot pressure regulator and its indicator
Turning the presser foot pressure regulator adjusts the pressure of
the presser foot.
If the upper position of the presser foot is too high, stitches cannot
be formed.
CAUTION
■Adjusting the presser foot height
Turn OFF the power switch.
Always must be disconnected plug from socket-outlet.
CAUTION
If the sewing machine does not smoothly run because of the material
thickness, it is necessary to change the presser foot height.
Bring needle bar 1to the lowest point end. Loosen setscrew 2
and adjust the height of presser foot 3. The minimum clearance
between the throat plate and the presser foot has been factory-
adjusted to 0.5 mm at the time of shipment.

3
2
1
1
1
2
A
B
C
–17–
■Handwheel
Keep hand away from the handwheel while the sewing machine is
running.
CAUTION
1Push and turn the hand pulley to turn the main shaft.
2Turn on the power switch. White marker dot (A) on the handwheel
is brought to the right front as observed from just beside.
White marker dot (A) is in the front side: The thread take-up lever
comes up to its upper end.
Green marker dot (B) is in the front side: Not used
Red marker dot (C) is in the front side: It is used as the marker
dot at the time of lubricating.
■Adjusting the presser foot
stroke
It is possible to adjust the presser
foot stroke.
Remove presser regulator cover.
Loosen nut 1. Shift block 2upward
to increase the stroke, or downward
to decrease it.
To increase the stroke more, change
the position of setscrew 3of the link
arm to the lower position (stroke: 3
to 5 mm). The setscrew has been
factory-set at the upper position
(stroke: 1 to 3 mm) at the time of
shipment.
After the completion of the
adjustment, install the presser
regulator cover which you have
removed before the adjustment.
When the stroke is changed, the
clearance between the presser foot
and the throat plate will change.
Re-adjust the presser foot height to
a value which matches the material
thickness.
CAUTION
Stoke is
increased
Stroke is
decreased
Upper position: Stroke is
1 to 3 mm
Lower position: Stroke is
3 to 5 mm

5
2
1
3
4
–18–
Winding the bobbin
Bobbin winder guide
Positioning latches
Bobbin presser
Bobbin thread winding shaft
Thread trimmer retaining plate
1Installing the thread guide.
1Raise the support rod fully, turning slightly until the positioning latches engage.
2 Set the large spool over the anti vibration cone.
3 Set the household-type thread onto the spool pin and then insert a spool cap in place.
4 To set a large-diameter spool, set the anti vibration cone upside down to stabilize the spool.
5Pass the thread coming from the spool on the thread guide pin (rod) just above the spool.
Turn OFF the power switch.
CAUTION

3
4
5
1
2
3
2
–19 –
■Take out the bobbin case.
Bring up the needle. Open the hook cover. Take out the bobbin case.
■Thread the bobbin winder guide.
■Take out the bobbin from the bobbin case.
Snap in the latch to let the bobbin come out of the bobbin case.
■Installing the bobbin.
1Wind thread on the bobbin clockwise by several turns.
2Place the bobbin on the bobbin thread winding shaft.
3Press the bobbin presser.
Thread is automatically wound on the bobbin.
Turn OFF the power switch.
CAUTION
