Jung FMAS816REG User manual

eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting
Art. No. : FMAS816REG
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Do not connect any three-phase motors. Device can be damaged.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains
voltage and SELV/PELV together on a single switch actuator.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
Fire hazard! Operation exclusively with the power supplies listed under accessories
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
Figure 1
(1) Load connection A1...A8
(2) Operating mode switch for outputs A1+A5, A2+A6, A3+A7, A4+A8
1/20
82581933
J0082581933 23.03.2017

(3) Button Prog A1...A8
(4) Status LED A1...A8
(5) Teach Switch for commissioning in the operating mode Venetian blind/rolling shutter
(6) Bus line connection
3 Function
Intended use
- Switching of lighting
- Switching of single-phase fan motors
- Controlling electrically driven Venetian blinds, rolling shutters and awnings
- Operation with suitable eNet radio transmitters
- Operation with power supply RMD and receiver module RMD cover or eNet server (see
accessories)Operation with power supply RMD and receiver module RMD cover or eNet
server (see accessories)
- Installation in distribution boxes on DIN rail according to EN 60715
Product characteristics
- Operating mode switch for switch-over of switching actuator, push-button actuator, blind
actuator, shutter actuator or configuration via eNet server
- Status feedback to radio transmitter
- Scene operation possible
- Outputs switchable with Prog button
- Status indicator of the outputs via LED
Switching operation:
- Switch-on telegram: Device switches on
- Switch-off telegram: Device switches off
Push-button operation:
- Relay contact remains closed as long as ON or OFF telegrams are being received
- The maximum switch-on time is 60 seconds
Operating mode Venetian blind/rolling shutter
- Positioning of the Venetian blind and slats via scene recall
- Position for sun protection and twilight
- Blind/shutter running time can be saved
- Slat change-over time can be saved
- Fabric-stretching for awnings
Can be set with eNet server in switching/push-button operation:
- Operating mode for each output can be set separately
- Flash function
- Run-on time
- Switch-on delay / switch-off delay
- Operation as NO or NC contacts
- Switch-off warning
- Minimum switching repeat time
- Operation locks
- Continuous on, Continuous off
Can be set in the operating mode Venetian blind/rolling shutter with eNet server:
- Change-over-time for direction change
- Running direction invertible
- Operation locks
- Position for sun protection, twilight, lock-out protection and wind alarm
Supplementary functions with eNet Server:
- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
- Update of the device software
- Reading of error memory
2/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Behaviour in case of bus voltage failure and return
If the bus voltage fails, the actuator switches off. The response to bus voltage return can be
parameterised with the eNet server.
Default setting operating mode Venetian blind/rolling shutter: no action.
Switching operation/bush-button operation default setting: Off.
4 Operation
iWhen operating with the eNet Server, operation and signalling could vary from what is
described here.
Operation with radio transmitters
Operation is with radio transmitters, please observe the radio transmitter instructions.
Operation with Prog button in switching or push-button operation
oPress button Prog (3) briefly.
The light switches on or off.
Status LED A1..A8 (4) lights up: output is switched on.
Status LED A1..A8 off: output is switched off.
Operation with Prog button in the operating mode Venetian blind/rolling shutter
In this operating mode, two neighbouring outputs are combined respectively into a single
venetian blind output. Both Prog buttons have the same function.
oPress Prog button briefly.
A moving blind/shutter is stopped and a stationary blind/shutter is briefly activated, e.g. for
slat change-over.
The control direction is changed when the button is pressed again.
oPress the Prog button for longer than one second but shorter than four seconds.
The motor moves to the end position.
The control direction is changed when the button is pressed again.
The upper status LED indicates the upward movement and the lower status LED indicates
the downward movement.
5 Information for electrically skilled persons
5.1 Fitting and electrical connection
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
Before working on the device, disconnect the power supply and cover up live
parts in the working environment.
Fitting the device
oMount device on DIN rail. Output terminals must be at the top.
3/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Connect bus line
Figure 2: Connection diagram of bus line
Labelling / Colour Connection
DC– / GY dark grey Power supply –
DC+ / RD red Power supply +
Bus– / WH white Data cable –
Bus+ / YE yellow Data cable +
As bus line, use e.g. J-Y(St)Y 2x2x0.8
oConnect the device with bus line (figure 2) to the RMD reception module and power supply
(see instructions of RMD reception module and power supply).
CAUTION!
Overloading the device leads to excessive heating.
Damage to the device and the connected cables may result.
Do not exceed the maximum current carrying capacity.
Load neighbouring outputs only until the sum of their output currents is a max.
of 20 A.
4/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

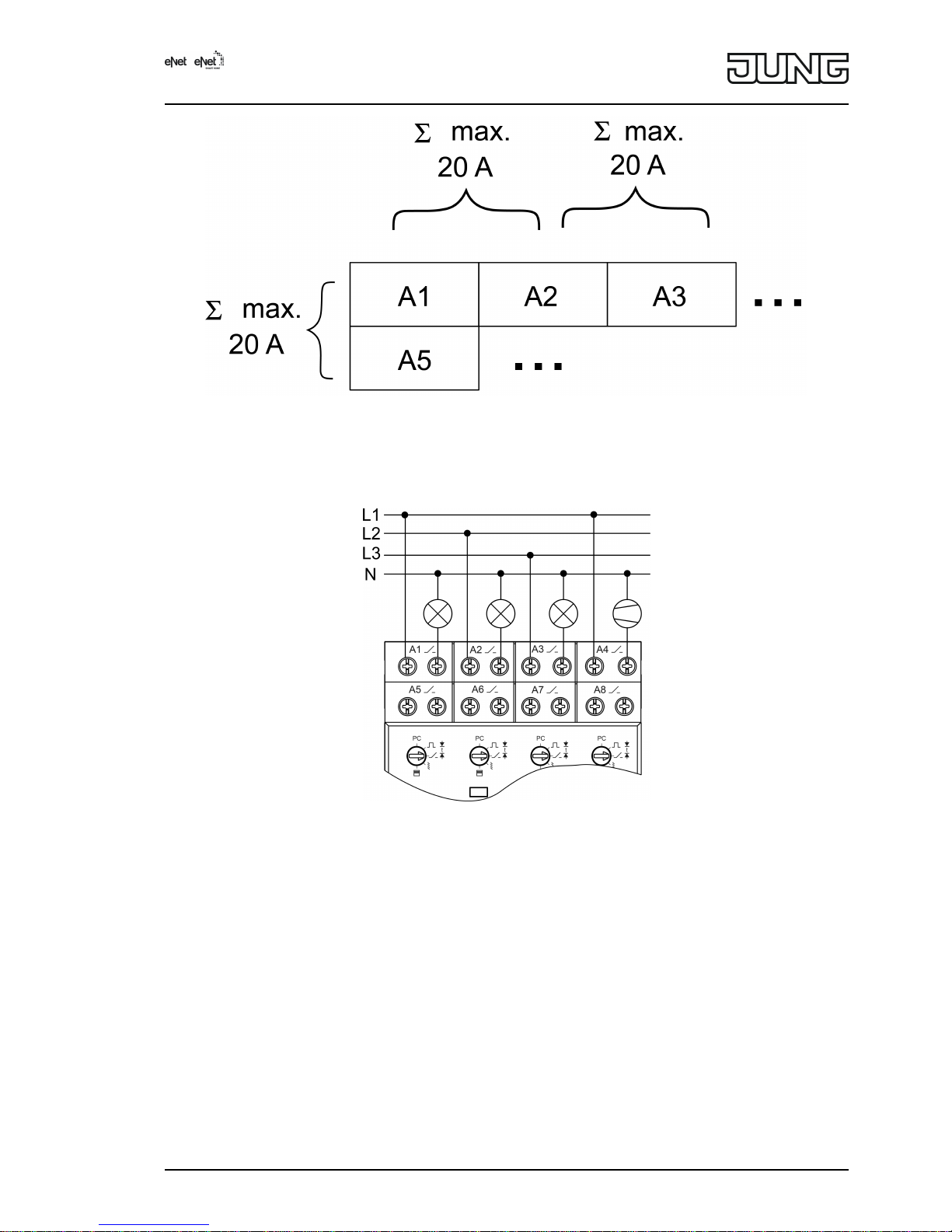

Figure 3: Current carrying capacity of neighbouring outputs
Connecting loads in switching/push-button operation
Figure 4: Connection example of switching loads A1...A4
oConnect loads as shown in the connection example of switching loads (figure 4).
5/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Connecting loads in operating mode Venetian blind/rolling shutter
Figure 5: Connection example of Venetian blind loads
oConnect loads as shown in the connection example of Venetian blind loads (figure 5).
Presetting the operating mode
CAUTION!
Danger of destruction from wrong operating mode.
Simultaneous current feed in both directions of travel can destroy the device
and connected blind motors.
Before setting the operating mode, check what loads are connected.
One operating mode switch applies to two outputs each.
Figure 6: Operating mode switch
Switch position Function
6/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

PC Operating mode and parameter set with eNet
server.*)
MPush-button operation
KSwitching operation
HtCommission - determine running time, activate
Teach switch
ItCommissioning - determine time for slat
change-over time, activate Teach switch
OBlind operating mode
POperating mode rolling shutter, awning
*) If the operating mode switch is turned from the position PC to another operating mode, the
parameters are set to the default setting. The settings made with the eNet Server will be
lost.
Mains voltage is switched off.
oSet the operating mode switch.
5.2 Commissioning
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
During commissioning, cover the parts carrying voltage on radio transmitters
and actuators and in their surrounding area.
iThe actuator can also be commissioned with eNet server as an alternative to the
commissioning described here.
iPrerequisite for scenes and positioning movements is that the moving times of the
connected blind/shutter in the actuator are saved.
iTo save the running times of several outputs successively, the Teach switch must always
be turned back to position 0.
Saving blind/shutter running time for rolling shutters
The operating mode switch (2) is in the Venetian blind O or rolling shutter Pposition.
oSet Teach switch (5) to output 1, 2, 3 or 4.
oTurn the operating mode switch to the I t position until the blind/shutter reaches the upper
end position.
oTurn operating mode switch to the Ht position.
The blind/shutter moves downwards.
oWhen the lower end position is reached, turn the operating mode switch to the P position.
The running time is saved and the blind/shutter moves to the upper end position.
oTurn back Teach switch to 0 position. Otherwise, it will not be possible to operate the
output anymore.
Saving blind/shutter running time for blind
The operating mode switch (2) is in the Venetian blind O or rolling shutter Pposition.
oSet Teach switch (5) to output 1, 2, 3 or 4.
oTurn the operating mode switch to the I t position until the blind/shutter reaches the upper
end position.
oTurn operating mode switch to the Ht position.
The blind/shutter moves downwards.
7/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

oWhen the lower end position is reached, turn the operating mode switch to the I t
position.
oWhen the slats have been fully changed over, turn the operating mode switch to the O
position.
The running times are saved and the blind/shutter moves to the upper end position.
oTurn back Teach switch to 0 position. Otherwise, it will not be possible to operate the
output anymore.
Saving the awning running time
The operating mode switch (2) is in the Venetian blind O or rolling shutter Pposition.
oSet Teach switch (5) to output 1, 2, 3 or 4.
oTurn the operating mode switch (2) to the I t position until the blind/shutter reaches the
upper end position.
oTurn operating mode switch to the Ht position.
oFor awnings without fabric-stretching function: When the extended lower end position is
reached, turn the operating mode switch to the It position. As soon the fabric is hanging
taut, turn the operating mode switch to the P position.
oFor awnings with their own fabric-stretching function: When the extended lower end
position is reached, turn the operating mode switch to the P position.
The running times are saved and the blind/shutter moves to the upper end position.
oTurn back Teach switch to 0 position. Otherwise, it will not be possible to operate the
output anymore.
Connecting output to radio transmitters
Load is switched off.
oPress button Prog (3) for longer than 4 seconds.
The load switches on.
The status LED (4) flashes after 4 seconds and the load switches off. The device is in
programming mode for approx. 1 minute.
oSwitch radio transmitter to programming mode (see radio transmitter instructions).
oTrigger telegram on the radio transmitter.
The status LED of the corresponding output is illuminated for 5 seconds.
The output is connected to the radio transmitter. The output and radio transmitter exit the
programming mode automatically.
iIf the status LED of the actuator flashes 3 times at 1-second intervals for approx.
5 seconds, then the programming operation was not successful. All the memory locations
in the actuator or radio transmitter are occupied.
iIn switching operation, All On and All Off buttons of a radio transmitter are connected to the
output automatically as soon as the first connection to the radio transmitter takes place.
iScene buttons must be connected separately.
Disconnecting connection to a radio transmitter
oCarry out the same steps as when connecting (see Connecting output to a radio
transmitter).
The status LED (4) flashes quickly for 5 seconds. The output is disconnected from the
radio transmitter. The output and radio transmitter exit the programming mode
automatically.
iIf there several connections or scene buttons for a radio transmitter, all connections must
be disconnected individually.
iAll On and All Off buttons of a radio transmitter are disconnected automatically as soon as
the last connection of the corresponding output to the radio transmitter is disconnected.
Manual disconnection is not possible.
8/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Resetting the output to the factory setting
All connections to radio transmitters are disconnected and parameters are reset to default
setting. If the operating mode switch is on PC, the rolling shutter operating mode is set.
iThe connections in the radio transmitters are preserved and must be deleted separately.
Load is switched off.
oPress the Prog button for at least 20 seconds.
The load switches on.
The status LED flashes after 4 seconds and the load switches off. The status LED flashes
faster after 20 seconds.
oRelease Prog button and press briefly once again within 10 seconds.
The status LED flashes more slowly for approx. 5 seconds.
The output is reset to default setting.
Resetting the device to the factory setting
oReset all outputs (see Resetting the output to the default setting).
All the status LEDs flash as soon as the last output is reset. The device is reset to default
setting.
6 Appendix
6.1 Technical data
Rated voltage AC 230V~
Mains frequency 50 / 60Hz
Ambient temperature -5 ... +45°C
Switching voltage AC 250V ~
Minimum actuation time in operating mode
Venetian blind 0.1s
Roller shutter 0.3s
Running time 1 ... 600s
Running time default setting 120 sec
Slat adjusting time 0 ... 10s
Switching current per output for AC 230 V ~
Ohmic 16A (AC1)
For switching current >10A connecting cable 2.5mm²
Fluorescent lamps 4AX
Switching current, adjacent load outputs Σ 20A
Current carrying capacity of device max. 80A
Minimum switching current AC 100mA
Contact type µ
Standby power max. 0.5W
Connected load per output
Motors 1000W
Incandescent lamps 2300W
HV halogen lamps 2000W
Electronic transformers 1500W
Inductive transformers 1000VA
HV-LED lamps typical 500W
Compact fl lamp. typical 500W
Fluorescent lamps, uncompensated 920VA
Capacitive load 690VA (560 µF)
Connection of load terminals
single stranded 1.5 ... 4mm²
Finely stranded without conductor sleeve 0.75 ... 4mm²
Finely stranded with conductor sleeve 0.5 ... 2.5mm²
Fitting width 72mm / 4modules
Bus line
Rated voltage DC 12VSELV
9/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Current consumption 60mA
Connection, Bus device connection terminal
Cable length max. 3m
6.2 Parameter list
The device parameters can be changed with the eNet server:
Device and channels
Parameters Setting options, Basic
setting
Explanations
Function Shutter/blind, light, switching,
unused
Basic setting: Venetian blind
Venetian blind
The channel is integrated for
the "Venetian blind" central
function in the eNet SMART
HOME app.
Light
The channel is integrated for
the "Lighting" central function
in the eNet SMART HOME
app.
Switching
The channel is not integrated
in any central function.
Unused
The channel is not displayed
in the eNet SMART HOME
app and is disabled for use in
the commissioning interface.
Setting is always made in
pairs (1/5, 2/6, 3/7, 4/8).
"Venetian blind" operating
mode
Venetian blind
Awning
Basic setting: Roller shutter
Roller shutter
A rolling shutter or an awning
is controlled for which the
Fabric stretching function is
required.
Venetian blind
A Venetian blind is controlled.
Awning
An awning is controlled for
which the Fabric stretching
function is required.
10/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

"Switching" operating mode Switching operation
Push-button operation
Flashing
Continuous on
Continuous off
Basic setting: Switching
operation
Switching operation
After switch-on, the device
remains stable in the "On"
state, and stable in the "Off"
state after switch-off.
Push-button operation
The device switches "On"
when any channel button of a
radio transmitter is pressed
and "Off" when the button is
released. It is irrelevant
whether the "On" or "Off"
channel button is pressed.
Flashing
Switch-on starts flashing and
switch-off stops flashing. The
default flash frequency is 1
Hz. This frequency is also the
maximum flash frequency.
The flash frequency can be
changed using parameters.
The parameter "Switch-off
delay" is used for the pulse
time and the parameter
"Switch-on delay" for the
pause time.
Continuous on
The output switches to
continuously "On". All
operations of radio
transmitters and the Prog
button are ignored.
Continuous off
The output switches to
continuously "Off". All
operations of radio
transmitters and the Prog
button are ignored.
Advanced device settings
Parameters Setting options, Basic
setting
Explanations
Manual commissioning On, Off
Basic setting: On
Disables manual
commissioning for all device
channels. In the "Off" setting,
the device cannot be reset to
the factory setting.
Channel settings "switching"
Parameters Setting options, Basic
setting
Explanations
11/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Switch-on delay 0 s … 24 h
Basic setting: 0 s
The load switches on after a
delay. Repeated switch-on
commands restart the delay
time. If the load has not yet
been switched on due to the
delay when a switch-off
command comes, then the
load will remain off.
In Flashing operating mode,
the pause time is set using
this parameter.
Comment: The set times apply
to operation using radio
transmitters. The relay is
switched immediately when
the Prog button is pressed.
Switch-off delay 0 s … 24 h
Basic setting: 0 s
The load switches off after a
delay. Repeated switch-off
commands restart the delay
time. If the load has not yet
been switched off due to the
delay when a switch-on
command comes, then the
load will remain on.
In Flashing operating mode,
the pulse times are set using
this parameter.
Comment: The set times apply
to operation using radio
transmitters. The relay is
switched immediately when
the Prog button is pressed.
Run-on time 0 s … 24 h
Basic setting: 0 s
As soon as a run-on time has
been entered, the actuator will
no longer remain on
permanently, but only for the
length of the run-on time. The
run-on time is restarted if
actuation is repeated. This
parameter is directly
connected to the "Manual
switch-off of run-on time"
parameter.
Comment: The set times apply
to operation using radio
transmitters. The relay is
switched immediately when
the Prog button is pressed.
Manual switch-off of the run-
on time
On, Off
Basic setting: Off
Allows manual switch-off of a
running run-on time. If the
parameter is switched off, then
a switch-off command will also
switch the actuator on. This
parameter is directly
connected to the "Run-on
time" parameter.
12/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Operating hours 0...65535
Basic setting: Current value
The time is counted during
which the load is physically
switched on (relay contact
closed).
This parameter can be reset to
"0", for example after
exchanging the load.
The Reset button is used to
reset the meter to "0". The
device must be programmed
to apply the change.
Extended channel settings "switching"
Parameters Setting options, Basic
setting
Explanations
Operating mode Switching operation
Push-button operation
Flashing
Continuous on
Continuous off
Basic setting: Switching
operation
See Device and channels.
Manual commissioning On, Off
Basic setting: On
Blocks manual commissioning
for the device channel. In the
"Off" setting, the device
cannot be reset to the factory
setting.
Local Operation On, Off
Basic setting: On
Blocks the output for operation
using the Prog button.
Behaviour on voltage return On
Off
Last value
Configured brightness
Basic setting: Off
Defines the behaviour of the
output after voltage return.
Timer behaviour, voltage
return
Off
Restart
Basic setting: Off
Specifies whether the timers
for switch-on delay, switch-off
delay and run-on time remain
off after voltage return or
whether they restart. Directly
connected to the parameters
"Switch-on delay", "Switch-off
delay" and "Run-on time".
Behaviour after the end of the
disabling function
On
Off
no change
Last value
Basic setting: No change
Behaviour of the output when
a block is removed.
Manual saving of the scene
values
On, Off
Basic setting: On
Disables the saving of the
current actuator state (On/Off)
as scene value in an actuator
for a command via a
transmitter.
13/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Switch-off warning On, Off
Basic setting: Off
If the switch-off warning is
active, the light is not switched
off directly. The light goes off
30, 15 and 6 seconds before
permanent switch-off. During
the switch-off warning, a
switch-on telegram effects
direct switch-on. It is not
possible to terminate the time
using a switch-off telegram.
Priority, lock-out protection 0...4
Basic setting: 1
Specifies the priority for
recalling and removing a
scene of type Lock-out
protection for the channel.
Activate lock-out protection
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on activating the lock-
out protection.
Deactivate lock-out protection
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the
lock-out protection. Only
visible when the priority for the
lock-out protection is 0.
Priority, restraint 0...4
Basic setting: 2
Specifies the priority for
recalling and removing a
scene of type Restraint for the
channel.
Activate forced operation
switching state
On, Off
Basic setting: On
Defines the behaviour of the
output on activating the forced
operation.
Deactivate forced operation
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the
forced operation. Only visible
when the priority for the forced
operation is 0.
Priority, wind alarm 0...4
Basic setting: 3
Specifies the priority for
recalling and removing a
scene of type Wind alarm for
the channel.
Activate wind alarm switching
state
On, Off
Basic setting: Off
Defines the behaviour of the
output on activating the wind
alarm.
Deactivate wind alarm
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the
wind alarm. Only visible when
the priority for the wind alarm
is 0.
Priority, sun protection 0...4
Basic setting: 0
Specifies the priority for
recalling and removing a
scene of type Sun protection
for the channel.
Activate sun protection
switching state
On, Off
Basic setting: On
Defines the behaviour of the
output on deactivating the sun
protection. Only visible when
the priority for the sun
protection is 0.
14/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Deactivate sun protection
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the sun
protection. Only visible when
the priority for the sun
protection is 0.
Priority, twilight 0...4
Basic setting: 0
Specifies the priority for
recalling and removing a
scene of type Twilight for the
channel.
Activate twilight switching
state
On, Off
Basic setting: On
Defines the behaviour of the
output on activating the
twilight function.
Deactivate twilight switching
state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the
twilight function. Only visible
when the priority for the
twilight function is 0.
Switch off brightness
overshoot
On, Off
Basic setting: On
Allows automatic switch-off
according to the brightness. If
the parameter is On, then the
light controller switches off
automatically when the
brightness setpoint is greatly
exceeded. This parameter is
not yet active, as a light
controller has not yet been
implemented.
Switch on brightness
undershoot
On, Off
Basic setting: Off
Allows automatic switch-on
according to the brightness. If
the parameter is On, then the
light controller switches on
automatically when the
brightness setpoint is greatly
undershot. We recommend
only using the parameter in
connection with the parameter
"Switch-off on brightness
overshoot". This parameter is
not yet active, as a light
controller has not yet been
implemented.
Invert switching output On, Off
Basic setting: Off
Inverts the switching output
from NO contact function
(factory setting) to NC contact
function
Minimum switching repeat
time
100 ms ... 10 sec
Basic setting: 100 ms
Limits the switching speed of
the device by increasing the
value, in order to protect the
load, for example. Only when
the set time has elapsed is
switching possible again. The
last command during the
blocking time is executed after
a delay. The switching repeat
time starts after each
switching operation.
15/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Channel settings "Venetian blind"
Parameters Setting options, Basic
setting
Explanations
Operating hours up 0...65535
Basic setting: Current value
The time is counted during
which the load is physically
switched on (relay contact
closed).
This parameter can be reset to
"0", for example after
exchanging the load.
The Reset button is used to
reset the meter to "0". The
device must be programmed
to apply the change.
Operating hours down 0...65535
Basic setting: Current value
The time is counted during
which the load is physically
switched on (relay contact
closed).
This parameter can be reset to
"0", for example after
exchanging the load.
The Reset button is used to
reset the meter to "0". The
device must be programmed
to apply the change.
Extended channel settings "Venetian blind"
Parameters Setting options, Basic
setting
Explanations
Operating mode Roller shutter
Venetian blind
Awning
Basic setting: Roller shutter
See Device and channels.
Manual commissioning On, Off
Basic setting: On
Blocks manual commissioning
for the device channel. In the
"Off" setting, the device
cannot be reset to the factory
setting.
Local Operation On, Off
Basic setting: On
Blocks the output for operation
using the button.
Running time 1 ... 600 sec
Basic setting: 120 s
Absolute time which the
blind/shutter requires from the
top to the bottom end position.
The entry is essential if scene
or position movements are to
occur.
Slat change-over time
Fabric-stretching time
0 ms ... 10 sec
300 ms … 10 s
Basic setting: 0 ms / 300 ms
Absolute time for changing-
over Venetian blind slats. The
fabric stretching time can also
be set here for the Awning
operating mode.
Minimum change-over-time 300 ms ... 10 sec
Basic setting: 1 s
Minimum interruption time
when changing directions.
Increasing the minimum
change-over time will cause
less wear on the motors.
16/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Invert movement direction On, Off
Basic setting: Off
Inverts the activation of the
relay outputs. During inverted
operation, the relay outputs
"Up" and "Down" should be
activated in reverse. This is
required, for example, for
controlling skylights.
Behaviour on voltage return No change
Configured value
Basic setting: No change
Defines the behaviour of the
output after voltage return.
RMD design: Bus voltage
return
Configured venetian blind
position
0 ... 100 %
Basic setting: 0 %
If the value "Configured
position" is entered for the
parameter "Behaviour after
voltage return", then the
blind/shutter position set here
is approached.
Configured slat position 0 ... 100 %
Basic setting: 0 %
If the value "Configured
position" is entered for the
parameter "Behaviour after
voltage return", then the slat
position set here is
approached.
Behaviour after the end of the
disabling function
no change
Last value
Down
up
Basic setting: No change
Behaviour of the output when
a block is removed.
Manual saving of the scene
values
On, Off
Basic setting: On
Disables the saving of the
current Venetian blind position
as scene value in an actuator
for a command via a
transmitter.
Priority, lock-out protection 0...4
Basic setting: 1
Specifies the priority for
recalling and removing a
scene of type Lock-out
protection for the channel.
Activate lock-out protection
blind position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on activating the lock-
out protection.
Activate lock-out protection
slat position
0 ... 100 %
Basic setting: 0 %
Defines the slat position of the
output on activating the lock-
out protection. Only visible
when the Venetian blind
operating mode is set.
Deactivate lock-out protection
blind position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
lock-out protection. Only
visible when the priority for the
lock-out protection is 0.
Deacitvate lock-out protection
slat position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
lock-out protection. Only
visible when the priority for
lock-out protection is 0 and the
Venetian blind operating mode
is set.
17/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Priority, restraint 0...4
Basic setting: 2
Specifies the priority for
recalling and removing a
scene of type Restraint for the
channel.
Activate force operation blind
position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on activating the forced
operation.
Recall forced operation slat
position
0 ... 100 %
Basic setting: 0 %
Defines the slat position of the
output on activating forced
operation. Only visible when
the Venetian blind operating
mode is set.
Deactivate force operation
blind position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
forced operation. Only visible
when the priority for the forced
operation is 0.
Deacitvate forced operation
slat position
0 ... 100 %
Basic setting: 0 %
Defines the slat position of the
output on deactivating forced
operation. Only visible when
the priority for the forced
operation is 0 and the
Venetian blind operating mode
is set.
Priority, wind alarm 0...4
Basic setting: 3
Specifies the priority for
recalling and removing a
scene of type Wind alarm for
the channel.
Activate wind alarm blind
position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on activating the wind
alarm.
Recall wind alarm slat position 0 ... 100 %
Basic setting: 0 %
Defines the slat position of the
output on activating the wind
alarm. Only visible when the
Venetian blind operating mode
is set.
Deactivate wind alarm blind
position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
wind alarm. Only visible when
the priority for the wind alarm
is 0.
Deacitvate wind alarm slat
position
0 ... 100 %
Basic setting: 0 %
Defines the slat position of the
output on deactivating the
wind alarm. Only visible when
the priority for the wind alarm
is 0 and the Venetian blind
operating mode is set.
Priority, sun protection 0...4
Basic setting: 0
Specifies the priority for
recalling and removing a
scene of type Sun protection
for the channel.
Activate sun protection blind
position
0 ... 100 %
Basic setting: 100 %
Defines the behaviour of the
output on activating the sun
protection.
18/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

Recall sun protection slat
position
0 ... 100 %
Basic setting: 100 %
Defines the slat position of the
output on activating the sun
protection. Only visible when
the Venetian blind operating
mode is set.
Deactivate sun protection
blind position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the sun
protection. Only visible when
the priority for the sun
protection is 0.
Deacitvate sun protection slat
position
0 ... 100 %
Basic setting: 0 %
Defines the slat position of the
output on deactivating the sun
protection. Only visible when
the priority for the sun
protection is 0 and the
Venetian blind operating mode
is set.
Priority, twilight 0...4
Basic setting: 0
Specifies the priority for
recalling and removing a
scene of type Twilight for the
channel.
Activate twilight blind position 0 ... 100 %
Basic setting: 100 %
Defines the behaviour of the
output on activating the
twilight function.
Activate twilight slat position 0 ... 100 %
Basic setting: 100 %
Defines the slat position of the
output on activating the
twilight function. Only visible
when the Venetian blind
operating mode is set.
Deactivate twilight blind
position
0 ... 100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
twilight function. Only visible
when the priority for the
twilight function is 0.
Deacitvate twilight slat position 0 ... 100 %
Basic setting: 0 %
Defines the slat position of the
output on deactivating the
twilight function. Only visible
when the priority for the
twilight function is 0 and the
Venetian blind operating mode
is set.
Information window
During channel selection in the Information window, the following settings can be made or
values displayed.
"Switching"
Display value Explanations
Load state The load can be switched on or off.
Restraint Display of forced position status.
Operating hours Display of the operating hours since the last
restart in the Settings window Einstellungen.
19/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting

"Venetian blind"
Display value Explanations
Position value, venetian blind The position value of the Venetian blind can
be changed.
Position value, slat The position value of the slat can be changed.
Restraint Display of forced position status.
Lock-out protection Display of the lock-out protection status
Operating hours UP Display of the operating hours in the UP
direction since the last restart in the Settings
window.
Operating hours DOWN Display of the operating hours in the DOWN
direction since the last restart in the Settings
window.
6.3 Troubleshooting
Output switches the load off and cannot be switched on again.
Cause: Operating mode switch was set to another load type, status LEDs of the overlapping
outputs flash.
Operating mode was accidentally adjusted: Reset the original operating mode on the
operating mode switch.
Operating mode was intentionally adjusted because a correspondingly different load was
connected. Switch bus voltage off and on again, the output assumes the new operating
mode.
An output cannot be operated.
Cause: Teach switch is not in position 0.
Turn Teach switch to 0 position.
6.4 Accessories
Power supply 12 V, for rail mounting Art. No. NT1220REGVDC
eNet master receiver for rail mounting Art. No. FMFK32REG
eNet server for rail mounting Art. No. ENET-SERVER
6.5 Warranty
The warranty follows about the specialty store in between the legal framework as provided for
by law.
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: [phone]
Telefax: [phone]
[email protected]
www.jung.de
20/20
82581933
J0082581933 23.03.2017
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting
