Jura IMPRESSA C9 User manual

The IMPRESSA C9 Manual

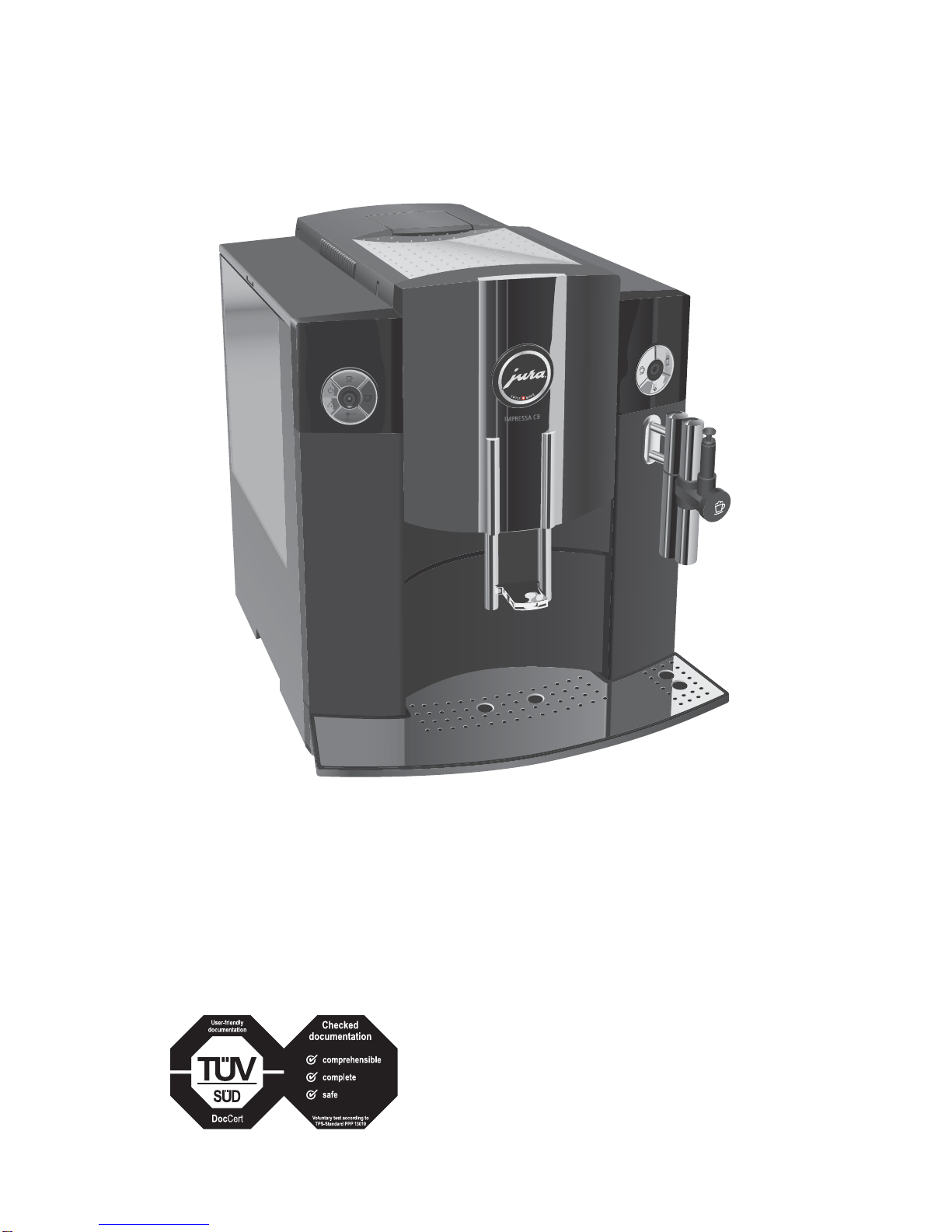

The ‘IMPRESSA Manual’ has been awarded the seal of
approvalbytheindependentGermanTechnicalInspection
Agency, TÜV SÜD, due to its easy-to-understand style, its
thoroughness and coverage of safety aspects.

2
Your IMPRESSA C9
IMPORTANT SAFEGUARDS 4
Control elements 8
Proper use 10
For your safety 10
The IMPRESSA C9 Manual 12
Symbol description......................................................................................................................................12
1 IMPRESSA C9 13
Connector System©....................................................................................................................................14
JURA on the Internet....................................................................................................................................14
Knowledge Builder.......................................................................................................................................14
2 Preparing and using for the first time 15
Set up.............................................................................................................................................................15
Filling the water tank...................................................................................................................................15
Filling the bean container...........................................................................................................................15
First-time use................................................................................................................................................16
Using and activating filter..........................................................................................................................17
Determining water hardness and adjusting............................................................................................18
Adjusting the grinder..................................................................................................................................19
Switching on................................................................................................................................................20
Switching off (standby)..............................................................................................................................20
3 Familiarising yourself with the control options 22
Preparation at the touch of a button.......................................................................................................23
One-off settings before and during preparation...................................................................................23
Adjusting the default amount of water to suit the cup size................................................................24
Permanent settings in programming mode..........................................................................................25
Query information and maintenance status..........................................................................................27
4 Preparation at the touch of a button 29
Espresso........................................................................................................................................................29
Coffee............................................................................................................................................................30
Cappuccino...................................................................................................................................................30
Pre-ground coffee.......................................................................................................................................32
Foaming milk with the Easy Cappuccino Frother.................................................................................33
Foaming and heating milk with the Professional Cappuccino Frother.............................................33
Hot water......................................................................................................................................................34
Table of contents

3
Table of contents
5 Permanent settings in programming mode 35
Products........................................................................................................................................................35
Energy-saving mode..................................................................................................................................37
Time ..............................................................................................................................................................38
Programmable switch-on time.................................................................................................................38
Automatic switch-off..................................................................................................................................39
Unit amount of water / Time format.......................................................................................................40
Language......................................................................................................................................................40
6 Maintenance 42
Maintenance tips.........................................................................................................................................42
Rinse machine..............................................................................................................................................42
Filter change.................................................................................................................................................43
Clean machine.............................................................................................................................................44
Descale machine.........................................................................................................................................46
Rinsing the Easy Cappuccino Frother......................................................................................................48
Cleaning the Easy Cappuccino Frother...................................................................................................49
Disassembling and rinsing the Easy Cappuccino Frother....................................................................50
Rinsing the Professional Cappuccino Frother........................................................................................50
Cleaning the Professional Cappuccino Frother.......................................................................................51
Disassembling and rinsing the Professional Cappuccino Frother......................................................53
Cleaning the bean container.....................................................................................................................53
Descaling the water tank...........................................................................................................................54
7 Display messages 55
8 Troubleshooting 57
9 Transport and environmentally neutral disposal 58
Transport / Empty system.........................................................................................................................58
Disposal.........................................................................................................................................................58
10 Technical data 59
Index 60
JURA contact details / Legal information 64

4
Important Safeguards
These safeguards apply for machines with UL safety test (see rating
plate and chapter 10, ‘Technical data’).
When using electrical appliances, basic safety precautions should
always be followed, to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
ZRead all instructions.
ZDo not touch hot surfaces. Use handles or knobs.
ZToprotectagainstfire,electricshockandinjurytopersons,do
notimmersecord,plugs,orbodyofmachineinwaterorother
liquid.
ZClose supervision is necessary when any appliance is used by
or near children.
ZUnplug from outlet when not in use and before cleaning.
Allowtocoolbeforeputtingonortakingoffparts, and before
cleaning the appliance.
ZDonotoperateanyappliancewithadamagedcordorplugor
aftertheappliancemalfunctions,orhasbeendamagedinany
manner. Return appliance to the nearest authorized service
facility for examination, repair or adjustment.
ZThe use of any accessory attachment not recommended by
the appliance manufacturer may result in fire, electric shock,
or injury to persons.
ZDo not use outdoors.
ZDo not let the cord hang over the edge of a table or counter,
or touch hot surfaces.
ZDo not place on or near a hot gas or electric burner, or in a
heated oven.
ZAlways attach plug to appliance first, then plug cord into the
wall outlet. To disconnect, turn any control to ‘OFF’ then
remove plug from wall outlet.
ZDo not use appliance for other than intented use.
ZUse extreme caution when dispensing hot steam.
ZFor household use only.
Follow the basic safety
precautions
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS

5
Important Safeguards
a. A short power supply cord is provided to reduce the risk
resulting from becoming entangled in or tripping over a long
cord.
Your IMPRESSA has a 3-pin grounded plug.
b. Longer extension cords are available and may be used if care
is exercised in their use.
c. If an extension cord is used,
1. themarkedelectricalratingoftheextensioncordshouldbe
at least as great as the electrical rating of the appliance,
and
2. iftheapplianceisofthegrounded type,theextensioncord
should be a grounding type 3-wire cord, and
3. the longer cord shall be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on
by children of tripped over.
ZAs a safety feature, this plug will fit in a polarized outlet only
one way.
ZIfthe plug does notfit fully in theoutlet,reversetheplug. If it
still does not fit, contact a qualified electrician.
ZDo not modify the plug in any way or attempt to defeat this
safety feature.
Toreducetheriskoffireorelectricshock,donotremoveanyservice
covers. No user serviceable parts inside. Repair should be done by
authorized personnel only.
This appliance is for household use. Any servicing other than clean-
ing and user maintenance should be performed by an authorized
service representative:
ZDo not immerse base in water or try to disassemble.
ZTo reduce the risk of fire or electric shock, do not remove the
base. No user serviceable parts inside. Repair should be done
by authorized service personnel only.
ZCheck voltage to be sure that the voltage indicated on the
name plate complies with your voltage.
ZNever use warm or hot water to fill the water container! Use
cold water only.
Special cord set instructions
Warning
Caution

6
Important Safeguards
ZKeep your hands and the cord away from hot parts of the
appliance during operation.
ZNever clean with scouring powders or hard implements.
ZNever fill instant coffee, chocolate mix etc. into the grinder or
ground coffee funnel (grinder by-pass). It will damage the
functioning of the brewing chamber.
ZNever fill sugar coated coffee beans into the bean hopper. In
case of doubt, call your dealer.
ZNeverfillanything other than coffeebeansintothebeancon-
tainer(nochocolate,norice,nonuts,nospices,nothingother
than roasted coffee beans).
ZNeverdoanythingwiththemachinewhichisnotdescribedin
the User‘s Manual. In case of doubt, call your dealer.
NEVER DO
(or you will void your
warranty protection):

7
Important Safeguards

8
Control elements
Figure: IMPRESSA C9 Piano Black
Control elements
1 Cover of filler funnel for pre-ground coffee
2 Filler funnel for pre-ground coffee
3 Water tank cover
4 Water tank
5 Power switch and power cable
(side of machine)
6 Coffee grounds container
7 Drip tray
8 Fineness of grind switch
9 Bean container cover
10 Bean container
with aroma preservation cover
11 Connector System©
for removable frothers
12 Easy Cappuccino Frother
13 Height-adjustable coffee spout
14 Cup platform
5
8
1
3
2
4
6
7
11
12
13
10
14
9

9
Control elements
Front left:
1 Plain text display
Q On/off button
c Maintenance button
i Espresso button
o Coffee button
vPre-ground coffee button
2 Rotary Switch cover
3 Rotary Switch
Front right:
p Cappuccino button
üMilk foam button
m Hot water button
4 Easy Cappuccino Frother
5 Professional Cappuccino Frother
6 Hot water nozzle
4
3
1
2
45
6
The Connector System©permits the use of different frothers. These are available from stockists.

10
Important information
Themachinehasbeendesignedandbuiltfordomesticuse.Itshould
only be used to prepare coffee and to heat milk and water. Use for
any other purpose will be deemed improper. JURA Elektroapparate
AG cannot accept any responsibility for the consequences of
improper use.
Before using the machine always carefully read and comply with all
these instructions. Keep this manual close to the IMPRESSA and, if
appropriate, pass it on to the next user.
Please read and note carefully the following important safety infor-
mation.
By doing this, you can avoid the life-threatening danger of electric
shock:
ZNever use a machine which has been damaged or with a
defective power cable.
ZForinformationonwhattodoincaseofdamage,forexample
ifthereisasmellofburning,unplugthemachineimmediately
from the mains supply and contact the JURA service centre.
ZIf the power cable for this machine is damaged, it must be
repairedeitherdirectlybyJURAorbyaJURAapprovedservice
centre.
ZMake sure that the IMPRESSA and the power cable are not
located close to hot surfaces.
ZBecarefultoensure that the powercable does not getcaught
and does not rub against sharp edges.
ZNever open and repair the machine yourself. Do not modify
themachinein anywaythat is notdescribedintheIMPRESSA
Manual. The machine contains live parts. If opened, there is a
danger of serious injury. Repairs may only be carried out by
JURA approved service centres, using original spare parts and
accessories.
There is a risk of scalds or burns on the spouts or on the nozzle:
ZPlace the machine out of the reach of children.
ZDo not touch any hot parts. Use the handles provided.
ZBe careful to ensure that the appropriate nozzle is installed
and clean. The nozzle or parts of the nozzle might come off if
the parts are not assembled correctly or a blockage occurs.
Proper use
For your safety

11
Important information
A defective machine is not safe and could cause injury or fire. To
avoid damage and any associated risk of injury or fire:
ZNeverallowthepowercabletolooselyhangdown.Thepower
cable can be tripped over or damaged.
ZProtect your IMPRESSA from environmental influences such
as rain, frost and direct sunlight.
ZDo not put the IMPRESSA, cable or connections in water.
ZDo not put the IMPRESSA or any individual parts in the dish-
washer.
ZTurn your IMPRESSA off at the power switch before starting
any cleaning operation. Always wipe your IMPRESSA with a
damp cloth rather than a wet one, and protect it from pro-
longed water splash.
ZOnly connect the machine to a power supply in accordance
with the information on the rating plate. The rating plate is
locatedontheundersideofyourIMPRESSA. Furthertechnical
data is given in Chapter 10 ‘Technical Data’.
ZUse only original JURA care products. Use of accessories that
are not explicitly recommended by JURA could damage the
IMPRESSA.
ZDonotuseanycoffeebeanstreatedwithadditivesorcaramel-
ised coffee beans.
ZAlways fill the water tank with cold, fresh mains water.
ZIfyouwillbeabsentforan extendedperiod,turnthe machine
off and unplug.
Risk to children and persons with limited capabilities in operating
machines:
ZThe machine is not designed to be operated by children and
persons with limited capabilities.
ZThe machine may only be used by persons who are able to
operate the machine safely.
Safe handling of the CLARIS filter cartridges:
ZFilter cartridges should be kept out of the reach of children.
ZStore filter cartridges dry in the sealed package.
ZProtect filter cartridges from heat and direct sunlight.
ZDo NOT use damaged filter cartridges.
ZDo NOT open filter cartridges.

12
The IMPRESSAC9 Manual
You are holding the manual for your IMPRESSA C9 in your hand. It
will help you to familiarize yourself with your IMPRESSA safely and
quickly and teach you the full range of facilities it offers.
Chapter 2, ‘Preparing and using your IMPRESSA for the first time’,
explains step-by-step how to set up and prepare the IMPRESSA.
Chapter 3, ‘Familiarising yourself with the control options’ is impor-
tant for you to read as you are familiarising yourself with your
IMPRESSA. It invites you to actively explore all the different coffee
experiences that it offers.
All the other chapters are intended to help you when you have a
specific query.
If you use the IMPRESSA C9, you will become a master at preparing
exciting coffee specialities, you will be a Barista!
Youcandownloadtheshortoperatinginstructionsforyourmachine
from the JURA website (www.jura.com).
The IMPRESSA C9 Manual
Warnings
CAUTION
AlwaystakenoteofanyinformationmarkedwiththeCAUTIONorWARNINGsymbol.
The signal word WARNING points out potential risk of serious injury, and the signal
word CAUTION potential risk of slight injury.
CAUTION The CAUTION symbol is used to draw attention to circumstances which could cause
the machine to become damaged.
Symbols used
EInformation and tips to make things easier for you as you use your IMPRESSA.
@References to the online JURA website, where you can find interesting further infor-
mation: www.jura.com.
TPrompttotakeaction.Thissymbolmeansthatyouarebeingpromptedtoperform
some action.
Symbol description

13
1 IMPRESSA C9
The new entry level model in the One Touch Cappuccino league is
sure to please all cappucino fans with its simple ‘touch of a button’
functionwithouthavingtomovethecup.Inelegantpianoblackand
with a new user interface, the high-quality IMPRESSA C9 is fully in
keepingwithcurrenttrendsandexudesanauraofsuperiority,dura-
bilityandcompetence.Itimpressivelydemonstratestheseattributes
with each coffee speciality that you enjoy.
ZOne Touch Cappuccino: Your IMPRESSA C9 makes a cup of
cappuccino at the touch of a button, without you having to
movethecup.Hot milkfoam,flowingintothecupandslowly
starting to fill it. Steam which rises, awakening the anticipa-
tion of a delicious speciality. Aromatic coffee, blending with
the milk, pushing up the milk foam topping. These are the
protagonists in a sensuous drama – the drama of perfect cof-
fee preparation.
ZSimpleoperation:Withtheclearlyarrangedcontrolelements
and the easy-to-understand text and graphic display, opera-
tionof the IMPRESSA C9 isalso simple for beginners. You can
navigate effectively through the individual programme steps
by simply turning and pressing the Rotary Switch. The focus
is on your personal taste. Simply select the coffee strength,
amount of water and temperature according to your individ-
ual preferences.
ZEnergy-saving mode (Energy Save Mode, E.S.M.© ): The
IMPRESSA C9 actively assists you in saving energy. With the
energy-savingmodeyoucanadjusttheenergy-savingpoten-
tial to suit the way you like to enjoy your beverages. The
machine can be completely disconnected from the power
supplyatthemainswitch–forinstanceifyouaregoingtobe
absent for some time.
Coffee that fulfils your
wildest dreams
1 IMPRESSA C9

14
1 IMPRESSA C9
ZHeight-adjustable coffee spout: The height of the coffee
spout, which can be adjusted within a range of 65 to 111 mm,
canbeadaptedtoallcupsizesonacontinuousscale.Thispre-
vents coffee splashing on the machine and is your guarantee
for a rich, thick crema.
The Connector System©permits the use of different cappuccino
frothers:
ZProfessional Cappuccino Frother
UCappuccino, latte macchiato
UHot milk and milk foam
ZEasy Cappuccino Frother
UCappuccino
UMilk foam
Visit us on the Internet.
@ At www.jura.com you will find interesting and up-to-date
information on your IMPRESSA and on every aspect of cof-
fee.
You can familiarise yourself with your IMPRESSA C9 in a fun way on
the PC.
@ The Knowledge Builder awaits you at www.jura.com. The
interactive assistant, LEO, will support you and explain the
benefits of and how to use your IMPRESSA.
Connector System©
JURA on the Internet
Knowledge Builder

15
2 Preparing and using your IMPRESSA for the first time
Thischapterprovidesyouwiththeinformationyouneedtouseyour
IMPRESSA without any problems. You will prepare your IMPRESSA
step-by-step for your first coffee experience.
KeepthepackagingforyourIMPRESSA. Itshouldbeusedtoprotect
the machine during transportation.
When setting up your IMPRESSA, please note the following:
ZSet the IMPRESSA down on a horizontal surface that is not
sensitive to water.
ZChoose a spot for your IMPRESSA which is protected against
overheating.
To enjoy perfect coffee we recommend changing the water every
day.
Milk, mineral water or other liquids can damage the water tank or
the machine.
TOnly fill the water tank with fresh, cold water.
TRemove the water tank and rinse it with cold water.
TFill the water tank with fresh, cold water and reinsert.
Thebeancontainerhasanaromapreservationcover.Thiswillensure
that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar),
pre-ground or freeze-dried coffee will damage the grinder.
TOnly use untreated coffee beans to refill the bean container.
TOpenthecoverofthebeancontainerandremovethearoma
preservation cover.
TRemove any dirt or foreign objects inside the bean con-
tainer.
TFill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
Set up
Filling the water tank
CAUTION
Filling the bean con-
tainer
CAUTION
2 Preparing and using for the first time

16
2 Preparing and using your IMPRESSA for the first time
If the machine is operated with a defective power cable, there is a
danger of electric shock.
TNever use a machine which has a defective power cable.
Precondition: The water tank and bean container are full.
TInsert the mains plug into a power socket.
3 T SwitchontheIMPRESSAusingthepowerswitchontheback
of the machine.
The indicator light lights up (standby).
Q T Press the On/Off button to switch the IMPRESSA on.
The pre-set language appears on the display.
TOpen the cover of the Rotary Switch.
The Rotary Switch lights up.
g T Turn the Rotary Switch until the desired language is dis-
played. For Example: LANGUAGE ENGLISH
k T Press the Rotary Switch to confirm the language.
OK appears briefly on the display to confirm the setting.
PRESS RINSE, the maintenance button clights up.
TClose the cover of the Rotary Switch.
TPlace a receptacle under the frother.
c T Press the maintenance button.
SYSTEM FILLING, the system fills up with water. A
small amount of water flows from the frother.
Thisoperationstopsautomatically,thefollowingappearson
the display: HEATING.
PRESS RINSE, the maintenance button clights up.
TPlace a receptacle under the coffee spout.
c T Press the maintenance button.
RINSING, the machine rinses. The operation stops auto-
matically.
READY, your IMPRESSA is ready to use.
First-time use
WARNING

17
2 Preparing and using your IMPRESSA for the first time
EWhen a coffee speciality has been prepared for the first time,
it is possible that FILL BEANS is shown on the display as
the grinder has not yet been completely filled with coffee
beans. In this case prepare another coffee speciality.
YourIMPRESSAnolongerhastobedescaledifyouareusingCLARIS
filter cartridges.
@ Youcanalsotryoutthe‘Insertfilter’operationonline.Visitthe
Knowledge Builder at www.jura.com.
EPerformthe‘Insertfilter’operationwithoutinterruptions.This
will ensure that your IMPRESSA always produces at its best.
Precondition: READY is displayed.
TOpen the cover of the Rotary Switch.
k T Keep the Rotary Switch pressed until RINSE appears on
the display.
g T Turn the Rotary Switch until FILTER - is displayed.
k T Press the Rotary Switch to enter the programme item.
NO -
g T Turn the Rotary Switch until YES w is displayed.
k T Press the Rotary Switch to confirm the setting.
OK appears briefly on the display to confirm the setting.
INSERT, the maintenance button clights up.
TClose the cover of the Rotary Switch.
TRemove the CLARIS filter cartridge from the Welcome Pack.
TRemove the water tank and empty it.
TLift the cartridge holder and insert the filter cartridge into
the water tank, applying slight pressure.
TClose the cartridge holder. It will click into place audibly.
TFill the water tank with fresh, cold water and reinsert.
Using and activating
filter

18
2 Preparing and using your IMPRESSA for the first time
TPlace a receptacle (at least 500 ml) under the frother.
c T Press the maintenance button.
FILTER RINSING. Water will flow out of the frother.
EYou can interrupt rinsing of the filter at any time by pressing
any button.
EThe water may be slightly discoloured. This is not harmful to
health and does not affect the taste.
Filter rinsing stops automatically after approx. 500 ml.
HEATING appears on the display, then READY is dis-
played. The filter is now activated.
EHowever, if you are using the CLARIS filter cartridge and have
activated it, you will not be able to adjust the water hard-
ness.
Theharderthewateris,themorefrequentlytheIMPRESSAneedsto
be descaled. It is therefore important to adjust the water hardness.
The water hardness can be adjusted on a continuous scale between
1° dH and 30° dH. This can also be deactivated, which means that
the IMPRESSA will not let you know when it has to be descaled.
You can find out what the water hardness is by using the Aquadur®
test strip supplied as standard.
THold the test strip briefly (for one second) under flowing
water. Shake off the water.
TWait for about one minute.
TYou will then be able to read the degree of water hardness
from the discolouration of the Aquadur® test strip and the
description on the packaging.
You can now adjust the water hardness.
Example: To change the water hardness from 16°dH to
25°dH, proceed as follows:
Precondition: READY is displayed.
TOpen the cover of the Rotary Switch.
k T Keep the Rotary Switch pressed until RINSE appears.
Determining water
hardness and adjusting

19
2 Preparing and using your IMPRESSA for the first time
g T Turn the Rotary Switch until HARDNESS is displayed.
k T Press the Rotary Switch to enter the programme item.
16°dH
g T Turn the Rotary Switch until 25°dH is displayed.
k T Press the Rotary Switch to confirm the setting.
OK appears briefly on the display to confirm the setting.
g T Turn the Rotary Switch until EXIT is displayed.
k T Press the Rotary Switch to exit programming mode.
READY appears on the display.
TClose the cover of the Rotary Switch.
Youcanadjustthegrindercontinuouslytosuittheroastofyourcof-
fee.
Ifyouadjustthefinenessofgrindwhenthegrinderisnotoperating,
the grinding wheel could be damaged.
TOnly adjust the fineness of grind when the grinder is run-
ning.
The fineness of grind setting is correct if the coffee flows regularly
from the coffee spout. A fine, thick crema is also formed.
Our recommendations:
ZSelect a fine setting for a light roast.
UIf the fineness of grind setting is too fine, the coffee only
drips from the coffee spout.
ZSelect a coarse setting for a darker roast.
UIf the fineness of grind is too coarse the coffee flows too
quickly from the coffee spout.
Example:Tochangethefinenessofgrindduringcoffeepreparation,
proceed as follows:
TOpen the cover of the bean container.
TRemove the aroma preservation cover.
TPlace a cup under the coffee spout.
Adjusting the grinder
CAUTION

20
2 Preparing and using your IMPRESSA for the first time
o T Press the Coffee button.
The grinder starts and 1 COFFEE is displayed. After this,
the coffee strength is briefly displayed.
TTurn the fineness of grind switch to the desired position
while the grinder is running.
The coffee will be prepared and the fineness of grind is
adjusted.
TClose the aroma preservation cover and the cover of the
bean container.
Precondition: Your IMPRESSA is switched on at the power switch
and the indicator light is illuminated (standby).
Q T Press the On/Off button to switch the IMPRESSA on.
HEATING is displayed.
PRESS RINSE, the maintenance button clights up.
TPlace a receptacle under the coffee spout.
c T Press the maintenance button.
RINSING, the machine rinses.
Preparation stops automatically. READY appears on the
display.
WhenyouswitchyourIMPRESSAoff,thespoutswithwhicha coffee
speciality or milk have been prepared are rinsed.
TPlace a receptacle under the coffee spout and the frother.
Q T Press the On/Off button.
EWhen you prepare a milk product, but have not performed
cappuccinocleaning,C–CLEANING appearsandthemain-
tenancebuttonc lights up. Fortensecondsyoucanstart the
’Cleancappuccinofrother’procedurebypressingthe mainte-
nance button.
RINSING, the coffee spout is rinsed.
RINSE RIGHT, maintenance button clights up.
Switching on
Switching off (standby)
