Jura IMPRESSA Z5 User manual

The IMPRESSA Z5 Generation II Manual
The ‘IMPRESSA Manual’ has been awarded the seal of
approval by the independent German Technical Inspection
Agency, TÜV SÜD, due to its easy-to-understand style, its
thoroughness and coverage of safety aspects.

2
Your IMPRESSA Z5
IMPORTANT SAFEGUARDS 4
Control elements 8
Proper use 10
For your safety 10
The IMPRESSA Z5 Manual 13
Symbol description......................................................................................................................................14
Welcome to the world of IMPRESSA! 15
1 IMPRESSA Z5 – ‘Two at once’ 16
JURA on the Internet....................................................................................................................................17
Knowledge Builder.......................................................................................................................................17
2 Preparing and using for the first time 18
Supplied as standard...................................................................................................................................18
Setting up......................................................................................................................................................18
Filling the water tank...................................................................................................................................18
Filling the bean container...........................................................................................................................19
First-time use................................................................................................................................................19
Using and activating filter ..........................................................................................................................21
Assessing and setting water hardness ....................................................................................................22
Adjusting grinder ........................................................................................................................................23
Switching on ................................................................................................................................................24
Switching off (standby)..............................................................................................................................25
3 Familiarising yourself with the control options 26
Preparation at the touch of a button.......................................................................................................26
One-off setting before and during preparation.....................................................................................27
Entering a permanent setting for the amount of water for a cup size..............................................28
Permanent settings in programming mode..........................................................................................29
View information and care status ............................................................................................................32
4 Recipes 34
5 Preparation at the touch of a button 40
Barista tips....................................................................................................................................................40
Ristretto .........................................................................................................................................................41
Espresso........................................................................................................................................................42
Coffee............................................................................................................................................................42
Special coffee...............................................................................................................................................42
Cappuccino...................................................................................................................................................42
Latte macchiato...........................................................................................................................................43
Table of contents

3
Table of contents
Pre-ground coffee.......................................................................................................................................45
Hot milk........................................................................................................................................................46
Hot water .....................................................................................................................................................46
6 Permanent settings in programming mode 48
Products........................................................................................................................................................48
Energy-save mode.......................................................................................................................................51
Time and weekday......................................................................................................................................52
Programmable switch-on time.................................................................................................................53
Automatic switch-off..................................................................................................................................54
Rinses ............................................................................................................................................................55
Unit amount of water / time format........................................................................................................56
Logo...............................................................................................................................................................57
Language......................................................................................................................................................58
Rename.........................................................................................................................................................58
7 Maintenance 60
Maintenance tips.........................................................................................................................................60
Rinse machine..............................................................................................................................................60
Changing the filter.......................................................................................................................................61
Clean machine.............................................................................................................................................63
Descale machine .........................................................................................................................................65
Rinsing the Cappuccino Frother...............................................................................................................68
Cleaning the Cappuccino Frother.............................................................................................................68
Dismantling and rinsing the Cappuccino Frother.................................................................................70
Removing foreign objects .........................................................................................................................70
Cleaning the bean container.....................................................................................................................70
Descaling the water tank............................................................................................................................71
8 CLARIS plus filter cartridge – Water for perfect coffee 73
9 ‘The milk makes the difference’ 81
10 Accessories and service 82
11 Display messages 91
12 Troubleshooting 94
13 Transport and environmentally neutral disposal 96
Transport / empty system..........................................................................................................................96
Disposal.........................................................................................................................................................96
14 Technical data 98
15 Key technologies and IMPRESSA range of products 100
16 JURA contact details 105
Index 110

4
Important Safeguards
These safeguards apply for machines with UL safety test (see rating
plate and chapter 14, ‘Technical data’).
When using electrical appliances, basic safety precautions should
always be followed, to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against fire, electric shock and injury to persons, do
not immerse cord, plugs, or body of machine in water or other
liquid.
Close supervision is necessary when any appliance is used by
or near children.
Unplug from outlet when not in use and before cleaning.
Allow to cool before putting or taking off parts, and before
cleaning the appliance.
Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or has been damaged in any
manner. Return appliance to the nearest authorized service
facility for examination, repair or adjustment.
The use of accessory attachement not recommended by the
appliance manufacturer may result in fire, electric shock, or
injury to persons.
Do not use outdoors.
Do not let the cord hang over the edge of a table or counter,
or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a
heated oven.
Always attach plug to appliance first, then plug cord into the
wall outlet. To disconnect, turn any control to ‘OFF’ then
remove plug from wall outlet.
Do not use appliance for other than intented use.
Use extreme caution when dispensing hot steam.
For household use only.
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Follow the basic safety
precautions
Follow the basic safety
precautions
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS

5
Important Safeguards
a. A short power supply cord is provided to reduce the risk
resulting from becoming entangled in or tripping over a long
cord.
Your IMPRESSA has a 3-pin grounded plug.
b. Longer extension cords are available and may be used if care
is exercised in their use.
c. If an extension cord is used,
1. the marked electrical rating of the extension cord should be
at least as great as the electrical rating of the appliance,
and
2. if the appliance is of the grounded type, the extension
courd should be a grounding type 3-wire cord, and
3. the longer cord shall be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on
by children of tripped over.
As a safety feature, this plug will fit in a polarized outlet only
one way.
If the plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician.
Do not modify the plug in any way or attempt to defeat this
safety feature.
To reduce the risk of fire or electric shock, do not remove any service
covers. No user serviceable parts inside. Repair should be done by
authorized personnel only.
This appliance is for household use. Any servicing other than clean-
ing and user maintenance should be performed by an authorized
service representative:
Do not immerse base in water or try to disassemble.
To reduce the risk of fire or electric shock, do not remove the
base. No user serviceable parts inside. Repair should be done
by authorized service personnel only.
Check voltage to be sure that the voltage indicated on the
name plate agreees with your voltage.
Never use warm or hot water to fill the water container! Use
cold water only.
Z
Z
Z
Z
Z
Z
Z
Special cord set instructionsSpecial cord set instructions
WarningWarning
CautionCaution

6
Important Safeguards
Keep your hands and the cord away from hot parts of the
appliance during operation.
Never clean with scouring powders or hard implements.
Never fill instant coffee, chocolate mix etc. into the grinder or
ground coffee funnel (grinder by-pass). It will damage the
functioning of the brewing chamber.
Never fill sugar coated coffee beans into the bean hopper. In
case of doubt, call your dealer.
Never fill anything other than coffee beans into the bean con-
tainer (no chocolate, no rice, no nuts, no spices, nothing other
than roasted coffee beans).
Never do anything with the machine which is not described in
the User‘s Manual. In case of doubt, call your dealer.
Z
Z
Z
Z
Z
Z
NEVER DO
(or you will void your
warranty protection):
NEVER DO
(or you will void your
warranty protection):

7
Important Safeguards

8
Control elements
Figure: IMPRESSA Z5 Generation II Alu
Control elements
1 Bean container cover
2 Water tank cover
3 Water tank
4 Power switch and power cable (side)
5 2@1 Cappuccino Frother, long spout
6 2@1 Cappuccino Frother, short spout
7 Coffee grounds container
8 Drip tray
9 Grinding wheel
10 Bean container with aroma preservation
cover
11 Filler funnel for pre-ground coffee
12 Height-adjustable coffee spout
13 Hot water spout
14 Cup platform
10
12
1
2
7
5
4
13
6
14
3
11
9
8

9
Control elements

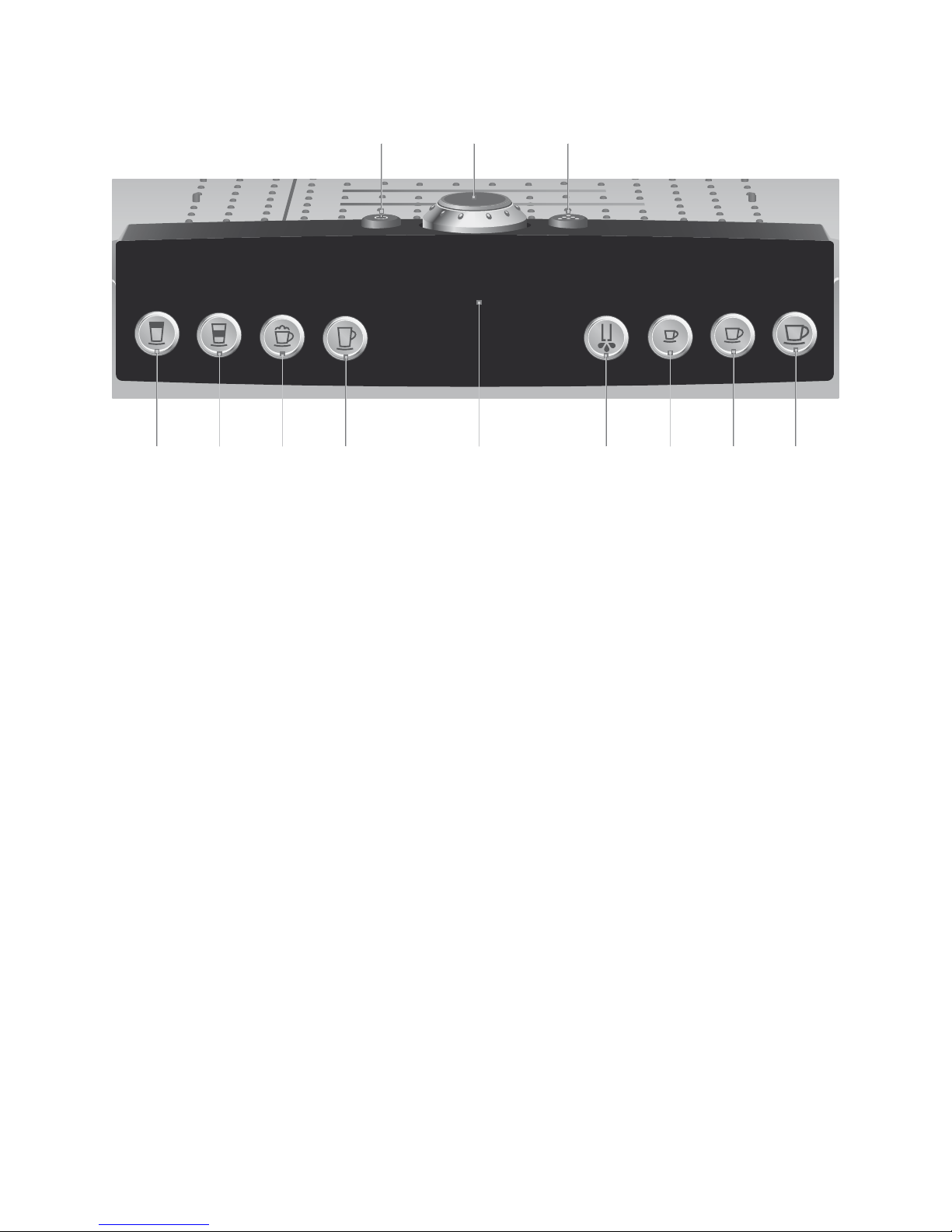

Top of the machine
1Q On/off button
2f Rotary Switch
3c Maintenance button
Front
4z Milk button
5q Latte macchiato button
6p Cappuccino button
7e Special Coffee button
8 Display
9m Hot water button
10 u Ristretto button
11 i Espresso button
12 o Coffee button
231
49876511
1210

10
Important information
The machine has been designed and built for domestic use. It should
only be used to prepare coffee and to heat milk and water. Use
for any other purpose will be deemed improper. JURA Elektro-
apparate AG cannot accept any responsibility for the consequences
of improper use.
Before using the machine always carefully read and comply with all
these instructions. Keep this manual close to the IMPRESSA and, if
appropriate, pass it on to the next user.
Please read and note carefully the following important safety infor-
mation.
By doing this, you can avoid the life-threatening danger of electric
shock:
Never use a machine which has been damaged or with a
defective power cable.
For information on what to do in case of damage, for example
if there is a smell of burning, unplug the machine immediately
from the mains supply and contact the JURA service centre.
If the power cable for this machine is damaged, it must be
repaired either directly by JURA or by a JURA approved service
centre.
Make sure that the IMPRESSA and the power cable are not
located close to hot surfaces.
Be careful to ensure that the power cable does not get caught
and does not rub against sharp edges.
Never open and repair the machine yourself. Do not modify
the machine in any way that is not described in the IMPRESSA
Manual. The machine contains live parts. If opened, there is a
danger of serious injury. Repairs may only be carried out by
JURA approved service centres, using original spare parts and
accessories.
There is a risk of scalds or burns on the spouts or in the Frother:
Place the machine out of the reach of children.
Do not touch any hot parts. Use the handles provided.
Z
Z
Z
Z
Z
Z
Z
Z
Proper useProper use
For your safetyFor your safety

11
Important information
Be careful to ensure that the appropriate Frother is installed
and clean. The Frother or parts of the Frother might come off
if the parts are not assembled correctly or a blockage occurs.
A defective machine is not safe and could cause injury or fire. To
avoid damage and any associated risk of injury or fire:
Never allow the power cable to loosely hang down. The power
cable can be tripped over or damaged.
Protect your IMPRESSA from environmental influences such
as rain, frost and direct sunlight.
Do not put the IMPRESSA, cable or connections in water.
Do not put the IMPRESSA or any individual parts in the dish-
washer.
Turn your IMPRESSA off at the power switch before starting
any cleaning operation. Always wipe your IMPRESSA with a
damp cloth rather than a wet one, and protect it from pro-
longed water splash.
Only connect the machine to a power supply in accordance
with the information on the rating plate. The rating plate is
located on the underside of your IMPRESSA. Further technical
data is given in Chapter 14 ‘Technical Data’.
Use only original JURA care products. Use of accessories that
are not explicitly recommended by JURA could damage the
IMPRESSA.
Do not use any coffee beans treated with additives or caramel-
ised coffee beans.
Always fill the water tank with cold, fresh mains water.
If you will be absent for an extended period, turn the machine
off and unplug.
Risk to children and persons with limited capabilities in operating
machines:
The machine is not designed to be operated by children and
persons with limited capabilities.
The machine may only be used by persons who are able to
operate the machine safely.
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z

12
Important information
Safe handling of the CLARIS plus filter cartridges:
CLARIS plus filter cartridges should be kept out of the reach of
children.
Store them dry in the sealed package.
Protect them from heat and direct sunlight.
Do NOT use damaged CLARIS plus filter cartridges.
Do NOT open CLARIS filter cartridges.
Z
Z
Z
Z
Z

13
The IMPRESSA Z5 Manual
You are holding the manual for your IMPRESSA Z5 in your hand. It
will help you to familiarize yourself with your IMPRESSA safely and
quickly and teach you the full range of facilities it offers.
Chapter 2, ‘Preparing and using your IMPRESSA for the first time’,
explains step-by-step how to set up and prepare the IMPRESSA.
Chapter 3, ‘Familiarising yourself with the control options’ is impor-
tant for you to read as you are familiarising yourself with your
IMPRESSA. It invites you to actively explore all the different coffee
experiences that it offers.
As coffee and coffee specialities are very important to JURA, we have
compiled a selection of tasty suggestions for you in Chapter 4,
‘Recipes’.
All the other chapters are intended to help you when you have a
specific query.
If you use the IMPRESSA Z5 Manual, you will become a master at
preparing exciting coffee specialities, you will be a Barista!
The IMPRESSA Z5 ManualThe IMPRESSA Z5 Manual

14
The IMPRESSA Z5 Manual
Warnings
CAUTION
Always take note of any information marked
with the CAUTION or WARNING symbol. The
signal word WARNING points out potential risk
of serious injury, and the signal word CAUTION
potential risk of slight injury
CAUTION
The CAUTION symbol is used to draw attention
to circumstances which could cause the
machine to become damaged.
Symbol descriptionSymbol description
Symbols used
E Information and tips to make things easier for
you as you use your IMPRESSA.
@References to the online JURA website, where
you can find interesting further information:
www.jura.com
TPrompt to take action. This symbol means that
you are being prompted to perform some
action.

15
Welcome to the world of IMPRESSA!
Dear customer,
We thank you for the trust that you have placed in us by purchasing
a JURA IMPRESSA coffee machine. The machines, which are pro-
duced in Switzerland, have already impressed independent, critical
testers of goods and design award juries. We will do everything we
can to ensure that this fully automated, genuine 2-cup Espresso and
coffee machine continues to deliver perfect coffee specialities at the
press of a button to your family and your guests for years to come.
The IMPRESSA Manual will teach you everything you need to know
on the subject of operating and tailoring your IMPRESSA to your
particular preferences. Other subjects covered include how to solve
the problem of scale build-up and important tips on care. Our pri-
mary concern is to stimulate your imagination with attractive coffee
recipes and to invite you to put the wealth of possibilities offered by
the JURA fully automated machine to use on a daily basis.
We wish you many stimulating and enjoyable moments with your
IMPRESSA.
Yours sincerely,
Emanuel Probst
General Manager
Welcome to the world of IMPRESSA!Welcome to the world of IMPRESSA!

16
1 IMPRESSA Z5 – ‘Two at once’
Coffee specialities are extremely popular. An increasing number of
perfect hosts treat themselves, friends and families to a wide range
of coffee specialities in the comfort of their own homes. Milk is a
very important ingredient of a perfect cup of coffee, both foamed
and heated, as cappuccino, latte macchiato, and caffè latte, also
enhanced with different flavours, are now firm favourites on the
almost inexhaustible and varied list of coffee recipes alongside the
classic ristretto, espresso and café crème.
JURA has now developed the second generation of the revolutionary
IMPRESSA Z line to satisfy the high demands of the growing com-
munity of speciality gourmets.
2@1 Cappuccino Frother: The machines of the IMPRESSA Z
line, which are in the truest sense fully-automatic coffee spe-
ciality machines, can prepare two treats for the eye and palate
at the touch of a button with the 2@1 Cappuccino Frother.
‘Two at once’ – the quickest, most direct and simple way to
delve into the world of coffee and to revel in all its variety.
Rotary Switch –Intuitive operation: You can ‘navigate’ reli-
ably through all operating and programming steps by simply
turning and pressing the switch. The information on the plain
text and graphic display is in full view at all times. The focus is
fully on your own personal taste. Simply select the coffee
strength, amount of water and temperature according to your
individual preferences.
Stainless steel vacuum milk container: Your fully-automatic
coffee machine is equipped as standard with a vacuum milk
container which keeps the milk cool all day due to its clever
design.
Z
Z
Z
1 IMPRESSA Z5 – ‘Two at once’1 IMPRESSA Z5 – ‘Two at once’
Coffee that fulfils your
wildest dreams
Coffee that fulfils your
wildest dreams

17
1 IMPRESSA Z5 – ‘Two at once’
Active bean monitoring: The IMPRESSA Z5 banishes the
sound of empty rotating coffee grinders and half-full cups
once and for all. It always shows you when the coffee beans
need replenishing in good time. The filling level of the bean
container is continuously monitored optically.
Visit us on the Internet.
At www.jura.com you will find interesting and up-to-date
information on your IMPRESSA and on every aspect of
coffee.
You can familiarize yourself with your IMPRESSA Z5 in a fun way on
the PC.
The Knowledge Builder awaits you at www.jura.com. The
interactive assistant, LEO, will assist you and explain the
benefits of the IMPRESSA and how to use it.
Z
@
@
JURA on the InternetJURA on the Internet
Knowledge BuilderKnowledge Builder

18
2 Preparing and using for the first time
This chapter provides you with the information you need to use your
IMPRESSA without any problems. You will prepare your IMPRESSA
step-by-step for your first coffee experience.
The following items are supplied as standard:
Your JURA IMPRESSA fully automatic coffee machine
Stainless steel vacuum milk container
Milk pipe
The Welcome Pack, which includes:
The IMPRESSA Z5 Generation II Manual
IMPRESSA Z5 Generation II: Quick Reference Guide
CLARIS plus filter cartridge (2x)
Filter cartridge extension
Grinder key
Measuring spoon for pre-ground coffee
JURA cleaning tablets
Aquadur® test strip
JURA Cappuccino Cleaner
JURAworld of Coffee gift
Keep the packaging of your IMPRESSA. It should be used to protect
the machine during transportation.
When setting up your IMPRESSA, please note the following:
Set the IMPRESSA down on a horizontal surface that is not
sensitive to water.
Choose a spot for your IMPRESSA which is protected against
overheating.
To enjoy perfect coffee we recommend changing the water every
day.
Milk, mineral water or other liquids can damage the water tank or
the machine.
Only fill the water tank with fresh, cold water.
Z
Z
Z
Z
U
U
U
U
U
U
U
U
Z
Z
Z
Z
T
2 Preparing and using for the first time2 Preparing and using for the first time
Supplied as standardSupplied as standard
Setting upSetting up
Filling the water tankFilling the water tank
CAUTIONCAUTION

19
2 Preparing and using for the first time
Remove the water tank and rinse it with cold water.
Fill the water tank with fresh, cold mains water and
reinsert.
The bean container has an aroma preservation cover. This will ensure
that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar),
pre-ground or freeze-dried coffee will damage the grinder.
Only use untreated coffee beans to refill the bean container.
Open the cover of the bean container and remove the aroma
preservation cover.
Remove any dirt or foreign objects inside the bean con-
tainer.
New machines contain an information sheet in the bean
container. Remove this information sheet.
Fill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.

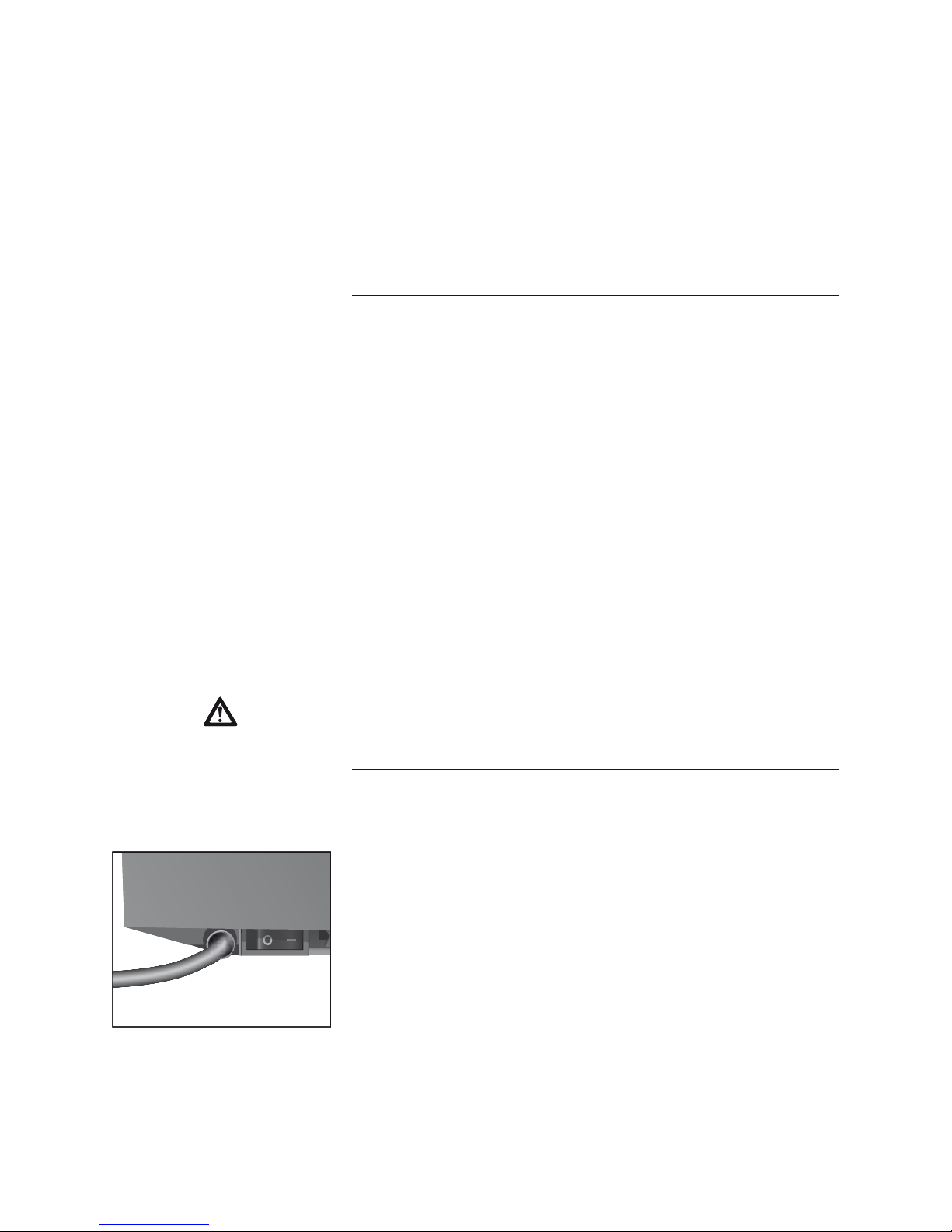

If the machine is operated with a defective power cable, there is a
danger of electric shock.
Never use a machine which has a defective power cable.
Precondition: The water tank and bean container are full.
Insert the mains plug into a power socket.
3 T Switch on the IMPRESSA using the power switch on the left
side of the machine.
The On/Off button Qlights up (standby).
Q T Press the On/Off button to switch the IMPRESSA on.
The Rotary Switch lights up. SPRACHE DEUTSCH is
displayed.
g T Turn the Rotary Switch until the desired language is
displayed. For example LANGUAGE ENGLISH.
T
T
T
T
T
T
T
T
T
Filling the bean
container
Filling the bean
container
CAUTIONCAUTION
First-time useFirst-time use
WARNINGWARNING

20
2 Preparing and using for the first time
k T Press the Rotary Switch to confirm the language.
CONFIRMED √ appears briefly on the display to confirm
the setting.
TIME HOURS --:--
g T Turn the Rotary Switch to set the hour.
TIME HOURS 12:00 (Example)
k T Press the Rotary Switch to confirm the hour setting.
TIME MINUTES 12:00
g T Turn the Rotary Switch to set the minutes.
TIME MINUTES 12:45 (Example)
k T Press the Rotary Switch to confirm the minute setting.
CONFIRMED √ appears briefly on the display.
WEEKDAY MONDAY
g T Turn the Rotary Switch to set the weekday.
WEEKDAY WEDNESDAY (Example)
k T Press the Rotary Switch to confirm the setting.
CONFIRMED √ appears briefly on the display.

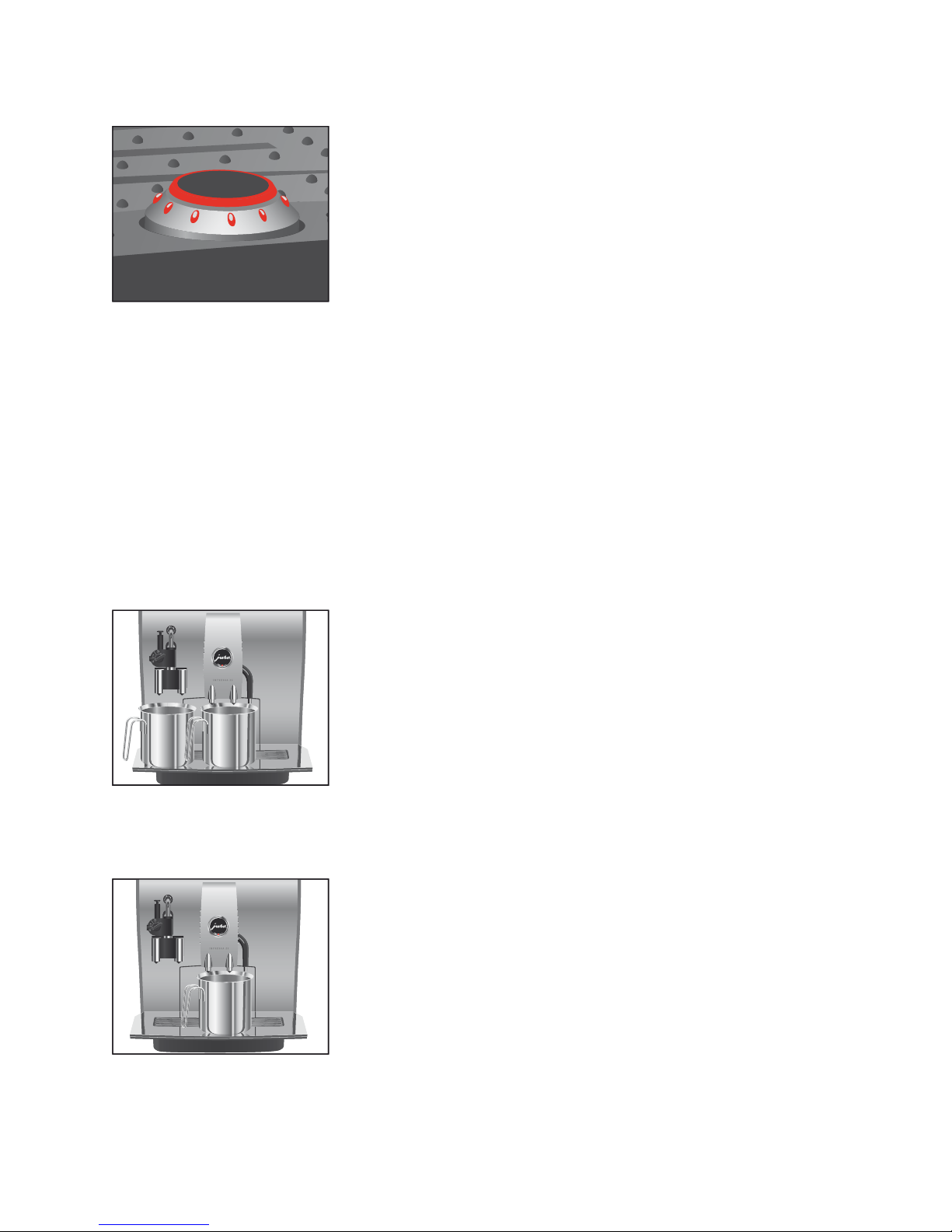

PRESS RINSE, the maintenance button clights up.
Place a receptacle under the hot water spout and below the
Cappuccino Frother.
c T Press the maintenance button.
SYSTEM FILLS, the system fills up with water and the
maintenance button cflashes. A small amount of water
flows from the Cappuccino Frother and the hot water spout.
This operation stops automatically. WELCOME TO JURA
appears on the display.
UNIT IS HEATING
PRESS RINSE, the maintenance button clights up.
Place a receptacle under the coffee spout.
c T Press the maintenance button.
The machine rinses itself, stopping automatically.
COFFEE READY appears on the display. Your IMPRESSA
is ready to use.
After first-time use do not disconnect the IMPRESSA from the
power supply for 24 hours to ensure that it is in the optimum
operating condition.
T
T
E
