JVC KD-SX1500R User manual

KD-SX1500R
CD RECEIVER
CD-RECEIVER
RECEPTEUR CD
CD-RECEIVER
For installation and connections, refer to the separate manual.
Angaben zu Einbau und Verkabelung entnehmen Sie bitte der gesonderten Anleitung.
Pour l’installation et les raccordements, se référer au manuel séparé.
Zie de afzonderlijke handleiding voor details aangaande het installeren en verbinden van het
toestel.
ENGLISH
DEUTSCH
FRANÇAIS
NEDERLANDS
LVT0203-001A
[E]
40Wx4
SEL
PTY
ANNOUNCE
SSM
KD-SX1500R
COMPACT
DIGITAL AUDIO
TEXT
MO
RND LO
RDS
C D
DAB
FM/AM
DISP
789
DAB / CD CHANGER CONTROL AUDIO CRUISE
10 11 12
/I
ATT
CD-CH
TA
DAB CONTROL
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
GEBRUIKSAANWIJZING
COVER.KD-SX1500R[E].E/G/F/N 99.4.26, 10:25 AM3

2
ENGLISH
Note:
For security reasons, a numbered ID card is provided with this unit, and the same ID number is
imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to
identify your unit if stolen.
BEFORE USE
* For safety....
• Do not raise the volume level too much, as this
will block outside sounds, making driving
dangerous.
• Stop the car before performing any complicated
operations.
* Temperature inside the car....
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in the
car becomes normal before operating the unit.
Position and reproduction of labels
Bottom panel of the main unit
IMPORTANT FOR LASER
PRODUCTS
Precautions:
1. CLASS 1 LASER PRODUCT
2. DANGER: Invisible laser radiation when
openandinterlockfailedordefeated.Avoid
direct exposure to beam.
3. CAUTION: Do not open the top cover.
Therearenouser-serviceablepartsinside.
Leave all servicing to qualified service
personnel.
4. CAUTION: This CD player uses invisible
laser radiation and is equipped with safety
switches to prevent radiation emission
when unloading CDs. It is dangerous to
defeat the safety switches.
5. CAUTION: Useofcontrols,adjustmentsor
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Name/Rating plate
Caution:
This product contains a laser component
of higher laser class than Class 1.
CLASS
LASER 1
PRODUCT
DANGER: Invisible laser
radiationwhenopen and
interlock failedordefeated.
AVOID DIRECT EXPOSURE
TO BEAM. (e)
ADVARSEL: Usynlig laser-
stråling ved åbning, når
sikkerhedsafbrydere er ude
af funktion.Undgåudsæt-
telse for stråling. (d)
VARNING:Osynliglaser-
strålning när denna del
är öppnadoch spärren är
urkopplad. Betrakta ej
strålen. (s)
VARO : Avattaessa ja suo-
jalukitus ohitettaessa olet
alttiina näkymättömälle
lasersäteilylle. Älä katso
säteeseen. (f)
CAUTION
We highly recommend you to avoid any text
reading while driving because of safety
reasons! Do not risk your or other people’s
lifeandgetinvolvedinanaccidentinwhatever
form.
EN02-05.KD-SX1500/f 99.4.26, 10:26 AM2

3
ENGLISH
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to
ensure your complete understanding and to obtain the best possible performance from the unit.
CONTENTS
BASIC OPERATIONS ....................................................5
RADIO OPERATIONS ...................................................6
Listening to the radio .....................................................................6
Storing stations in memory............................................................7
FM station automatic preset: SSM ...............................................7
Manual preset.............................................................................. 8
Tuning into a preset station ...........................................................9
RDS OPERATIONS .....................................................10
What you can do with RDS EON ................................................10
Tracing the same program automatically
(Network-Tracking Reception) .............................................10
Using Standby Reception.......................................................... 12
Searching your favorite program (PTY Search) .........................14
Other convenient RDS functions and adjustments....................16
Automatic selection of the station when
using the number buttons ....................................................16
Setting the TA volume level ........................................................16
Automatic clock adjustment........................................................16
CD OPERATIONS.......................................................18
Playing a CD .................................................................................18
Locating a track or a particular portion on a CD .....................19
Selecting CD playback modes......................................................20
Playing a CD Text .........................................................................21
SOUND ADJUSTMENTS .............................................22
Adjusting the sound......................................................................22
CAUTION on Volume Setting
CDs produce very little noise compared with
other sources. If the volume level is adjusted
for the tuner, for example, the speakers may
be damaged by the sudden increase in the
output level. Therefore, lower the volume
before playing a CD and adjust it as required
during playback.
To be continued on the next page
EN02-05.KD-SX1500/f 99.4.26, 10:26 AM3

4
ENGLISH
OTHER MAIN FUNCTIONS .........................................23
Setting the clock ............................................................................23
Controlling the volume automatically (Audio Cruise) ..............24
Changing the general settings (PSM) .........................................26
Changing the initial display ........................................................28
Turning on/off the level meter .....................................................28
Selecting the dimmer mode .......................................................29
Selecting the telephone muting..................................................29
Turning on/off the key-touch tone...............................................30
Adjusting the display contrast level ............................................30
Selecting the scroll mode for CD Text information ..................... 30
Detaching the control panel .........................................................31
REMOTE OPERATIONS...............................................32
Installing the battery ....................................................................32
Using the remote controller .........................................................33
CD CHANGER OPERATIONS ......................................34
Playing CDs ...................................................................................34
Selecting CD playback modes......................................................36
DAB TUNER OPERATIONS .........................................37
Tuning into an ensemble and one of the services .......................37
Selecting available tuning range ................................................38
Storing DAB services in memory ................................................39
Tuning into a preset DAB service ................................................40
What you can do more with DAB ...............................................41
Tracing the same program automatically
(Alternative Reception) ........................................................41
Using Standby Reception.......................................................... 42
Adjusting Dynamic Range Control (DRC) effect ........................ 46
Selecting DAB radio text display mode ......................................46
MAINTENANCE......................................................... 47
Handling CDs................................................................................47
TROUBLESHOOTING .................................................48
SPECIFICATIONS .......................................................49
EN02-05.KD-SX1500/f 99.4.26, 10:26 AM4

5
ENGLISH
BASIC OPERATIONS
Note on One-Touch Operation:
When you select a source in step 2 below, the power automatically comes on.
You do not have to press this button to turn on the power.
1
Turn on the power.
2
Select the source.
To operate the tuner, see pages 6 – 17.
To operate the CD player, see pages 18 – 21.
To operate the CD changer, see pages 34 – 36.
To operate the DAB tuner, see pages 37 – 46.
3
Adjust the volume.
Volume level appears.
4
Adjust the sound as you want (see page 22).
To drop the volume in a moment
Press briefly while listening to any source. “ATT” starts flashing on the display, and
the volume level will drop in a moment.
To resume the previous volume level, press the button briefly again.
To turn off the power
Press for more than 1 second.
1
32
C D
CD-CH
DAB
FM/AM
SEL
Note:
Whenyou use this unit for the
first time, set the built-in
clock correctly, see page 23.
EN02-05.KD-SX1500/f 99.4.26, 10:26 AM5

6
ENGLISH
1
Select the band (FM1, FM2, FM3 or AM).
You can select any one of FM1, FM2, and FM3 to listen to an
FM station.
2
Start searching a station.
When a station is received, searching stops.
• If the program received is broadcast in
stereo, the ST indicator lights up on the
display.
To stop searching before a station is received, press the same button you have pressed
for searching.
To tune in a particular frequency without searching
1Press FM/AM repeatedly to select the band (FM or AM).
2Press and hold ¢or 4until “Manual” starts flashing on the display.
Now you can manually change the frequency while “Manual” is flashing.
3Press ¢or 4repeatedly until the frequency you want is reached.
• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and
9 kHz intervals for AM–MW/LW) until you release the button.
To tune in FM stations only with strong signals
Press LO/RPT (Local/Repeat) so that “Local On” appears on the display.
Each time you press the button, “Local On” and “Local Off” alternates.
To tune in all receivable FM stations, press LO/RPT (Local/Repeat) again so that “Local
Off” appears.
Note:
This function only works while searching FM stations including SSM preset (see page 7).
RADIO OPERATIONS
Listening to the radio
LO/RPT
Clock time (or other indications: see also page
28) appears.
12
FM/AM
To search stations
of higher
frequencies
To search stations
of lower frequencies
FM1 FM2 FM3 AM
EN06-09 KD-SX1500/f 99.4.26, 10:27 AM6

7
ENGLISH
1
Select the FM band number (FM1, FM2 or
FM3) you want to store FM stations into.
2
Press and hold both buttons for more than 2
seconds.
Local FM stations with the strongest signals are searched and stored automatically in the
bandnumber you have selected (FM1,FM2or FM3).Thesestations are preset inthenumber
buttons — No. 1 (lowest frequency) to No. 6 (highest frequency).
When automatic preset is over, the station stored in number button 1 will be automatically
tuned in.
Storing stations in memory
You can use one of the following two methods to store broadcasting stations in memory.
• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
• Manual preset of both FM and AM stations
FM station automatic preset: SSM
You can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).
“SSM” appears, then disappears when automatic
preset is over.
12
SSM
FM1 FM2 FM3 AM
FM/AM
EN06-09 KD-SX1500/f 99.4.26, 10:27 AM7

8
ENGLISH

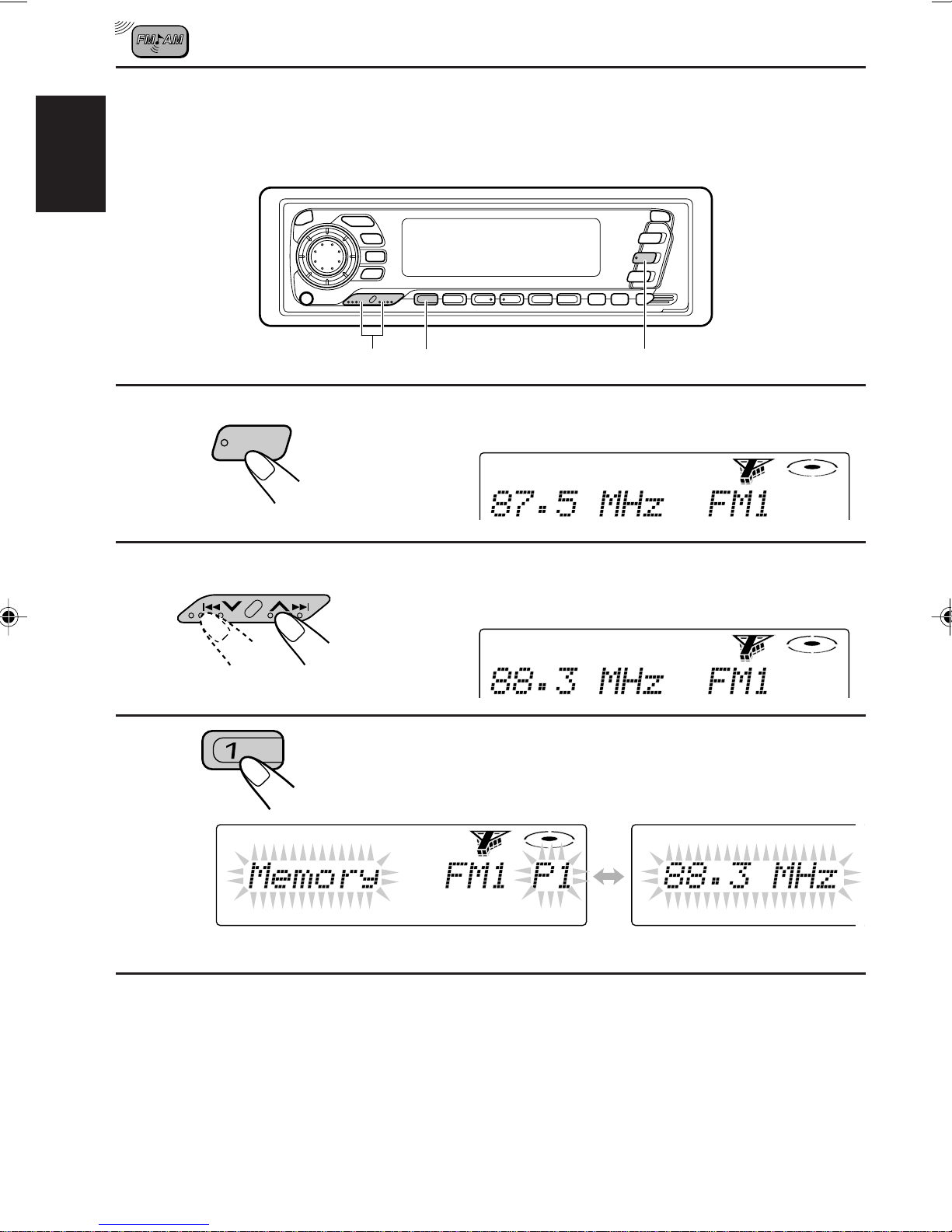

Manual preset
You can preset up to 6 stations in each band (FM1, FM2, FM3 andAM) manually.
EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band
1
3
2
FM/AM
“Memory” and station frequency alternately appear for a while.
1
Select the FM1 band.
2
Tune into a station of 88.3 MHz.
See page 6 to tune into a station.
3
Press and hold the number button (in this
example, 1) for more than 2 seconds.
4
Repeat the above procedure to store other stations into other
preset numbers.
Note:
A previously preset station is erased when a new station is stored in the same preset number.
EN06-09 KD-SX1500/f 99.4.26, 10:27 AM8

9
ENGLISH
Tuning into a preset station
You can easily tune into a preset station.
Remember that you must store stations first. If you have not stored them yet, see pages 7
and 8.
When an FM stereo broadcast is hard to receive:
Press MO/RND (Mono/Random) while listening to an FM stereo
broadcast. The MO indicator lights up on the display, and the sound you
hear becomes monaural but reception will be improved.
To restore the stereo effect, press the same button again.
MO
RND
12
DISP
MO/RND
1 Select the band (FM1, FM2, FM3 or AM) you want.
2
Selectthenumber(1– 6)forthepreset station
you want.
To change the display information while receiving a station
Press DISP. Each time you press the button, the following information is shown on the lower
part of the display.
When receiving an FM RDS station: Its PS (station name), band, and preset channel number
(if any) are always shown in the main display.
When receiving an AM station: Its station frequency, band, and preset channel number (if
any) are always shown in the main display.
* Level meter will not appear when “Level Meter” is deactivated (see page 28).
FM/AM
FM1 FM2 FM3 AM
PTY (program type) Station frequency
Level mater Clock time
*
Level mater Clock time
*
EN06-09 KD-SX1500/f 99.4.26, 10:27 AM9

10
ENGLISH
What you can do with RDS EON
RDS OPERATIONS
RDS (Radio Data System) allows FM stations to send an additional signal along with their
regular program signals. For example, the stations send their station names, as well as
information about what type of program they broadcast, such as sports or music, etc.
Another advantage of RDS function is called “EON (Enhanced Other Networks).” The EON
indicator lights up while receiving an FM station with the EON data. By using the EON data
sent from a station, you can tune into a different station of a different network broadcasting
yourfavoriteprogramor trafficannouncementwhilelisteningtoanother program or to another
source such as CD.
By receiving the RDS signals, this unit can do the following:
• Tracing the same program automatically (Network-tracking Reception)
• Standby Reception of TA (TrafficAnnouncement) or your favorite program
• PTY (Program Type) search
• TA (Traffic Announcement) search
• And some other functions
Tracing the same program automatically (Network-
Tracking Reception)
Whendrivingin an area whereFMreceptionisnot good, the tunerbuiltinthisunitautomatically
tunes in another RDS station, broadcasting the same program with stronger signals. So, you
can continue to listen to the same program in its finest reception, no matter where you drive.
(See the illustration on the next page.)
Two types of the RDS signals are used to make Network-Tracking Reception work correctly
— PI (Program Identification) and AF (Alternative Frequency) data.
Without receiving these data correctly from the RDS station you are listening to, Network-
Tracking Reception will not operate.
To use Network-Tracking Reception
1PressandholdSEL(Select) for more than2secondssothat“PSM”appears on the display.
2Press ¢or 4to select “Alternative,” if not shown on the display.
The current setting for this function also appears.
3Press 5to select “FM ÔFM Y.”
The AF indicator lights up on the display, and Network-Tracking Reception is activated.
To cancel Network-Tracking Reception
Press ∞to select “FM ÔFM N” in step 3 above. TheAF indicator goes off.
Note:
When connecting the DAB tuner to this receiver, see also “Tracing the same program automatically
(Alternative Reception)” on page 41.
EN10-17KD-SX1500/f 99.4.26, 10:28 AM10
