JVC KD-AV7100 User manual

ENGLISHESPAÑOL
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
DVD RECEIVER WITH MONITOR KD-AV7100
RECEPTOR DVD CON MONITOR KD-AV7100
LVT1822-003C
[JW]
Cover_LVT1822-003C.indd 2Cover_LVT1822-003C.indd 2 08.6.24 4:04:47 PM08.6.24 4:04:47 PM

ENGLISH
2
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical
instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
WARNINGS:
To prevent accidents and damage
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and
gearshift lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
• The driver must not put on the headphones while
driving.
[European Union only]
Cautions on the monitor:
• The monitor built in this unit has been produced
with high precision, but it may have some
ineffective dots. This is inevitable and is not
malfunction.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with the sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you wear a glove, take it off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in
such environments.
AV7100_inst[JW].indb 2AV7100_inst[JW].indb 2 08.5.19 11:11:41 PM08.5.19 11:11:41 PM

3
ENGLISH
INTRODUCTION

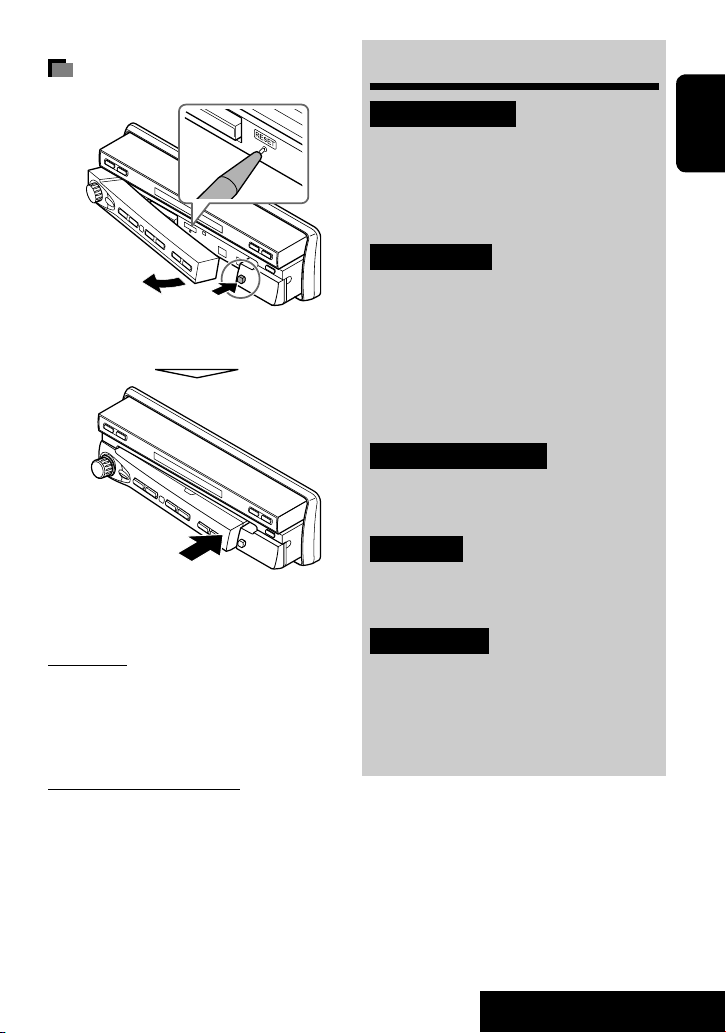

How to reset your unit
• Your preset adjustments will also be erased.
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
Contents
INTRODUCTION
Basic operations—Main unit ........... 4
Basic operations—
Remote controller (RM-RK253) ...... 6
Playable disc type............................ 8
OPERATIONS
Clock setting ................................... 9
Common operations ........................ 10
Listening to the radio ...................... 12
Disc operations................................ 15
SD operations.................................. 31
USB operations................................ 33
EXTERNAL DEVICES
Listening to the iPod........................ 35
Using other external components..... 38
SETTINGS
Sound adjustments.......................... 39
Menu operations ............................. 41
REFERENCES
Maintenance................................... 46
More about this unit ........................ 47
Troubleshooting.............................. 51
Specifications.................................. 54
1
2
AV7100_inst[JW].indb 3AV7100_inst[JW].indb 3 08.5.19 11:11:48 PM08.5.19 11:11:48 PM

2431
78 wert56 9p q
i
y
u
ENGLISH
4

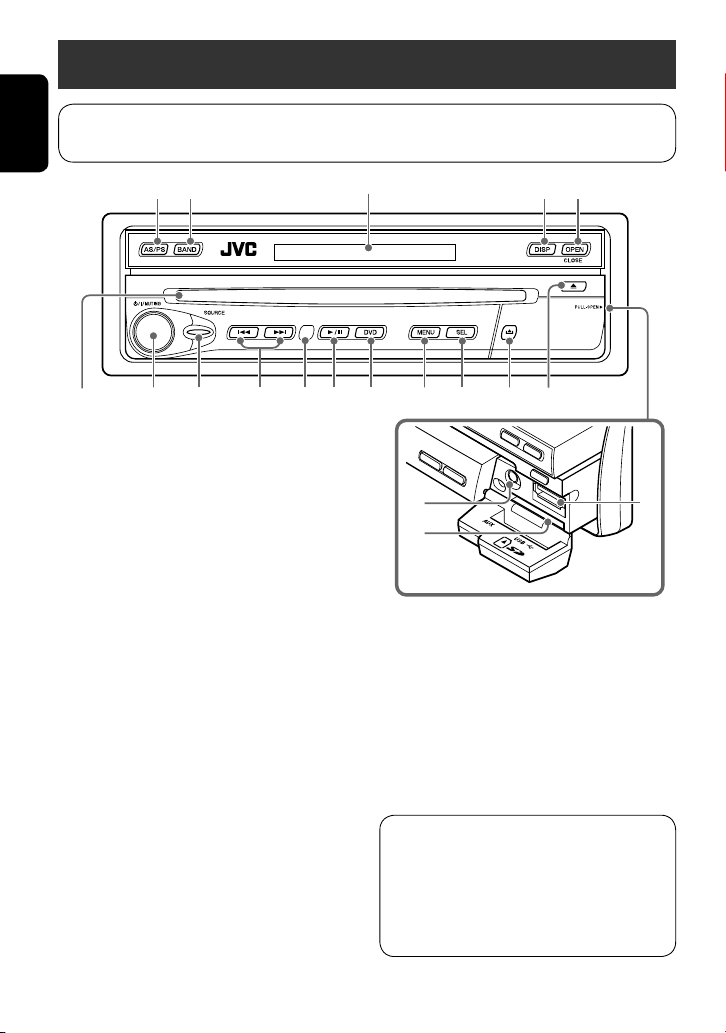

Basic operations — Main unit
1“TUNER” :
• Performs Auto Storing (AS).
• Performs Preset Scanning (PS) if pressed and
held.
2Selects the bands.
3Changes the information on the display window
or monitor.
4Opens/closes the monitor panel.
5Disc loading slot
6• Turns on the power.
• Adjusts the volume if turned (while the power
is on).
• Mutes the sound if the power is on.*1
• Turns off the power if pressed and held.
7Selects the source.
8• “TUNER” : Performs Auto Search.
• “DISC/USB/SD/iPod”: Reverse skip/forward skip
9Remote sensor
p“DISC/USB/SD/iPod”: Plays/pauses.
qChanges the source to “DISC” (and starts
playback).
w*2Displays or exits “Main Menu” of the unit.
e*2• Displays the audio setting screen.
• Displays the speaker adjustment screen while
enjoying multi-channel surround playback.
Display window (☞page 5)
Operations are explained mainly using the touch panel; however, you can use the buttons on the unit and remote
controller if they have the same or similar names or marks.
rDetaches the control panel.
tEjects the disc.
yAUX input jack
uSD card slot
iUSB terminal
*1Muting is automatically canceled as you change the
source.
*2Use these buttons when the monitor panel is opened.
This unit contains a magnet. Do not bring the
following objects close to the unit:
• Watches
• Magnetic stripe cards such as credit cards
• Magnetic tapes such as casette tapes and video
tapes
EN01_KD-AV7100_JW.indd 4EN01_KD-AV7100_JW.indd 4 08.6.9 0:16:01 PM08.6.9 0:16:01 PM

o s;a
1 32 4
5
ENGLISH
INTRODUCTION

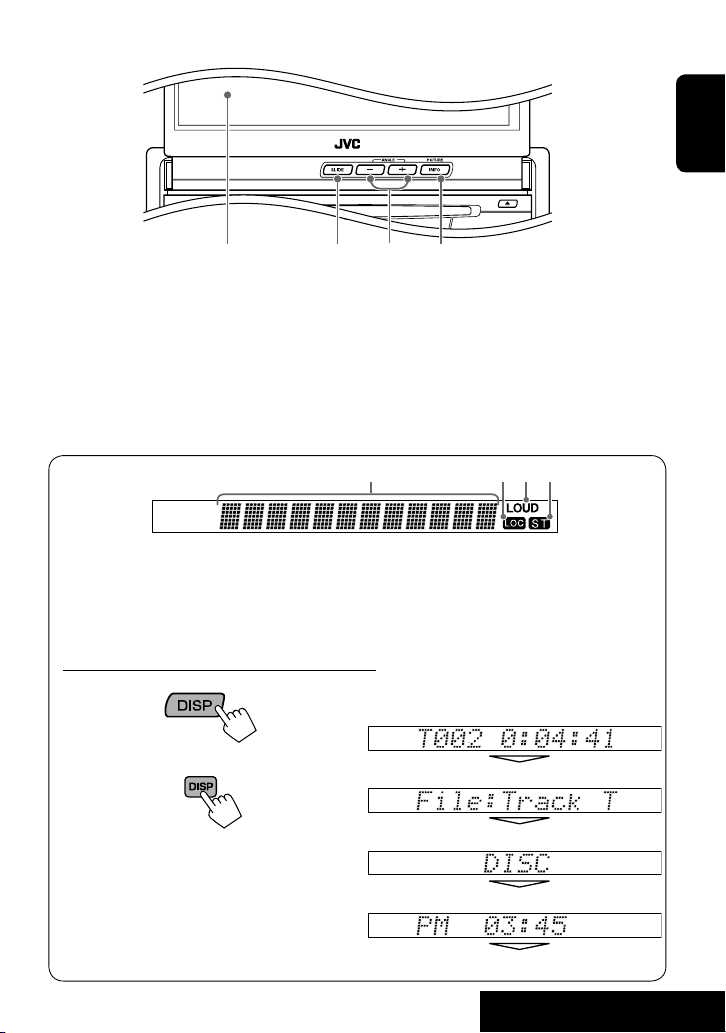

Display window
1Main display (See below.)
2Lights up when Local Tuning for FM is
activated. (☞page 12)
3Lights up when Loudness is activated. (☞
page 40)
On the unit:
On the remote:
Available display information varies according to the
playback source.
• Each time you press the button, the information
on the main display changes to show the various
information.
When the monitor panel is opened
Ex.: For CD Text
Track number/playing time
Track title scrolls.
Source
Clock
(back to the beginning)
To change the information on the main display:
4Lights when receiving an FM stereo broadcast
with sufficient signal strength.
• When the monitor panel is opened, the display
window turns off.
oMonitor
• The touch panel operations are available.
;Slides the monitor panel forward/backward.
a• Changes the angle of the monitor panel.
• Adjusts the brightness of the monitor when
the adjustment bar is displayed.
• Adjusts the picture from the external
components when “Picture Menu” is displayed.
s• “TUNER/DISC/USB/SD/iPod”: Displays the
current station/track information on the
monitor.

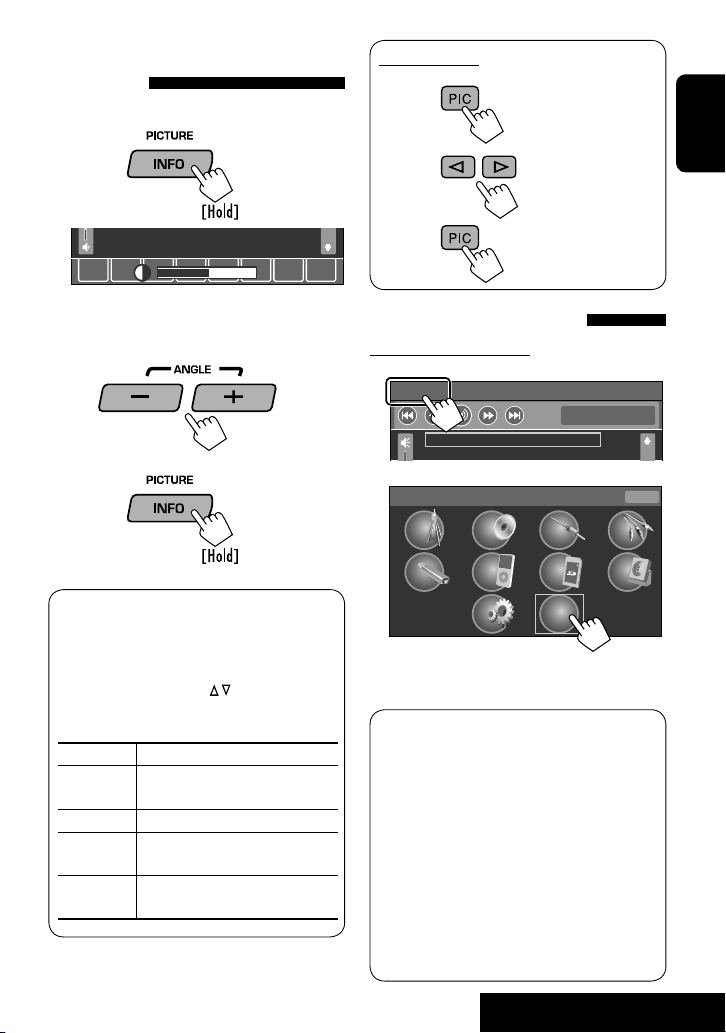

• Displays the brightness adjustment bar or
“Picture Menu” if pressed and held.
EN01_KD-AV7100_JW.indd 5EN01_KD-AV7100_JW.indd 5 08.7.8 2:11:33 PM08.7.8 2:11:33 PM

ENGLISH
6
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
If the range of effectiveness of the remote controller
decreases, replace the battery.

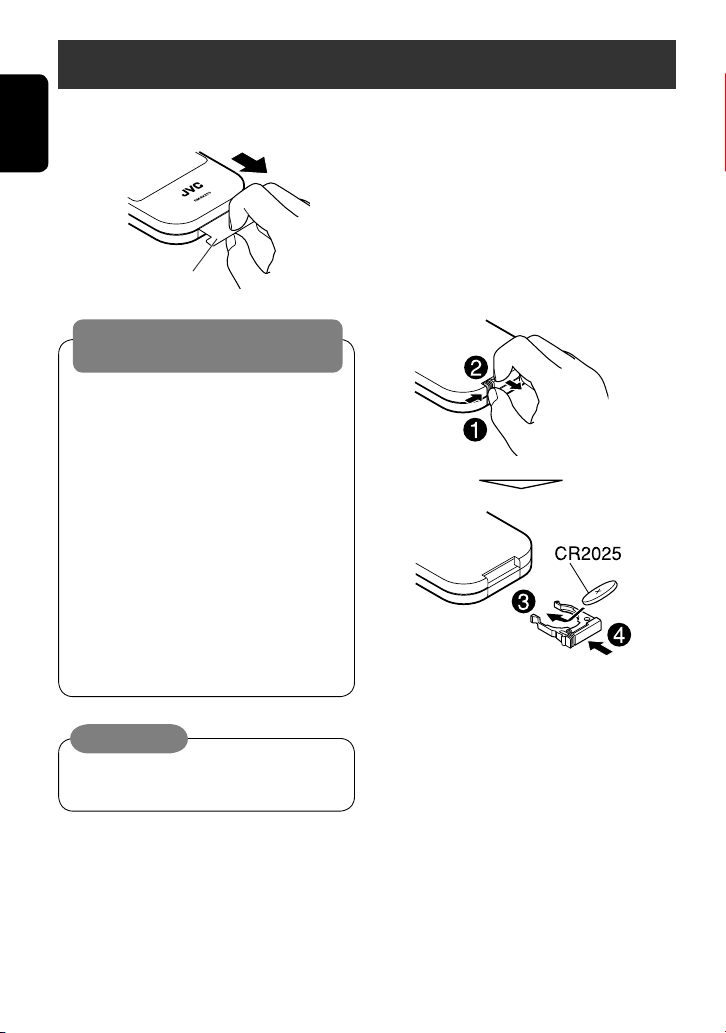

To replace the battery:

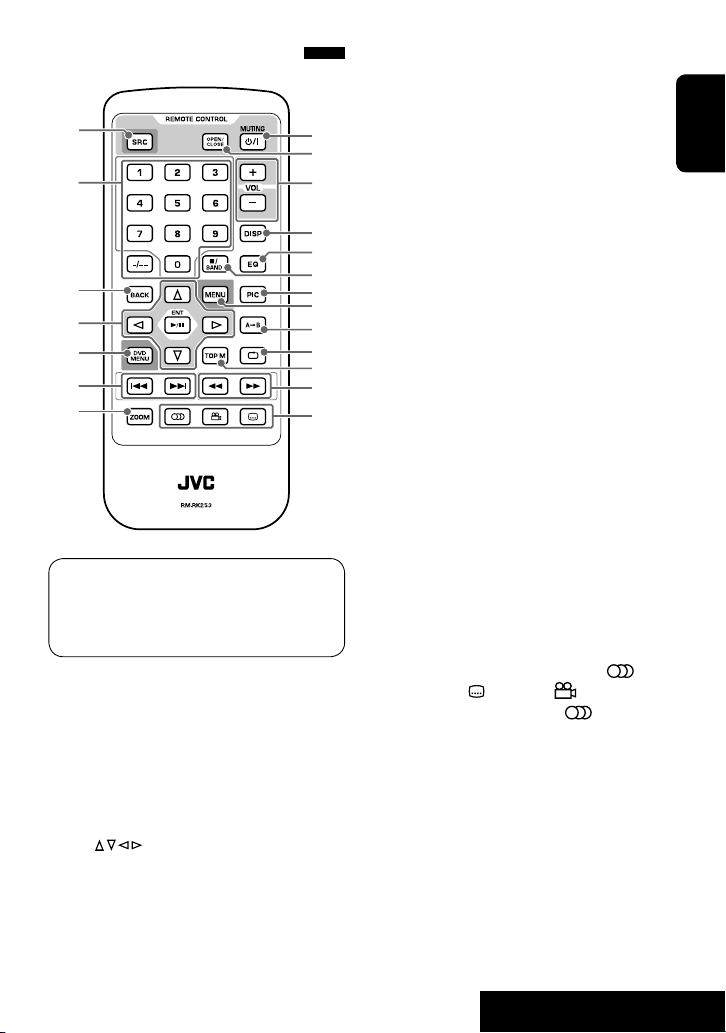

Basic operations — Remote controller (RM-RK253)
When you use the remote controller for the first time,
pull out the insulation sheet.
Warning:
To prevent accidents and damage
• Do not install any battery other than CR2025 or its
equivalent.
• Do not leave the remote controller in a place
(such as dashboards) exposed to direct sunlight
for a long time.
• Store the battery in a place where children cannot
reach.
• Do not recharge, short, disassemble, or heat the
battery or dispose of it in a fire.
• Do not leave the battery with other metallic
materials.
• Do not poke the battery with tweezers or similar
tools.
• Wrap the battery with tape and insulate when
throwing away or saving it.
Caution:
Battery shall not be exposed to excessive heat such
as sunshine, fire or the like.
Insulation sheet
AV7100_inst[JW].indb 6AV7100_inst[JW].indb 6 08.5.19 11:11:50 PM08.5.19 11:11:50 PM

o
;
p
3
6
1
9
q
w
e
r
t
y
u
i
4
5
7
2
8
7
ENGLISH
INTRODUCTION
Operations are explained mainly using the touch
panel; however, you can use the buttons on the
unit and remote controller if they have the same or
similar names or marks.
1Selects the source.
2• Enters numbers.
• “TUNER”: Selects the preset stations.
• DVD/VCD: Performs title/chapter (track)/time
search.
• DivX/MPEG/JPEG/CD/MP3/WMA, “USB/SD/
iPod”: Selects track.
3Returns to the previous screen.
4• : Selects items/options.
• ENT: Confirms the selection/setting.
• “DISC/USB/SD/iPod“: 6: Plays/pauses.
Main elements and features 5DVD: Displays the disc menu.
6• “TUNER”: Performs Auto Search.
• “DISC/USB/SD/iPod”: Reverse skip/forward
skip.
7“DISC/USB/SD“: Enlarges the playback picture.
8• Turns on the power.
• Mutes the sound if the power is on.*1
• Turns off the power if press and held.
9Opens/closes the monitor panel.
pAdjusts the volume level.
q• Changes the information on the display when
the monitor panel is closed.
• “TUNER/DISC/USB/SD/iPod”: Displays the
current station/track information on the
monitor when the monitor is opened.
w*2• Displays the audio setting screen.
• Displays the speaker adjustment screen while
enjoying multi-channel surround playback.
e• “TUNER”: Selects the bands.
• “DISC/USB/SD/iPod“: Stops playback.
r*2Displays the brightness adjustment bar or
“Picture Menu.”
t*2Displays or exits “Main Menu” of the unit.
y“DISC/USB/SD“: Performs A-B Repeat.
u“DISC/USB/SD/iPod”: Selects Repeat Mode.
i• DVD: Displays the disc menu.
• VCD: Turns on/off the PBC function.
o• “TUNER”: Performs Manual Search
• “DISC/USB/SD/iPod”: Reverse search/forward
search
;• DVD Video: Selects audio language ( ),
subtitles ( ), and angle ( ).
• VCD: Selects audio channel ( ).
*1Muting is automatically canceled as you change the
source.
*2Use these buttons when the monitor panel is opened.
EN01_KD-AV7100_JW.indd 7EN01_KD-AV7100_JW.indd 7 08.7.8 11:22:40 AM08.7.8 11:22:40 AM

ENGLISH
8
Playable disc type
Disc type Recording format, file type, etc. Playable
DVD DVD Video (Region Code: 4)*1
DVD Audio
DVD-ROM
DVD Recordable/Rewritable
(DVD-R/-RW*2, +R/+RW*3)
• DVD Video: UDF bridge
• DivX/MPEG1/MPEG2/JPEG/MP3/
WMA: ISO 9660 level 1, level 2,
Romeo, Joliet
DVD Video
DivX*4/MPEG1/MPEG2
JPEG
MP3/WMA
WAV/AAC
MPEG4
DVD-VR/DVD+VR
DVD-RAM
DualDisc DVD side
Non-DVD side
CD/VCD Audio CD/CD Text (CD-DA)
VCD (Video CD)
DTS-CD
SVCD (Super Video CD)
CD-ROM
CD-I (CD-I Ready)
CD-G
CD Recordable/Rewritable
(CD-R/-RW)
• ISO 9660 level 1, level 2, Romeo,
Joliet
CD-DA
MP3/WMA
JPEG
DivX/MPEG1/MPEG2
WAV/AAC
MPEG4
*1If you insert a DVD Video disc of an incorrect Region Code, “Disc region incorrect” appears on the monitor.
*2DVD-R recorded in multi-border format is also playable (except for dual layer discs).
DVD-RW dual layer discs are not playable.
*3It is possible to play back finalized +R/+RW (Video format only) discs.
+RW double layer discs are not playable.
*4DivX Ultra is not playable.
Caution for DualDisc playback
The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore,
the use of Non-DVD side of a DualDisc on this product may not be recommended.
AV7100_inst[JW].indb 8AV7100_inst[JW].indb 8 08.6.24 3:10:31 PM08.6.24 3:10:31 PM

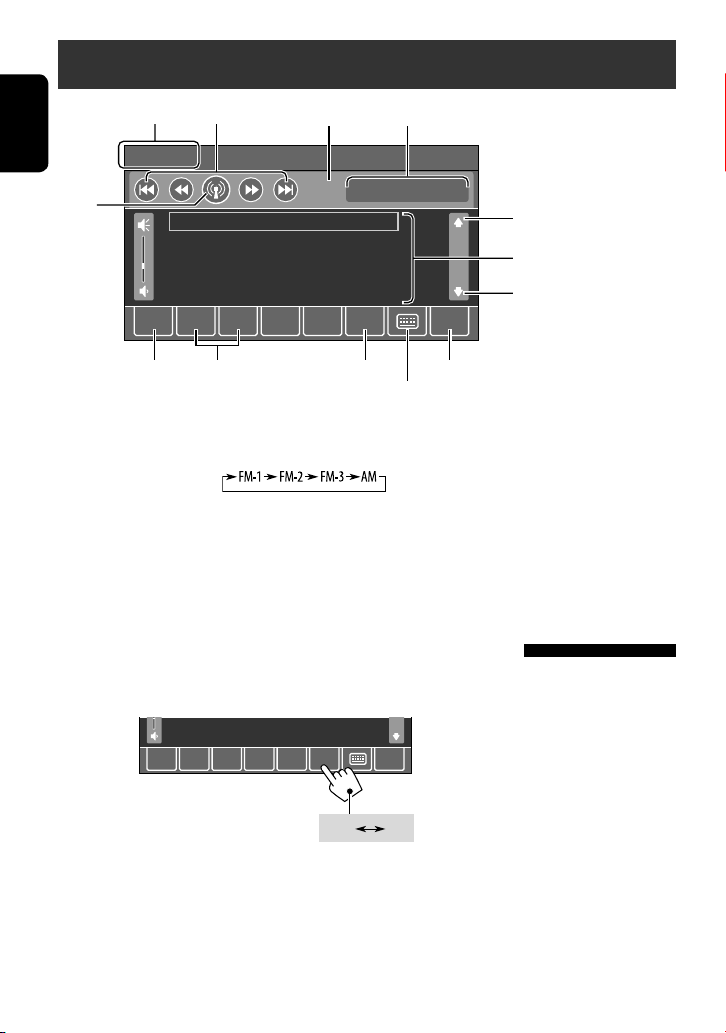

AS PS SCAN DX DISP
FM-1 87.5 MHzST
12:00 AMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
21
Main Menu BACK
CAMERA
DISC
iPod SD
LOCK
SET UP
AUX IN AV-IN TUNER
USB
MONITOR
OFF
SETUP MENU
Radio : S-Amer1
Clock : 12:00 AM
Clock Mode : 12Hr
TFT Auto Open : Off
Version B/E:901.04.1.080512
General
Audio ASP MISC
Language
BACK
SETUP MENU
General
Audio ASP MISC
Language
BACK
SETUP MENU
Radio : S-Amer1
Clock : 03:45 AM
Clock Mode : 12Hr
TFT Auto Open : Off
Version B/E:901.04.1.080512
General
Audio ASP MISC
Language
BACK
AM PM
1 2 3
4 5 6
7 8 9
0 OK
3 : 45
1
2
SETUP MENU
Radio : S-Amer1
Clock : 03:45 PM
Clock Mode : 12Hr
TFT Auto Open : Off
Version B/E:901.04.1.080512
General
Audio ASP MISC
Language
BACK
OPERATIONS
9
ENGLISH
Clock setting
Before operating the unit, set the clock.
• If no operation is done for about 15 seconds, the
menu operation will be canceled.
Indication language:
In this manual, English indications are used
for purpose of explanation. You can select the
indication language on the monitor. (☞page 42)
On the touch panel only:
1
2
Return to the previous screen.
3Adjust the clock.
Ex.: When setting to “3:45 PM”
4Finish the procedure.
(twice)
Cancels the last entry.
3=4=5=OK
EN02_KD-AV7100_JW.indd 9EN02_KD-AV7100_JW.indd 9 08.6.9 0:16:55 PM08.6.9 0:16:55 PM

15
AS PS SCAN
10
DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
Volume level indication
Playback picture
On the unit: On the remote:
10
ENGLISH
Adjusting the volume level
On the unit:
On the remote:
Selecting the playback source
• Available sources differ depending on the external
devices or components you have connected and
media you have inserted.
1
2
Common operations
Touch the target source.
Current source
AS PS SCAN DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
Main Menu BACK
CAMERA
DISC
iPod SD
LOCK
SET UP
AUX IN AV-IN TUNER
USB
MONITOR
OFF
• Each time you press the button, the source
changes as follows:
“DISC” =“AV-IN” =“TUNER” =“USB” =
“iPod” =“SD” =“CAMERA” * =“AUX IN”
=(back to the beginning)
*
*When the source is “CAMERA”...
–The sound of the source selected previously is
emitted from the speakers.
–Pressing SOURCE or SRC will change the source to
the one selected previously.
AV7100_inst[JW].indb 10AV7100_inst[JW].indb 10 08.6.24 3:10:33 PM08.6.24 3:10:33 PM

OPERATIONS
11
ENGLISH
Turning off the monitor
On the touch panel only:
1
2
To turn on the monitor, touch the monitor.
• Pressing any button will also turn on the monitor.
Dimmer function
According to the use of the dimmer function,
connect the ILLUMI lead as follows:
• For Auto Dimmer: Connect it to the car
headlight switch. When you turn on the car
lights, dimmer starts working—Auto Dimmer
• For Constant Dimmer: Connect it to the car
battery (constant 12 V). Dimmer works whenever
you turn on the power.
• For Dimmer Off: Connect it to nowhere.
See also the Installation/Connection Manual
(separate volume).
Adjusting the monitor
brightness
1Display the adjustment bar.
• If no operation is done for about 5 seconds, the
adjustment bar will disappear.
2Adjust the brightness.
3Finish the procedure.
Picture adjustment for “AV-IN” and “CAMERA”
When the source is “AV-IN” or “CAMERA” and
video signals are coming in, “Picture Menu” screen
appears in step 1above.
Press PICTURE on the unit or on the remote to
select an item to adjust, then adjust it by following
step 2above.
Sharpness Adjust the sharpness.
Color Adjust the color of the picture—
lighter or darker.
Contrast Adjust the contrast.
Brightness Adjust if the picture is too bright or
too dark.
Tint Adjust the tint if the human skin
color is unnatural.
On the remote:
1
2
3
AS PS SCAN DX DISP
P-04 105.9 MHz
P-05 107.9 MHz
10
FM-1 87.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
Main Menu BACK
CAMERA
DISC
iPod SD
LOCK
SET UP
AUX IN AV-IN TUNER
USB
MONITOR
OFF
EN02_KD-AV7100_JW.indd 11EN02_KD-AV7100_JW.indd 11 08.7.8 2:12:08 PM08.7.8 2:12:08 PM

12
ENGLISH
Listening to the radio
~Select “TUNER” for the source.
(☞page 10)
ŸSelect the band.
• You can also use BAND on the unit and remote.
!Search for a station—Auto Search.
• Manual Search: Press 1or ¡repeatedly.
• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.
Tuning in to stations with sufficient signal strength
This function works only for FM bands. Once you have activated this function, it always works when searching for FM
stations.
The button changes to LOC and only stations with sufficient signal strength will be detected.
• Each time you press the button, the button alternates between DX and LOC.
Preset list
Current band/frequency
Display the preceding page.
Display the succeeding page.
☞page 13 ☞page 14 ☞below
☞page 13
☞page 14
AS PS SCAN DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
!
Ÿ
~ST indicator
AS PS SCAN DX DISP
P-04 105.9 MHz
P-05 107.9 MHz
LOC DX
AV7100_inst[JW].indb 12AV7100_inst[JW].indb 12 08.5.19 11:11:54 PM08.5.19 11:11:54 PM

OPERATIONS
13
ENGLISH
Selecting stored stations
• You can also tune in to a stored station by its preset
number.
Automatic Storing—AS
You can store 6 stations for each band.
Local stations with the strongest signals are searched
and stored automatically in the selected band.
• After storing stations, the unit tunes in to preset
number 1.
To stop Auto Storing, press AS again.
Manual storing
1Tune in to a station you want to store.
☞page 12
2Select a preset number.
The station selected in step 1is now stored in
preset number 4.
Cancels the last entry.
On the remote:
1
2
or
AS PS SCAN DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
1
2
AS PS SCAN DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
AS PS SCAN DX DISP
P-05 107.9 MHz
1 2 3
4 5 6
7 8 9
0 OK
– –
1
2
AS PS SCAN DX DISP
FM-1 92.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
AS PS SCAN DX DISP
FM-1 92.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 92.5 MHz
P-05 107.9 MHz
AS PS SCAN DX DISP
FM-1 92.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 92.5 MHz
P-05 107.9 MHz
2
1
AV7100_inst[JW].indb 13AV7100_inst[JW].indb 13 08.5.19 11:11:55 PM08.5.19 11:11:55 PM

AS PS SCAN DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
FM-1
AS PS SCAN DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
87.5 MHz
14
ENGLISH
Scanning stations
You can search for a station broadcasting the program
you want to listen to by previewing stations.
To scan all stations of the selected band
The unit searches for the available stations.
• When a station is detected, the unit tunes in to this
station for about 10 seconds (the frequency on the
monitor flashes), then start searching for the next
available station.
To stop scanning, press SCAN again.
To scan only the preset stations of the
selected band
The unit tunes in to the preset stations for about 10
seconds per station.
• After tuning in to all preset stations, the unit tunes in
to preset number 1.
To stop scanning, press PS again.
Changing the information on the
monitor
AS PS SCAN DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
2
1
AS PS SCAN DX DISP
FM-1 87.5 MHzST
3:45 PMTUNER
P-01 87.7 MHz
P-02 89.9 MHz
P-03 97.9 MHz
P-04 105.9 MHz
P-05 107.9 MHz
2
1
AV7100_inst[JW].indb 14AV7100_inst[JW].indb 14 08.5.19 11:11:55 PM08.5.19 11:11:55 PM

OPERATIONS
15
ENGLISH
Disc operations
The disc type is automatically detected, and playback starts automatically (for some discs: automatic start depends
on its internal program).
• Playback will stop after playing back all chapters/tracks on the disc.
If “ ” appears on the monitor, the unit cannot accept the operation you have tried to do.
• In some cases, without showing the message, operations will not be accepted.
Label side
Caution on volume setting:
Discs produce very little noise compared with other
sources. Lower the volume before playing a disc
to avoid damaging the speakers by the sudden
increase of the output level.

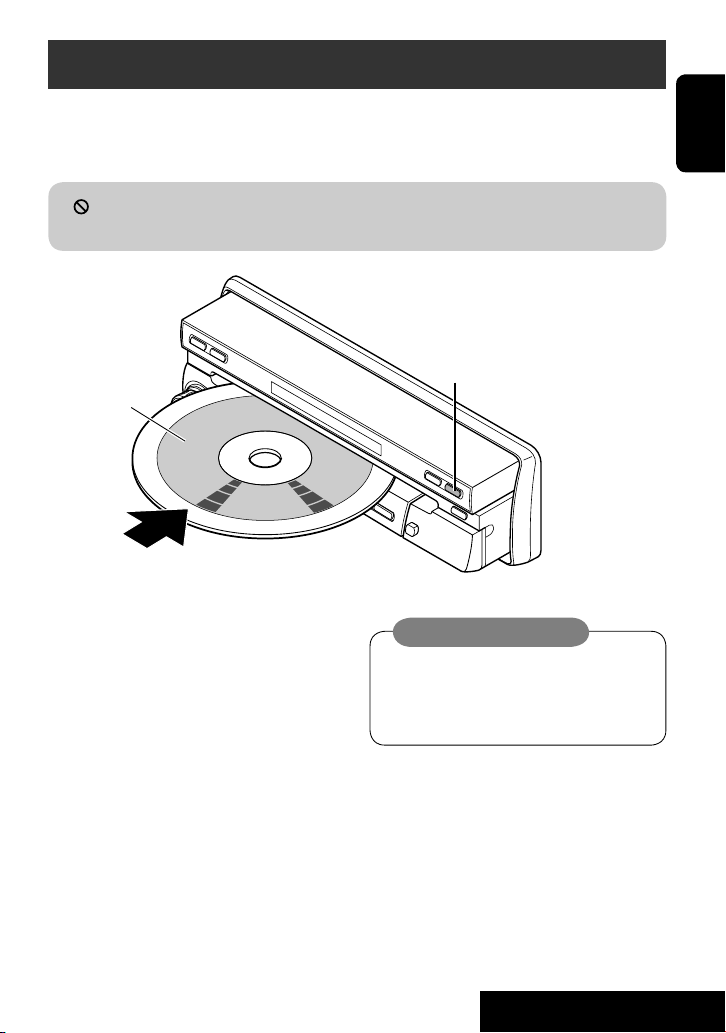

~Insert a disc.
• Without turning on the power, you cannot
insert the disc.
ŸOpen the monitor panel.
• If “TFT Auto Open” is set to “On,” the monitor automatically comes out when you turn on the unit. (☞page 42)
• For the space required for monitor ejection, see page 55.
~
Ÿ
AV7100_inst[JW].indb 15AV7100_inst[JW].indb 15 08.5.19 11:11:56 PM08.5.19 11:11:56 PM

16
ENGLISH
A
B
E
F
C
D
Basic touch operations
You can use the following 3 types of touch panel operations for disc playback.
• Touch operation on playback pictures
For
While playing back a picture, you can perform some operation just touch the specified area of the screen. (☞
below)
• Operation using the on-screen buttons
For
While playing back a picture, you can use the basic operation buttons displayed on the playback picture. (☞
page 17)
• Operation on the list screen
For
You can use the buttons on the list screen. (☞pages 18 and 19)
• For DivX/MPEG/JPEG, the list screen appears while playback is stopped.
Touch operation on playback pictures
Playback picture
ADisplays “Main Menu” of the unit.
BSkips to the previous chapter/track.
CDisplays the playback information.
(☞page 24)
DDisplays the on-screen buttons.
(☞page 17)
EDisplays the Search Screen.*1
(☞page 22)
FSkips to the next chapter/track.
• This function may not be available while displaying the main
menu of DVD Video.
AV7100_inst[JW].indb 16AV7100_inst[JW].indb 16 08.5.19 11:11:56 PM08.5.19 11:11:56 PM

OPERATIONS
17
ENGLISH
Starts playback/pauses. Stops playback.
Performs A-B Repeat.
(☞page 26)
Forward search*3
Selects Repeat Mode. (☞page 23)
Reverse search*3
*1Only for DVD Video/VCD
*2Only for DVD Video
*3Search speed: x2 ]x4 ]x8 ]x16 ](normal playback)
To resume normal playback during search, press 6.
*4Each time you press the on-screen button, the on-screen buttons disappear. To repeat the procedure, display the
on-screen button again.
Starts playback/pauses.
Stops playback. Performs A-B Repeat. (☞page 26)
Forward search*3
Selects audio language/
channel. (☞page 21)
Displays the main menu of DVD Video*2
Selects the subtitle
language.*2(☞page 21)
Selects Repeat Mode. (☞
page 23)
Playback picture
Reverse search*3
Operations using the on-screen buttons
• If no operation is done for about 15 seconds, the on-screen buttons disappear.
Stops playback.
Displays the thumbnail. (☞page 21)
Rotates the picture by 90°.
Playback picture
Playback picture
*4
*4
*4
EN03_KD-AV7100_JW.indd 17EN03_KD-AV7100_JW.indd 17 08.7.1 11:14:05 AM08.7.1 11:14:05 AM

18
ENGLISH
While stopped...
Operation on the list screen
To select track, touch the desired track name on the list.
While stopped...
Displays the contents of the next/
previous folder. (☞page 20)
3: Starts playback (Slide show).*1
1¡4¢: *2
Displays “Main Menu” of the unit.
*2
Where playback has been stopped
*2
*2
Selects Repeat Mode. (☞page 23)
Displays the contents of
the next/previous folder.
(☞page 20) Displays the on-screen number buttons.
3: Starts playback.*1
1¡4¢: *2
Displays the
preceding page.
Displays the
succeeding page.
Track No./Total track No. in the current folder
Displays/hides the folder/track
list.
Displays “Main Menu” of
the unit.
*2
SCAN DISP
01/14 00:01:35
3:45 PMDISC CD-R DivX
. .Current Folder Name
File Name
File Name
File Name
File Name
7
7Stop
Displays the
preceding page.
Displays the
succeeding page.
Displays/hides the folder/track
list.
Selects Repeat Mode. (☞page 23)
Displays the on-screen number buttons.
*2SCAN DISP
3:45 PMDISC JPEG
. .Current Folder Name
File Name
File Name
File Name
File Name
7
7Stop
*2
AV7100_inst[JW].indb 18AV7100_inst[JW].indb 18 08.6.24 3:10:38 PM08.6.24 3:10:38 PM

OPERATIONS
19
ENGLISH
*1When you start playback next time, playback will start from the first track of the current folder.
*2These buttons do not work.
*3While playback is paused or stopped, or during reverse/forward search, this button changes to 3(play).
*4Search speed: x2 ]x4 ]x8 ]x16 ](normal playback)
To resume normal playback during search, press 3.
*5Track number appears for conventional CDs (ex.: “Track08.CDA”).
Activates/deactivates Shuffle Mode.
(☞page 23)
Selects Repeat Mode. (☞page 23)
Track No./Total track No. in the current folder
Playing time
Stops playback.*1
Displays the contents of the next/previous folder.
(☞page 20)
Displays the on-screen number buttons.
8: Pauses.*3
1¡:
Reverse/forward
search*4
4¢:
Selects track.
File type (MP3/WMA)
Displays the
preceding page.
Displays the
succeeding page.
Displays the Tag information.
(☞page 24)
Track No./Total track No.
Stops playback.
Activates/deactivates Shuffle Mode.
(☞page 23)
Activates/deactivates Scan Mode. (☞page 23)
Displays the on-screen number buttons.
*5
8: Pauses.*3
1¡:
Reverse/forward
search*4
4¢:
Selects track.
Playing time
Displays the
preceding page.
Displays the
succeeding page.
Displays the disc text. (☞page 24)
Displays “Main Menu” of the unit.
SCAN DISP
01/14 01:35
3:45 PMDISC MP3
. .Current Folder Name
File Name
File Name
File Name
File Name
7
Displays “Main Menu” of the unit.
SCAN DISP
01/14 01:35
3:45 PMDISC CDDA
Track Title
Track Title
Track Title
Track Title
Track Title
7
Selects Repeat Mode. (☞page 23)
Activates/deactivates Scan Mode. (☞page 23)
AV7100_inst[JW].indb 19AV7100_inst[JW].indb 19 08.5.19 11:11:59 PM08.5.19 11:11:59 PM

20
ENGLISH

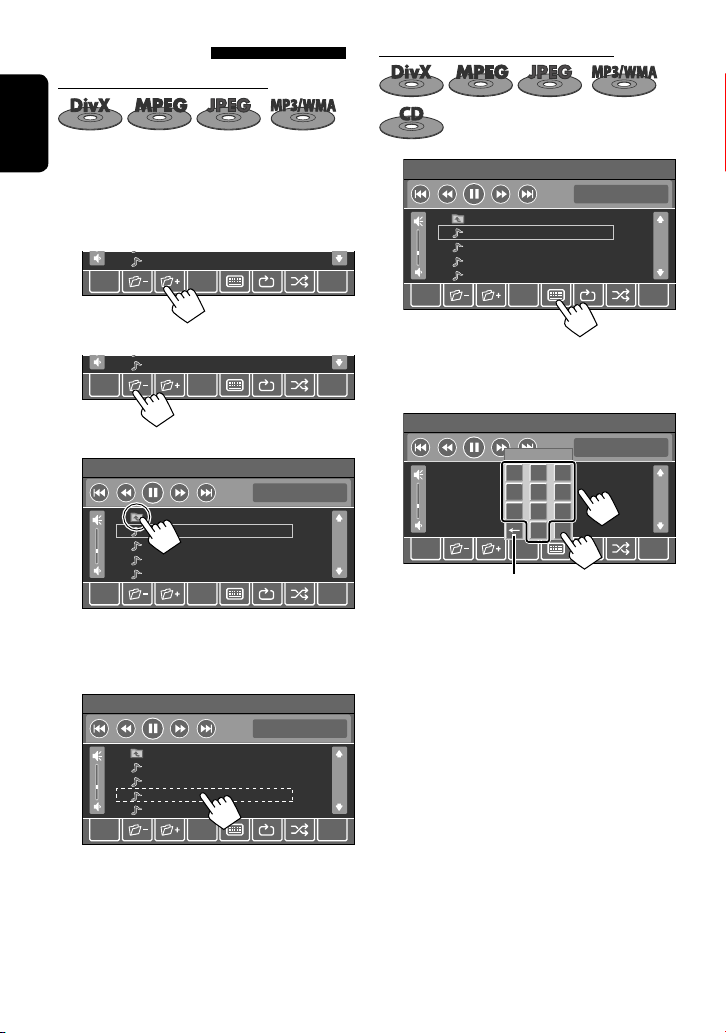

To select a track by its track number
For DivX/MPEG/JPEG: While stopped
1
2Enter the desired track number.
• For DivX/MPEG/JPEG/MP3/WMA: Specify the
track number in the current folder.
Selecting a track
To select a track in other folders
For DivX/MPEG/JPEG: While stopped
• Available only when folder/track list is displayed.
1Select a folder.
• To select the next folder:
• To select the previous folder:
• To select the folder of the upper level:
The contents of the folder containing the folder
touched are displayed.
2Select a track.
Cancels the last entry.
7SCAN DISP
File Name
7SCAN DISP
File Name
7SCAN DISP
01/14 01:35
3:45 PMDISC MP3
. .Current Folder Name
File Name
File Name
File Name
File Name
7SCAN DISP
01/14 01:35
3:45 PMDISC MP3
. .Current Folder Name
File Name
File Name
File Name
File Name
7SCAN DISP
01/14 01:35
3:45 PMDISC MP3
. .Current Folder Name
File Name
File Name
File Name
File Name
. .
File Name
File Name
File Name
File Name
7SCAN DISP
01/14 01:35
3:45 PMDISC MP3
1 2 3
4 5 6
7 8 9
0 OK
– – – –
1
2
AV7100_inst[JW].indb 20AV7100_inst[JW].indb 20 08.5.19 11:11:59 PM08.5.19 11:11:59 PM
