JVC LT-26S60SU User manual

LT-37S60BU
LT-32S60BU LT-32S60SU
LT-26S60BU LT-26S60SU
ENGLISH
WIDE LCD PANEL TV INSTRUCTIONS
16:9 LCD TV BEDIENUNGSANLEITUNG
TELEVISEUR A ECRAN LCD PANORAMIQUE MANUEL D’INSTRUCTIONS
BREEDBEELD LCD TV GEBRUIKSAANWIJZING
TELEVISOR CON PANEL LCD PANORÁMICO MANUAL DE INSTRUCCIONES
TV LCD WIDESCREEN ISTRUZIONI
TELEVISOR COM ECRÃ PANORÂMICO DE INSTRUÇÕES
CRISTAL LÍQUIDO
DEUTSCH
FRANÇAIS
NEDERLANDS
CASTELLANO
ITALIANO
PORTUGUÊS
LCT1848-001B-U
LCT1848-001B-U_Cover.fm Page 1 Wednesday, June 1, 2005 1:26 PM

1
Expanding the world of
LCT1848-001A-U_EN_v7.fm Page 1 Monday, April 18, 2005 1:45 PM

2
ENGLISH
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
Enjoy rich multi-media with JVC
VHF/UHF
Digital camera
Video camera
Game console
Audio components
VCR DVD player
DVD recorder
Personal
Computer
beautiful images
Contents
First things first!
· Registering channels
Warning 3
Getting started
Names of all the parts
Basic connections
Initial settings
Editing channels
5
7
9
11
· TV / Teletext / Video / etc.
Let's try it out
Enjoying your new TV! 15
Watching TV
Viewing teletext
Watching videos / DVDs
· Take a snapshot
· View and search in multi-picture mode
· Sleep timer / Child lock
Try the advanced features
Useful functions 23
· Reduce noise / Watch a more natural picture
· Set the aspect ratio, etc.
Just the way you like it
Customising your TV
Advanced picture adjustment
25
27
When you have trouble
Troubleshooting
Technical information
CH/CC List
Specifications
29
32
33
34
17
19
21
Connecting external devices 13
LCT1848-001A-U_EN_v7.fm Page 2 Monday, April 18, 2005 1:45 PM

3
Never cut or damage
the power cord!
Follow this manual
regarding setup!
Unplug the power cord
when going out!
Never insert objects
into the cabinet
openings!
Never place anything
on the TV!
Never try to repair
the TV yourself!

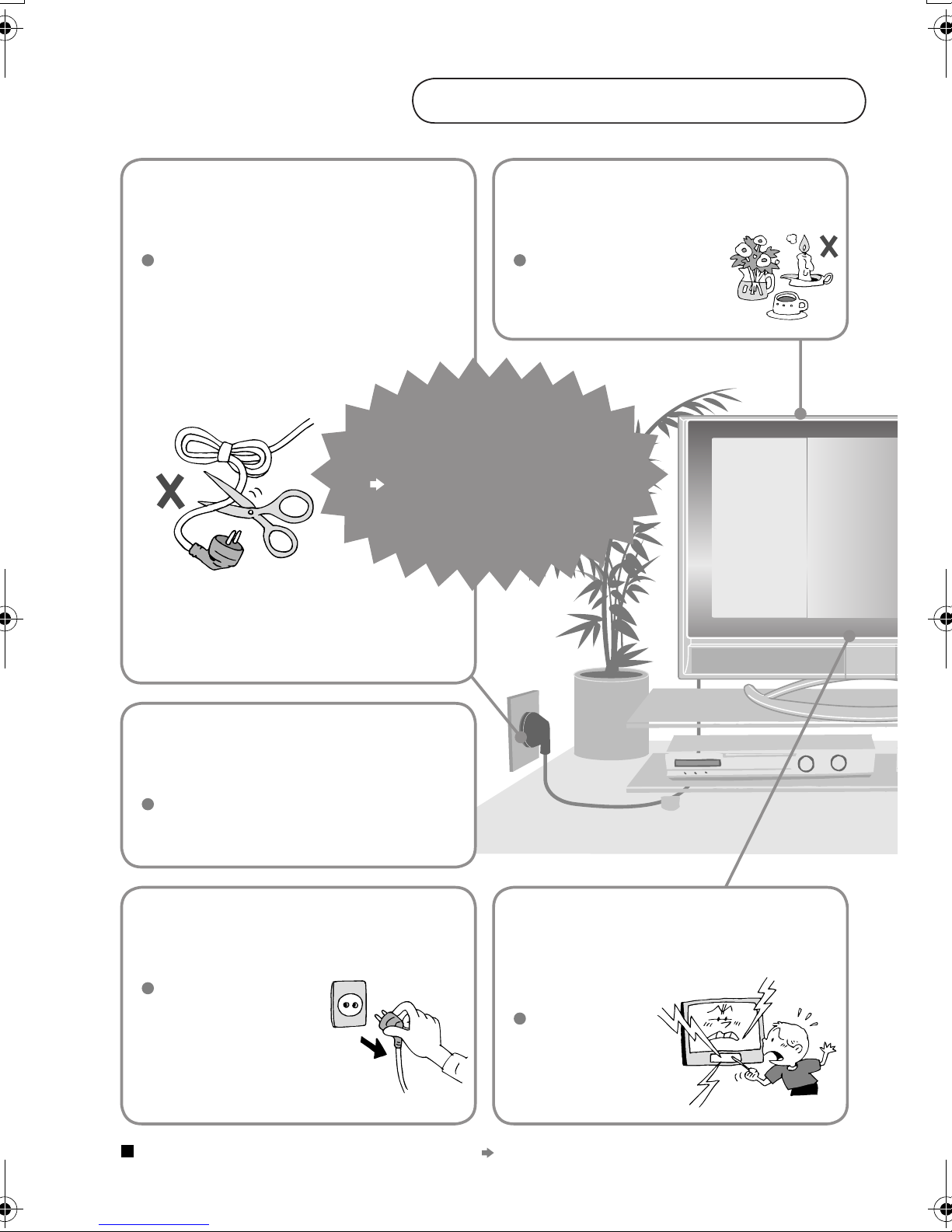

Please follow all the guidelines below
Warning
For more details on installation, usage and safety Consult your retailer
Connect only to a 110-240V, 50/60Hz AC
outlet.
The power buttons on
the remote control and
the TV unit cannot
completely turn off the
TV. (Make appropriate
arrangements for
bedridden people.)
It may cause a
fatal electric
shock.
Take care when
children are near.
Placing liquids, naked
flames, cloths, paper,
etc. on the TV may
cause a fire.
If the problem cannot be solved in
"Is it broken?" (P. 29), unplug
the power cord and contact
your retailer.
If the AC plug is not the right shape,
or the power cord is not long enough,
use an appropriate plug adapter
or extension cable.
(Consult your retailer.)
LCT1848-001A-U_EN_v7.fm Page 3 Monday, April 18, 2005 1:45 PM

4
ENGLISH
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
Never dismantle the
rear panel!
If the TV is damaged
or behaving strangely,
stop using it at once!
Unplug the power cord and contact
your retailer.
It may cause an electric shock.
Never obstruct the
ventilation holes!
It may cause overheating or a fire.
Handle LCD panel
with care!
Use a soft, dry cloth when cleaning.
Never expose to rain
or moisture!
To prevent fire or
electric shock, never
allow liquids to enter
the unit.
Hold the TV so as not to
scratch the screen!
Do not touch the screen when carrying the
TV.
Do not carry the
TV on your own!
In order to prevent accidents,
ensure that the TV is carried
by two or more people.
Consult a qualified technician.
See the included manual on mounting
procedures.
JVC assumes no responsibility for damage
due to improper mounting.
When attaching the TV to
the wall, use the optional
JVC wall mounting unit!
Do not allow the TV
to fall!
Do not rest your elbows on, or allow children
to hang from the TV.
There is a risk that the TV will fall and cause
injuries.
Never listen to
headphones at high
volume!
It may damage your hearing.
LCT1848-001A-U_EN_v7.fm Page 4 Monday, April 18, 2005 1:45 PM

5
Check accessories
Remove the terminal covers
Change the direction of TV
P
MENU
/OK
TV/AV
Change channel / page
Volume

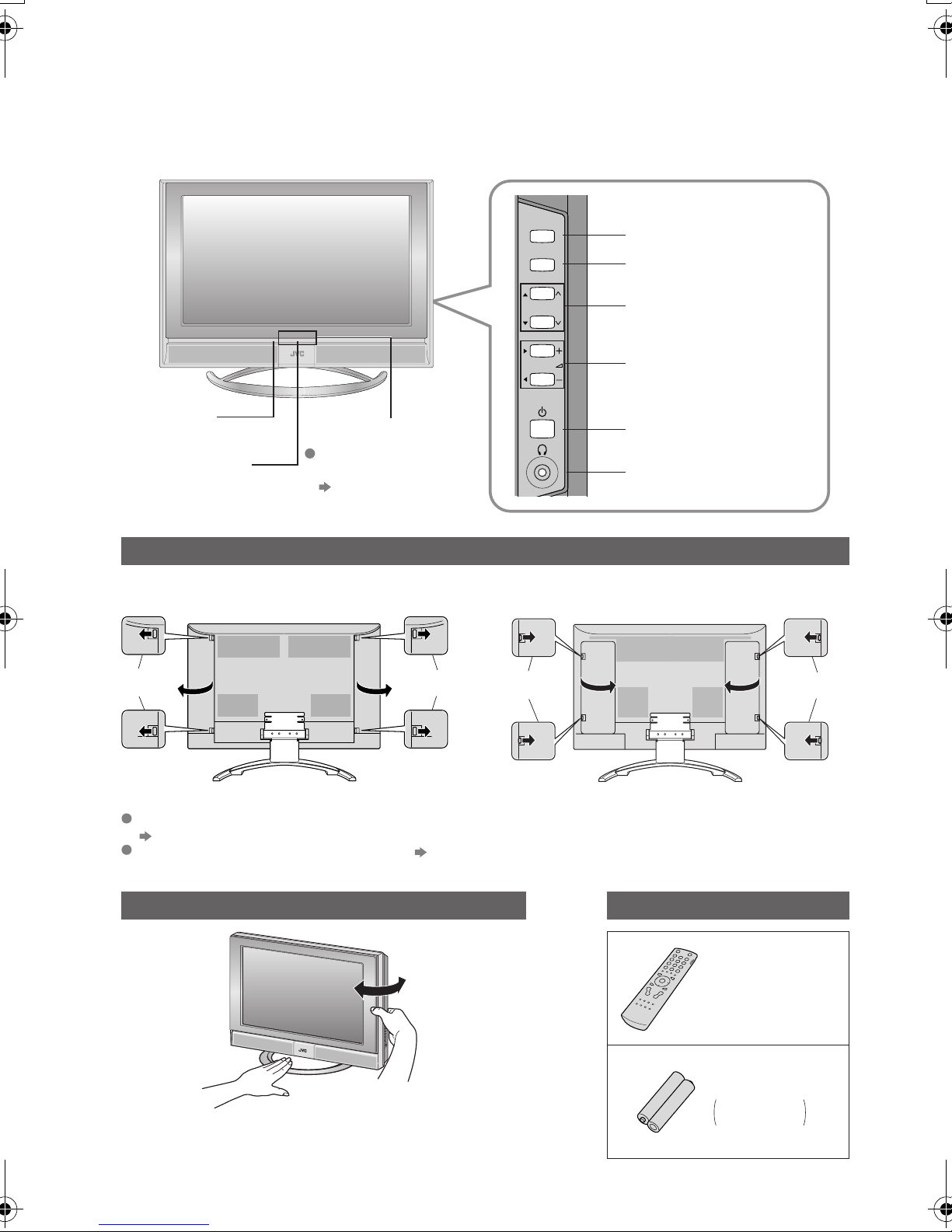

Names of all the parts

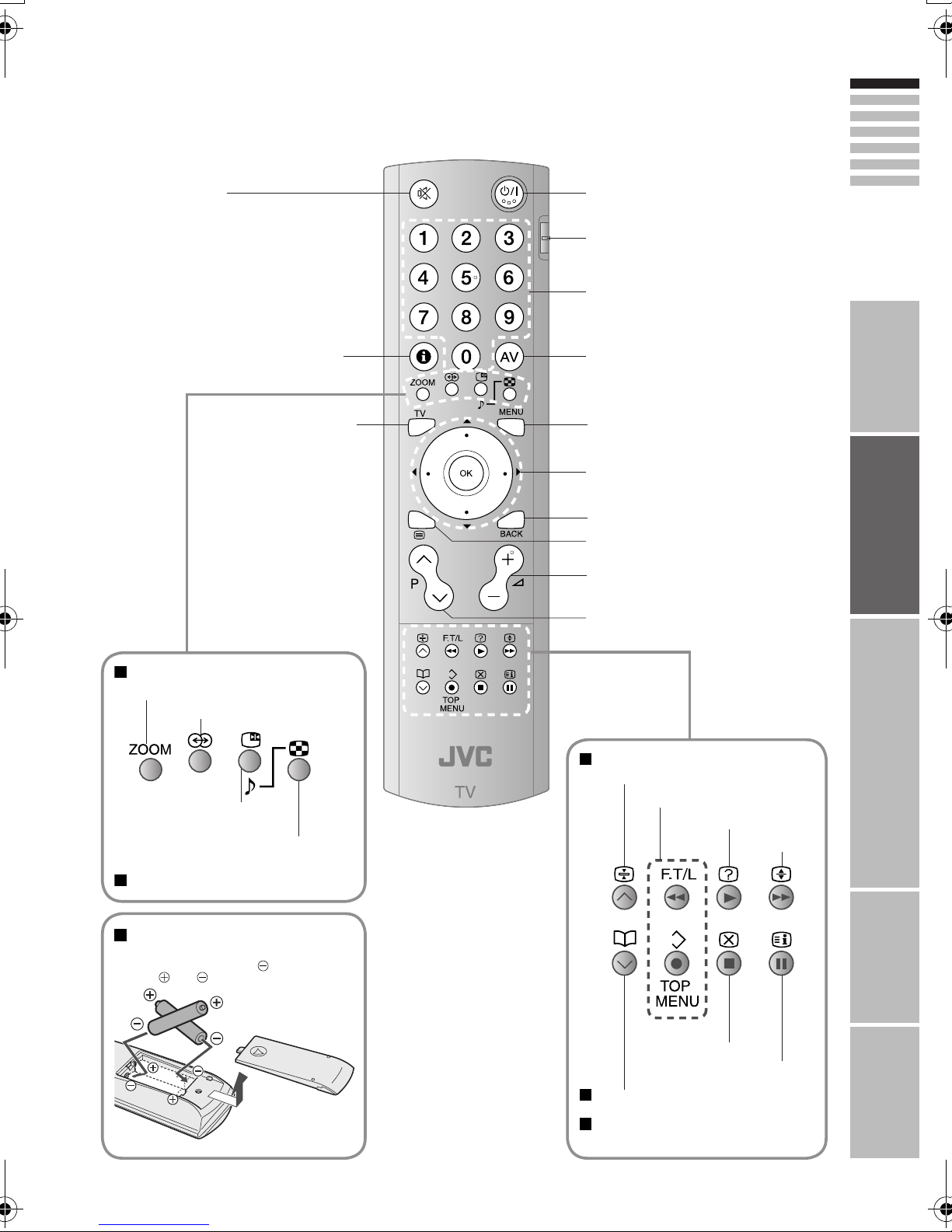

Remote control
(RM-C1811H)
AA/R6 Batteries
For confirming
the TV works
Power On/Off
Remote control
sensor
Power lamp
ON: Lit (Blue)
OFF: Unlit
To headphones
Display on-screen
menu / set
Switch between
TV / AV devices
(P. 13)
Illumination lamp
If the cover cannot be closed due to the cables being in the way
Do not force the cover to close (leave it open).
Connecting terminals on the back of the TV Connecting External devices (P. 13)
Press to
remove.
Press to
remove.
Illumination lamp lights
while the TV is on.
“ILLUMINATION” (P.26)
LT-32S60BU/SU, LT-26S60BU/SU LT-37S60BU
Press to
remove.
Press to
remove.
LCT1848-001B-U_EN_v7.fm Page 5 Wednesday, June 1, 2005 11:24 AM

6
ENGLISH
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
When watching TV
When operating a JVC VCR
or DVD
Change the aspect ratio (P. 17)
Turn on 3D sound (P. 17)
Take a snapshot of the
screen (P. 23)
View in multi-picture
mode (P. 23)
Hold the current page
(P. 19)
Bookmark pages
Reveal hidden pages
Enlarge the text
Switch briefly
between teletext and TV
To index page
(P. 17)
Return to TV
Power On / Off
Change the channel / page
Watch video, etc. (P. 21)
Select and
confirm settings in menus
To the previous channel
To teletext (P. 19)
Volume
Change the channel / page
Switch between VCR / TV / DVD
(P. 21)
(P. 21)
When watching TV / Video
Mute
When viewing teletext
Insert the batteries
Use two AA/R6 dry cell batteries.
Insert the batteries from the end, making
sure the and polarities are correct.
Channel information
(P. 17)
To menu (P. 25)
(P. 19)
When viewing teletext
LCT1848-001A-U_EN_v7.fm Page 6 Monday, April 18, 2005 1:45 PM

7

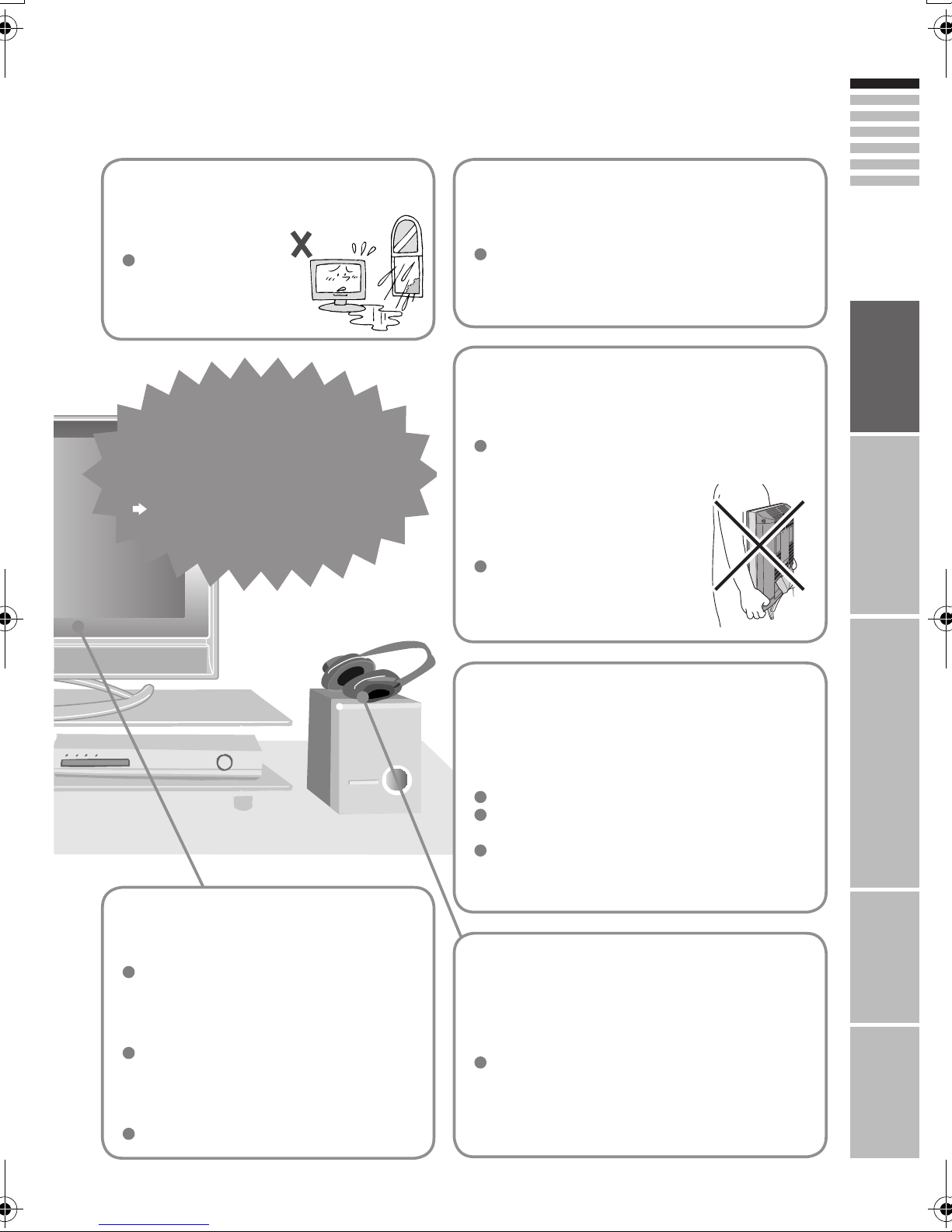

Care when setting
Connect the aerial
Basic connections
Please read the user manuals of each device carefully before setup.
It is necessary to connect an aerial to watch TV.
Connect with other devices "Connecting external devices" (P. 13)
200mm
50mm150mm 150mm 50mm
Right side of back surface
After all the connections have been made, insert the plug into an AC outlet.
AERIAL
Power requirements
Connect the power cord only to a 110-240V,
50/60Hz AC outlet.
When attaching the TV to the wall, use the
optional JVC wall mounting unit
Consult a qualified technician.
See the included manual on mounting procedures.
JVC assumes no responsibility for damage due to
improper mounting.
Installation requirements
To avoid overheating, ensure the unit has ample
room.
LCT1848-001A-U_EN_v7.fm Page 7 Monday, April 18, 2005 1:45 PM

8
ENGLISH
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?

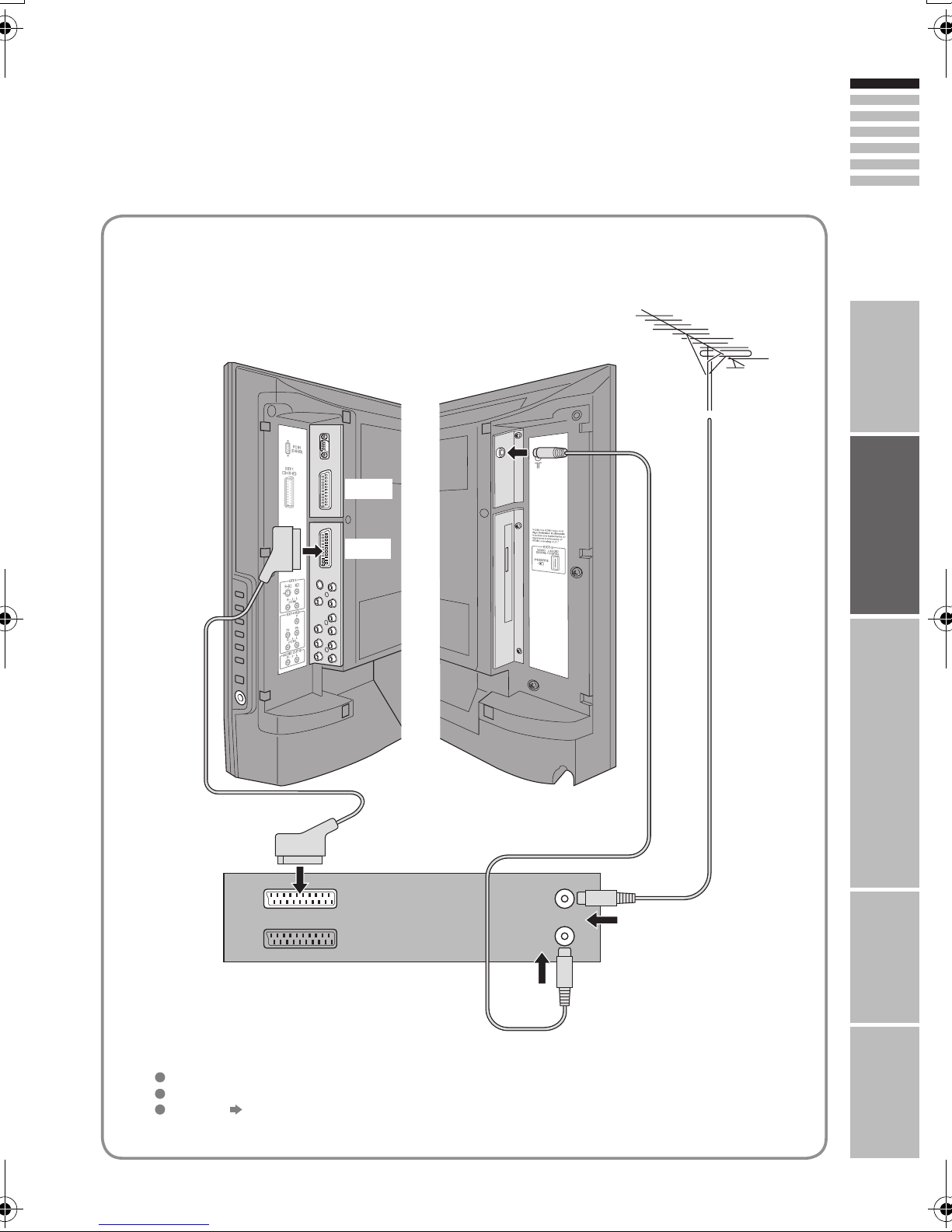

Connect a VCR / DVD recorder
AERIAL
VCR / DVD recorder
EXT-1
After all the connections have been made, insert the plug into an AC outlet.
Connect T-V LINK compatible recording device to EXT-2.
T-V LINK "What is T-V LINK?" (P. 9)
EXT-2
Right side of
back surface
Left side of
back surface
LCT1848-001A-U_EN_v7.fm Page 8 Monday, April 18, 2005 1:45 PM

9

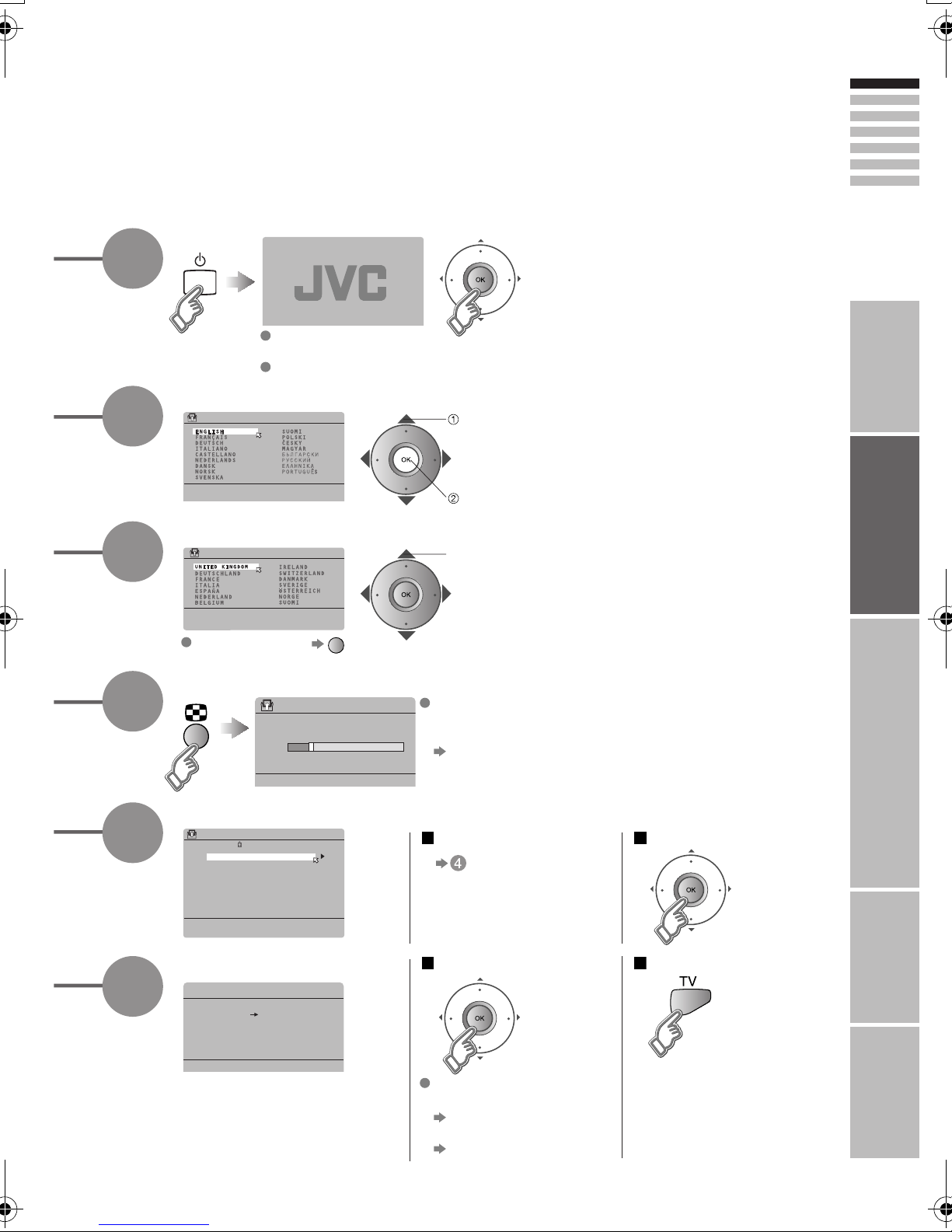

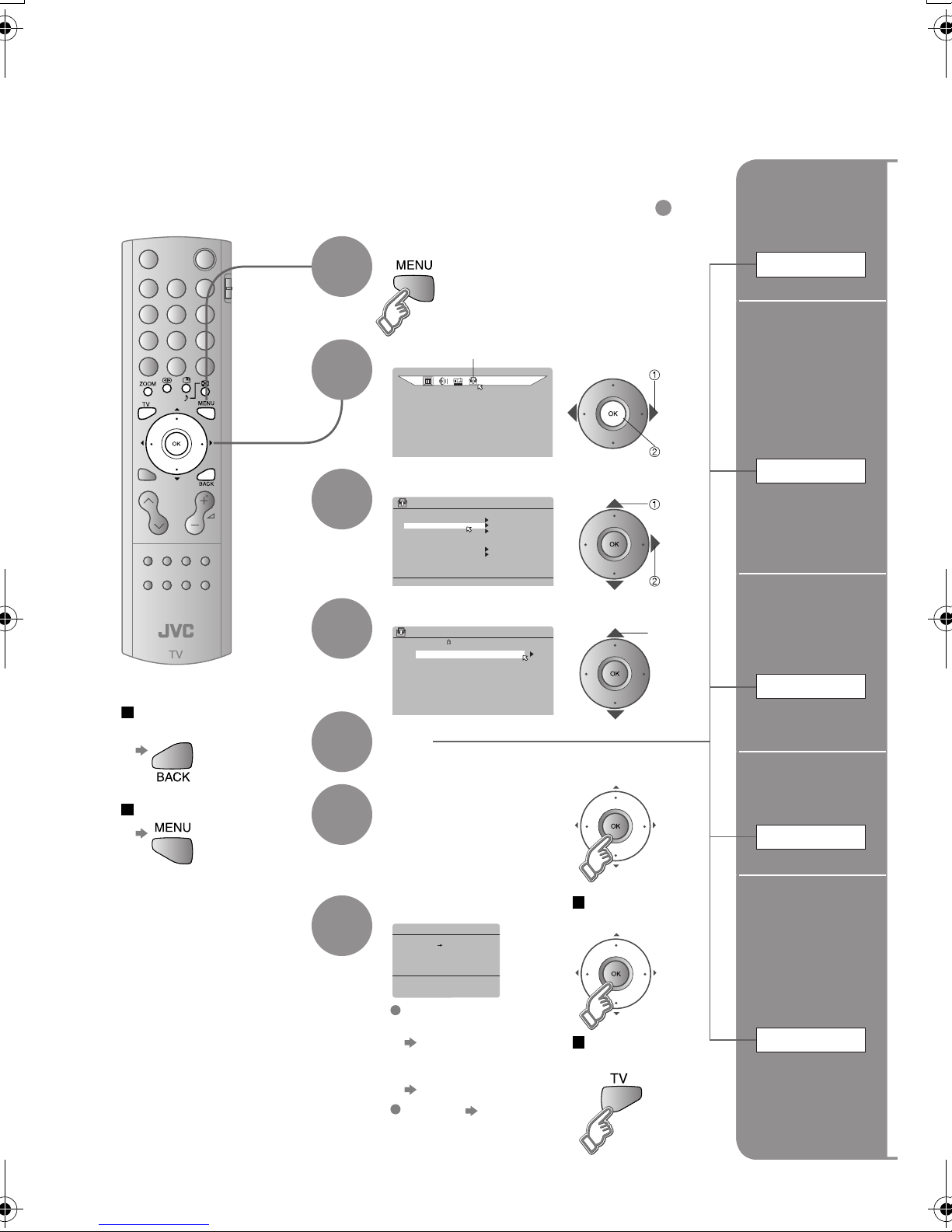

Initial settings
Set the menu language, installation location and automatically register the TV channels.
These channels can be edited later in "Editing channels" (P. 11).
(Channel data on the TV can be sent to a connected recording device that is compatible with T-V LINK.)
To the previous screen
If the "JVC" logo does not appear or
if you wish to make changes later
"LANGUAGE" and "AUTO PROGRAM"
(P. 26)
Exit
MENU
BACK
TV
What is "T-V LINK"?
Connecting the TV to a T-V LINK
compatible device allows :
“T-V LINK” (JVC) “Q-LINK” (Panasonic)
“Megalogic” (Grundig) “Data Logic” (Metz)
“SMARTLINK” (Sony) “Easy Link” (Philips)
T-V LINK variations
Channels on the TV to be instantly
registered on the device.
The "DIRECT REC" function to
be used.
"Technical information" (P. 32)
