BEFORE USEBEFORE USE
IMPORTANT
To ensure proper use, please read through this
manual before using this product. It is especially
important that you read and observe WARNINGS
and CAUTIONS in this manual. Please keep the
manual in a safe and accessible place for future
reference.
VWARNINGS: (To prevent accidents and
damage)
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
KW-VEntryU.indb2KW-VEntryU.indb2 2014/09/1019:492014/09/1019:49
ENGLISH 3
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit is
utilizing laser beams that are of a weaker class. There
is no danger of hazardous radiation outside the unit.
VCautions on the monitor:
• The monitor built into this unit has been
produced with high precision, but it may have
some ineffective dots. This is inevitable and is not
considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
For safety...
• Do not raise the volume level too much, as this
will make driving dangerous by blocking outside
sounds, and may cause hearing loss.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
RHow to reset your unit
If the unit fails to operate properly, press the reset
button.
KW-V21BT
KW-V11
KW-V41BT
BEFORE USEBEFORE USE
KW-VEntryU.indb3KW-VEntryU.indb3 2014/09/1019:492014/09/1019:49
4
INITIAL SETTINGSINITIAL SETTINGS
Initial setup
When you power on the unit for the first time or
reset the unit, the initial setting screen appears.
• You can also change the settings on the
<Settings> screen. (Page37)
1
KW-V21BT/KW-V11
KW-V41BT
<Demonstration>
(Page38)
Activate or deactivate the
display demonstration.
<Language>
(Page39)
Select the text language
used for on-screen
information.
• Set <GUI Language>
to display the operation
buttons and menu items
in the selected language
([Local]: initially
selected) or English
([English]).
<Angle>*1
(Page7)
Adjust the panel angle.
<AV Input>
(Page38)
Select an external
component connected to
the iPod/AV-IN terminal
to play.
<R-CAM
Interrupt>
(Page38)
Select [ON]when
connecting the rear view
camera.
<Panel Color>*1
(Page34)
Select the color of the
buttons on the monitor
panel.
<User
Customize>*2
(Page34)
Select the display design.
2Finish the procedure.
The Home screen is displayed.
• [AV Off] is selected initially. Select the
playback source. (Page9)
*1Only for KW-V41BT.
*2Only for KW-V21BT/KW-V11.
Clock settings
1Display the Home screen.
KW-V41BT KW-V21BT/KW-V11
2Display the <Settings> screen.
3Display the <Clock> screen.
KW-VEntryU.indb4KW-VEntryU.indb4 2014/09/1019:492014/09/1019:49
ENGLISH 5
INITIAL SETTINGSINITIAL SETTINGS
4Set the clock time.
Adjust the hour (1), then adjust the minute (2).
• Press [Reset] to set the minute to “00”.
5Finish the procedure.
BASICSBASICS
Component names and functions
VCaution on the volume setting:
Digital devices produce very little noise
compared with other sources. Lower the
volume before playing these digital sources
to avoid damaging the speakers by sudden
increase of the output level.
KW-V41BT

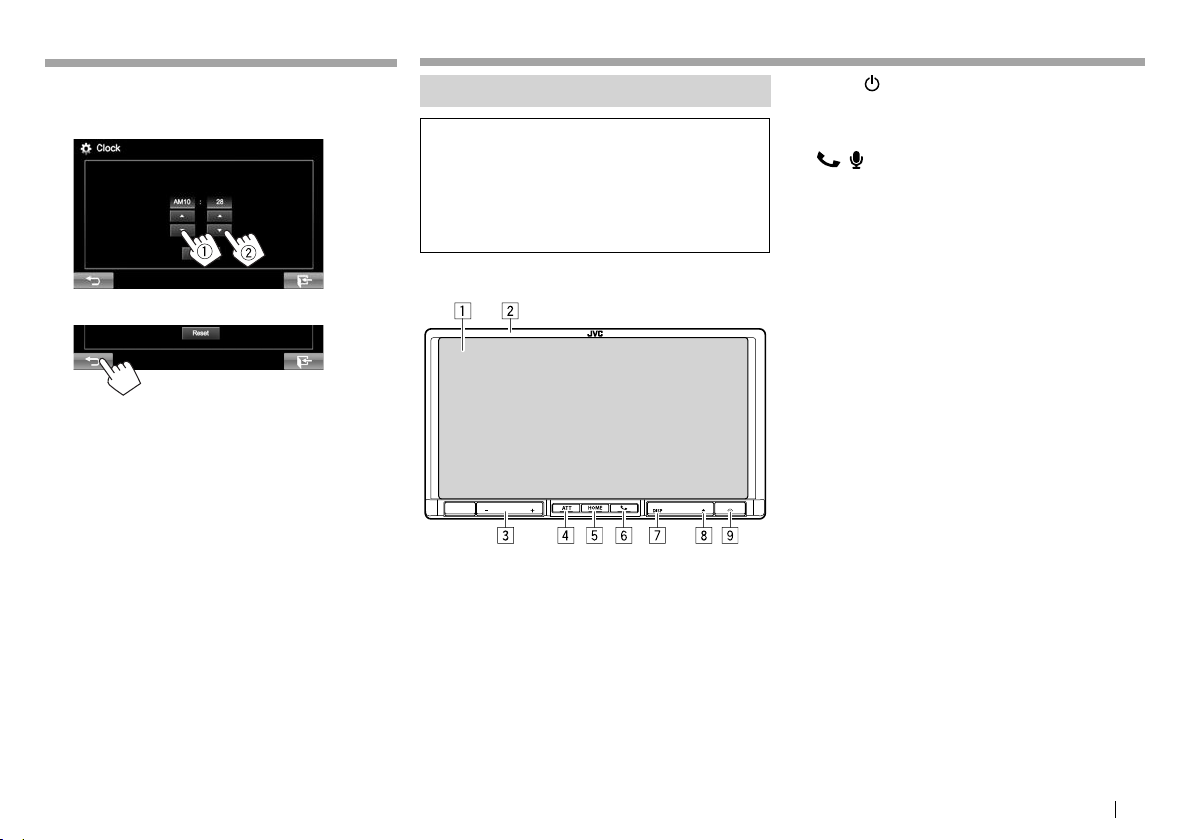

1Screen (touch panel)
2Monitor panel*
3VOLUME –/+ button
Adjusts the audio volume. (Page 7)
4ATT button
Attenuates the sound. (Page 7)
5HOME/ button
• Displays the Home screen. (Press) (Page 8)
• Turns on the power. (Press) (Page 6)
• Turns off the power. (Hold) (Page 6)
6/ button
• Displays the <Hands Free> screen. (Press)
(Page 26)
• Activates the voice dialing. (Hold) (Page 28)
7DISP/DISP OFF button
• Switches the screen. (Press)
– The screen switched to depends on the
<Input> setting in <Navigation Input>
(Page22).
• Turns off the screen. (Hold) (Page 7)
• Turns on the screen. (Hold) (Page 7)
8M(Eject) button
Ejects the disc (Tilts the monitor panel fully).
(Page 10)
9Reset button
Resets the unit. (Page 3)
* You can change the color of the buttons on the monitor panel.
(Page 34)
KW-VEntryU.indb5KW-VEntryU.indb5 2014/09/1019:492014/09/1019:49
6
BASICSBASICS
KW-V21BT/KW-V11
KW-V21BT KW-V11
1Reset button
Resets the unit. (Page 3)
2Loading slot
3M(Eject) button
Ejects the disc. (Press) (Page 10)
4HOME/button
• Displays the Home screen. (Press) (Page 8)
• Turns on the power. (Press) (See the far right
column.)
• Turns off the power. (Hold) (See the far right
column.)
5For KW-V21BT: / button
• Displays the <Hands Free> screen. (Press)
(Page 26)
• Activates the voice dialing. (Hold) (Page 28)
For KW-V11: SRC button
Displays the source control screen. (Page 8)
6USB input terminal (Page 45)
7Monitor panel
8Screen (touch panel)
9button
• Switches the screen. (Press)
– The screen switched to depends on the
<Input> setting in <Navigation Input>
(for KW-V21BT) (Page22) or <Navigation
Input> setting for KW-V11 (Page38).
• Turns off the screen. (Hold) (Page 7)
• Turns on the screen. (Hold) (Page 7)
pVolume +/– button
Adjusts the audio volume. (Page 7)
qEQ button
Displays the <Equalizer> screen. (Page 31)
Common operations
RTurning on the power
KW-V41BT KW-V21BT/KW-V11
RTurning off the power
KW-V41BT KW-V21BT/KW-V11
(Hold)
(Hold)
KW-VEntryU.indb6KW-VEntryU.indb6 2014/09/1019:502014/09/1019:50
ENGLISH 7
BASICSBASICS
RAdjusting the volume
To adjust the volume (00 to 35)
KW-V21BT/
KW-V11
KW-V41BT
Press + to increase, and press – to decrease.
• Holding the button increases/decreases the
volume continuously.
To attenuate the sound (only for KW-V41BT)
The ATT indicator lights up.
To cancel the attenuation: Press the same button
again.
RTurning off the screen
KW-V41BT KW-V21BT/KW-V11
(Hold) (Hold)
To turn on the screen: Press and hold the same
button on the monitor panel, or touch the display.
RTurning on/off the AV source
You can activate the AVfunction by selecting a
source.
On the Home screen:
• You can also activate the AVfunction by selecting
a source on the Home screen.
To turn off the AV source:
RAdjusting the panel angle (only for
KW-V41BT)
1Display the <Angle Adjust> screen.
On the Home screen:
• Press [K] repeatedly to change the page on
the <Display> menu screen.
2Select an angle (0 – 6).
• To set the current position as the power off
position, select [Memory] for <Off Position>.
KW-VEntryU.indb7KW-VEntryU.indb7 2014/09/1019:502014/09/1019:50
8
BASICSBASICS
Common screen operations
❏Common screen descriptions
You can display other screens any time to change
the source, show the information, or change the
settings, etc.
Source control screen
Performs source playback operations.
• The operation buttons vary depending on the
selected source.
Gesture control on the source control screen:
You can also control playback by moving your finger
on the touch panel as follows (for some sources, the
gesture control is not available).
• Sliding the finger towards up/down: Functions
same as pressing [ ]/[ ].
• Sliding the finger towards left/right: Functions
same as pressing [S]/[T].
• Moving your finger clockwise or counter-
clockwise: increases/decreases the volume.
Home screen
Displays the source control screen/settings screen
and changes the picture source.
• To display the Home screen, press HOME on the
monitor panel.
• You can arrange the items to display on the Home
screen. (Page 35)
3
12
Common operating buttons:
1Displays all the sources. (Page9)
2Displays the <Settings> screen. (See below.)
3Changes the playback source. (Page 9)
<Settings> screen
Changes the detailed settings. (Page 37)
1
2
3
4
Common operating buttons:
1Selects the menu category.
2Returns to the previous screen.
3Changes the page.
4Displays the current source control screen.
❏Touch screen operations
1
3
2
4
1Displays the video control menu while playing a
video.
2Displays the source control screen while playing
a video.
• The operation buttons disappear when the
screen is touched or when no operation is
done for about 5 seconds.
3Goes to the previous chapter/track.*
4Goes to the next chapter/track.*
* Not available for video from an external component. Dragging your
finger to the left or right functions in the same way as touching.
02JVC-Initial-Basic.indd802JVC-Initial-Basic.indd8 14/10/2311:4214/10/2311:42
ENGLISH 9
BASICSBASICS
Selecting the playback source
1Display the Home screen.
KW-V41BT KW-V21BT/KW-V11
2Display [All] screen, then select the source.
[Tuner] Switches to the radio broadcast.
(Page 19)
[Disc] Plays a disc. (Page 10)
[USB] Plays files on a USB device.
(Page 14)
[iPod] Plays an iPod/iPhone. (Page 15)
[ BT Phone]*1
Displays the <Hands Free> screen.
(Page 26)
[BT Audio]*1
Plays a Bluetooth audio player.
(Page 30)
[AV-IN]*2
Switches to an external component
connected to the iPod/AV-IN
terminal on the rear panel.
(Page 21)
[Apps]*3 Switches to the App screen from
the connected iPod touch/iPhone.
(Page 18)
[AV Off] Turns off the AVsource.
(Page 7)
[Camera] Displays the picture from the rear
view camera. (Page 21)
*1 Only for KW-V41BT/KW-V21BT.
*2
Appears only when <AV Input> is set to [AV-IN].
(Page38)
*3
Appears only when <AV Input> is set to [iPod]. (Page38)
RSelecting the playback source on the
Home screen
• You can change the items (other than [Settings])
to display on the Home screen. (Page35)
KW-VEntryU.indb9KW-VEntryU.indb9 2014/09/1019:502014/09/1019:50
10
DISCSDISCS
Playing a disc
• If a disc does not have a disc menu, all tracks on
it will be played repeatedly until you change the
source or eject the disc.
• For playable disc types/file types, see page 47.
RInserting a disc
Insert a disc with the label side facing up.
KW-V41BT
KW-V21BT/KW-V11
The source changes to “DISC”and playback starts.
• The DISC IN indicator lights up while a disc is
inserted.
• If “ ” appears on the screen, the unit cannot
accept the operation you have tried to do.
– In some cases, without showing “ ,”
operations will not be accepted.
• When playing back a multi-channel encoded
disc, the multi-channel signals are downmixed
to stereo.
REjecting a disc
KW-V41BT KW-V21BT/KW-V11
• When removing a disc, pull it horizontally.
• You can eject a disc when playing another AV
source.
• If the ejected disc is not removed within
15 seconds, the disc is automatically inserted
again into the loading slot to protect it from dust.
Closing the monitor panel (only for KW-V41BT)
After removing the disc, press Mon the monitor
panel. The monitor panel closes.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 32.

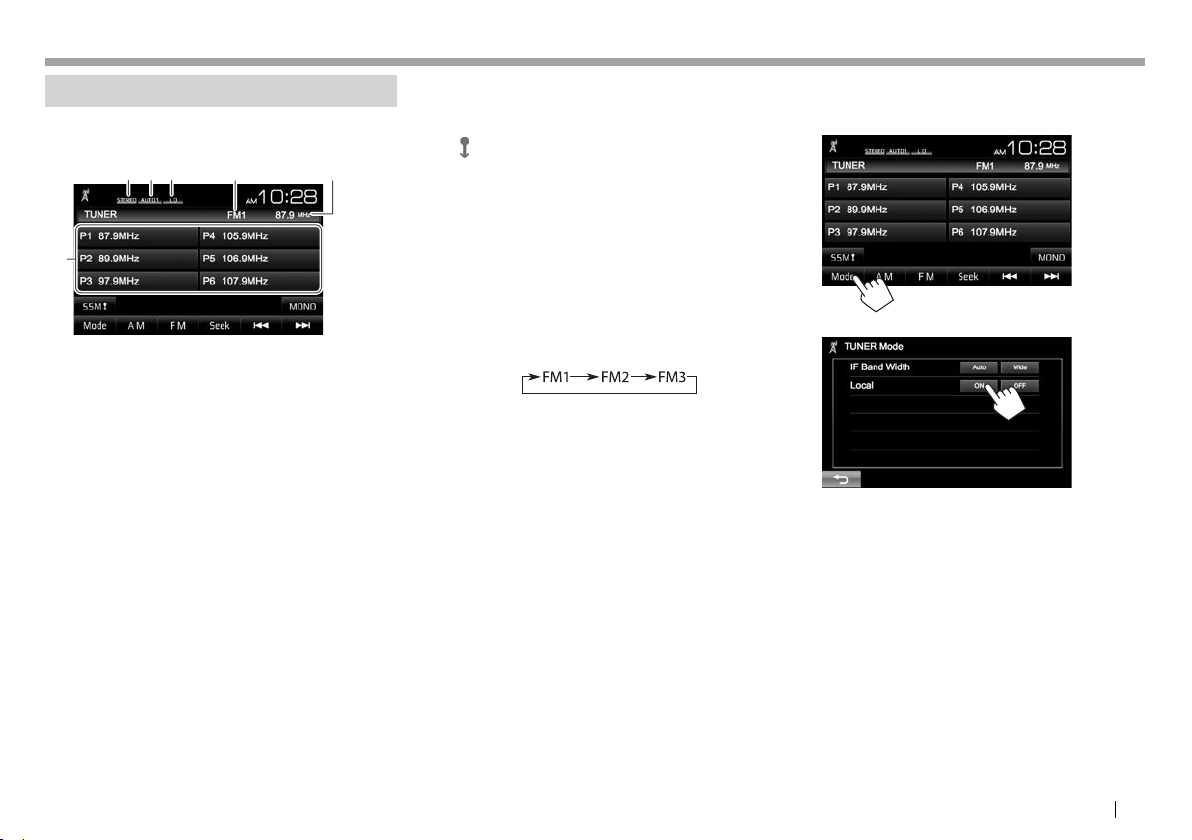

RIndications and buttons on the source
control screen
For video playback
23 4561
Playback information
• The information displayed on the screen differs
depending on the type of disc/file being played
back.
1Media type
2Playback mode (Page13)
3File type
4DISC IN indicator
5Current playback item information (title no./
chapter no./folder no./file no./track no.)
6Playing time
KW-VEntryU.indb10KW-VEntryU.indb10 2014/09/1019:502014/09/1019:50
ENGLISH 11
DISCSDISCS
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[Mode] Changes the settings for disc
playback on the <DVD Mode> or
<DISC Mode> screen. (Page13)
[ ] [ ] Selects a folder.
[ ] [ ] Selects playback mode.
(Page13)
[ ] Displays the folder/track list. (See
the far right column.)
[o]Stops playback.
[IW]Starts/pauses playback.
[S] [T]• Selects a chapter/track. (Press)
• Reverse/forward search. (Hold)
[Title ]
[Title ]
Selects a title.
For audio playback
34 786 9521
Playback information
• The information displayed on the screen differs
depending on the type of disc/file being played
back.
1Media type
2Track/file information
• Pressing [H]scrolls the text if not all of the text
is shown.
3Playback mode (Page13)
4File type
5Current playback item information (folder no./file
no./track no.)
6Playback status
7DISC IN indicator
8Playing time
9Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[Mode] Changes the settings for disc
playback on the <DISC Mode>
screen. (Page13)
[ ] [ ] Selects a folder.
[ ] [ ] Selects playback mode.
(Page13)
[ ] Displays the folder/track list. (See
the right column.)
[IW]Starts/pauses playback.
[S] [T]• Selects a track. (Press)
• Reverse/forward search. (Hold)

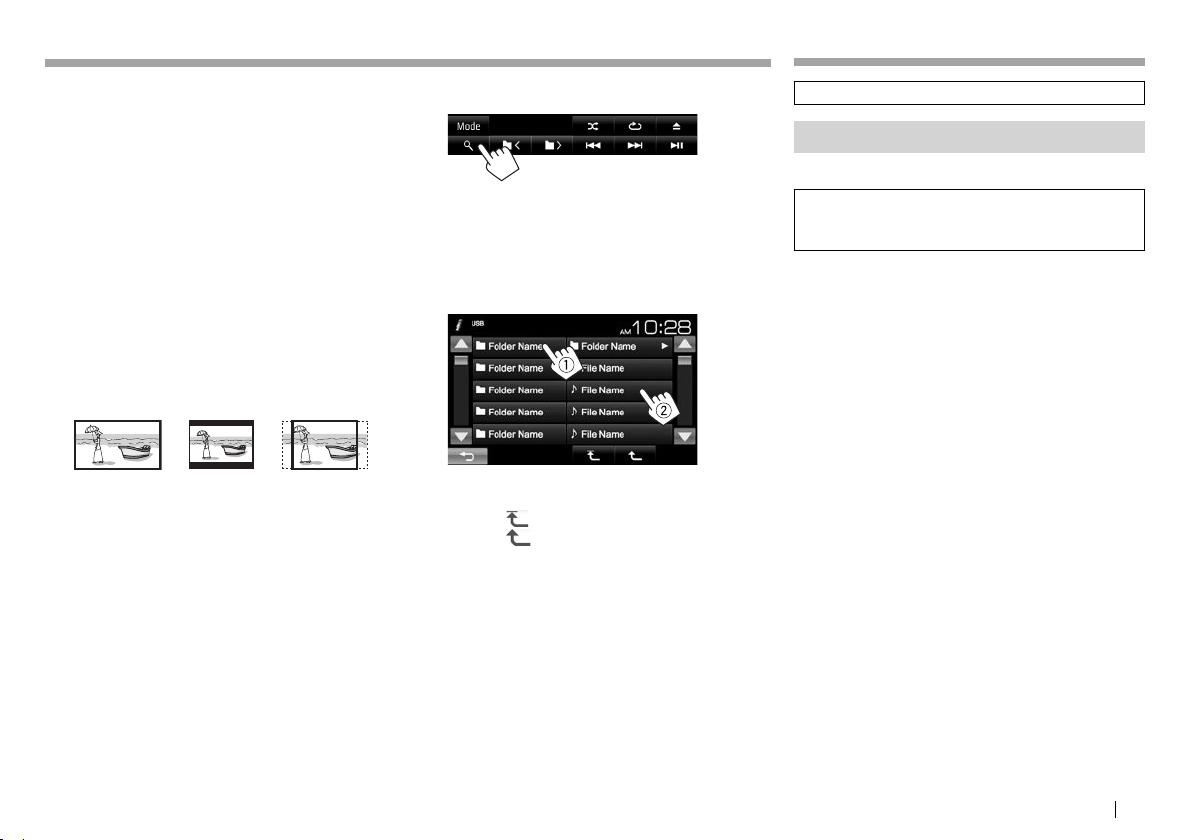

RSelecting a folder/track on the list
1
2Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• If you want to play all tracks in the folder,
press [I] on the right of the desired folder.
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
KW-VEntryU.indb11KW-VEntryU.indb11 2014/09/1019:502014/09/1019:50
12
DISCSDISCS
RVideo menu operations
You can display the video menu screen during video
playback.
• The operation buttons disappear when the screen
is touched or when no operation is done for about
5 seconds.
For video playback except VCD
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[Zoom] Displays the picture size selecting
screen. (Page33)
[Aspect] Selects the aspect ratio. (Page33)
[Pict Adjust] Displays the picture adjustment
screen. (Page32)
[Audio] Selects the audio type.
[Subtitle] Selects the subtitle type.
[Angle] Selects the view angle.
[Menu] Displays the disc menu (DVD).
[Top Menu] Displays the disc menu (DVD).
[Highlight] Switches to the direct disc menu
mode. Touch the target item to
select.
• To restore the screen, press
DISP (for KW-V41BT)/ (for
K W-V21BT/KW-V11) on the
monitor panel.
[Cursor] Displays the menu/scene selecting
screen.
• [J] [K] [H] [I]: Selects an item.
– For DivX®: [H] [I] skips back or
forward by about 5 minutes.
• [Enter]: Confirms the selection.
• [Return]: Returns to the previous
screen.
For VCD
[Menu] Displays the disc menu.
[Direct] Displays/hides the direct selecting
buttons. (See below.)
[Audio] Selects the audio channel (ST: stereo,
L: left, R: right).
[Return] Displays the previous screen or menu.
[Zoom] Displays the picture size selecting
screen. (Page33)
[Aspect] Selects the aspect ratio. (Page33)
[Pict
Adjust]
Displays the picture adjustment
screen. (Page32)
• To deactivate the PBCfunction, stop playback,
then use the direct selecting buttons to select a
track number.
To select a track directly on a VCD
• When you enter a wrong number, press [Direct/
CLR]to delete the last entry.
KW-VEntryU.indb12KW-VEntryU.indb12 2014/09/1019:502014/09/1019:50
ENGLISH 13
DISCSDISCS
RSelecting playback mode
[ ] Selects Random playback mode.
[ ] Selects Repeat playback mode.
• Available playback modes differ depending on the
type of disc/file being played back.
• You cannot activate the repeat mode and the
random mode at the same time.
• Each time you press the button, the playback
mode changes. (The corresponding indicator
lights up.)
– Available items differ depending on the type of
disc/file being played back.
CHAPRepeats current chapter.
TITLERepeats current title.
SONGRepeats current track.
F OLDERRepeats all tracks of the
current folder.
F OLDERRandomly plays all tracks of
the current folder, then tracks
of the next folder.
ALL Randomly plays all tracks.
To cancel Repeat/Random playback: Press the
button repeatedly until the indicator disappears.
Settings for disc playback
RSetting items
• Available items shown on the <DVD Mode> or
<DISC Mode> screen differ depending on the
type of disc/file being played back.
<Menu
Language>
Select the initial disc menu language.
(Initial: English) (Page49)
<Audio
Language>
Select the initial audio language.
(Initial: English) (Page49)
<Subtitle
Language>
Select the initial subtitle language
or turn subtitles off (Off). (Initial:
English) (Page49)
<Down Mix> When playing back a multi-channel
disc, this setting affects the signals
reproduced through the front and/or
rear speakers.
• Dolby Surround: Select this to
enjoy multi-channel surround
sound by connecting an amplifier
compatible with Dolby Surround.
• Stereo (initial): Normally select
this.
<Dynamic
Range
Control>
You can change the dynamic range
while playing Dolby Digital software.
• Wide: Select this to enjoy a
powerful sound at a low volume
level with its full dynamic range.
• Normal: Select this to reduce the
dynamic range a little.
• Dialog (initial): Select this to
reproduce movie dialog more
clearly.
< Screen
Ratio>
Select the monitor type to watch a
wide screen picture on the external
monitor.
16:9
(Initial) 4:3 LB 4:3 PS
<File Type>*Select the playback file type when a
disc contains different types of files.
• Audio: Plays back audio files.
• Still Image: Plays back picture files.
• Video: Plays back video files.
• Audio&Video (initial): Plays back
audio files and video files.
* For playable file types, see page 47.
If the disc contains no files of the selected type, the existing files are
played in the following priority: audio, video, then still picture.
KW-VEntryU.indb13KW-VEntryU.indb13 2014/09/1019:502014/09/1019:50
14
USBUSB
Connecting a USB device
You can connect a USB mass storage class device
such as a USB memory, Digital Audio Player etc. to
the unit.
• For details about connecting USB devices, see
page 45.
• You cannot connect a computer or portable HDD
to the USB input terminal.
• For playable file types and notes on using USB
devices, see page 48.
When a USB device is connected...
The source changes to “USB”and playback starts.
• All tracks in the USB device will be played
repeatedly until you change the source.
To disconnect the USB device safely:
Press [M], then disconnect the USB device after “No
Device” appears.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 32.
RIndications and buttons on the source
control screen
2563 71 4
Playback information
• The information displayed on the screen differs
depending on the type of file being played back.
1Track/file information
• Pressing [H]scrolls the text if not all of the text
is shown.
2Playback mode (See the right column.)
3File type
4Current playback item information (folder no./file
no.)
5Playback status
6Playing time
7Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of file being played
back.
[Mode] Changes the settings on the <USB
Mode> screen. (Page15)
[M]Disconnects the USB device safely.
[ ]
[ ]
Selects a folder.
[ ] Selects random playback mode.*1 *2
• F OLDER: Randomly plays all
tracks in the folder.
• ALL: Randomly plays all tracks.
[ ] Selects repeat playback mode.*1 *2
• SONG: Repeats the current track.
• F OLDER: Repeats all tracks in the
current folder.
[ ] Displays the folder/track list.
(Page15)
[IW]Starts/pauses playback.
[S] [T]• Selects a track. (Press)
• Reverse/forward search. (Hold)
*1 To cancel random or repeat mode, press the button repeatedly until
the indicator disappears.
*2You cannot activate the repeat mode and the random mode at the
same time.
KW-VEntryU.indb14KW-VEntryU.indb14 2014/09/1019:502014/09/1019:50
ENGLISH 15
USBUSB
R< USB Mode> settings
Setting <File Type>
[Audio] Plays back audio files.
[Still Image] Plays back picture files.
[Video] Plays back video files.
[Audio&Video]
(Initial)
Plays back audio files and video
files.
• For playable files, see page 48. If the USB device
contains no files of the selected type, the existing
files are played in the following priority: audio,
video, then still picture.
Setting <Screen Ratio>
Select the monitor type to watch a wide screen
picture on the external monitor.
[16:9] (Initial) [4:3 LB][4:3 PS]
Setting <Drive Select>
Press [Next]. Switches between internal memory
and the memory source of the connected device
(such as mobile phone).
RSelecting a folder/track on the list
1
2Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• If you want to play all tracks in the folder,
press [I] on the right of the desired folder.
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
iPod/iPhoneiPod/iPhone
• To use iPod touch/iPhone Apps, see page 18.
Preparation
RConnecting iPod/iPhone
• For details about connecting iPod/iPhone, see
page 45.
• For playable iPod/iPhone types, see page 48.
Connect your iPod/iPhone using the appropriate
cable according to your purpose.
• To listen to music:
– For iPod/iPhone except for iPod nano (7th
Generation)/iPod touch (5th Generation)/iPhone
5S/iPhone 5C/iPhone 5: USB 2.0 cable (accessory
of iPod/iPhone)
– For iPod nano (7th Generation)/iPod touch (5th
Generation)/iPhone 5S/iPhone 5C/iPhone 5: KS-
U62 (optional accessory)
• To watch video and listen to music: USB Audio
and Video cable for iPod/iPhone—KS-U59
(optional accessory)
– You cannot connect iPod nano (7th Generation)/
iPod touch (5th Generation)/iPhone 5S/iPhone
5C/iPhone 5 with KS-U59.
KW-VEntryU.indb15KW-VEntryU.indb15 2014/09/1019:502014/09/1019:50
16
iPod/iPhoneiPod/iPhone
RSelecting preference settings for iPod/
iPhone playback
When the source is “iPod”...
1
2
<Audiobooks> Select the speed of audio
books.
<Artwork> Shows/hides artwork of iPod.
RSetting <AV Input> for iPod/iPhone
playback
Select an appropriate input setting for <AV Input>
according to the connection method of the iPod/
iPhone.
1Turn off the AVsource.
On the Home screen:
2Display the <Input> setting screen.
3
[AV-IN]
Select this when the iPod/iPhone
is connected using KS-U62
(optional accessory) or the USB 2.0
cable (accessory of iPod/iPhone).
[iPod] Select this when the iPod/iPhone
is connected using KS-U59
(optional accessory).
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 32.
RIndications and buttons on the source
control screen
256 71 34
Playback information
1Song/video information
• Pressing [H]scrolls the text if not all of the text
is shown.
2Playback mode (Page17)
3File type
4Track no./Total track number
5Playback status
6Playing time
7Artwork (Shown if the song contains Artwork)
• To change the Artwork display, see the far left
column.
KW-VEntryU.indb16KW-VEntryU.indb16 2014/09/1019:502014/09/1019:50
ENGLISH 17
iPod/iPhoneiPod/iPhone
Operation buttons
[Mode] Changes the settings for iPod/iPhone
playback on the <iPod Mode>
screen. (Page16)
[ ] Selects random playback mode.*1
• ALL: Functions the same as Shuffle
Songs.
• ALBUM: Functions the same as
Shuffle Albums.
[ ] Selects repeat playback mode.
• SONG: Functions the same as
Repeat One.
• ALL: Functions the same as Repeat
All.
[ ] Displays the audio/video file list. (See
the right column.)
[IW]Starts/pauses playback.
[S] [T]• Selects an audio/video file.*2(Press)
• Reverse/forward search. (Hold)
*1 To cancel random mode, press the button repeatedly until the
indicator disappears.
*2Resume playback is unavailable for video files.
RSelecting an audio/video file from the
menu
1
2Select the menu ( : audio or : video)
(1), a category (2), then a desired item
(3).
• Select the item in the selected layer until a
desired file starts playing.
• If you want to play all items in the layer, press
[I] on the right of the desired item.
Audio menu:
Video menu:
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
• Available categories differ depending on the type
of your iPod/iPhone.
KW-VEntryU.indb17KW-VEntryU.indb17 2014/09/1019:502014/09/1019:50
18
APPsAPPs
You can use Apps of the connected iPod touch/
iPhone on this unit.
• You cannot use Apps with iPod touch (5th
Generation)/iPhone 5S/iPhone 5C/iPhone 5.
• For Apps you can use on this unit, visit
<http://www.jvc.net/cs/car/>.
Preparation
1Connect iPod touch/iPhone using KS-U59.
(Page 45)
2Select [iPod] for <AV Input>. (Page16)
Using an App
When the operation buttons are not displayed on
the screen, touch the screen to show them.
• To change settings for video playback, see
page32.
RPlayback operations
1Start the App on your iPod touch/iPhone.
2Select “Apps” as the source.
On the Home screen:
ROperation buttons on the source
control screen
[I]Starts playback.
[W]Pauses playback.
[S] [T]• Selects an audio/video file. (Press)
• Reverse/forward search. (Hold)
[IW]Starts/pauses playback.
• You can operate some functions of the App on the
touch panel.
• For some applications such as navigation
applications, the operation buttons and
information are not shown. You can perform the
operations on the touch panel, such as scrolling
the map.
– If “ ” appears on the screen, the unit cannot
accept the touch operation you have tried to do.
• You can also play back the audio/video using
iPod/iPhone itself instead of the unit.
RSwitching to the App screen while
listening to another source
• For KW-V41BT/KW-V21BT: Select [iPhone] for
<Input> in <Navigation Input> beforehand.
(Page22)
• For KW-V11: Select [iPhone] for <Navigation
Input> beforehand. (Page38)
KW-V41BT KW-V21BT/KW-V11
KW-VEntryU.indb18KW-VEntryU.indb18 2014/09/1019:502014/09/1019:50
ENGLISH 19
TUNERTUNER
Listening to the radio
RIndications and buttons on the source
control screen
6
42315
Tuner reception information
1STEREO/MONO indicator
• The STEREO indicator lights up when receiving
an FMstereo broadcast with sufficient signal
strength.
2Seek mode
3LO indicator
4Band
5The station frequency currently tuned in
6Preset list
Operation buttons
[P1] – [P6] • Selects a stored station. (Press)
• Stores the current station. (Hold)
[SSM ]*Presets stations automatically.
(Page20)
[MONO]* Activates/deactivates monaural
mode for better FMreception.
(Stereo effect will be lost.)
• The MONO indicator lights up
while monaural mode is activated.
[Mode] Changes the settings for tuner
reception on the <Tuner Mode>
screen. (Pages19–20)
[AM]Selects the AMband.
[FM]Selects the FMband.
[Seek] Changes the seek mode.
• AUTO1: Auto Search
• AUTO2: Tunes in stations in the
memory one after another.
• MANUAL: Manual Search
[S] [T]Searches for a station.
• The search method differs
according to the selected seek
mode. (See above.)
*Appears only when FM is selected as the source.
RTuning in FMstations only with strong
signals—Local/Distance-extreme
1
2
[ON]Select this to tune in only to stations
with sufficient signal strength. The LO
indicator lights up.
[OFF] Deactivate the function.
KW-VEntryU.indb19KW-VEntryU.indb19 2014/09/1019:502014/09/1019:50
20
TUNERTUNER
RReducing interference during FM
reception
1
2
[Auto] Increases the tuner selectivity to
reduce interference between adjacent
stations. (Stereo effect may be lost.)
[Wide] Subject to interference from adjacent
stations, but sound quality will not be
degraded and the stereo effect will
remain.

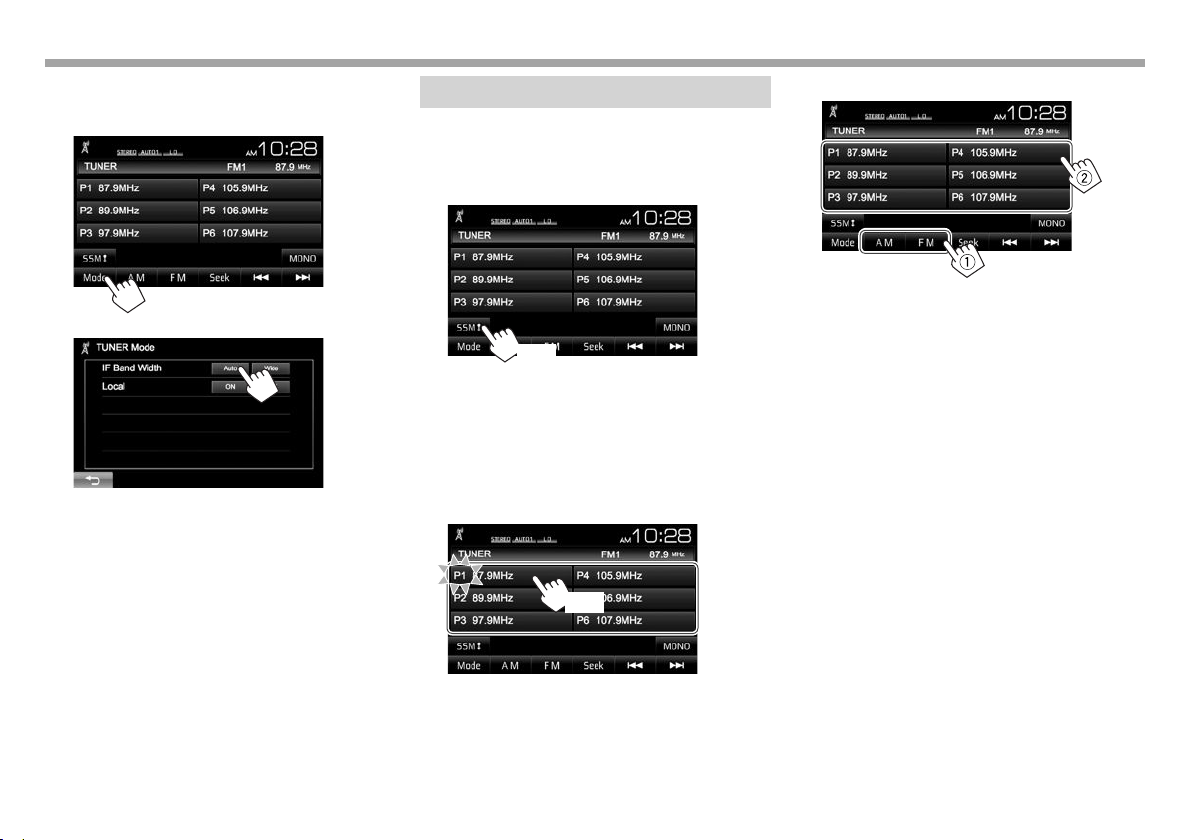

Presetting stations
RStoring stations in the memory
You can preset 6 stations for each band.
Automatic presetting—SSM (Strong-station
Sequential Memory) (For FMonly)
(Hold)
Local stations with the strongest signals are found
and stored automatically.
Manual presetting
1Tune in to a station you want to preset.
(Page 19)
2Select a preset number.
(Hold)
The station selected in step 1is stored.
RSelecting a preset station
KW-VEntryU.indb20KW-VEntryU.indb20 2014/09/1019:502014/09/1019:50
Other manuals for KW-V41BT
3
This manual suits for next models
2
Table of contents
Other JVC Receiver manuals
![JVC LVT1007-010A[A] User manual](/data/manuals/2i/j/2ijgx/sources/jvc-lvt1007-010a-a--manual.jpg "JVC LVT1007-010A[A] User manual")
