JVC KW-ADV790 User manual

.Ive 16//////
KW-ADV790
DVD RECEIVER WITH MONITOR KW-A
VX71 0
KW-ADV790
RECEPTOR DVD CON MONITOR KW-A
VX71 0
KW-ADV790
RECEPTEUR DVD ET MONITEUR KW-AVX710
~
t-Q) Radio@
D
RADIO
READY
REA 0 Y
..
§lvX:J
DO
ULTRA
(dO
[][] IDOLBYI iM? 00
000
DIGITAL
VIDE 0
OQO
~dti
000
illJD~~
ODO
Digital Out
IDIGITAL VIDEOI
O.JVCO
l:-.
I
~
...... oaa~~
JVC
c::::::7 c::::::7 c::::::7 0
LVT1778-001 A
[J]
For customer Use:
Enter below the Model No.
and Serial No. which are
located on the top or bottom
of the cabinet. Retain this
information for future
reference.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES _Mo-,-,-d~el-,--,--No:...;.... -- __
MANUEL D'INSTRUCTIONS Serial No.
~~=======--
For canceling the display demonstration, see page 8.
Para cancelar la demonstraci6n en pantalla, consulte la pagina 8.
Pour annuler la demonstration des affichages, referez-vous a la page 8.
For installation and connections, refer to the separate manual.
Para la instalaci6n y las conexi ones, refierase al manual separado.
Pour !'installation et les raccordements, se referer au manuel separe.
All manuals and user guides at all-guides.com
all-guides.com

Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.
(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with
optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
CAUTION
ATTENTION AVISO VARNING
itt
CAUTION
VISIBLE AND I OR RAYONNEMENT LASER RADIACION LASER
SYNLlG OCH/ELLER ::::t:IIl(ciiJll VISIBLE AND I OR
INVISIBLE CLASS 1M VISIBLE ET I OU DE ClASE 1M
OSYNLlG
i.lJ/tt:lifiiJll
INVISIBLE CLASS n
LASER RADIATION INVISIBLE DE CLASSE VlSI8LE Y/O INVISIBLE LASERSWLNING,
OJ?'5},IM
LASER RADIATION
WHEN OPEN. DO NOT 1M UNE FOIS OUVERT. CUANDO ESTA KLASS 1 M, NAR DENNA
v-<;f-ltMbl
WHEN OPEN.
VIEW DIRECTLY WITH NE PAS REGARDER ABIERTO. NO MIRAR DEL All OPPNAD.
llltt.
DO NOT STARE
OPTICAL INSTRUMENTS. DIRECTEMENT AVEC DIRECTAMENTE
BETRAKTA EJ ;'t!l!1I~1It
INTO BEAM.
IEC60825·1: 2001 DES INSTRUMENTS
gON INsmUMENTAL
STAALEN MED OPTISKA
It.W(!(t:<!L'.
FDA 21 CFA (ENG)
(ENG)
OPTIQUES. (FAA) PTlCO. (ESP)
INsmUMENT. (SWE)
(JPN)
LV44603-003A
INFORMATION (For U.S.A.)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. Ifthis
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radiofTV
technician for help.
Caution
Changes or modifications not approved by JVC could
void the user's authority to operate the equipment.
)3t' [European Union only]
-2
• DO NOT install any unit or wire any cable in a
location where;
-it may obstruct the steering wheel and
gearshift lever operations.
-it may obstruct the operation of safety devices
such as air bags.
-it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
This product has a fluorescent lamp that
contains mercury. Disposal of these materials
may be regulated in your community due to
environmental considerations. For disposal or
recycling information, please contact your local
authorities or for USA, the Electronic Industries
Alliance: http://www.eiae.org.
All manuals and user guides at all-guides.com

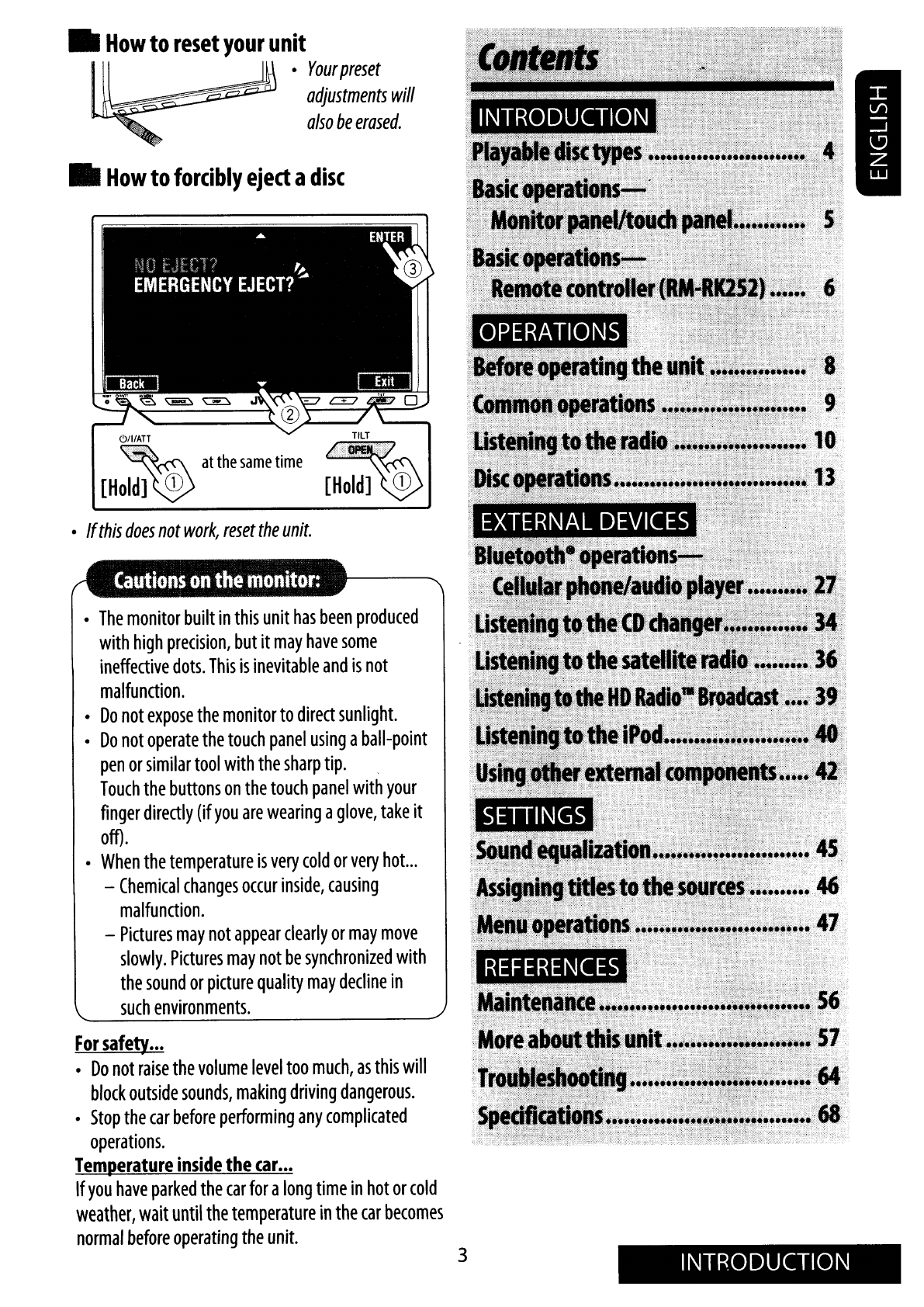

• How to reset your unit
~ • Your preset
adjustments will
also be erased.
• How to forcibly eject a disc
<'.>II/ATT TILT
[H~ atthe ,ame time ~
•If this does not work, reset the unit.
• The monitor built in this unit has been produced
with high precision, but it may have some
ineffective dots. This is inevitable and is not
malfunction.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with the sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
- Chemical changes occur inside, causing
malfunction.
- Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in
such environments.
For safety ...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car ...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
3INTRODUCTION
All manuals and user guides at all-guides.com

Playable disc types
Disc type
DVD
Recording format, file type, etc.
DVD Video (Region Code: 1 )*1
Playable
.10K
DVD Recordable/Rewritable DVD Video
(DVD-Rl-RW*2, +RI+RW*3) DVD-VR
• DVD Video: UDF bridge DivX/MPEG1/MPEG2
• DVD-VR
• DivX/MPEGlIMPEG2IJPEG/MP3/ f-JP_E_G ---------------l
WMA/WAV: ISO 9660 levell, MP3/WMA/wAV
level 2, Romeo, Joliet
Dual Disc
CDIVCD
.10K
CD Recordable/Rewritable CD-DA
(CD-Rl-RW) MP3IWMAIWAV
• ISO 9660 levell, level 2, Romeo, I-J-PE-G---------------f .10K
Joliet
DivX/MPEG 1 /MPEG2
*1 If you insert a DVD Video disc of an incorrect Region (ode, "Region code error" appears on the screen.
*2 DVD-R recorded in multi-border format is also playable (except for dual layer discs).
DVD-RW dual layer discs are not playable.
*3 It is possible to play back finalized +R/ +RW (Video format only) discs.
+RW double layer discs are not playable.
Caution for DualDisc playback
The Non-DVD side of a "Dual Disc" does not comply with the "Compact Disc Digital Audio" standard. Therefore,
the use of Non-DVD side of a DualDisc on this product may not be recommended.
4
All manuals and user guides at all-guides.com

Basic operations -Monitorpanel/touchpanel
Display <AV Menu> screen. (@' page 47
Display <Source Menu> screen. (@' page 9
Display and erase the Short Cut windows.
Available functions vary among the sources. For details, see each source operation
section.
~ ~ ..Ive Q- I LI7) / ~: /0
II
Adjust the volume. Remote sensor
Change the display information.
Change the sources. (@' page 9
Display <AV Menu> screen.
(@' page 47
• Turn on the power.
• Turn off the power. [Hold]
• Attenuate the sound (if the power is on).
Reset the unit.
• Use only when the internal system malfunctions.
r ~
• In the explanation, buttons on the touch panel
are indicated inside [ ].
• For details on the touch panel operations, see
each source operation section.
\..
5
• Display <Open/Tilt> menu.
• Eject the disc and display <Open/Tilt>
menu. [Hold]
• Close the monitor panel when <OpenlTilt>
menu is displayed •
<OpenlTilt> menu
• [OPEN]: Open the monitor panel.
• [EJEO]: Eject the disc.
• [CLOSE]: Close the monitor panel.
• [TILT +/-]: Tilt the monitor panel.
• [Exit]: Erase this screen.
• Shaded icons cannot be used.
INTRODUCTION
All manuals and user guides at all-guides.com

Basic operations - Remote controller (RM-RK2S2)
w
[ill
3
G1J
13
[i] [H]
[J]]
[I§J
L..--------119
Main elements and features_
ITJ • Turns on the power.
• Attenuates the sound if the power is on.
• Turns off the power if pressed and held (while
the power is on).
[I] . Reverse search
• Reverse slow motion (during pause)
W Adjusts the volume level.
• Does not function as "2nd VOL."
[I] · Displays <Dial Menu> screen.
• Displays <Redial> menu if pressed and held.
• Answers incoming calls.
[ID • DVD/DivX 6: Shows the disc menu.
• VCD: Resumes PBC playback.
• DVD-VR: Shows the Original Program screen.
[§] Shows the on-screen bar.
• Does not function as "*."
The unit is equipped with the steering wheel
remote control function.
• See the Installation/Connection Manual (separate
volume) for connection.
Battery shall not be exposed to excessive heat such
as sunshine, fire or the like.
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
•If the range or effectiveness of the remote controller
decreases, replace both batteries.
Installing the battery
Insert the batteries into the remote controller by
matching the polarity (+ and -) correctly.
6
All manuals and user guides at all-guides.com
all-guides.com

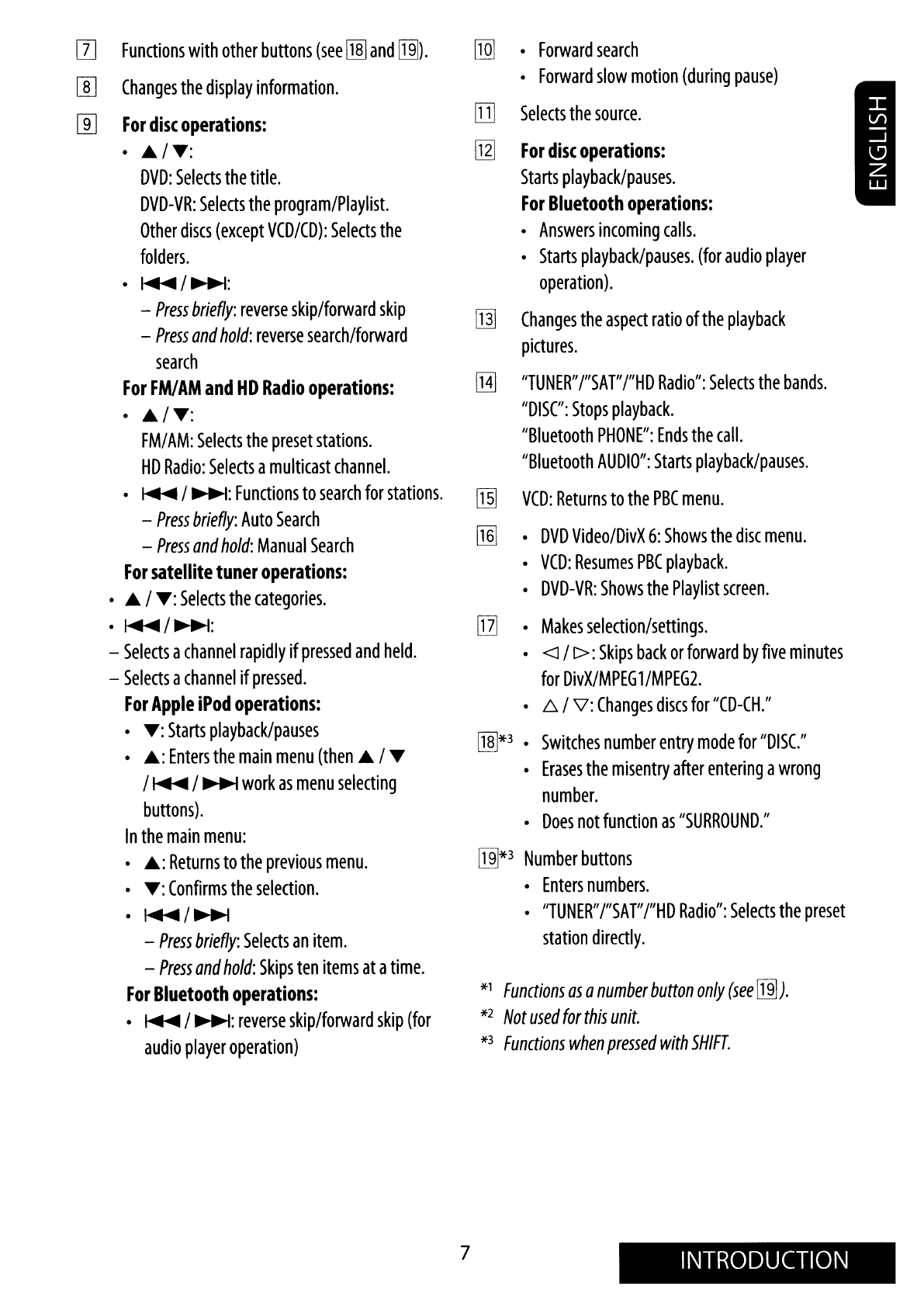

[l] Functions with other buttons (see [lID and [J]]).
[[] Changes the display information.
W For disc operations:
• A/"f:
DVD: Selects the title.
DVD-VR: Selects the program/Playlist.
Other discs (except VCD/CD): Selects the
folders.
· ~/~:
- Press briefly: reverse skip/forward skip
- Press and hold: reverse search/forward
search
For FM/AM and HD Radio operations:
• A /"f:
FM/ AM: Selects the preset stations.
HD Radio: Selects a multicast channel.
• ~ / ~: Functions to search for stations.
- Press briefly: Auto Search
- Press and hold: Manual Search
For satellite tuner operations:
• A / T: Selects the categories .
. ~/~:
- Selects a channel rapidly if pressed and held.
- Selects a channel if pressed.
For Apple iPod operations:
• "f: Starts playback/pauses
• A: Enters the main menu (then A / "f
/ ~ / ~ work as menu selecting
buttons).
In the main menu:
o A: Returns to the previous menu.
o "f: Confirms the selection.
· ~/~
- Press briefly: Selects an item.
- Press and hold: Skips ten items at a time.
For Bluetooth operations:
• ~ /~: reverse skip/forward skip (for
audio player operation)
7
[Q] 0 Forward search
• Forward slow motion (during pause)
[TI] Selects the source.
[g] For disc operations:
Starts playback/pauses.
For Bluetooth operations:
• Answers incoming calls.
o Starts playback/pauses. (for audio player
operation).
[U] Changes the aspect ratio of the playback
pictures.
[HI "TUNER"I"SAT"I"HD Radio": Selects the bands.
"DISC": Stops playback.
"Bluetooth PHONE": Ends the call.
"Bluetooth AUDIO": Starts playback/pauses.
[§] VCD: Returns to the PBC menu.
[§] • DVD Video/DivX 6: Shows the disc menu.
o VCD: Resumes PBC playback.
o DVD-VR: Shows the Playlist screen.
[1] • Makes selection/settings.
• <l / C>: Skips back or forward by five minutes
for DivX/MPEG1/MPEG2.
• 6. / \7: Changes discs for "CD-CH."
[lID*3 • Switches number entry mode for "DISC"
• Erases the misentry after entering a wrong
number.
o Does not function as "SURROUND."
[J]]*3 Number buttons
• Enters numbers.
• "TUNER"I"SAT"I"HD Radio": Selects the preset
station directly.
*1 Functions as a number button only (see [J]]).
*2 Not used for this unit.
*3 Functions when pressed with SHIFT.
INTRODUCTION
All manuals and user guides at all-guides.com

• Finish the procedure.
•
I II
";' ." ~ ~ ~ JVC Cz:7 c:r7 ciiv 0
Indication language:
In this manual, English indications are used
for purpose of explanation. You can select the
indication language. (&& page 49)
Before operating the unit
• Cancel the demonstration.
Select <Off>.
• Display <AV Menu> screen.
• Display <Setup> menu.
You can cancel the demonstration on the screen and set
the clock.
• Non-available items will be shaded on the AV Menu
screens.
o Turn on the power.
8
All manuals and user guides at all-guides.com

Common operations
Selecting the playback source _
• Available sources depend on the external
components you have connected, media you have
attached, and the <Input> settings you have made
(~page 52).
Changing the display
information _
• Available display information varies among the
playback sources.
Clock time in large numbers
Track list
Source information screen
Navigation screen
(When < Navigation> is
selected for <AV Input»
L----:::;;;~~~.k-------1l (1& page 52)
-=:::::::::::::
Back to the beginning
Ex. When the playback source is a DivX disc.
Playback picture screen
(only for video sources)
• Each time you press D1SP, the display changes to
show the various information.
On the monitor panel only:
I ~ 1/ I
0' ~ ~ ~ ~ .JVC c:=:::7 c:r:7 diD O~
• You cannot select these sources if they are not ready.
TUNER or HD Radio ~ SAT ~ DISC (DVD/VCD/CD)
~CD-CH, iPod, or EXT-IN ~ Bluetooth PHONE
~ Bluetooth AUDIO ~ AV-IN ~ (back to the
beginning)
On the monitor panel:
On the touch panel:
9
OPERATIONS
All manuals and user guides at all-guides.com

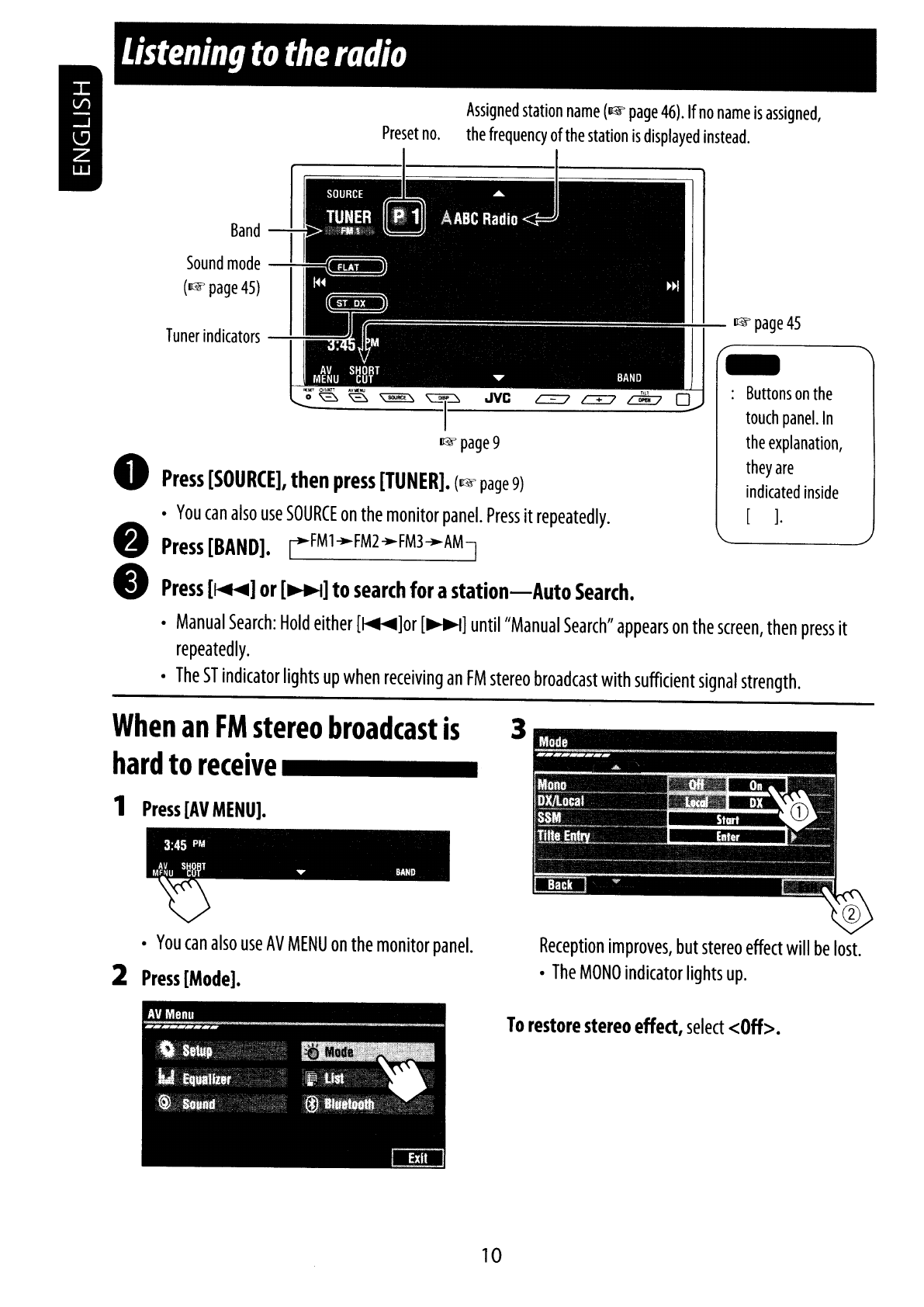

Listening to the radio
Buttons on the
touch paneL In
the explanation,
they are
indicated inside
[ ].
1& page 45
-
-; 8 ~ , .... "", ~ JVC c:=:7 c::rJ /':;' 70
1----
1& page 9
Tuner indicators
Preset no.
Band -+-~
Sound mode
(ILE page 45)
Press [SOURCE], then press [TUNER]. (1& page 9)
• You can also use SOURCE on the monitor panel. Press it repeatedly.
Press [BAND]. L
FM
'-.FM2-.FM3-.
AM
J
Press [~] or [~] to search for astation-Auto Search.
• Manual Search: Hold either [~]or [~] until "Manual Search" appears on the screen, then press it
repeatedly.
• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.
•
•
•
When an FM stereo broadcast is
hard to receive _
1 Press [AY MENU].
3
• You can also use AV MENU on the monitor panel.
2 Press [Mode].
Reception improves, but stereo effect will be lost.
• The MONO indicator lights up.
To restore stereo effect, select <Off>.
10
All manuals and user guides at all-guides.com
