WIDE DYNAMIC RANGE CAMERA
TK-WD310U
(24V AC / 12V DC)
High Resolution Camera using 14-bit
Digital Processing and WDR imaging device
to provide crisp, clear images even
under adverse backlighting conditions
1/3" digital image device with Wide Dynamic Range
(WDR)
Innovative 14-bit DSP
High-speed, automatic 5-level exposure control for
each pixel
480 TV lines of horizontal resolution
Programmable camera menu system, operated by
selector
White balance: Automatic, Single-push and Manual
Sync system: INT and LL, switchable
24-characters camera title
DC and Video iris
Ultra-compact camera body
24V AC and 12V DC
TK-W310U.xpr 04.6.1 4:26 PM Page 1

Especially designed to capture clear, easy-to-view images
under poor or unpredictable lighting conditions such as in
multi-story car parks and at road junctions, this versatile
high-resolution camera features a wide-dynamic-range
digital image device that uses sophisticated multi-
sampling and a 14-bit DSP which accurately reproduces
natural color tones without any halation (blooming) or
smear. Even when the illumination suddenly changes —
becoming suddenly brighter or darker, or if the scene
includes both bright and dark areas, this camera still
captures a clear image that closely resembles what you
see with your own eyes.
1/3" WDR digital image device
Featuring a much wide dynamic range than conventional imaging
devices, the 1/3” WDR digital image device is able to respond quickly
and accurately to high contrast and sudden variations in lighting to
deliver high-quality, well-exposed pictures with no smear or blooming.
Equally effective in very bright or low-light conditions, this device is
capable of shooting at 1.9 lux (at F1.2, 50%, AGC HIGH setting), to
ensure quality imaging even of the most dimly lit subjects.
Innovative 14-bit DSP
To support the WDR image device, the TK-WD310U incorporates an
innovative 14-bit digital signal processing chip that adjusts the brightness
level of each individual pixel, so reproducing clear details of not only the
foreground subjects but also of the brightly lit background, such as the
situation with an entrance camera looking from a foyer into a sunny
street. A normal CCD camera could only correctly expose either the
background or the foreground, displaying the other as either dark
silhouette or burnt-out white, respectively. This means that even when
the camera is shooting in locations where there is a very high contrast
between light and dark, the captured images will come out looking clear
and natural. For example, car headlights can be captured without
smear, assuring easy identification of the number plate and so enabling
high-quality surveillance.
High-speed WDR (Wide Dynamic Range) with automatic 5-level exposure
control for each pixel
For smooth, accurate imaging, the wide dynamic range function uses a
high-precision multi-sampling system that controls exposure with 5-level
sampling of each image pixel within a single frame.
480 TV lines of horizontal resolution
With horizontal resolution of 480 TV lines (typical) and vertical resolution
of over 400 lines, this camera captures sharp, clear images that make it
an ideal source for high-quality, finely detailed video recordings.
Programmable menu with selector operation
A convenient on-screen menu with selector operation is provided for
easy adjustment of various system parameters including focus control
and camera settings. The factory default settings can be restored easily,
if so required.
White balance: Automatic (ATW)/single-push (AWB)/manual (MANUAL)
ATW, AWB and MANUAL modes are available. The ATW mode
automatically adjusts white balance according to changes in lighting
conditions (2,500°K to 10,000°K). The AWB/MANUAL mode
automatically or manually adjusts and locks the white balance for specific
lighting conditions.
Notes:
1. The WDR function will not operate with AGC or slow shutter mode engaged.
2. The video pictures can become noisy in high extremes of temperature (over 35°C / 95°F),
when also the operation of the slow shutter function may become problematic.
3. In very dark conditions the image quality may suffer slight deterioration.
4. Under fluorescent lighting, the color balance may vary slightly.
5. Fluctuations in the AC mains frequency can cause beat noise, when the camera is in Line-
Lock mode.
6. All manufacturer utilizing this technology will experience similar phenomenon.

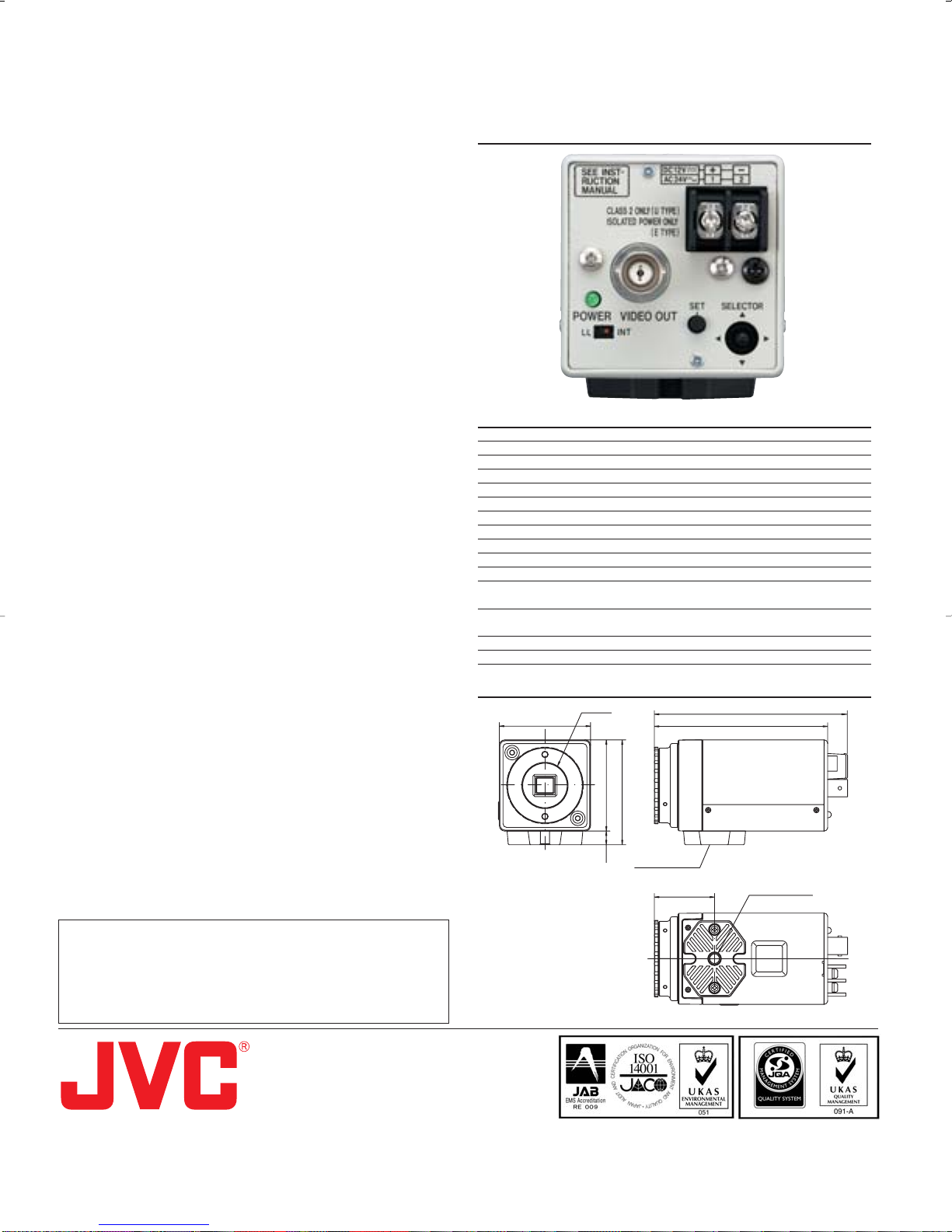

Rear Panel
Specifications
Image pickup device 1/3" WDR digital image device
Number of effective pixels 380,000 Pixels (720H x 540V)
Synchronization method Internal, Line Lock
Scanning frequency (H) 15.734 kHz, (V) 59.944 Hz
Resolution 480 TV lines (H)
Video out Composite video signal, 1 V (p-p), 75 ohms (BNC)
Video S/N ratio 50 dB (AGC OFF)
Minimum required illumination 1.9 lux (50%, F1.2, AGC HIGH WDR MODE 2)
Lens mount CS mount
Power supply AC 24 V, 50 Hz/60 Hz; DC 12 V
Power consumption Approx. 5.7 W
Ambient temperature 14°F to 122°F (-10°C to 50°C) (operation),
32°F to 90°F (0°C to 35°C) (recommended)
Dimensions (WHD) 2 x 2-5/16 x 4-1/4 inches
50 x 57.5 x 107 mm
Mass 330 g
Accessory supplied Ferrite core for lens cable
Dimensions
Versatile, high-resolution camera with wide dynamic range performance and 14-bit
digital processing delivers clear, natural pictures even against bright backlighting.
TRIPOD BASE
1/4-20UNC
MOUNTING HOLE
COLOR VIDEO CAMERA
U1-32
2 (50)
2-5/16 (57.5)
5/16 (7.5)
2 (50) 4-1/4 (107)
3-3/4 (95)
1-5/16 (33)
Unit: inches (mm)
Printed in Japan
KCN-1827 CETKWD310UYI0405
“JVC” is the trademark or registered trademark of Victor Company of Japan, Limited.
DISTRIBUTED BY
JQA-0288
The Hachioji Plant of Victor Company of Japan, Ltd., has received ISO14001 and ISO9001
Certifications under the global standard for environmental management.
Design and specifications subject to change without notice.
