SERVICE MANUAL
COMPACT COMPONENT SYSTEM
No.21011
Jul. 2001
COPYRIGHT 2001 VICTOR COMPANY OF JAPAN, LTD.
FS-SD1000
FS-SD1000
REMOTE CONTROLRM-SFSSD1000J
STANDBY/ON
DIMMER SLEEP
DISPLAY FM MODE
CD
PROGRAM
DOOR
SLIDE
AUTO
PRESET
REPEA
T
RANDOM
BASS TREBLE CANCEL
UP
SET
DOWN
MD/AUX FM /AM
VOLUME
CD
FADEMUTING
SP-PW1000SP-FSSD1000CA-FSSD1000SP-FSSD1000
Contents

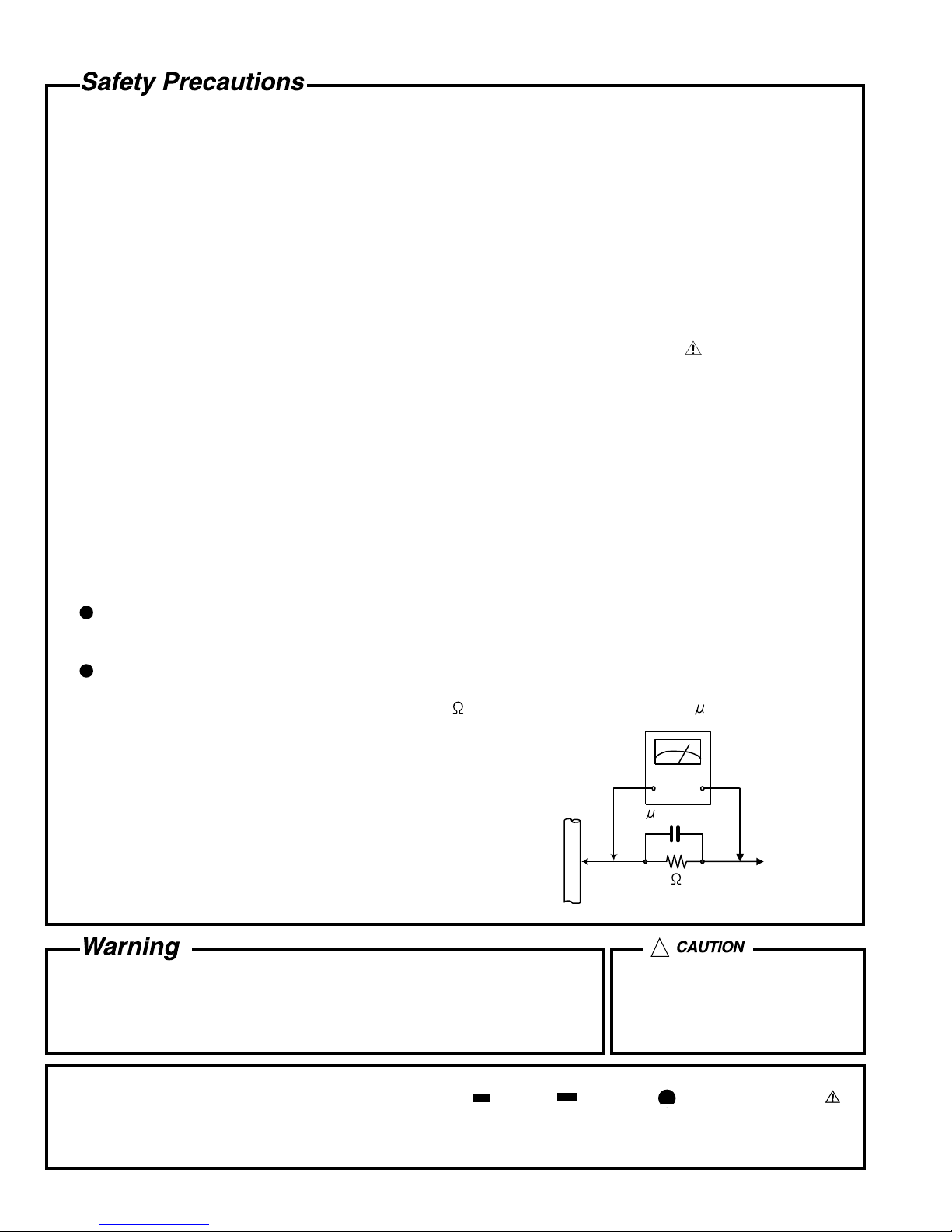

Safety Precautions
Preventing static electricity
Important for laser products
Disassembly method
Maintenance of laser pickup
Replacement of laser pickup

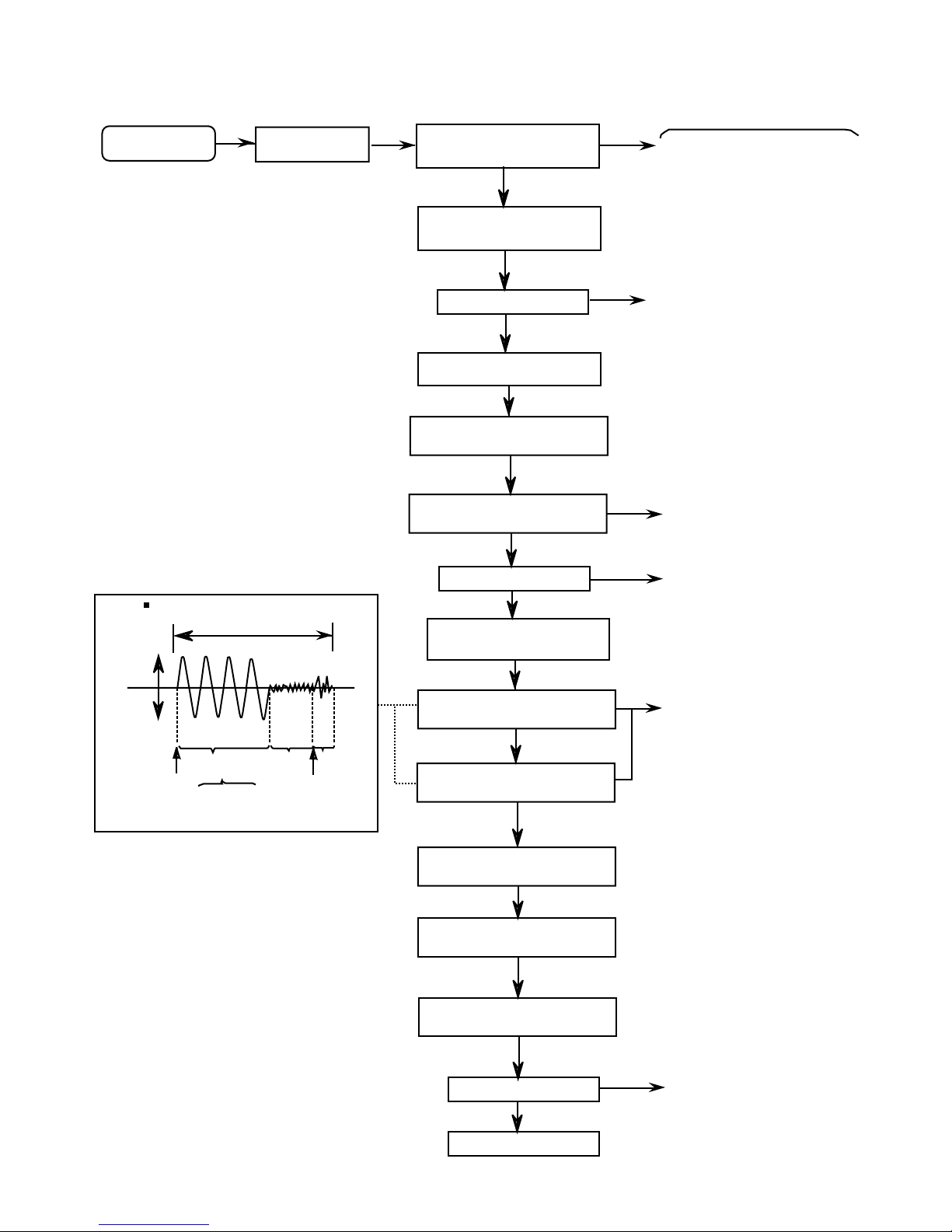

Flow of functional operation
unit TOC read
Method of connecting
treatment device wire

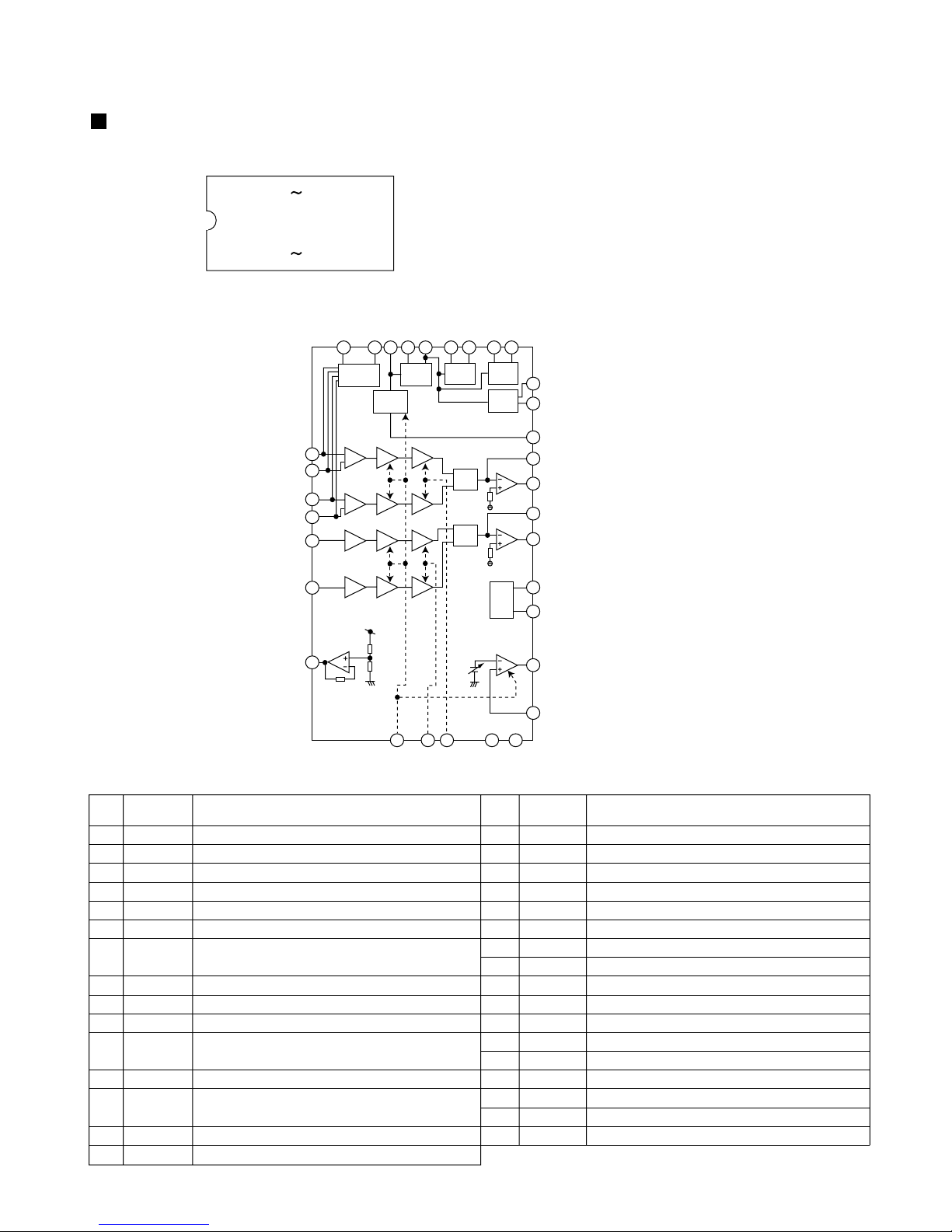

Description of major ICs
1-2
1-3
1-4
1-5
1-16
1-16
1-17
1-18
1-19~31
This model not have adjustment.
Area suffix
UF --------------------------- China
UP --------------------------- Korea
US --------------------- Singapore
UT -------------------------- Taiwan
UW --------- Brazil,Mexico,Peru

FS-SD1000
1-2
1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.
2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product
should not be made. Any design alterations or additions will void the manufacturer`s warranty and will further
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.
3. Many electrical and mechanical parts in the products have special safety-related characteristics. These
characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by ( ) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.
4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.
5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts of the product
(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the
product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15 F AC-type capacitor
between an exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to eachexposed metal part,
particularly any exposed metal part having a return path to
the chassis, and meausre the AC voltage across the resistor.
Now, reverse the plug in the AC outlet and repeat each
measurement. voltage measured Any must not exceed 0.75 V
AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).
1. This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE
!
Burrs formed during molding may
be left over on some parts of the
chassis. Therefore, pay attention to
such burrs in the case of
preforming repair of this system.
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.
(Except the JC version)

FS-SD1000
1-3
Shorting
Flexible cable
Sub board
(Reverse side)

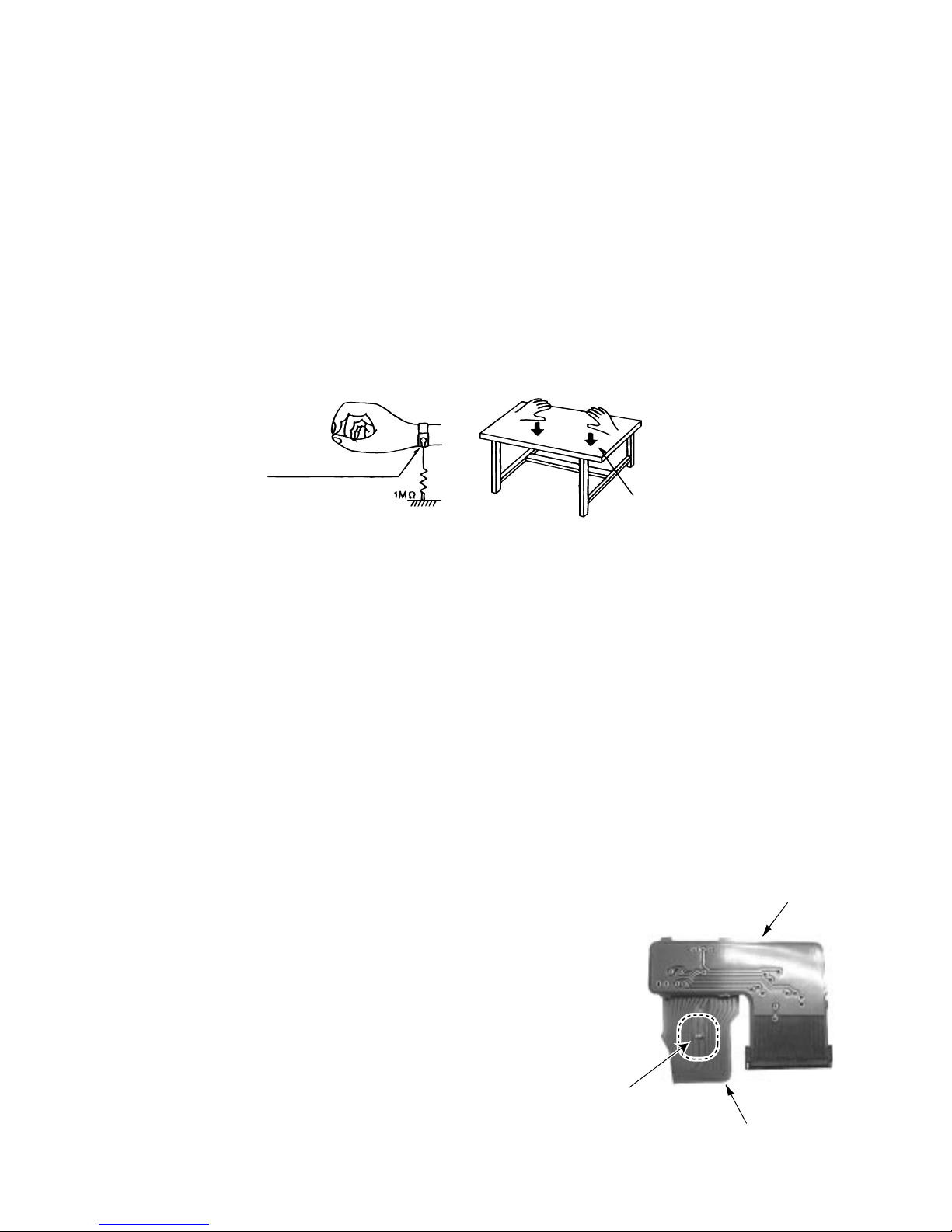

Preventing static electricity
1.Grounding to prevent damage by static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
2.About the earth processing for the destruction prevention by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.
Be careful to use proper grounding in the area where repairs are being performed.
2-1 Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.
2-2 Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
3. Handling the optical pickup
1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
2. Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power
source can easily destroy the laser diode.
4.Handling the traverse unit (optical pickup)
1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
2. Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the traverse
unit. Be careful not to take too long a time when attaching it to the connector.
3. Handle the flexible cable carefully as it may break when subjected to strong force.
4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it
Conductive material
(conductive sheet) or iron plate
(caption)
Anti-static wrist strap

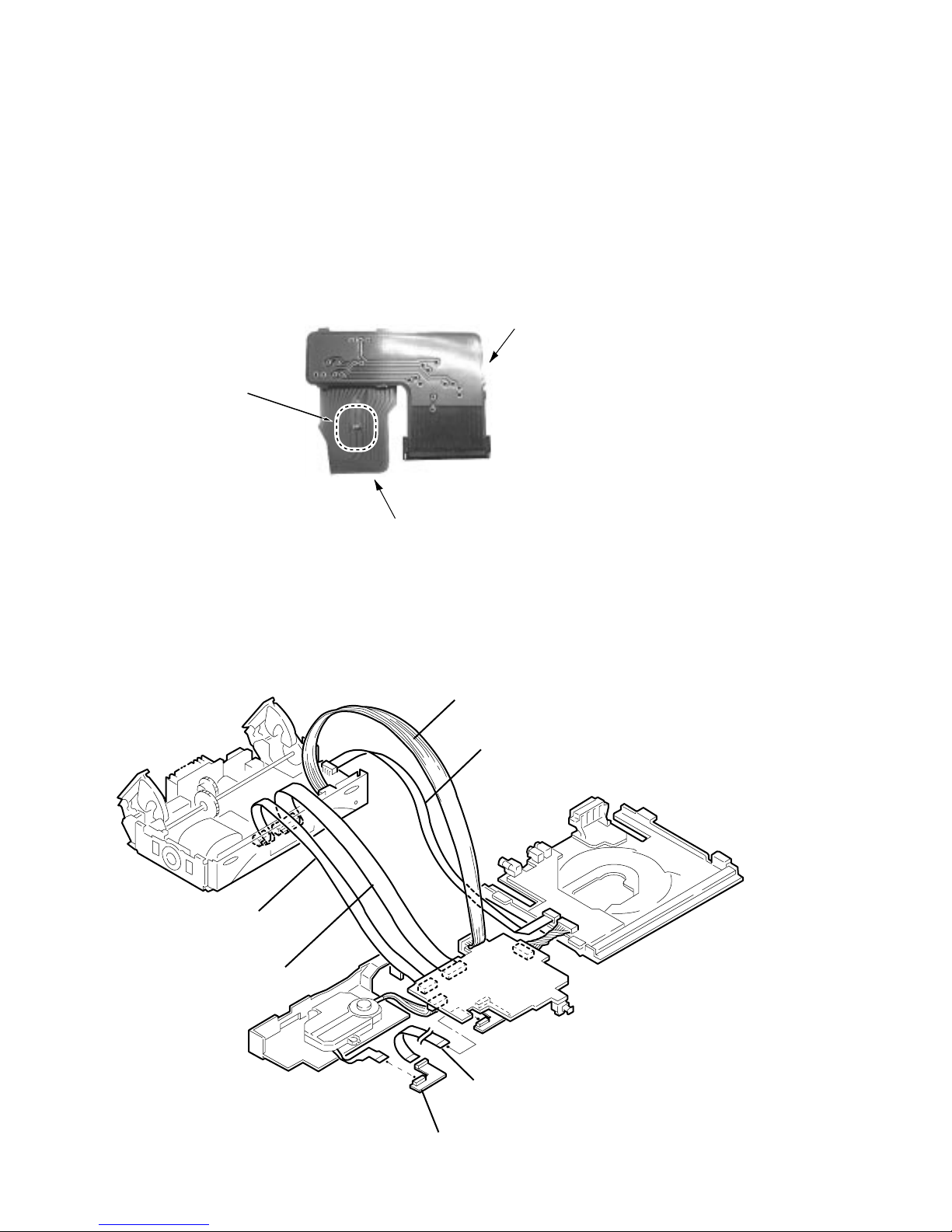

Attention when traverse unit is decomposed
1.Solder is put up before the card wire is removed from connector on
the CD substrate as shown in Figure.
(When the wire is removed without putting up solder, the CD pick-up
assembly might destroy.)
2.Please remove solder after connecting the card wire with
when you install picking up in the substrate.
*Please refer to "Disassembly method" in the text for pick-up and how to
detach the substrate.

FS-SD1000
1-4
Important for laser products
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The compact disc player uses invisible laser
radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are
defeated. It is dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
VARNING : Osynlig laserstrålning är denna del är öppnad
och spårren är urkopplad. Betrakta ej strålen.
VARO : Avattaessa ja suojalukitus ohitettaessa olet
alttiina näkymättömälle lasersäteilylle.Älä katso
säteeseen.
ADVARSEL : Usynlig laserstråling ved åbning , når
sikkerhedsafbrydere er ude af funktion. Undgå
udsættelse for stråling.
ADVARSEL : Usynlig laserstråling ved åpning,når
sikkerhetsbryteren er avslott. unngå utsettelse
for stråling.
REPRODUCTION AND POSITION OF LABELS
WARNING LABEL
DANGER : Invisible laser radiation
when open and interlock or
defeated.
AVOID DIRECT EXPOSURE TO
BEAM (e)
VARNING : Osynlig laserstrålning är
denna del är öppnad och spårren är
urkopplad. Betrakta ej strålen. (s)
VARO : Avattaessa ja suojalukitus
ohitettaessa olet alttiina
näkymättömälle lasersäteilylle.Älä
katso säteeseen. (d)
ADVARSEL :Usynlig laserstråling
ved åbning , når
sikkerhedsafbrydere er ude af
funktion. Undgå udsættelse for
stråling. (f)
CLASS 1
LASER PRODUCT
!CAUTION Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.

FS-SD1000
1-5
Piror to performing the following procedure, remove
the CD door.
Remove the ten screws Band the five screws C
attaching the rear cover on the back of the body.
1.
<Main body>
Removing the rear cover (See Fig.2)
Remove the four screws Aattaching the CD door on
the upper side of the body.
1.
Removing the CD door (See Fig.1)
Prior to performing the following procedure, remove
the CD door, the rear cover.
Remove the four screws Dattaching the side covers
on the bottom of the body.
Move the left cover backward and remove outward.
Also remove the right cover in the same way.
1.
2.
Removing the right and left covers
(See Fig.3)
Disassembly method
Fig.1
Fig.2
Fig.3
B
BB
B
B
B
CCC
Rear cover
DDRight cover
Left cover
Bottom
CD door
A
A

FS-SD1000
1-6
Prior to performing the following procedure, remove
the CD door, the rear cover and the side covers.
Remove the three screws Eon the bottom of the
body.
Release two joints aand two joints bon both sides
of the body using a screwdriver and remove the front
panel assembly toward the front.
1.
2.
Removing the front panel assembly
(See Fig.4 to 6)
Prior to performing the following procedure, remove
the CD door, the rear cover, the side covers and the
front panel assembly.
Disconnect the card wire from connector CN104 and
CN105 of the main board in the front part of the
body. Disconnect the card wire from CN101 of the
main board on the right side, and the wire from
CN705 and CN708 of the CD mechanism base
assembly respectively.
Remove the four screws Fattaching the CD
mechanism base assembly on the upper side of the
body. Remove the screw Iattaching the earth
terminal on the right side.
1.
2.

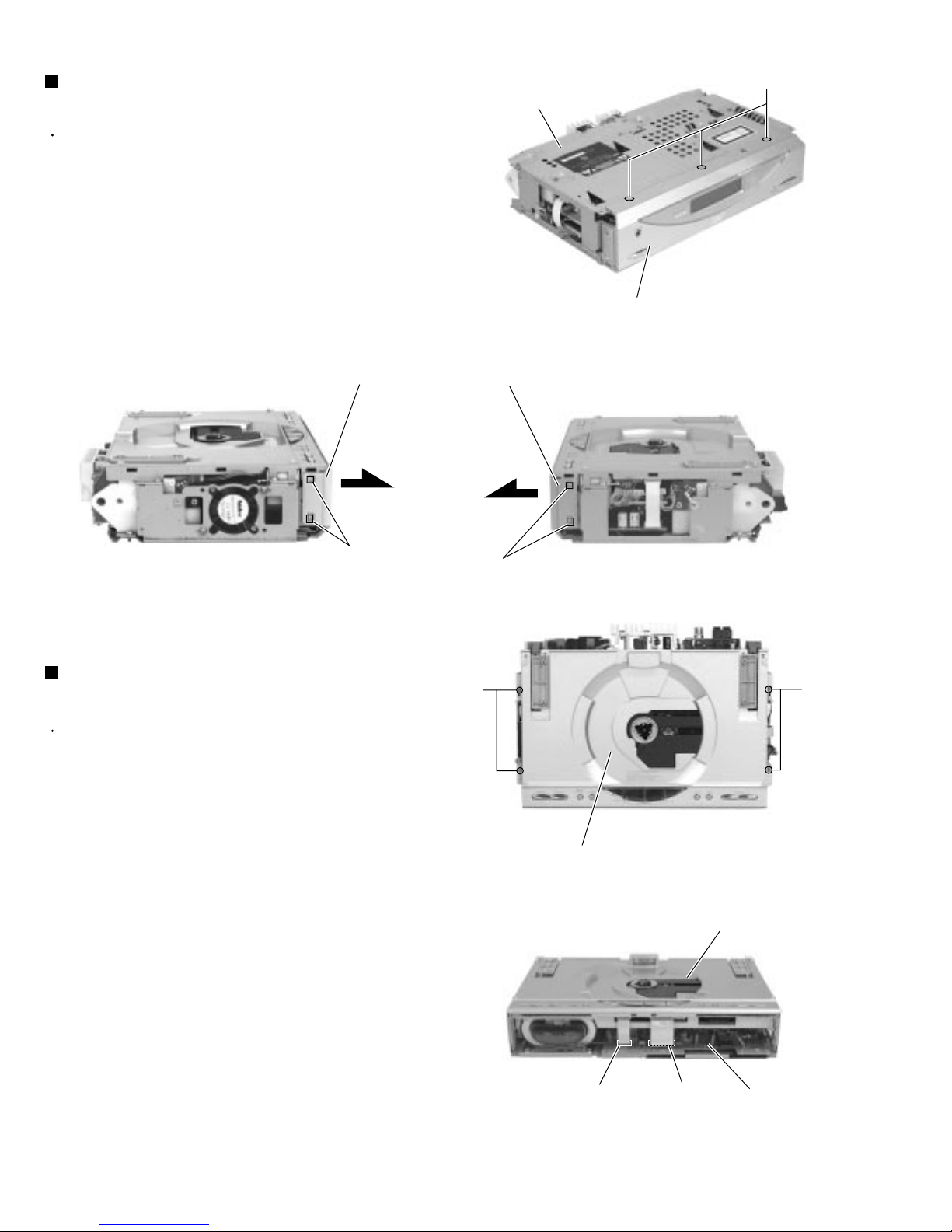

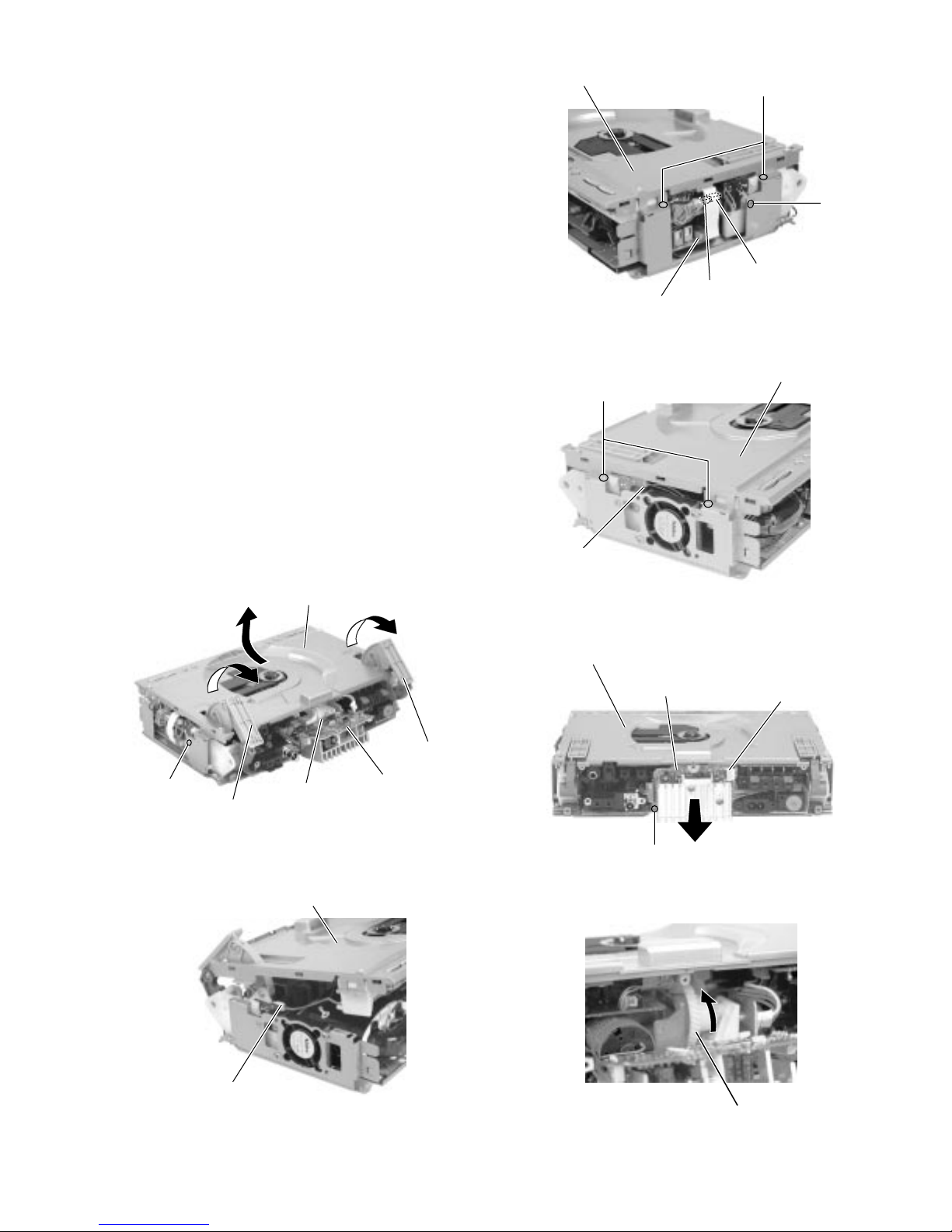

Removing the CD mechanism base
assembly (See Fig.7 to 14)
Fig.4
Fig.6Fig.5
E
Front panel assembly
(Left side) (Right side)
Front panel assembly
Joints a Joints b
Bottom
Fig.7
Fig.8
FF
CD mechanism base assembly
CD mechanism base assembly
Main bard
CN105
CN104
Front panel assembly

FS-SD1000
1-7

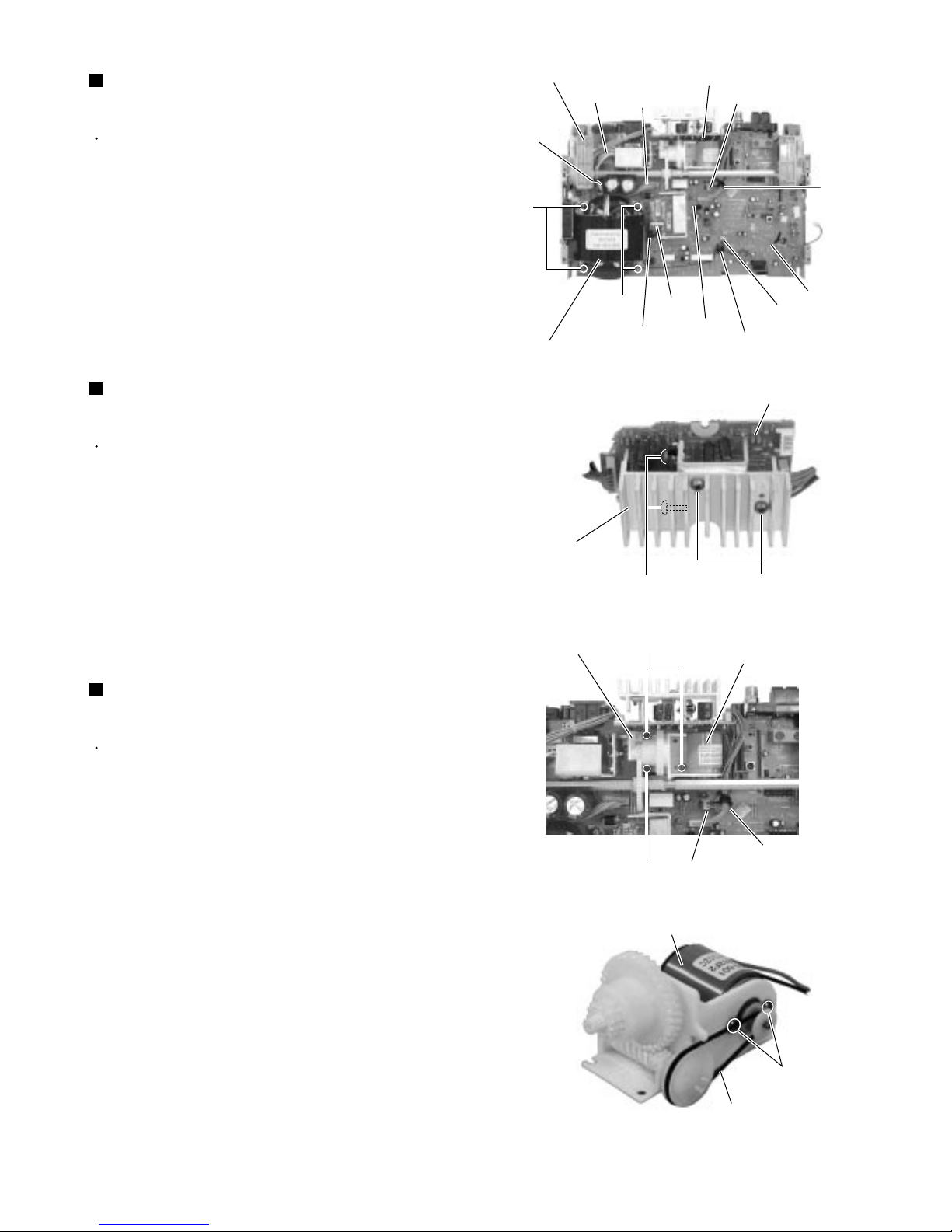

Remove the screw Gattaching the power amplifier
board on the back of the body. Disconnect the wire
from connector CN301 and pull the power amplifier
board fully outward.
Raise the right and left door arms by turning the gear
ain the rear of the power amplifier board.
After the CD mechanism base assembly is detached
from the door arms, pull the CD mechanism base
assembly toward the front and disconnect the wire
from connector CN804 on the left side of the door
arm board.
Pull out the CD mechanism base assembly toward
the front.
3.
4.
5.
6. Fig.9
Fig.10
Fig.11
F
I
CD mechanism base assembly
Main board
CN101
CN708
FCD mechanism base assembly
CN804
CD mechanism base assembly
CN301
G
Power amplifier board
Fig.13
Gear a
Fig.12
Fig.14
CD mechanism base assembly
Power amplifier board
Door arm
Door arm
IGear a
CD mechanism base assembly
Door arm board (L)
CN804
CN705

FS-SD1000
1-8
Prior to performing the following procedure, remove
the rear cover, the side covers, the front panel
assembly and the CD mechanism base assembly.
In case that the upper parts of the door arms
attached to the CD door are not level, let down them
to the level position by turning the gear ain the
direction of the arrow.
1.
Removing the door arm assembly / the
door arm board (R) and (L)
(See Fig.15 to 20)
When the door arms incline, the door
arm assembly and the door arm board
(R) and (L) may not be removed.
ATTENTION:
Remove the four screws Hon the upper side and
the one screw Ion the left side of the body.
Remove the four screws Jattaching the door arm
board (L) and (R) on both sides of the door arm
assembly.
2.
3.
Fig.15
Fig.16
Fig.18
Fig.20
Fig.17
Fig.19
Door arm
Door arm board (L)
Door arm
Door arm board (R)
Door arms (Attached to the CD door)
H
H
Door arm assembly Door arm assembly
J
J
I
Door arm board (L)
Door arm assembly J
J
Door arm board (R)
Fan motor

FS-SD1000
1-9

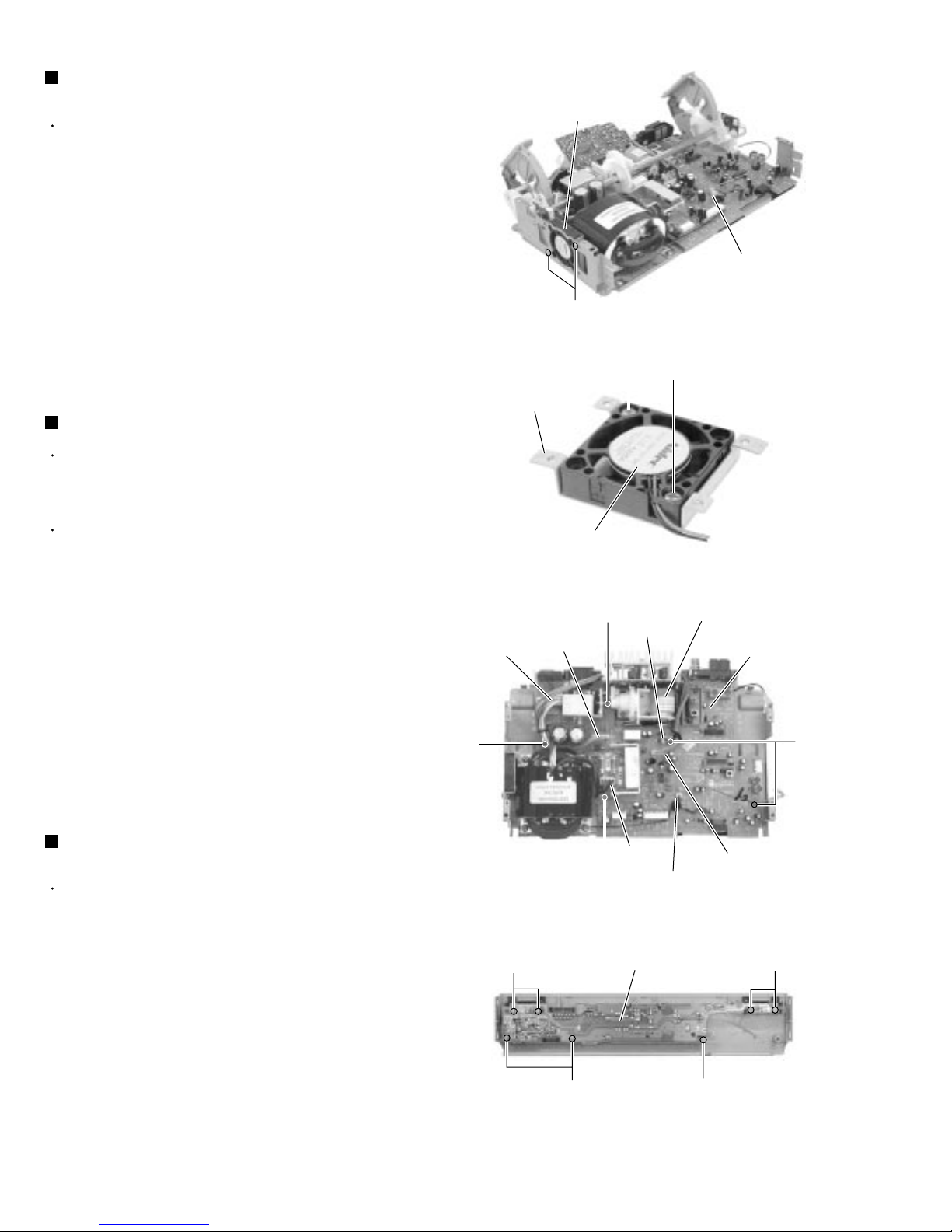

Prior to performing the following procedure, remove
the CD mechanism base assembly.
Disconnect the wires from connector CN102 and
CN193 on the main board and release them from the
cord stopper respectively.
Remove the two screws Kand the two screws L
attaching the heat sink and the power amplifier
board.
1.
2.
Removing the power amplifier board
(See Fig.21 and 22)
Prior to performing the following procedure, remove
the CD mechanism base assembly.
Disconnect the wires from connector CN191 and
CN192 on the main board and release them from the
cord stopper respectively.
Remove the four screws Mattaching the transformer
assembly.
1.
2.
Removing the transformer assembly
(See Fig.21)
Prior to performing the following procedure, remove
the CD mechanism base assembly and the door arm
assembly.
Disconnect the wires from connector CN106 on the
main board and release it from the cord stopper.
Remove the three screws Nattaching the gear
motor assembly. Remove the gear motor assembly
with the gear motor stopper.
Remove the belt from the gear motor assembly.
Remove the two screws Ofrom the gear motor
assembly.
1.
2.
3.
4.
Removing the gear motor assembly
(See Fig.23 and 24)
Fig.21
Fig.22
Fig.23
Fig.24
Power amplifier board
Door arm assembly
CN191 CN193
Cord stopper
Cord
stopper
Main board
CN106
CN181
CN192
CN102
Cord stopper
M
M
Transformer assembly
Power amplifier board
Heat sink
K
L
Gear motor stopper Gear motor assembly
Cord stopper
CN106
N
N
Motor
Belt
O
Cord stopper

FS-SD1000
1-10
Prior to performing the following procedure, remove
the CD mechanism base assembly.
Disconnect the wires from connector CN181 on the
main board.
Remove the two screws Pon the left side of the
body. Move the fan motor assembly upward to
remove it from the base chassis.
Remove the two screws Qand the fan motor from
the fan bracket.
1.
2.
3.
Removing the fan motor assembly
(See Fig.25 and 26)
Prior to performing the following procedure, remove
the front panel assembly.
Remove the seven screws Sattaching the front
panel board inside the front panel assembly.
1.
Removing the front panel board
(See Fig.28)
<Front panel assembly>
Prior to performing the following procedure, remove
the CD mechanism base assembly and the door arm
assembly.
To facilitate operation process, remove the gear
motor assembly before performing the following
procedure.
Disconnect the wires from connector CN102, CN106,
CN191, CN192, CN193 and CN181 on the main
board.
Remove the five screws Rattaching the main board
with the cord stopper.
1.
2.
Removing the main board (See Fig.27)
Fig.25
Fig.26
Fig.27
Fig.28
Main board
CN181
Fan motor
P
Fan motor
Fan bracket
Q
Gear motor assembly
Main board
CN193
CN191
CN106
CN181
CN102
CN192
R
R
R
R
Front panel board
S
S
S
S

FS-SD1000
1-11

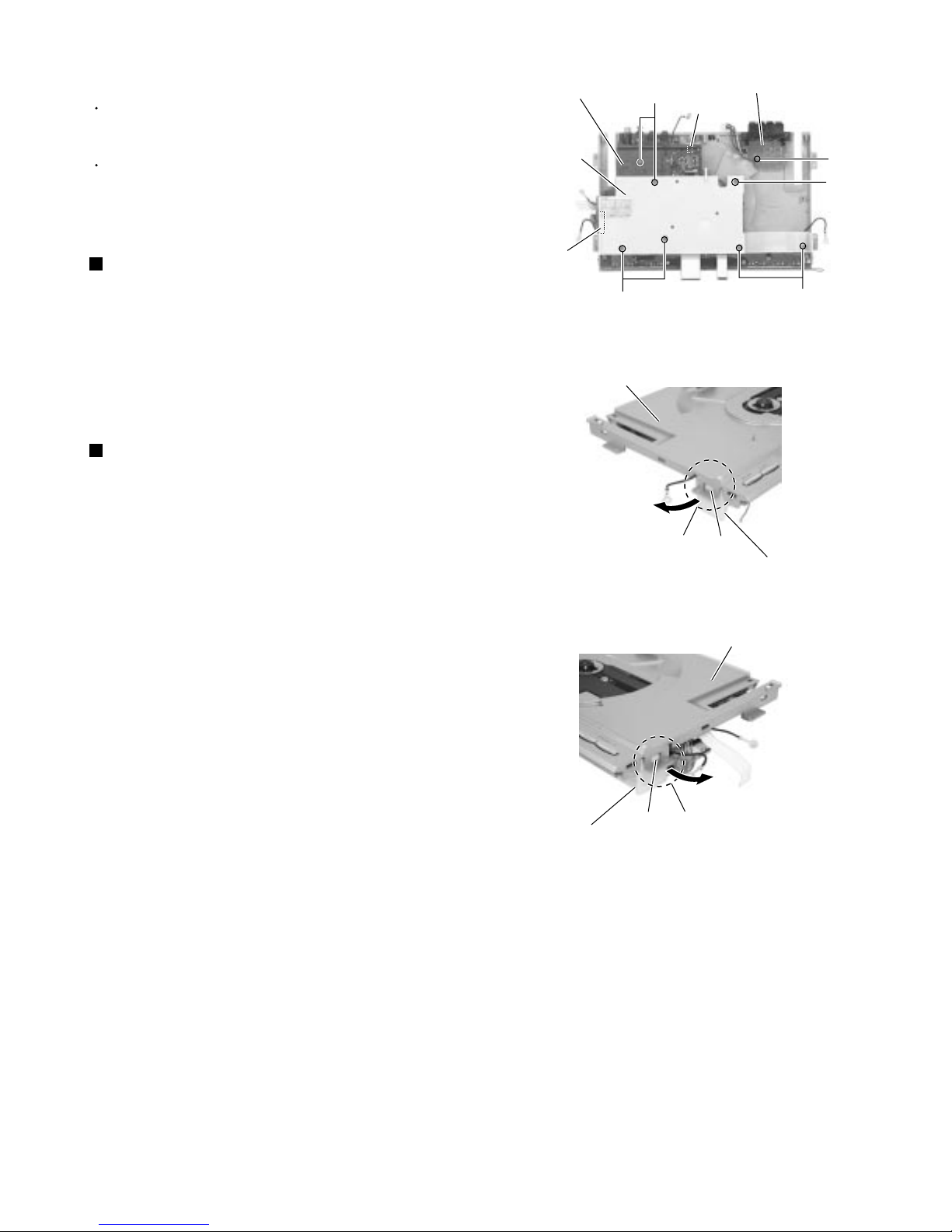

Remove the screw Tattaching the speaker terminal
board on the underside of the CD mechanism base
assembly.
1.
Prior to performing the following procedure, remove
the CD mechanism base assembly.
Refer to "Dismantling and assembling the CD
mechanism assembly" on page 1-5 for the treatment
of optical pickup.
Removing the speaker terminal board
(See Fig.29)
<CD mechanism base assembly>
Turn over the CD mechanism base assembly and
disconnect the wires from connector CN703 and
CN706 on the CD mechanism board.
Remove the seven screws Uattaching the CD
mechanism cover and the CD mechanism board.
Turn back the CD mechanism assembly and detach
the CD mechanism cover while pulling the CD
mechanism assembly outward to release the two
joint tabs marked c.
1.
2.
3.
Removing the CD mechanism board / CD
mechanism assembly (See Fig.29 to 34)
Fig.29
CD mechanism board
CD mechanism
cover
Speaker terminal board
CN706
CN703
T
U
U
U
U
Fig.30
Fig.31
CD mechanism assembly
CD mechanism assembly
Joint c
Tab
CD mechanism cover
CD mechanism cover
Tab
Joint c

FS-SD1000
1-12
Solder the short circuit land on the sub board.
Disconnect the wire from connector CN605 on the
main board.
Disconnect the sub board from connector CN603 on
the main board while peeling off the adhesive tape
on the underside of the sub board.
Remove the CD mechanism assembly from the three
shafts of the CD mechanism
cover.
4.
5.
6.
When reassembling, confirm that the
cushion of the CD mechanism
assembly is reattached to the three
shafts.
ATTENTION:
Remove the CD mechanism board from the CD
mechanism cover.
7.
Fig.33
Fig.32
CD mechanism assembly
CD mechanism cover
CD mechanism board
CN605
Cushion
Cushion
CD mechanism cover
CD mechanism board
Shafts
Short circuit land
Sub board
CN606
Sub board Short circuit land
Main board
CN603
CD mechanism assembly
CN605
CN603
Fig.34

FS-SD1000
1-13
Prior to performing following procedure, remove the
CD mechanism board.
Disconnect the wire from connector CN502 on the
jack board.
Remove the two screws Vattaching the jack board.
1.
2.
Removing the jack board (See Fig.35)
Prior to performing following procedure, remove the
CD mechanism board.
Disconnect the wire from connector CN502 on the
jack board.
Remove the six screws Wattaching the switch
board.
1.
2.
Removing the switch board (See Fig.35)
Disconnect the harness from connector CN706 on
the CD mechanism board on the underside of the
CD mechanism base assembly.
Push inward the two tabs d attaching the LED board
case and release them.
Pull out the LED board from the LED board case.
1.
2.
3.
Removing the LED board
(See Fig.36 and 37)
Fig.35
Fig.36
Fig.37
Jack board
Switch board
CN502
V
V
WW
Tabs d
CD mechanism board
CN706
LED board
LED board case

FS-SD1000
1-14

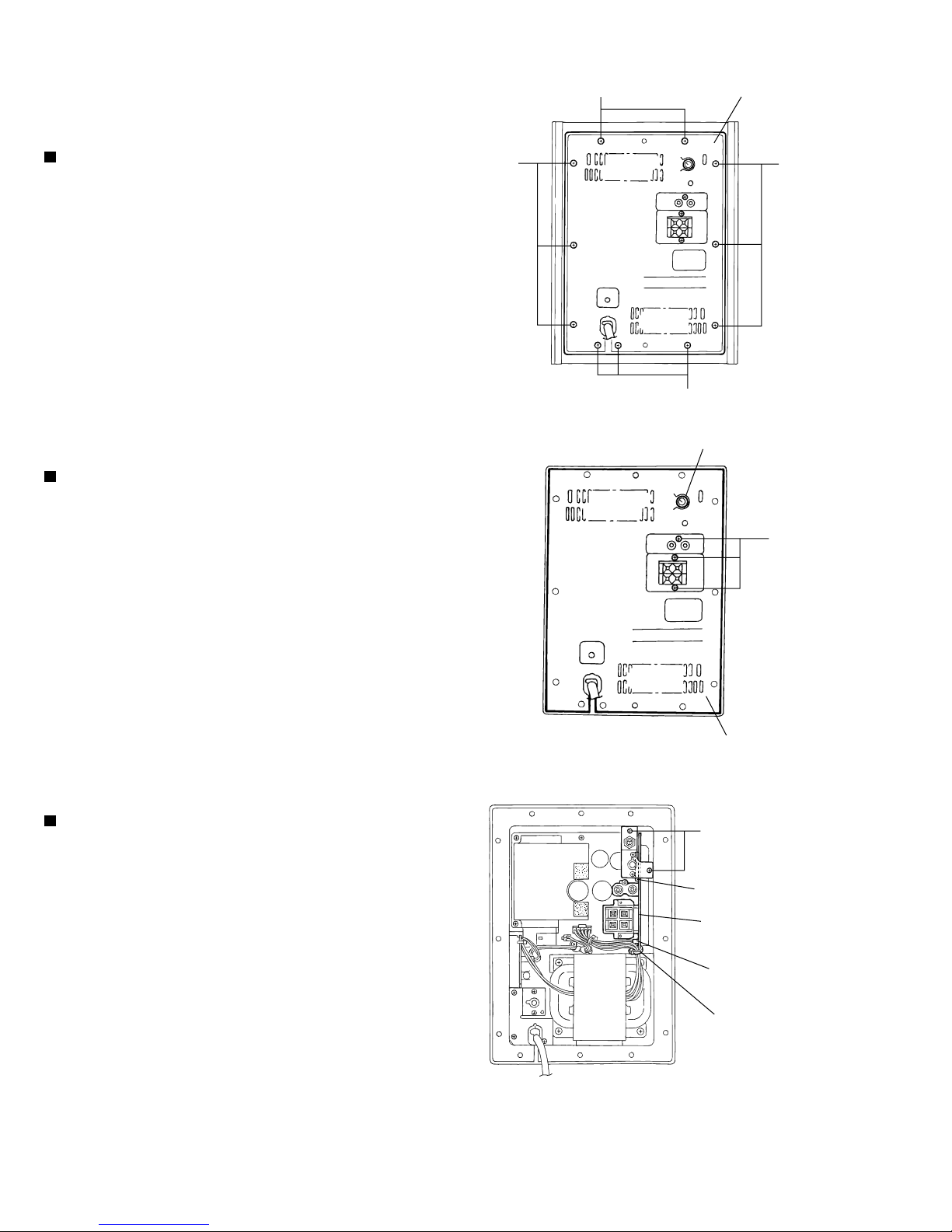

Power woofer section
<Main body>
Removing the amplifier assembly
(See Fig.1)
Remove the eleven screws Aattaching the amplifier
assembly on the back of the body.
Disconnect each relay harness connected to the
speaker and the LED indicator board.
1.
2.
Pull out the volume knob from the amplifier.
Remove the three screws Bon the amplifier.
1.
2.
<Amplifier>
Removing the cover (See Fig.2)
Cut off the band under the input amplifier / filter
board assembly.
Disconnect the harness from connector CN251.
Remove the two screws Cattaching the input
amplifier / filter board assembly. Pull and disconnect
connector CN211 from the body.
1.
2.
3.
Removing the Input amplifier / filter
board assembly (See Fig.3)
Fig.1
Amplifier board
A
A
AA
Volume knob
Cover
B
Input amplifier / filter
board assembly
CN211
CN251
C
Band
Fig.2
Fig.3

FS-SD1000
1-15

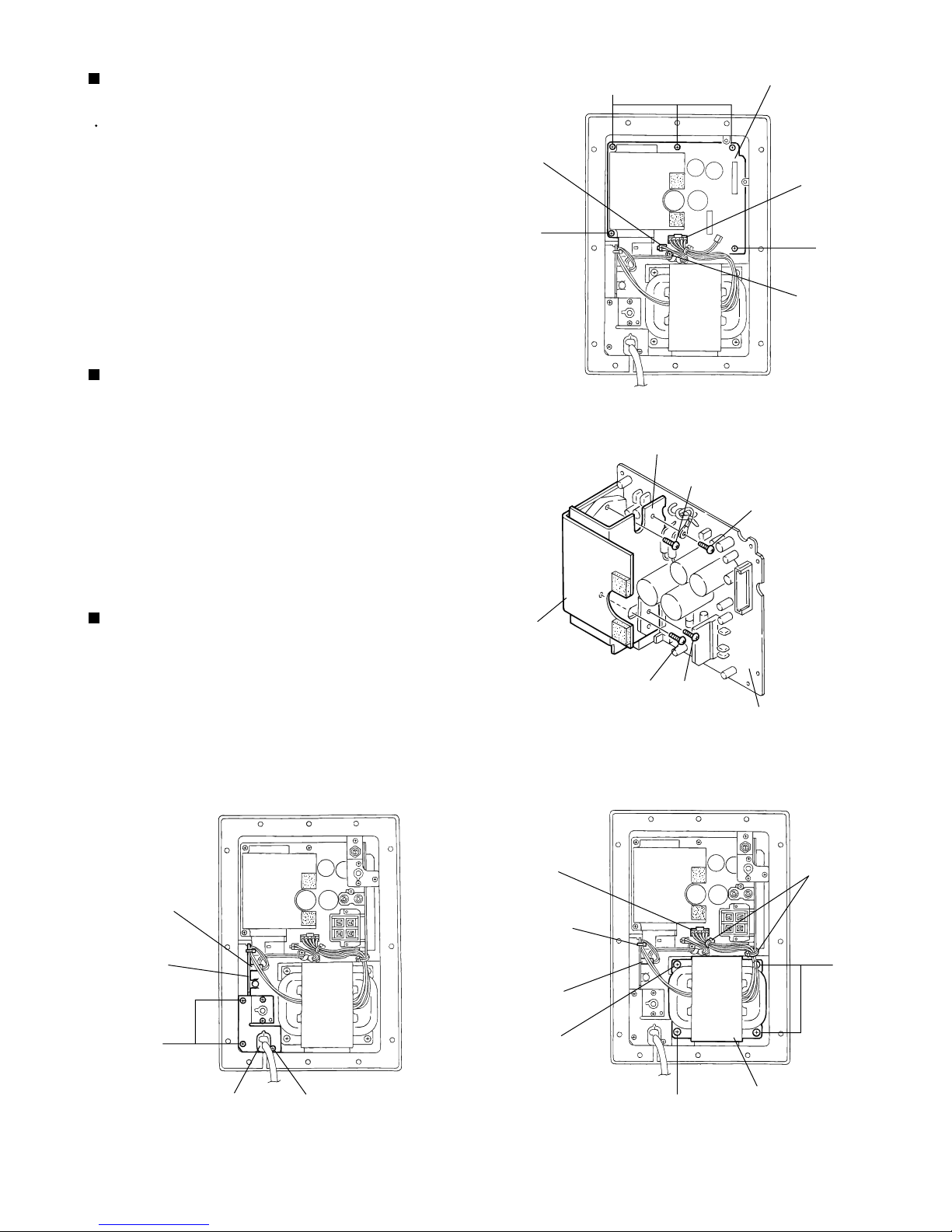

Removing the amplifier board assembly
(See Fig.4 and 5)
Prior to performing procedure, remove the input
amplifier / filter board assembly.
Disconnect the harness from connector CN291 and
CN281 on the amplifier board assembly.
Remove the six screws Dattaching the amplifier
board assembly.
Remove the two screws Eattaching the heat sink 1
and the two screws Fattaching the heat sink 2
respectively.
1.
2.
3.
Cut off the three bands fastening the harnesses
extending from the transformer assembly.
Disconnect the harness from connector CN291 on
the amplifier board assembly and from CN299 on the
power board assembly.
Remove the four screws Gattaching the transformer
assembly.
1.
2.
3.
Removing the transformer assembly
(See Fig.6)
Disconnect the harness from connector CN299 on
the power board assembly and cut off the band.
Remove the three screws Hassembly.
Remove the cord stopper.
1.
2.
3.
Removing the power board assembly
(See Fig.7)
Fig.4
Fig.5
Fig.6
Fig.7
Amplifier board assembly
CN291
CN281
D
D
D
D
Heat sink 2
Heat sink 1
Amplifier board assembly
F
E
EF
Bands
Amplifier board
assembly
CN291
Power board
assembly
CN299
G
Transformer assembly
G
G
CN299
Power board
assembly
Cord stopper H
H
Band

FS-SD1000
1-16
Turn off the power switch and,disconnect the
power cord from the ac outlet.
Replace the pickup with a normal one.(Refer
to "Pickup Removal" on the previous page)
Plug the power cord in,and turn the power on.
At this time,check that the laser emits for
about 3seconds and the objective lens moves
up and down.
Note: Do not observe the laser beam directly.
Play a disc.
Check the eye-pattern at TP1.
Finish.
Maintenance of laser pickup
(1) Cleaning the pick up lens
Before you replace the pick up, please try to
clean the lens with a alcohol soaked cotton
swab.
(2) Life of the laser diode
When the life of the laser diode has expired,
the following symptoms will appear.
1. The level of RF output (EFM output:amplitude
of eye pattern) will below.
Is the level of
RFOUT under
1.25V 0.22Vp-p? Replace it.
NO
YES
O.K
(3) Semi-fixed resistor on the APC PC board The semi-fixed resistor on the APC printed circuit board which is
attached to the pickup is used to adjust the laser power.Since this adjustment should be performed to match the
characteristics of the whole optical block, do not touch the semi-fixed resistor.
If the laser power is lower than the specified value,the laser diode is almost worn out, and the laser pickup should
be replaced.
If the semi-fixed resistor is adjusted while the pickup is functioning normally,the laser pickup may be damaged
due to excessive current.
Replacement of laser pickup

FS-SD1000
1-17
Flow of functional operation until TOC read
Slider turns REST
SW ON.
Automatic tuning
of TE offset
Laser ON
Detection of disc
Automatic measurement of
Focus S-curve amplitude
Automatic tuning of
Focus offset
Disc is rotated
Focus servo ON
(Tracking servo ON)
Automatic tuning of
Tracking error balance
Automatic measurement of
Tracking error amplitude
Automatic tuning of
Focus error balance
Disc to be
braked to stop
Tracking
servo
on states
Tracking
servo
off states
Disc states
to rotate TOC reading
finishes
Automatic measurement
of TE amplitude and
automatic tuning of
TE balance
500mv/div
2ms/div Fig.1
Approx.3sec
pin 25 of
IC601(TE)
Approx
1.8V
VREF
Tracking error waveform at TOC reading
Power ON Play Key
Confirm that the Focus error
S-cuve signal at the pin28 of
IC603 is approx.2Vp-p
Confirm that the signal from
pin24 IC603 is 0V as a
accelerated pulse during
approx.400ms.
Confirm the waveform of
the Tracking error signal.
at the pin 25 of IC601 (R6009)
(See fig-1)
Automatic tuning of
Focus error gain
Automatic tuning of
Tracking error gain
TOC reading
Play a disc
Confirm the eys-pattern
at the lead of TP602
Confirm that the voltage at the pin4
of CN605 is "H"/"L"/"H".
Check Point
Check that the voltage at the
pin40 of IC603 is + 5V?

FS-SD1000
1-18
Method of connecting treatment device wire
Shorting
Flexible cable
KSM-900AAH
Sub board
(Reverse side)
First short-circuit the pickup circuit before removing the pickup. Then carry out the replacement.
Refer to "Disassembling and assembling the traverse unit".
When the KSM-900AAH mechanism is used, the expansion cable is used as follows.
EXTFSSD5-JIG
extension wire
QUQB12-0840CJ
8pin card wire
QUQB12-0940DJ
9pin card wire
QUQB12-1840DJ
18pin card wire
QUQB12-1640DJ
16pin card wire
EXTKSM900-JIG
Sub board

FS-SD1000
1-19
Description of major ICs
1. Pin layout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PD
LD
VCC
RFN
RF OUT
RF IN
C.AGC
ARF
CEA
3TOUT
CBDO
BDO
COFTR
OFTR
NRFDET
APC Amp. Input terminal
APC Amp.Output terminal
Power supply terminal
RF addition Amp.Reversing input terminal
RF addition Amp.Output terminal
AGC input terminal
Terminal of connection of capacity of AGC loop
filter.
AGC output terminal
Capacity connection terminal for HPF-Amp.
3TENV output terminal
Capacity connection terminal for RF shade side
envelope detection
BDO output terminal
Capacity connection terminal for RF discernment
side envelope detection
OFTR output terminal
NRFDET output terminal
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CDDG
VREF
VDET
TEBPF
TEOUT
TEN
FEN
FEOUT
GCTL
FBAL
TBAL
E
F
D
B
C
A
Earth terminal
VREF output terminal
VDET output terminal
VDET input terminal
TE Amp. output terminal
TE Amp. reversing input terminal
FE Amp. reversing input terminal
FE Amp. output terminal
Terminal GCTL & APC
FBAL control terminal
TBAL control terminal
Tracking signal input terminal 1
Tracking signal input terminal 2
Focus signal input terminal 4
Focus signal input terminal 2
Focus signal input terminal 3
Focus signal input terminal 1
2. Block
3. Function
AN22000A (IC601) : RF & Servo amp
Pin
No. Symbol Function Pin No. Symbol Function
A
C
B
D
E
F
VREF
CDDG VCC
VDET
TEBPF
TEOUT
TEN
FEOUT
NRFDET
3TOUT
CEA
OFTR
COFTR
BDO
CBDO
ARF
C.AGC
RFN
FEN
RF_EQ AGC BDO OFTR
3TENV
NRFDET
AMP GCA BCA
AMP GCA BCA
AMP GCA BCA
AMP GCA BCA
RF OUT
RF IN
SUBT
SUBT
GCTL TBAL FBAL
24 26 25 16 3
1
2
18
19
20
21
23
22
15
10
14131211
8
7654
9
32
31
30
29
27
28
17
PD
LD
VDET
32 17
116

FS-SD1000
1-20
UPD780024AGKB19 (IC701) : CPU
1. Pin layout
2. Block diagram
1
16
48
33
64 ~ 49
17 ~ 32
~ ~
78K/0
CPU
CORE
ROM
(32K
BYTE)
RAM
(1024
BYTE)
16-bit TIMER/
EVENT COUNTER
8-bit TIMER/
EVENT COUNTER50
PORT0
PORT1
PORT2
PORT3
PORT4
PORT5
PORT6
PORT7
EXTERNAL
ACCESS
SYSTEM
CONTROL
8-bit TIMER/
EVENT COUNTER51
SERIAL
INTERFACE30
SERIAL
INTERFACE31
UART0
INTERRUPT
CONTROL
A/D CONVERTER
VDD0 VDD1 Vss0 Vss1 IC
BUZZER OUTPUT
CLOCK OUTPUT
CONTROL
WATCHDOG TIMER
WATCH TIMER
