JVC VS-DT6 User manual

COMPACT COMPONENT SYSTEM
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bot-
tom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
INSTRUCTIONS
LVT0853-008A
[A]
VS-DT6
Consists of CA-VSDT6 and SP-VSDT6
COMPACTCOMPONENT SYSTEM
2
8
STANDBY/ON
PLAYMODE
REPEAT
FM MODE
TREBLEBASS
SET
CANCEL
SLEEPDIMMERDISPLAYFM/AM
AHB PRO
CLOCK
/TIMER OPEN/ CLOSE
VOLUME
MD/AUX
13
6
9
10
10
7
45
+
CA-VSDT6SP-VSDT6 SP-VSDT6
VS-DT6[A].book Page 1 Tuesday, March 19, 2002 12:21 PM

G-1
Warnings, Cautions and Others
Caution — %
%%
%switch!
Disconnect the mains plug to shut the power off completely (the
%
%%
%goes off).
The %
%%
%switch in any position does not disconnect the mains
line.
•When the unit is on standby, the %
%%
%lights red.
•When the unit is turned on, the operation lamps light red.
The power can be remote controlled.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1 Do not remove screws, covers or cabinet.
2 Do not expose this appliance to rain or moisture.
CAUTION
1. Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a news-
paper or cloth, etc., the heat may not be able to get out.)
2. Do not place any naked flame sources, such as lighted
candles, on the apparatus.
3. When discarding batteries, environmental problems must
be considered and local rules or laws governing the dis-
posal of these batteries must be followed strictly.
4 Do not expose this apparatus to rain, moisture, dripping or
splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage,
locate the apparatus as follows:
1 Top: No obstructions and open spacing.
2 Sides/ Front/ Back: No obstructions should be placed in the
areas shown by the dimensions below.
3 Bottom: Place on the level surface. Maintain an adequate
air path for ventilation by placing on a stand with a height of
10 cm or more.
CAUTION
■
■■
■About the Internal Cooling Fan
This unit includes an internal cooling fan, so as to allow for high-
power operation within a small space.
This fan comes on when the sound level is set high, and may
also come on even at low sound levels if the internal temperature
rises. To ensure effective fan operation, please leave at least
1cm clearance on each side of the unit.
IMPORTANT FOR LASER PRODUCTS
REPRODUCTION OF LABELS
1 CLASSIFICATION LABEL, PLACED ON EXTERIOR SURFACE
2 WARNING LABEL, PLACED INSIDE THE UNIT
1 CLASS 1 LASER PRODUCT
2CAUTION: Invisible laser radiation when open and inter-
lock failed or defeated. Avoid direct exposure to beam.
3CAUTION: Do not open the top cover. There are no user
serviceable parts inside the Unit; leave all servicing to qual-
ified service personnel.
CLASS 1
LASER PRODUCT
CAUTION: Invisible laser
radiation when open and
interlockfailedordefeated.
AVOIDDIRECTEXPOSURE
TO BEAM. (e)
ADVARSEL: Usynlig laser-
stråling ved åbning, når
sikkerhedsafbrydere er ude
af funktion. Undgåudsæt-
telse for stråling. (d)
VARNING: Osynlig laser-
strålning när denna del är
öppnad och spärren är
urkopplad. Betrakta ej
strålen. (s)
VARO: Avattaessa ja
suojalukitus ohitettaessa
olet alttiina näkymättö-
mälle lasersäteilylle.
Älä katso säteeseen. (f)
10 cm
15 cm
15 cm
15 cm
1 cm 1 cm
10 cm
15 cm
15 cm
15 cm
1 cm 1 cm
COMPACTCOMPONENT SYSTEM
COMPACT COMPONENT SYSTEM
F
ront v
i
ew
(Vertical position) (Horizontal position)
VS-DT6[A]_Warning.fm Page 1 Thursday, March 21, 2002 8:40 AM

1
Introduction
Thank you for purchasing the JVC Compact Component System.
We hope it will be a valued addition to your home, giving you years of enjoyment.
Be sure to read this instruction manual carefully before operating your new stereo system.
In it you will find all the information you need to set up and use the system.
If you have a query that is not answered by the manual, please contact your dealer.
Features
Here are some of the things that make your System both powerful and simple to use.
■With the slot-loading CD mechanism, you can choose to place the System either vertically or horizontally.
■The controls and operations have been redesigned to make them very easy to use, freeing you to
just enjoy the music.
• With JVC’s COMPU PLAY you can turn on the System and automatically start the Radio or
CD Player with a single touch.
■The System incorporates Active Hyper Bass PRO circuitry to faithfully reproduce low frequency sounds.
■A 45-station preset capability (30 FM and 15 AM) in addition to auto-seek and manual tuning.
■CD options that include repeat, random and program play.
■Timer functions; Daily Timer and Sleep Timer.
■You can connect various external units, such as an MD recorder.
■The system can play CD-R and CD-RW after they have been finalized.
■You can play back your original CD-R or CD-RW recorded in Music CD format. (However they may not be played back
depending on their characteristics or recording conditions.)
How This Manual Is Organized
• Basic information that is the same for many different functions - e.g. setting the volume - is given in the section
‘Basic Operations’, and not repeated under each function.
• The names of buttons/controls and display messages are written in all capital letters: e.g. FM/AM, “CD NO DISC”.
• System functions are written with an initial capital letter only: e.g. Normal Play.
Use the table of contents to look up specific information you require.
We have enjoyed making this manual for you, and hope it serves you in enjoying the many features built into your System.
WARNINGS
•DO NOT PUT ANYTHING ON THE PANEL. IF THE SYSTEM IS OPERATED WITH SOMETHING PUT
ON THE PANEL, IT WILL BE DAMAGED WHEN YOU TRY TO OPEN THE PANEL.
•SUPPLIED SPEAKERS ARE EXCLUSIVELY FOR THIS SYSTEM. USING WITH OTHER DEVICES WILL
DAMAGE THE SPEAKERS.
IMPORTANT CAUTIONS
1Installation of the System
• Select a place which is level, dry and neither too hot nor too cold. (Between 5°C and 35°C or 41°F and 95°F.)
• Leave sufficient distance between the System and a TV.
• Do not use the System in a place subject to vibrations.
2Power cord
• Do not handle the power cord with wet hands!
• Some power is always consumed as long as the power cord is connected to the wall outlet.
• When unplugging the System from the wall outlet, always pull the plug, not the power cord.
3Malfunctions, etc.
• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.
• Do not insert any metallic object into the System.
• Do not insert your hand between the Panel and the main body when the Panel is being closed.
VS-DT6[A].book Page 1 Tuesday, March 19, 2002 12:21 PM

Table of Contents
2
Introduction ........................................................................................................ 1
Features ...................................................................................................................................... 1
How This Manual Is Organized ................................................................................................. 1
WARNINGS .............................................................................................................................. 1
IMPORTANT CAUTIONS ....................................................................................................... 1
Getting Started ................................................................................................... 3
Accessories................................................................................................................................. 3
How To Put Batteries In the Remote Control ............................................................................ 3
Connecting the FM Antenna ...................................................................................................... 4

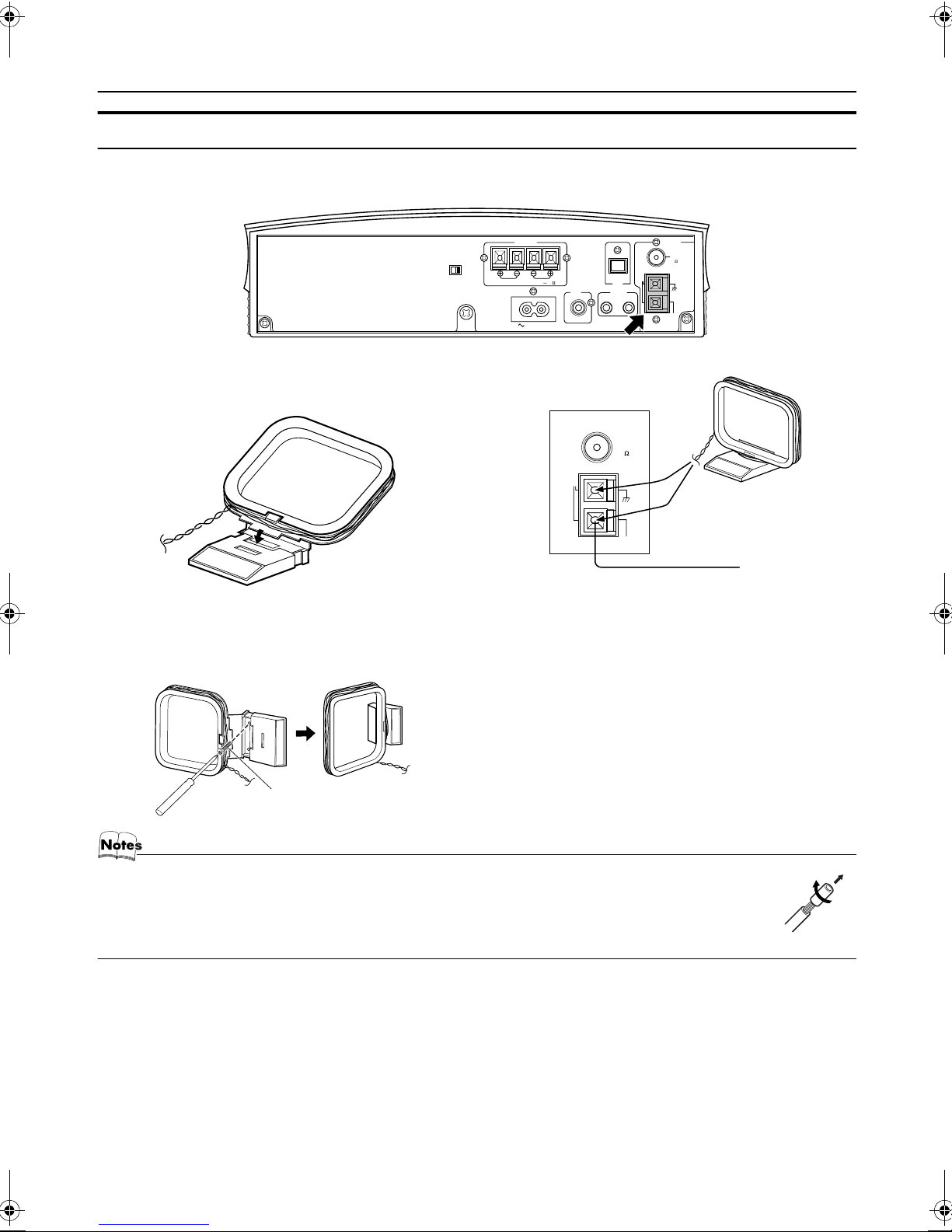

Connecting the AM Antenna......................................................................................................5
Connecting the Speakers ............................................................................................................ 6

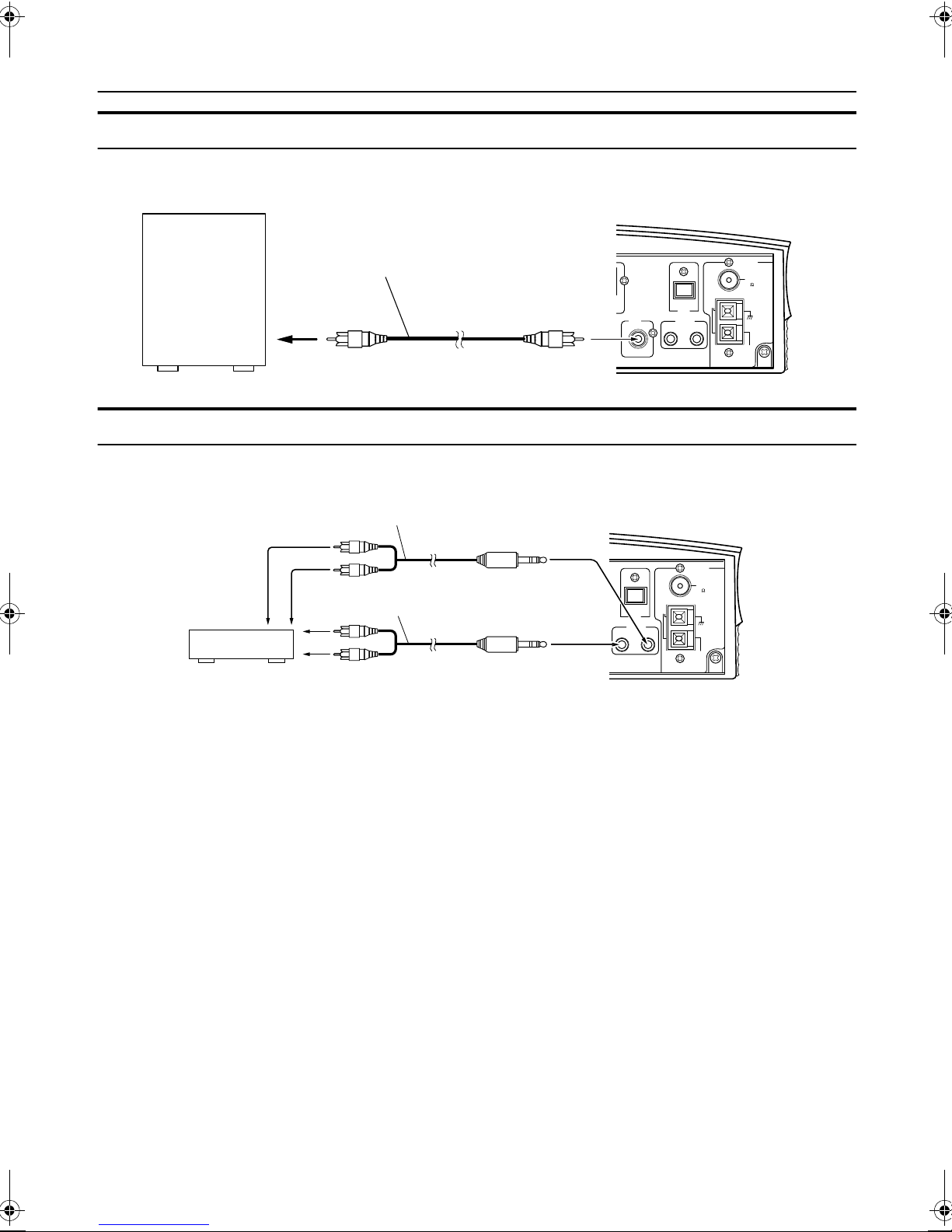

Connecting a Subwoofer ............................................................................................................ 7
Connecting External Equipment ................................................................................................ 7
Connecting an MD Recorder, etc (Digital Output) .................................................................... 8
Connecting the AC Power Cord................................................................................................. 8
Installing the Unit on the Stand.................................................................................................. 8

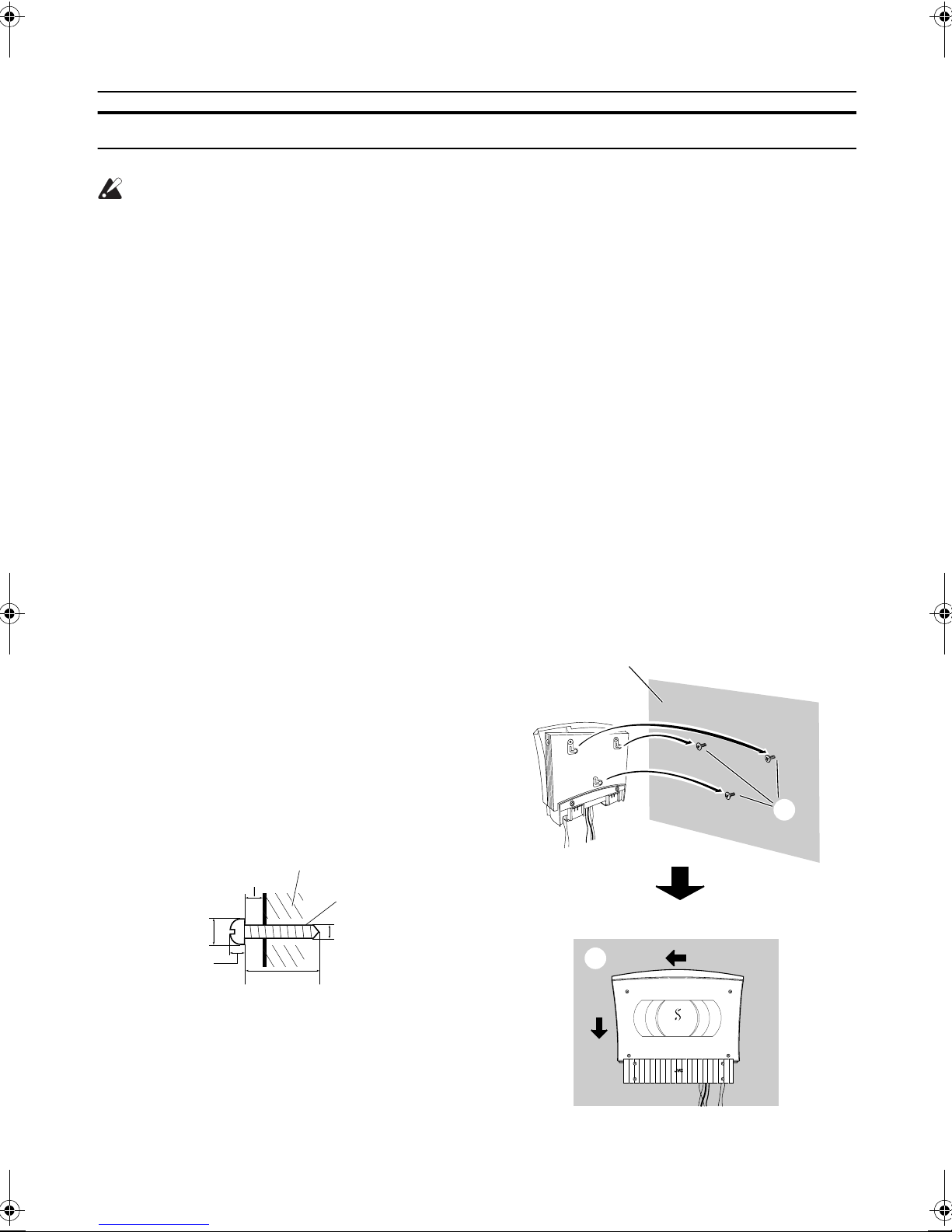

Installing the Equipment on the Wall......................................................................................... 9
Changing the Display and Control Buttons Settings................................................................ 10
Using the Remote Control........................................................................................................11
COMPU Play............................................................................................................................ 11
Basic Operations ............................................................................................. 12
Turning the Power On and Off................................................................................................. 12
Adjusting the Brightness (DIMMER) ...................................................................................... 12

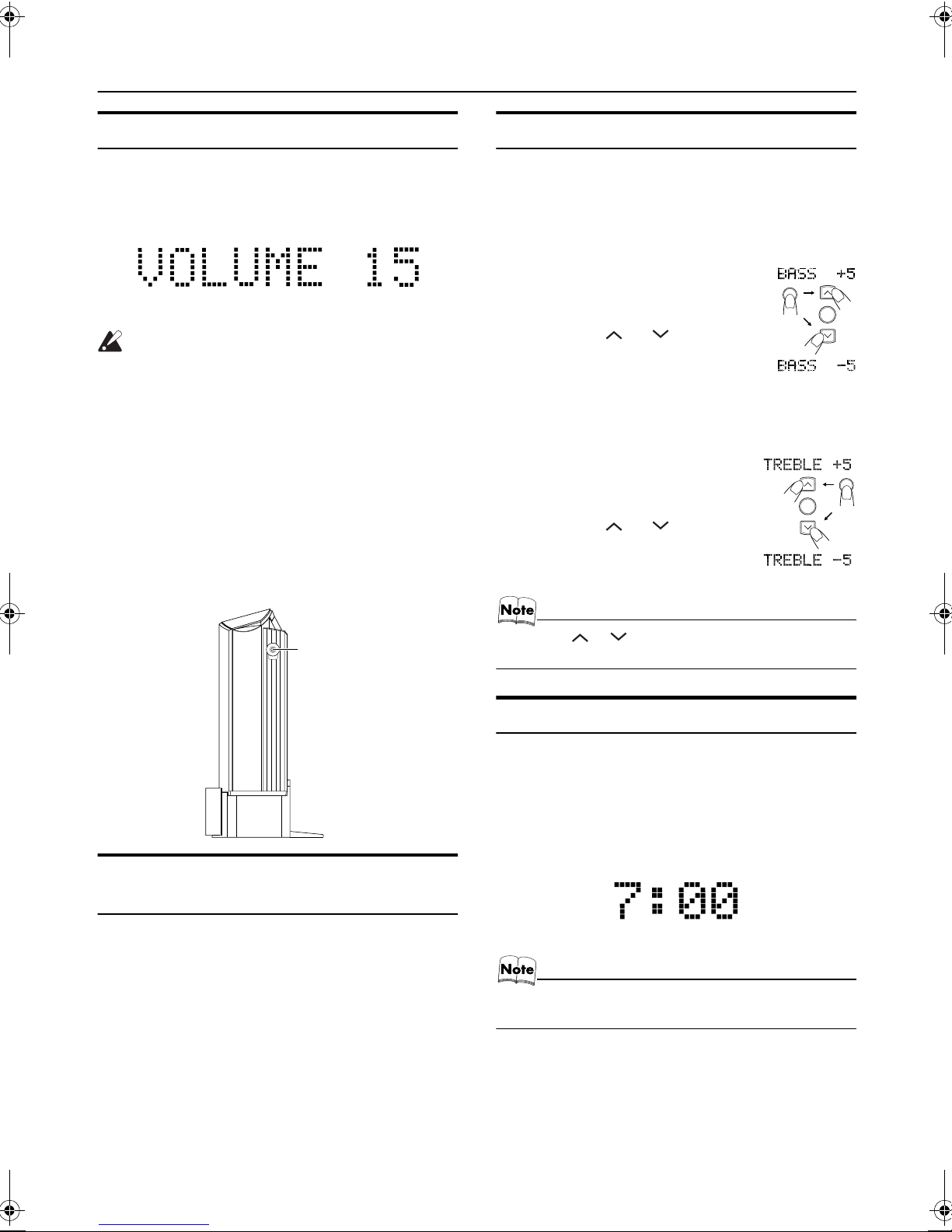

Adjusting the Volume .............................................................................................................. 13
Reinforcing the Bass Sound (AHB PRO) ................................................................................ 13
Tone Control (BASS/TREBLE)...............................................................................................13
Showing the Time (DISPLAY)................................................................................................ 13
Using the Tuner................................................................................................ 14

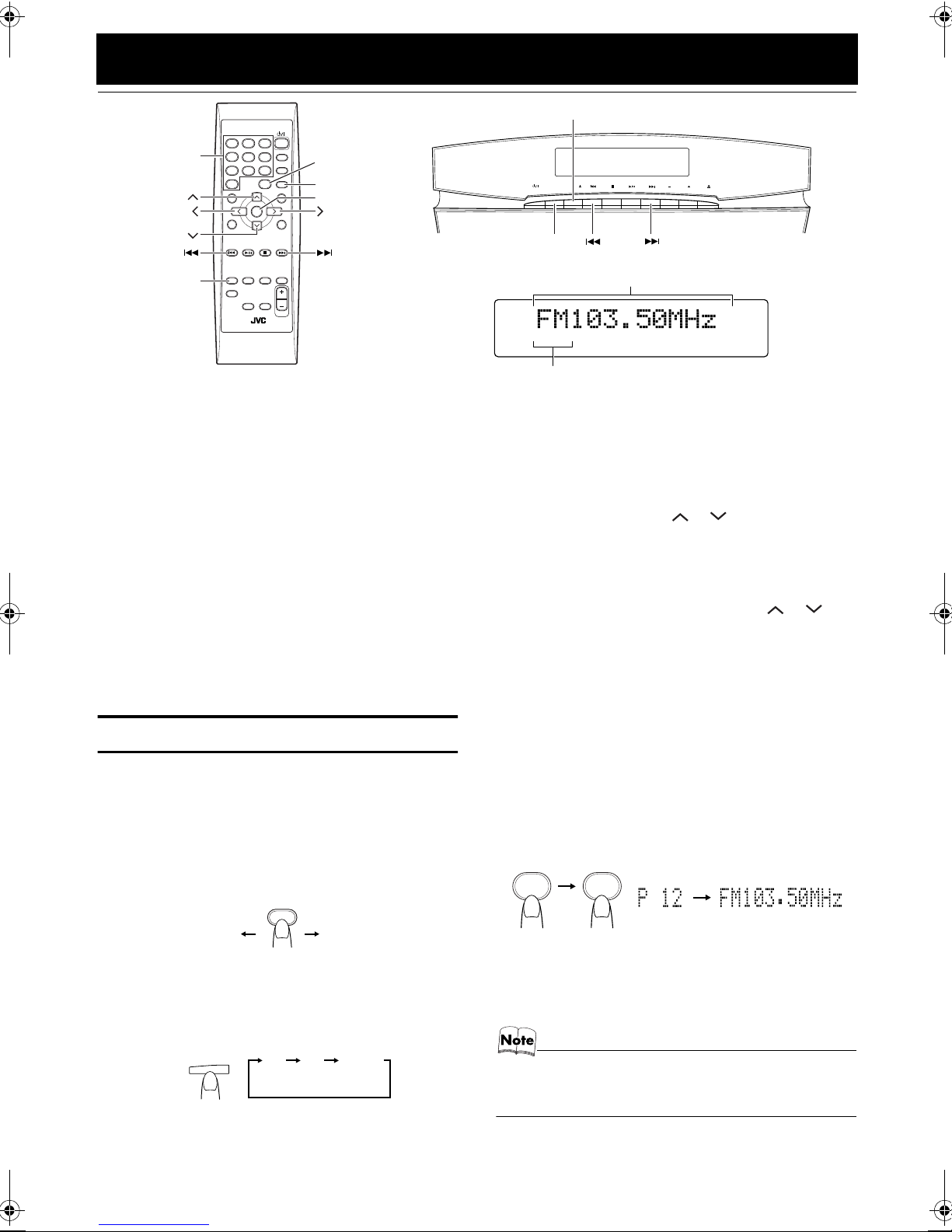

Tuning In a Station................................................................................................................... 14
Presetting Stations .................................................................................................................... 15
To Change the FM Reception Mode ........................................................................................15
Using the CD Player......................................................................................... 16

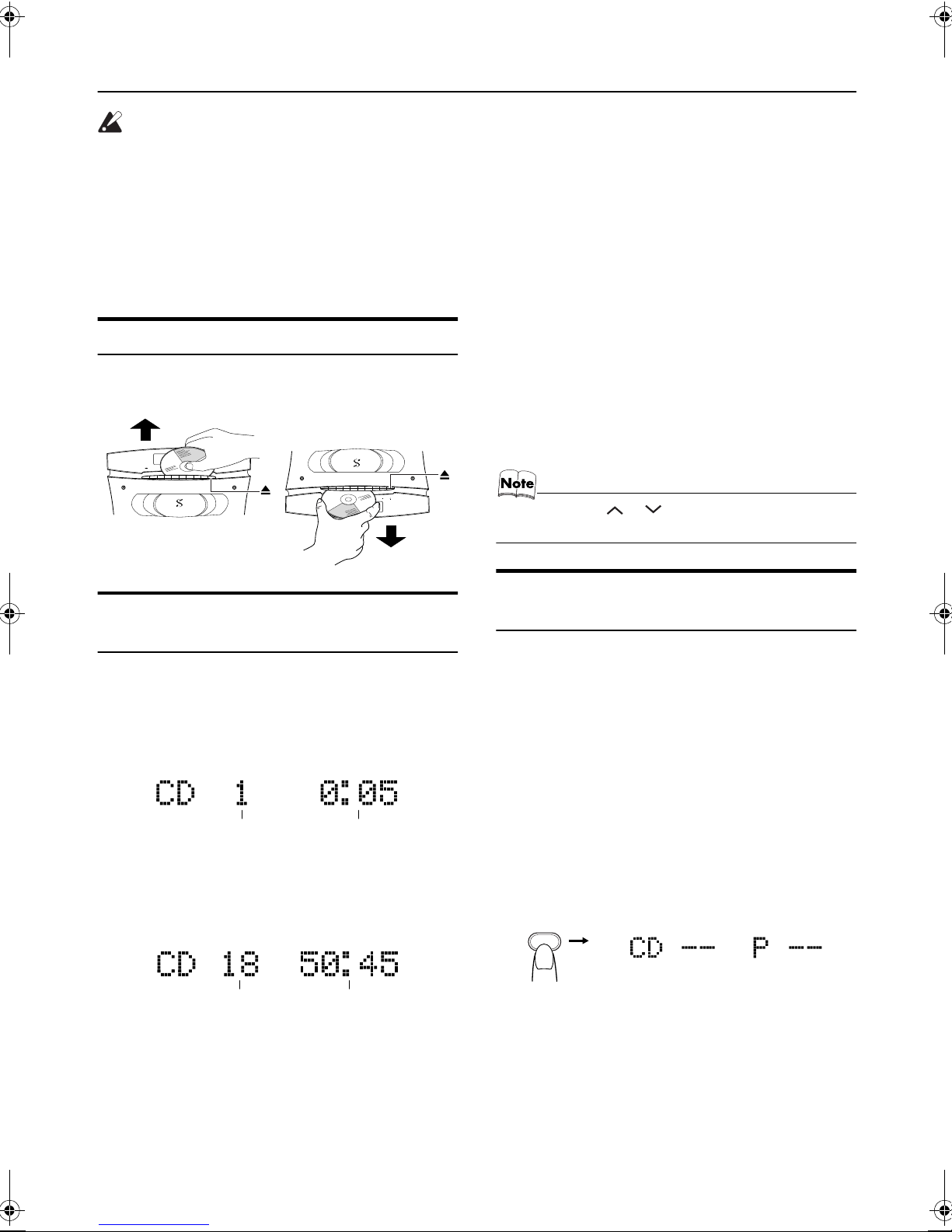

To Insert a CD .......................................................................................................................... 16
To Unload a CD ....................................................................................................................... 17
Basics of Using the CD Player — Normal Play.......................................................................17
Programming the Playing Order of the Tracks ........................................................................17
Random Play ............................................................................................................................ 18
Repeating Tracks...................................................................................................................... 18
Child Lock................................................................................................................................ 18
Using External Equipment .............................................................................. 19
Listening to External Equipment.............................................................................................. 19
Recording the System’s Source to External Equipment .......................................................... 19
Using the Timers .............................................................................................. 20
Setting the Clock ...................................................................................................................... 20
Setting the Daily Timer............................................................................................................ 21
Setting the SLEEP Timer .........................................................................................................22
Care And Maintenance .................................................................................... 23
Troubleshooting............................................................................................... 24
Specifications................................................................................................... 25
VS-DT6[A].book Page 2 Tuesday, March 19, 2002 12:21 PM

3
Getting Started
Accessories
Make sure that you have all of the following items, which are supplied with the System.
Power Cord (1)
AM Loop Antenna (1)
Remote Control (1)
Batteries (2)
FM Wire Antenna (1)
Speaker Cords (2)
Stand (1) (for Center Unit)
Legs (2) (for Stand)
Screw (1) (for Stand)
Paper Pattern (1)
If any of these items are missing, contact your dealer immediately.

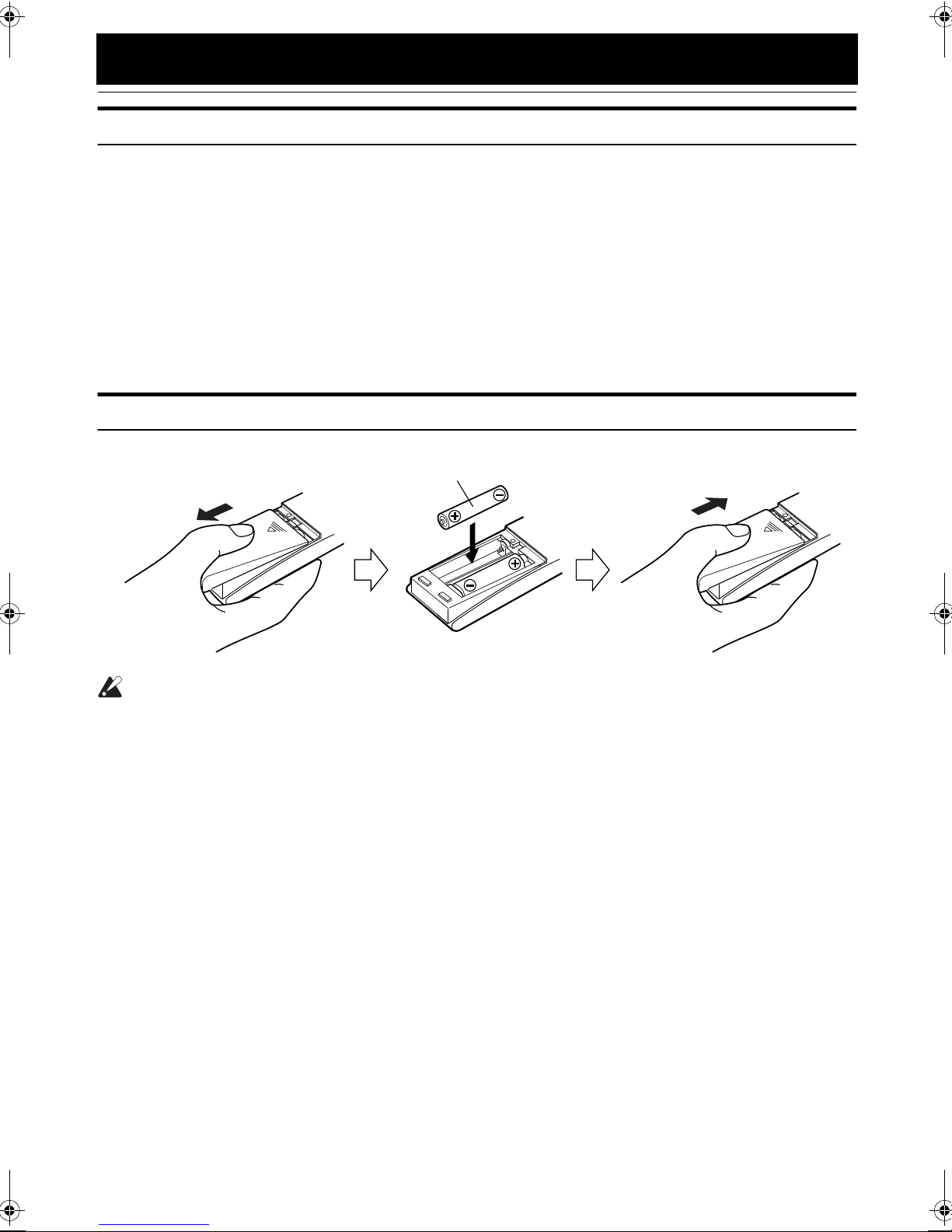

How To Put Batteries In the Remote Control
Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.
CAUTION:
•Handle batteries properly.
■To avoid battery leakage or explosion:
• Remove batteries when the Remote Control will not be used for a long time.
• When you need to replace the batteries, replace both batteries at the same time with new ones.
• Do not use an old battery with a new one.
• Do not use different types of batteries together.
R6P(SUM-3)/AA(15F)
VS-DT6[A].book Page 3 Tuesday, March 19, 2002 12:21 PM

4
Getting Started
CAUTION:
•Make all connections before plugging the System into an AC power outlet.
(Only if you install the Center Unit vertically)
• To place the Center Unit vertically, the Stand and Legs must be
attached. (See page 8.) To make connections, let the cords pass in
the holes of the Stand as shown in the diagram before attaching the
Stand and Legs.
Connecting the FM Antenna
Rear Panel of the Center Unit
Using the Supplied Wire Antenna
Using the Coaxial Type Connector
(Not Supplied)
A 75 Ωantenna with coaxial type connector (IEC or DIN45
325) should be connected to the FM 75 ΩCOAXIAL termi-
nal.
If reception is poor, connect the outdoor antenna.
• Before attaching a 75 Ωcoaxial lead (the kind with a
round wire going to an outdoor antenna), disconnect the
supplied FM Wire Antenna.
ANTENNA
OUT IN
SPEAKERS
AC IN
SPEAKER IMPEDANCE 4 16
AM
EXT
FM
(75 )
COAXIAL
AM
LOOP
RL
MD/AUX
SUB
WOOFER
CD DIGITAL
OUT
HV
DISP.SET
FM wire antenna (supplied)
Coaxial cable
FM outdoor
antenna
(Not supplied)
VS-DT6[A].book Page 4 Tuesday, March 19, 2002 12:21 PM

5
Getting Started
Connecting the AM Antenna
Rear Panel of the Center Unit
•The AM loop antenna can be attached to a wall.
• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.
• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord.
This could cause poor reception.
• If reception is poor, connect an outdoor single vinyl-covered wire to the AM EXT terminal. (Keep the AM loop
antenna connected.)
ANTENNA
OUT IN
SPEAKERS
AC IN
AM
EXT
FM
(75 )
COAXIAL
AM
LOOP
RL
MD/AUX
SUB
WOOFER
CD DIGITAL
OUT
HV
DISP.SET SPEAKER IMPEDANCE 4 16
Attach the AM loop to its base by snapping the tabs
on the loop into the slot in the base.
AM loop antenna (Supplied)
AM
EXT
FM
(75 )
COAXIAL
AM
LOOP
ANTENNA
Turn the loop until you have the best reception.
Outdoor single vinyl-
covered wire
(not supplied)
Screw (not supplied)
VS-DT6[A].book Page 5 Tuesday, March 19, 2002 12:21 PM

6
Getting Started
CAUTION:
•Make all connections before plugging the System into an AC power outlet.
•Handling the speakers
As this is a precision instrument, handle it carefully so as to protect it from shocks.
Connecting the Speakers
These speakers are exclusively for this system. Using with other devices will damege the speakers.
1. Open each of the terminals to connect the speaker wire leads.
2. Connect the speaker cords between the Speaker terminals of the Unit and the terminals of the Speakers.
Connect the cords with a black line to the (–) terminals and cords without a black line to the (+) terminals.
3. Close each of the terminals to securely connect the cords.
• Since both speakers are the same, you can put either one to the right or left side.
• Do not connect other speakers to the Unit. The difference of the load impedance causes failures.
• Do not use the supplied speakers in parallel with other speakers.
CAUTION:
•A TV may display irregular colors if located near the speakers. If this happens, set the speak-
ers away from the TV.
Removing the speaker grilles
The speaker grilles can be removed.
When removing:
1. Pull the bottom towards you with your fingers.
2. Also pull the top towords you.
When attaching the speaker grilles:
Attach the speaker grilles as shown in the diagram.
SPEAKER IMPEDANCE 4 16
SPEAKERS
RL
Right side (rear view) Left side (rear view)Marked with a black line
Speaker grille
VS-DT6[A].book Page 6 Tuesday, March 19, 2002 12:21 PM

7
Getting Started
Connecting a Subwoofer
Connect a signal cord (not supplied) between the System’s SUBWOOFER terminal and the input terminal of an external sub-
woofer.
Connecting External Equipment
Connect signal cords (not supplied) between the System’s MD/AUX-OUT/IN terminals and the output/input terminals of the
external MD recorder, tape deck, etc.
You can then listen to the external source through the System or record the System’s CD player or tuner to the external unit.
ANTENNA
OUT IN
AM
EXT
FM
(75 )
COAXIAL
AM
LOOP
MD/AUX
SUB
WOOFER
CD DIGITAL
OUT
Subwoofer (not suipplied)
Signal cord (not supplied)
ANTENNA
OUT IN
AM
EXT
FM
(75 )
COAXIAL
AM
LOOP
MD/AUX
CD DIGITAL
OUT
Signal cord (not supplied)
MD recorder or tape deck
(not supplied)
Pin-plug x 2
Pin-plug x 2
Signal cord (not supplied)
Stereo mini-plug
Stereo mini-plug
VS-DT6[A].book Page 7 Tuesday, March 19, 2002 12:21 PM

8
Getting Started
Connecting an MD Recorder, etc (Digital Output)
Remove the cap and connect an optical digital cord (not supplied) between the System’s CD DIGITAL OUT terminal and the
input terminal of the MD recorder, etc.
You can record the digital output signal from the System’s CD Player to the MD recorder, etc.
Connecting the AC Power Cord
Firmly insert the supplied AC power cord into the AC inlet on the back of the Unit.
CAUTIONS:
•ONLY USE THE JVC POWER CORD PROVIDED WITH THIS SYSTEM
TO AVOID MALFUNCTION OR DAMAGE TO THE SYSTEM.
•BE SURE TO UNPLUG THE POWER CORD FROM THE OUTLET
WHEN GOING OUT OR WHEN THE SYSTEM IS NOT IN USE FOR AN
EXTENDED PERIOD OF TIME.
Installing the Unit on the Stand
You can place the Unit vertically by attaching the supplied Stand.
• Avoid an unstable place when placing the Unit vertically. Select a place on the level surface.
Attach the Stand to the Unit and tighten the screw. Attach the Legs to the Stand.
CD DIGITAL
OUT
MD recorder, etc. (not supplied)
Optical digital cord (not supplied)
Cap
AC IN
Power cord
Screw (supplied)
Stand (supplied)
Legs (supplied)
Back of the Leg
VS-DT6[A].book Page 8 Tuesday, March 19, 2002 12:21 PM
