K-FEE EXPRESSI User manual

2
Contents
Safety instructions ...................................................................................................3
Machines – Overview ................................................................................................7
Start-up .................................................................................................................8
Preparing beverages .................................................................................................9
Programming cup capacity.......................................................................................10
Cleaning the machine every day (after the last time you use it) ....................................11
Optional: Cleaning the machine with a cleaning capsule (recommended) ........................12
Cleaning the machine with cleansing liquid (alternative) .............................................14
Descaling the machine - monthly..............................................................................15
Evaporating residual water ......................................................................................16
Frequently asked questions......................................................................................17
Specifications and servicing.....................................................................................18
Disposal instructions ..............................................................................................18
Guarantee terms ....................................................................................................19
Notes...................................................................................................................20

3
Symbols and warnings
The warning triangle is used in the
instructions where risks can result
to the user or the machine if the
safety instructions are not followed.
Warning: Electric shock
Warning: Danger of scalding
Prohibited: Do not reach into ma-
chine.
Prohibited: Do not drink.
Recommended action
If you fail to comply with these op-
erating instructions and safety in-
structions, the machine may become
dangerous to operate. Please keep the
operating instructions and include
them with the machine if it is passed
on to third parties.
Do not start the machine if it is dam-
aged or if it does not work properly. In
that case, immediately remove the plug
from the power socket and contact the
Service Hotline.
The machine is designed and manufac-
tured for domestic use. The manufacturer
assumes no liability for consequences
arising from commercial use, use not in
compliance with its intended purpose or
non-compliance with the operating in-
structions. This machine is intended to
make hot drinks as stipulated in the op-
erating instructions.
This machine is intended for use in
households and similar areas, such as
staff rooms in offices and shops, as well
as other work-related facilities; also on
farms, for use by guests in hotels, mo-
tels and bed & breakfast establishments.
The machine may only be used for its
intended purpose.
Safety instructions

4
Safety instructions
(continued)
In case of long periods of absence, vaca-
tion etc., the machine must be emptied,
cleaned and the power plug must be re-
moved from the socket.
If there is risk of frost, all residual wa-
ter must be removed, see the section on
“Evaporating residual water” on page 16.
The mains voltage must match the spec-
ifications on the type plate. Only con-
nect the machine to a grounded 3-pin
wall socket. If you connect the machine
incorrectly, you may lose your warranty
rights.
Do not damage the power cord by plac-
ing it on or near hot objects or over
sharp edges. Do not allow the power
cord to hang down (risk of tripping).
Do not touch the power cord with wet
hands. Do not remove the plug from the
socket by pulling on the cable. If the
power cord shows signs of damage, do
not start the machine.
If the power cord of the machine is dam-
aged, it must be replaced by the manu-
facturer, his company customer service
or a similarly qualified person in order to
avoid any hazards.
Do not place the machine on a hot sur-
face (e.g. cooker) or operate it next to
heat sources or fires. Do not allow the
machine to stand on its power cord. Al-
ways place the unit on a stable, level sur-
face that is water-resistant.
Do not operate the appliance from with-
in cupboard.
For health reasons, only fill the water
tank with fresh drinking water.
How to avoid injuries and scalds when
using the machine.
Do not leave the machine unattended
while a drink is being prepared.
This machine may be used by children
from the age of 8 years and older and by
persons with reduced physical, sensory
or mental abilities or who lack experi-
ence and knowledge in handling the ma-
chine, provided they are supervised or
have been instructed regarding the safe
operation of the machine, and under-
stand the resulting dangers.

5
Safety instructions
(continued)
Cleaning or servicing the machine nor-
mally carried out by the user may not be
carried out by children unless they are 8
years old or older and are acting under
supervision.
The machine and its power cord must be
kept out of the reach of children younger
than 8 years. Do not allow children to
play with the machine.
Never open the lever on the machine
during the brewing, rinsing, cleaning or
descaling processes. Do not place your
fingers under the dispensing spout after
completing a process and when opening
the lever. Any residual liquid dripping
may scald you. When the brewing pro-
cess is finished, slowly open the lever to
eject the capsule; do not bend over the
capsule insertion opening (risk of hot
liquid spraying).
Never reach with your fingers into the
capsule insertion opening - risk of injury.
Do not use the machine without its drip
tray or drip grating.
Do not overfill the water tank. Never lift
the machine by its lever.
Store the machine and all its accessories
outside the reach of children.
Never open the machine or insert ob-
jects into the machine openings.
To avoid any hazards, any work beyond
the normal use of the machine, its clean-
ing, descaling and maintenance, such as
repairs or replacing the power cord may
only be carried out by a customer service
authorised by the manufacturer.
Before cleaning the exterior of the ma-
chine, unplug the power cord and allow
the machine to cool down.
Do not clean the machine, power cord or
power plug with water or immerse them
in liquid. Do not clean the machine un-
der flowing water. Never put the machine
or its parts into a dishwasher.
Refer to the instructions on how to use
all cleaning and descaling agents before
use and comply with the safety regula-
tions.

6
Safety instructions
(continued)
To prevent damage to the appliance do
not use alkaline cleaning agents when
cleaning, use a soft cloth and a mild de-
tergent.
Never use a damaged or deformed cap-
sule. Only use drink capsules marked
with the K-fee® system logo and that are
intended for the machine.
Capsules to be used:
Only use genuine K-fee® – your system
capsules. Look for the red K-fee® –
your system logo and the characteristic
fluted shape of the capsules.
Using non-genuine capsules involves the
following risks:
1. Health hazards
If you use non-genuine capsules, dif-
ferences in brewing process and capsule
design, it may cause hot water to escape
under high pressure - risk of scalding.
2. Damage to the machine and war-
ranty
If you use non-genuine capsules, dif-
ferences in brewing process and capsule
design, it will cause damage to the ma-
chine, which means that any warranty
claims may be forfeited.
The manufacturer and his distribution
partner cannot be held liable for any
injury or damage which is the direct or
indirect result of using non-genuine
capsules in this machine.
These operating instructions are also
available by request from
[email protected]

7
8
9
1
6
On/Off button
Small cup
Large cup
Rinsing button
4
25
7
3
Machines - Overview
1 Drip grating
2 Upper drip tray
3 Lower drip tray
4 Spent capsule container
5 Spout
6 Controls
7 Capsule insertion opening
8 Lever
9 Water tank
Before using the ma-
chine for the first
time, remove the pro-
tective foil from the drip grat-
ing (1).
Risk of scalding
The machine pro-
duces very hot wa-
ter (when brewing, descal-
ing, cleaning and rinsing). In
order to prevent scalding and
other injuries always ensure
that the lever is fully closed
when the machine is running.
Do not reach under the spout
and do not remove the drip
tray.
Risk of injury
Four pointed needles open the
capsule in the machine. To avoid
injury do not reach into the cap-
sule insertion opening.

8
Before starting up
the machine, check
the voltage on the
type plate (see underside of
machine).
Please read the safe-
ty instructions first.
Recommendations for
first startup: Press
the rinsing button 5
times to rinse the machine
thoroughly.

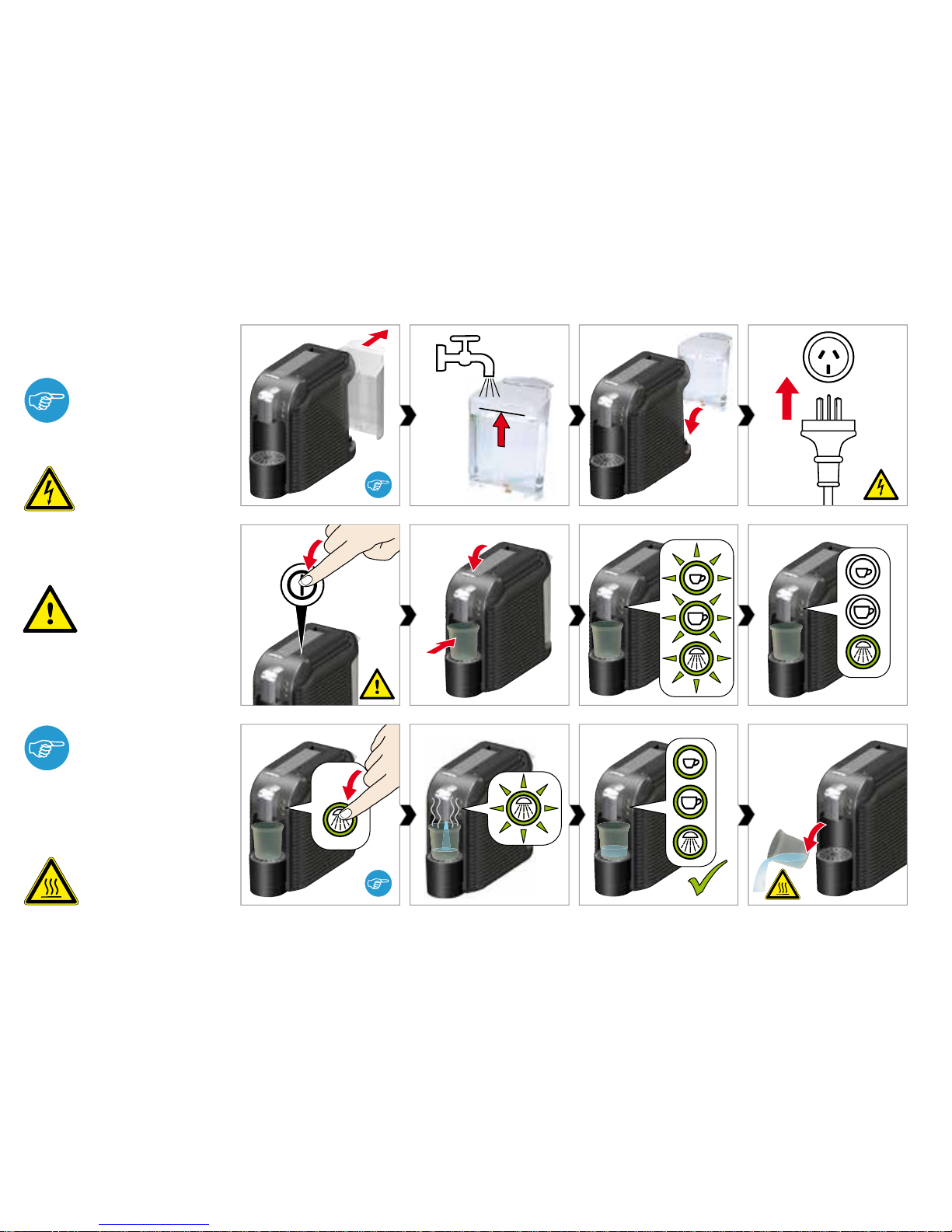

Start-up
1x
8129
On
max
65
12
1110
87
43
Risk of scalding
Very hot water.
Rinse water tank thor-
oughly with a smooth
cleaning agent before
first use.

9

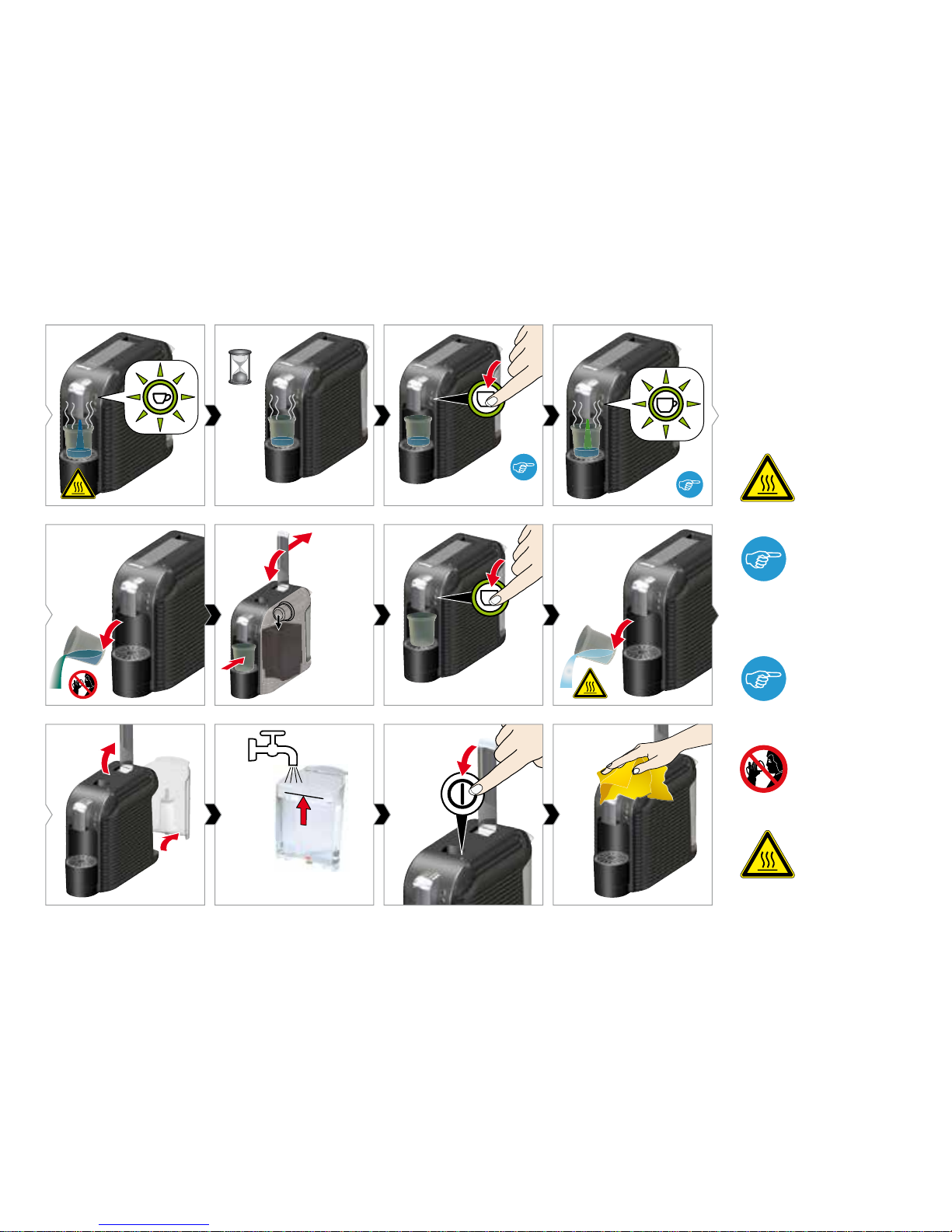

Preparing beverages
Stop the brewing pro-
cess by pressing any
button a second time.
Risk of scalding
Do not open the le-
ver during the brew-
ing process. Do not reach un-
der the spout.
The machine switches
off automatically if
it is not used within
5 minutes (p 18). If neces-
sary, press the on/off button
to reactivate the machine
and rinse (p 8) before brew-
ing new drinks.
Important: Only insert the
capsule after rinsing has fin-
ished.
86
32
max
90mm
1A
117
4
max
150mm
CB
min 3 s
Off
98
5

10
Please note - a cap-
sule must be inserted
when programming
the cup capacity.
Programming cup
capacity
Matching the pouring
capacity to your cup
size:
Insert capsule and hold down
the “Small cup” or “Large
cup” button until the liquid
reaches the level required in
the cup. The new pouring ca-
pacity remains saved (even if
power is interrupted).
• Presettings:
Small cup .....approx. 50 ml
Large cup ...approx. 100 ml
100 m
l
200 ml
1
40 ml
100 m
l
1
23
23
Risk of scalding
Very hot drink.

11
Cleaning the machine
every day (after the
last time you use it)
For hygiene rea-
sons and in order to
achieve top drink
quality we recommend you
rinse the machine before and
after each drink is dispensed.
Risk of scalding
Very hot water.
12
min 3 s
Off
3
84 65
Rinse the machine once.
Empty all the containers.
7
Danger to health
Allowing machine to re-
main idle for an extended
period without rinsing and cleaning
after last use may cause internal
spoilage that is difficult to remove.
Risk of damage
To prevent damage to the
appliance do not use alka-
line cleaning agents when cleaning,
use a soft cloth and a mild deter-
gent. Never use abrasive or aggres-
sive detergents. Do not wash ma-
chine parts in the dishwasher.

12
Optional: Cleaning
the machine with
a cleaning capsule
(recommended)
Danger to health
Read the operating
instructions for the
cleaning capsule carefully
and follow the safety instruc-
tions.
The water filter (op-
tional) may remain in
the water tank.
Please take into ac-
count that a full cup
quantity may be pro-
grammed for the small cup
(p 10).
Risk of scalding
Very hot water. Care-
fully empty drip tray
and spent capsule container.
85
21
76
43
For hygiene reasons we recommend you
clean the machine with a cleaning cap-
sule every two weeks. When using drinks
capsules containing milk we recommend
daily cleaning with cleaning capsules.
Only use cleaning capsules that are
suitable for the K-fee® system. For
further information, please email:
[email protected]
Eject existing
capsule. Fill the water tank with 1 l
of fresh water.
Remove and
empty the water tank. Empty all the containers.
max
Place container under spout. Insert cleaning capsule. Close lever completely and
press "small cup" button.

13
Optional: Cleaning
the machine with
a cleaning capsule
(continued)
Risk of scalding
Hot cleansing liquid.
Please take into ac-
count that a full cup
quantity may be pro-
grammed for the large cup
(p 10).
Danger to health
Do not drink any
cleansing liquid.
Risk of scalding
Very hot water.
Green water indicates
that the cleaning
process is running.
2017
1413
9 10
1918
16
12
15
11
Allow time to take effect.
2 min
Press “large cup” button.
Eject
cleaning capsule. Press “large cup” button.
Fill water tank with fresh
water.
max
Off
min. 3 s

14
max
118
54 76
31 2
910
Only use liquid based detergents that
are suitable for the K-fee® System.
For more information visit our website
at www.expressishop.com.au
Cleaning the ma-
chine with cleansing
liquid (alternative)
Danger to health
Read carefully the
instructions for use
of the detergent and comply
with the safety instructions.
Clean machine with
a K-fee® System
cleansing liquid once
a month or shorter when us-
ing capsules containing milk.
Rinse until the water
tank is completely
empty.
Risk of damage
To prevent damage
to the appliance
do not use alkaline cleaning
agents when cleaning, use a
soft cloth and a mild deter-
gent.
Danger to health
Do not drink any
cleansing liquid.

15
Descaling the
machine - monthly
Danger to health
Carefully read the
instructions for use
of the descaler and comply
with the safety instructions.
Never use any descaling prod-
ucts which are not suitable
for the appliance (e.g. vin-
egar or citric acid) to avoid
damage to the machine.
Rinse until the water
tank is completely
empty.
Descale the machine
once a month us-
ing K-fee® System
Descaler or as required.
Danger to health
Do not drink the des-
caling liquid.
Risk of scalding
Very hot water.
max
118
54 76
32
910
1
Only use liquid based descaling agents
that are suitable for the K-fee® System.
For more information visit our website
at www.expressishop.com.au

16
Evaporating residual
water
With this function, any residual water in the ma-
chine is evaporated and removed as a prepara-
tion for transport or storage. Furthermore, this
prevents any residual water from freezing in the
machine when the machine is transported or
stored at temperatures below freezing point.
CAUTION
Extreme temperatures may cause dam-
age to the machine (permitted operat-
ing temperature 10°C - 45°C). For this reason
the machine
- must be protected against frost,
- must not be used at temperatures below 10°C,
- must not be used at temperatures over 45°C.
Procedure
• If necessary, warm up the machine until it
reaches room temperature.
• Open and close the lever in order to eject any
existing capsule.
• Take out and empty the water tank.
• Place container under spout.
• Ensure that the machine is switched off.
WARNING
Risk of scalding! The evaporation pro-
cess results in hot steam (up to 120°C)
and hot water.
Do not reach under the spout and maintain a
safe distance from the spout.
• Depress the “small cup” and the milk/rinse
button at the same time. Now press the on/off
button. Evaporation starts and the “large cup”
button flashes green.
• After the evaporation process the machine
switches off automatically.
• Remove and empty the container.
• Empty and dry the drip tray and spent capsule
container.
• Reinsert the empty water tank.
• Use a dry cloth to wipe the front of the hous-
ing.

17
Frequently asked
questions
The machine will only work
with capsules marked with
the K-fee® – your system
logo.
Why are all the buttons flashing at a fast rate?
This indicates a fault. Switch off the machine and unplug the mains cord from the wall socket. If the problem
persists, call the K-fee® Hotline on 1800 469 373 or send an email to m[email protected]
Why is the drink not dispensed properly?
Check that the spent capsule container is not full. Press the lever down completely. If necessary,
descale the machine – refer to the section “Descaling the machine”.
Why is the drink dispensed with delay?
The machine is still heating up.
What do I do if the spent capsule container is overfull and jammed?
Try to remove the spent capsule container by jogging the container gently to and fro. The spent
capsule container will only hold up to 10 spent capsules and needs to be regularly emptied.
Why is the drink not hot enough?
Preheat the cup. If necessary descale the machine – refer to the section “Descaling the machine”.
Why does the machine switch itself off suddenly when it is used intensively?
If used intensively, the machine may switch itself off as protection against overheating. In this case,
allow the machine to cool down for approximately 30 minutes before using it again.
What happens if I lose or break a part of the coffee machine?
Replacement parts can be purchased online at www.expressishop.com.au. Alternatively, call the K-fee®
Hotline on 1800 469 373 or send an email to [email protected]
Where can I obtain suitable cleaner and descaler?
Only liquid cleaning and descaling solution (not tablets) should be used in the K-fee® machine.
For more information and availability, call the K-fee® Hotline on 1800 469 373 or send an email to
[email protected]
How often should I descale the machine?
We recommend that you descale your machine approximately once a month or as required. The frequency
depends on the water hardness and how frequently the machine is used. Never use vinegar, vinegar clean-
ers or citric acid as they can result in damage to the machine. Only use a descaling solution (not tablets).

18
Specifications and
servicing
18
220 to 240 V ~, 50 Hz,
max. 1455 W
1 m
P
pressure max. 19 bar
1 l
3.8 kg
AB
C
A = 150 mm
B = 378 mm
C = 297 mm
max. 150 mm
10°C - 45°C
~ 90°C
If you have any queries or suggestions, please
send us an email or call us on:
)1800 469 373
(Free of charge on land lines; for informa-
tion on mobile phone surcharges, please
contact your mobile phone provider.)
*[e-mail]
www.expressishop.com.au
We advise you to keep the original packaging so
that you can return the machine to an authorised
customer centre in case repairs are necessary.
Information on Automatic Switch-off
The machine switches off automatically if it is
unused for more than 5 minutes. Please remem-
ber that the machine uses power as long as it is
plugged into the mains socket (< 0.5 W).
Disposal instructions The packaging is recyclable. Ask the responsible
authorities in your local council offices for fur-
ther information about recycling.
Environmental protection has priority!
The machine is made of valuable materials
that are recyclable. For this reason, con-
tact your local waste management recy-
cling centre for correct disposal.

19

20
Notes
