Könner & Söhnen KS B1A User manual

Automatic Battery Charger
Please, read this manual
carefully before use!
Owner’s Manual
KS B1A
EN

www.ks-power.de/en |1
INTRODUCTION
Thank you for your purchase of Könner & Söhnen products. This manual contains a brief
description of safety, use and debugging. More information can be found on the ocial
manufacturer’s website in the support section: ks-power.de/betriebsanleitungen.
You can also go to the support section and download the full version of the manual by
scanning the QR code, or on the website of the ocial importer of Könner & Söhnen
products: www.ks-power.de/en
Manufacturer reserves the right to make alterations into the generators, which may not
be reected in this manual. Pictures and photos of the product may vary from its actual
appearance. At the end of this manual, You may nd contact information which you are
free to use in case of any issues occurrence.
All data, specied in this operation manual is the most up to date for the moment of
its publishing. The current list of service centers you can nd at the website of ocial
importer: www.ks-power.de/en
This automatic battery charger is intended for charging 6 V / 12 V lead-acid batteries. It
is used to charge batteries of generators, cultivators, motorcycles, snowmobiles, boats,
four-wheelers, etc., with a capacity of up to 32 A/h.
After selecting the required voltage, the charging process is carried out automatically.
1.Getting started. Connect the red terminal to the “+” side of the battery and the black
terminal to the “-” side of the battery and then connect the charger to the mains supply.
When the charger is plugged in, the power indicator lights up green.
We care about the environment, therefore, we consider it expe-We care about the environment, therefore, we consider it expe-
dient to save paper and leave in print a short description of thedient to save paper and leave in print a short description of the
most important sections.most important sections.
Be sure to read the full version of the manual
before getting started!
Failure to follow the recommendations marked
with this sign may lead to serious injury or
death of the operator or third parties.
Useful information while operating the ma-
chine.
ATTENTION - DANGER!
IMPORTANT!
1
INTENDED USE
2
INSTRUCTIONS FOR USE

www.ks-power.de/en |2
1. Short circuit protection. The charger will automatically power o if the terminals
are short-circuited.
2. Overtemperature protection. The charger powers o in two situations, as de-
scribed below, and automatically enters the charging mode when the operating tem-
perature is restored:
a). When the charger has been exposed to high temperatures for a long time;
b). When the temperature inside the charger exceeds the operating temperature.
3. Spark protection. The terminals are not energized until the battery is connected.
Use the correct charging voltage according to
the battery’s rated voltage! Do not charge the
battery when the engine is running!
WARNING!
3
SAFETY FUNCTIONS

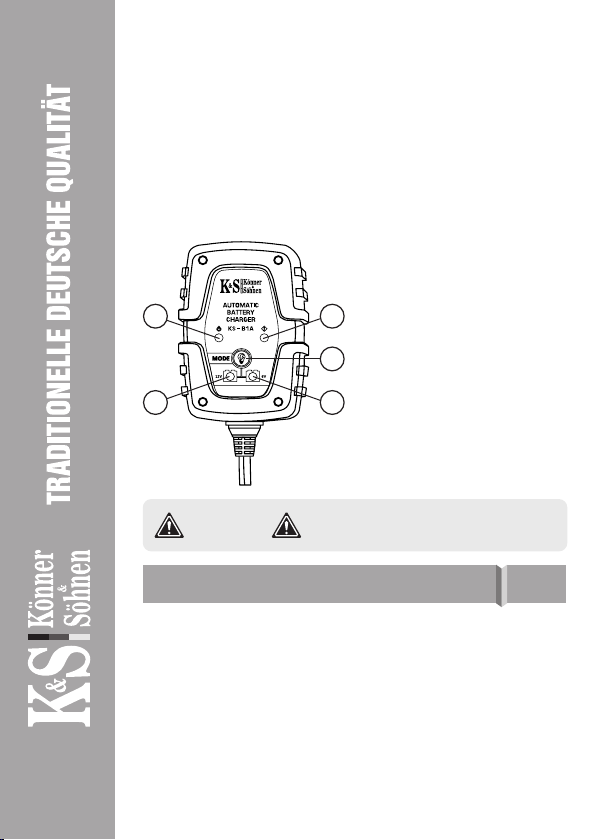

1. Power indicator1. Power indicator
2. Fault indicator2. Fault indicator
3. Mode selection button3. Mode selection button
4. 6 V indicator4. 6 V indicator
5.5. 12 V12 V indicatorindicator
11
55
22
33
44
2.Press the MODE button to select the appropriate charging voltage that matches the
battery’s rated voltage: select 6 V charging voltage for a 6 V battery and 12 V charging
voltage for a 12 V battery. The selected mode will turn green.
3.The charger will automatically enter the charging mode. If the voltage at the battery
terminals is more than 2 V, the power indicator will ash green. If the voltage is less than
2 V, the charging process will not start.
4.When the battery is fully charged, the charger will automatically enter trickle charge
mode and the power indicator will light up green.
5.Before disconnecting the battery, unplug the charger from the mains supply and then
remove the terminals from the battery.
6.If the battery is faulty, the fault indicator will go on.

www.ks-power.de/en |3
4
SPECIFICATIONS
5
TROUBLESHOOTING
RATED OUTPUT VOLTAGE 6V/DC
direct current 12V/DC direct current
Maximum input power 8W 16W
Rated output voltage 7.2V DC ± 0.2V 7.2V DC ± 0.2V
Rated output current 1A
Rated input voltage 100V AC-240V AC / 50HZ / 60Hz
Operating temperature (-100) - (+400)
Storage temperature (-300) - (+600)
Dimensions, cm 12.50 х 6.90 х 7.20
Weight, kg 0.20
No. FAULT REMEDY
1.
Charger does not
respond when turned
on
1). Check the mains outlet
2). Return the charger to a service center for
inspection
2.
Power indicator is
on, but the charging
process does not start
1). Check connection of the terminals to the
battery
2). Check the terminals for sulding
3). Check the terminal wire for damage. If it
is damaged, do not try to replace it yourself.
Return the charger to the service center.
4). The charger has activated overtemperature
protection. Wait a while for the charger to cool
down.
5). Wrong battery voltage has been selected
3.
Power indicator is o
when the charger is
working
Indicator is faulty
4.
6V or 12V indicator
does not light up when
the charger is working
Indicator is faulty
5. 6V/12V cannot be
switched
Return the charger to the service center for
testing Indicator is faulty

www.ks-power.de/en |4
6
RISK OF EXPLOSION
7
NOTES
8
WARRANTY SERVICE TERMS
1.Do not use an acid battery near open ame as it emits explosive gas during charging.
Read the instructions carefully before use.
2.To reduce the risk of battery explosion, follow the battery instructions provided by the
device manufacturer and ensure a well ventilated area during charging.
1. Please read the owner’s manual carefully before use.
2. Please do not dismantle the charger.
3. The charger may become hot during operation.
4. Do not use the charger in rain or wet environment.
5. Please keep the charger out of the reach of children.
6. Be sure to check the power cord before use and make sure it is not damaged. Do not
use the charger with a damaged power cord or case.
7. Never charge a damaged or frozen battery. It is dangerous.
The international manufacturer warranty is 1 year. The warranty period starts from the
date of purchase. In cases where a warranty period is longer than 1 year according to
local legislation, please contact your local dealer. The Seller of the product is responsible
for granting the warranty. Please contact the Seller for warranty. If the product fails within
the warranty period because of defects in workmanship, it will be exchanged for the
same product or repaired.
The warranty card should be kept throughout the warranty period. In case of warranty
card loss, a second one will not be provided. The Customer must provide the warranty
card and proof of purchase when requesting any repair or exchange. Otherwise, the
warranty service will not be provided. The warranty card attached to the product during
sale should be correctly and fully completed by the retailer and customer, signed and
stamped. In other cases, the warranty shall be deemed invalid.
Provide clean product to the service center. Parts that must be replaced are the property
of the service center.

CONTACTS
