Kärcher K 2.08 User manual

PLEASE READ THIS LEAFLET CAREFULLY
BEFORE OPERATING YOUR MACHINE
K 2.08
Operating Instructions
PRESSURE WASHER
5.961-372 02/05/2009886

2
THANK YOU FOR PURCHASING A KARCHER
PRESSURE WASHER
PLEASE READ THIS LEAFLET CAREFULLY
BEFORE OPERATING YOUR MACHINE.
WHAT IS A PRESSURE WASHER?
A Pressure Washer is essentially a powerful electric motor driving a set
of pistons that force water through a small nozzle, thus creating a
pressurised jet of water. This provides the cleaning power behind the
Karcher Pressure Washer.
A Karcher Pressure Washer can be used for an endless list of applications
around the home and garden. It provides an efficient, economical and
labour saving way of cleaning with e cellent results.
All Karcher domestic pressure washers are designed to run from a
suitable cold water supply although some models will accept a water inlet
temperature of between 40 °C and 60 °C.
Environmental Comment - Save water with high pressure.
The Karcher Pressure Washer is environmentally friendly enabling you
to reduce your water consumption compared to a normal garden hose.
A definite advantage with a metered water supply
OR
with the added benefit of suction mode, water can be drawn from an
open container such as a water butt.

3
INDEX
1. APPLICATIONS
2. SAFETY INSTRUCTIONS
3. GETTING STARTED
3.1 Contents
3.2 Water Connection
3.3 E ectrica Connection
3.4 Suction Mode
3.5 Detergent
4. OPERATING YOUR PRESSURE WASHER
4.1 High Pressure Operation
4.2 Low Pressure Operation Without Brush
4.3 Low Pressure Operation With Brush
4.4 End Of Operation
5. IMPORTANT  CARE AND MAINTENANCE

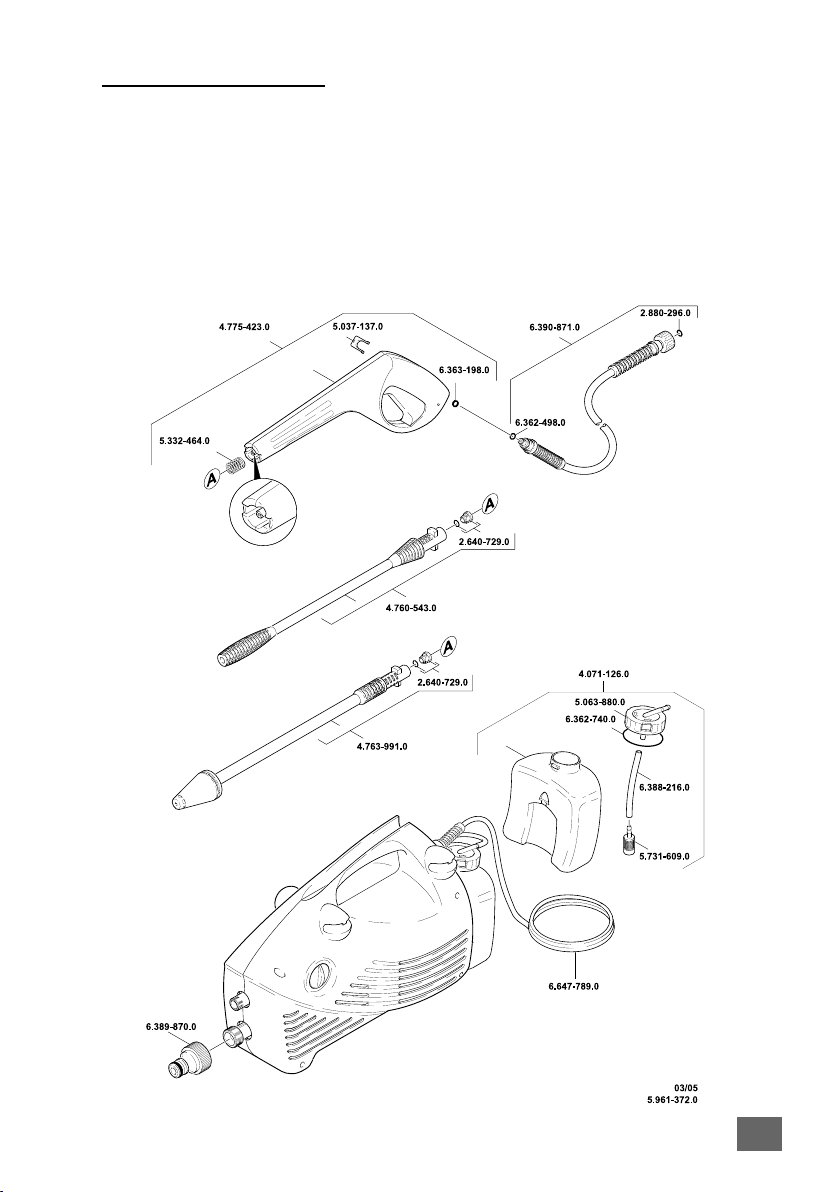

6. ACCESSORIES / SPARE PARTS
7. PROBLEM CHECKLIST / TROUBLESHOOTING
8. HELP-LINE
9. TECHNICAL DATA
10. ASSEMBLY

4
1. APPLICATIONS
The main applications for this product are DOMESTIC
cleaning tasks:
 Cars, motorbikes, caravans, boats and bicycles
 Patios, fences, garden walls, pathways, driveways and house
facades  particularly useful for cleaning block driveways
 Removal of algae and moss from roofs, brickwork and
guttering
 arden tools and machinery, furniture and barbecues
 Hygienic cleaning of animal pens and their surroundings
With the addition of Karcher accessories, the list
continues .............
 Clearing blocked drains and pipes
 Removal of old paint and rust from garden furniture and gates
 Spraying insecticide onto trees, plants and lawns
BEFORE STARTING UP YOUR PRESSURE WASHER PLEASE
CHECK YOU HAVE THE FOLLOWING:
We recommend you purchase these items from a reputable store.
 RCD plug and socket that will interrupt electrical supply in an
emergency.
 A typical garden hose (minimum length 7.5 metres) with suitable
hose connection (Hoselock/ ardena type) to match the coupling
on the machine (hose and connector not supplied).

5
2. SAFETY INSTRUCTIONS
Electrical Connection
Never use defect connection or e tension lines! If the connection line
is damaged, it must be replaced with a special connection line that is
available from the manufacturer or his customer service.
Please make sure that the connection or e tension lines are not
damaged by being ran over, pulled or dragged. Protect the
connection lines from heat, oil, and sharp edges.
Never touch the mains plug and the socket with wet hands.
The connection between connection line and e tension line must not
lie in the water.
All current-carrying components within the working area must be
jet-proof.
The appliance may only be connected to an electrical connection that
was performed by an electrician according to IEC 60364.
Only connect the appliance to alternating current. The voltage must
comply with the voltage specified on the typeplate.
To avoid electric accidents, we recommend to use sockets with a
series connected residual current operated device (rated breaking
current ma . 30 mA).
Warning: Inappropriate e tension lines may be dangerous. If you
work outside, only use e tension lines that are approved and specifi-
cally labelled and provide of a sufficient conductor cross section:
1 to 10 m: 1.5 mm² 10 to 30 m: 2.5 mm²
The plug and the coupling of an e tension line must be waterproof.
Always unwind the e tension line completely from the cable drum.

6
Safety Instructions
The operation of the device in hazardous locations is not admissible.
Please comply with the corresponding safety instructions if you use
the appliance in danger areas (e.g. filling stations).
Do not turn on the appliance if the power supply line or important
components of the appliance, such as safety components, high-
pressure hoses, spray jet, are damaged.
Warning: High-pressure hoses, fittings, and couplings are of
importance for the appliance safety. Only use high-pressure hoses,
fittings, and couplings recommended by the manufacturer.
The appliance is not intended for use by young children or infirm
persons without supervision.
Young children should be supervised to ensure that they do not play
with the appliance.
The operator must use the appliance properly. He must take the local
conditions into consideration and must pay attention to third persons,
in particular children, while working with the appliance.
Warning: Do not use the appliance if third persons are within the
reach of the appliance unless such persons wear protective clothes.
Warning: High-pressure jets may be dangerous if they are used
improperly.
The jet must not be directed at people, animals, active electrical
equipment, or the appliance itself.
Never direct the jet at yourself or third persons to clean clothes or
shoes.
Never use the appliance to spray objects containing hazardous
substances (e.g. asbestos).
Warning: Vehicle tyres/tyre valves may be damaged and burst by
the high-pressure jet. A first sign is the discoloration of the tyre.
Damaged vehicle tyres/tyre valves are hazardous. Always perform
the cleaning with a minimum distance of 30cm.

7
Cleaning operations during which oil saturated waste water is
generated, such as engine cleaning and underbody cleaning, may
only be performed in cleaning locations that are equipped with an oil
separator.
If you clean varnished surfaces, please respect a minimum distance
of 30cm to avoid damages.
Never take in solvent-containing liquids or undiluted acids and
solvents! These include, for e ample, benzene, paint thinner, or
heating oil. The spray is highly inflammable, e plosive, and to ic. Do
not use acetone, undiluted acids, and solvents as they affect the
materials used on the appliance.
If required, wear appropriate protective clothes and glasses to protect
yourself from return spray.
Never leave the appliance unattended as long as it turned on.
Warning: This appliance has been developed for the use of
detergents that are supplied or recommended by the manufacturer.
The use of other detergents or chemicals may affect the safety of the
appliance.
Environmental protction
Disposal of the packaging
The packaging material can be recycled. Please do not
place the packaging into the ordinary refuse for disposal,
but arrange for the proper recycling.
Disposal of the old appliance
Old appliances contain valuable materials that can be
recycled. Please arrange for the proper recycling of old
appliances. Batteries, oil, and similar substances must
ünot enter the environment. Please dispose of your old
appliances using appropriate collection systems.

8
3. GETTING STARTED

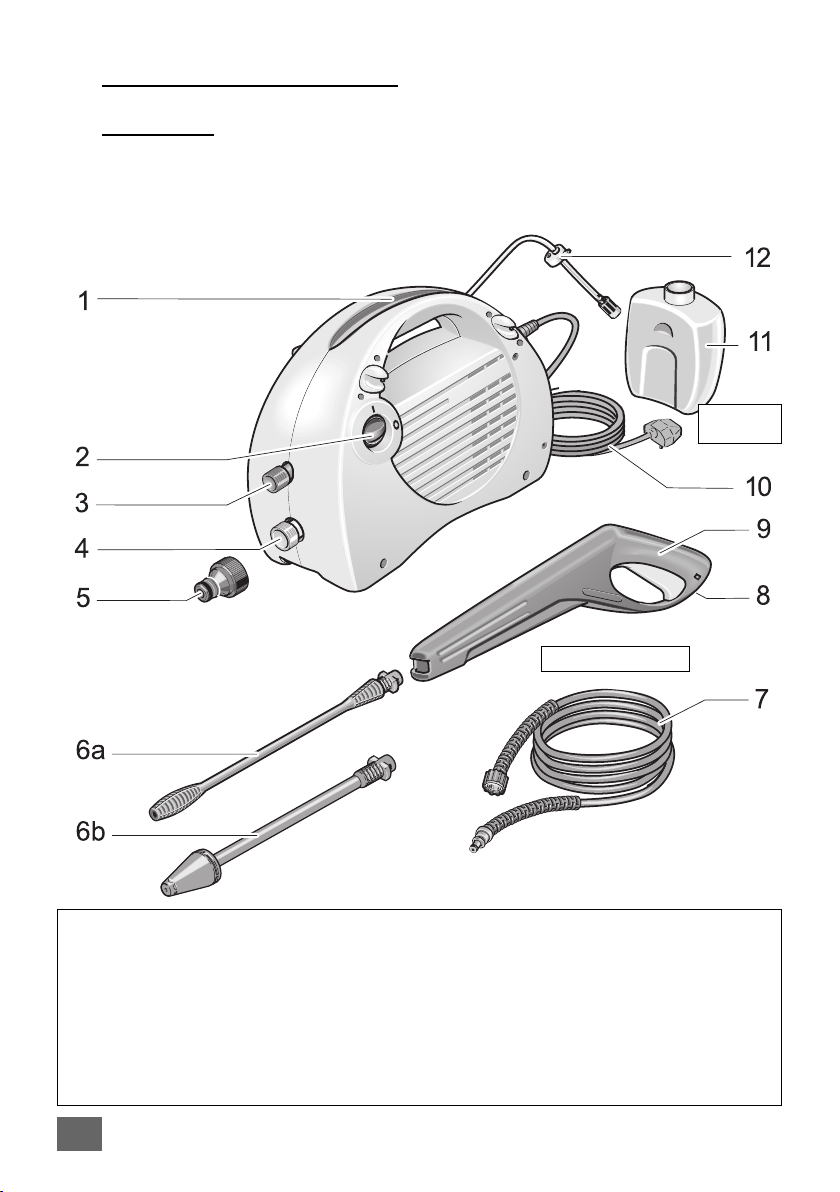

3.1 Contents
Upon opening the carton, if you do not have all the items as detailed
please contact the Customer Helpline.
1 Carry Handle
2 On/Off Switch
3 High Pressure Outlet
4 Inlet Water Connection (with Strainer
5 Hosepipe Connector
6a High Pressure Lance
6b Dirtblaster Lance
7 High Pressure Hose
8 Safety Lock Device
9 Spray Gun with Built-in
Low Pressure Jet
10 Mains Electric Lead with Plug
11 Detergent Bottle
12 Detergent Suction Tube
Assembly see Page 19
Assembly
see Page 19

9
Please follow these instructions carefully for
troublefree cleaning
Use the diagram on Page 8 for reference purposes
3.2 Water Connection
 The minimum length of supply hosepipe advised for ma imum user
convenience is 7.5 metres with a diameter of 12.5 mm (1/2") to avoid
backpressure and any associated potential damage to your machine.
 Attach your supply hosepipe with its connector to the coupling on the
machine (No.5) and the other end should be connected to a suitable
water supply
3.3 Electrical Connection
 Ensure the Power Switch (No.2) is in the OFF position before
connecting the factory fitted Plug attached to the Mains Electric Lead
(No.10) into an earthed socket.
If using an Extension Cable make sure it is completely unwound
from the cable drum and is the correct diameter.

10
3.4 Detergent
Only cleaning agents recommended by Karcher (UK) Ltd.
should be used. Unsuitable detergents could damage your
Pressure Washer and the object being cleaned.
Recommended Detergents
1. The following cleaning agent may be used undiluted:
(But further dilution is practical but trial before application)
Universal Cleaner .............................. Profi RM 555 ASF
2. The following cleaning agents are available as concentrate
and must be diluted with 9 parts of water (1 : 9) before use:
Universal Cleaner .............................. Profi RM 555 ULTRA
Automotive Cleaner ........................... Profi RM 565 ULTRA
House & Garden Cleaner .................. Profi RM 570 ULTRA
Boat Cleaner ..................................... Profi RM 575 ULTRA
3. Detergent tablets are also available from some stores
Karcher Clean Tabs (10 tablets per bo )
10 Tablets dissolved in clean water provide 5 litres of cleaning
detergent.

11
4. OPERATING YOUR PRESSURE WASHER
If y u have f ll wed all the instructi ns s far, y u are
n w ready t have fun cleaning the KARCHER way!!!
 Turn on the supply water and press the Spray Gun lever (No.9) until
the water flows freely and removes all air locks from the hoses
 You may now attach the High Pressure Lance (No.6a) or required
accessory to the Spray Gun
All access ries are bay net fit, simply push in
and twist until they click int p siti n !
Once water is flowing through the machine, you may now
switch on your Karcher Pressure Washer using the Power
Switch (No.2)
WHEN USING YOUR KARCHER PRESSURE WASHER ON
THE HIGH PRESSURE SETTING, THE RECOMMENDED
WORKING DISTANCE BETWEEN THE NO LE AND THE
OBJECT OR SURFACE TO BE CLEANED IS 30 CM.
IT CAN BE CLOSER IF REQUIRED FOR PATIOS OR MASONERY
It is your responsibility to check the suitability of the surface to be cleaned.
Karcher (UK) Ltd. cannot be held responsible for any damaged caused.

12
4.1 High ressure Operation
 Ensure the High Pressure Lance (No.6a) is attached securely to the
Spray Gun (No.9).
 Aim the lance towards the object to be cleaned making sure the
recommended working distance is used for reference (See Page 9).
Release the Safety Lock Device (No.8) and squeeze the lever.
 Switch on the pressure washer (No.2)
Dirtblaster Lance (No.6b)
A rapidly rotating pencil jet achieves a very high impact pressure so
that it has a very good cleaning effect. Use it to remove loose paint,
stubborn algae and moss from hard surfaces.
The pressurised water jet al ne is capable f fulfilling m st
cleaning tasks ar und the garden r n building w rk but
detergent and wash brush are advantage us when cleaning
vehicles r ther paint finishes.
4.2 Low ressure Operation
 Fill the Detergent Tank (No.11) with the selected detergent,
ensuring it is the correct concentration (See Page 10 or read
recommended dosage on label)
or
Dilute the detergent to the required concentration before filling the
Detergent Tank. (The correct dilution is dependent on the degree of
soiling of surface and is best determined by e perience).
 Use the Spray Gun (No.9) without Spray Lance.
 Aim the Spray Gun towards the object to be cleaned, release the
Safety Lock Device (No.8) on the Spray Gun and squeeze the lever
to apply the detergent to the working area.
 Switch on the pressure washer (No.2)
 To rinse the detergent away, close the Spray Gun, attach the High
Pressure Lance (No.6a). No detergent can be drawn in with a high
working pressure. Spray with the high pressure jet until no trace of
detergent can be found.

13
4.3 Low ressure Operation with Brush (not included)
When cleaning surfaces with a grease contamination - typically car
paintwork that always has a greasy traffic film covering. Follow the
procedure of:
 Washing loose dirt away with the clean water high pressure spray.
 Apply the detergent in low pressure mode by removing the bayonet fit
spray lance and fitting the Washing Brush (Part No. 6.903-275) to the
Spray Gun.
 Leave for 2-4 minutes for the detergent to have ma imum effect.
 With or without the pressure washer switched on, brush down the
surface being cleaned, this physical agitation removes all trace of
traffic film.
 Finally revert to the high pressure operation with the Spray Lance
and complete the wash down.
We rec mmend the f ll wing cleaning meth d:
Step 1:
Remove loose dirt by washing over the surface to be cleaned with the
high pressure jet.
Step 2:
Spray on the detergent and leave for 1-4 minutes, so assisting the easy
removal of fine dirt and associated greasy adhesions.
Step 3:
Finally, spray off the loosened dirt with the high pressure spray.

14
4.4 End Of Operation
ALWAYS REMEMBER TO RINSE YOUR PRESSURE WASHER
AFTER USIN DETER ENT BY FILLIN THE DETER ENT
CONTAINER WITH CLEAN WATER AND RUN THE PUMP FOR
APPROXIMATELY ONE MINUTE
In the event of a break of 5 minutes in the operation of your
Karcher Pressure asher, always switch off the pump to avoid
damage due to overheating.
 Switch off the pressure washer by the Power Switch (No.2) and
unplug the Mains Electric Lead (No.10) from the socket.
 Close the water inlet (tap) and disconnect the hosepipe.
Squeeze the lever to remove all pressure from the machine.
Release the lever and then secure the lever with the Safety
Locking Device to prevent accidental opening.
5. IMPORTANT  CARE AND MAINTENANCE
T ensure pr l nged life and tr uble-free use f y ur
Karcher Pressure Washer we str ngly rec mmend
that y u always ad pt the f ll wing pr cedures:
Water
 Before use, always check the inlet filter for dirt or debris.
 Visually check to see if the nozzle is blocked by dirt or grit, if so,
remove the dirt from the nozzle hole with a needle and rinse with
water from the front.
Failure to do this will seriously damage your machine and
invalidate the warranty.

15
 Connect the water supply hose and, without the lance attached,
squeeze the trigger gun to run water through your pressure washer
until the water flow is constant. Then plug in to the electric supply.
 Unless drawing water from an open water source such as a water
butt, always have a minimum of 10 metres (25 feet) of uncoiled hose
between the water tap and your machine. The internal diameter of
the feed water hose should be 12 mm (1/2).
 Water Regulations require the use of a back-flow preventer valve at
the tap end of the supply hose.
Only use a full flow connector to connect the hose to the machine.
Electricity
 If using an electrical e tension lead it must be rated at a minimum of
13 amps.
 Always fully uncoil any e tension lead when used.
Chemicals
Use of chemicals other than those recommended by Karcher could
cause significant damage which may not be covered by your warranty.
 After using chemicals, always run fresh water through your machine.
The high pressure hose of your Karcher Pressure Washer should not
be mistreated. It is designed to withstand high pressure operation so
vehicles should NOT run over it, nor should it be pulled across sharp
or abrasive edges. These actions may weaken the hose and cause
ballooning.
IMPORTANT
REMEMBER FROST WILL DAMAGE YOUR KARCHER
PRESSURE WASHER IF IT HAS NOT BEEN COMPLETELY
EMPTIED OF WATER AFTER USE. ALWAYS STORE IN A
FROST FREE AREA.

16
6. ACCESSORIES
A wide range of popular accessories are available from your
local store selling Karcher Pressure Washers.
4.763-228 Dirt Blaster/Rotary Jet
A rapidly rotating pencil jet used to remove loose paint, stubborn algae and moss from hard surfaces.
4.760-269 Triple Nozzle Lan e
An integral fan jet, pencil jet and low pressure chemical jet in one unit allows optimal nozzle selection.
4.760-212 Underbody Lan e
Extended lance with angled end and upward firing jet for cleaning under cars, gutters etc.
6.903-276 Car Wash Brush
Simple bayonet fitting attaches the brush to the hand gun, used in conjunction with RM555.
4.762-065 Rotary Wash Brush
Ideal for car bodywork and windows as the water forces the brush to rotate enhancing cleaning power.
4.760-262 Extension Lan e
To add length to the standard lance.
2.637-729 Drain Kit (7.5 m Hose)
2.637-767 Drain Kit (15 m Hose)
A flexible hose with backwards firing high pressure jet to create turbulence and dislodge blockages.
4.760-265 Flexible Lan e
A lance which can be angled to any degree to clean hard to reach areas such as wheel arches etc.
4.440-238 Su tion Hose and Filter
Used to provide a water supply to the unit where a mains water supply is not available by placing the kit into a water butt.
2.637-214 Water Pump Kit
6.291-080 RM 555 (5 litre)
6.291-079 RM 555 (6 x 1 litre)

17
6. SPARE PARTS
n the event that your Karcher Pressure Washer requires replacement
parts  please refer to the diagram below AND identify the particular
model of your machine by reference to the data plate on the underside.
Please write, email or fax Karcher (see page 19) with any parts order
you wish to place. A premium rate Help-line Number is available for
telephone enquires of any type.

18
7. PROBLEM CHEC LIST
The machine you have chosen is of the highest quality. Correctly stored
away from frost it should operate without problems. f a problem does
arise, please check the following chart as a solution may be at hand.
In the unlikely event that you need to return your machine to your supp-
lier, please ensure that this is returned, complete with hose, gun and
all accessories.
PROBLEM POSSIBLE CAUSE CORRECTION
Machine refuses
to start
Plug not connected
Defective socket
Fuse blown
Defective extension cable
Wrong mains voltage
Connect plug
Try another socket
Change the fuse
Try without extension cable
Check mains voltage corresponds to
specifications of machin
Pump stops Fuse blown
Overheating due to poor
water Supply
Change fuse and check size of extension
cable
Check inlet water flow rate - hose should
fill a 10 litre bucket in one minute
Strong pressure
fluctuations
Nozzle partly blocked Clean dirt from nozzle hole with needle
and rinse from the front
Machine does not
reach operating
pressure
Nozzle blocked/worn out
Inadequate mains water
Inlet hose squeezed
Water filter clogged
(3.1 item 5)
Inlet hose blocked
Clean/replace nozzle
Check inlet water flow rate
Straighten out hose
Clean filter
Check hose for leaks or blockages
No detergent
suction
Wrong pressure
Blocked Detergent Filter
Use SprayGun without Spray Lance
Unblock Filter

19
8. HELP - LINE
Karcher (UK) Limited operate a help-line allowing customers to discuss
any problems e perienced with our products.
The help-line operates during normal business hours, if you have diffi-
culty getting through, please understand that there are peak periods
during the day when our consultants are unable to take all calls coming
in. In these circumstances we would ask that you try to contact us again
later in the day.
The help-line number is 0906 6800632
(calls at this number are charged at 25p per minute)
From 8.30am to 5.00pm Monday  Friday
It helps us if you have the model number and data plate details to
hand before making your call as there are very many different models of
Karcher Pressure Washers in use.
Alternatively you may write or e-mail to the address below:
Karcher (UK) Limited
Karcher House
Beaumont Road
Banbury
Oxon, OX16 1TB
FAX: [phone]
E-mail: [email protected]

20
9. TECHNICAL DATA
Power Conne tion
Voltage .................................................................. 220-240 V-AC
Current .................................................................. 1~50/60 Hz
Connected/Load ............................................................ 1.4 KW
Mains Fuse .................................................................... 13 AMP
Water Conne tion
Supply Temperature (Max ............................................ 40 °C
Supply Rate (Min ............................................................ 7 litres per minute
Supply Pressure (Max .............................. (12 bar .... 1.2 MPa
Supply Hose Length...................................................... 7.5 metres
Diameter .................................................. 1/2 inch
Performan e Data
Pump Pressure (Max at bypass ............. (100 bar ..... 10 MPa
Operating Pressure .................................... (80 bar ....... 8 MPa
Flow Rate ...................................................................... 5.5 litres per minute
Detergent Intake ........................................................... 0.3 litres per minute
Recoil Force of Spray Gun at Max. Pressure ................ 12 N
Optimum Working Distance on High Pressure .............. 30 cm
Hand-transmitted vibration (ISO 5349 ......................... 0,8 m/s²
Sound pressure level LPA(EN 60704-1 .......................... 78 dB(A
Sound power level LWA(2000/14/EC .............................. 92 dB(A
Dimensions
Length .......................................................................... 450 mm
Width ............................................................................ 140 mm
Height ........................................................................... 250 mm
Weight .............................................................................. 5 Kg
