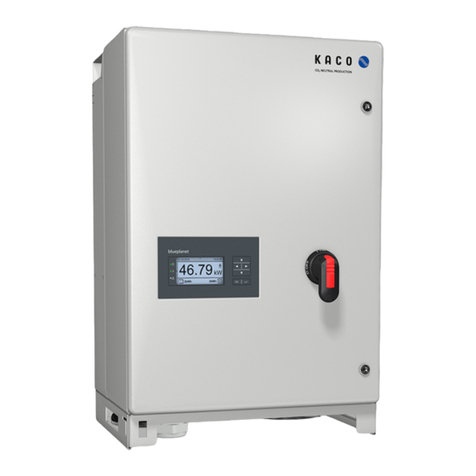

Kaco blueplanet 87.0 TL3 M1 WM OD IIF0 User manual

Manual
nEnglish translation of German original
KACO blueplanet 110 TL3
KACO blueplanet 125 TL3
US
These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all
times.
Authorised electrician
Important safety instructions
S, XL

Legal provisions
The information contained in this document is the property of KACO new energy GmbH. Publication, in whole
or in part, requires the written permission of KACO new energy GmbH.
KACO warranty
The latest version of our warranty conditions is available for download at http://www.kaco-newenergy.com.
Definitions on product designations
In these operating instructions, the product "Photovoltaic feed-in inverter" is referred to as "device" for ease of
reading.
Trademarks
All brand and product names used in this document are trademarks or registered trademarks, A lack of identifi-
cation does not mean that a product or designation/logo is free of trademarks.
Software
This device contains open source software developed by third parties and in some cases licensed under GPL
and/or LGPL.
More details on this topic and a list of the open source software used, as well as the corresponding licence
texts, can be found in the web interface information display under "Licence List".
| Legal provisions Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 2
EN-US

Table of contents
1 General information ........................................... 4
1.1 About this document .................................... 4
1.2 More information ......................................... 4
1.3 Layout of Instructions ................................... 5
1.4 Identification................................................. 6
1.5 Warnings on the device ................................ 6
1.6 Target group ................................................. 6
2 Safety ................................................................. 8
2.1 Intended use ................................................. 8
2.2 Protection features....................................... 9
3 Device description .............................................. 10
3.1 Function ........................................................ 10
3.2 Structure of the device ................................. 10
3.3 Plant layout................................................... 11
4 Technical data .................................................... 13
4.1 Electrical data ............................................... 13
4.2 General data ................................................. 15
4.3 Environmental data ...................................... 15
4.4 Accessories ................................................... 15
5 Transportation and Delivery ............................... 16
5.1 Scope of delivery........................................... 16
5.2 Transporting the unit.................................... 16
5.3 Installation tools ........................................... 16
6 Assembly............................................................ 17
6.1 Selecting an installation location .................. 17
6.2 Unpacking the unit........................................ 18
6.3 Fastening the mount..................................... 19
6.4 Installing and securing the device................. 20
7 Installation ......................................................... 22
7.1 General ......................................................... 22
7.2 Opening the device....................................... 22
7.3 Surveying the connection area ..................... 22
7.4 Making the electrical connections................ 23
7.5 Connecting the device to the mains supply.. 24
7.6 Connecting the PV generator to the device.. 26
7.7 Inserting the overvoltage protection............ 29
7.8 Creating equipotential bonding.................... 30
7.9 Connecting the interfaces............................. 31
7.10 Sealing the connection area ......................... 34
8 Start-up ............................................................... 35
8.1 Conditions...................................................... 35
8.2 Preconditions relating to standards .............. 35
8.3 Network topologies ....................................... 36
8.4 Start-up options............................................. 37
9 Configuration and operation................................ 42
9.1 Initial start-up ................................................ 42
9.2 Control elements ........................................... 44
9.3 User interface ................................................ 45
9.4 Menu structure.............................................. 48
9.5 Monitoring the device ................................... 66
9.6 Carry out firmware update ............................ 66
9.7 Access via Modbus......................................... 67
9.8 Multi-function button.................................... 67
10 Specifications....................................................... 71
10.1 Reactive power control.................................. 71
10.2 Regulating active power ................................ 76
10.3 FRT ................................................................. 83
10.4 Other grid support functions effective on
active power ..................................................
86
10.5 Advanced islanding detection........................ 88
10.6 Behavior in the event of a communication
timeout ..........................................................
89
11 Maintenance and troubleshooting....................... 90
11.1 Visual inspection............................................ 90
11.2 Cleaning ......................................................... 90
11.3 Replacing the fans.......................................... 91
11.4 Replacing overvoltage protection.................. 92
11.5 Shutting down for maintenance / trou-
bleshooting ....................................................
92
11.6 Faults ............................................................. 93
11.7 Fault messages............................................... 95
11.8 Troubleshooting............................................. 95
12 Decommissioning and removal ............................108
12.1 Switching off the device ................................ 108
12.2 Disconnecting the connections...................... 108
12.3 Uninstalling the device .................................. 109
12.4 Removing the device ..................................... 109
12.5 Packaging the device ..................................... 109
12.6 Storing the device.......................................... 109
13 Disposal...............................................................110
14 Service and warranty ...........................................111
Manual Table of contents
MNL_BP_110-125_TL3_01_en_us iii
Photovoltaic feed-in inverter
EN-US

1 General information
1.1 About this document
WARNING
Improper handling of the device can be hazardous!
1. You must read and understand the operating instructions so that you can install and use the device safely.
Other applicable documents
During installation, observe all assembly and installation instructions for components and other parts of the system.
These instructions also apply to the equipment, related components and other parts of the system.
Some of the documents which are required for the registration and approval of your system are included with the operat-
ing instructions.
Storing the documents
These instructions and other documents must be stored near the plant and be available at all times.
– You can download the current version of the operating instructions at www.kaco-newenergy.com.
English translation of German original
This document has been produced in several languages. The German-language version is the original version. All other
language versions are translations of the original version.
This document is valid for the following types of device from firmware version V2.2x onwards
Modules
KACO art. no.]
KACO blueplanet 87.0 TL3 M1 WM OD IIF0 /
KACO blueplanet 87.0 TL3 M1 WM OD IIFX
[ 1001784 / 1001897 ]
KACO blueplanet 92.0 TL3 M1 WM OD IIG0 /
KACO blueplanet 92.0 TL3 M1 WM OD IIGX
[ 1001785 / 1001898 ]
KACO blueplanet 105 TL3 M1 WM OD IIG0 /
KACO blueplanet 105 TL3 M1 WM OD IIGX
[ 1001941 / 1001951 ]
KACO blueplanet 110 TL3 M1 WM OD IIK0 /
KACO blueplanet 110 TL3 M1 WM OD IIKX
[ 1001786 / 1001892 ]
KACO blueplanet 125 TL3 M1 WM OD IIP0 /
KACO blueplanet 125 TL3 M1 WM OD IIPX
[ 1001623 / 1001894 ]
KACO blueplanet 125 TL3 M1 WM OD IIK0 /
KACO blueplanet 125 TL3 M1 WM OD IIKX
[ 1001942 / 1001952 ]
KACO blueplanet 137 TL3 M1 WM OD IIP0 /
KACO blueplanet 137 TL3 M1 WM OD IIPX
[ 1001787 / 1001895 ]
KACO blueplanet 150 TL3 M1 WM OD IIQ0 /
KACO blueplanet 150 TL3 M1 WM OD IIQX
[ 1001783 / 1001896 ]
KACO blueplanet 155 TL3 M1 WM OD IIP0 /
KACO blueplanet 155 TL3 M1 WM OD IIPX
[ 1001943 / 1001953 ]
KACO blueplanet 165 TL3 M1 WM OD IIQ0/
KACO blueplanet 165 TL3 M1 WM OD IIQX
[ 1001944 / 1001954 ]
1.2 More information
Links to more detailed information can be found at www.kaco-newenergy.com
Document title Type of document
Technical data sheet Product flyer
Modbus© protocol
RS485 protocol reactive power control
Instructions for use
1 | General information Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 4
EN-US

Document title Type of document
SunSpec information model reference
SunSpec information model reference KACO
Excel files for software version with application note “Mod-
bus protocol” under https://kaco-newenergy.com/down-
loads/
Software package Files for current software
EU Declaration of Conformity
Country-specific certificates
Module-specific certification
Certification
1.3 Layout of Instructions
1.3.1 Symbols used
General hazard Fire and explosion hazard
Electrical voltage Risk of burns
Earthing - ground conductor
The device conforms to the require-
ments of the FCC standard
UL 1741 is the standard applied to the
device by the underwriter laboratories
as evidence that it conforms to the re-
quirements of the National Electrical
Code®, the Canadian Electrical Code®
CSA C22.1 and IEEE1547
1.3.2 Guide to safety instructions
DANGER
Immediate danger
Failure to observe this warning will lead directly to serious bodily injury or death.
WARNING
Potential danger
Failure to observe this warning may lead to serious bodily injury or death.
CAUTION
Low-risk hazard
Failure to observe this warning will lead to minor or moderate bodily injury.
CAUTION
Risk of damage to property
Failure to observe this warning will lead to property damage.
Manual General information | 1
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US Page 5
EN-US

1.3.3 Additional information symbols
NOTE
Useful information and notes
Information that is important in relation to a specific topic or objective but is not related to safety.
1.3.4 Layout of action steps
↻Pre-requisite for the action
1. Carry out first action step
2. Next action step
ðIntermediate outcome of the action step
ðFinal outcome
1.4 Identification
You will find the name plate with the following data for service and other require-
ments specific to installation on the right side panel of the product:
– Product name
– Part no.
– Serial no.
– Date of manufacture
– Technical data
– Disposal information
– Certification marking, CE marking.
KACO new energy
Carl-Zeiss-Straße 1
74172 Neckarsulm
Made in Germany
KACO blueplanet 125 TL3 M1 WM OD IIP0
Part number 1001623
Serial number 125TL01654321 Year Q4 / 18
Input Vmax PV / lsc PV (max) / Inom PV 1500 V / 300 A / 160 A
V-MPP at Pnom / V- range 875V - 1300V / 875V - 1450V
Output
Nominal voltage
600 V (3P+PE)
Voltage range continuous operation 480 V - 760 V (Ph-Ph)
Current (maximum continuous) 3 x 132,3 A
Frequency range 45 Hz - 65 Hz
Output
Power
Snom at 600 V Unom 125 000 VA
Smax at 600 V Unom 137 500 VA
Reactive power cos phi 0,3-1 ind/cap
Environ-
ment Temperature range - 25...+60°C / -13...+140 °F
Protection class / Ingress protection I / IP66 / NEMA 4X
ARC fault circuit protection none
Interface protection according to country specific requirements, details see manual
Grid Support Interactive Inverter
Max. Backfeed Current 0 A
Conf. to UL 1741 & UL 62109-1
Cert. to CSA C22.2 No. 107.1 &
CAN/CSA Std. C22.2 No. 62019-1
CAN/CSA Std. C22.2 No. 62109-2
No galvanic separation / Ungrounded Arrays Only
Fig.1: Name plate
1.5 Warnings on the device
A warning sticker is affixed to the device. Read the warnings carefully.
Do not remove the sticker. If the sticker is missing or is illegible, please contact a
KACO representative or distributor.
– Article number: 3013153
Fig.2: Warning sticker
1.6 Target group
All activities described in the document may only be carried out by specially trained personnel with the follow-
ing qualifications:
– Knowledge about how an inverter functions and operates.
– Training in the handling of hazards and risks during the installation and operation of electrical units and
plants.
1 | General information Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 6
EN-US

– Education concerning the installation and start-up of electrical units and plants.
– Knowledge of applicable standards and directives.
– Knowledge and adherence to this document with all safety notices.
Manual General information | 1
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US Page 7
EN-US

2 Safety
DANGER
Lethal voltages are still present in the connections and cables of the device even after the device
has been switched off and disconnected!
Severe injuries or death may occur if the cables and/or terminals/busbars in the device are touched.
1. Observe all safety regulations and current technical connection specifications of the responsible power
supply company.
2. The device may only be opened and serviced by an authorized electrician.
3. Switch off the grid voltage by turning off the external circuit breakers.
4. Do not touch the cables and/or terminals/busbars when switching the device on and off.
5. Keep the device closed when it is in operation.
The electrician is responsible for observing all existing standards and regulations. This includes:
– Keeping unauthorized persons away from the device/system.
– In particular, making sure that the locally applicable version of the standard 1 "Requirements for special installations
or locations – solar photovoltaic (PV) power supply systems" is observed.
– Ensure operational safety by providing proper grounding, conductor dimensioning and appropriate protection against
short circuiting.
– Observe all safety instructions on the product and in these operating instructions.
– Switch off all voltage sources and secure them against being inadvertently switched back on before performing visual
inspections and maintenance.
– When taking measurements on the live device:
– Do not touch the electrical connections
– Remove all jewelery from wrists and fingers
– Ensure that the testing equipment is in safe operating condition.
– Modifications to the surroundings of the device must comply with the applicable national standards.
– When working on the PV generator, it is also necessary to switch off the DC voltage with the external DC isolator
switch (e.g. at the string combiner or the KACO DC switchbox) in addition to disconnecting the PV generator from the
grid.
2.1 Intended use
The device is a transformerless PV inverter which converts the direct current of the PV generator into grid-com-
patible three-phase alternating current and then feeds the three-phase alternating current into the public
power grid.
The device is built using state-of-the-art technology and in accordance with the recognized safety rules. Never-
theless, improper use may cause lethal hazards for the operator or third parties or may result in damage to the
device and other property.
The device is intended for indoor and outdoor applications and may only be used in countries for which it has
been approved or for which it has been released by KACO new energy and the grid operator. 2
1Country Standard
EU Harmonized document - HD 60364-7-712 (European
implementation of the IEC standard)
USA PV section of NEC 690 and sections in article 100,
690.4, 690.6 and 705.10
Tab.1: Examples of standards specific to business premises
2WARNING!The device is not intended for use in residential areas and cannot ensure adequate
protection of radio reception in such environments.
2 | Safety Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 8
EN-US

Operate the device only with a permanent connection to the public power grid. The country and grid type se-
lection must be commensurate with the respective location and grid type.
For the grid connection, the requirements of the grid operator must be implemented. In addition, the autho-
rization for connection to the grid may be subject to approval by the responsible authorities.
The name plate must be permanently attached to the product and must be in legible condition.
For grid connection, the requirements of the grid operator must be implemented. In addition, the authorisation
to connect to the grid may be subject to approval by the responsible authorities.
Any other or additional use is not considered proper or intended use and can lead to an annulment of the prod-
uct guarantee. This includes:
– Use of a distribution system that is not described (grid type)
– Use of sources other than PV-strings.
– Mobile use
– Use in rooms where there is a risk of explosion
– Use in direct sunlight, rain or a storm or other harsh environmental conditions
– Outdoor use in environmental conditions that exceed the limits stated in the technical specifications > [See
section4.3}Page15].
– Operation outside the specifications prescribed by the manufacturer
– Overvoltage of more than at the DC connection. 1500 V
– Device modification
– Standalone mode
2.2 Protection features
The following monitoring and protection functions are integrated in the device:
– RCMU (Residual Current Monitoring Unit)
– Overvoltage conductor/varistor to protect the power semiconductors from high-energy transients on the
grid and generator side
– Device temperature monitoring system
– EMC filters to protect the product from high-frequency grid interference
– Grid-side grounded varistors to protect the product against burst and surge impulses
– Islanding detection (anti-islanding) according to the current standards
– IMI (Isolation Monitoring Interrupter) detection of a generator insulation fault.
NOTE
If the device is connected, the overvoltage conductors / varistors contained in the device have an impact on the
electrical system insulation resistance test as per HD 60364-6 / IEC 60364-6 Low-voltage installations- Part 6:
Verification.
IEC 60364-6 6.4.3.3 describes two options for this case. The first option is to disconnect devices with an over-
voltage conductor or, if this is not practicable, then the test voltage can be reduced to 250V.
Manual Safety | 2
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US Page 9
EN-US

3 Device description
3.1 Function
The device converts the DC voltage generated by the PV modules into AC voltage and feeds it into the grid. The
starting procedure begins when there is sufficient sunlight and a specific minimum voltage is present in the de-
vice. The feed-in process begins once the PV generator has passed the insulation test and the grid parameters
are within the requirements imposed by the grid operator for a specific monitoring time. If, as it gets dark, the
voltage drops below the minimum voltage value, feed-in mode ends and the device switches off.
3.2 Structure of the device
1
2
5
6
87
34
Fig.3: Device diagram - S version
1
2
6
87
34
9
5
Fig.4: Device diagram - XL version
Key
1 Housing 6 Interface / cable feed-through
2 Cover 7 Communication - button / USB port
3 Status indicator 8 DC connection / cable feed-through
4 Upper cover 9 DC isolator switch (not present in S version)
5 AC connection / cable feed-through
3.2.1 Mechanical components
DC isolator switch (not present in S version)
The DC isolator switch is located on the housing door. of the device. The DC isolator switch is used to discon-
nect the device from the PV generator in order to carry out service.
Disconnecting the device from the PV generator
FSwitch the DC isolator switches from 1 (ON) to 0 (OFF).
Connecting the device to the PV generator
FSwitch the DC isolator switches from 0 (OFF) to 1 (ON).
ON
OFF
Fig.5: DC isolator switch
3.2.2 Electrical functions
A potential-free relay contact is integrated into the device. Use this contact for one of the following functions:
Fault signal relay
The potential-free relay contact closes as soon as there is a fault during operation. You use this function, for ex-
ample, to signal a fault visually or acoustically.
3 | Device description Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 10
EN-US

3.2.3 Interfaces
You can configure the interfaces and the web server in the Settings menu. The device has the following inter-
faces for communication and remote monitoring.
Ethernet interface
The device features two switched Ethernet ports to enable the user to, for example, connect several devices in
series if the user prefers a linear topology.
RS485-Interface
The device features two RS485-Interfaces. One RS485-Interface is earmarked for communication with a string-
combiner-box. This can be controlled using the Modbus RTU protocol. Data loggers that cannot be connected
via Ethernet can be connected to the other RS485-Interface. The Sunspec and KACO protocol are supported in
this case.
USB interface
The device's USB connection is a type A socket. It is located on the communication circuit board. The USB con-
nection is specified to draw 500 mA of power.
Use the USB interface to read out stored operating data, load software updates or device configurations using a
FAT32-formatted USB stick.
It is possible to establish a connection to the webserver integrated into the device by connecting a USB-WiFi
stick. In addition to starting up the device, the web interface can be used for service information purposes,
software updates and for carrying out extensive configuration.
“Inverter Off” input / DRM0
In addition to the safety functions, the internal interface switches can also be actuated via the "Inverter Off" in-
put.
The Powador-protect or a protective device from another manufacturer can be used for this purpose.
If a Powador-protect is used as the central interface protection, the fail-safe disconnection of suitable KACO in-
verters from the public grid can be carried out by the internal interface switches instead of separate interface
switches. This requires the inverters in the photovoltaic system to be connected to the Powador-protect.
Information on installation and use can be found in this manual, in the Powador protect manual and in the in-
structions for use of the Powador protect on the KACO web site.
At the “Inverter Off” input, instead of the Powador-protect an interface protection device from another sup-
plier can also be connected to actuate the internal interface switches.
3.3 Plant layout
Inverter
with circuit-breaker
String combiner with DC isolator switch
*Switch box
Inverter
with circuit-breaker
AC
AC
String combiner with DC isolator switch
RS485
PV generator PV generator
Fig.6: Circuit diagram with a short or long supply cable to the inverter
Manual Device description | 3
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US Page 11
EN-US

Grid connection point
PTransf.
Inverter
with circuit-breaker
S
XFMR MV/LV
Equivalent mains
impedance up to 25%
Fig.7: Circuit diagram from the grid connection point to the inverter
Legend Definition / Information about the connection
PV generator The PV generator converts the radiant energy of sunlight
into electrical energy.
String combiner A string combiner can be coupled to the KACO device so
that the DC lines can be combined.
*) If the supply cable from the PV generator to the device is
long, the string combiner can also be installed in the vicinity
of the PV generator.
An integrated DC isolator switch enables disconnection on
the DC-side.
Switch box A switch box with integrated DC isolator switch enables dis-
connection from the inverter on the DC-side.
Inverter with circuit-breaker The PV generator is connected to the device's DC connec-
tion.
Transformer All three phases need to be set up on the medium-voltage
transformer or medium-voltage/high-voltage transformer.
In this case, the total impedance of the transformer stations
must be below 25%.
Grid connection point The clean PV-current is made available at the grid connec-
tion point.
3 | Device description Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 12
EN-US

4 Technical data
4.1 Electrical data
KACO blueplanet 110 TL3 M1 WM OD
IIK0
KACO blueplanet 125TL3 M1 WM OD
IIK0/KACO blueplanet 125TL3 M1 WM
OD IIKX
DC Input levels Input levels (DC)
Maximum recommended PV generator
power 165 kW 187.5 kW
MPPrange@Pnom 705 V-1300 V 700-1300 V
Working range 705 V-1450 V 705 V-1,450 V
Nominal voltage 730 V
Starting voltage 805 V 804 V
Open circuit voltage 31500 V
Max. input current 4160 A 183 A
Number of strings 1-2
Number of MPP controls 1
Max. short-circuit current (ISC max.) 300 A
Input source feedback current 0 A
Polarity safeguard no
String fuse no
DC overvoltage protection 1 + 2
3A brief open circuit voltage of up to 1600 Vdc (max. 15 hours a year) is admissible for the device.
Due to the brief open circuit voltage exceedance, there is no guarantee that the integrated overvoltage pro-
tection will work correctly if the ambient temperature is > 40°C.
4The "Max. input current" is the maximal theoretical value for operation with full power when the feed-in
power is low. The device is limited to the maximum AC power.
The "Max. short-circuit current (ISCmax.)" defines together with open circuit voltage (UDCmax) the characteristic of
the connected PV generator. This is the relevant value for string sizing and is the absolute maximal limit for in-
verter protection. The connected PV-Generator must be designed, that the max short circuit current is below
or equal to of the inverter ISCmax. of the inverter under all foreseeable conditions. In no condition the design
may result in a greater short circuit current than ISCmax of the inverter. [See section7.6.2}Page26].
Manual Technical data | 4
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US Page 13
EN-US

KACO blueplanet 110 TL3 M1 WM OD
IIK0
KACO blueplanet 125TL3 M1 WM OD
IIK0/KACO blueplanet 125TL3 M1 WM
OD IIKX
AC Output levels Output levels (AC)
Nominal power 110 kVA 125 kVA
Nominal voltage 480 V (3P+PE) 480 V [3P+PE]
Voltage range: continuous operation 300 V - 552 V 300 V - 580 V
Nominal current 3 x 132.3 A 3 x 150.5 A
Max. continuous current 3 x 132.3 A 3 x 152 A A
Contribution to peak short-circuit cur-
rent ip 193 A
Initial short-circuit alternating current
(lk” first single-period effective value) 137 A
Short circuit current continuous [ms]
(max output fault current) 134 A 150 A
Inrush current 5 A [RMS (20ms)]
Nominal frequency 50/60 Hz
Frequency range 45 - 65 Hz
Reactive power 0-100 % Snom
cos phi 0.3 - 1 ind/cap
Number of feed-in phases 3
Distortion factor (THD) < 3 % < 3 %
Max. voltage range (up to 100 s) 600 V 625 V
AC overvoltage protection Base
KACO blueplanet 110 TL3 M1 WM OD
IIK0
KACO blueplanet 125TL3 M1 WM OD
IIK0/KACO blueplanet 125TL3 M1 WM
OD IIKX
Max. efficiency 99.1 %
European efficiency 98.8 %
CEC efficiency 98.8 %
Self consumption: Standby < 10 W
Infeed from > 200 W
Protection class / over voltage category I / III
Transformer no
Grid monitoring Country-specific
Distribution system TN-C system, TT system, Solid grounded wye
4 | Technical data Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 14
EN-US

4.2 General data
General data
Display LEDs
Control elements / operating control Button / web server
Menu language EN; DE; FR; IT; ES; PL; NL; PT; CZ; HU; SL; TR; RO
Interfaces 2 x Ethernet, USB, 2x RS485 (1x reserved for string combiner com.),
optional
Fault signal relay yes (integrated switch)
DC switch / AC switch no / yes (XL version) / no
Cooling temp. regulated fan, max air throughput 364 m³/h
Number of fans 3x outside, 1x inside
Noise emission <60 db(A)
Housing material AL
H x W x D 28,30 inch x 28,30 inch x 18,11 inch
Weight 172 Ib
Certification Overview: see homepage, download area
4.3 Environmental data
Environmental conditions
Max. installation height 9842 ft (Derating at 6561 ft)
Distance to coastline from installation >1640 ft
Ambient temperature of -13 °F - 140 °F
Power derating from > 113 °F
Protection rating (KACO installation
site)
IP66 /NEMA 4X
Relative humidity, non-condensing (in
operation)
100 %
4.4 Accessories
Accessory articles KACO order no.
KACO blueplanet DC-Breaker 1001860
Bending box 1001917 (absolutely mandatory for UL market!)
Accessory articles KACO order no.
Bending box 1001917
AC inverter input plate kit 1001882 (double row) / 1001906 (M63/32)
AC inverter overvoltage protection kit 1001884
AC inverter overvoltage protection kit 1001884
DC inverter overvoltage protection kit 1001885
LAN inverter overvoltage protection kit 1001886
RS485 inverter overvoltage protection
kit 1001887
PID connection set 1001888
WLAN adapter, Digitus 150N micro 3013222
Accessory articles KACO order no.
Replacement fuses (10x85mm
1500V 5A PID) 1001883
Manual Technical data | 4
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US Page 15
EN-US

5 Transportation and Delivery
Every product leaves our factory in perfect electrical and mechanical condition. Special packaging ensures that
the devices are transported safely. The shipping company is responsible for any transport damage that occurs.
5.1 Scope of delivery
– Inverter
– Mount
– Installation kit
– Manual [online] / operating instructions [multi-language]
Checking the scope of supply
1. Inspect your device thoroughly.
2. Immediately notify the shipping company in case of the following:
– Damage to the packaging that indicates that the device may have been damaged.
– Obvious damage to the device.
3. Send a damage report to the shipping company immediately.
4. The damage report must be received by the shipping company in writing within 6 days following receipt of
the device. We will be glad to help you if necessary.
5.2 Transporting the unit
CAUTION
Hazard due to impact; risk of breakage to the device!
1. Pack the device securely for transport.
2. Transport the device using the intended carrying handles of the packaging box.
3. Do not expose the device to any shocks.
For safe transportation of the product, use the hand recesses in the carton.
Packaging Folding cardboard box
Height x width x depth 31,1x29,9x21,6 inch
Total weight 182 Ib
Fig.8: Transporting the device
5.3 Installation tools
The abbreviations listed in the following table are used when referring to the tools and tightening torques to be
used in all assembly/installation/maintenance and disassembly instructions.
Abbreviations (en) Contour of the
connecting element
W External hex
A Internal hex
T Torx
S Slot
Tab.2: Tool abbreviations legend
Outer contour
Tightening torque
Spanner size or number
in-Ibs
Fig.9: Presentation format
5 | Transportation and Delivery Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 16
EN-US

6 Assembly
6.1 Selecting an installation location
DANGER
Risk of fatal injury due to fire or explosions
Fire caused by flammable or explosive materials in the vicinity of the device can lead to serious injuries.
1. Do not mount the device in an area at risk of explosion or in the vicinity of highly flammable materials.
CAUTION
Property damage due to gases that have an abrasive effect on surfaces when they come into contact with
ambient humidity caused by weather conditions!
The housing of the device may be seriously damaged by gases (ammonia, sulfur, etc.) if it comes into contact with ambi-
ent humidity caused by weather conditions.
1. If the device is exposed to gases, it must be installed in a location that is visible.
2. Perform regular visual inspections.
3. Immediately remove any moisture from the housing.
4. Ensure that there is sufficient ventilation at the installation location.
5. Immediately remove dirt, especially on vents.
6. Failure to observe these instructions may result in damage to the device which is not covered by the warranty.
NOTE
Access by maintenance personnel for service
Any additional costs arising from unfavorable structural or mounting conditions shall be billed to the customer.
Installation space
– As dry as possible, climate-controlled, the waste heat must be dissipated away from the device.
– Unobstructed air circulation.
– Close to the ground, accessible from the front and sides without requiring additional resources.
– Protected on all sides against direct weather exposure and sunlight (thermal heating) in outdoor areas. Implementa-
tion where necessary via constructional measures, e.g. wind breaks.
Installation surface
– Must have adequate load-bearing capacity
– Must be accessible for installation and maintenance
– Must be made out of heat-resistant material (up to 194 °F )
– Flame-retardant
– Minimum clearances to be observed during installation: [See figure 17 [}Page19]
Manual Assembly | 6
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US Page 17
EN-US

Fig.10: Device for outdoor installation
10-90°
Fig.11: Permissible installation location
Fig.12: Free-standing installation beneath PV system
11,81 inch
Fig.13: Mounting advice for installation beneath PV system
6.2 Unpacking the unit
CAUTION
Risk of injury if the body is overloaded!
Lifting the device for transportation, to change location and during installation can lead to injuries (e.g. spinal
injuries).
1. Only lift the device using the openings provided.
2. The device must be transported and installed by at least 2 persons.
DETAIL Z4:1
Z
2
1
3
4
5
6
Fig.14: Opening the cardboard packaging Fig.15: Setting the device upright
6 | Assembly Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 18
EN-US

Legend
1 Hood 4 Base section
2 Upper side section 5 Lower side section
3 Clip lock (4x) 6 Cardboard packaging with mount and mounting kit
↻The device is transported to the installation location.
1. Remove the plastic strap from the pallet and packaging.
2. Pull the clip lock off the packaging.
3. Pull the hood upwards to remove it and place the cardboard packaging to one side together with the mount and ac-
cessories.
4. Set the device upright with the base section and side sections.
5. Remove the uppermost side section and base section from the device.
ðIf the device is in the correct installation position: Proceed with the installation of the mount.
6.3 Fastening the mount
WARNING
Hazard when using unsuitable fixing materials!
If unsuitable fixing materials are used, the device could fall and persons in front of the device may be seriously
injured.
1. Use only fixing materials that are suitable for the mounting base. The fastening materials supplied are only
to be used for masonry and concrete.
2. Only install the device in an upright position.
D
A
C
A
B
1
2
3
4
5
6
6 1/32"
2 61/64"
Fig.16: Minimum clearances for wall mounting
1
6
5
10.63 In
18.70 In
18.70 In
10.63 In
1)
1)
41.97 In
18.03 In
21.65 In
17.83 In
1543 mm
2)
1)
1)
Fig.17: Wall mounting
Legend
1 Mount 4 Screw for mounting (4x) [SW 13/ [See sec-
tion6.3}Page19]!]
2 Fixings for mounting [S12-Ø12mm/ 90mm] * 5 Securing screw (1x)
3 Lock washer 6 Lug to mount the device
A Minimum clearance: 4.72 In 1) Minimum clearance excluding device:10.63 In
Recommended clearance: 15.75 In 1) Recommended clearance excluding device:18.70 In
B Minimum clearance: 11.81 In - -
C Minimum clearance: 19.69 In - -
D Recommended clearance: 39.37 In ²) Recommended clearance with DC breaker:60,74 In
Manual Assembly | 6
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US Page 19
EN-US

↻Cardboard packaging with mount and mounting kit removed from the packaging and opened.
1. Mark the mounting position on the wall surface according to the position of the mount by drawing a line.
2. Mark the positions of the drill holes using the slot in the mount.
.NOTE:The minimum clearances between two devices, or the device and the ceiling/floor have already
been taken into account in the diagram.
3. Fix the mount to the wall using suitable mounting fixtures from the mounting kit.
.NOTE:Make sure that the mount is oriented correctly.
ðProceed with the installation of the device.
6.4 Installing and securing the device
CAUTION
Risk of injury from improper lifting and transport.
Lifting the device improperly can cause the device to topple and fall over.
1. Only ever raise the device vertically using the openings provided.
2. Use a climbing aid for the chosen installation height.
3. Wear safety gloves and safety shoes when lifting and lowering the device.
NOTE
Power reduction due to heat accumulation!
If the recommended minimum clearances are not observed, the device may go into power regulation mode
due to insufficient ventilation and the resulting heat build-up.
1. Observe the minimum clearances and provide for sufficient heat dissipation.
2. Any objects on the housing of the device must be removed prior to operation.
3. Make sure that foreign objects cannot hinder heat dissipation following installation of the device.
1
2
3
Fig.18: Lifting the device by the opening
4
3
Fig.19: Fitting the device onto the mount
Legend
1 Opening 3 Mounting bracket
2 Center of gravity 4 Mount
Lifting and mounting the device
↻The mount has been installed.
6 | Assembly Manual
KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 US
Page 20
EN-US
