Kaco Powador 30.0 TL3 M/X User manual

Operating Instructions
English translation of
German original
Powador
. TL M/XL | . TL M/XL
. TL M/XL | . TL M/XL
. TL M/XL | . TL Park
. TL M/XL | . TL Park
These instructions form part of the product and must be observed. They must also be stored in a place which is freely
accessible at all times.

The copyright for these operating instructions is held solely by KACO new energy GmbH.

Operating Instructions for Powador .-. TL_EN Page 
EN
Operating Instructions
Contents
 General information .................................
. About this document............................................
. Layout of Instructions...........................................
. Target group.............................................................
 Safety ......................................................... 
. Proper use.................................................................
. Protection features ................................................
. Additional information.........................................
 Description ................................................ 
. Mode of Operation ................................................ 
. Diagram ..................................................................... 
 Technical Data ......................................... 
. Electrical data ........................................................ 
. Mechanical data.....................................................
. Identication...........................................................
 Transportation and Delivery...................
. Scope of delivery...................................................
. Transportation........................................................
 Mounting ..................................................
. Unpacking............................................................... 
. Install and secure .................................................
. Fitting the housing (.-. TL)..................
. Securing the unit ................................................. 
 Electrical connection .............................. 
. Opening the unit.................................................. 
. Lay the electrical lines ........................................
. Cable and fuse requirements........................... 
. Connection to the power grid.........................
. Connecting the interfaces.................................
. Sealing the connection area ............................
. Switching on the device ....................................
 Conguration and Operation................. 
. Controls....................................................................
. Initial start-up ........................................................
. Menu structure......................................................
. Monitor inverter....................................................
. Performing the software update....................
 Maintenance/Troubleshooting ..............
. Visual inspection.................................................. 
. Cleaning the housing ........................................ 
. Shutting down for maintenance and
troubleshooting....................................................
. Disconnecting connections..............................
. Faults........................................................................ 
. "Fault" messages on the display/LED............
 Service...................................................... 
 Shutdown/Disassembly.......................... 
. Switching o the unit.........................................
. Uninstalling the device ......................................
. Disassembling the unit ......................................
. Packaging the unit...............................................
. Storing the unit.....................................................
 Disposal ................................................... 
 Appendix .................................................
. EU Declaration of Conformity..........................

General information
Page  Operating Instructions for Powador .-. TL_EN
ENEN  General information
. About this document
WARNING
Improper handling of the device can be hazardous
›You must read and understand the operating instructions so that you can
install and use the device safely!
.. Other applicable documents
During installation, observe all assembly and installation instructions for components and other parts of the system.
These instructions also apply to the equipment, related components and other parts of the system. Some of the
documents which are required for the registration and approval of your photovoltaic (PV) system are included with
the operating instructions.
.. Storing the documents
These instructions and other documents must be stored near the system and be available at all times. The content
of these instructions is revised on a regular basis and updated if necessary. You can download the current version of
the operating instructions at www.kaco-newenergy.com.
.. English translation of German original
These operating instructions have been produced in several languages. The German-language version of the
operating instructions is the original version. All other language versions are translations of the original operating
instructions.
. Layout of Instructions

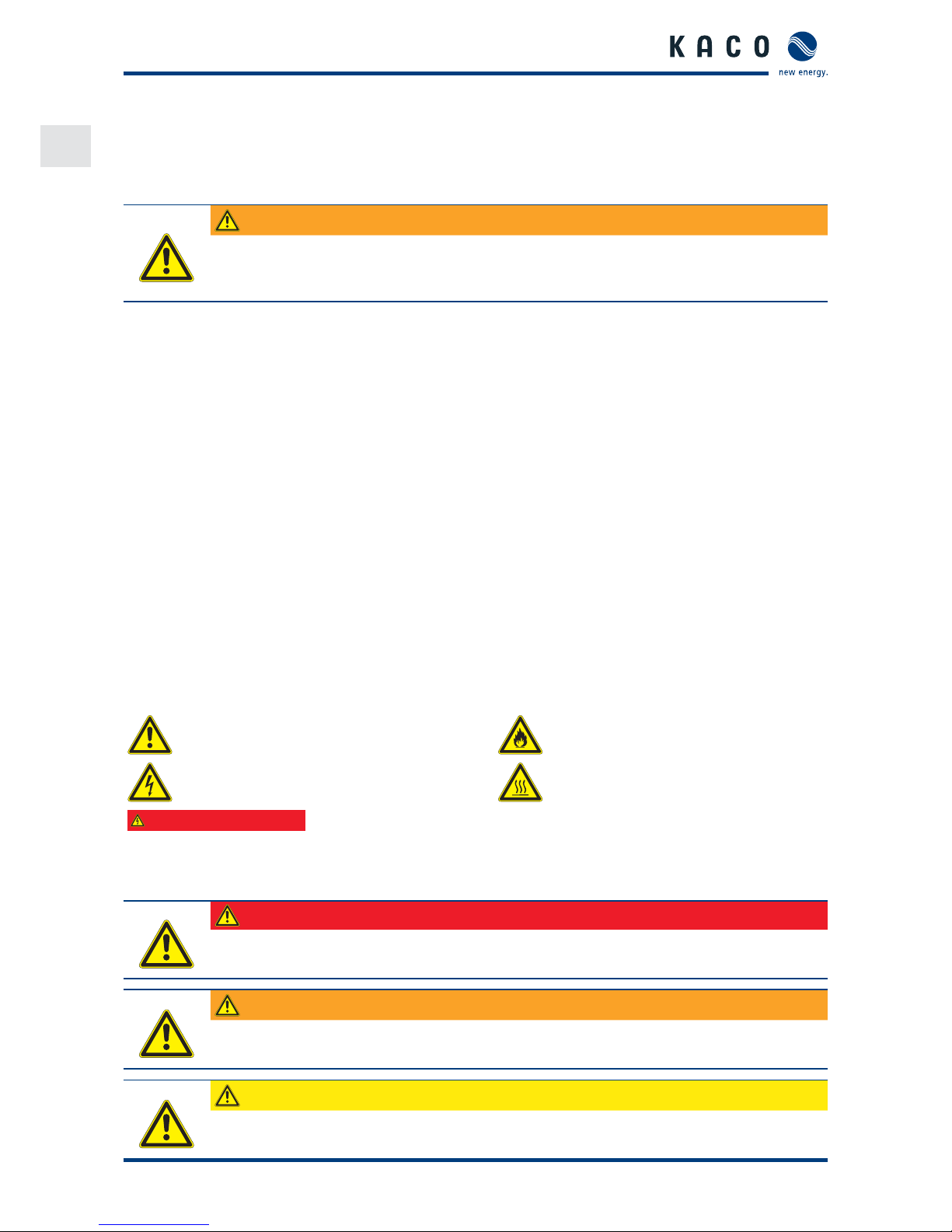

.. Symbols used
General hazard Risk of re or explosion
High voltage Risk of burns
Authorised electrician Only authorised electricians are permitted to carry out tasks indicated with this
symbol!
.. Safety warnings symbols guide
DANGER
High risk
Failure to observe this warning will lead directly to serious bodily injury or death.
WARNING
Potential risk
Failure to observe this warning may lead to serious bodily injury or death.
CAUTION
Low-risk hazard
Failure to observe this warning will lead to minor or moderate bodily injury.

Safety
Operating Instructions for Powador .-. TL_EN Page 
EN
CAUTION
Risk of damage to property
Failure to observe this warning will lead to property damage.
.. Additional information symbols
NOTE
Useful information and notes
EN Country-specic function
Functions restricted to one or more countries are labelled with country codes in accordance with
ISO-.
.. Instructions symbols guide
Instructions
ඣPrerequisite(s) before carrying out the following step(s) (optional)
. Carry out step.
. (Additional steps, if applicable)
» Result of the step(s) (optional)
. Target group
All activities described in the document may only be carried out by specially trained personnel with the following
qualications:
• Knowledge about how an inverter functions and operates
• Training in the handling of hazards and risks during the installation and operation of electrical devices and sys-
tems
• Education concerning the installation and startup of electrical units and systems
• Knowledge of applicable standards and directives
• Knowledge and adherence to this document with all safety notices.
 Safety
DANGER
Lethal voltages are still present in the terminals and cables of the inverter even after the
inverter has been switched o and disconnected.
Severe injuries or death will occur when touching the cables and terminals in the inverter.
Only appropriately qualied and authorised electricians may open, install or maintain the inverter.
›Keep the inverter closed when the unit is in operation.
›Do not touch the cables or terminals when switching the unit on and o.
›Do not make any modications to the inverter.
The electrician is responsible for observing all existing standards and regulations.
• Keep unauthorised persons away from the inverter and PV system.
• In particular, be sure to observe the standard IEC---: "Requirements for special installations or loca-
tions – solar photovoltaic (PV) power supply systems".
• Ensure operational safety by providing proper grounding, conductor dimensioning and appropriate protection
against short circuiting.

Safety
Page  Operating Instructions for Powador .-. TL_EN
ENEN • Observe all safety instructions on the inverter and in these operating instructions.
• Switch o all voltage sources and secure them against being inadvertently switched back on before performing
visual inspections and maintenance.
• When taking measurements while the inverter is live:
–Do not touch the electrical connections
–Remove all jewellery from wrists and ngers.
–Ensure that the testing equipment is in safe operating condition.
• Stand on an insulated surface when working on the inverter.
• Modications to the surroundings of the inverter must comply with the applicable national and local standards.
• When working on the PV generator, it is also necessary to switch o the DC voltage with the DC isolator switch in
addition to disconnecting the PV generator from the grid.
. Proper use
The inverter converts the DC voltage generated by the PV modules into AC voltage and feeds it into the grid. The
inverter is built according to the latest technological standards and safety regulations. Nevertheless, improper use
may cause lethal hazards for the operator or third parties, or may result in damage to the unit and other property.
Operate the inverter only with a permanent connection to the public power grid.
Any other or additional use of the device shall be regarded as improper. This includes:
• Mobile use,
• Use in rooms where there is a risk of explosion,
• Use in rooms where the humidity is higher than %
• Use in outdoor areas if the inverter is exposed to direct sunlight, rain or a storm,
• Use less than  m distant from the coast,
• Operation outside of the specications intended by the manufacturer
• Standalone operation.
. Protection features
The following monitoring and protection functions are built-in:
• Overvoltage conductors/varistors to protect the power semiconductors from high-energy transients on the grid
and generator side
• Temperature monitoring of the heat sink
• EMC lters to protect the inverter from high-frequency grid interference
• Grid-side grounded varistors to protect the inverter against burst and surge pulses
• Islanding detection according to VDE --
. Additional information
NOTE
The EU Declaration of Conformity can be found in the appendix.
For information on grid coupling, grid protection and safety parameters along with more detailed
instructions see our web site at http://www.kaco-newenergy.de/.

Description
Operating Instructions for Powador .-. TL_EN Page 
EN
 Description
. Mode of Operation
The inverter converts the DC voltage generated by the PV modules into AC voltage and feeds it into the grid. The
starting procedure begins when there is sucient sunlight and a specic minimum voltage is present in the inverter.
The feed-in process begins once the PV generator has passed the insulation test and the grid parameters are within
the requirements imposed by the grid operator for a specic monitoring time. If, as it gets dark, the voltage drops
below the minimum voltage value, feed-in operation ends and the inverter switches o.
. Diagram
1
2
3
4
5
6

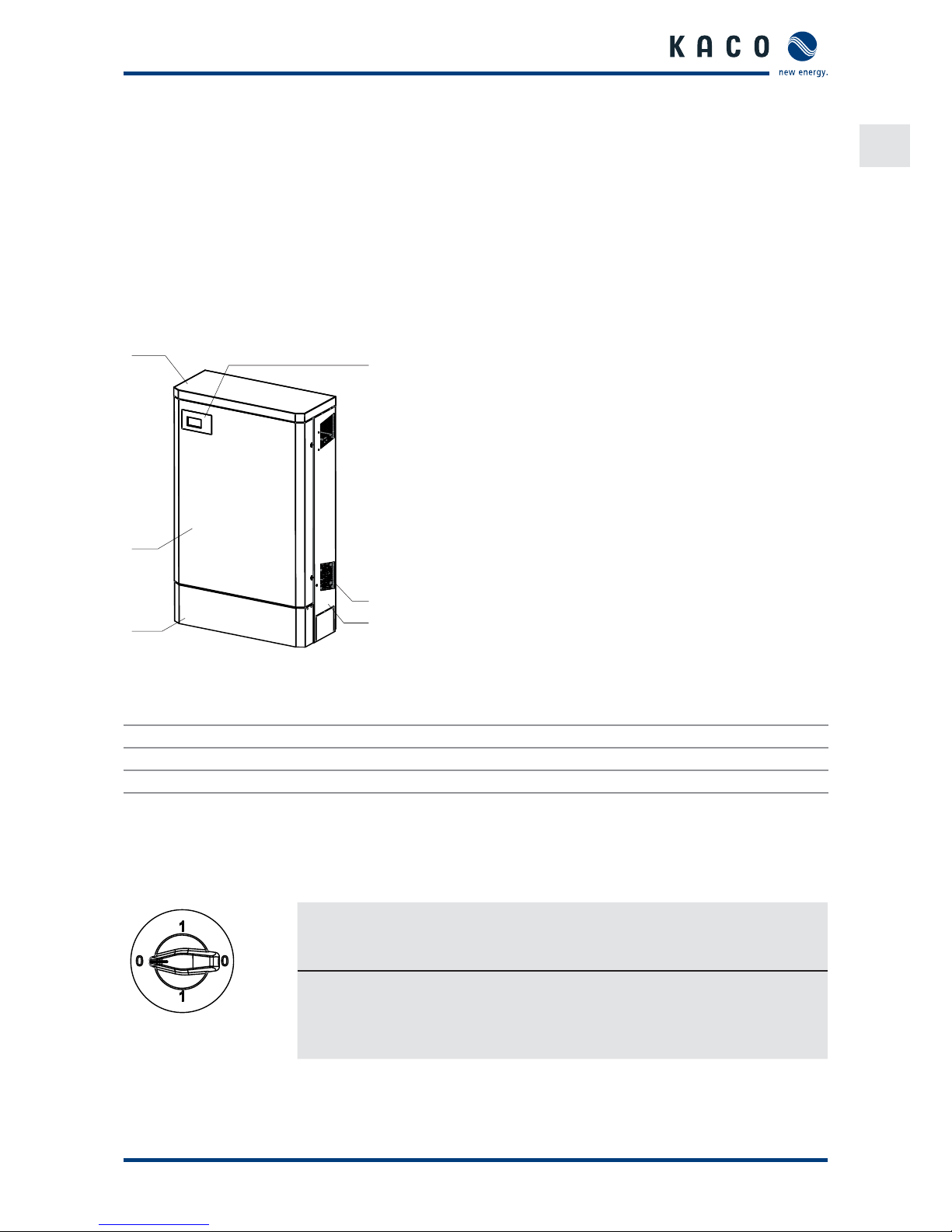

Figure : Inverter diagram
Key
1 Upper housing cover 4 Control panel
2 Doors 5 Fan cover
3 Cover for the connection area 6 Side housing cover
.. Mechanical components
DC isolator switch
There are  DC isolator switches inside the inverter housing. The DC isolator switch is used to disconnect the inverter
from the PV generator in order to carry out service activities.
Figure : DC isolator
switch
Disconnecting the inverter from the PV generator
"Switch the DC isolator switches from  (ON) to  (OFF).
Connecting the inverter to the PV generator
"Switch the DC isolator switches from  (OFF) to  (ON).
.. Electrical functions
A potential-free relay contact is integrated in the inverter. Use this contact for one of the following functions:

Description
Page  Operating Instructions for Powador .-. TL_EN
ENEN Fault signal relay
The potential-free relay contact closes as soon as there is a fault during operation. You use this function, for example,
to signal a fault visually or acoustically.
Priwatt
The energy that is provided by the PV system can be put to use directly by the appliances that are connected in your
home.
The potential-free contact can switch larger appliances (e.g. air conditioning units) on and o with the“priwatt”
function activated. This requires an external power supply and an external load relay.
When the function is active, either the remaining runtime (in hours and minutes) or the shutdown threshold (in kW)
is displayed on the start screen depending on the operating mode selected. The“priwatt” function is not active in
the unit’s delivery state. The option can be congured in the Settings menu.
.. Interfaces
RS interface
Use this monitoring option if you cannot check the functioning of the system on-site on a regular basis, e.g. if your
place of residence is located a great distance from the system. To connect the RS interface, contact your author-
ised electrician.
For monitoring your PV system using the RS interface, KACO new energy GmbH oers monitoring devices:
Ethernet interface
Monitoring can occur directly on the unit using the integrated Ethernet interface. A local web server is installed in
the unit for this purpose.
For monitoring a system comprising several inverters, we recommend you use an external data logging and moni-
toring system.
USB interface
The USB connection of the inverter is a type A socket. You will nd the USB connection on the connection circuit
board in the upper area on the inside of the door. The USB connection is specied to draw mA of power. Use the
USB interface to read out stored operating data and to load software updates using a FAT-formatted USB stick.
S interface
The S interface transmits pulses between a pulsing counter and a tari metering unit. It is a galvanically isolated
transistor output. It is designed according to DIN EN -:- (pulse output devices for electromechanical
and electronic meters).
NOTE
The S interface sends a specic number of pulses per kilowatt-hour output.
The number of pulses per kilowatt-hour output that can be sent by the S interface depends on the
maximum feed-in power of the inverter and can be set in the menu.
30.0-36.0 TL3 500, 1,000 or 2,000 pulses/kWh.
39.0-60.0 TL3 500 or 1000 pulses/kWh
72.0 TL3 500 pulses/kWh
“Inverter O" input
If Powador protect is installed as a central grid and system protection, the fail-safe disconnection of suitable KACO
inverters from the public grid can be initiated by a digital signal instead of tie circuit-breakers. This requires the
inverters in the photovoltaic system to be connected to the Powador protect. Information on installation and use
can be found in this manual, in the Powador protect manual and in the instructions for use of the Powador protect
on the KACO web site.

Description
Operating Instructions for Powador .-. TL_EN Page 
EN
.. Inverter as part of a PV system
KWhKWh
PV generator PV generator
Inverter with
DC isolator switch
Inverter with
DC isolator switch
Line protection Line protection
Load
Feed-in meterReference
counter
Main switch
Grid connection point
Selective main switch

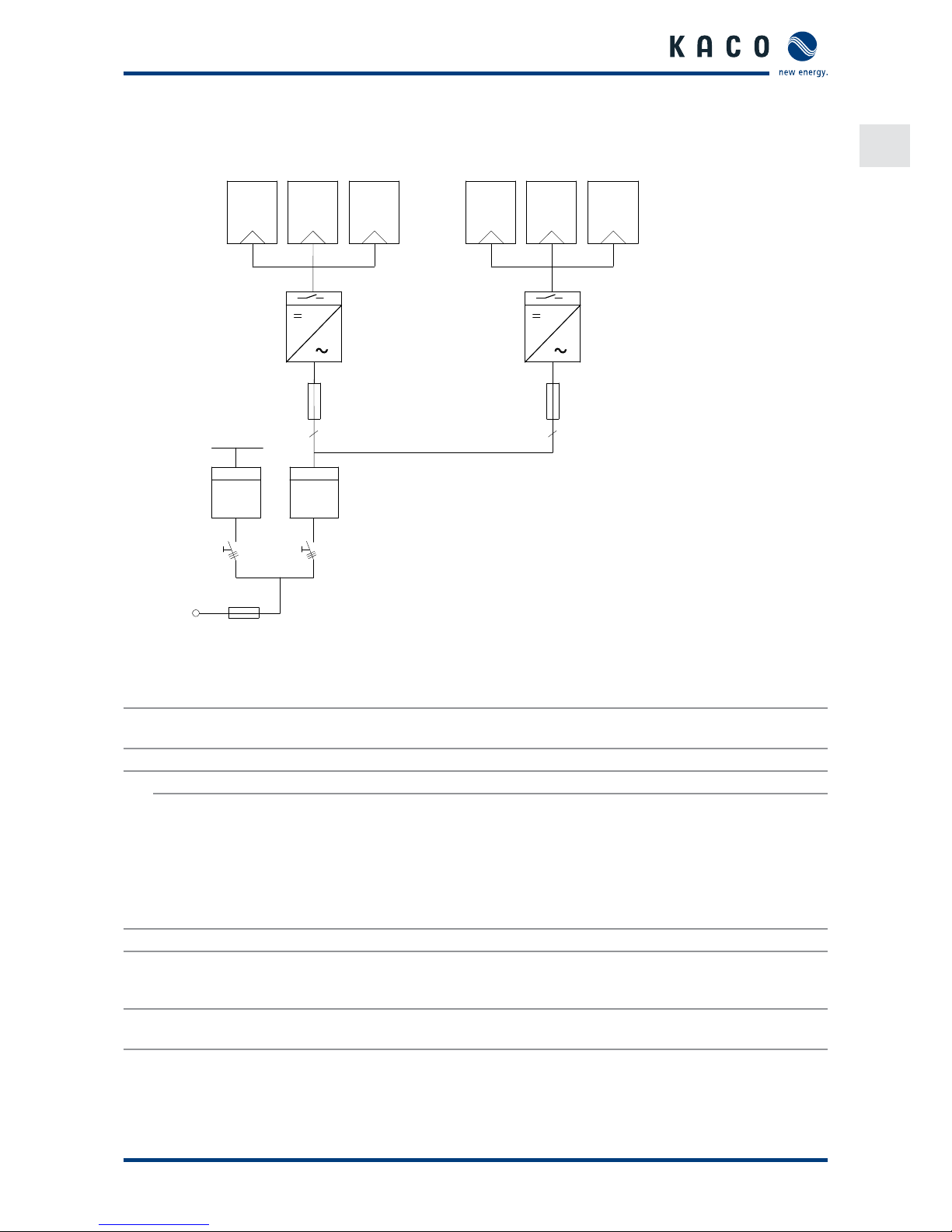

Figure : Circuit diagram of a system with two inverters
Key Denition / Information about the connection
PV generator The PV generator, i.e. the PV modules, converts the radiant energy of sunlight into
electrical energy.
Inverter with:
- DC connection The PV generator is connected directly to the inverter's DC connection.
- DC isolator switch Use the DC isolator switch to disconnect the inverter from the PV generator.
DC terminal point
Options for parallel connections of several generator strings:
• To a DC terminal point between the DC generator and inverter
• Directly to the inverter (terminals for  ( x ) strings are provided on the inverter),
• Directly to the PV generator with a positive and negative lead to the inverter
Circuit breaker A circuit breaker is an overcurrent protection device.
Feed-in meter The feed-in meter is to be specied and installed by the power supply company.
Some power supply companies also allow the installation of your own calibrated
meters.
Selective main switch The selective main switch is to be specied by the power supply company.

Technical Data
Page  Operating Instructions for Powador .-. TL_EN
ENEN  Technical Data
. Electrical data
Input levels 30.0 TL3 33.0 TL3 36.0 TL3 39.0 TL3
Recommended power range of the generator [kW] 33.75 37.12 40.5 44.95
MPP@Pnom from [V] to [V] 350 ... 800
Operating range from [V] to [V] 200 ... 800
Starting voltage [V]* 250
No-load voltage (UOC max ) [V] 1,000
Max. input current [A] 3 x 34.0
Max. power per MPP tracker [W] 20,000
Number of DC connections 3 x 1 (M) / 3 x 4 (XL)
Number of MPP controls 3
max. short-circuit current (ISC max ) [A] 3x 34.0 3x 40.8 3x 40.8 3 x 34.0
max. input source feedback current [A] 0
Polarity safeguard Short-circuit diode
Output levels
Rated power [VA] 25,000 27,500 30,000 33,300
Grid voltage [V] 400 / 230 (3/N/PE)
Rated current [A] 3 x 36.2 3 x 39.9 3 x 45.5 3 x 48.3
Initial short-circuit alternating current
(lk” rst single period eective value) [A] 49.3
Start-up current [A] 98
Rated frequency [Hz] 50/60
cos phi 0.80 inductive ... 0.80 capacitive
Number of feed-in phases 3
Distortion factor (THD) [%] < 3
General electrical data
Max. eciency [%] 98.0
European eciency [%] 97.8
Self consumption: standby [W] < 30
Self consumption: night [W] ~1.5
Feed-in starts at [W] 120
Circuit design IGBT, self-commutated, transformerless
Grid monitoring Country-specic
CE conformity Yes
Table 1: Electrical data

Technical Data
Operating Instructions for Powador .-. TL_EN Page 
EN
Input levels 40.0 TL3 48.0 TL3
Park
60.0 TL3 72.0 TL3
Park
Recommended power range of the generator [kW] 48.6 54 67.5 81
MPP@Pnom from [V] to [V] 350 ... 800 410 ... 800 480 ... 850 580 ... 850
Operating range from [V] to [V] 200 ... 800 200 ... 800 200 ... 850 200 ... 850
Starting voltage [V]* 250
Open circuit voltage [V] 1,000
Rated current max. [A] 3 x 34.0 3 x 34.0 3 x 36.0 3 x 36.0
Max. power per tracker [W] 20,000 20,000 20,000 24,000
Number of strings 3 x 1 (M)
3 x 4 (XL)
3 x 1 (M)
3 x 4 (XL)
3 x 1 (M)
3 x 4 (XL)
3 x 1 (M)
3 x 5 (XL)
3 x 4 (XL-F)
Number of MPP trackers 3
max. short-circuit current (ISC max ) [A] 3 x 40.8 3x 40.8 3 x 43.2 3 x 43.2
max. input source feedback current [A] 0
Polarity safeguard Short-circuit diode
Output levels
Rated power [VA] , 40,000 49,900 60,000
Grid voltage [V] 400 / 230 480 / 277** 400 / 230 480 / 277**
Rated current [A]  x . 3 x 48.1 3 x 72.2 3 x 72.2
Initial short-circuit alternating current (lk” rst
single period eective value) [A] . 49.3 75.0 74.4
Start-up current [A] 
Rated frequency [Hz] 50/60
cos phi 0.80 inductive ... 0.80 capacitive
Number of feed-in phases 3
Distortion factor [%] < 3
General electrical data
Max. eciency [%] 98.0 98.0 97.9 98.0
European eciency [%] 97.8 97.9 97.7 97.8
Self consumption: standby [W] < 30
Self consumption: night [W] ~1.5
Feed-in starts at [W] 120
Circuit design IGBT, self-commutated, transformerless
Grid monitoring Country-specic
CE conformity Yes
Table 2: Electrical data
* The DC starting voltage can be in the menu if needed.
**Device is designed for use exclusively on the medium-voltage grid.

Technical Data
Page  Operating Instructions for Powador .-. TL_EN
ENEN
. Mechanical data
30.0-72.0 TL3
Display Graphical LCD, 3 LEDs
Controls 4-way button, 2 buttons
Interfaces Ethernet, USB, RS485, S0, Digital output "Inverter o"
Fault signal relay Potential-free NO contact, max. 30V DC / 1A
AC connection terminals
Screw terminals inside the unit
min. cross section: 16 mm² rigid/exible
max. cross-section: 50 mm² rigid/exible
AC cable connection Via M50 cable tting
DC connection terminals (M variant)
Screw terminals on top hat rail inside the unit
min. cross section: 6 mm² rigid/exible
max. cross-section: 35mm² rigid/exible
DC connection terminals (XL variant)
Screw terminals on top hat rail inside the unit
min. cross section: 2.5 mm² rigid/exible
max. cross-section: 10mm² rigid/exible
Connections for DC cable connection 30.0 - 40.0 TL3: via 6 M32 cable ttings
60.0 - 72.0 TL3: via 6 M40 cable ttings
Connection for Ethernet cable connection via M25 cable tting
Ambient temperature range [°C] -20 ... 60
Maximum installation elevation (meter
above mean sea level) 2,000
Temperature monitoring Yes
Cooling (free convection (K)/fan (L)) L
Protection rating according to EN 60529 IP54
Degree of contamination PD2
DC isolator switch Built-in
Housing Steel plating
H x W x D [mm] 1360 x 840 x 355
Total weight [kg] 151 (30.0-48.0 TL3), 173 (60.0-72.0 TL3)
Table 3: Mechanical data

Transportation and Delivery
Operating Instructions for Powador .-. TL_EN Page 
EN
. Identication
Identifying the unit
ඣYou will nd the name plate with product-specic data for service and
other requirements specic to installation on the right side panel of
the inverter. This data includes:
• Product name
• Part no.
• Serial no.
• Date of manufacture
• Technical Data
• Disposal information
• Certication marking, CE marking.
Typ / Type Powador 72.0 TL3 - XL - INT -
Park
Seriennummer
/ serial no. *
KACO new energy GmbH Artikelnummer
/ part no. 1000521
Carl-Zeiss-Str. 1
74172 Neckarsulm
MADE IN GERMANY
Max. Eingangsleistung / input power DC 72000 W
Max. Eingangsstrom / input current DC / Isc PV 3x36A|3x43,2A
Max. Eingangsspannung / input voltage DC 1000 V
Min. Eingangsspannung / input voltage DC 200 V
MPP-Spannungsbereich / MPP voltage range DC 580 - 850 V
Umgebungstemperatur / ambient temperature -20 °C ... +60 °C
Schutzklasse | Schutzart / protection class | protection 1 / IP54
Cos phi 0,8 ind. - 0,8 cap.
Nennspannung / rated output voltage AC 480 V / 277 V 3/N/PE
Frequenz / rated frequency 50 Hz / 60 Hz
Nennleistung DE / rated output power AC INT 60000 VA
Nennstrom DE / rated output current AC INT 3 x 72,2 A
Netzüberwachung / grid monitoring VDE V 0126-1-1 + A1 / country specific
Jahr / year Q1 / 2016
galvanisch nicht getrennt / no galvanic isolation
Dep. on country settings all specific requirements are
met, details see manual.
Figure : Name plate
 Transportation and Delivery
Every inverter leaves our factory in proper electrical and mechanical condition. Special packaging ensures that the
units are transported safely. The shipping company is responsible for any transport damage that occurs.
. Scope of delivery
• inverter
• Housing cover: Cover plates right and left, cover
• Installation kit
• Documentation
Checking your delivery
. Inspect your inverter thoroughly.
. Immediately notify the shipping company in case of the following:
–Damage to the packaging that indicates that the inverter may have been damaged
–Obvious damage to the inverter
. Send a damage report to the shipping company immediately.
The damage report must be received by the shipping company in writing within six days following receipt of the
inverter.
We will be glad to help you if necessary.
. Transportation
CAUTION
Impact hazard, risk of breakage to the inverter
›Pack the inverter securely for transport.
›Carefully transport the inverter using the transportation pallet.
›Do not subject the inverter to shocks.

Mounting
Page  Operating Instructions for Powador .-. TL_EN
ENEN
Authorised electrician
For safe transportation of the inverter, use a transportation pallet.
Figure : Transportation of the inverter
 Mounting
DANGER
Risk of fatal injury from re or explosions
Fire caused by ammable or explosive materials in the vicinity of the inverter can lead to serious
injuries.
›Do not mount the inverter in an area at risk of explosion or in the vicinity of highly ammable mate-
rials.
Installation location
• As dry as possible, climate-controlled, with the waste heat dissipated away from the inverter
• Air circulation should not be blocked
• When installing the unit in a control cabinet, provide forced ventilation so that the heat is suciently dissipated
• Close to the ground, accessible from the front and sides without requiring additional resources
• Protected on all sides against heavy rain and direct sunlight (thermal heating) in outdoor areas.
Implementation where necessary via constructional measures, e.g. wind breaks.
• For easy operation, ensure during installation that the display is slightly below eye level.
Floor and wall
• With sucient load-bearing capacity
• Accessible for installation and maintenance
• Made from heat-resistant material (up to  °C),
• Flame resistant
• Minimum clearances to be observed during assembly: see Figure  on page .
NOTE
Access by maintenance personnel for service
Any additional costs arising from unfavourable structural or mounting conditions shall be billed to
the customer.

Mounting
Operating Instructions for Powador .-. TL_EN Page 
EN
Authorised electrician
CAUTION
Property damage due to gases that have an abrasive eect on surfaces when they come into
contact with ambient humidity caused by weather conditions.
The housing may be seriously damaged by gases (ammonia, sulphur, etc.) if it comes into con-
tact with ambient humidity caused by weather conditions.
If the inverter is exposed to gases, it must be mounted so that it can be seen at all times.
›Perform regular visual inspections.
›Immediately remove any moisture from the housing.
›Take care to ensure sucient ventilation of the inverter.
›Immediately remove dirt, especially on vents.
›Failure to observe these warnings may lead to inverter damage which is not covered by the KACO
new energy GmbH manufacturer warranty.
NOTE
Power reduction due to heat accumulation.
If the recommended minimum clearances are not observed, the inverter may go into power regula-
tion mode due to insucient ventilation and the resulting heat build-up.
›Maintain minimum clearances.
›Provide for sucient heat dissipation.
735
1328
140
766.5
45
Figure : Drilling separation (in mm) Figure : Instructions for wall mounting
CAUTION
Use suitable mounting parts.
›Use only the supplied mounting parts.
›Only install inverter in an upright position.
›For wall mounting: Mount the device on a vertical wall only.
›For upright installation outdoors: Weather-proof base required

Mounting
Page  Operating Instructions for Powador .-. TL_EN
ENEN
Authorised electrician
. Unpacking





Figure : Unpack device/ transport device
Key
1 Cardboard box cover 4 Cover
2 Protective corners 5 Eyebolts
3 Pallet
Unpacking the unit
. Loosen packaging tape from cardboard box.
. Lift down the cardboard box cover.
. Remove protective corners.
. Remove the cover.
. Install and secure
WARNING
Impact hazard, risk of breakage to the inverter
›Pack the inverter securely for transport.
›Carefully transport the inverter using the built-in eyebolts!
CAUTION
Risk of injury if the inverter tips over!
Risk of tipping due to high centre of gravity, particularly with the housing doors open.
›Anchor the inverter securely to the ground immediately after positioning it and, if possible, fasten
it to the wall.
›Do not open the housing doors until the inverter has been securely anchored.

Mounting
Operating Instructions for Powador .-. TL_EN Page 
EN
Authorised electrician
.-. TL F=, kN
.-. TL F=, kN


Figure : Transport device Figure : Transportation of the inverter
Key
1 Shackle 3 Centre of gravity
2 Transportation rope
Position device
. Heave the eyebolts for the hoist.
. Connect the shackles to the eyebolts.
. Hang the transportation rope through the shackle.
. Attach a transportation rope to a stable hoist. (>  kN)
. Raise the device.
. Transport to the place of assembly (keep an eye on the centre of gravity!)
. Lash the device securely on the ground.
» Install and secure the inverter.
B
A
A
C
A
A
Figure : Minimum clearances Figure : Installation below support system

Mounting
Page  Operating Instructions for Powador .-. TL_EN
ENEN
Authorised electrician
Key
Ahorizontal distance between the two inverters / vertical distance
between inverter and the ceiling  cm
B Distance in front 100 cm
C Vertical distance to an additional inverter suitable for wall mounting 70 cm
Drilling the holes
. Mark (x) drill holes on bottom.
. For wall mounting: Mark the position of the holes on the wall (x) and insert the wall anchors in the wall for
additional security.
. Drill the holes. Floor:  mm diameter, wall:  mm diameter.
» Install and secure the inverter.
. Fitting the housing (.-. TL)
Removing the EMC sheet metal
. Unscrew the  M x  screws from the EMC sheet metal.
. Remove and store the EMC sheet metal.
Install the hood.
Installing the hood
ඣRemove the EMC sheet metal.
. Place the hood on the top side of the housing.
. Secure the hood to the inverter housing from the inside using the enclosed fastening screws.
» Install the side housing covers.
Installing the side housing covers
ඣRemove the EMC sheet metal.
. Place the left housing cover on the inverter housing.
. Secure the left housing cover to the inverter housing from the inside using the  enclosed M x  screws.
. Place the right housing cover on the inverter housing.
. Secure the right housing cover to the inverter housing from the inside using the  enclosed M x  screws
with a Torx T screw driver.
» Place the EMC sheet metal on the housing.
Placing the EMC sheet metal on the housing
. Place the EMC sheet metal on the inverter housing.
. Secure the EMC sheet metal to the inverter housing using the enclosed  M x  screws.
» The mounting of the inverter is complete.
» Continue with the installation.
. Securing the unit
Securing the inverter
. Position the inverter above the drill holes.
. Use the four anchoring bolts to secure the inverter to the oor.
. For installations at a wall: secure the inverter to the wall with two screws.
» Install the housing.

Electrical connection
Operating Instructions for Powador .-. TL_EN Page 
EN
Authorised electrician
 Electrical connection
DANGER
Lethal voltages are still present in the terminals and cables of the inverter even after the
inverter has been switched o and disconnected.
Severe injuries or death will occur when touching the cables and terminals in the inverter.
Only appropriately qualied and authorised electricians may open and install the inverter.
The inverter must be mounted in a xed position before being connected electrically.
›Observe all safety regulations and current technical connection specications of the responsible
power supply company.
›Disconnect the AC and DC sides.
›Secure both sides against being inadvertently switched back on.
›Ensure that the AC and DC sides are completely isolated and voltage free.
›Connect the inverter only after the aforementioned steps have been taken.
. Opening the unit
Open connection area
ඣYou have completed assembly.
. Unlock the two door locks with the control cabinet key.
. Open the doors.
. Remove the cover of the connection area.
» Make the electrical connections.
. Lay the electrical lines
The pre-punched perforations on the side-mounted housing base enable all electrical lines to be inserted properly
in the interior of the inverter.



Figure : Perforation on the housing base /rear plinth panel
Key
1 Plinth panel (optional) 3 Pre-punched perforation (for cable duct [72 x 110 mm])
2 Fixing screw (8x) (optional)
NOTE
If the device is going to be installed outdoors, we recommend that an additional plinth panel is tted
in the socket area at the back end of the housing. (accessory item from KACO new energy)
NOTE
Damaged seal labels will render the warranty invalid immediately.
In the event of third-party responsibility, contact your installer and our customer service immediately.

Electrical connection
Page  Operating Instructions for Powador .-. TL_EN
ENEN
Authorised electrician
. Cable and fuse requirements
Make the connection to the PV generator as well as the grid connection via the PCB terminals in the connection area
of the inverter. Note the following cable cross-sections:
AC connection (M/XL/F) DC connection (M) DC connection (XL/F)
Max. conductor cross-sec-
tion without wire sleeves
50 mm² 35 mm² 10 mm²
Max. conductor cross-sec-
tion with wire sleeves
30.0-48.0 TL3: 50 mm²
60.0-72.0 TL3: 35 mm²
35 mm² 10 mm²
Length of insulation to be
stripped o
dependent on the utilised terminal type
Tightening torque 30.0-48.0 TL3: 4-4,5 Nm
60.0-72.0 TL3: 2.5-4 Nm
- 2.5 Nm
Table 4: Recommended conductor cross-section
Version M Version XL Version XL SPD 1+2
String fuses To be provided externally on-site internal, fuse size depends on connection
Overvoltage conductors
(surge protection device)
To be provided externally on-site Installed internally, Type II,
1 per MPP tracker
Installed internally, Type
I+II, 1 per MPP tracker
Combiner box To be provided externally on-site Installed internally
Parallel connection of
the DC inputs
Parallel connection not possible,
connection via individual cables
Parallel connection not possible, connection via
individual cables
Overvoltage safety class DC: III, AC: III DC: II + III, AC: III
Overvoltage category DC: II, AC: III DC: II, AC: III
DC connection terminals 3 (1 per MPP tracker) 30.0-60.0 TL3: 12 (4 per MPP tracker)
72.0 TL3: 15 (5 per MPP tracker)
. Connection to the power grid
The power connection wires are connected to the AC terminal on the left of the connection area (see Figure ).
DANGER
Danger to life from electric shock!
Severe injury or death will result if the live connections are touched.
›Switch o all power sources to the inverter before you insert the grid power cable into the unit.
›Isolate before carrying out work on the public power supply and the system power supply.
Prepare the grid connection
ඣUse  core cable (L brown, L black, L grey, N blue, PE green/yellow)
or  core cable (L brown, L black, L grey, PE green/yellow).
. Loosen cable tting for AC connection.
. Remove the outer cladding of the AC cables.
. Insert the AC cables through the cable tting into the connection area.
. Strip the insulation from the AC cables.
. Making the grid connection.
AC-Side
DC-Side
Figure : Connection terminals
