Kalorik FT 43721 User manual

1
www.KALORIK.com
FT 43721 - 200605
3 LITER DEEP FRYER WITH OIL FILTRATION
FREIDORA DE 3 LITROS CON FILTRACIÓN
DE ACEITE
120V~60Hz 1700W
FT 43721
EN……...6
ES…......24
FR…......44
FRITEUSE 3 LITRES AVEC SYSTÈME DE
FILTRATION DE L'HUILE

2
www.KALORIK.com
FT 43721 - 200605

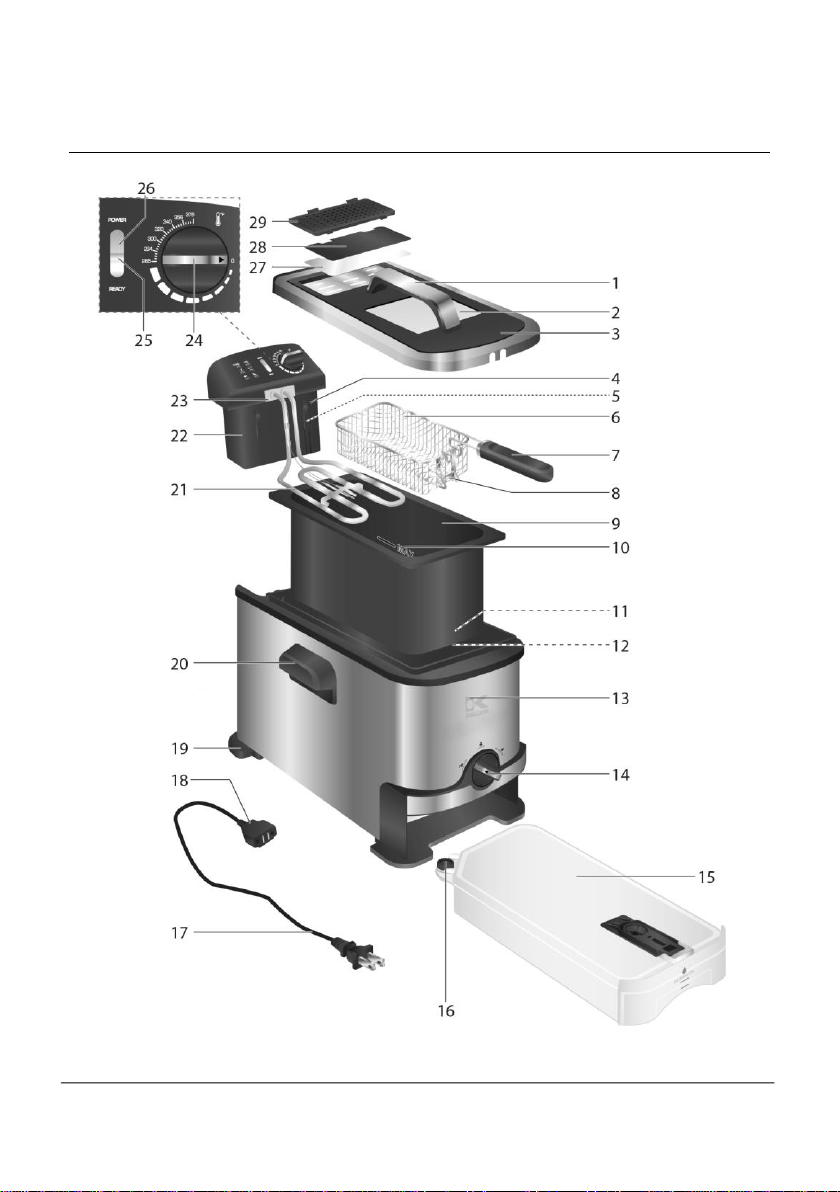

PARTS DESCRIPTION / DESCRIPTION DES
ÉLÉMENTS

3
www.KALORIK.com
FT 43721 - 200605
PARTS DESCRIPTION / DESCRIPTION DES
ÉLÉMENTS
ENGLISH:
1. Lid handle
2. View window
3. Lid
4. Reset button
5. Safety switch
6. Frying basket
7. Basket handle
8. Basket hook
9. Oil reservoir
10. Oil level marking MIN MAX
11. Oil filter cover
12. Oil valve
13. Housing
14. Oil filtration control knob
15. Oil container
16. Cap
17. Power cord with plug
18. Magnetic plug
19. Anti-slip feet
20. Side handles
21. Immersion heater
22. Control panel assembly
23. Silicon rubber sealing plate
24. Temperature control knob
25. READY indicator (green)
26. POWER indicator (blue)
27. White grease filter
28. Charcoal odor filter
29. Filter cover
ESPAÑOL:
1. Mango de la tapa
2. Ventana de visión
3. Tapa
4. Botón de reinicio
5. Interruptor de seguridad
6. Cesta de freír
7. Mango de la cesta
8. Gancho de la cesta
9. Depósito de aceite
10. Marca de nivel de aceite MIN
MAX
11. Cubierta filtro de aceite
12. Válvula de aceite
13. Carcasa
14. Perilla de control de filtración
de aceite
15. Contenedor de aceite
16. Tapón
17. Cable de alimentación con
enchufe
18. Enchufe magnético
19. Pies de apoyo antideslizantes
20. Asas laterales
21. Calentador de inmersión
22. Conjunto del panel de control
23. Placa selladora de silicona
24. Perilla de control de
temperatura
25. Indicador de listo (verde)
26. Indicador de poder (azul)
27. Filtro de grasa blanca
28. Filtro de olor a carbón
29. Tapa del filtro

4
www.KALORIK.com
FT 43721 - 200605
FRANÇAIS
1. Poignée de couvercle
2. Fenêtre en verre
3. Couvercle
4. Bouton de réinitialisation
5. Bouton de sécurité
6. Panier de friture
7. Poignée de panier
8. Crochet de panier
9. Réservoir d’huile
10. Indication de niveau d’huile
MIN MAX
11. Couvercle du filtre d’huile
12. Soupape d’huile
13. Corps
14. Bouton de commande de la
filtration d’huile
15. Bac à huile
16. Bouchon
17. Cordon d’alimentation avec
fiche
18. Fiche magnétique
19. Pieds antidérapant
20. Poignées latérales
21. Thermoplongeur
22. Panneau de commande
23. Plaque d’étanchéité en
caoutchouc de silicone
24. Bouton de réglage de
température
25. Voyant PRÊT (vert)
26. Voyant d’alimentation (bleu)
27. Filtre à graisse blanc
28. Filtre à charbon anti-odeurs
29. Couvercle du filtre
ILLUSTRATIONS

5
www.KALORIK.com
FT 43721 - 200605

6
www.KALORIK.com
FT 43721 - 200605
IMPORTANT SAFEGUARDS
1. When using electrical appliances, basic safety precautions should
always be followed, including the following:
2. Read all instructions before use.
3. Do not touch hot surfaces. Use handles or knobs.
‒WARNING - to protect against electric shock, fire and personal
injury: do not immerse cord, plug or motor unit in water or other
liquids;
‒do not immerse the appliance or any electrical components in
water or any other liquids;
‒always switch off and unplug the appliance before cleaning.
4. Close supervision is necessary when any appliance is used by or
near children.
5. Unplug from wall outlet when not in use and before cleaning. Allow
to cool before handling, putting on or taking off parts, and before
cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or has been damaged in any

7
www.KALORIK.com
FT 43721 - 200605
manner. Call our toll-free customer assistance number for
information on examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the
appliance manufacturer may result in fire, electric shock or injuries
to persons.
8. Do not use outdoors or in a damp area.
9. Do not let power cord hang over edge of table or counter, or
touch hot surfaces.
10. Do not place on or near a hot gas or electric burner or in a heated
oven.
11. Extreme caution must be used when moving a fryer containing hot
oil or other hot liquids.
12. Always attach plug to appliance first, then plug cord in the wall
outlet. To disconnect, turn the temperature control knob to 0, then
remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Be sure handles are properly assembled to basket and locked in
place.
15. Remove excess surface moisture from foods prior to cooking to
prevent heated oil from foaming out when food is added.
16. Ensure both the lid and oil reservoir are completely dry after
washing and before use.
17. Never leave the appliance unattended during operation.
18. A fire may occur if the appliance is covered or touches flammable
material, including curtains, draperies, walls, and the like, when in
operation. Do not store any item on top of the appliance when in
operation.
19. In the event of fire, never try to extinguish the flames with water.
Unplug the appliance from the wall outlet. Place the lid on the
appliance, if it can be done safely. Smother the flames with a
damp cloth, or use a fire extinguisher.
20. Use only heat resistant tools. Do not use metal tools as they may
become hot.
21. Never pull on the power cord to disconnect the appliance from the
wall outlet; instead, grasp the plug and pull on the plug.
22. Do not clean with metal scouring pads. Pieces can break off the
pad and touch electrical parts involving a risk of electric shock.
23. Do not attempt to defeat the safety switch or remove the silicon
rubber sealing plate.

8
www.KALORIK.com
FT 43721 - 200605
24. WARNING! Always wait 3 to 4 hours until the oil has cooled down
completely, before draining or filtering. Failure to do so may
damage the deep fryer.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
ADDITIONAL SAFEGUARDS
This appliance is for HOUSEHOLD USE ONLY.
WARNING:
•Over tightening can result in stripping of screws or nuts or cracking
of handle, lid or control panel assembly.
Periodically check for looseness and retighten screws or nuts in
accordance with manufacturer’s instructions.
WARNING:
‒SERIOUS HOT OIL BURNS MAY RESULT FROM A DEEP FRYER BEING
PULLED OFF A COUNTERTOP. DO NOT ALLOW THE CORD TO HANG
OVER THE EDGE OF THE COUNTER WHERE IT MAY BE GRABBED BY
CHILDREN OR BECOME ENTANGLED WITH THE USER.
‒DO NOT USE WITH AN EXTENSION CORD.
‒DO NOT OPERATE THIS APPLIANCE, IF THE POWER CORD SHOWS
DAMAGE OR IF APPLIANCE WORKS INTERMITTENTLY OR STOPS
WORKING ENTIRELY.
POLARIZED PLUG
This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug is intended to fit into a
polarized outlet only one way. If the plug does not fit fully into the
outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to modify the plug in any way.
Do not let children handle or put the electrical cord into their mouths.

9
www.KALORIK.com
FT 43721 - 200605
SHORT CORD INSTRUCTIONS
A short power supply cord is provided to reduce the hazards resulting
from becoming entangled in, or tripping over a longer cord.
PARTS DESCRIPTION
See page 2-3.
BEFORE THE FIRST USE
•Remove all packaging materials and/or other transportation
means.
•Check package content to verify it is complete and undamaged.
Do not operate the appliance if the content is incomplete or
appears damaged.
Danger of suffocation!
‒Packaging materials are not toys. Always keep plastic bags, foils
and foam parts away from babies and children. Packaging
material could block airways and prevent breathing.
NOTE:
‒The appliance may produce an odor and/or emit smoke when
switched on for the first time, as residues from the production
process are eliminated. This is normal and does not indicate a
defect or hazard. Ensure ample ventilation.
•Clean the appliance thoroughly before using for the first time
(Cleaning and Maintenance).
ASSEMBLY
See Illustrations (page 5 & 6).
•Place the appliance on a clean, flat and heat resistant surface.
•Before using your appliance make sure:
‒the basket handle (7) is locked in place in the basket (6). To lock
the basket handle (7) in place, press the bars together and slide
them between the slots. Inserting the ends of the bars into the

10
www.KALORIK.com
FT 43721 - 200605
bracket on the basket (6) and push the handle (7) backwards
(ill. a and b). Do not assemble any other way (ill. c).
‒the oil reservoir (9) is secured in the correct position with the oil
filter cover (11) and oil valve (12) on the same side than the oil
filtration control knob (14) (ill. d). Ensure the oil filter cover (11) is
in place inside the oil reservoir (9).
‒the control panel assembly (22) is placed on the connecting
plate on the back of the housing (13). Ensure the grooves of the
connecting plate are in the guides of the control panel
assembly (ill. e).
NOTE:
‒YOUR APPLIANCE IS EQUIPPED WITH A SAFETY SWITCH (5)
LOCATED ON THE CONTROL PANEL ASSEMBLY (22). IF THE
CONTROL PANEL ASSEMBLY (22) IS NOT PLACED PROPERLY IN ITS
POSITION, THE APPLIANCE WILL NOT OPERATE.
‒Incorrect assembly may lead to an unstable setup and might
cause injuries.
‒The silicon rubber sealing plate (23) prevents hot steam
escaping from under the lid. Do not attempt to remove.
USING THE APPLIANCE
This appliance can be used for frying food such as French fries, chicken
or fish pieces (see Recommended frying times and temperatures).
NOTE:
‒The appliance has a rated power of 1700W. Before plugging it
into the wall outlet, ensure that the electrical circuit is not
overloaded with other appliances. This appliance should always
be operated on a separate 120V ~ 60Hz wall outlet.
‒Make sure the appliance is switched off before connecting it to
a wall outlet.
•Place the appliance on a clean, flat and heat-resistant surface.
When using the appliance on wooden surfaces, use a heat resistant
mat to protect the wood from damages. Ensure a minimum
distance around the appliance of at least 4 inches to other objects,
cupboards and walls.
•Ensure the oil container (15) is assembled, empty and in place
inside the appliance, the oil filtration control knob (14) is on the

11
www.KALORIK.com
FT 43721 - 200605
LOCK position and the oil filter cover (11) is in place inside the oil
reservoir (9). Then, pour suitable cooking oil into the oil reservoir (9)
(ill. f).
Danger of burns!
‒Never refill the oil reservoir (9) during use or while hot. Always
allow the appliance to cool down completely. Do not mix new
oil with old oil.
WARNING:
‒DO NOT OVER OR UNDER FILL (ill. f). The minimum oil capacity is
1.9L (MIN), the maximum oil capacity is 3L (MAX). Ensure the oil
level always remains between the MIN and MAX marking (10).
•Spread a little oil on the inside of the view window (2) to prevent
condensation.
•Place the lid (3) onto the housing (13).
•Ensure the temperature control knob (24) is on the 0 position before
attaching the magnetic plug (18) to the socket on the back side of
the control panel assembly (22) (ill. g).
NOTE:
‒The magnetic plug (18) is designed to only fit one way. Ensure
the side stating THIS SIDE UP is facing up and the magnetic plug
(18) is properly attached.
•Insert the plug (17) into a wall outlet (ill. g).
WARNING:
‒Only use accessories recommended by the manufacturer. Do
not place any other materials in the appliance.
‒Never let the power cord (17) come in contact with the lid (3) or
appliance housing (13) during use (ill. h).
Danger of burns!
‒Do not touch the lid (3) or appliance housing (13) during or after
use (ill. i). Only use the handles (2, 7, 20) provided.
‒Always pay special attention when adding or removing
accessories and food from the appliance. Never touch the lid
(3) or appliance housing (13) when the appliance is plugged in
and switched on or immediately after use. It is recommended to
always use oven mitts.

12
www.KALORIK.com
FT 43721 - 200605
‒Escaping steam can burn.
•Turn the temperature control knob (24) to the required temperature
(see Recommended frying times and temperatures) (ill. j). The
POWER indicator (26) will turn on to indicate the appliance is
heating. Once the set temperature has been reached, the READY
indicator (25) will turn on.
Approximate time durations until set temperature is reached:
Temperature setting (°F / °C)
Time (minutes)
265 / 130
About 7
300 / 150
About 8
340 / 170
About 10
375 / 190
About 13
•After the oil has been preheated, remove the lid (3).
•Place the basket (6) on a clean, flat and heat resistant surface.
•Fill the basket (6) with food (ill. k). Do not overfill the basket (6) (ill. L).
WARNING:
‒Do not fry food without the basket (6) (ill. m).
‒Do not fill the basket (6) over half way. Too much food can
cause excess foaming and could cause the oil to overflow
during operation.
‒Food added to the appliance must be dry. If frying frozen foods
such as French fries or chicken wings, remove all ice particles
from the frozen foods prior to frying to prevent oil from
overflowing.
‒Always remove excess moisture from food by patting with paper
towel before frying. Even a small amount of water can cause
severe splattering of hot oil.
‒After immersing the basket (6) in the oil, immediately place the
lid (3) on the appliance. Danger of hot oil splashing out.
•Carefully lower the basket (6) into the oil reservoir (9) (ill. n).
•Cover the oil reservoir (9) with the lid (3) (ill. o). Ensure the recessed
parts of the lid (3) fit properly over the basket handle (7) and silicon
rubber sealing plate (23).
NOTE:

13
www.KALORIK.com
FT 43721 - 200605
‒When frying fresh cut potatoes and high moisture content food,
lower the basket slowly into the oil. If the oil boils or foams too
rapidly, raise the basket for a few seconds and lower again. Do
this until the basket can be lowered without excess foaming.
‒Do not place the lid (3) on the appliance when frying fresh cut
potatoes or other high moisture content foods.
‒For frying times, see Recommended frying times and
temperatures or follow the instructions from the food
manufacturer.
•After the frying time has elapsed, remove the lid (3).
•Use the handle (7) to lift out the basket (6) and hang it onto the
basket hook (8) onto the rim of the oil reservoir (9) (ill. p).
•Let the food drain in the basket (6) for a few seconds to remove
excess oil and retain crispness.
•Use the handle (7) to carefully lift the basket (6) and pour the food
onto a heat resistant dish that has been covered with a paper
towel to collect remaining oil.
WARNING:
Never place the hot basket (6) directly on a tabletop or countertop
to avoid damage to surfaces. It is recommended to use a heat
resistant trivet or cutting board.
•Place the basket (6) on a clean, flat and heat resistant surface.
•After the cooking process is finished, turn the temperature control
knob (24) to the 0 position and remove the plug (17) from the wall
outlet. Then, remove the magnetic plug (18) from the socket on the
back side of the control panel assembly (22) (ill. q).
WARNING:
‒Always disconnect the plug (17) from the wall outlet before
removing the magnetic plug (18) from the control panel
assembly (22).
‒The break-away power cord is for accidental disconnection. Do
not remove during normal operation. If the magnetic plug (18) is
disconnected, immediately remove the plug (17) from the wall
outlet. Turn the temperature control knob (24) to the 0 position.
Reconnect the magnetic plug (18) to the control panel

14
www.KALORIK.com
FT 43721 - 200605
assembly (22) and then reconnect the plug (17) to the wall
outlet.
‒This appliance generates heat and steam during use. Proper
precautions must be taken to prevent the risk of burns, fires or
other injuries to persons or damage to property. Do not leave
the appliance unattended while in use.
‒The surfaces of the appliance become hot. Do not touch while
in use. Allow the appliance to cool at least 30 minutes before
handling.
RECOMMENDED FRYING TIMES AND
TEMPERATURES
NOTE:
The frying times in the chart below are approximate and should be
adjusted to suit your own tastes, different food quantities and food
manufacturer’s instructions.
Food
Temperature setting (°F / °C)
Time (minutes)
Frozen French fries
375 / 190
8 - 12
French fries
375 / 190
8 - 10
Meat strips
375 / 190
10 - 14
Chicken wings
375 / 190
10 - 14
Fish (battered)
340 / 170
3 - 5
Seafood
340 / 170
3 - 5
CHOOSING THE RIGHT COOKING OIL
As a general rule, choose cooking oils with a high smoke point and
avoid flavored oils.
Suitable: Pure corn oil, blended vegetable oil, soybean oil, sunflower
oil, grape seed oil, peanut oil
Not suitable: Olive oil, walnut oil, lard

15
www.KALORIK.com
FT 43721 - 200605
COOKING WITH OIL
Cooking oil can enhance the food’s flavor – or spoil its taste. As with any
other food component, freshness and correct handling of the oil is the
key to successful deep frying results.
The quality of the oil decreases with use at high temperatures. Food
particles, water and other liquids will further lower its quality, therefore:
•Do not mix different cooking oils.
•Only use fresh and clean cooking oils:
‒Regularly remove burnt food particles while frying. Always use
utensils that are safe to immerse into hot oils without damaging
the utensil or the appliance, and always wear oven mitts when
removing any burnt food particles.
‒After use and before storage, filter oil with the integrated
filtration system (see Oil Filtration)
‒Do not reuse oil that has been used to fry fish or other strongly
flavored food.
‒Some meats, such as chicken wings, will release large amounts
of liquids when frying, thus watering down the oil. Do not reuse
this oil.
Do not use the cooking oil anymore if you notice the following:
Before use: oil smells rancid or its color has visibly darkened.
While frying: oil is foaming strongly or smoke appears on the oil’s surface
at normal operating temperature.
OIL FILTRATION
NOTE:
‒Filter the oil after each use. Store filtered oil properly (see Storing
oil).
‒Discard of oil on a regular basis depending on oil quality (see
Cooking with oil).
‒After switching off the appliance, wait at least 3 hours for the oil
to cool down, depending on the settings selected during use.
Hotter oil will take longer to reach a cool temperature.
‒Filtering the oil after each use will help prolong the life of the
cooking oil, but it should still be discarded if the oil is

16
www.KALORIK.com
FT 43721 - 200605
deteriorated after multiple use. We estimate that oil, in normal
use, should be changed at least after every 10 uses.
•Ensure the oil container (15) is assembled, empty and in place
inside the appliance.
•Once the oil has cooled down to room temperature, turn the oil
filtration control knob (14) to the FILTER OIL position (ill. r). The oil will
start dripping inside the oil container (15). The oil filter cover (11) will
keep food residues from being transferred to the oil container (15).
•When all oil has been filtered:
‒Turn the oil filtration control knob (14) to the LOCK position if the
container will remain inside the appliance.
‒Turn the oil filtration control knob (14) to UNLOCK position if the
container is to be removed from the appliance.
NOTE:
‒Always wait 3 to 4 hours until the oil has cooled down
completely, before draining or filtering.
‒Extreme caution must be used when moving the appliance
while the oil reservoir (9) and oil container (15) are not both
empty.
‒When removing the oil container (15) from the appliance,
handle with care. Keep the oil container (15) flat and hold it
with both hands.
Emptying the oil container
Filtered oil can be stored in a suitable container (see Storing oil) or re-
used for frying a new batch of food (see Cooking with oil).
•Unscrew the cap (16) on top of the oil container (15) (ill. s).
•Slowly pour the oil container (15) content into a suitable container
or the oil reservoir (9), if required.
NOTE:
‒Ensure the oil filtration control knob (14) is on UNLOCK position
before pouring oil into the oil reservoir (9).
‒Tilt the oil container (15) upwards (vertical position) gradually to
avoid leaks from the side of the container.
‒Oil can be stored in the oil reservoir (9), inside the deep fryer or
in another cool dry place (see Storing oil).

17
www.KALORIK.com
FT 43721 - 200605
•Screw the cap (16) back on top of the oil container (15).
•Insert the oil container (15) back into the appliance and turn the oil
filtration control knob (14) to the LOCK position to secure the oil
container (15) in place (ill. t).
STORING OIL
•Do not store used cooking oil in the refrigerator. Choose a cool
place that is not subject to sunlight. Generally, oil may be stored for
a period of 3 months, once the bottle is opened. Please observe
the oil manufacturer’s storage directions as well.
HINTS AND TIPS
•Smaller quantities of food normally require a slightly shorter cooking
time than larger quantities of food.
•To reduce cooking time, defrost food prior to cooking. It is
recommended that some foods should not be thawed/defrosted
prior to cooking, such as frozen fish, and frozen French fries.
•It is recommended to use a meat thermometer to check the
cooking progress.
•In the event of food flare-ups, do not remove the lid (3), do not
remove the basket (6); turn the temperature control knob (24) to
the 0 position and unplug the appliance.
•When the food you are cooking requires shaking, it is
recommended to use a timer set for half of the suggested cooking
time. This way a bell will ring and remind you to shake the basket
(6).
•It is recommended to only use nylon, heat-proof plastic or wooden
cooking utensils. Metal utensils may become hot and damage the
non-stick surface. Always remove utensils from the appliance. Do
not leave them in the appliance during use.
CLEANING AND MAINTENANCE
Proper maintenance will ensure many years of service from your
appliance. the appliance after every use. The appliance contains no

18
www.KALORIK.com
FT 43721 - 200605
user serviceable parts and requires little maintenance. Leave any
servicing or repairs to qualified personnel.
WARNING:
‒Always turn the temperature control knob (24) to the 0 position,
disconnect the plug (17) from the wall outlet and then the
magnetic plug (18) from the control panel assembly (22) before
cleaning. Allow all parts of the appliance to cool down
completely.
NOTE:
‒Do not immerse the power cord with plug (17), magnetic plug
(18) or appliance into water or any other liquids. Do not use
abrasive cleaners, steel wool or scouring pads. Dry all parts
thoroughly after cleaning, before using or storing the appliance.
Ensure that no water enters the appliance housing (13).
‒Do not attempt to attach the magnetic plug (18) permanently
to the appliance.
‒Do not attempt to remove the silicon rubber sealing plate (23).
•Ensure the oil container (15) is in place, then turn the oil filtration
control knob (14) to FILTER OIL position to empty the oil reservoir (9)
(see Oil filtration).
•Place the basket (6) on a clean, flat and heat resistant surface.
Danger of burns!
‒Ensure the basket (6) cooled down completely before touching
its surface and attempting to remove the basket handle (7).
‒Ensure the oil cooled down completely before emptying the oil
reservoir (9) into the oil container (15).
•Remove the basket handle (7) from the basket (6).
•Remove the control panel assembly (22) from the oil reservoir (9).
Carefully clean the control panel assembly (22) and immersion
heater (21) with a damp cloth.
•Pull the oil filter cover (11) from the oil reservoir (9) and then remove
the oil reservoir (9) from the housing (13).
•Open the lid filter cover (29) and remove both black and white
filters (27, 28) (ill. u).
•Clean the appliance housing (13) with a damp cloth.

19
www.KALORIK.com
FT 43721 - 200605
•Wash the lid (3), basket (6), basket handle (7), oil reservoir (9) and
oil filter cover (11) with hot soapy water or in a dishwasher. Rinse
and dry carefully.
•Dry all parts thoroughly after cleaning and before using the
appliance again.
NOTE:
‒If the oil container (15) needs to be cleaned, ensure it is empty
before attempting to clean (see Emptying the oil container).
Wash with hot soapy water or in a dishwasher. Rinse and dry
carefully.
‒Clean the filters (27, 28) every 3 months or after every 12 uses
with hot soapy water. Do not clean in a dishwasher.
‒Dry all parts and surfaces thoroughly before use. Make sure that
all parts and surfaces are completely dry before connecting the
appliance to a wall outlet. Even a small amount of water can
cause severe splattering of hot oil.
STORAGE
•Before storage, always make sure the appliance is completely cool,
clean and dry.
•It is recommended to store the appliance in a dry place.
•Store the appliance on a stable shelf or in a cupboard. To avoid
accidents, ensure that both the appliance and its power cord are
beyond reach of children or pets.
TROUBLESHOOTING
The appliance is not
working
Magnetic plug not
properly fitted
Connect the magnetic plug to
the electrical outlet before
connecting the plug to the
wall outlet
Control panel
assembly not installed
correctly
Install the control panel
assembly correctly
Appliance not
plugged in
Insert the plug into the wall
outlet
Wall outlet not
energized
Check fuses and circuit
breaker

20
www.KALORIK.com
FT 43721 - 200605
Malfunctioning
appliance
Unplug the appliance from the
wall outlet and contact
qualified personnel to check
and repair the appliance
Overheated oil or
appliance
Unplug the appliance from the
wall outlet and allow the
appliance / oil to cool down.
Then press the reset button.
Oil is spilling over the
rim
Overfilled oil reservoir
Unplug the appliance from the
wall outlet and allow the
appliance / oil to cool down.
Then, remove excess of oil
Overfilled basket
Lift out the basket by its handle
and hang it onto the basket
hook into the notch. Remove
excess of food with suitable
utensils
The appliance is
working but the
POWER indicator does
not light up
Damaged POWER
indicator
Unplug the appliance from the
wall outlet and contact
qualified personnel to check
and repair the appliance
The POWER indicator
lights up but the
appliance does not
heat up
Preheat time too short
Allow the appliance to
preheat for a longer time
Malfunctioning
appliance
Unplug the appliance from the
wall outlet and contact
qualified personnel to check
and repair the appliance
The appliance heats
up but the
temperature control
knob is on the 0
position
Malfunctioning
temperature control
knob
Unplug the appliance from the
wall outlet and contact
qualified personnel to check
and repair the appliance
The basket cannot be
removed from the oil
reservoir
Basket handle not
attached properly
Remove fried food using
suitable utensils and allow the
appliance / oil to cool down
completely before removing
the basket
The appliance
produces an odor
and emits smoke
Oil has been overused
or oil is not suitable
Unplug the appliance from the
wall outlet and allow the
appliance / oil to cool down.
Then, remove oil and replace
with fresh, new suitable oil
Malfunctioning
appliance
Unplug the appliance from the
wall outlet and contact
