Kärcher G 2650 HH User manual

G 2650 HH
9.139-159 (01/05)
English ........................ 2
Español .....................14
Français .................... 26

2
High Pressure Washer Operator Manual
Overview ......................................................................... 3
Precautions ..................................................................... 4
Assembly Instructions.................................................... 5
Operating Instructions ................................................... 6
Using the Accessories ................................................... 7
Working with Detergents ............................................... 8
Shut Down and Clean-Up .............................................. 9
Taking a Break ................................................................ 9
Winterizing and Long-Term Storage ............................. 9
Cleaning Tips .......................................................... 10-11
Optional Cleaning Accessories ................................... 11
Troubleshooting ...................................................... 12-13
Specifications
Max. pressure 2650 PSI
Water volume 2.6 GPM
Detergent suction 0.15 – 0.20 GPM
Engine 6.0 HP Honda GC 190
Part No. 1.194-508
Serial No. ______________
Kärcher Customer Support USA
Call: 1-800-537-4129 for help
or visit our website:
www.karcher-usa.com
Kärcher Customer Service CDN
Call: 1-800-465-4980 for help
or visit our website:
www.karcher.ca

3

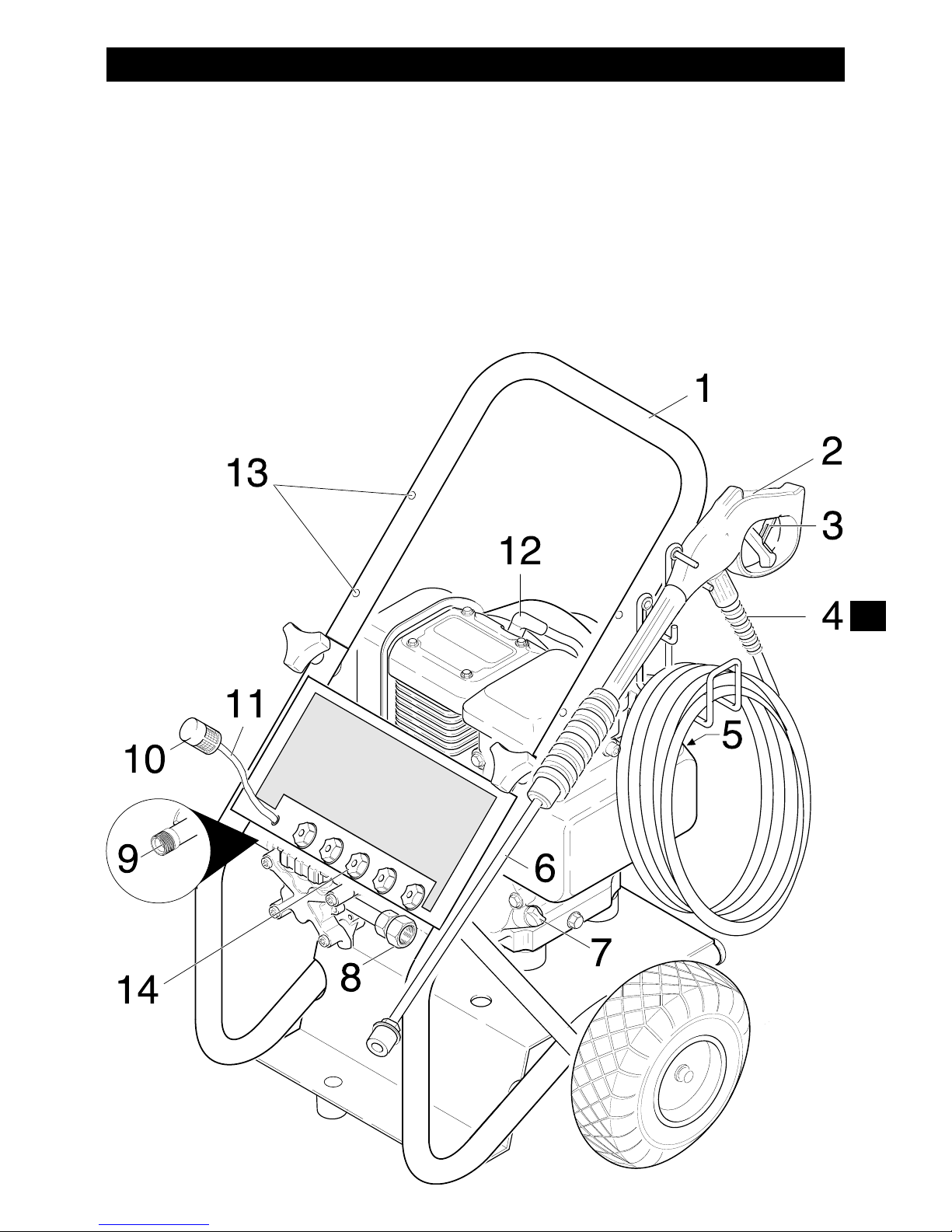

Model G 2650 HH OVERVIEW
ItemDescription
1 Handle
2 Trigger gun
3 Trigger gun safety lock
4 High pressure hose
5 as tank
6 Spray wand
7 Dipstick
8 Water inlet with garden hose connector
9 High pressure outlet
10 Detergent filter
11 Detergent suction tube
12 Spark plug
13 Hose Reel (optional) Mounting
Holes
14 Quick connect nozzles

4
IMPORTANT PRECAUTIONS – Read First!
IM ORTANT SAFETY INSTRUCTIONS
WARNING  When using this product basic
precautions should always be followed,
including the following:
WARNING  Risk of Injection or Injury 
Do Not Direct Discharge Stream At Persons.
 Read all the instructions before using the
product.
 Fire hazard! Do not add fuel with the en-
gine running. Do not operate if fuel has
been spilled. Instead, move the machine
to a different location and avoid creating
sparks.
 Operate and fuel machine in a well venti-
lated area, free of devices featuring an
open pilot or flame such as boilers, water
heaters, etc.
 High pressure jets can be dangerous if
subject to misuse. The jet must not be
directed at persons, animals, electrical
devices, or the machine itself.
 Wear safety goggles.
 Do not use acids, alkaline, solvents, or
any flammable material in this product.
These products can cause physical inju-
ries to the operator and irreversible da-
mage to the machine.
 The machine has hot surfaces which can
cause burns. Operate the unit in a safe
environment and away from children.
 Do not allow the high pressure hose to
come into contact with the muffler guard.
 Do not leave the machine running unat-
tended.
 Learn how to stop the machine and re-
lease pressure quickly. Be thoroughly fa-
miliar with the controls.
 Stay alert  watch what you are doing.
 Do not operate the product when fatigued
or under the influence of alcohol or drugs.
 Do not stand on unstable surfaces. Stand
with both feet balanced at all times.
 Avoid tipping the machine on its side.

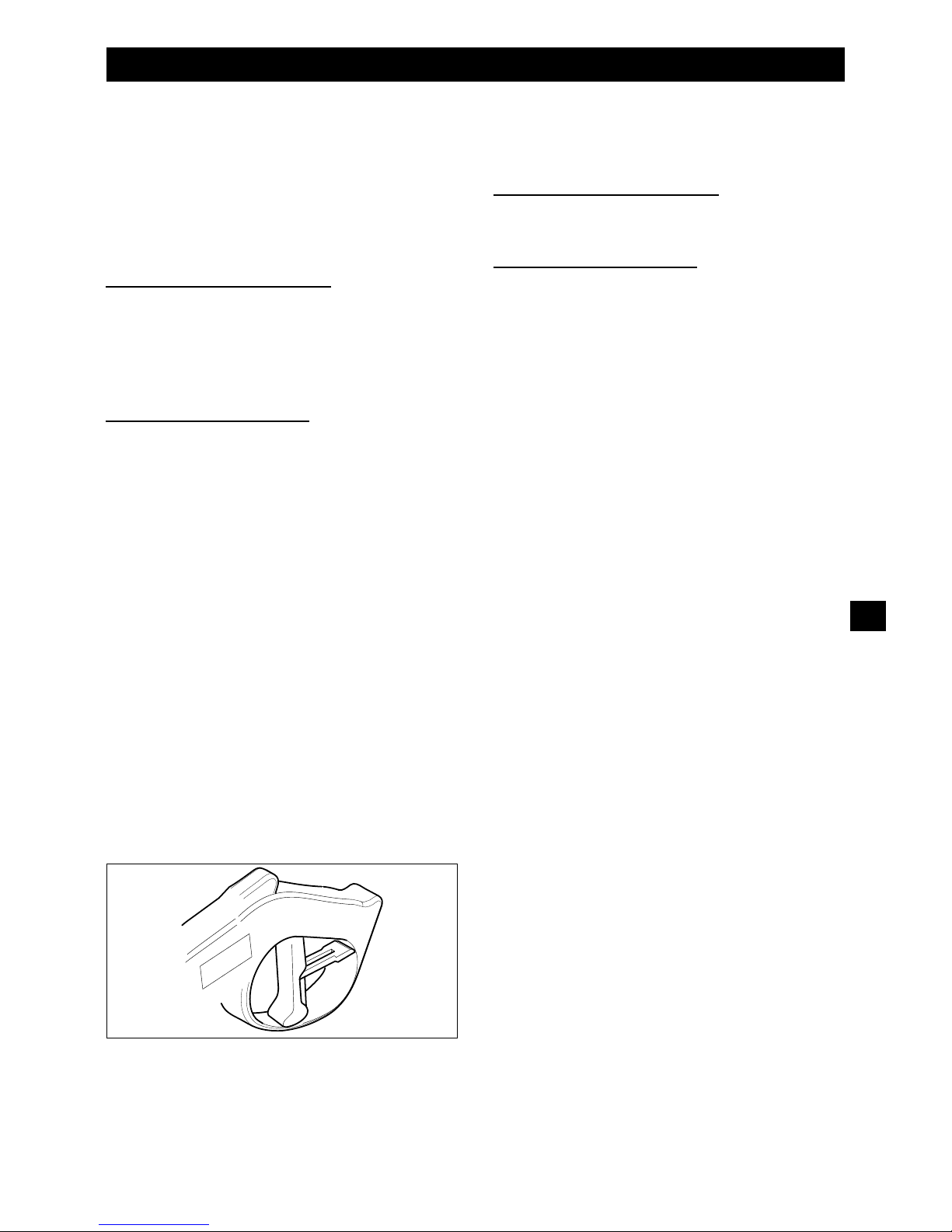

 The un Safety Lock PREVENTS the
trigger from accidentally being engaged.
This safety feature DOES NOT lock
trigger in the on position.
 Do not spray electrical connections, elec-
trical outlets or fixtures.
 Do not touch hot surfaces or allow acces-
sories to contact hot surfaces.
 Do not operate in an enclosed space, ex-
haust fumes are dangerous.
 Do not operate near utilities with open fla-
mes.
 Do not operate pressure washer without
the water turned on.
 Do not use hot water.
WATER SU LY (Cold Water Only)
 Water hose must be at least 5/8 inch in
diameter.
 Flow rate of water supply must not fall
below 2.5 PM (gallons per minute).
 Flow rate can be determined by running
the water for one minute into an empty
5-gallon container.
 The water supply temperature must not
exceed 104°F/40°C.
 Never use the pressure washer to draw
in water contaminated with solvents, e.g.
paint thinners, gasoline, oil, etc.
 Always prevent debris from being drawn
into the unit by using a clean water
source.
We strongly recommend that this high pres-
sure washer not be left running for periods
of 5 minutes or longer without the trigger
gun being engaged.
- SAVE THESE INSTRUCTIONS -

5

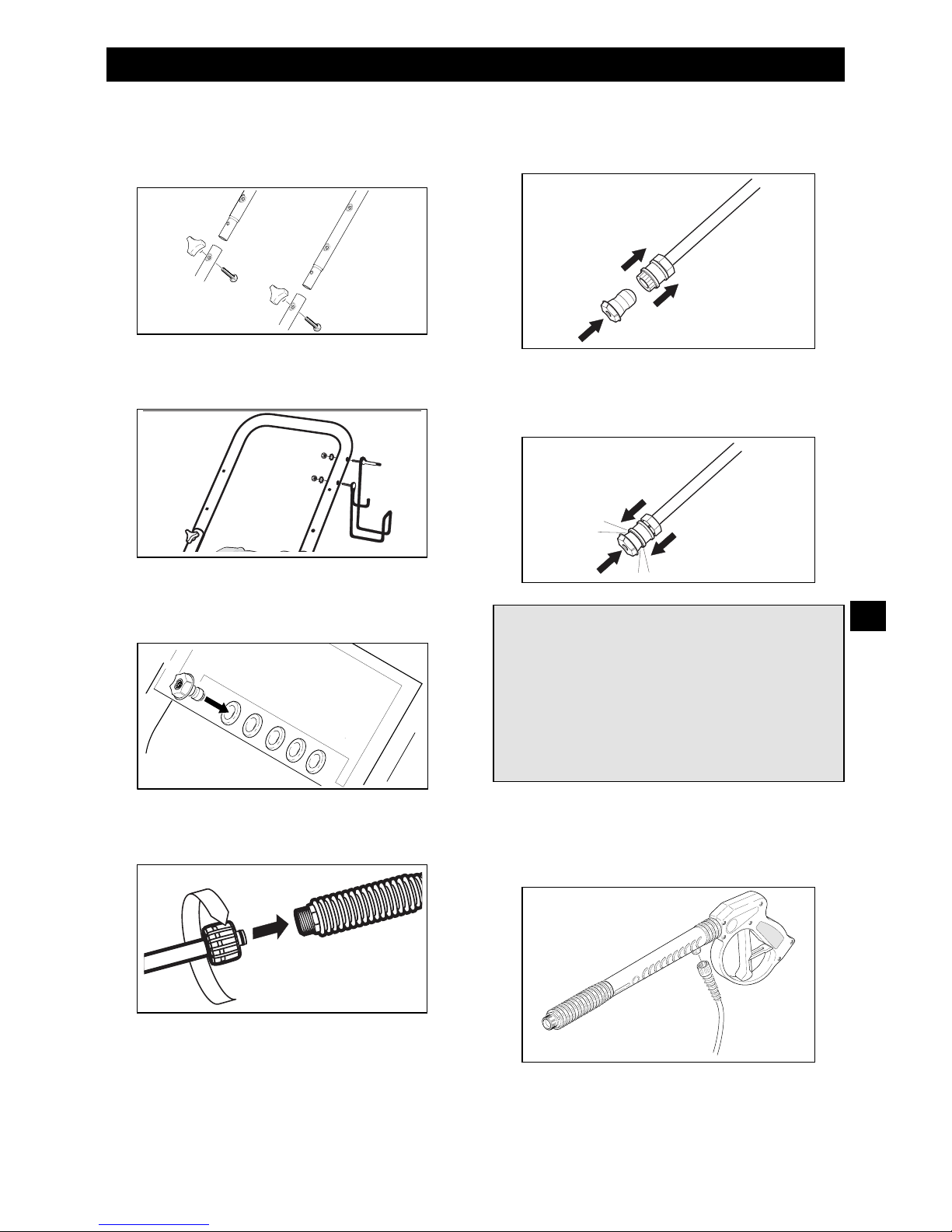

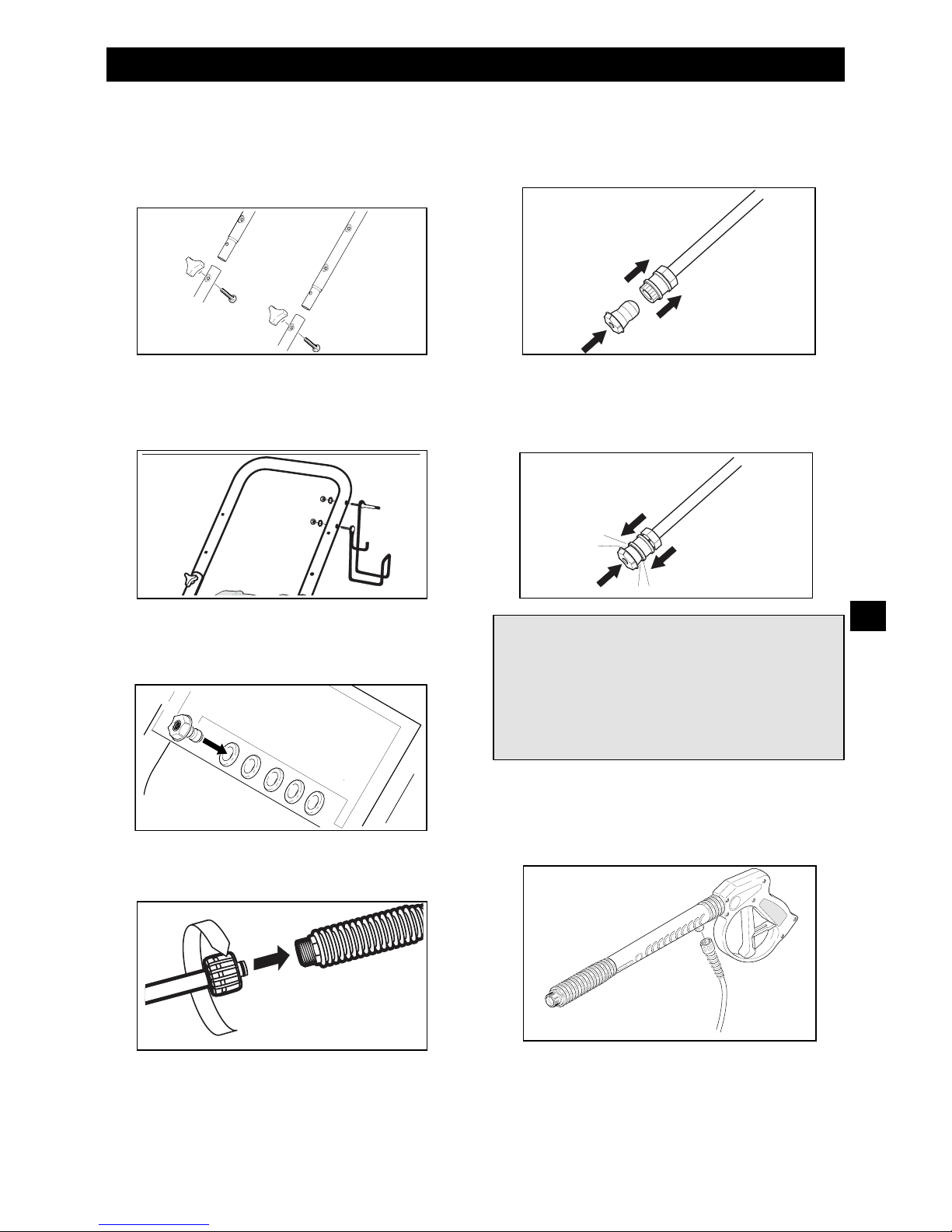

ASSEMBLY INSTRUCTIONS
Step 1
Attach the handle to the frame of the
pressure washer. Align holes, insert bolts,
and tighten with knobs.
Step 2
Attach the gun/hose storage handle.
Step 3
Place the quick connect nozzles in the
nozzle holder.
Step 4
Attach the wand to the spray gun.
Step 5
Pull the spring-loaded collar of the wand back
to insert your choice of quick connect nozzle.
Step 6
Release the collar and push the nozzle until
the collar clicks.
DANGER
High pressure in nozzle area.
Risk of injury caused by improper locked
nozzle.
 Make sure you hear a click when
inserting the nozzle tip into the wand.
 Pull the nozzle to make sure it is seated
properly before operating your unit.
Step 7
Attach the high pressure hose to the spray
gun.

6
OPERATING INSTRUCTIONS
Step 8
Engine with manual throttle:
Slide the throttle lever away from the SLOW
position, about 1/3 of the way toward the
FAST position.
Engine with fixed throttle:
Move the engine stop switch to the ON
position.
For more details see engine manual.
Step 9
Pull the starter handle.
If the engine fails to start after 3 pulls,
squeeze the trigger gun to release
pressure, and repeat step.
After the engine warms up enough to run
smoothly, move choke rod to OPEN position
and throttle to FAST position.
Important!
Do not run the engine with a high or low oil
level as this can cause engine damage.
If you have further questions regarding the
engine, please refer to the engines
operating manual included with the unit.
Step 1
Check oil level. Oil level should always be
between the FULL and ADD marks on the
dipstick.
Be sure the machine is level when checking
the oil level. (Refer to the engines operating
manual for seasonal grades.).
We recommend that the oil be changed after
the first 5 hours of use, then once every 50
hours.
Step 2
Fill gas tank with unleaded gasoline.
Do not use leaded gasoline.
Step 3
Connect the high pressure hose to the units
high pressure outlet.
Step 4
Connect garden hose to units water inlet.
Step 5
Connect garden hose to the cold water
source and turn water on completely.
Do not use hot water.
Step 6
Trigger the gun to eliminate trapped air, wait
for a steady flow of water to emerge from
the spray nozzle.
Step 7
Pull the choke rod to the CLOSED position
Starting a Warm Engine:
If the engine has run out of fuel, pull the choke
rod to the CLOSED position after refueling.
If the engine has not run out of fuel, leave
the choke rod in the OPEN position.

7
USING THE ACCESSORIES
WARNING
TO AVOID SERIOUS INJURY,
NEVER POINT SPRAY NOZZLE
AT YOURSELF, OTHER PERSONS
OR ANIMALS
DANGER
High pressure in nozzle area.
Risk of injury caused by improper locked
nozzle.
 Make sure you hear a click when
inserting the nozzle tip into the wand.
 Pull the nozzle to make sure it is seated
properly before operating your unit. (See
page 5 step 5 + step 6)

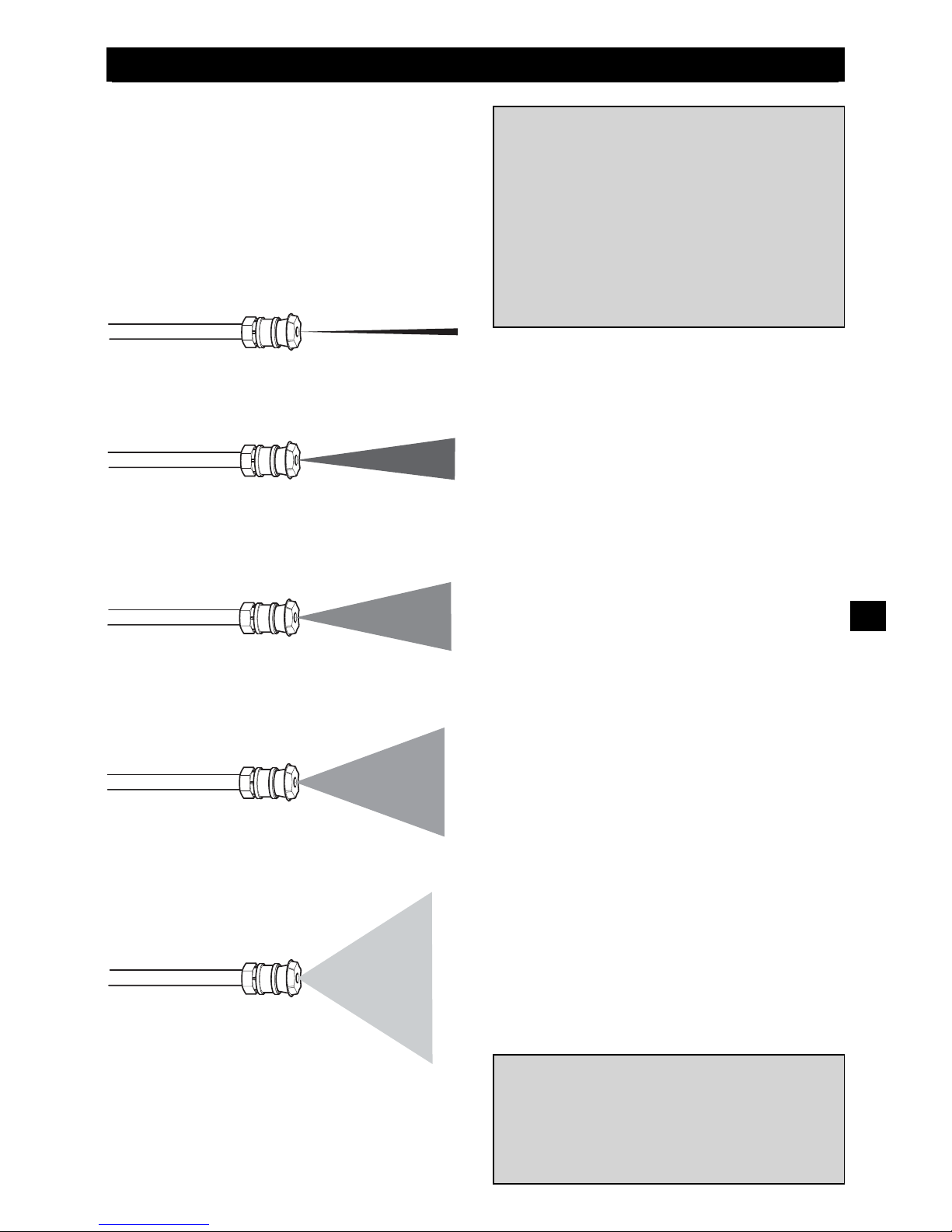

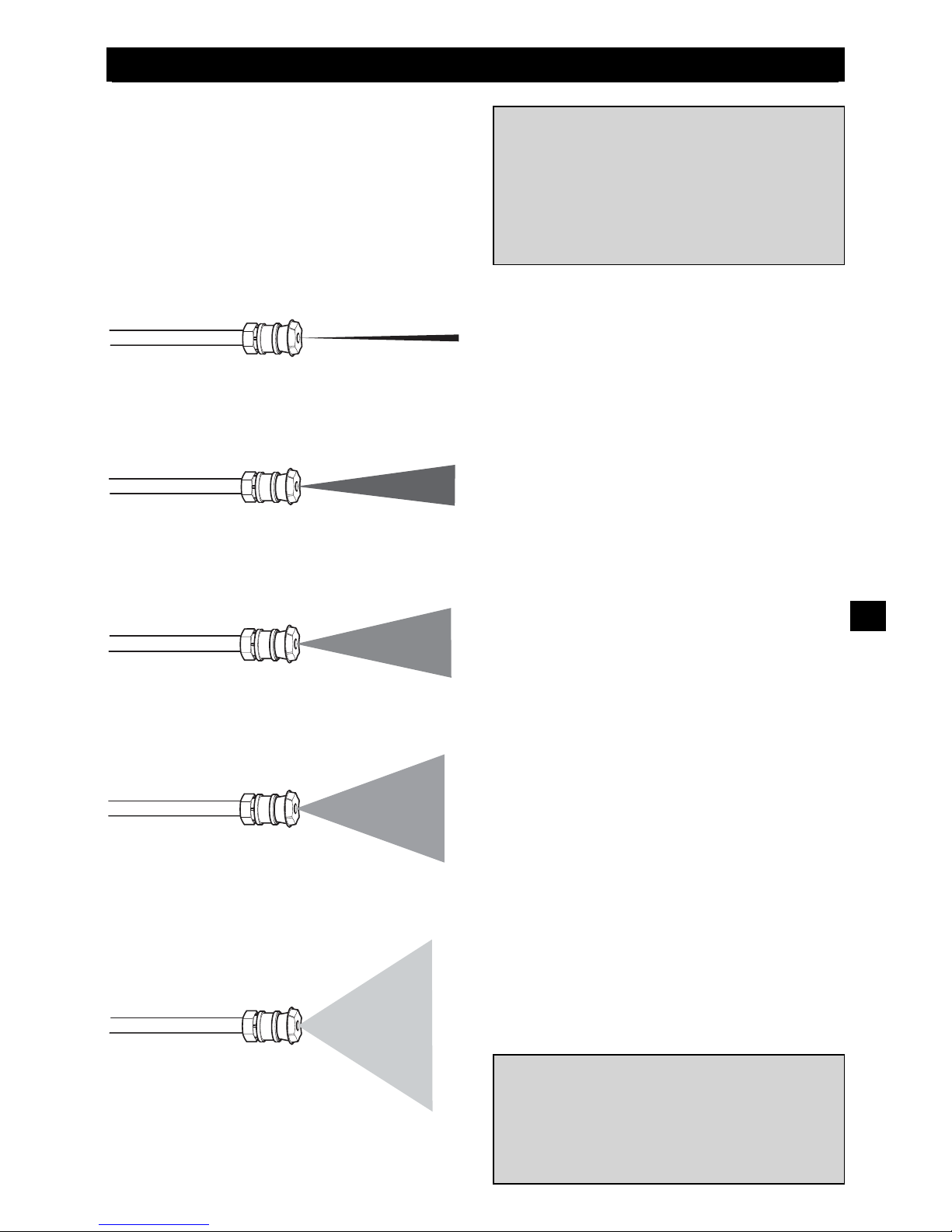

The color-coded quick connect nozzles
provide a wide array of spray widths from
0° to 65° and are easily accessible when
placed in the convenient rubber nozzle hol-
der, which is provided on the front of the
machine.
 Red nozzle= 0°
for particularly stubborn accumulation
of grime.
 Yellow nozzle = 15°
for dirt accumulation over a surface.
 Green nozzle = 25°
for dirt accumulation over a large surface.
accumulation
 White nozzle = 40°
for dirt accumulation over a large surface.
accumulation
 Black detergent nozzle = 65°
for operating with detergent or cleaning
with negligible pressure.

8
WORKING WITH DETERGENTS
Detergents can only be applied with the
black nozzle.
Step 1
Install the black quick-connect low pressure
nozzle for detergent application at low
pressure.
Step 2

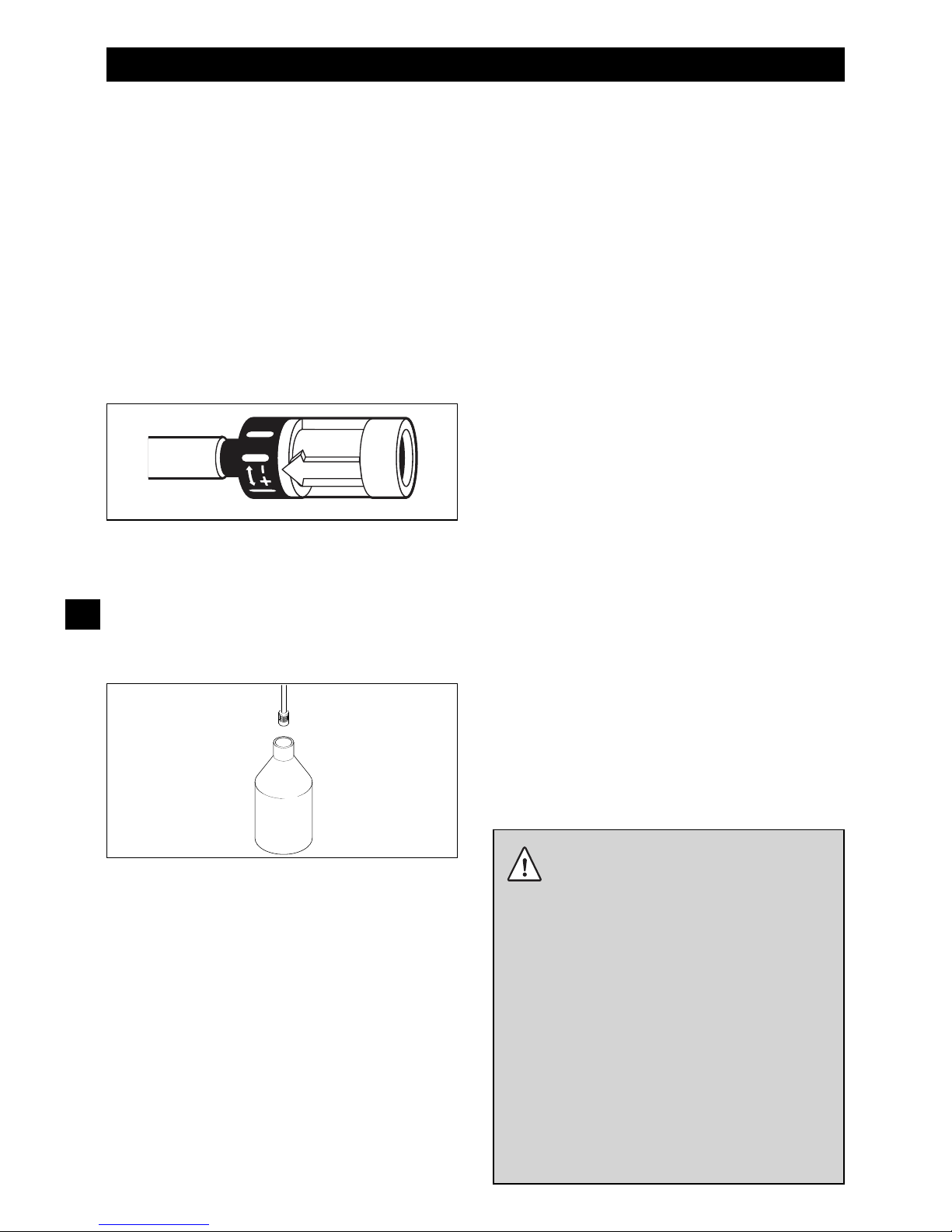

Adjust the filter end of the detergent tube for
light ( / 0.15 gpm), or maximum (+ /
0.20 gpm) detergent coverage.
Step 3
Fill a container with Kärcher detergent. Place
the filter end of detergent suction tube into
the detergent.
Step 4
With the engine running, pull trigger to
operate unit. Liquid detergent is drawn into
the unit and mixed with water.
Apply detergent to work area.
Do not allow detergent to dry on surface.
Caution Never use:
• Bleach, Chlorine products and
other corrosive chemicals
• Liquids containing solvents
(i.e., paint thinners, gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the unit
and will damage the surface being
cleaned.
For best results see Cleaning Tips on
pages 10 & 11 for specific information on
how to clean different surfaces.
Always Use Kärcher
Detergents for Best Results.
Kärcher biodegradable detergents are
specially formulated to protect the
environment and your pressure washer.
Special formula wont clog the suction tube
filter and will protect the internal parts of the
pressure washer for a longer life. For Kär-
cher Detergents, check your retailer
or call our service center for help.
The following Kärcher detergents are
available in USA / Mexico:
 All Purpose and Vehicle Wash
 Exterior House Cleaner
 Deck & Patio Cleaner
 Heavy Duty Degreaser
The following Kärcher detergents are
available in Canada:
 Vehicle Wash
 Pressure Wash
 Deck + Fence Wash
 Degreaser

9
SHUTTING DOWN
Step 1
Remove detergent suction tube from
container and insert into 1 gallon of fresh
water.
Siphon water at low pressure for one
minute.
Step 2
Engine with manual throttle:
 Move the throttle lever to the SLOW
position.
 Allow the engine to idle for a few seconds,
then move the throttle lever to the STOP
position.
Engine with fixed throttle:
Move the engine stop switch to the OFF
position.
For more details see engine manual.
Step 3
Turn off the water supply.
Step 4
Press trigger to release water pressure.
Step 5
Disconnect the garden hose from the water
inlet on the unit.
Step 6
Disconnect the high pressure hose from the
high pressure outlet.
Step7
Engage the gun safety lock.
TAKING A BREAK
... FIVE MINUTES OR MORE
Step 1
Engine with manual throttle:
Move the throttle lever to the SLOW
position.
Engine with fixed throttle:
Move the engine stop switch to the OFF
position.
For more details see engine manual.
Step 2
Press trigger to release water pressure.
Step 3
Engage gun safety lock.
WINTERIZING AND LONG-TERM
STORAGE
1.Disconnect all water connections.
2. Turn on the machine for a few seconds,
until the water which had remained in the
pump exits. Turn off immediately.
3. Drain the gas and oil from the engine.
4. Do not allow high pressure hose to
become kinked.
5. Store the machine and accessories in
a room which does not reach freezing
temperatures.
Caution: Failure to follow the above
directions will result in damage to the
pump assembly and accessories.
Only for USA:
Kärcher also recommends the regular
practice of using a pump protector like
Kärcher Pump Protector to help during
storage in the winter months.

10
CLEANING TIPS
Deck Cleaning
(with or without detergent)
Pre-rinse deck and surrounding area with
fresh water. If using Kärcher Deck & Patio
Cleaner, (Canada: Dec + Fence Wash)
place detergent suction tube directly into
cleaning solution and apply to surface at
low pressure. For best results, limit your
work area to smaller sections of approxi-
mately 25 square feet. Allow detergent to
remain on surface 1-3 minutes. Do not allow
detergent to dry on surface. Rinse at high
pressure in a long sweeping motion keeping
the spray nozzle approximately 3-6 inches
from the cleaning surface. Always clean
from top to bottom and from left to right.
When moving on to a new section of the
cleaning surface, be sure to overlap the
previous section to eliminate stop marks
and ensure a more even cleaning result.
Caution: Do not use Dirtblaster® spray
nozzle on wood surface as it may cause
damage.
House Siding
(with or without detergent)
Pre-rinse cleaning surface with fresh water.
If using Kärcher Exterior House Cleaner
(Canada: Pressure Wash), place detergent
suction tube directly into cleaning solution
and apply to surface at low pressure (for
best results, limit your work area to sections
of approximately 6 feet and always apply
detergent from bottom to top). Allow
detergent to remain on surface 1-3 minutes.
Do not allow detergent to dry on surface, if
surface appears to be drying, simply wet
down surface with fresh water. Rinse at high
pressure from top to bottom in an even
sweeping motion keeping the spray nozzle
approximately 6 inches from the cleaning
surface.
Caution: Do not use Dirtblaster® Spray
Nozzle on siding as it may cause damage.
Cement Patios, Brick and Stone
(with or without detergent)
Pre-rinse cleaning surface with fresh water.
If using Kärcher All Purpose and Vehicle
Wash (Canada: Pressure Wash or
Degreaser), place detergent suction tube
directly into cleaning solution and apply to
surface at low pressure. For best results,
limit your work area to smaller sections of
approximately 25 square feet. Allow
detergent to remain on surface 1-3 minutes.
Do not allow detergent to dry on surface.
Rinse at high pressure in a sweeping motion
keeping the spray nozzle approximately 3-
6 inches from the cleaning surface. Always
clean from top to bottom and from left to
right. For removing extremely stubborn
stains, use Kärcher Dirtblaster® Spray
Nozzle.
Cars, Boats & Motorcycles
(with or without detergent)
Pre-rinse vehicle with fresh water. If using
Kärcher All Purpose and Vehicle Wash,
(Canada: Pressure wash or vehicle wash)
place detergent suction tube directly into
cleaning solution and apply to surface at low
pressure. For best results, clean one side
of vehicle at a time and always apply
detergent from bottom to top, do not allow
detergent to dry on surface. Rinse at high
pressure in a sweeping motion keeping the
spray nozzle approximately 6-8 inches from
the cleaning surface (distance should
increase when rinsing pin-striping or other
sensitive surfaces). Always clean from top
to bottom and from left to right. For best
results, wipe surface dry with a chamois or
soft dry cloth.
Caution: Do not use Dirtblaster® Spray
Nozzle on vehicles as it may cause damage.

11
CLEANING TIPS – continued
Barbecue Grills, Outdoor Power
Equipment & Gardening Tools
(with or without detergent)
Pre-rinse cleaning surface with fresh water.
If using Kärcher All Purpose and Vehicle
Wash or Heavy Duty Degreaser (Canada:
Pressure Wash or Degreaser), place
detergent suction tube directly into cleaning
solution and apply detergent at low
pressure. Allow detergent to remain on
surface 1-3 minutes. Do not allow detergent
to dry on surface. Rinse at high pressure
keeping the spray nozzle approximately 3-
6 inches from the cleaning surface. For
removing extremely stubborn dirt, it may be
necessary to move the spray nozzle even
closer to the surface for greater dirt cutting
action. To remove caked on mud from
garbage cans, lawn mower blades, wheel
barrels or other non-sensitive metal
surfaces, you may want to use the Kärcher
Dirtblaster® Spray Nozzle.
Caution: Do not use Dirtblaster® Spray
Nozzle on cloth, plastic or other sensitive
surfaces as it may cause damage.
Patio & Lawn Furniture
(with or without detergent)
Pre-rinse furniture and surrounding area
with fresh water. If using Kärcher All Pur-
pose and Vehicle Wash (Canada: Pressure
Wash), place detergent suction tube directly
into cleaning solution and apply to surface
at low pressure. Allow Kärcher detergent
to remain on surface 1-3 minutes. Do not
allow detergent to dry on surface. Rinse at
high pressure in a sweeping motion keeping
the spray nozzle approximately 3-6 inches
from the cleaning surface. For best results,
clean from top to bottom and from left to
right.
Caution: Do not use Dirtblaster® Spray
Nozzle on patio or lawn furniture as it may
cause damage.
Recommendations
 Before cleaning any surface an
inconspicuous area should be cleaned to
test spray pattern and distance for
maximum cleaning results.
 If painted surfaces are pealing or chipping,
use extreme caution as pressure washer
may remove the loose paint from the
surface.
 When using on surfaces which might
come in contact with food, flush
surfaces with plenty of drinking water.
OPTIONAL CLEANING ACCESSORIES
Optional cleaning accessories are available
to further enhance your cleaning
capabilities.
 Dirtblaster® spray nozzle
 Extension Hose
 Hose Reel

12
lease remove the spark plug cable to
prevent accidental ignition of the engine
before making any repair.
Engine will not start.
• No gasoline.
- Fill gas tank.
• Choke is not in correct position.
- Slide choke lever out to closed
position.
• Engine throttle is not in correct
position.
- Slide the throttle lever up about 1/3 of
the way toward the fast positon.
• Pressure built up in the high pressure
washer.
- Squeeze the trigger to release the
pressure.
For additional engine problems refer
to the engine owners manual.
Unit does not reach high pressure.
• Diameter of garden hose is too small.
- Replace with a 3/4 inch garden hose.
• Water supply is restricted.
- Check garden hose for kinks, leaks
and blockage.
• Not enough inlet water supply.
- Open water source full force.
• Water inlet filter is clogged.
- Remove filter and rinse out in warm
water.
• Black detergent nozzle is attached.
- Remove black detergent nozzle and
attach a high pressure nozzle.
Output pressure varies high and low.
• Not enough inlet water supply.
- Turn water on full force. Check garden
hose for kinks, leaks or blockage.
• Pump is sucking air.
- Check that hoses and fittings are air
tight. Turn off machine and purge
pump by squeezing trigger gun until a
steady flow of water emerges through
the nozzle.
• Water inlet filter is clogged.
- Remove filter and rinse out in warm
water.
• Spray nozzle is obstructed.
- Blow out or remove debris with a fine
needle.
• Calcified gun, hose or spray wand.
- Run distilled vinegar through
detergent suction tube.
No detergent.
• Detergent suction tube not properly
connected to the machine.
- Check connection.
• Detergent is too thick.
- Dilute detergent. For best results, use
Kärcher detergent.
• Detergent filter valve is at lowest
setting.
- Set detergent filter valve to a higher
setting.
• Filter on detergent suction tube is
clogged.
- Run warm water through filter to
remove debris.
• Damaged or clogged detergent
suction tube.
- Remove obstruction or replace
detergent suction tube.
• A high pressure nozzle is attached.
- Replace with black detergent nozzle.
• Spray nozzle is obstructed.
- Blow out or remove debris with fine
needle.
TROUBLESHOOTING

13
TROUBLESHOOTING – continued
Garden hose connection leaks.
• Loose fittings.
- Tighten fittings.
• Missing/worn rubber washer.
- Insert new washer.
Spray wand leaks.
• Spray wand not properly attached.
- Attach the wand to the spray gun.
Turn the wand collar clockwise onto
the gun threads until tight.
• Broken o-ring.
- Call Kärcher customer service hotline
and order an o-ring.
ump is noisy.
• Pump is sucking air.
- Check that hoses and fittings are air
tight. Turn off machine and
purgepump by squeezing trigger gun
until a steady flow of water emerges
through the nozzle.
Water leaks from pump.
• Loose fittings.
- Check that all fittings are tight.
• Water seals are damaged or worn.
- Call service center.
• Thermal protection device is
activated.
- Thermal protection device will auto
reset.
Oil Drip.
• Oil seals are damaged or worn.
Call service center.
I you encounter any additional
di iculties not listed, please call our
customer support or help.
WARRANTY USA
See enclosed warranty card.
WARRANTY CDN
Kärcher Canada Inc. warrants to the origi-
nal owner that this product shall be free from
defects in material and workmanship for
two years from the date of its original
purchase. If such a defect appears during
the warranty period, upon presentation of
proof of purchase, Kärcher Canada Inc. will
repair or replace (at its option) your product
without charge.
This warranty does not cover accidental
damage, unreasonable use, normal wear
and tear, loss of use or other consequential
damages, nor does it cover repairs made
or attempted by unauthorized persons.
Trigger gun, hose, spray wands and other
accessories are warranted for 3 months.
Please note that no returns will be accepted
without prior authorization from our
customer service department.
It is the owners responsibility to file claims
for damage caused by public transportation
carriers directly with the carrier concerned.
Kärcher Customer Support USA
Call: 1-800-537-4129 for help
or visit our website:
www.karcher-usa.co
Kärcher Customer Service CDN
Call: 1-800-465-4980 for help
or visit our website:
www.karcher.ca

14
Manual del Operador
Generalidades ............................................................... 15
Precauciones ................................................................. 16
Instrucciones de Ensamblaje ........................................ 17
Instrucciones de Operación.......................................... 18
Uso de los Accesorios ................................................. 19
Trabajo con Detergentes ............................................... 20
Tomando un descanso .................................................. 21
Preparación para el Invierno
y Almacenaje de Largo Plazo ...................................... 21
Sugerencias de Limpieza....................................... 22-23
Accesorios de Limpieza Opcionales .......................... 23
Localización de Fallas Mecánicas ........................ 24-25
EspecificacionesEspecificaciones
EspecificacionesEspecificaciones
Especificaciones
Max. Presión 2650 PSI
Volumen de agua 2.6 GPM
Aspiración de detergent 0.15 – 0.20 GPM
Motor 6.0 HP Honda GC 190
Part No. 1.194-508
Serial No. ______________
Kärcher En USA
llame al: 1-800-537-4129
o visite nuestro sitio web:
www.karcher-usa.com
Kärcher En Mexico
llame al: 01-800-024-13-13
o visite nuestro sitio web:
www.karcher.com.mx

15
GENERALIDADES DEL MODELO G 2650 HH
Artículo Descripción
1 Agarradera
2 atillo de la pistola
3 Seguro del gatillo de la pistola
4 Manguera de alta presión
5 Tanque de gasolina
6 Lanza de rociado
7 Varilla Indicadora de nivel
8 Entrada de agua con conexión
para manguera de jardín y filtro
9 Salida de alta presión
10 Filtro para el detergente
11 Tubo de succión para detergente
12 Bujía
13 Agujero (Carrete de mangueras opción)
14 Boquillas de conexión rápida

16
PRECAUCIONES IMPORTANTES
– Read First!
Advertencias de Seguridad
Cuando utilice esta máquina, siempre debe
seguir estas precauciones básicas
 Lea todas las instrucciones antes de
utilizar la máquina.
 ¡Peligro de incendio! No agregue
combustible con el motor en marcha. No
opere la máquina si se derramó
combustible. En lugar de eso, mueva la
máquina a otra ubicación y evite la
generación de chispas.
 Opere y agregue combustible en un área
bien ventilada, sin aparatos que tengan
un piloto o llama abierta como
calentadores de agua, calderas, etc.
 Los chorros de alta presión pueden ser
peligrosos si no se emplean
adecuadamente. El chorro no debe ser
dirigido hacia personas, animales,
aparatos eléctricos o hacia la misma
máquina.
 Utilice lentes de seguridad.
 No use ácidos, alcalinos, solventes o
cualquier otro material inflamable en esta
máquina. Estos productos pueden
ocasionar lesiones físicas al operador y
daños irreversibles a la máquina.
 La máquina tiene superficies calientes,
que pueden provocar quemaduras.
Opere la unidad en un ambiente seguro
y lejos de los niños.
 No permita que la manguera de alta
presión entre en contacto con la
protección del amortiguador.
 No deje funcionando la máquina sin
ponerle atención.
 Aprenda cómo apagar la máquina y
liberar la presión rápidamente.
Familiarícese extensamente con los
controles.
 Manténgase alerta - observe lo que esté
haciendo.
 No opere la máquina cuando se
encuentre cansado o bajo la influencia
de alcohol o drogas.
 No se pare sobre superficies inestables.
Párese siempre con ambos pies
balanceados.
 No incline la máquina hacia los lados.
 El seguro de la pistola IMPIDE que el
gatillo se accione accidentalmente. Este
dispositivo de seguridad NO bloquea el
gatillo en la posición de encendido.
 Nunca toque las superficies calientes; ni
permita que los accesorios entren en
contacto con superficies calientes.
 Nunca la opere en espacios cerrados.
Los vapores del escape son peligrosos.
 Nunca la opere cerca de servicios
públicos con llamas abiertas.
 Nunca opere la máquina lavadora a
presión sin abrir la llave de agua.
 Nunca utilice agua caliente.
Suministro de Agua
(Solamente Agua Fría)
 La manguera de agua debe tener un
diámetro mínimo de 5/8 de pulgada.
 La presión de flujo del agua no debe caer
por debajo de 2.5 PM (galones por
minuto).
 La presión de flujo puede determinarse
haciendo correr el agua durante un
minuto hacia un recipiente vacío de 5
galones de capacidad.
 La temperatura del agua no debe exceder
de 104°F/40°C.
 Nunca utilice la máquina lavadora a
presión para lanzar agua contaminada
con solventes, por ejemplo, thinner,
gasolina, aceite, etc.
 Evite que entre basura a la máquina
utilizando siempre una fuente de agua
limpia.
Recomendamos encarecidamente que
esta lavadora de alta presión no se deje
funcionando por periodos de 5 minutos o
mayores, sin oprimir el gatillo de la pistola.
Esta lavadora de alta presión Kärcher está
equipada con una protección térmica para
prolongar la vida de la lavadora. Dicha
protección se activará automáticamente al
llegar a una temperatura elevada
predeterminada, expulsando agua caliente
antes de reiniciarse. Esto asegura que no
se dañe la bomba.

17
INSTRUCCIONES DE ENSAMBLAJE
Paso 1
Fije la agarradera con los postes de la
lavadora a presión. Alinee los orificios,
inserte los tornillos y apriételos con las
perillas.
Paso 2
Fije el soporte para almacenar la pistola/
manguera.
Paso 3
Coloque las boquillas de conexión rápida en
el soporte de boquillas.
Paso 4
Conecte la lanza a la pistola de rociado.
Paso 5
Jale del collar accionado por resorte de la
lanza hacia atrás, para insertarlo en la
boquilla de conexión rápida de su elección.
Paso 6
Libere el collar y empuje la boquilla hasta
que el collar haga clic.
ELIGRO
Alta presión en la zona de tobera
Peligro por tobera mal enganchada
 !Antes de poner la máquina en marcha
jale la boquilla para asegurarse que esté
puesta adecuadamente.
Paso 7
Conecte la manguera de alta presión a la
pistola de rociado.

18
INSTRUCCIONES DE OPERACIÓN
Paso 1
Revise el nivel del aceite, el cual debe estar
entre las marcas FULL (lleno) y ADD
(agregar) de la varilla.
Cuando revise el nivel de aceite, asegúrese
que la máquina esté nivelada. (Refiérase al
manual de operación de la máquina para ver
los grados, de acuerdo con las estaciones
del año.)
Recomendamos cambiar el aceite después
de las primeras cinco horas de uso y
posteriormente cada 50 horas.
Paso 2
Llene el tanque de gasolina con gasolina
sin plomo.
No utilice gasolina con plomo.
Paso 3
Conecte la manguera de alta presión a la
salida de la unidad de alta presión.
Paso 4
Conecte la manguera de jardín a la
entrada de agua de la unidad.
Paso 5
Conecte la manguera de jardín a la toma
de agua fría y abra completamente la llave
de agua.
Nunca utilice agua caliente.
Paso 6
Oprima el gatillo de la pistola para eliminar
el aire atrapado y espere a que salga un flujo
continuo de agua por la boquilla.
Paso 7
Tirar del choke hasta que llegue a la posición
de CERRADO.
Cómo poner en marcha un motor caliente:
Si el motor se queda sin combustible, tire
del choke hasta que llegue a la posición de
CERRADO después de reabastecerlo. Si el
motor no se ha quedado sin combustible,
deje el choke de en la posición de ABIERTO.
Paso 8
Acelerador manual
Mover la palanca del acelerador (gris) en
sentido opuesto a la posición de lento
aproximadamente 1/3 del camino hacia la
posición de RÁPIDO.
Acelerador fijo
Mover el interruptor de parada del motor
hasta la posición de ABIERTO.
Si tiene más preguntas con respecto al
motor, por favor refiérase al manual de
operación de la máquina incluido en la
unidad.
Paso 9
Jale de la manija del arrancador. Si la
máquina no enciende después de tres
tirones, apriete el gatillo de la pistola
para eliminar la presión y repita este paso.
Después que la máquina se caliente y
funcione uniformemente, mueva el
ahogador a la posición de abierto (open)
y el acelerador a la posición de rápido
(fast).
¡IM ORTANTE!
No utilice la máquina con el nivel de
aceite bajo o muy alto, porque esto puede
provocar daños a la máquina.
Si tiene más preguntas acerca de la
máquina, refiérase al manual del
operador de la máquina, incluido en la
unidad.

19
USO DE LOS ACCESORIOS
RECAUCIÓN.
PARA EVITAR LESIONES SERIAS,
NUNCA APUNTE LA BOQUILLA
HACIA USTED MISMO, OTRAS
PERSONAS O ANIMALES.
Las boquillas de conexión rápida en cinco
colores permiten una amplia variedad de
anchos de rociado, desde 0° hasta 65°, y
tiene acceso a ellas fácilmente cuando las
coloca en el soporte para boquillas de hule,
incluido al frente de la máquina.
 Boquilla roja = 0°
para la eliminación de la sucieda
resistente y fuertemente adherida.
 Boquilla amarilla = 15°
para la limpieza de la suciedad que se
encuentra cubriendo superficies.
 Boquilla verde = 25°
para la limpieza de la suciedad que se
encuentra cubriendo grandes superficies.
 Boquilla blanca = 40°
para la limpieza de la suciedad que se
encuentra cubriendo grandes superficies.
 Boquilla negra para detergente = 65°
para la limpieza con detergente o con
escasa presión.
ELIGRO
Alta presión en la zona de tobera
Peligro por tobera mal enganchada
 !Antes de poner la máquina en marcha
jale la boquilla para asegurarse que esté
puesta adecuadamente.

20
TRABAJO CON DETERGENTES
Los detergentes solamente se pueden
aplicar con la boquilla negra
Paso 1
Instale la boquilla negra de conexión rápida
y baja presión para aplicación de
detergente a baja presión.
Paso 2
Ajuste el extremo con filtro del tubo de
detergente para cobertura ligera ( / 0.15
gpm) o máxima (+ / 0.20 gpm).
Paso 3
Llene el recipiente con detergente Kärcher.
Coloque el extremo con filtro del tubo de
succión de detergente dentro del
recipiente.
Paso 4
Con el motor en marcha, oprima el gatillo
de la pistola para hacer funcionar la
máquina: el detergente líquido es aspirado
hacia la máquina y se mezcla con el agua.
Aplique el detergente al área de trabajo.
No permita que el detergente se seque
sobre la superficie.
RECAUCIÓN
Nunca utilice:
 Productos blanqueadores, con cloro
y otros productos químicos
corrosivos
 Líquidos que contengan solventes
(por ejemplo, thinner, gasolina,
aceites)
 Productos de fosfato de trisodio
 Productos de amoníaco
 Productos ácidos
Estos productos químicos dañarán la
máquina y la superficie a limpiar.
ara obtener mejores resultados vea las
Sugerencias de Limpieza en las páginas
22 y 23, con información específica para
saber cómo limpiar diferentes super-
ficies.
Siempre utilice detergentes Kärcher
para obtener mejores resultados
Los detergentes biodegradables Kärcher
se formulan especialmente para proteger
el medio ambiente y su máquina lavadora
de presión. Su fórmula especial no tapa el
filtro del tubo de succión y protegerá las
partes internas de su máquina lavadora a
presión por más tiempo. Para obtener los
Detergentes Kärcher, pregunte a su
distribuidor o llame al número:
Se encuentran disponibles los siguientes
detergentes Kärcher:
 Jabón para automóviles
 Desengrasante
 Limpiador para todo uso
 Jabón para casas
 Jabón para cubiertas
