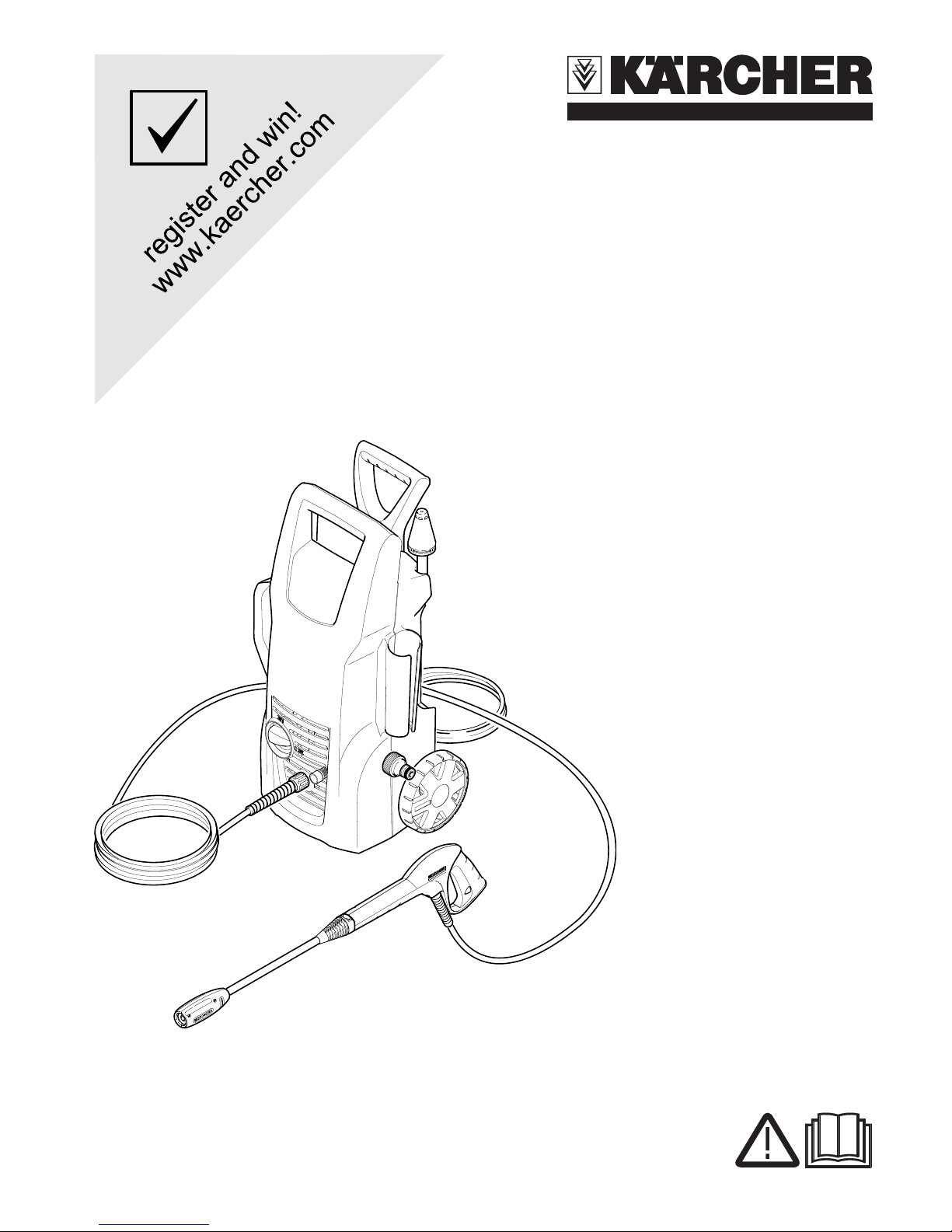

Kärcher K 2.110 M User manual

Operating
Instructions
Before first use of the
unit read these operating
instructions and act in
accordance with them.
K 2.54 M
5.962-746.0 (01/08)

2

English 3
Dear Customer,
Please read and comply with
these instructions prior to the in-
itial operation of your appliance. Retain
these operating instructions for future refer-
ence or for subsequent possessors.
General information 3
Safety instructions 4
Operation 6
Maintenance and care 8
Troubleshooting 8
Helpline 9
Technical specifications 9
CE declaration 10

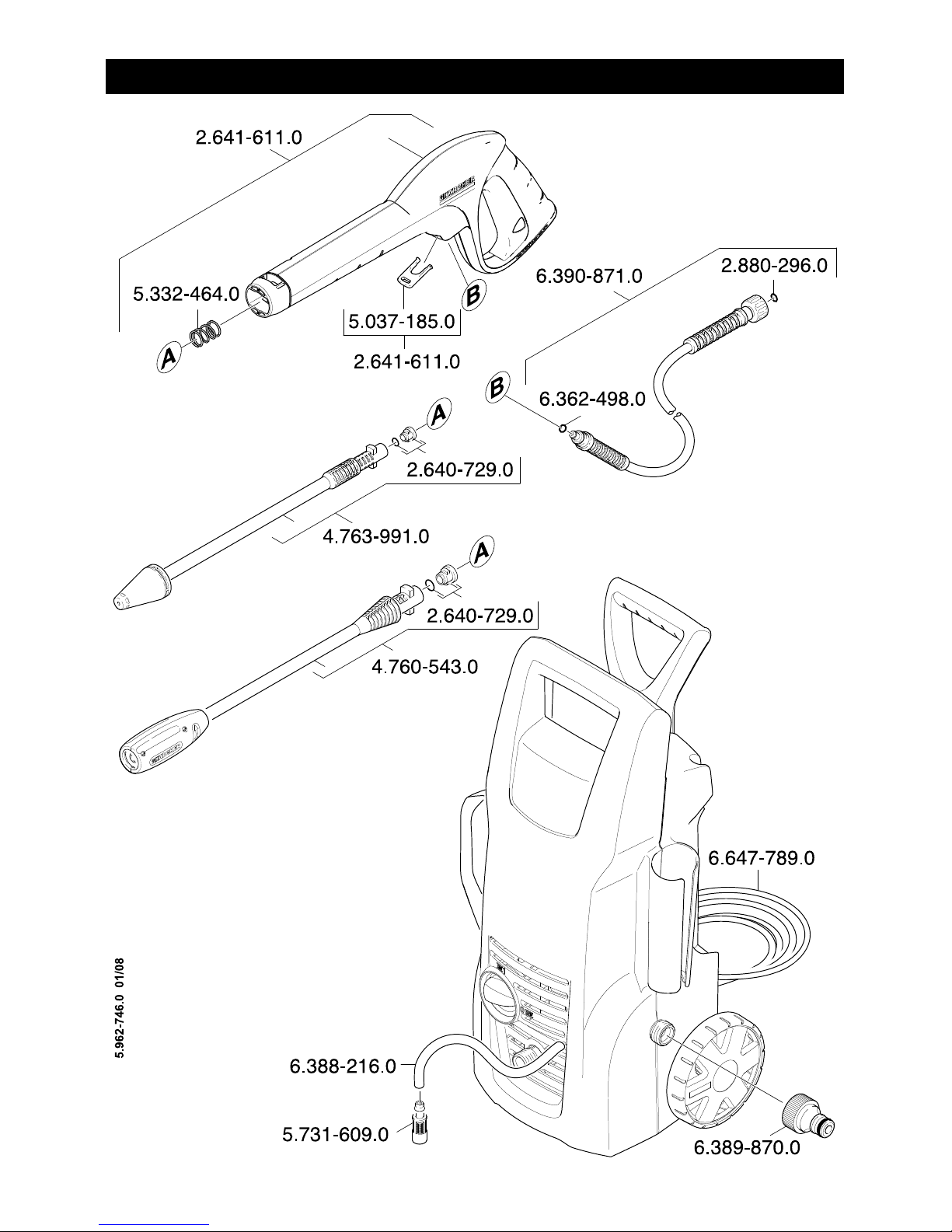

Spare Parts 11
Danger
Immediate danger that can cause severe
injury or even death.
몇Warning
Possible hazardous situation that could
lead to severe injury or even death.
Caution
Possible hazardous situation that could
lead to mild injury to persons or damage to
property.
This high-pressure cleaner is designed for
domestic use only:
–to clean machines, vehicles, buildings,
tools, facades, terraces, garden equip-
ment etc. using a high-pressure water
jet (and detergents if required).
–with accessories, replacement parts
and detergents approved by Kärcher.
Observe the instructions provided with
these detergents.
The packaging material can be recy-
cled. Please do not place the packag-
ing into the ordinary refuse for
disposal, but arrange for the proper
recycling.
Old appliances contain valuable ma-
terials that can be recycled. Please
arrange for the proper recycling of old
appliances. Please dispose your old
appliances using appropriate collec-
tion systems
The warranty terms published by our com-
petent sales company are applicable in
each country. We will repair potential fail-
ures of your appliance within the warranty
period free of charge, provided that such
failure is caused by faulty material or de-
fects in fabrication. In the event of a warran-
ty claim please contact your dealer or the
nearest authorized Customer Service cent-
er. Please submit the proof of purchase.
Contents
Illustration of appliance / scope of delivery2
General information
Hazard levels
Proper Use
Environmental protection
Warranty

4 English
Danger
Never touch the mains plug and the
socket with wet hands.
The appliance must not be used if the
power cord or important parts of the ap-
pliance, e.g. high-pressure hoses, trig-
ger gun or safety devices are damaged.
Check the power cord with mains plug
for damage before every use. If the
power cord is damaged, please arrange
immediately for the exchange by an au-
thorized customer service or a skilled
electrician.
Check the high-pressure hose for dam-
age before every use. Please arrange
for the immediate exchange of a dam-
aged high-pressure hose.
The appliance may not be used in areas
where a risk of explosion is present.
If the appliance is used in hazardous ar-
eas (e.g. filling stations) the corre-
sponding safety provisions must be
observed.
High-pressure jets can be
dangerous if improperly
used. The jet must not be
directed at persons, ani-
mals, live electrical equipment or at the
appliance itself.
The high-pressure jet must not be di-
rected at other persons or directed by
the user at him/herself to clean clothing
or footwear.
Never use the appliance to clean ob-
jects containing hazardous substances
(e.g. asbestos).
Vehicle tyres or tyre valves are suscep-
tible to damage from the high-pressure
jet and may burst. The first indication of
this is a discolouration of the tyre. Dam-
aged vehicle tyres/tyre valves are high-
ly dangerous. Ensure that a distance of
at least 30 cm is observed when clean-
ing with the jet!
Never draw in fluids containing solvents
or undiluted acids and solvents! This in-
cludes petrol, paint thinner and heating
oil. The spray mist thus generated is
highly inflammable, explosive and poi-
sonous. Do not use acetone, undiluted
acids and solvents as they are aggres-
sive towards the materials from which
the appliance is made.
몇Warning
The mains plug and the coupling of an
extension cable must be watertight and
must never lay in the water.
Unsuitable extension cables can be
hazardous. Only use extension cables
outdoors which have been approved for
this purpose and labelled with a suffi-
cient cable cross-section: 1 - 10 m: 1.5
mm2; 10 - 30 m: 2.5 mm2
Always fully unroll electrical cables from
the cable drum.
High-pressure hoses, fixtures and cou-
plings are important for the safety of the
appliance. Only use high-pressure hos-
es, fixtures and couplings recommend-
ed by the manufacturer.
This device is not intended for use by
persons (including children) with re-
duced physical, sensory or mental abil-
ities or lacking experience and/or
knowledge, unless they are supervised
by a person responsible for their safety
or are instructed by these persons on
the use of the device. Children should
be supervised, to ensure that they do
not play with the device.
The operator must use the appliance
correctly. When working with the appli-
ance, he must consider the local condi-
tions and pay due care and attention to
other persons, in particular children,
who are nearby.
Do not use the appliance when there
are other persons around unless they
are also wearing safety equipment.
Wear protective clothing and safety
goggles to protect against splash back
containing water or dirt.
Safety instructions

English 5
Caution
Observe a distance of at least 30 cm
when using the jet to clean painted sur-
faces to avoid damaging paintwork.
Never leave the appliance unattended
when it is in operation.
Make sure that the power cable or ex-
tension cables are not damaged by run-
ning over, pinching, dragging or similar.
Protect the power cable from heat, oil,
and sharp edges.
All current-conducting parts in the work-
ing area must be protected against jet
water.
The appliance may only be connected
to an electrical supply which has been
installed in accordance with IEC 60364.
The appliance may only be connected
to alternating current. The voltage must
correspond with the type plate on the
appliance.
For safety reasons, we recommend that
you operate the appliance only via a
earth-leakage circuit breaker (max.
30 mA).
Cleaning operations which produce oily
waste water, e.g. engine washes, un-
derbody washes, may only be carried
out using washing stations equipped
with an oil separator.
This appliance was designed to be
used with detergents which are sup-
plied or recommended by the manufac-
turer. The use of other detergents or
chemicals may compromise the safety
of the appliance.
Caution
Safety devices protect the user and must
not be modified or bypassed.
The appliance switch prevents unintention-
al operation of the appliance.
This lock locks the lever of the trigger gun
and prevents the inadvertent start of the ap-
pliance.
The high pressure hose is specially con-
structed with reinforced walls to handle wa-
ter pressure up to 11 MPa (1600 psi) - it can
be easily damaged and should be stored
carefully.
Do not kink.
Do not drive vehicles over the hose.
Do not expose the hose to sharp edges
or corners.
Misuse will lead to ballooning or premature
failure and will invalidate warranty.
Safety Devices
Power switch
Lock trigger gun
High pressure hose

6 English
When unpacking the product, make sure
that no accessories are missing and that
none of the package contents have been
damaged. If you detect any transport dam-
ages please contact your dealer.

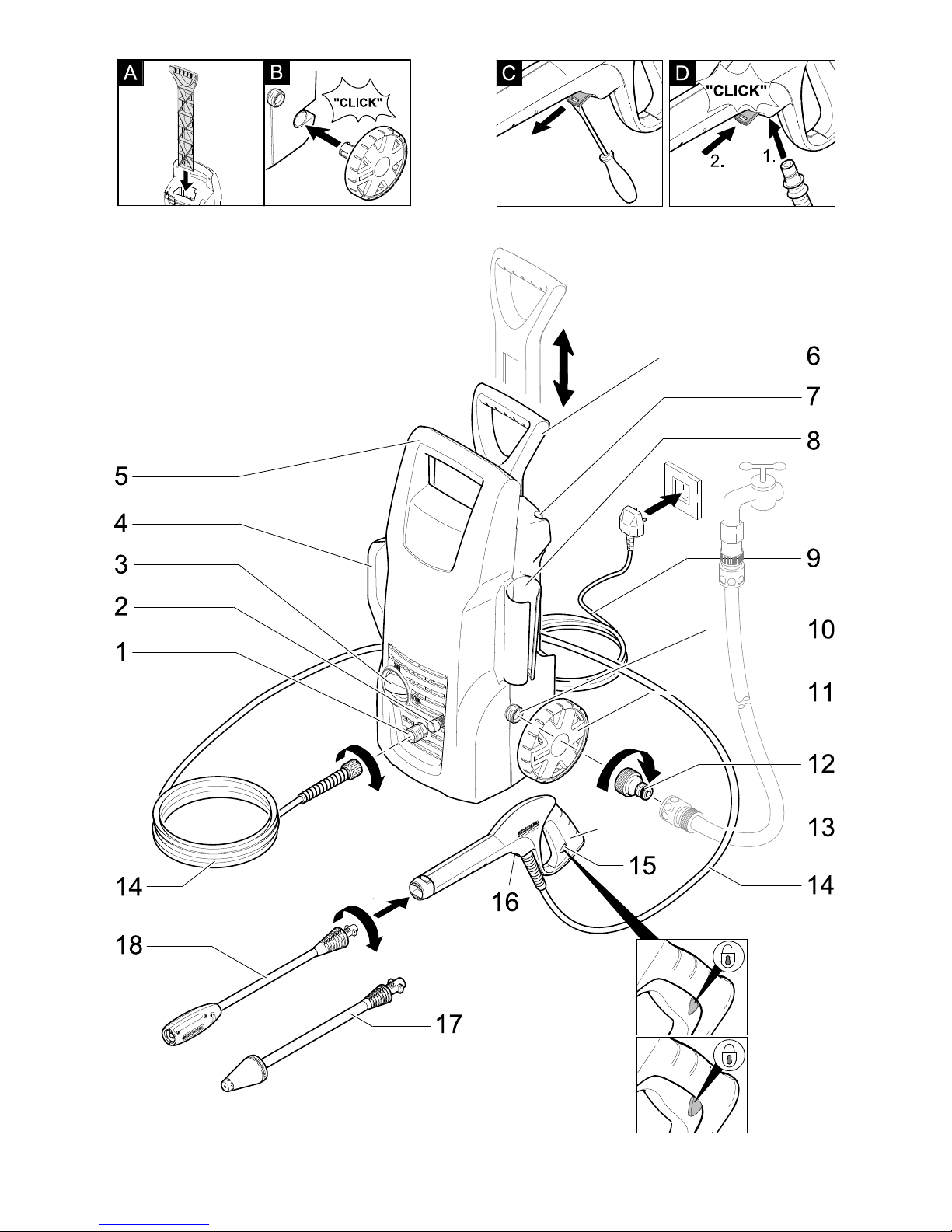

Illustrations on Page 2
1 High pressure connection
2 Detergent suction hose (with filter)
3 Appliance switch "0/OFF“/ „I/ON“
4 Storage for high-pressure hose
5 Carrying handle
6 Transport handle, adjustable height
7 Storage for spray lance
8 Storage for trigger gun
9 Mains cable with mains plug
10 Water connection
11 Bearing wheel
12 Coupling element for water connection
13 Trigger gun
14 High pressure hose
15 Lock trigger gun
16 Clamp for high pressure hose
17 Spray lance with dirt blaster
18 Spray lance with pressure regulation
(Vario Power)
Special accessories expand the possibili-
ties of using your appliance. Please contact
your Kärcher dealer for further information.
Mount loose parts delivered with appliance
prior to start-up.
Illustrations on Page 2
ÎIllustration
Insert the transport handle.
ÎIllustration
Insert the transport wheels and lock
them.
ÎIllustration
Pull out the clamp for the high-pressure
hose from the trigger gun (e.g. a small
screwdriver).
ÎIllustration
Connect high pressure hose to trigger
gun.
Push the clamp in until it locks. Check
the secure connection by pulling on the
high-pressure hose.
According to the applicable regula-
tions, the appliance must never be
used on the drinking water supply
without a system separator. Use a
suitable system separator manufactured by
Kärcher; or, as an alternative, a system
separator as per EN 12729 Type BA.
Note: Impurities in the water can damage
the high-pressure pump and accessories.
For protection, the use of the Kärcher water
filter (optional accessory, order no. 4.730-
059) is recommended.
Observe regulations of water supplier.
For connection values, see type plate/tech-
nical data.
ÎUse a fibre-reinforced water hose (not
included) with a standard coupling.
(Minimum diameter 1/2 inch (13 mm),
minimum length 7.5 m).
ÎScrew the coupling unit (supplied) to
the water connection on the appliance.
ÎPush the water supply hose onto the
coupling unit, then connect it to the wa-
ter supply.
Operation
Description of the Appliance
Special accessories
Before Startup
Water supply
Water supply from mains

English 7
Caution
Never operate the high-pressure cleaner
when the tap is turned off as dry running will
damage the high-pressure pump.
ÎConnect the high pressure hose to the
high pressure connection of the appli-
ance.
ÎPush the spray lance into the trigger gun
and fasten it by turning it through 90°.
ÎCompletely open the water tap.
ÎInsert the mains plug into the socket.
ÎTurn on the appliance “I/ON”.
몇Danger
The trigger gun is subjected to a recoil force
when the water jet is discharged. Make
sure that you have a firm footing and are
also holding the trigger gun and spray lance
firmly.
ÎUnlock the lever on the trigger gun.
ÎPull on the lever of the trigger gun; the
device will switch on.
Note: Release the lever of the trigger gun;
the device will switch off again. High pres-
sure remains in the system.
Carrying out the most common cleaning
tasks. The work pressure can be stageless-
ly regulated between "Min" and "Max".
ÎRelease the lever on the trigger gun.
ÎTurn the spray lance to the desired po-
sition.
For particularly dirty items or areas.
Not suitable for use with detergents.
We recommend the Kärcher cleaning and
care program that will match the respective
cleaning requirements. Please seek consul-
tation or request information on the subject.
ÎPull detergent suction hose as far as is
required out of the housing.
ÎSuspend end of detergent suction hose
in a container filled with detergent.
ÎUse spray lance with pressure regula-
tion (Vario Power).
ÎTurn the spray lance to "Mix" position.
Note: This will mix the detergent with
the water stream.
ÎSpray the detergent sparingly on the
dry surface and allow it to react, but not
to dry.
ÎSpray off loosened dirt with the high-
pressure ray.
ÎRelease the lever on the trigger gun.
ÎLock the lever on the trigger gun.
ÎDuring longer breaks (more than 5 min-
utes), also turn the appliance off using
the "0/OFF" switch.
ÎInsert the trigger gun in its holder.
Caution
Only separate the high-pressure hose from
the hand spray gun or the appliance while
there is no pressure in the system.
ÎAfter working with detergent, suspend
detergent suction hose in a container
filled with clear water, switch the appli-
ance on for around 1 minute once the
spray lance has been removed and
rinse until water runs clear.
ÎRelease the lever on the trigger gun.
ÎTurn off the appliance "0/OFF".
ÎTurn off tap.
ÎDetach the appliance from the water
supply.
ÎPress the lever on the trigger gun to re-
lease any remaining pressure in the
system.
ÎLock the lever on the trigger gun.
ÎPull out the mains plug.
ÎStow away the mains cable, the high-
pressure hose and accessory at the ap-
pliance.
ÎInsert the trigger gun in its holder.
Start up
Operation
Spray lance with pressure regulation
Spray lance with dirt blaster
Working with detergent
Recommended cleaning method
Interrupting operation
Finish operation

8 English
Danger
Turn off the appliance and remove the
mains plug prior to any care and mainte-
nance work.
The appliance is maintenance-free.
Prior to longer periods of storage, e.g. in
the winter:
ÎCompletely drain all water from the ap-
pliance: Switch the appliance on with
detached high-pressure hose and de-
tached water supply (max. 1 minute)
and wait, until no more water exits at the
high-pressure connection. Turn off the
appliance.
ÎRemove filter from suction hose for de-
tergent and clean under running water.
ÎPull out the sieve in the water connec-
tion using flat-nose pliers and clean un-
der running water.
Caution
Protect the appliance and its accessories
against frost.
The appliance and its accessories can get
destroyed through frost if there are any wa-
ter residues in them. To avoid damage to
them:
ÎStore the appliance and the entire ac-
cessories in a frost-safe room.
Use only original Kärcher spare parts. You
will find a list of spare parts at the end of
these operating instructions.
You can rectify minor faults yourself with
the help of the following overview.
If in doubt, please consult the authorized
customer service.
Danger
Turn off the appliance and remove the
mains plug prior to any care and mainte-
nance work.
Repair works may only be performed by the
authorized customer service.
ÎCheck whether the voltage indicated on
the type plate corresponds to the volt-
age of the mains supply.
ÎCheck the mains connection cable for
damages.
ÎCheck setting at the spray lance.
ÎAppliance ventilation: Switch the appli-
ance on with the high-pressure hose
detached and operate until the water
flows through the high-pressure con-
nection without bubbles. Switch off ap-
pliance and reconnect high-pressure
hose.
ÎCheck the water supply.
ÎPull out the sieve in the water connec-
tion using flat-nose pliers and clean un-
der running water.
ÎClean high-pressure nozzle: Remove
dirt and debris from the nozzle bore, us-
ing a needle and rinse through with wa-
ter from the front.
ÎCheck water flow quantity.
ÎSlight leakage from the appliance pump
is normal. If the leakage increases con-
tact the authorized customer service.
ÎUse spray lance with pressure regula-
tion (Vario Power).
Turn the spray lance to "Mix" position.
ÎClean the detergent suction hose filter.
ÎCheck the detergent suction hose for
kinks.
Maintenance and care
Maintenance
Storage
Frost protection
Spare parts
Troubleshooting
Appliance is not running
Pressure does not build up in the appliance
Strong pressure fluctuations
Appliance is leaking
No detergent infeed

English 9
Kärcher UK Limited operate a helpline al-
lowing customers to discuss any problems
experienced with our products.
The helpline operates during normal busi-
ness hours and may be busy at peak peri-
ods.If you have difficulty getting through we
would ask that you try to contact us again
later in the day.
The helpline number is 01295 752200,
open from 8.30am to 5.00pm
Monday to Friday.
It helps us if you have the model number
and data plate details to hand before mak-
ing your call so that we can assist you with
your query more effectively.
Alternatively you may write to us at the
address below:
Kärcher UK Ltd
Kärcher House
Beaumont Road
Banbury
Oxon, OX16 1TB
or E-mail us:
[email protected]
Subject to technical modifications!
Helpline Technical specifications
Power connection
Voltage 220-240
1~50/60
V
Hz
Connected load 1,6 kW
Mains fuse (slow-blow) 13 A
Protective class II
Protection class IP X5
Water connection
Max. feed temperature 40 °C
Min. feed volume 8I/min
Feed pressure 0,2-1,2 MPa
Performance data
Working pressure 9 MPa
Max. permissible pressure 11 MPa
Water flow rate 5,5 I/min
Detergent flow rate 0,4 I/min
Recoil force of trigger gun 12 N
Hand-arm vibration
(ISO 5349)
0,8 m/s2
Sound pressure level
LpA (EN60704-1)
74 dB(A)
Sound power level
LWA (2000/14/EG)
88 dB(A)
Dimensions
Length 287 mm
Width 229 mm
Height 576 mm
Weight 4,9 kg

10 English
We hereby declare that the machine de-
scribed below complies with the relevant
basic safety and health requirements of the
EU Directives, both in its basic design and
construction as well as in the version put
into circulation by us. This declaration shall
cease to be valid if the machine is modified
without our prior approval.
The undersigned act on behalf and under
the power of attorney of the company man-
agement.
Alfred Kärcher GmbH Co. KG
Alfred Kärcher-Str. 28 - 40
D - 71364 Winnenden
Phone: [phone]
Fax: [phone]
CE declaration
Product: High-pressure cleaner
Type: 1.672-xxx
Relevant EU Directives
98/37/EC
2006/95/EC
2004/108/EC
2000/14/EC
Applied harmonized standards
EN 55014–1: 2006
EN 55014–2: 1997 + A1: 2001
EN 60335–1
EN 60335–2–79
EN 61000–3–2: 2000 + A2: 2005
EN 61000–3–3: 1995 + A1: 2001 + A2: 2005
Applied conformity evaluation method
Appendix V
Sound power level dB(A)
Measured: 87
Guaranteed: 88
CEO Head of Approbation

English 11
Spare Parts
