Karlik MCUSBBO-6 User manual

USER MANUAL -MCUSBBO-6
DOUBLE USB CHARGER
Specification of MCUSBBO-6 double USB charger
The MCUSBBO-6 charger is intended to charge devices like smartphones, MP3 players and other
electronic equipment. Before connecting the device, check compliance of the charger with
charging parameters of the given device.
1 I 2
Warranty conditions
Warranty is granted for a period of 12 months of the date of purchase. The defective MCUSBBO-6
charger along with the proof of purchase should be sent to the manufacturer or to the seller. Warranty
does not include mechanical damages, defects resulting from unauthorised repairs and improper use
of the product.
Warranty period will be extended for the duration of the repair.
Number of USB ports (type A)
2
Nominal input voltage
100-240V AC; 50/60Hz
Nominal input current
0,25 A
Nominal output voltage
5 V DC
Nominal output current
3.1 A ( )total value for the whole mechanism
Ingress protection degree
IP 20
Dane techniczne
54,00
54,00
46,00

ASSEMBLY INSTRUCTIONS
2 I 2
NOTE!
The installation must be done by a person with sufficient qualifications, with power supply
disconnected, and must comply with national safety standards.
USB charger mechanism with idle power supply consumes less than about 0,2W.

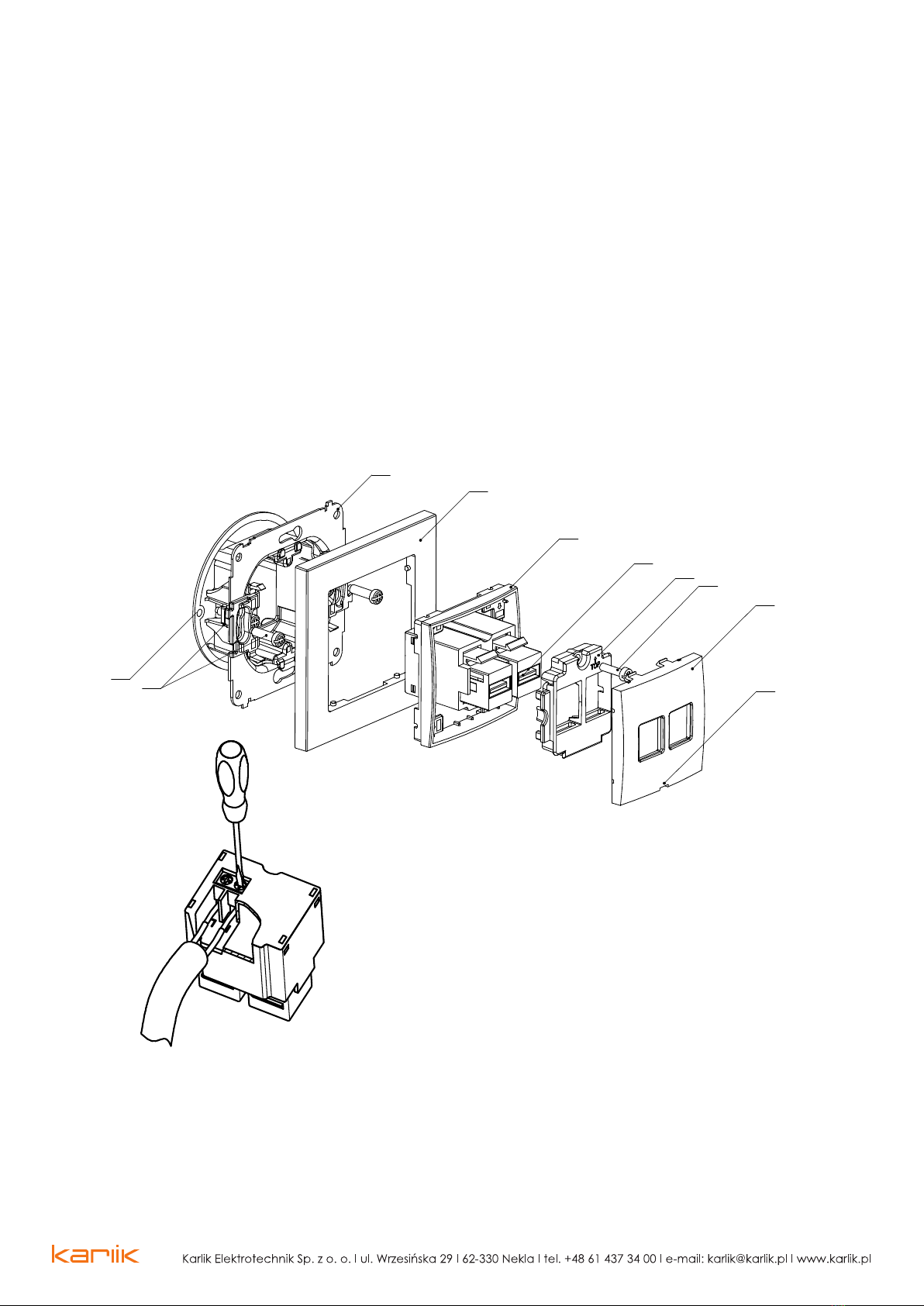

The connection to the installation should be done as shown in Figure 2. With improper connection, the
charger may be damaged or may work incorrectly.
5. Attach the intermediate frame (6) to the outer frame (7) and snap the whole thing onto the latches
(8) protruding from the cube.
1. Remove the adapter (2) of the charger by levering it with a knife or a flat screwdriver in the place of
the recess (1) on the adapter.
2. Unscrew the screw (3) and pull out the adapter (4) together with the USB charger module (5). If
necessary, you can detach the USB charger module from the adapter by pressing the movable catch
on the module.
6. Connect the power cable to the terminal strip of the USB charger module (see Figure 2) respectively,
the phase wire under the "L" terminal, the neutral wire under "N".
8. Insert the adapter (2).
7. Insert the adapter (4) with the USB charger module (5) into the intermediate frame (6) and screw it to
the mounting block (8) using the screw (3).
3. Disassemble the intermediate frame (6) from the mounting block (8). To disassemble, bend the cube
latches or pull the intermediate frame harder.
4. Install the mounting block (8) in the box (9) using claws or screws at the box (10).
Fig. 2
8
Fig. 1
1
2
3
4
5
6
910
7
