KARVER KMH8 User manual

1
KMH8Internal halyard lock user’s guide
1 Important information / Warning
2 Onboard installation
3 Operating the system
4 Technical characteristics
5 Servicing
6 Troubleshooting
WARNING
KMH internal halyard locks are designed to hold lines on sailboats. Any other use will not be
guaranteed by Karver.
If you need to send a person up the mast, always secure the lashing eye for extra safety.
If any part of the system appears to be distorted, we advise you to stop using the lock and
contact your reseller for further instructions.
Always pull the halyard to the max hoist limit (until the male part reaches the end stop) to lock
and to unlock
Do not apply over 1000kg on the halyard.
Do not apply over 8000kg on the hook.
Max halyard diameter is 8mm
Rinse with fresh water as often as possible

2
2 ONBOARD INSTALLATION
The mast should be cut with the drilling template supplied with the product to install the bracket.
Max compression is applied on surface A, the mast thickness has to be as closed to 15mm but should not exceed it.
Surface B has to be in direct contact with the wall, which means the inside wall surface should be flat.
Tighten the bracket with a minimum of two M8 countersunk head screws.
Installing the inside mechanism.
Insert the lock mechanism (D) into the mast bracket (C).
Close the lock with the front cover (E) and the Two M5 screws (F) secured with Loctite.

3
Halyard connection.
Splice your halyard and fit it into the male part (G). The splice should feature a max diameter of 10.5mm.
Insert the 10mm pin into the splice and secure it with the Two M5 screws with Loctite.
3 OPERATING THE SYSTEM
The systems is activated and deactivated with the same halyard.
To facilitate the engagement and disengagement of the locking mechanism, the male part needs a 2-3cm slack to go
up and down the female part.
Please note that if the luff of the sail is tensioned when the locking mechanism is being engaged, the locking
mechanism could be partially activated only and result to damage or failure of the internal halyard lock.
To lock: Pull the halyard to the max hoist limit (until the male part reaches the first end stop) to activate the locking
mechanism. The system is locked.
We recommend to make a mark on the halyard at full hoist which will act as point of reference.

4
However, it is also recommended to apply down pressure on the sail to fully certify the lock is engaged before sailing
at full power. If the locking mechanism is not fully engaged, it could result to problems when necessary to unlock the
mechanism.
To unlock: To disengage the locking mechanism; pull again on the halyard to the max hoist.
If the sail is light, it may be necessary to slightly pull it down to help dropping it.
4 TECHNICAL FEATURES
Total length: 186mm; Total width: 67mm; Total height: 101mm
Total weight: 1900gr
Max halyard: 8mm
Max working load: 8T
5 SERVICING
When removing the front cover, one can easily access the locking mechanism and remove it from its bracket.

5

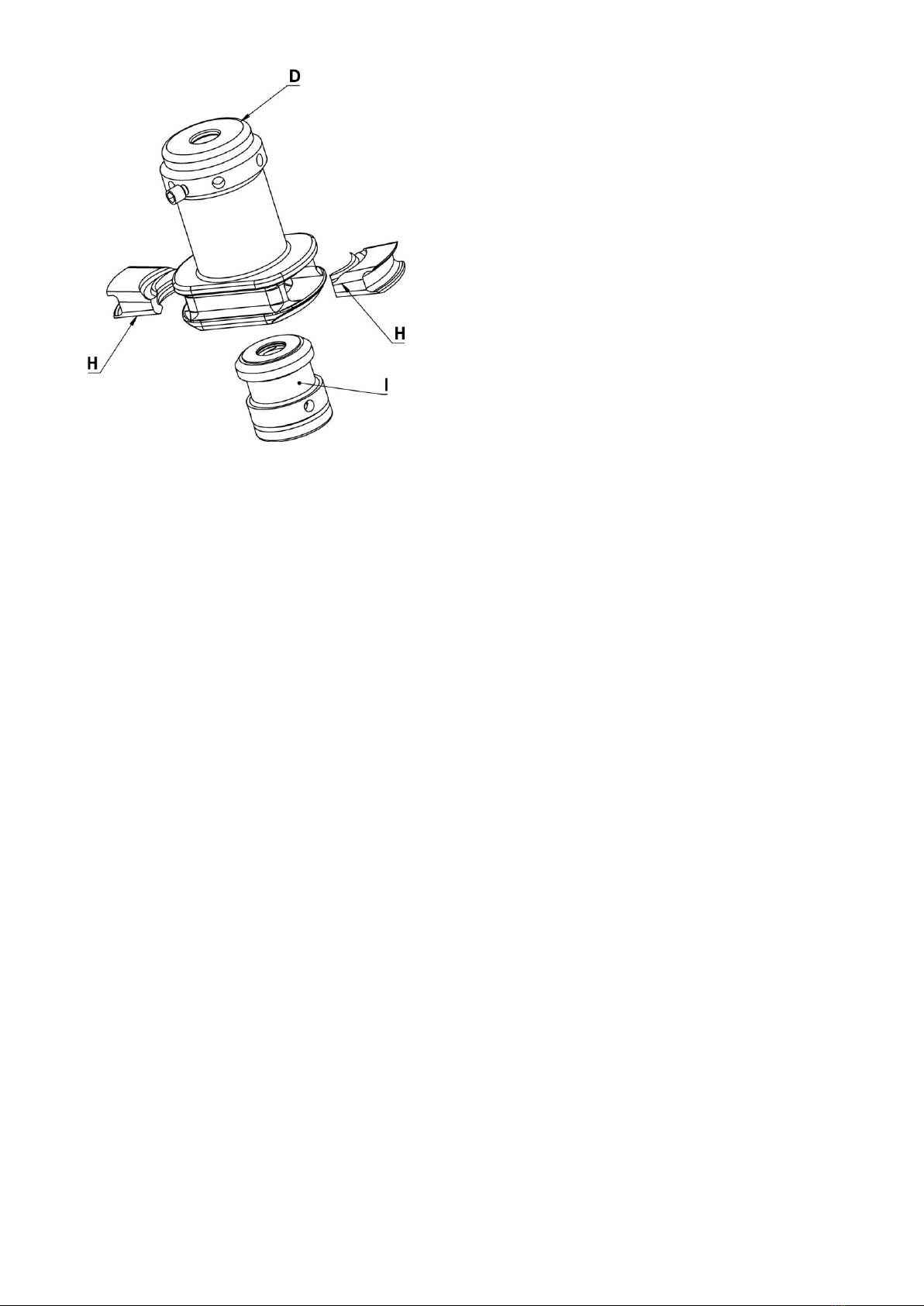

The locking mechanism is made of two (2) jaws (H), inside the female part (D), that connect together around the
male part (G) when locked.
Another two stage system - on/off –(I) operates the locked and unlocked position; this mechanism is integrated
within the lock, behind the Two jaws in the lock female part.
By removing the black o-ring and the Two jaws, one can have direct access to this on/off mechanism.
Clean and lubricate every year jaws (H) and on/off mechanism (I), check if those parts are not damaged (see
Troubleshooting).
Karver mast halyard locks are made from high quality alloy and HR stainless steel.
It is possible that over time, oxidation marks may appear on the stainless steel parts. These marks can be removed
by using a stainless steel cleaner and a passivator for better protection against corrosion.
Flush your system with fresh water as often as possible.
6 TROUBLESHOOTING
Main troubleshooting is coming from a bad utilization of the system, if the tension on the halyard has not been high
enough when locking or unlocking (the male part has not reached the end stop), the on/off mechanism or the jaws
can be affected.
On/Off mechanism:
After having dismounted the system check if there is no metal distortion on point J and screws K.
In normal condition, if you press this system, each pressure has to put the system in Two different positions (L1 then
L2)

6
We recommend to carry onboard a spare on/off mechanism.
Jaws:
Check if there is no metal distortion around surface L
Do not hesitate to contact Karver technical service for any problem.
More info : Karver Systems –Email : [e-mail] –Tel : [phone]
www.karver-systems.com
