Katana 220090 User manual

CORDLESS HEAT GUN INSTRUCTION MANUAL
CORDLESS Heat gun
INSTRUCTION MANUAL
220090
LITHIUM ION
18V
WARRANTY*
5 YEAR
MAX TEMP
500°C
18V CHARGE-ALL

CORDLESS HEAT GUN INSTRUCTION MANUAL
1
GENERAL POWER TOOL SAFETY WARNINGS
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
WARNING Read all safety warnings and all instructions.Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for future reference. The term
“power tool” in the warnings refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators,ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power
tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is
suitable for one type of battery pack may create a risk of fire when used with another
battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects, that can
make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the battery may cause irritation
or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
This appliance is not intended to be used or cleaned by persons with reduced physical, sensory
or mental capabilities, or lack of experience or knowledge, unless they have been given instruc-
tions concerning the safe use of the appliance by a person legally responsible for their safety.
They should be supervised whilst using the appliance.
Children shall not use, clean or play with this appliance, which when not in use should be
secured out of their reach.
Do not operate the product in explosive atmospheres, such as in the presence of ammable
liquids, gases, or dust. Battery products create sparks which may ignite the dust or fumes. The
heat gun may start a re if appropriate precautions are not taken.
The product is intended for household use only. Keep the heat gun away from rain or water to
avoid risks of re or electric shock. Never use the heat gun in a damp or very wet area.
Do not expose battery products to rain or wet conditions. Water entering a battery product will
increase the risk of electric shock.
Do not leave the heat gun unattended while it is operating. Remove the battery pack from the
heat gun when it is not in use. Ensure that the heat gun cannot start accidentally. If the heat gun
stops while it is in use, disconnect it from the power supply.
The nozzle gets extremely hot. Wear gloves and eye protection.
Do not direct the hot airow towards people or animals.
Never reduce the hot airow by blocking or covering the nozzle.
Ensure that the nozzle does not come into contact with materials during or after operation.
Always wear eye protection when stripping paint overhead.
Always keep the heat gun upright or suspend it with the stand supplied.
Never leave the heat gun out in the rain and do not use it on very damp days.
Always allow the heat gun to cool down completely before storing it.
Always store the heat gun in a safe place, out of the reach of children. It is not a toy.
Always concentrate on the job and use common sense when working with the product. Do not
use the product when you are tired or taking medication that may make you drowsy.
Always work in a well ventilated area. Flakes and residues of lead-based paints are highly toxic.
Use the product only for its intended use as described in this manual.
If the product is not working properly, has been dropped, damaged, left outdoors or dropped into
water, return to your nearest service centre.

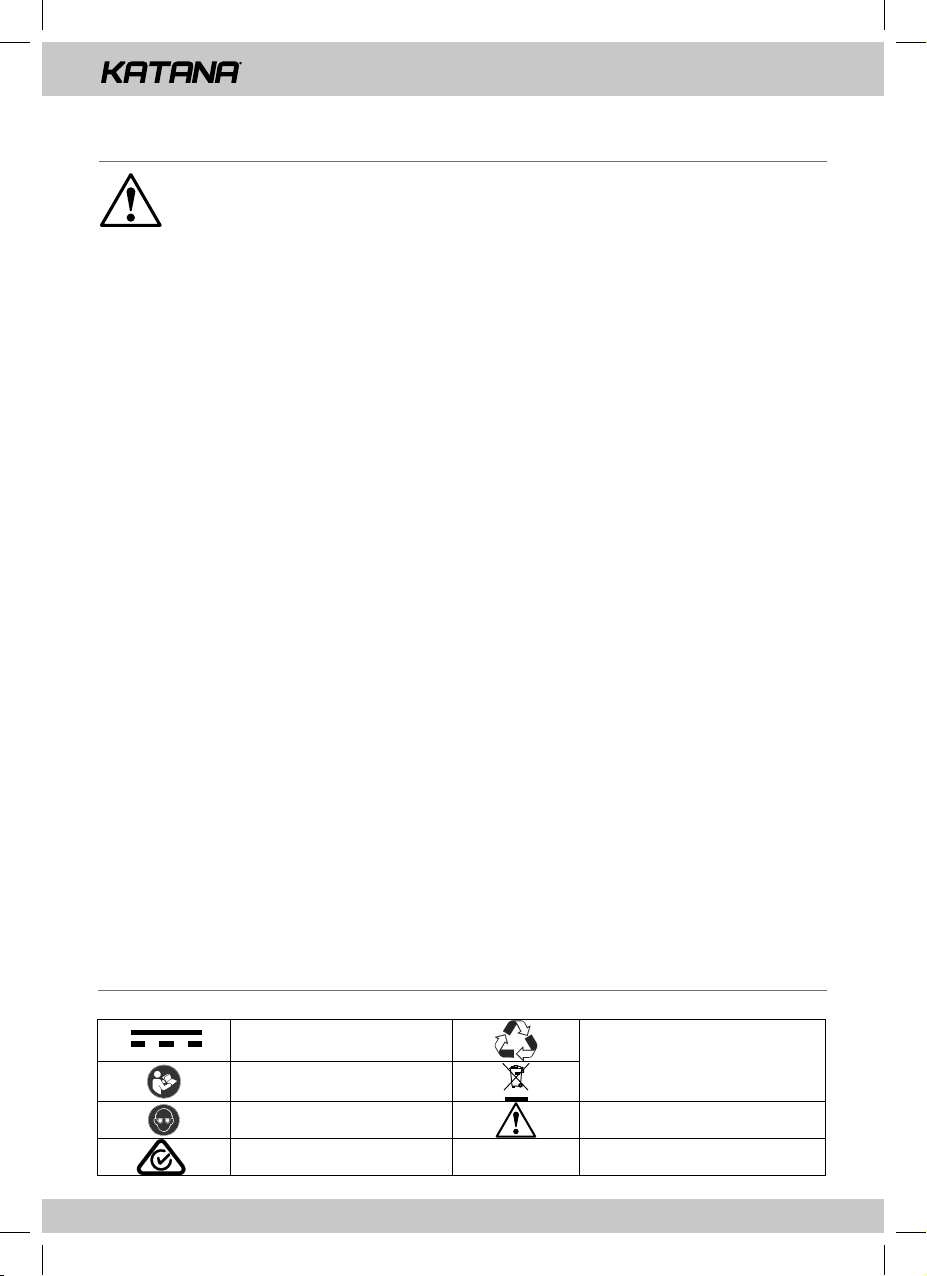

SYMBOLS
Direct current, DC Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check
with your Local Authority or retailer for
recycling advice.
Refer to instruction manual/booklet
Wear eye protection General warning
Regulator compliance mark
220090

CORDLESS HEAT GUN INSTRUCTION MANUAL
18V CHARGE-ALL
18V CHARGE-ALL
LI-ION
Ah
18V CHARGE-ALL
18V CHARGE-ALL
18V CHARGE-ALL
LI-ION
Ah
18V CHARGE-ALL
2
Voltage 18V d.c.
Max temperature 500°C
Run time 17 mins (4.0Ah Battery)
Air flow 200 l/min
Recommended ambient
operating temperature
-17°C to 51°C
SPECIFICATIONS
18V CHARGE-ALL
KNOW YOUR PRODUCT
1 - TIP
5 - TRIGGER
6 - LED WORKLIGHT
2 - NOZZLE RELEASE COLLAR 3 - HANGING HOOK
4 - TRIGGER LOCK OFF
(ANY 18V CHARGE-ALL BATTERY WILL FIT)
BATTERY INSERTS HERE
HOW TO INSERT BATTERY ON TOOL
COOL DOWN FUNCTION
1. ALIGN BATTERY RIBS WITH TOOL 2. SLIDE INTO TOOL 3. STOP WHEN YOU HEAR IT CLICK IN PLACE
18V CHARGE-ALL
18V CHARGE-ALL
18V CHARGE-ALL
LI-ION
Ah
1 2 3
*CLICK*
ATTACHMENTS
JET NOZZLE (ROUND) JET NOZZLE (FLAT) REFLECTING NOZZLE
220090
Minimum recommended 4Ah battery
When trigger is depressed the automatic cool down function begins. This does not cool down the tip or nozzles, the
intended function is to remove excess heat from the internals of the heat gun.

CORDLESS HEAT GUN INSTRUCTION MANUAL
18V CHARGE-ALL
18V CHARGE-ALL
18V CHARGE-ALL

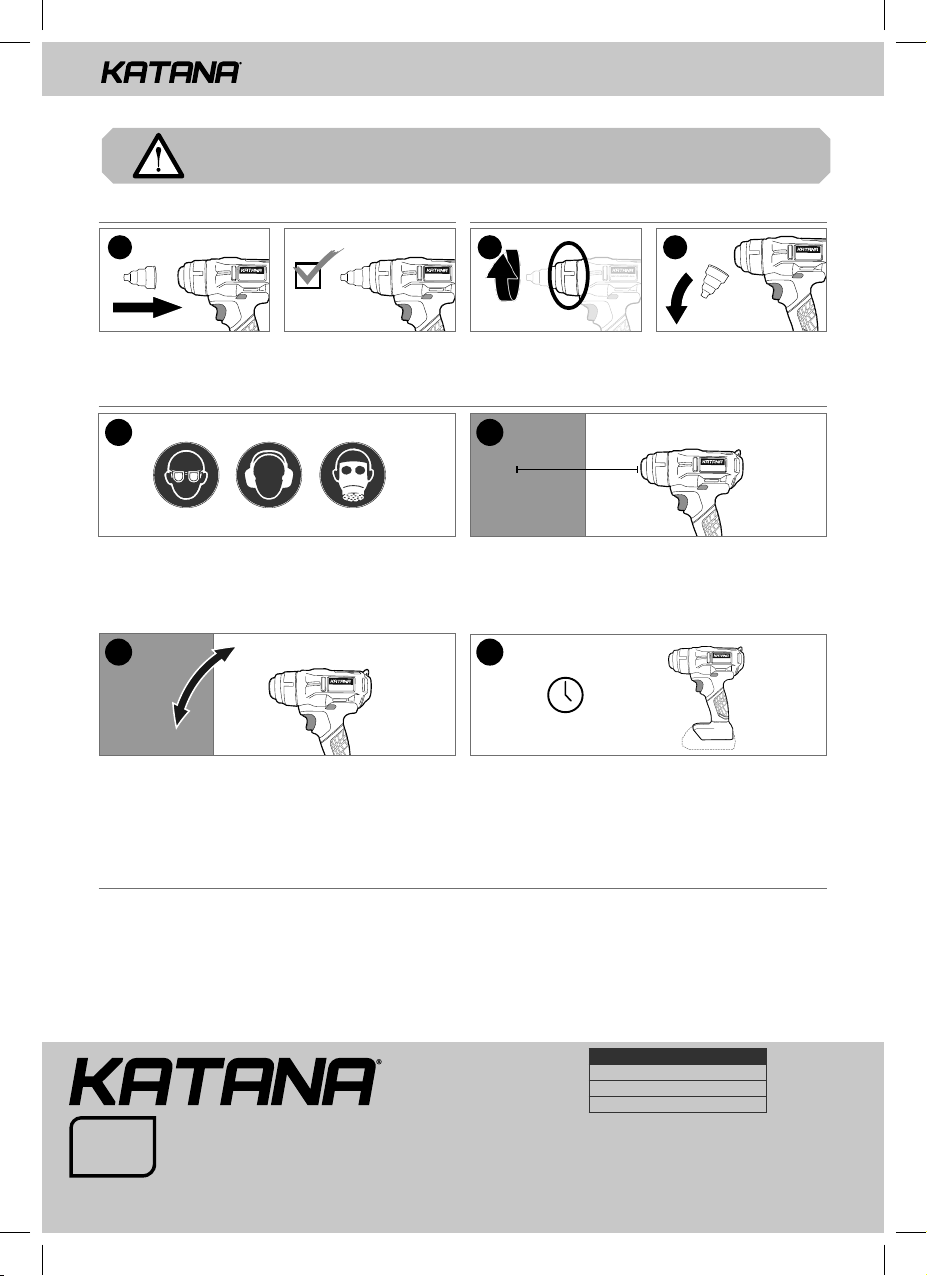

HOW TO INSTALL NOZZLES HOW TO REMOVE NOZZLES
HOW TO USE HEAT GUN
1. ENSURE SAFETY
1. SLIDE NOZZLE ONTO TIP 1. TWIST NOZZLE
RELEASE COLLAR (2)
2. NOZZLE DROPS
3. OPERATE HEAT GUN
Avoid holding the heat gun too close to the workpiece, 30cm is the
recommended minimum distance
Allow adequate time for the heat gun to cool down after use. When
trigger is released, the automatic cool-down function begins. Please
note, this does not cool down the tip or nozzles. The intended
function is to remove excess heat from the internals of the heat gun.
Always wear safety glasses when working with the heat gun.
Make sure to secure your hair and any baggy clothes. In
appropriate situations make sure you wear ear muffs, a mask or
a respiratory mask.
Operate the heat gun by pushing the trigger lock off (4) and then
pulling the trigger (5) and waving the heat gun side to side over the
workpiece.
2. KEEP HEAT GUN FROM SURFACE
4. ALLOW TO COOL
18V CHARGE-ALL
18V CHARGE-ALL
18V CHARGE-ALL
1
1 1 2
3
2
4
30cm minimum
5 Minutes
Australia & Global
www.katanapowertools.com.au
[email protected]
[phone]
Made to Katana
specifications and
quality standards
in China.
NOT INTENDED
FOR TRADE USE
18V CHARGE-ALL
18V CHARGE-ALL
* Standard 3 year warranty with an additional 2 year warranty available subject to online registration via katanapowertools.com.au. Warranty on this Katana
product is given by Kincrome Australia Pty Ltd of 3Lakeview Drive, Caribbean Park, Scoresby, Victoria, Australia (Tel [phone]) If this product
has materials or workmanship defects (other than defects caused by abnormal or non warranted use) you can, at your cost, send the product to place of
purchase, an authorised Kincrome service agent or one of Kincromes addresses for repair or replacement. Your rights under this warranty are in addition to
any other rights you have under the Australian Consumer Law or other applicable laws. Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. For further details
please visit www.kincrome.com.au or call us. Due to minor changes in design or manufacture, the product you purchase may sometimes differ from the one shown on the packaging.
WARRANTY*
5 YEAR
220090
WARNING
TIP AND ATTACHMENTS GET EXTREMELY HOT DURING AND AFTER USE, ALLOW ADEQUATE COOLING TIME BEFORE TOUCHING
MAINTENANCE
This power tool normally requires no maintenance; from time to time the ventilation slots on the motor casing should be cleaned
out. If the unit should become defective, repair should be performed by an authorized service agent for electric tools.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial
solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
Warning!
Do not at any time let brake fluids, gasoline, petroleum based products, penetrating oils, etc., come in contact with plastic
parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.
