KBL Tower space 2000 User manual

OPERATING INSTRUCTIONS

Copyright and Trademark
© Copyright 2015 KBL AG
This documentation only covers products manufactured by KBL AG. It must not be duplicated, photocopied,
translated or stored without prior special consent by KBL AG. Duplication on electronic media or in a machine-
readable form, either in whole or in part, is also prohibited.
is a registered trademark of KBL AG.
DISCLAIMER
All information given in this document correspond to the status quo at the date of publication but may be subject
to changes. Therefore, we do not accept any liability for, nor do we guarantee the accuracy and/or completeness
of the information.
EXPORT
Technical equipment and versions of the devices are in accordance with the legal prescriptions of the respective
country of destination. Export to the European Union of the KBL products, listed in this guide, or operation of
the systems in these countries, are not permitted. KBL does not accept any manufacturers liability in case this
direction is not adhered to. It is expressly pointed out that any violation of the export/operation prohibition will
involve substantial risks of liability for the exporter and/or operator.
MANUFACTURER
KBL AG
Ringstraße 24-26 · 56307 Dernbach · Germany
CONTACT
PC Tan, Inc.
1040 Wilt Avenue
Ridgefield, NJ 07657, USA
1-800-FAST TAN (327-8826)
TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS
Version: BA_space2000_US_H
Date: 06/2015
Item no: 0100036507
Tanning device name [tech.]: T3/50 - 180 u

Operating Instructions |KBL Tower space 2000
4
Contents
1. General information .......................................... 5
1.1 About these instructions ............................... 5
1.2 Safety signs................................................... 5
1.3 Transport by forklift truck .............................. 5
1.4 Other modes of transport.............................. 6
1.5 Environmental regulations............................. 6
1.6 Service........................................................... 6
1.7 Updating system software ............................ 6
2. Safety notes ....................................................... 7
2.1 General safety notes ..................................... 7
2.2 Duties of the operator ................................... 7
2.3 Intended use.................................................. 8
2.4 Indications for use......................................... 8
2.5 Contraindications .......................................... 8
2.6 Warnings ....................................................... 8
2.7 Timer controlled operation ............................ 8
2.8 Guidelines for the use of prot. eyewear ........ 8
2.9 Wearing a hair net ...................................... n/a
3. Description of the tanning device.................... 9
3.1 Standards...................................................... 9
3.2 Components.................................................. 9
3.3 Functionality............................................... n/a
4. Connections..................................................... 10
4.1 Class I ME equipment ................................. 10
4.2 Overview supply connections ..................... 10
4.3 Connecting the mains voltage..................... 10
4.4 Connecting an external audio source ......... 11
4.5 Level adjustment studio music................... 11
4.6 Operation using different audio sources ..... 11
4.7 Bluetooth connection.................................. 12
4.8 Connecting the channel selection............... 13
4.9 Connecting the external timer..................... 13
4.10 aquaCool and Aroma connections........... n/a
4.11 aquaCool-box connections....................... 14
4.12 Connections aquaCool box /tower ........... 14
5. Start-up ............................................................ 15
5.1 Operating modes......................................... 15
6. Tanning instructions........................................ 16
6.1 Instructions for the user .............................. 16
6.2 Exposure schedule...................................... 17
7. Tanning mode .................................................. 18
7.1 preSelection ...............................................n/a
7.2 Starting the tanning session........................ 18
7.3 Operation during the tanning session ......... 18
7.4 Basic functions............................................ 20
7.5 Variable section of the interior control
panel............................................................ 20
8. Standby mode / service mode ..............................22
8.1 Layout of the interior control panel
numbers ...................................................... 22
8.2 Switching the decorative lighting
on and off .................................................... 22
8.3 aquaCool spraying test ............................... 22
8.4 Invoking the service menu .......................... 22
8.5 Service menu - Basics ................................ 23
8.6 Service menu - Overview ............................ 25
8.7 PIN protection ............................................. 26
8.8 Service menu - options ............................... 26
8.9 Set decorative lighting................................. 37
9. Maintenance and cleaning ............................. 38
9.1 Instructions for cleaning and care............... 38
9.2 Maintenance intervals ................................. 38
9.3 Tools and aids ............................................n/a
9.4 Unlocking the bed ......................................n/a
9.5 Acrylic panes............................................... 39
9.6 Filter panes................................................. n/a
9.7 Tubes........................................................... 40
9.8 P2 Tubes..................................................... n/a
9.9 Facial tanners............................................. n/a
9.10 Shoulder tanner........................................n/a
9.11 Interior unit lighting.................................... 40
9.12 Filter cartridges ........................................ n/a
9.13 Canopy drive ............................................n/a
9.14 Ventilation and air-conditioning................ n/a
9.15 Recording to an SD card........................... 42
9.16 Replacing Aroma and aquaCool media .... 42
9.17 Replacing the aquaCool canister .............n/a
9.18 Replacing the aquaCool nozzles............... 44
10. System messages ......................................... 45
11. Technical Data ............................................... 47
11.1 Views ......................................................... 48
11.2 Labels attached to the tanning device
(examples) ................................................. 49
12. KBL EQUIPMENT WARRANTY..................... 50
13. WARRANTY CARD ........................................ 54

Operating Instructions |KBL tower space 2000 5
1.1 About these instructions
This operating manual is intended for use by
• operating staff,
• users,
• service staff.
Any person dealing with this KBL Sunlamp Product
(hereafter referred to as tanning device) must have
read and understood these instructions.
This manual describes tanning devices equipped
with the maximum number of features.
Keep this manual ready to hand at all times.

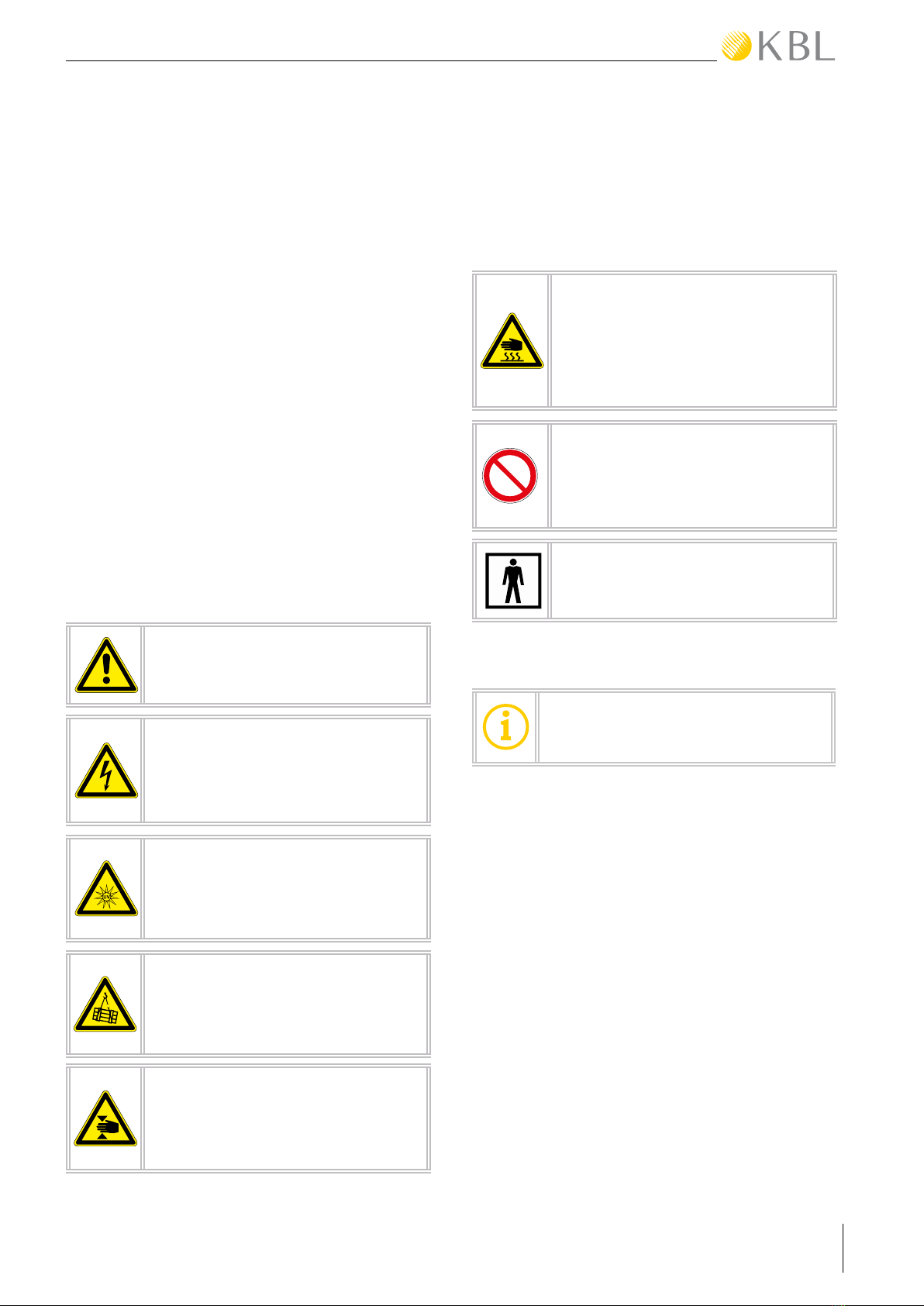

1.2 Safety signs
This symbol indicates that general haz-
ards exist for the human health.
This symbol indicates that due to elec-
trical tensions hazards exist to the
human health.
This symbol indicates that due to UV
radiation hazards exist to the human
health.
This symbol indicates that due to fall-
ing loads hazards exist to the human
health.
This symbol indicates the danger of
pinching.
When closing and opening panels and
covers, you can pinch your hands.
This symbol indicates the danger of
burns from hot lamps and housing parts.
If the tanning device was operated
before being switched off and opened,
lamps and housing parts may be hot.
This symbol indicates that damages
may occur at the tanning device, at the
material or at the environment.
This symbol indicates the type BF
applied part.
IMPORTANT INFORMATION
This symbol does not identify safety
notices, but states information for a bet-
ter understanding.
1.3 Transport by forklift truck
The box with the tanning device components is
mounted on a pallet.
• Insert the forks carefully into the openings of the
pallet.
• Lift the load by a few centimetres.
• Transport the load carefully to the place of
installation.
1. General information

Operating Instructions |KBL Tower space 2000
6
1.4 Other modes of transport
WARNING
Overturning load
Danger of being crushed by heavy parts
of the equipment.
• Wear safety shoes.
If a forklift truck cannot be used for transport, the
box must be unpacked and the parts inside must be
transported individually to the place of installation,
e.g. using a dolly. Depending on the weight of the
components, lifting them might require several
people.
1.5 Environmental regulations
(disposal of lamps)
Fluorescent lamps contain fluorescent materials
and other waste products containing mercury.
Some areas of the USA and Canada have specific
regulations regarding disposal of these waste. Please
check the laws in your area and act in accordance
with municipal waste regulations. Please retain proof
of proper disposal of lamps. Your local regulatory
agency can assist you with the disposal of lamps.
Report the number of lamps to your local agency by
telephone or in writing. The regulatory agency can
provide you with a delivery point for your lamps or will
take care, in conjunction with a disposal company,
of the collection and proper disposal of the lamps
(Fees for this may apply). Please contact your code
enforcement officials for more information regarding
laws governing disposal of these components in
your area.
WARNING
Risk of mercury toxicity
Risk of contact with mercury after a
lamp breakage.
• Ventilate the room / environment at least
15 minutes before disposing the lamp
fragments.
1.6 Service
REPAIRS - SERVICE - REPLACEMENT - PARTS
AND LAMPS - EYE PROTECTION
If you are in need of any of the above mentioned
products or services, you should contact:
PC Tan, Inc.
1040 Wilt Avenue
Ridgefield, NJ 07657, USA
1-800-FAST TAN (327-8826)
NOTE: All repairs and replacement components
including, but not limited to protective eyewear,
lamps, timers and acrylic must be in compliance with
CFR 21 1040.20.
ACCESSORY PARTS
Description KBL item no.
Protective eyewear 3010104000
Headrest 3010212010
Technical documentation like operating and assem-
bly instructions as well as diagrams and original
spare parts can be provided by KBL.
1.7 Updating system software
Risk of damage by switching off the
power supply voltage.
Disconnecting power supply during the up-
date process, will lead to damage of electronic
components.
• Make sure that the tanning device is not dis-
connected from the power supply voltage dur-
ing the update.
To accomplish the update download the “USB-
Connect” software offered by KBL. For detailed
information press the help-button in the main menu.

Operating Instructions |KBL tower space 2000 7
2.1 General safety notes
Read the operating instructions before using the tan-
ning device.
This tanning device must be operated with an exter-
nal timer as specified in chapter Timer controlled
operation .
NOTE: This tanning device is intended to be uses by
only one adult person at a time. Therefore, only one
(1) pair of protective eyewear is provided with each
KBL tanning device. Use protective eyewear when-
ever the tanning device is operated. Read related
operating instructions in chapter Guidelines for the
use of protective eyewear .
Do not tan more than once in a 24 hour period.
Tanning results normally occur after a few sessions
and increase after four (4) weeks of regular expo-
sure. Follow the exposure schedule in accordance
with your skin type as specified in chapter Exposure
schedule. Failure to do so may result in overexpo-
sure. However, regardless of how dark an individual
may tan on this tanning device, it will not provide
adequate protection against overexposure to natural
sunlight or UVB tanning devices.
SKIN TYPE II - This is the individual that usually
burns easily and severely, tans minimally or lightly
and peels.
SKIN TYPE III - Often referred to as „AVERAGE“ com-
plexion. Burns moderately and tans about average.
SKIN TYPE IV - This individual burns minimally, tans
easily and above average with each exposure.
SKIN TYPE V - This individual rarely burns, tans eas-
ily and substantially.
FURTHER INSTRUCTIONS
WARNING
No modification of this equipment is allowed.
• Follow all instructions given in this manual. In addi-
tion to that, observe all applicable statutory provi-
sions and regulations, also those applicable in the
country of operation.
• The appliance may only be installed and assem-
bled by specifically trained staff.
• Observe all danger signals and safety signs
attached to the equipment.
• Safety signs must not be removed, and safety
appliances must not be disabled.
• The tanning device may only be operated when in
perfect working condition.
• Never operate the tanning device with the outer
covering removed or with the acrylic panes
removed.
• Pay attention to the load limit of the floor plate
(tower devices only).
• The tanning device operated in the circulating-air
mode may not be connected to an exhaust air sys-
tem.
2.2 Duties of the operator
The manufacturer cannot be held liable for damages or
injuries resulting from improper use of the equipment
or non-observance of these operating instructions.
Only use original spare parts, otherwise operating
authorization and terms of guarantee will become
invalid.
2. Safety notes

Operating Instructions |KBL Tower space 2000
8
2.3 Intended use
This tanning device is intended for the cosmetic
tanning of the human skin.
This tanning device is designed for use by one
adult person at a time who is in full command of her
physical, sensorial and mental faculties. Moreover,
sufficient knowledge and experience are required.
Wear protective eyewear to block UV radiation during
tanning.
Stand in the middle of booth, with body positioned
an equal distance from the surrounding lamps.
CAUTION: THE USE OF ANY OTHER POSITION
MAY RESULT IN OVEREXPOSURE.
You must reach the interior control panel at all times
during the tanning. During the operation no other
person shall be in the radiation range of the tanning
device. Children, should be supervised to make
sure that they do not use the tanning device as a toy.
2.4 Indications for use
Any adult person that is not listed under chapter
Contraindications may use this tanning device for
the purpose of cosmetic tanning. In doubt consult a
physician.
2.5 Contraindications
This sunlamp product is contraindicated for use on
persons under the age of 18 years.
This sunlamp product must not be used
• if skin lesions or open wounds are present.
• by persons wearing heart pacemakers.
• by persons prone to sunburn (skin type I).
• by persons already suffering from sunburn.
• by persons taking medicines.
• by persons taking photosensitive medications.
• by persons, who had several severe sunburns as
children.
• by persons, who are being treated by a physician
for conditions associated with photosensitivity.
• by persons, who are prone to freckles.
• by persons with atypical discolored skin areas
or/and with more than five atypical moles with a
diameter of 5 millimeters or more and persons with
more than 16 moles with a diameter greater than or
equal to 2 millimeters. If in doubt, consult a physi-
cian!
• by persons with naturally red hair color.
• by persons, who do not tan at all or cannot tan
without getting sunburn.
2.6 Warnings
• This sunlamp product should not be used on indi-
viduals who have had skin cancer or have a family
history of skin cancer.
• Persons repeatedly exposed to ultraviolet sunlamp
products should be regularly evaluated for skin can-
cer.
2.7 Timer controlled operation
This tanning device must be operated with an external
timer that is listed in compliance with UL 917.
If the external timer fails, the tanning device is auto-
matically switched off by an internal timer after the
TE-time of the respective type of tanning device.
The maximum tanning time must not be exceeded.
2.8 Guidelines for the use of
protective eyewear
Before use, the length of the elastic strap must be
adjusted to the required head size. For maximum
protection to elevate stray light, the eye protection
must fit securely and comfortably on the eyelids. If is
any stray light from the sides or under the rim of the
lens, DO NOT USE this eye protection. Ask the stu-
dio staff to recommend an alternative eye protection.
Never use eye protection lenses that are broken,
cracked, bleached out, or otherwise damaged.

Operating Instructions |KBL tower space 2000 9
3.1 Standards
This product is in conformity with performance
standards for sunlamp products under No. 21 CFR
1040.20.
3.2 Components
FRONT SIDE, DOOR OPENED
1 Door
2 Top crown
3 Facing of unit lighting at top crown
4 Grab handle, left-hand side
5 Interior control panel
6 Rear wall
7 Lateral part, right-hand side
8Floor plate
9 Lateral part, left-hand side
10 Door handle
FRONT AND TOP PART, DOOR CLOSED
①
②
③④
1Door
2 Overhead ventilation opening
3 Fan casing
4 Exhaust opening
SIDE VIEW, DOOR OPENED
1 Door handle, inside
2 Top crown
3 Fan casing
4 Rear wall
5 Supply connections
3. Description of the tanning device

Operating Instructions |KBL Tower space 2000
10
4.1 Class I ME equipment
WARNING
Risk of electric shock
To avoid the risk of electric shock, this
equipment must only be connected to a
supply mains with protective earth.

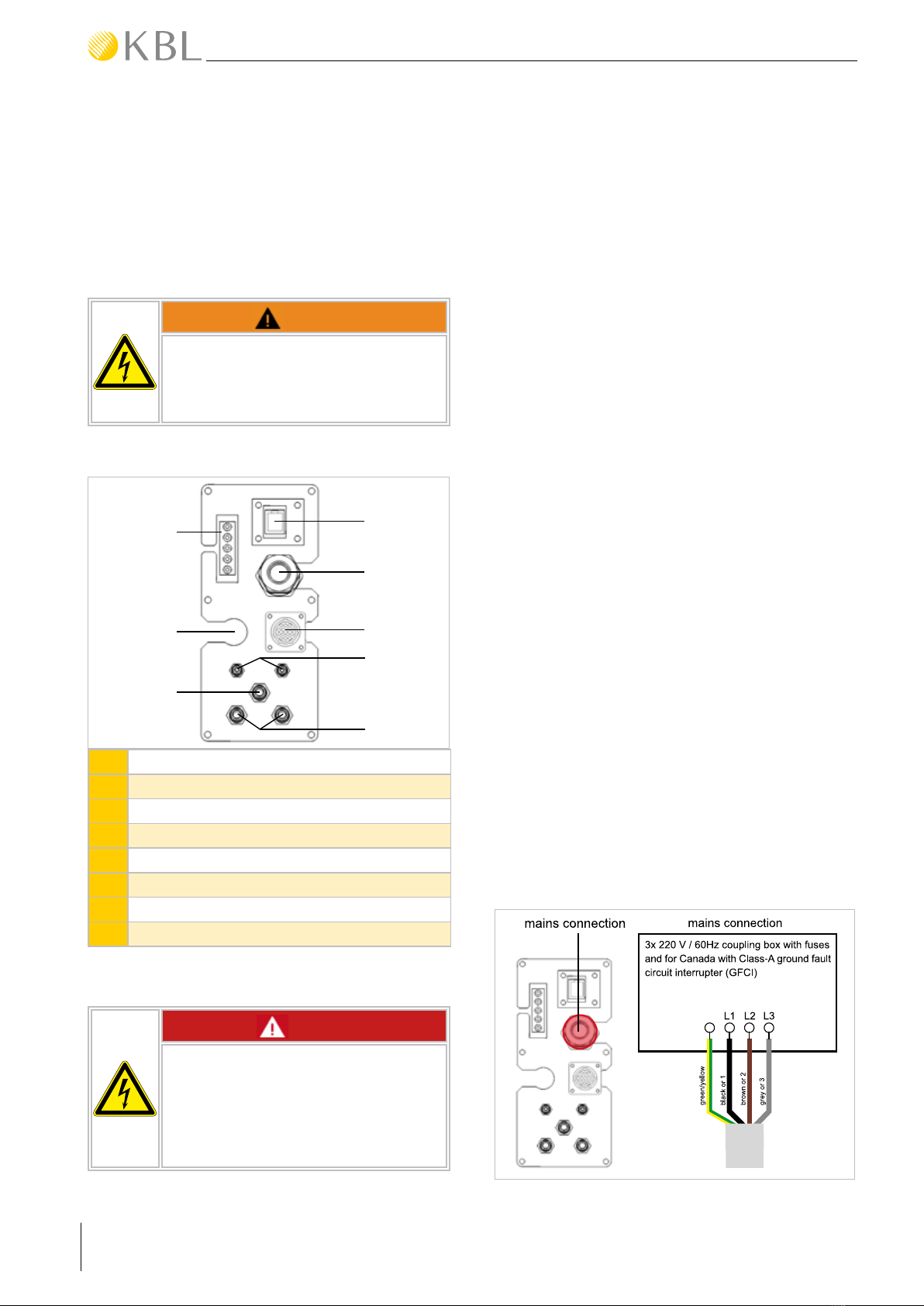

4.2 Overview supply connections
1
2
5
3
4
6
7
8
1 Mains voltage aquaCool box
2 Audio connection / channel selection
3 aquaCool - air (blue)
4 Aroma
5 aquaCool - liquid
6Connection of external timer (coin-box system)
7 Power supply
8 Data cable Tower/aquaCool-Box
4.3 Connecting the mains voltage
DANGER
Live parts
Risk of fatal injury due to electric shock
when touching live parts.
• Switch neutral and secure against recon-
nection.
Both the power supply and the related connection
work must comply with national standards. The
connection work and replacement of the power
supply cord must only be performed by qualified
expert staff. The connection to the 3 x 220 V mains
must be protected by fuses. Their specifications are
listed in the chapter “Technical data”.
CONNECTION REQUIREMENTS
The electrical installation must be equipped with a
freely accessible all-pole disconnecting device in
accordance with the overvoltage category III. (Master
switch with clearly marked on/off settings e.g. “O”
and “I” or additional indicator light). This means that
for full separation each pole must have a contact gap
according to the conditions of the overvoltage cat-
egory III. The device shall be capable of being locked
in the off-position and shall comply with IEC 60447.
A supply main switch must not be incorporated in
the power supply cord. A Class-A ground fault circuit
interrupter (GFCI) has to be used for Canada. Should
the operation of the tanning device cause any inter-
ference in the power supply network, e.g. with ripple-
control systems (TRA), consult your power supply
company to have corresponding blocking elements
(audio frequency suppressors) installed.
GND
4. Connections

Operating Instructions |KBL Tower space 2000 11

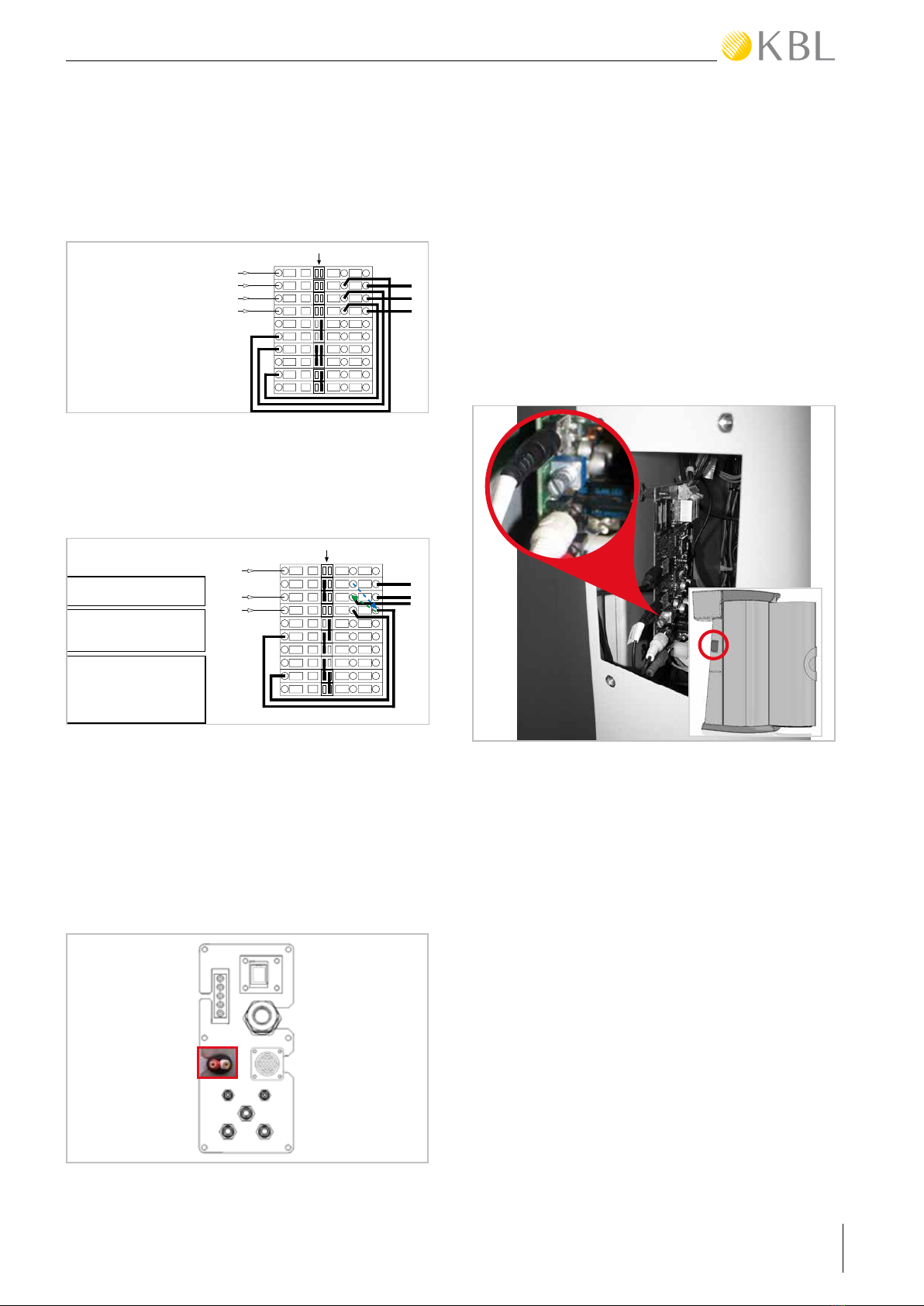

The tanning device is by default set up to operate
on 3 phases but it can be changed over to 2-phase
operation. The wiring for 3-phase operation is shown
below:









   





The wiring for 2-phase operation is shown below.
• Re-wire the 3 cables according to the diagram.
• Make sure that you use the right cable for the
power supply.



















   







4.4 Connecting an external audio
source
The cinch marked in the illustration is connected to
the external audio source where the line-out of the
sound player or the headphone/loudspeaker jack are
available for connection.
4.5 Level adjustment studio
music
The voice / audio system components are installed in
the back part of the tanning device. The potentiometer
which serves to adjust the external audio signal level
is accessible through a maintenance hatch on the left
hand side of the tanning device. To avoid overdrive,
select the level adjustment accordingly. The level
setting depends on the strength of the external signal
and should be carried out by a service engineer.
4.6 Operation using different
audio sources
The tanning device can be operated using the
following audio sources:
• An internal audio source
• Various external audio sources
• All available audio sources
The audio source can be changed via the control
panel.
INTERNAL MP3 PLAYER
When using the internal MP3 player, you can either
play the music tracks that are originally supplied on
the SD card, or you can record your own tracks to
the SD card.

Operating Instructions |KBL Tower space 2000
12
EXTERNAL AUDIO SOURCES - LINE IN
As an external audio source, you can connect
devices ranging from the standard-line level to low
loudspeaker levels.
These sources comprise:
• Studio music
• External players such as MP3 players, mobile
phones (cell phones), I-pods, etc.
EXTERNAL 100 V AUDIO SIGNAL ON STUDIO
CHANNEL (OPTIONAL FEATURE)
If you decide for a connection to a 100 V audio
system, you will need a transformer (KBL no.: 9100
0170 00) for the transmission of the audio signal.
This connection must be made by trained service
staff.
EXTERNAL PLAYERS
A line connection has been integrated into in the
head area near the interior control Panel so that
the user can connect his or her own player such
as an MP3 player, an iPod, etc. Use a stand-
ard 3.5mm jack cable (included if the music
option has been ordered). Connect the jack plug
to the earphone jack of your player. Then select
”MP3 ext.” as the audio source from the ine-
rior control panel of the tanning device before you
start playing your own tracks from the player. The
tracks can only be selected via the user’s own
player. The volume can be controlled via the control
panel of the tanning device and also via the corre-
sponding operating elements provided by the user’s
player.
4.7 Bluetooth connection
To connect an external player (smartphone etc.) wire-
lessly to the solarium an optional Bluetooth interface
is available.
CONNECT EXTERNAL PLAYER
A bluetooth connection can be established in standby
and during tanning mode.
Make sure that you are within the recep-
tion area (about 2 meters).
Make sure that your device is configured
to search for other bluetooth devices.
Should this not be the case, enable blue-
tooth manually. To do so, please read the
instructions for your appliance.
• Depending on your settings the search will be
performed automatically or manually. All available
bluetooth devices within reach will be listed after
a short time.

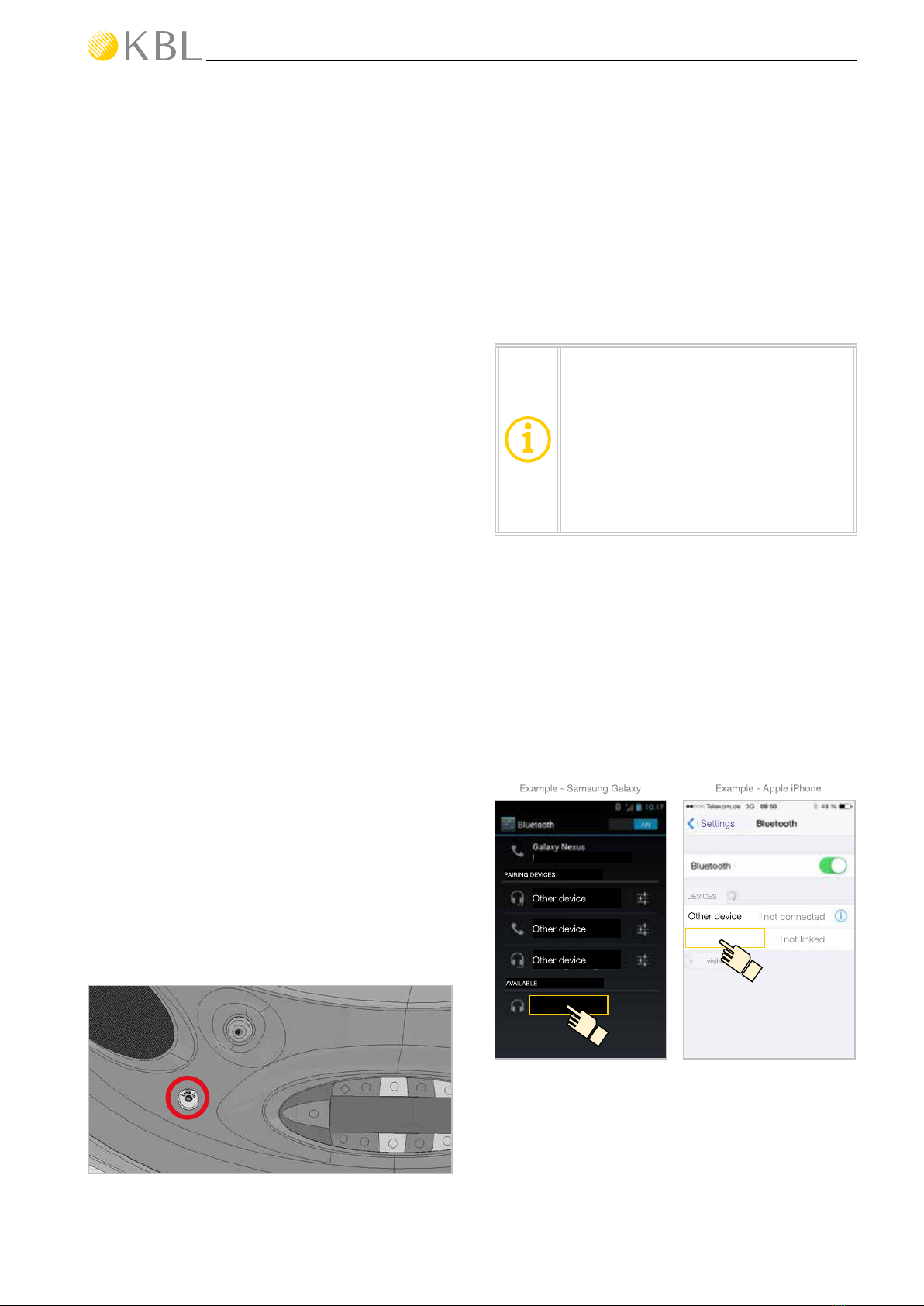

• Among the available devices choose “KBL Sound”.
In the service menu, a trailing number (01, 02, 03,
...) can be added to device name.
• If necessary confirm the shown code and connect
again. Not every smart phone asks for a code.
KBL Sound 01
KBL Sound 01
• A two-time beep indicates that your device is con-
nected to the solarium.

Operating Instructions |KBL Tower space 2000 13
KBL Sound 01
KBL Sound 01
• Set your device to a medium volume level and
start the music.
• Adjust the volume level on your device.
• During the tanning session, the volume control has
to be done at the tanning device.
DISCONNECT EXTERNAL PLAYER
An existing connection is disconnected automati-
cally after tanning.
The connection is automatically disconnected if the
tanning session is not started within 6 minutes.
COMPATIBILITY OF BLUETOOTH DEVICES
KBL AG attaches great importance to hardware com-
patibility. Due to the large number of manufacturers,
KBL can not guarantee a 100 % compatibility. In rare
cases, it may happen that a bluetooth connection
can not be established.
CORRECTIVE ACTION
Each unit offers a list of paired devices. Delete the
older entries in this list which have a profile that over-
laps with the ones for which you want to pair your
device.
Start the bluetooth device detection again.
4.8 Connecting the channel
selection

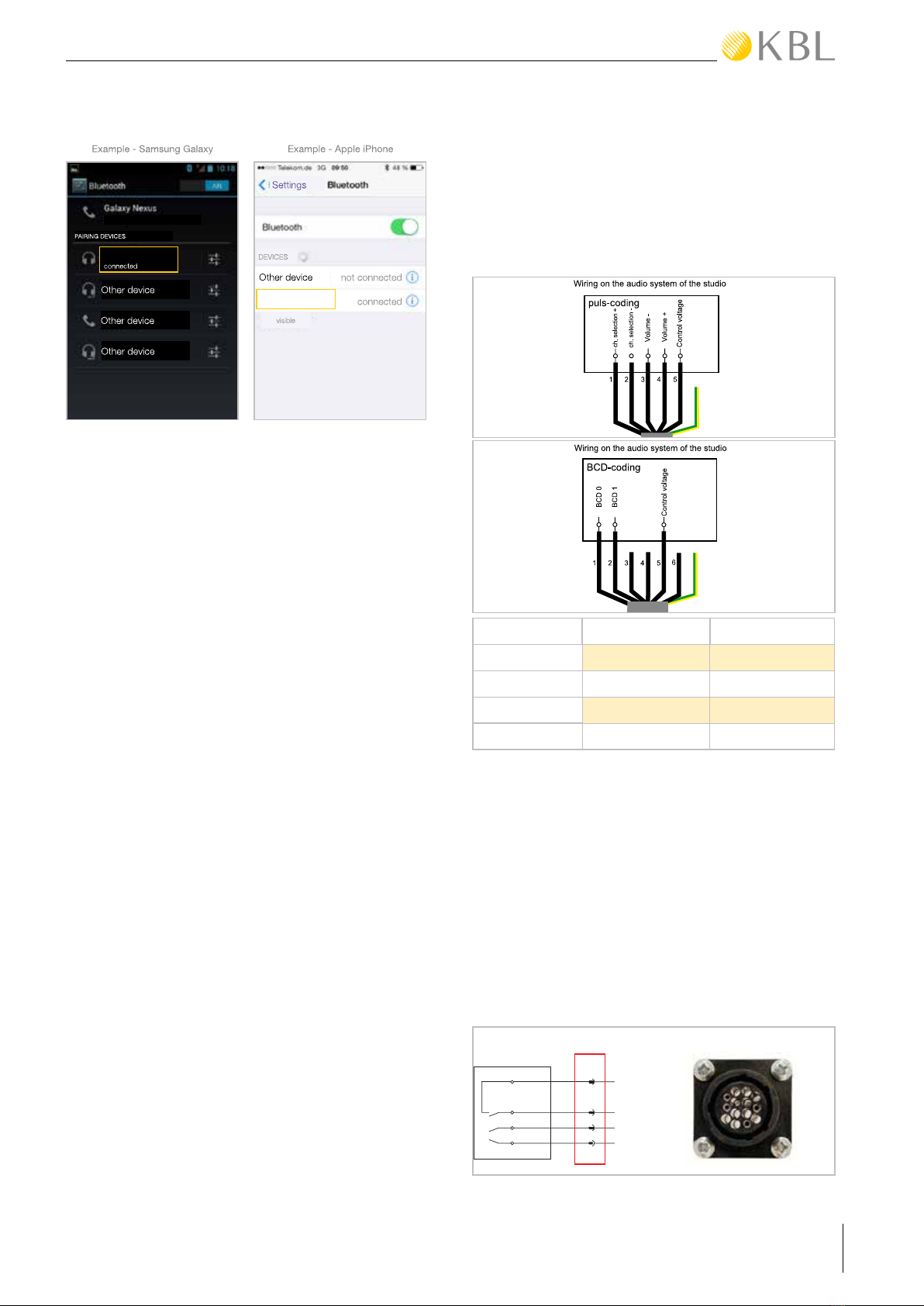

The following diagrams show the wiring of the chan-
nel selection on the audio equipment’s side, for pulse
coding as well as for BCD coding.
CHANNEL BCD 0 BCD 1
1 0 0
2 1 0
3 0 1
4 1 1
4.9 Connecting the external
timer
CONNECTING VIA AMP PLUG (DEFAULT)
Connect the external timer (e.g. coin box, studio
control) according to the instructions supplied with
the timer. The connection is made via the socket
for an AMP plug on the back side of the device.
The following diagram shows the wiring of the timer
connection.










Operating Instructions |KBL Tower space 2000
14
T-MAX BOX
T-MAX CONNECTOR PANEL
4.11 aquaCool-box connections
1
2
3
5
4
1 aquaCool - liquid
2 aquaCool - air (blue)
3 Aroma
4 Mains voltage aquaCool box
5 Data cable Tower/aquaCool-Box
4.12 Connections aquaCool
box /tower
aquaCool box
Tower

Operating Instructions |KBL tower space 2000 15
5. Start-up
Before switching on for the first time:
• Fix the supplied warning sign or one with the
following wording permanently to the wall close to
the tanning device:
Warning
• UV-radiation can cause eye and skin damage
as well as skin aging and possibly skin cancer.
Ask the studio staff for further information.
• Wear protective goggles.
• Certain medicines or cosmetics can increase
the sensitivity of the skin to UV radiation. If in
doubt, consult a physician.
• Determine the presettings for the device in the
service menu.
• Check correct installation of fluorescent tubes. The
tube labeling must be visible, otherwise no tanning
effect may be obtained.
• Store these Operating Instructions in a place that
allows for easy access at any time.
5.1 Operating modes
The three different operating modes are explained
below:
STANDBY MODE
The tanning device is in an idle state, i.e. it is
connected to the mains but is currently not being
used. The tubes and the tanning lamps are switched
off. From the standby mode, you can change over to
the tanning mode or to the service mode.
TANNING MODE
The tubes and the tanning lamps are switched
on and a tanning session is in progress. While the
tanning device is in tanning mode, the settings for
the ongoing tanning session can be changed via the
interior control panel.
SERVICE MODE
In the service mode, the device is configured for the
tanning mode. Various values can be displayed and
test functions can be carried out.
FAN RUN-ON
After the tanning session, the fan runs on for 3
minutes in order to cool down the device. The fan
power is automatically decreased as the tubes cool
down.

Operating Instructions |KBL Tower space 2000
16
6. Tanning instructions
Tanning normally begins after one to two exposures
and maximizes after one to four (1-4) weeks of expo-
sure following the recommended schedule for your
skin type.
NO SUNSCREEN WITH PROTECTION FACTOR
Sunscreens with sun protection factors are unsuit-
able for use in a tanning studio. For tanning, the skin
should have been thoroughly cleaned and dry. For
optimum skin care, we particularly recommend using
our line of body care products after tanning.
6.1 Instructions for the user
Observe the following tanning instructions.
• Only the individuals described in the chapter Indi-
cations for use may use the tanning device.
• The different skin types tolerate the sun and hence
tanning times to a different degree. Please observe
the specifications in the skin-type table (supplied
with the tanning device) and the tanning times. After
having reached the ultimate tan, further tanning
can only be achieved by substantially exceeding
the allowed tanning times. This must absolutely be
avoided.
• The UV radiation of the sun or of UV appliances
can cause damage to the skin or to the eyes. These
biological effects depend on the type and amount
of radiation as well as on the individual sensitivity of
the skin.
• After excessive exposure to radiation, the skin may
exhibit sunburn. Excessively repeated exposure to
UV radiation of sunlight or UV appliances can result
in premature ageing of the skin and in a higher risk
of skin cancer.
• The unprotected eye can suffer from surface
inflammation and in certain cases, e.g. after a cat-
aract operation, excessive radiation can damage
the retina. After many repeated sessions a cataract
might form.
• Do not expose yourself to UV radiation if you take
medicine that increase the sensitivity to ultraviolet
radiation. When in doubt, seek medical advice.
• It cannot generally be assumed that the use of a
tanning device reduces the risk of getting a sun-
burn.
• Seek medical advice if persistent swellings or
skin sores develop or pigmented moles change in
appearance.
FOR EACH TANNING SESSION
• Always wear the supplied protective goggles.
• Remove cosmetics before the session and do not
use any sunscreen.
• Allow for at least 24 hours to pass between
sessions.
• After a tanning session in a studio, do not take
another sunbath out of doors on the same day.

Operating Instructions |KBL Tower space 2000 17
6.2 Exposure schedule
For the precise definition of the skin types, please
refer to the supplied skin-type table.
If the tanning-session sequence is interrupted for 4
weeks or more, you will have to start with the first
session again.
The times mentioned in the tanning schedules
are only valid for tubes and facial tanners that are
replaced according to the maintenance intervals ∗.
Skin type
II -
Fair
III -
Average
IV -
Brown
V - Dark
Brown
Week 1
1st - 3rd
Session
2 min 2 min 2 min 2 min
Week 2
4th - 6th
Session
4 min 5 min 5 min 5 min
Week 3
7th - 9th
Session
6 min 7 min 8 min 8 min
Subsequent
Weekly
Session
8 min 10 min 11 min 11 min
Maximum exposure is 11 minutes.
∗For tube set, see table “Technical data”.

Operating Instructions |KBL Tower space 2000
18
7. Tanning mode
STOP BUTTON
• Stops the tanning session
if pressed for at least two
seconds.
DISPLAY
• Shows the menu items and
functions.
• Indicates the tanning time.
• Information line.
ARROW BUTTONS
• Allows the selection of
subordinate functions.
START BUTTON
• Starts the tanning session during the warm-up
time
• as well as after an interruption caused by pressing
the STOP button, provided that the booked tan-
ning time has not elapsed yet.
Position
recessed button
+/-BUTTONS
• Control the functions.
DANGER
Excessive dose of UV radiation
Excessively prolonged tanning sessions
may cause severe damage to skin and
eyes.
• Never operate the solarium with a defective
timer.
• Observe the tanning times given in the
tanning schedule.
The following explanations and functions refer to a
tanning device that is fully equipped with all features.
7.2 Starting the tanning session
During the tanning session, the door must remain
closed in order to ensure that the ventilation works
properly.
• Close the door and place yourself in the middle of
the tanning device booth, with body positioned an
equal distance form the surrounding lamps.
• Put on protective goggles.
• The tanning session will commence automatically
after the warm-up time controlled by the timer has
elapsed. During the warm-up time, the tanning
session can be started manually at any time by
pressing the START button.

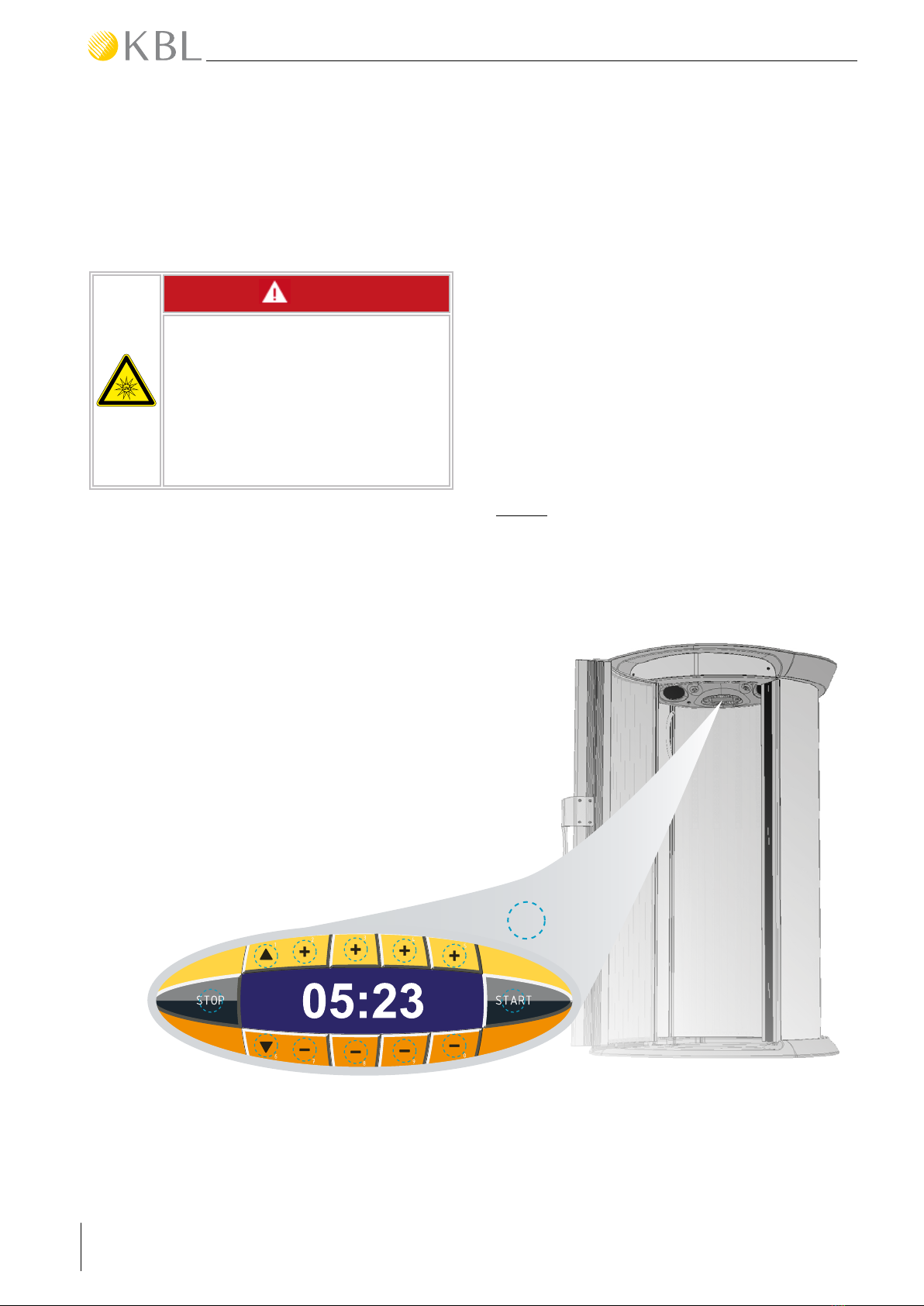

7.3 Operation during the
tanning session
You can control the functions of the tanning device via
the interior control panel during the tanning session.
It is particularly easy for you to access the basic
functions. Buttons with recesses that can easily be
sensed allow for easy operation of the system even
with your eyes closed.
NOTES:
20 seconds after your last input, the interior control
panel changes over to the indication of the tanning
time. An information line at the bottom edge of the
interior control panel informs you about currently
selected features.

Operating Instructions |KBL Tower space 2000 19
During the tanning session, you need quick access to basic functions
such as volume control, body fan and aquaCool.
You should also be in a position to change the subordinate functions.
The interior control panel caters for both requirements. You have
• direct access to frequently needed functions via the “Basic functions”
section, and
• access to the subordinate functions you made via the variable section
of the interior control panel (display according to the rotation principle).
During the tanning session, you continue to have access
to the subordinate functions. If you wish to make any
changes, you can do so in the variable section of the
control panel. By pressing one of the arrow buttons
, above or below the changeover symbol
, all available functions will be displayed one after the
other according to the rotation principle. You can switch
these individual functions on or off and, if possible, make
changes to the settings.
Selectable function symbols (for a fully equipped tanning device)
Aroma megaVoice MP3-intern Studio MP3-extern
VARIABLE SECTION OF THE
INTERIOR CONTROL PANEL
BASIC FUNCTIONS
The basic functions portrayed here
refer to a fully equipped tanning
device. If you have chosen a sim-
pler equipment package, functions
from the variable operating elements
automatically take the place of the
missing basic function.
Prerequisite:
The functions must be
available and activated in the
service menu.

Operating Instructions |KBL Tower space 2000
20
7.4 Basic functions
max/on
min/off
aquaCool
An ongoing spraying process cannot be stopped.
If the aquaCool supply is running low, a corre-
sponding message is displayed in the standby
mode. After the message has appeared for the
first time, the aquaCool supply will last for approx-
imately another 2.5 hours of operation. If the sys-
tem has run out of aquaCool liquid, the aquaCool
function is deactivated automatically, and the
symbol shown below is displayed.
aquaCool is automatically re-activated as soon as
a full canister has been connected.
Volume
max/on
min/off
Body fan
The body fan is auto-
matically controlled
by ACS. As soon
as you press one of
the fan buttons, the
automatic mode is
interrupted.
Keep pressed
for 2 seconds
Aroma megaVoice
aquaCool / Aroma
manual control
Alternative to automatic operation
aquaCool and Aroma can also be started
manually.
Service menu settings:
• With activated aquaCool the point Aqua/
cycle time must be set to “manual”.
• With deactivated aquaCool the point
Aroma/cycle time must be set to
“manual”.
By pressing the aquaCool- or Aroma plus
button, a spray cycle can be triggered.
7.5 Variable section of the
interior control panel
