KBL 3500 User manual

Operating Instructions
BA3500EN_E_USA (0608)

© Copyright 2005 KBL-Solarien AG
This documentation only covers products manufactured by
KBL-Solarien AG. It must not be duplicated, photocopied,
translated or stored without prior special consent by KBL-
Solarien AG. Duplication on electronic media or in a machine-
readable form, either in whole or in part, is also prohibited.
KBL-Solarien AG
Ringstraße 24-26 · 56307 Dernbach · Germany
Telephone [phone] · Fax [phone]
Copyright and Trademark

3
Contents
Importance of these instructions...............................................................................................4
Safety advice................................................................................................................................5
General safety advice........................................................................................................................ ...5
Intended use...................................................................................................................................... ...7
Duties of the operator........................................................................................................................ ...7
Transport......................................................................................................................................8
Transport by fork-lift truck.................................................................................................................. ...8
Other modes of transport .................................................................................................................. ...8
Description of appliance.............................................................................................................9
Views ....................................................................................................................................................9
Timer operation ................................................................................................................................. .12
Using different audio sources............................................................................................................ .12
Connecting the sunbed.............................................................................................................13
Connecting the power supply ............................................................................................................ .13
External timer .................................................................................................................................... .14
Start-up.......................................................................................................................................15
Operating modes............................................................................................................................... .15
Tanning instructions.................................................................................................................16
Instructions for the user..................................................................................................................... .16
Exposure schedules .......................................................................................................................... .17
Operation in tanning mode.......................................................................................................19
Displays in tanning mode .................................................................................................................. .19
Starting and suspending the tanning session.................................................................................... .20
Turning the facial tanners off and on ................................................................................................. .21
Adjusting the body fan....................................................................................................................... .21
Adjusting the volume (optional feature)............................................................................................. .22
Selecting the audio source (optional feature).................................................................................... .22
Operation in standby/service mode.........................................................................................24
Turning the decorative lighting on and off ......................................................................................... .24
Displays in service mode................................................................................................................... .24
Reading the power-on hours of the sunbed ...................................................................................... .26
Resetting the power-on hours of tubes and facial tanners ................................................................ .27
Number of tanning sessions.............................................................................................................. .27
Changing the language and country settings .................................................................................... .27
Adjusting the contrast of the display.................................................................................................. .27
Default setting of facial tanner........................................................................................................... .28
Availability of the MP3 player ............................................................................................................ .28
Availability of studio music................................................................................................................. .28
Playing music all the time or only during tanning .............................................................................. .29
Default setting of audio source.......................................................................................................... .29
Default setting of volume................................................................................................................... .29
Default setting of treble and bass for studio music............................................................................ .30
Default setting of treble and bass for MP3 player ............................................................................. .30
Maintenance and cleaning........................................................................................................31
Instructions for cleaning and care ..................................................................................................... .31
Maintenance intervals ....................................................................................................................... .32
Cleaning and replacing the acrylic panes.......................................................................................... .32
Cleaning and replacing the tubes...................................................................................................... .38
Cleaning/replacing the filter panes and replacing the lamps of the facial tanner .............................. .43
Replacing the decorative lighting ...................................................................................................... .47
Replacing the canopy drive ............................................................................................................... .53
Replacing the canopy drive ............................................................................................................... .53
Changing the SD card in the MP3 player .......................................................................................... .56
Uploading to the SD card .................................................................................................................. .58
Fault messages..........................................................................................................................59
Service........................................................................................................................................60
Technical Data ...........................................................................................................................61

Operating Instructions KBL 3500
4
Importance of these instructions
This operating manual is meant for use by
operators,
users,
service staff.
Any person dealing with this tanning unit must have
read and understood these instructions.
Keep this manual ready to hand at any time.
•
•
•

5
Operating Instructions KBL 3500
Safety advice
This chapter provides a summary of general information regarding
safety and proper handling of the tanning unit. More specific safety
advice is given in the further chapters of the operating manual.
General safety advice

Operating Instructions KBL 3500
6
Read the instruction booklet before using this device. This device must be
operated with an external timer that is in compliance with UL 917. The max-
imum tanning time must not be exceeded. This device may be used only by
persons over 18 years and is intended to be used by only one person at a
time. To use, lie down under canopy and pull down as far as adjustment will
allow.
CAUTION: THE USE OF ANY OTHER POSITION MAY RE-
SULT IN OVEREXPOSURE. Tanning can begin on a regular ba-
sis. An appearance of tanning normally appears after a few expos-
ures and maximizes after four (4) weeks of exposure.
WARNING: As the device is intended to be used by only one person at a
time, only one (1) pair of protective eyewear is provided with each KBL 3500.
Use protective eyewear whenever equipment is ener-
gized. Read the instruction booklet before using.
Follow the exposure schedule in accordance with your skin type. Fai-
lure to do so may result in overexposure. However, regardless of how dark
an individual may tan on this system, it will not provide adequate protec-
tions against overexposure to natural sunlight or UVB tanning systems.
SKIN TYPE II - This is the individual that usually burns easily
and severely, tans minimally or lightly and peels
SKIN TYPE III - Often referred to as „AVERAGE“ comple-
xion. Burns moderately and tans about average
SKIN TYPE IV - This individual burns minimally, tans
easily and above average with each exposure
SKIN TYPE V - This individual rarely burns, tans easily and substantially

7
Operating Instructions KBL 3500
Follow all instructions given in this manual. In addition to that,
observe all applicable statutory provisions and regulations, also those
applicable in the country of operation.
The appliance may only be installed and assembled by specifically
trained staff.
Arbitrary modifications or conversions of the equipment are non-
permissible.
Observe all danger signals and safety signs attached to the
equipment.
Safety signs must not be removed, and safety appliances must not be
disabled.
The unit may only be operated when in perfect working condition.
Never operate the sunbed with the acrylic panes removed or with the
bed section opened, since otherwise the tanner areas will overheat
and the filter panes be destroyed!
The tanning system has to be controlled via a timer that complies with
the generally applicable standards.
Intended use
The unit is intended to be used for the tanning of a person that does
not fall in one of the categories mentioned below. If one of these
factors is present, using the tanning equipment is prohibited.
The following individuals must not use the sunbed:
Persons under 18 years of age
Persons wearing heart pacemakers
Persons that, when exposed to sunrays, get sunburnt without showing
any previous tanning effect (skin type I)
Persons suffering from acute sunburn
Persons suffering, or having suffered, from skin cancer, or persons
with a corresponding predisposition
Persons taking medicines
Duties of the operator
KBL-Solarien cannot be hold liable for any damage resulting from
improper use or non-observance of these operating instructions.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Further instructionsFurther instructions

Operating Instructions KBL 3500
8
Transport
WARNING
Overturning Load
Danger of being crushed by heavy parts of the equipment.
Wear safety shoes.•
Transport by fork-lift truck
The box with the sunbed components is mounted on a pallet.
Insert the forks cautiously into the openings of the pallet.
Lift the load by a few centimeters.
Cart the load cautiously to the place of installation.
Other modes of transport
If a forklift truck cannot be used for transport, the box must be
unpacked and the parts inside have to be transported individually
to the place of installation, e. g. using a dolly. Depending on the
weight of the parts, lifting them might require several people.
•
•
•

9
Operating Instructions KBL 3500
Description of appliance
This product is in conformity with performance standards
for sunlamp products under No. 21 CFR 1040.20.
Views
1
3
2
6
2
8
4
5
7
9
1 Body fan 6 Display
2 Upper air intakes 7 Lower air intakes
3 Canopy 8 Front cover
4 Tubes, canopy 9 Tubes, bed
5 Facial tanners
(not in case of XXL units)
Front sideFront side

Operating Instructions KBL 3500
10
7
3
2
2
5

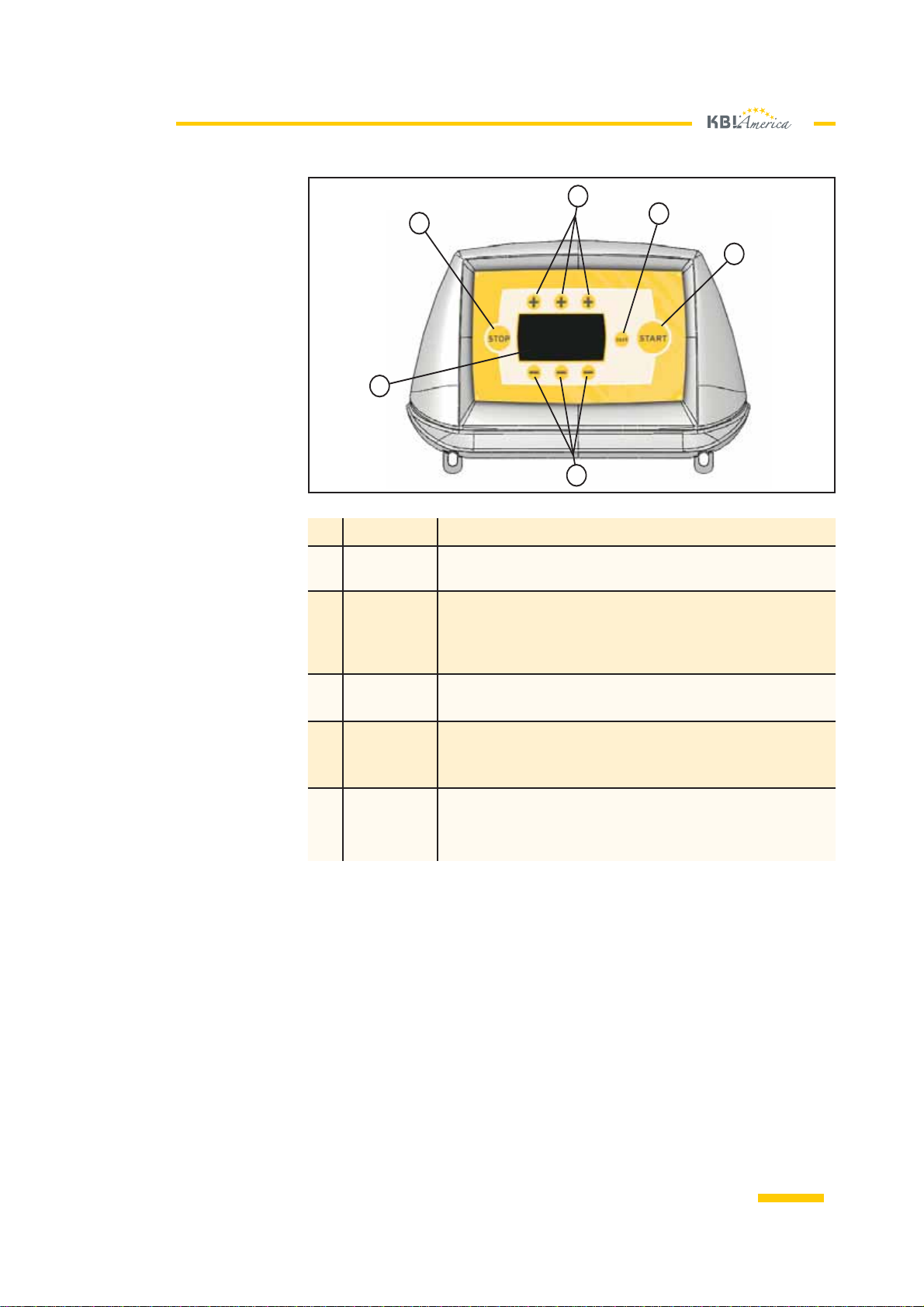

1
4
6
1 Body fan 5 Lower air-discharge opening
2 Upper air intakes 6 Power/timer connection
3 Canopy power cable 7 Upper air-discharge opening
4 Display control cable
Back sideBack side

11
Operating Instructions KBL 3500
1
4
3
2
6
5
1Display Shows “KBL” in standby mode.
2next Alternates between the menus available
in the current operating mode.
3START
button
Starts the tanning session:
During warm-up time
After suspending the session with the STOP button,
if the available tanning time has not elapsed yet.
•
•
4STOP button Suspends the tanning session if pressed
for at least two seconds.
5Plus button In tanning mode: Increases the value of
the function shown underneath.
In service mode: Executes the function shown underneath.
6Minus button In tanning mode: Decreases the value of
the function shown underneath.
In service mode: Executes the function shown underneath.
Control panelControl panel

Operating Instructions KBL 3500
12
Timer operation
This device must be operated with an external timer that is in compli-
ance with UL 917. The maximum tanning time must not be exceeded.
Using different audio sources
The option of using a music source is not included
in the standard model of the sunbed.
The audio source can be provided by the internal MP3 player of the
sunbed, an external audio source or both. The control panel allows
you to alternate between the internal and external audio sources.
When using the internal MP3 player, you can play the music that is
supplied on the SD card or you can store your own tracks on it.
As an external audio source, you can connect a device ranging from
the standard line level to the loudspeaker level. The required level
adjustment is done via the potentiometer on the audio board.
For further information, please refer to the chapters
“Connections” and “Service mode operation”.
Internal MP3 playerInternal MP3 player
External audio
source
External audio
source

13
Operating Instructions KBL 3500
Connecting the sunbed
Connecting the power supply
The power supply must be connected according to national
standards. This may only be carried out by qualified expert staff.
DANGER
Live components
Danger to life due to electric shock when touching live parts.
Switch off mains voltage.
Protect against re-connection.
•
•
The connection to the 220 V power-supply system has to be protected
by fuses. Their specifications can be found under “Technical Data”. A
ground fault circuit interrupter has to be used in any circumstance.
The power supply is connected to X.0. The connection cable has to
conform to the specifications mentioned under “Technical Data”.
Feed the power cable through the feedthrough
on the back side of the unit.
Inside the unit, feed the cable through the PG
connection at the electronics carriage.
Connect to X.0.
The sunbed is by default set up to
operate on 3 phases but it can be changed over to 2-phase operation.
1.
2.
3.
Power connectionPower connection

Operating Instructions KBL 3500
14
The wiring for 3-phase operation is shown below:
E2.10
X2.6
X2.3
X2.9
X6.6
X6.3
X6.9
F1.B
X1.2
X1.1
X9.7
K1.1
K1.3
K1.5
F0 N3 N2 N1 NL3L2L1PE
PE
L1
L2
L3
Mains
3 x 220 V / 60 Hz
1
2
3
The wiring for 2-phase operation is shown below.
Re-wire the 3 cables according to the diagram.
Make sure that you use the right cable for the power supply.
E2.10
X2.6
X2.3
X2.9
X6.6
X6.3
X6.9
F1.B
X1.2
X1.1
X9.7
K1.1
K1.3
K1.5
F0 N3 N2 N1 N L3L2L1PE
PE
L1
N(L2)
b idge
Mains
2 x 220 V / 60 Hz
1
2
3
External timer
Connect the external timer (e.g. coin box, studio control) according
to the instructions supplied with the timer. The connection is made
via the socket for an AMP plug on the back side of the device. The
following diagram shows the wiring of the timer connection.
time
L1
sta t
emote sta t
11
13
1
2
socket fo AMP plugAMP plug
1.
2.
3-phase operation3-phase operation
2-phase operation2-phase operation

15
Operating Instructions KBL 3500
Start-up
Fix the supplied sign or one with the following wor-
ding to the wall close to the tanning unit:
Warning
UV radiation can cause eye and skin injury. Please
ask the studio staff for further information.
Wear protective goggles.
Certain medications or cosmetics can increase
the sensitivity of the skin to UV radiation.
•
•
•
Determine the presettings for the sunbed in the service menu.
Store the instructions in a place that allows easy access.
Operating modes
The three different operating modes are explained below.
The unit is not operative, i.e. it is connected to the power supply but
it is not used. The tubes and facial tanners are switched off. From the
standby mode, you can change to tanning mode or service mode.
The tubes and facial tanners are switched on and tanning
proceeds. During the tanning mode, the settings for the current
tanning session can be changed via the control panel.
After the tanning session, the fan runs on for 3 minutes to cool down the bed.
In the service mode, the presettings for the tanning mode are
determined and you are prompted for values for the operation
of the unit. The tubes and facial tanners are switched off.
•
•
Standby modeStandby mode
Tanning modeTanning mode
Fan run-onFan run-on
Service modeService mode

Operating Instructions KBL 3500
16
Tanning instructions
Tanning normally begins after one to two exposures and
maximizes after one to four (1-4) weeks of exposure following
the recommended schedule for your skin type.
Cosmetics and even sunscreens are unsuitable for use in a tanning
studio. For tanning, the skin should be thoroughly cleaned and dry.
We particularly recommend the use of our AfterSun line of bodycare
products after tanning. That way your skin gets optimal care.
Instructions for the user
Observe the following tanning instructions:
Only the individuals described in the chapter “Intended use” may use
the sunbed.
The different skin types tolerate the sun and hence tanning times
to a different degree. Please observe the specifications in the skin
type table (supplied with the unit) and the tanning times. After having
reached the ultimate tan, further tanning can only be achieved by
substantially exceeding the allowed tanning times. This has to be
avoided in any case.
The UV radiation of the sun or UV appliances can cause damage to
the skin or to the eyes. These biological effects depend on the type
and amount of radiation as well as on the individual sensitivity of the
skin.
After excessive radiation the skin might exhibit sunburn. Excessively
repeated exposure to UV radiation of sunlight or UV appliances
can lead to premature ageing of the skin and to a higher risk of skin
cancer.
The unprotected eye can suffer from surface inflammation and in
certain cases, e.g. after a cataract operation, excessive radiation can
damage the retina. After many repeated sessions a cataract might
form.
Do not expose yourself to UV radiation if you take medicine that
increase the sensitivity to ultraviolet radiation. When in doubt, seek
medical advice.
It cannot generally be assumed that the use of a sunbed reduces the
risk of getting a sunburn.
Seek medical advice if persistent swellings or skin sores develop or
pigmented moles change in appearance.
•
•
•
•
•
•
•
•
GeneralGeneral
No sunscreenNo sunscreen
GeneralGeneral

17
Operating Instructions KBL 3500
Always use the supplied protective goggles and do not look into the
tanning lamps.
Remove cosmetics before the session and do not use any sunscreen.
Allow for at least 48 hours to pass between sessions.
After a tanning session, do not take another sunbath out of doors on
the same day.
Exposure schedules
For the precise definition of the skin types, please
refer to the supplied skin-type table.
If the tanning-session sequence is interrupted for 4 weeks or
more, you will have to start with the first session again.
The times mentioned in the tanning schedules are only valid for tubes and
facial tanners that are replaced according to the maintenance intervals.
KBL
3500
Super Power
Skin type
II -
Fair III - Average IV - Brown V - Dark Brown
Week 1
1st - 3rd Session 3 min 3 min 3 min 3 min
Week 2
4th - 6th Session 6 min 6 min 7 min 7 min
Week 3
7th - 9th Session 8 min 10 min 11 min 11 min
Subsequent
Weekly
Session
11 min 13 min 15 min 15 min
Maximum exposure is 15 minutes.
•
•
•
•
For each tanning
session
For each tanning
session
Unit type
Super Power
Unit type
Super Power

Operating Instructions KBL 3500
18
KBL
3500
Ultra Power
Skin type
II -
Fair III - Average IV - Brown V - Dark Brown
Week 1
1st - 3rd Session 3 min 3 min 3 min 3 min
Week 2
4th - 6th Session 6 min 6 min 7 min 7 min
Week 3
7th - 9th Session 8 min 10 min 11 min 11 min
Subsequent
Weekly
Session
11 min 13 min 15 min 15 min
Maximum exposure is 15 minutes.
KBL
3500
Super Power
XXL
Skin type
II -
Fair III - Average IV - Brown V - Dark Brown
Week 1
1st - 3rd Session 3 min 3 min 3 min 3 min
Week 2
4th - 6th Session 6 min 6 min 7 min 7 min
Week 3
7th - 9th Session 8 min 10 min 11 min 11 min
Subsequent
Weekly
Session
11 min 13 min 15 min 15 min
Maximum exposure is 15 minutes.
Unit type
Ultra Power
Unit type
Ultra Power
Unit type
Super Power XXL
Unit type
Super Power XXL

19
Operating Instructions KBL 3500
Operation in tanning mode
DANGER
Excessive dose of UV radiation
If the UV radiation of the facial tanner is not properly
filtered, or if the tanning session is prolonged excessively,
the skin and the eyes will be damaged severely.
Never operate the sunbed with a defective filter pane.
Carry out visual inspections regularly!
Never operate the sunbed with a defective timer.
Observe the tanning times given in the tanning schedule.
•
•
•
Tanning starts automatically after the warm-up time specified in the
timer has elapsed. During the warm-up time, the tanning session
can be started manually by pressing the START button.
Displays in tanning mode
During the tanning session, the tanning time so
far is diplayed as Minutes : Seconds. If the display
flashes, the session has been suspended.
If you press the next button or one of the plus/
minus buttons in standby mode or during tanning,
the available functions are displayed. The
settings can only be changed during the tanning
session. The KBL display or the tanning time is
shown either when the next button is pressed,
or automatically after approx. 10 seconds.
Tanning timeTanning time
Functions of
display 1
Functions of
display 1

Operating Instructions KBL 3500
20
M
P
3
Pressing the next button will invoke display 2.
Display 2 shows the available audio sources
and marks the selected one. If more than one
audio source is available, this display can be
used to change between the MP3 player and
studio music as well as to change between
individual tracks of the MP3 player.
Starting and suspending the tanning session
WARNING
UV radiation
UV radiation can cause skin and eye damages.
Observe the tanning instructions.
If in doubt, do not tan.
•
•
Lie down on the bed and fold down the canopy.
Put on the protective goggles.
If you want to start before the warm-up time has elapsed,
press the START button. After the warm-up time has elapsed,
the tanning session will commence automatically.
Press the STOP button for at least two seconds. As an acknowledgement,
you will hear a sound signal, and the display with the tanning time
starts flashing. Tanning is suspended but the time will continue to
be counted. The tanning session can be continued by pressing the
START button if the available tanning time has not elapsed yet.
After the time given by the timer has elapsed, tanning is terminated
automatically and the fan will run on for 3 minutes.
1.
2.
3.
Functions of
display 2
Functions of
display 2
StartingStarting
SuspendingSuspending
