TRANSLATION OF THE ORIGINAL ASSEMBLY INSTRUCTIONS
Version: TD-M-K9-en
Date: 10/2023
Item no: 0100036778

Assembly Instructions |megaSunK9S
4
Contents
1. General information .......................................... 5
1.1 About these instructions ................................ 5
1.2 Safety signs................................................... 5
1.3 Signal words.................................................. 5
...................................................... 6
1.5 Transport ....................................................... 6
2. Safety notes ....................................................... 7
2.1 General safety advice.................................... 7
3. Installation site & Dimensions ......................... 8
3.1 Dimensions and Distances............................ 8
4. Disassembly....................................................... 9
4.1 Tools and aids................................................ 9
4.2 Unpack tanning device and accessories ..... 10
4.3 Disassemble plastic parts............................ 12
4.4 Prepare back wall........................................ 14
4.5 Remove the ducting pane and the bench
pane ............................................................ 16
4.6 Remove front panel ..................................... 18
4.7 Remove Aqua/Aroma unit ........................... 21
4.8 Remove air conditioner ............................... 23
4.9 Remove bench ............................................ 24
4.10 Remove electronic box.............................. 26
4.11 Remove rear air duct ................................. 31
4.12 Fold down canopy ..................................... 32
4.13 Disassemble the canopy ........................... 33
4.14 Remove upper part of the canopy ............. 39
4.15 Remove lower part of the canopy.............. 40
4.16 Remove feet .............................................. 41
4.17 Transport rear wall..................................... 43
5. Assembly.......................................................... 44
5.1 Install Canopy.............................................. 47
5.2 Install display............................................... 48
5.3 Install bench ................................................ 49
5.4 Install front panel ......................................... 50
5.5 Adjust the feet and the lock of the bench .... 51
5.6 Install the ducting pane and the bench
pane ............................................................ 52
6. Connections & Initial operation ..................... 53
6.1 Connecting mains voltage .......................... 53
6.2 Connecting an external audio source.......... 54
6.3 Connecting channel selection ..................... 54
6.4 Level adjustment studio music signal.......... 55
6.5 Connecting external timer ........................... 55
6.6 Aqua Cool and Aroma connections ............. 56
6.7 Initial operation ............................................ 56

Assembly Instructions |megaSunK9S 5
1. General information
1.1 About these instructions
This manual is intended for use by
• studio operator,
• 
Any person, assembling or disassembling this tan-
ning device, must have read and understood these
instructions. Always keep this manual at hand.
1.2 Safety signs
-
ards exist for the human health.
This symbol indicates that due to electri-

health.
This symbol indicates that due to falling

This symbol indicates the danger of
pinching.
When closing and opening panels and
covers, you can pinch your hands.
This symbol indicates the danger of
burns from hot lamps and housing parts.
If the tanning device was operated
before being opened, lamps and hous-
ing parts may be hot.
This symbol indicates that damages
may occur at the tanning device, at the
material or at the environment.
Danger due to leakages.
The tanning device can be damaged by
leaking connections.
• Slide the plastic tube up to the stop into the
quick connector socket.
1.2.1 IMPORTANT INFORMATION
This symbol does not identify safety
notices, but states information for a better
understanding.
1.3 Signal words
DANGER
• Death or serious injury is imminent.
WARNING
• Death or serious injury is possible.
CAUTION
• Moderate or minor injury is possible.

Assembly Instructions |megaSunK9S
6
1.4 Denitions
STUDIO OPERATOR
People who provide tanning devices to users on a
commercial basis. The studio operator is trained
to operate and maintain the tanning device. He is
responsible for the proper operation of the tanning
device as well as for compliance with the mainte-
nance intervals.
QUALIFIED, TRAINED AND AUTHORIZED
SERVICE TECHNICIAN
     
the manufacturer, or an outside company trained and
      
and maintenance of KBL tanning devices.
1.5 Transport
WARNING
Overturning load
Danger of being crushed by heavy parts
of the equipment.
• Maintain the safety distance to the
transport machine.
• Do not walk under the load.
• Wear safety shoes.
TRANSPORT BY FORKLIFT TRUCK
During transport the tanning device may
be damaged when using forklift forks
that are too short.
• 󰀩
The tanning device is mounted on a pallet.
• Insert the forks carefully into the openings of the
pallet.
• Lift the load by a few centimeters.
• Transport the load carefully to the place of
installation.
OTHER MODES OF TRANSPORT
If a forklift truck cannot be used for transport, the tan-
ning device must be partially disassembled and the
parts must be transported individually to the place
of installation, e.g. using a dolly. Depending on the
weight of the components, lifting them might require
several people.

Assembly Instructions |megaSunK9S 7
2. Safety notes
2.1 General safety advice
• This tanning device was designed exclusively for
use in a commercial environment.
• Follow all instructions given in this manual. In addi-
tion, observe all relevant statutory provisions and
regulations, also those applicable in the country of
operation.
• The tanning device may only be installed and set
up by trained and authorised personnel having
received safety-related instruction.
• -
ment are not permissible.
• Observe all danger signs and safety notices
attached to the equipment.
• Safety notices must not be removed, and safety
equipment must not be disabled or removed.
• The tanning device must only be operated when in
perfect working condition.
• Never operate the tanning device with the outer
covers or acrylic panes removed.
• Absolutely observe the maintenance frequencies
indicated in the maintenance plan.
• Pay attention to the load limit of the bench pane
(tanning bed units only).
• The bench must only be opened with the bench
pane folded down.
The canopy is not designed to carry
additional loads.
• Do not lean on or over the canopy.
• Before carrying out any work, the tanning device
must be disconnected from the mains voltage.
DANGER
Live parts
Risk of death or fatal injury due to elec-
tric shock when touching live parts.
• Switch neutral
• Secure against reconnection
• Check for neutrality
• Ground and short-circuit
• Cover or shield any adjacent live parts
or components
DANGER
Damaged mains power cable
Risk of death or fatal injury due to
electric shock by touching a damaged
mains power cable.
• 
service technicians are permitted to
replace the mains power cable!

Assembly Instructions |megaSunK9S
8
󰀩
• 󰀩
• 
• 
• Minimal room height 2361 mm
See also chapter technical data in the
operating instructions.
3.1 Dimensions and Distances
DIMENSIONS
DISTANCES
3. Installation site & Dimensions
1600 mm
2361 mm
2056 mm
2300 mm
1503 mm
2191 mm
1429 mm
29
29 mm
100 mm
100 mm

Assembly Instructions |megaSunK9S 9
4.1 Tools and aids
Cutter knife
Allen wrench
SW 6
SW 5
SW 4
Standard Phillips screwdriver
PH2
Screwdriver
3mm
Spanner
SW 17
SW 13
SW 10
Reversible ratchet handle 1/4“ with AF
socket
SW 17
SW 13
Spacer and protective padding e.g. tim-
ber beams, foam strips and blankets.
Adhesive tape (masking tape)
2 (optimal 4) furniture trolleys
     
technicians required for this maintenance task.
Suction cup
Tape rule or folding rule
Spirit level
Side cutter
TORX wrench
TX4
The disassembly and assembly steps of the tanning
device are described in the following chapters.
The tools and hardware required to correctly and
safely perform these steps are shown at the begin-
ning of each chapter.
Cable ties which have been removed dur-
ing disassembly have to be replaced dur-
ing assembly.
4. Disassembly

Assembly Instructions |megaSunK9S
10
4.2.1. UNPACK TANNING DEVICE
4.2.2 EXHAUST SHAFT AND CARTONS
Delivery
The tanning device is delivered
on a pallet. The display is not
mounted and is located with the
other accessories on or under
the bench surface.
4.2 Unpack tanning device and accessories

Assembly Instructions |megaSunK9S 11
4.2.3 OPEN BENCH
4.2.4 DISPLAY CARTON
A
A

Assembly Instructions |megaSunK9S
12

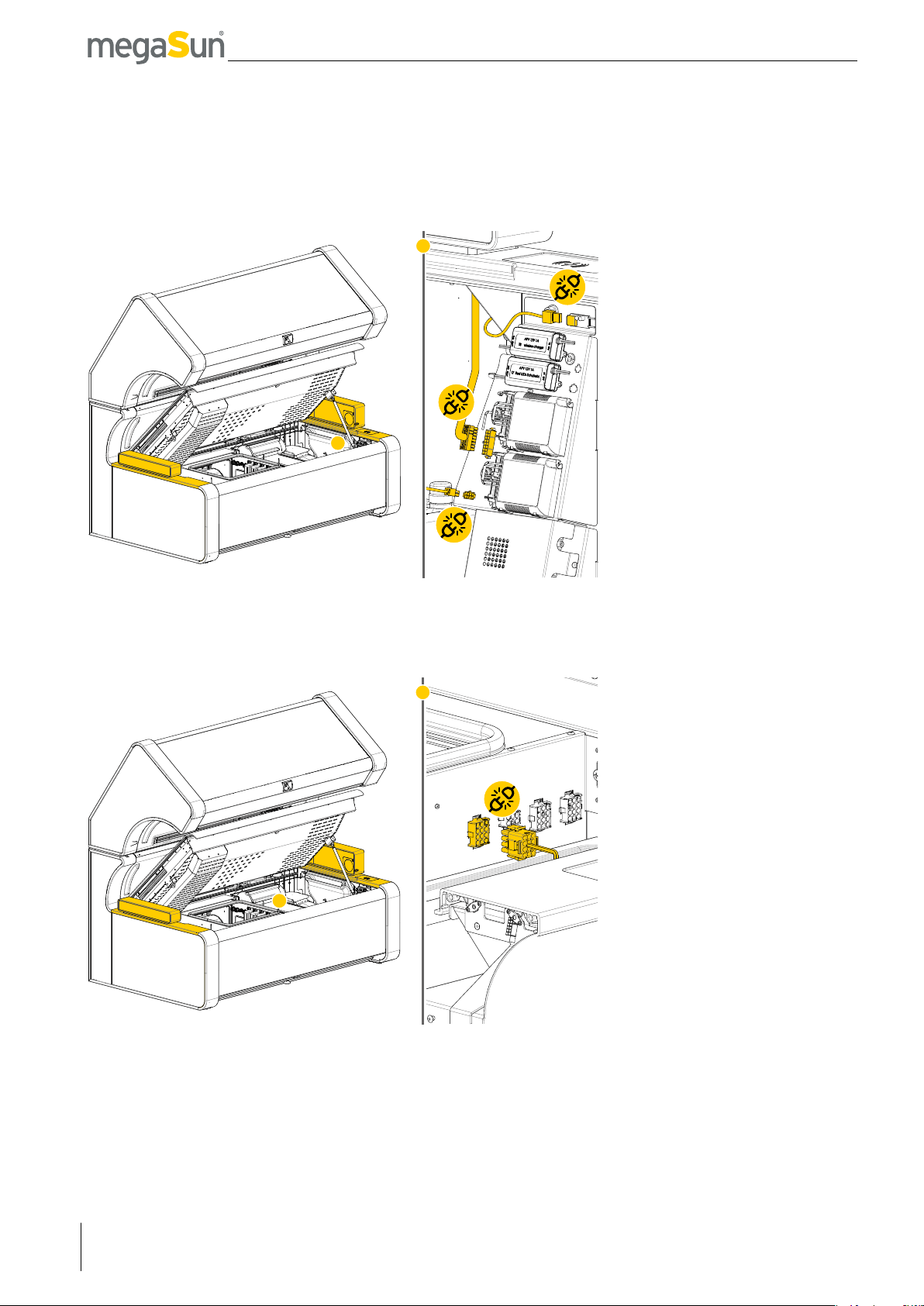

4.3.1 DISCONNECT PLUGS
A
A
A
A
X2
4.3 Disassemble plastic parts

Assembly Instructions |megaSunK9S 13
PH2

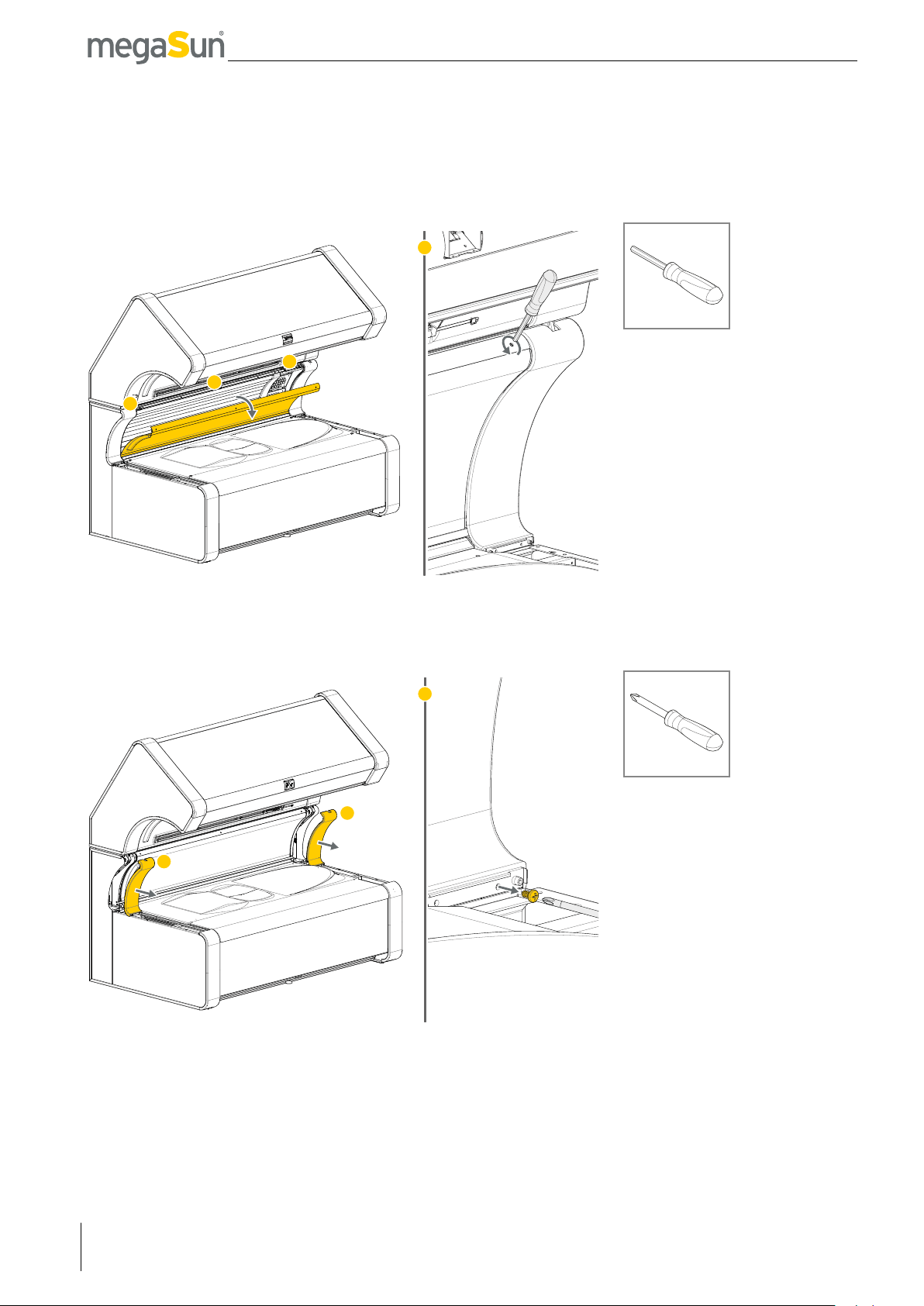

4.3.2 REMOVE PLASTIC PARTS
4x
A
A
B
B
A
A

Assembly Instructions |megaSunK9S
14
4.4.1 REMOVE BACK WALL PANE
4.4.2 REMOVE PLASTIC PARTS
A
A
A
A
1/4
A
A
A
1x
ISK4
PH2
4.4 Prepare back wall

Assembly Instructions |megaSunK9S 15
4.4.3 INSERT BACK WALL PANE
A
A
A
A
1/4
ISK4

Assembly Instructions |megaSunK9S
16

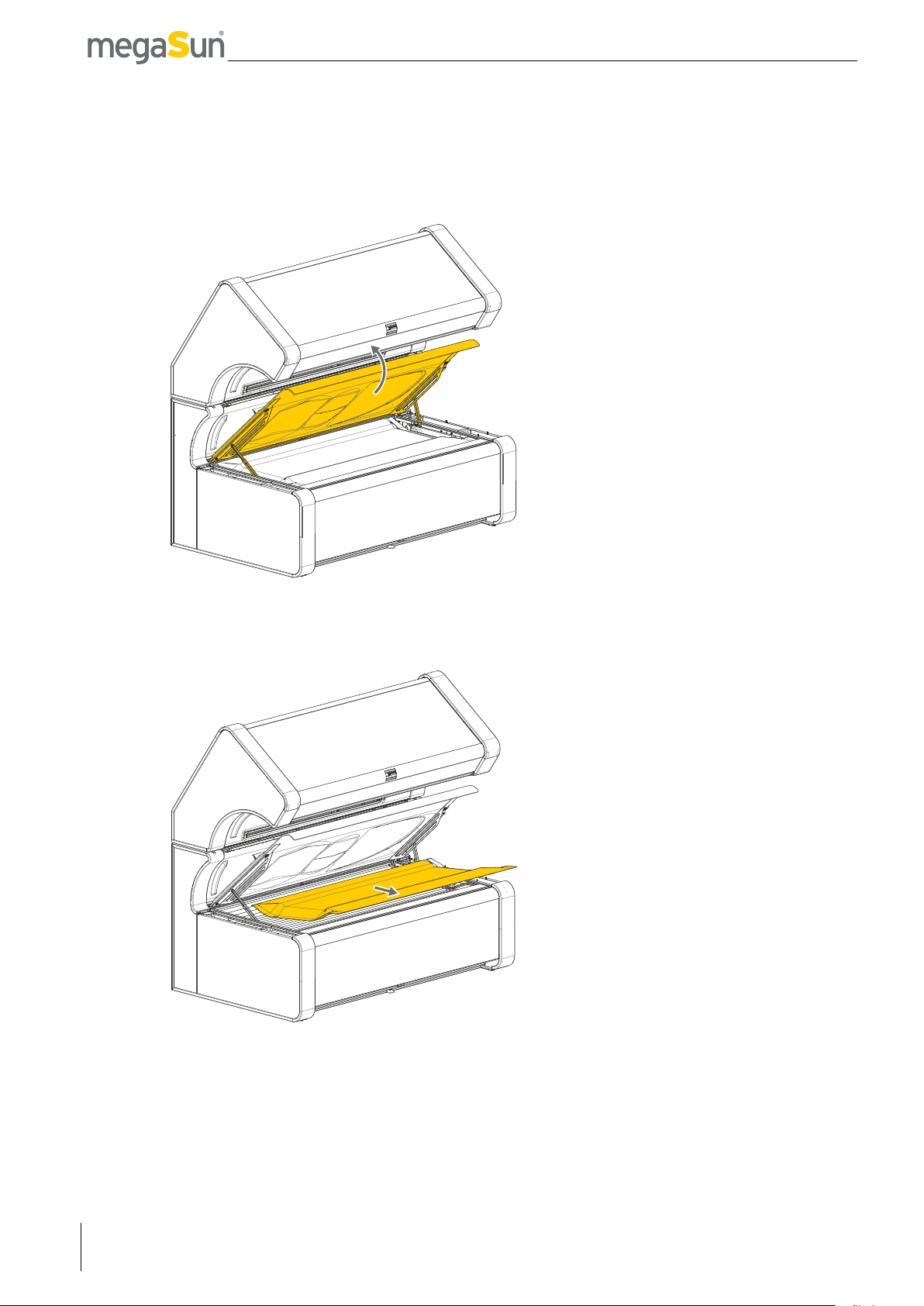

4.5.1 OPEN BENCH PANE
4.5.2 REMOVE DUCTING PANE
4.5 Remove the ducting pane and the bench pane

Assembly Instructions |megaSunK9S 17
SW10
4.5.3 REMOVE TELESCOPIC PROPS
4.5.4 REMOVE BENCH PANE
A
A
A
A
A

Assembly Instructions |megaSunK9S
18
4.6.1 OPEN BENCH
4.6.2 REMOVE THE SCREWS
A
A
A
A
PH2
A
A
A

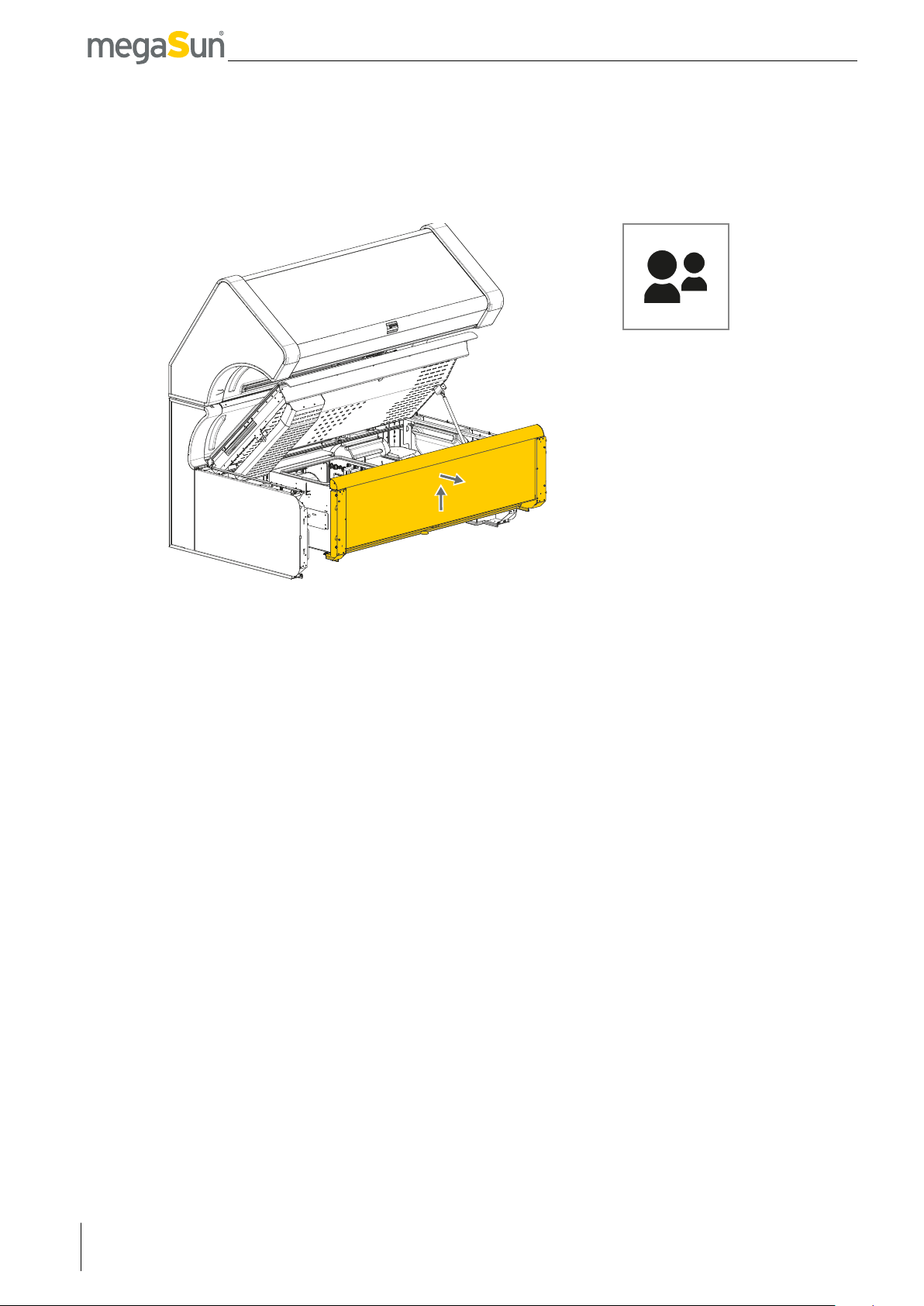

4.6 Remove front panel

Assembly Instructions |megaSunK9S 19
4.6.3 REMOVE FILTER ELEMENT
4.6.4 PULL PLUG
A
A
A
A

Assembly Instructions |megaSunK9S
20
4.6.5 REMOVE FRONT PANEL
