Introduction
Thank you for purchasing the IS11S. Before using your IS11S, be sure to read the IS11S Basic Manual (this PDF manual) to
ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe
places so you can retrieve them whenever you need them.
Manuals for the IS11S
There are three manuals for the IS11S: the Basic Manual, printed Instruction Manual (Japanese) and full Instruction Manual
(Japanese).
●For learning the basics:
Read the IS11S Basic Manual (this manual) or printed IS11S Instruction Manual (Japanese).
●For learning details of each function:
The full Instruction Manual (Japanese) gives detailed instructions on using each function and can be downloaded from
the au homepage: http://www.au.kddi.com/torisetsu/index.html
To ensure proper usage of the IS11S, be sure to read the Safety Precautions "安全上のご注意" in the Instruction Manual.
The keyword searchable au Online Manual is also available on the au homepage:
http://www.au.kddi.com/manual/index.html
Scan this QR code to access the au Online Manual. ▶

1
Illustrations and Screenshots in This Manual
Illustrations and Screenshots in This Manual
Note on Illustrations
The illustrations in this manual may look different from the actual cell phone in shape, color and typeface.
Note on Screenshots
The screenshots in this manual are simplified and may look different from the actual cell phone screens.
■
■

2
Notes on Cell Phone Use
Notes on Cell Phone Use
Cell Phone Etiquette
The cell phone always emits weak radio waves when power
is on.
Use the cell phone in an enjoyable and safe manner without
forgetting to be considerate of others around you.
Use of cell phones is not allowed in some places.
Do not use the cell phone while you are driving. Doing
so is both dangerous and prohibited by law.
Using a cell phone in an aircraft is prohibited by law.
Set Airplane Mode to ON and turn the cell phone
power off.
Radio waves from cell phones may interfere with
medical electrical equipment.
Some people close to you in crowded places such
as packed trains may be using a cardiac pacemaker.
Turn the cell phone off in such places.
Abide by the rules of hospitals and other medical
institutions where it is forbidden to use or carry cell phones.
Be considerate of where you use the cell phone and
how loudly you talk.
Do not make calls in theaters, museums, libraries, and
other similar places. Turn power off or turn on manner
mode not to disturb others around you by ring tones.
Do not use the cell phone on a street where you might
interrupt the flow of pedestrians.
Move to areas where you will not inconvenience others
on trains or in hotel lobbies.
Refrain from talking in a loud voice.
●
•
•
●
•
•
●
•
•
•
•
Obtain the permission of other people before you take
their photos with the cell phone's camera.
Do not record information with the cell phone's camera
in bookstores and other locations where taking photos
is not permitted.
Do Not Use the Cell Phone While Driving!
Turn off your cell phone or put it in Drive Mode while
driving.
Do not use the cell phone while driving a car/motorcycle
or riding a bicycle. It may result in a traffic accident. Using
a cell phone while driving is prohibited by law. Using a
cell phone while riding a bicycle may also be punishable
by law.
Prohibited!
Looking at a cell phone display
Talking on a cell phone while holding it
Drive Mode
In Drive Mode, a Japanese message meaning "I am
driving right now. Please leave your name and message
after the beep." is played when a call is received, and
asks the caller to leave a message on the answer memo.
When the standby screen is displayed, press , use
to select Drive, and then press (Set).
•
•
•
•

3
Contents
Contents
Introduction
Illustrations and Screenshots in This Manual 1
Notes on Cell Phone Use 2
Cell Phone Etiquette..................................................... 2
Do Not Use the Cell Phone While Driving! ................... 2
Contents 3
Getting Ready 5
Checking the Contents of the Box ................................ 5
Names of Parts............................................................. 6
Charging the Battery Pack............................................ 7
Turning On Power......................................................... 8
Switching the Display Language to English.................. 8
Initial Setup................................................................... 8
Checking Your Phone Number...................................... 8
Inserting/Removing microSD Memory Card................. 9
Security Code and Passwords ..................................... 9
Learning the Basics 10
Operating the Touch Panel ......................................... 10
Viewing the Home Screen.......................................... 11
Using the Application Screen ..................................... 12
Opening the Applications screen................................ 12
Making and Answering Calls 13
Making a Call.............................................................. 13
Making an International Call....................................... 13
Answering a Call ........................................................ 14
Returning a Call
(Outgoing History/Incoming History) .......................... 14
One-ring Calls ............................................................ 14
Adjusting the Earpiece Volume during a Call ............. 15
Turning On Manner Mode........................................... 15
Changing the Incoming Ring Tone ............................. 15
Adjusting the Incoming Ring Tone Volume ................. 16
Global Function 17
Setting the Area.......................................................... 17
Obtaining the Latest PRL (Preferred Roaming List)... 17
Calling Japan from Overseas ..................................... 18
Character Input 19
Character Entry Modes .............................................. 19
Entering Alphanumeric Characters ............................ 19
Entering E-mail Addresses......................................... 20
Entering Pictograms/Decoration Pictures/Symbols/
Face marks................................................................. 21
Phone Book 22
Saving a Phone Book Entry ....................................... 22
Dialing from the Phone Book...................................... 22
Editing Phone Book Entries........................................ 22
Saving a Phone Number from the Incoming or
Outgoing History ........................................................ 23

4
Contents
Mail 24
Using C-mail............................................................... 24
Creating and Sending C-mail Messages.................... 24
Reading Received C-mail Messages ......................... 24
Using PC-mail ............................................................ 25
Using Gmail................................................................ 25
Camera 26
Photo Taking Tips ....................................................... 26
About Photo Modes.................................................... 26
Taking a Photo............................................................ 27
Viewing Photos (Gallary)............................................ 27
Web Browser 28
Viewing Sites with Web Browser ................................ 28
Using Bookmarks/History........................................... 28
TV (1Seg) 29
Initial Setup of the TV ................................................. 30
Watching TV (1Seg) ................................................... 30
Basic Operations ........................................................ 31
Exiting the TV ............................................................. 31
Applications 32
Using Android Market................................................. 32
Managing Applications ............................................... 32
Troubleshooting 33
Index 35
Radio Wave Exposure and Specific
Absorption Rate (SAR) Information 38
Radio Frequency (RF) exposure and
Specific Absorption Rate (SAR) ................................. 39
Guidelines for Safe and Efficient Use......................... 40
FCC Statement for the USA ....................................... 43
Industry Canada Statement ....................................... 44
Declaration of Conformity for CDMA SOI11............... 45
End User Licence Agreement 46
About Open Source Software 47

5
Getting Ready
Getting Ready
Checking the Contents of the Box
The box contains the cell phone and accessories.
Cell phone• Battery pack• Instruction Manual (Japanese)
Warranty (Japanese)
Safety Precautions (Japanese)
•
•
•
An AC adapter and microSD™ memory card are not included. Purchase a specified AC adapter (sold separately) and
a commercially available microSD™ memory card.
•

6
Getting Ready
Names of Parts

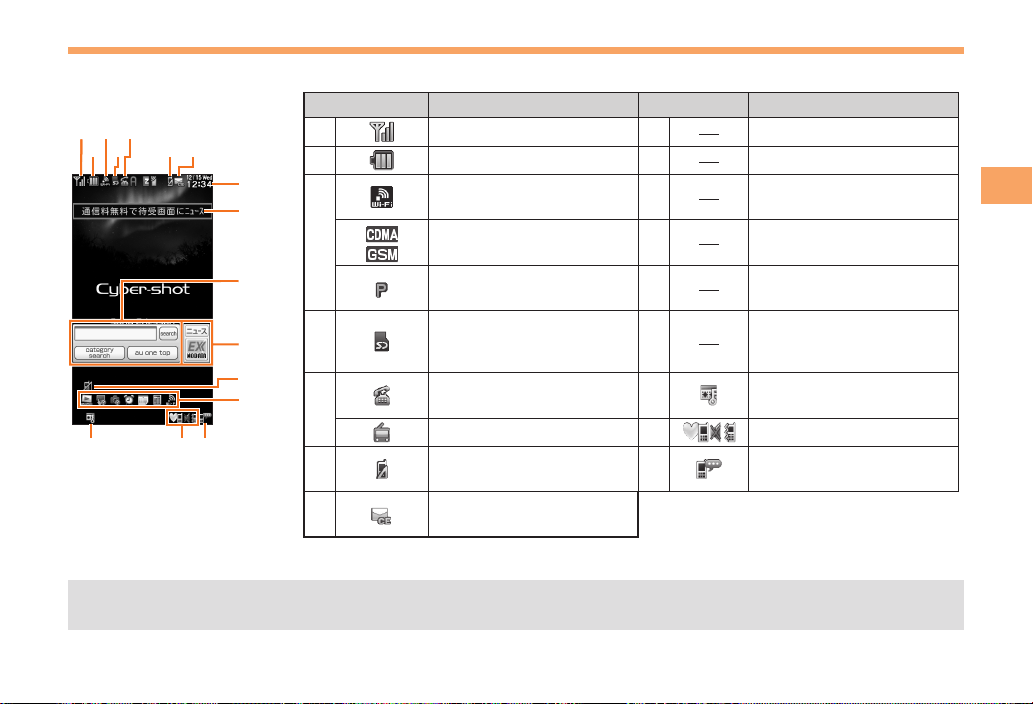

From the Front■From the Back■From the Sides■

7
Getting Ready

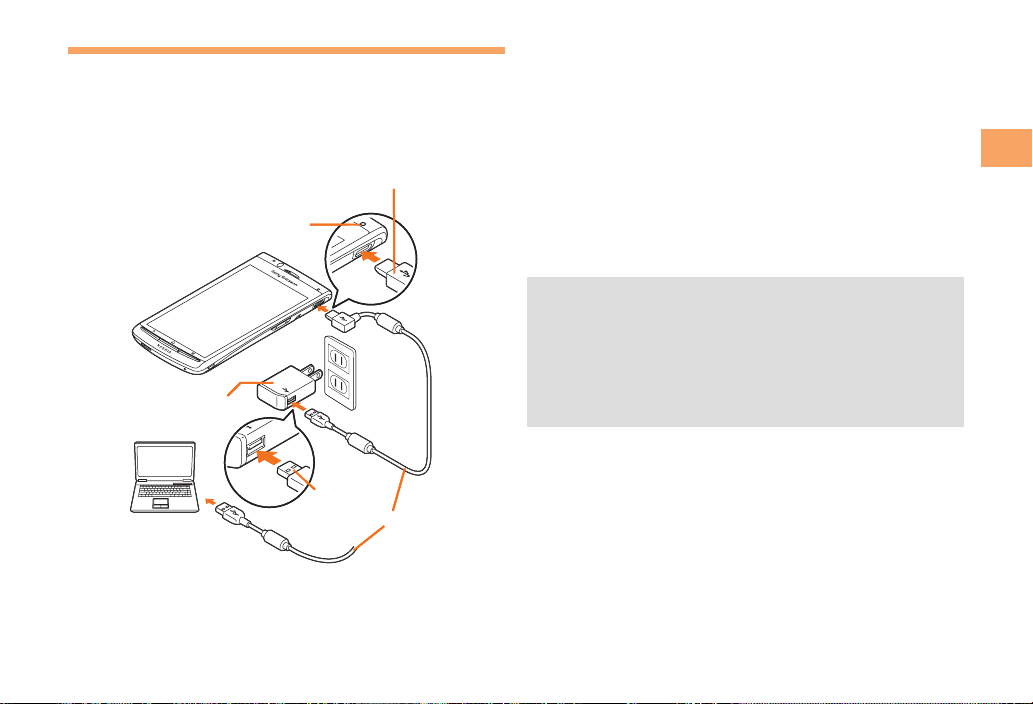

Connect a specified AC adapter to the cell
phone with the battery pack attached.
Open the cover of the microSD memory card slot/
external connecting terminal. Check the shape of the
connector of the AC adapter, and plug it straight into
the external connecting terminal.
Unfold the power plug of the AC adapter and
plug it into a 100 V AC power outlet.
Confirm that the charge indicator lights.
Charging: The charge indicator lights.
Charging finished: The charge indicator goes out.
Be sure to close the cover of the microSD memory
card slot/external connecting terminal when charging
is finished.
Do not pull or twist the cover of the microSD memory
card slot/external connecting terminal forcibly.
Be sure to use the common AC adapter 02 (sold
separately) when charging overseas.
➡
•
➡
➡
•
•
•
•
•
Charging the Battery Pack
The battery pack is not fully charged at the time of purchase.
Be sure to charge the battery pack before using the cell
phone for the first time.
An AC adapter is not included. Purchase a specified AC
adapter (sold separately).
•
microUSB plug
AC Adapter
USB plug
microUSB cable
Notification LED
microUSB plug
AC Adapter
USB plug
microUSB cable
Notification LED

8
Getting Ready
Turning On Power
Hold down Ffor at least one second.
You cannot receive or make calls if (out of range
indicator) is displayed.
Turning Off Power
When the standby screen is displayed, hold down Ffor
at least one second.
Switching the Display Language
to English
You can switch the display language for function names
and other items to English.
When the standby screen is displayed, press c.
Use ato select
機能／設定 (Func/Settings)
and then press c(選択 [Select]).
Use jto select
画面表示 (Screen Display) and
then press c(選択 [Select]).
Use jto select Set Language and then press
c(選択 [Select]).
Use jto select English and then press
c(Set).
•
■
➡
➡
➡
➡
Initial Setup
Before use, you need to configure initial settings. Your e-
mail address is assigned automatically in the initial setup.
When the standby screen is displayed, press L.
Press c(OK).
After a short while, your e-mail address is displayed.
Press c(OK).
The initial settings are complete.
You can also configure initial settings by pressing
or .
Checking Your Phone Number
When the standby screen is displayed, press c
and then 0.
➡
➡
•

9
Getting Ready
Inserting/Removing microSD
Memory Card
You can use microSD card for any other compatible
devices.
When a microSD card is not inserted,camera functions,
playing or downloading music or videos are not available.
Security Code and Passwords
You can use a security code and other passwords
described below.
Take care not to forget your security code and passwords,
because they are required for performing various
operations and using subscription services.
Security Code
Usage
Example
①Using the Answering Service (Voice
Mail) and Call Transfer remotely from a
fixed-line phone
②Making inquiries, applications, and
changes while using au Customer
Service Center voice guidance, au web
pages.
③Changing the settings of Mail Filter or
Other under E-mail Setup
Initial Setting The four-digit number you wrote on your
subscription form
•
■
Lock No.
Usage
Example
Changing various settings of the cell
phone
Initial Setting 1234
■

10
Learning the Basics
Learning the Basics
Operating the Touch Panel
You can operate IS11S by directly touching the screen.
Basic Operations
Tap
Gently touch an item or
button and then immediately
release your finger.
Long Touch
Keep touching an item or
button.
Slide
While your finger is gently
touching an item, drag it to
the desired position.
Flick
Operate the screen by
quickly moving (flicking)
your finger up, down, right,
or left.
■
Drag
Touch and hold down to
trace on the screen and
then release your finger.
Note that the following operations may cause
malfunction or scratch the screen.
Operation with sharp objects such as a ballpoint pen
and a pencil
Operation with wet fingers
Operation when the display is wet with drops of water
Operation while your hand or an object is touching the
area surrounding the display
Operation in which the display is pressed hard
Operation while a sticker or sheet (commercially
available protective sheet, privacy screen sticker, etc.)
is stuck on the display
Operation with a finger when you are wearing gloves
or operation with a fingernail
Operation while foreign matter is on the display
*
If the display is wet, wipe drops with a soft cloth before use.
Operating when the display is dirt or wet with sweat
or water may result malfunction. In such a case, press
to return to the standby screen and clean the
display before use.
When flicking, make sure to operate inside of the screen.
When the screen turns off, touch panel operation
becomes disabled.
󰿤
•
•
•
•
•
•
•
•
󰿤
󰿤
󰿤

11
Learning the Basics
Viewing the Home Screen
Display indicators inform you of mail arrival, current settings, etc.
Display■Indicator Description Indicator Description
①Signal strength ⑪Current date and time
②Battery level ⑫Ticker field
③
Wi-Fi WIN connection
status ⑬Search window
Overseas (CDMA)/(GSM)
mode set ⑭Info pane
Packet communication
available ⑮Notification icon
④
A microSD™ memory
card (sold separately)
inserted
⑯Shortcut menu
⑤During a call ⑰Auto Lock or Remote Ctrl
Lock activated
au Media Tuner activated ⑱ Manner mode set
⑨Missed calls ⑲Answer memo or manner
mode set
⑩New or unread e-mail/
C-mail
The date and time are set automatically. However, auto time adjustment is invalid when Area Setting is set to overseas
mode. Set the date and time manually under M541 Auto Time Adj.
•
①
⑰⑱⑲
②
③
④
⑪
⑮
⑭
⑬
⑫
⑯
⑤
⑩⑨
①
⑰⑱⑲
②
③
④
⑪
⑮
⑭
⑬
⑫
⑯
⑤
⑩⑨

12
Learning the Basics
Using the Application Screen
You can access the applications installed in IS11S using the Applications screen.
Opening the Applications screen
From the Home screen, tap the applications bar.➡

13
Making and Answering Calls
Making and Answering Calls
Making a Call
When the standby screen is displayed, use 0
to 9to enter a phone number.
When calling to a fixed-line phone, you also need to enter
the area code.
Press N.
To end the call, press F.
After you enter a phone number, you can add 184 or
186 to the phone number as follows:
Press (Call).
Use to select Add Special No. and then press
(OK).
Use to select 184 or 186 and then press (Add).
184: When you do not want to inform the other party of
your phone number.
186: When you want to inform the other party of your
phone number.
•
➡
•
•
➡
➡
➡
Making an International Call
001 International Call Service
Available without any additional application.
Example: To call 212-123-△△△△ in the USA
Enter the access code, a country code, area code
and phone number, and then press N.
International call charges are billed together with
monthly local call charges.
For more information on 001 International Call Service,
dial either of the following numbers:
From au cell phones (toll-free):
157 (area code not required)
From fixed-line phones (toll-free):
0077-7-111
(Open 9:00 to 20:00 everyday)
■
•
•
001010
↑
KDDIinternational
accesscode
↑
Country
code
(USA)
↑
Areacode
↑
Phonenumber
212 123
-
XXXX1001010
↑
KDDIinternational
accesscode
↑
Country
code
(USA)
↑
Areacode
↑
Phonenumber
212 123
-
XXXX1

14
Making and Answering Calls
Answering a Call
To answer a call, press N.
To end the call, press F.
Display When a Call is Received
The phone number of the caller appears.
If the caller's phone number and name are in the phone
book, the name is also displayed.
When the phone number of the caller is not displayed, one
of the following indicators may appear.
Indicator Meaning
ID Unsent The caller did not send a Caller ID.
Payphone The call is from a pay phone.
Not support The call is from a phone that does not
support Caller ID.
Missed Call Notification
If you did not answer a call, and Missed Call are displayed
to let you know that you missed a call.
To check the caller's phone number, use dto select
Missed Call and then press c(Select). You can then return
the call (see the procedure on the right).
•
■
■
Returning a Call (Outgoing History/
Incoming History)
Example: Returning a call to a phone number in the
incoming history
When the standby screen is displayed, press l.
Press rwhile the standby screen is displayed to display
the Outgoing History screen.
Use jto select the phone number you want
to call and then press c(Detail).
Press rto display the Outgoing History screen.
Press N.
The cell phone can store up to 50 phone numbers in
each of the incoming and outgoing history.
One-ring Calls
What is a One-ring Call?
A one-ring call is a call from an unknown caller that only
rings once, causing it to be stored in the incoming history.
One-ring calls are often used to get you to return the call,
which will connect you to a dating service or some other
service that charges you at high rates.
•
➡
•
➡
•
■

15
Making and Answering Calls
One-ring Indicator
indicator (red) on the Incoming History screen indicates
you have received a one-ring call (a call rang for three
seconds or shorter). Be careful when you return a call to an
unknown caller.
Adjusting the Earpiece Volume
during a Call
During a call, use j.
u: Increases the volume.
d: Decreases the volume.
Press c(OK).
Turning On Manner Mode
When the standby screen is displayed, hold down
(for at least one second.
This turns on manner mode, and displays , and on
the standby screen. This also turns on Answer memo,
which is indicated by on the standby screen.
Turning Off Manner Mode
When the standby screen is displayed, hold down (for
at least one second.
Turning off manner mode causes , and to disappear
from the standby screen. Answer memo is also turned off,
which is indicated by disappearing from the standby
screen.
■
•
•
➡
■
Even in manner mode, the cell phone still emits a
sound when autofocusing, a shutter sound when you
take a photo.
Changing the Incoming Ring Tone
When the standby screen is displayed, press c.
Use ato select Func/Settings and then press
c(Select).
Use jto select Sound/Vib/Lamp and then
press c(Select).
Use jto select Incoming Setup and then press
c(Select).
Use jto select Incoming Call and then press
c(Select).
Use jto select (Ringtone) and then press
c(Select).
Use jto select Original and then press
c(Select).
Use jto select a ring tone and then press
c(Set).
The incoming ring tone is set.
If you press &(Play), the tone plays.
Press %(OK).
•
➡
➡
➡
➡
➡
➡
➡
•
➡

16
Making and Answering Calls
Adjusting the Incoming Ring
Tone Volume
When the standby screen is displayed, press c.
Use ato select Func/Settings and then press
c(Select).
Use jto select Sound/Vib/Lamp and then
press c(Select).
Use jto select Incoming Setup and then press
c(Select).
Use jto select Incoming Call and then press
c(Select).
Use jto select (Ringtone Volume) and
then press c(Select).
Use jto adjust the volume and then press
c(Set).
Each press of jchanges the volume one step.
STEP ↑The ring tone volume gradually increases.
STEP↓ The ring tone volume gradually decreases.
Level5
↑
Level3
↓
Level1
The ring tone sounds at the set volume.
OFF The ring tone does not sound.
Press %(OK).
➡
➡
➡
➡
➡
➡
•
➡

17
Global Function
Global Function
The IS11S supports Global Passport CDMA/GSM services.
You can use your IS11S overseas without any additional
application.
Setting the Area
Example: Setting to Overseas (Auto) mode
When the standby screen is displayed, press c.
Use ato select Global Function and then press
c(Select).
Precautions are displayed.
Check the precautions and then press c(OK).
Use jto select Area Setting and then press
c(Select).
Use jto select Overseas (Auto) and then press
c(Select).
Use jto select YES and then press c(OK).
Some functions are not available when Area Setting is
not set to Japan.
➡
➡
➡
➡
➡
•
Obtaining the Latest PRL
(Preferred Roaming List)
Manually update and set the PRL (preferred roaming list)
before traveling abroad.
When the standby screen is displayed, press c.
Use ato select Global Function and then press
c(Select).
Precautions are displayed.
Check the precautions and then press c(OK).
Use jto select PRL Setting and then press
c(Select).
Use jto select PRL Manual Update and then
press c(Select).
The cell phone connects to the server.
Use jto select PRL ダウンロード (Download
PRL) and then press c(ダウンロード
[Download]).
Use jto select
最新ファイルはこちら (The
Latest PRL) and then press c(Select).
Press c(OK).
The latest PRL is downloaded.
The PRL (preferred roaming list) is the area information
of overseas carriers offering international roaming
service in partnership with KDDI (au).
➡
➡
➡
➡
➡
➡
➡
•

18
Global Function
Calling Japan from Overseas
When the standby screen is displayed, use 0
to 9to enter a phone number.
Press c(Call).
Use jto select Voice Call and then press
c(OK).
Use jto select Call to Japan and then press
c(OK).
Press c(Call).
When you make an international call from Japan to a
Global Passport CDMA/GSM-compatible cell phone,
you can do it in the same way as making domestic
calls within Japan.
➡
➡
➡
➡
•
