Keith RUNNING FLOOR II DX-i User manual

RUNNING FLOOR II® DX-i
OWNER / OPERATOR MANUAL
Original Instructions
©2022KEITHManufacturingCo.AllRightsReserved.KEITH,KEITHlogoandWALKINGFLOORareregisteredtrademarksofKEITH
ManufacturingCo.EquipmentmanufacturedbyKEITHManufacturingCo.isprotectedbynumerouspatentsbothdomesticandforeign.
9907201
DOC06340 Rev. I
Released: 2022-05-05

i DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
Table of Contents
Introduction iii
KEITH®RUNNING FLOOR®DX-i Unloading System Limited Warranty iv
Warranty Registration Card vi
1.0 Safety 1
1.1 General Safety 1
1.1.1 Intended Function and Expected Use 1
1.1.2 Improper Use 1
1.1.3 Training 1
1.1.4 Personal Protective Equipment 2
1.1.5 Airborne Noise Emission 2
1.1.6 Temperature 2
1.1.7 Lighting 2
1.1.8 Movement Around the System 2
1.1.9 Hydraulic Oil Safety 2
1.2 Design / Installation Safety 3
1.2.1 Kit Components 3
1.2.2 Installation 3
1.2.3 Danger Zones 3
1.2.4 Hydraulics 3
1.2.5 Controls 3
1.3 Marking of Machinery 4
1.3.1 Safety Decals 4
1.3.2 Serial Plate 6
2.0 Specications 7
2.1 Hydraulic Drive Unit 7
2.2 General Wet Kit Specications 8
2.3 Floor to Wet Kit Diagram 9
3.0 Operation 10
3.1 How It Works 10
3.2 Oil Flow Diagram 11
3.3 Component Location Guides 13
3.4 Component Descriptions 15
3.5 Component Identication 16
3.6 Start Up 17
3.6.1 Before Initial Start-Up 17
3.6.2 After initial 6 working hours (rst week of operation) 17
3.7 Pre-Trip Checklist 17
3.8 Standard Operating Procedure (Manual Controls) 18
Operating
Instructions

ii DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
4.0 Maintenance 19
4.1 Life Extending Practices 19
4.2 Preventative Maintenance 19
4.2.1 Monthly Service (25 operating hours) 19
4.2.2 6-Month Service (150 operating hours) 19
4.3 Bolt Torque Requirements 20
4.4 Cross-Drive Wear Component Diagram 21
4.5 Flooring Wear Component Diagrams 22
5.0 Troubleshooting 23
5.1 Check List 23
5.2 Problem / Solution - Troubleshooting 23
5.3 Adjustments & Repairs 23
5.4 Technical Support 23
6.0 Contact Information 24

iii DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
Introduction
We at KEITH WALKING FLOOR India are very happy you have decided to equip your trailer with
the KEITH®WALKING FLOOR®system. We take great pride in manufacturing the simplest, lowest
maintenance self-unloading system available. Installing the KEITH®WALKING FLOOR®system in
your trailer provides you with the versatility to load or unload virtually any type of material.
The following pages contain information on the operation of your KEITH®WALKING FLOOR®system.
Further support and safety documents (manuals, brochures, and product specs) can be viewed or
downloaded from our website at www.KeithWalkingFloor.in.
In addition, we have provided general information on the type of hydraulic wet kit that will be needed
to operate your system. Please contact a KEITH sales representative or visit our website for more
specic recommendations regarding pumps, lters, pressure relief valves and approved equivalent
equipment. It is critical to adhere to the outlined hydraulic wet kit specications. Failure to follow the
guidelines concerning required operation pressures can lead to system failure due to excessive heat
buildup.
If you have any questions, please contact KEITH WALKING FLOOR India by calling [phone]
or emailing [e-mail] where our support team will happily assist you.
Thank you again for putting your trust in our company!
Sincerely,
R. Mark Foster
President

iv DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
KEITH®RUNNING FLOOR®DX-i Unloading System Limited Warranty
1 Year Limited Warranty & 2 Year Limited Hydraulic Warranty
KEITH WALKING FLOOR India hereby warrants, to the rst owner of a new KEITH®Unloading system
from the factory or selling distributor, that the product shall be free from defects in material and workmanship
for a period of one year after delivery or sale to the rst registered owner. The hydraulic drive system has a
two year limited warranty on all hydraulic parts and components. This warranty does not cover normal wear
and tear and maintenance. A warranty card must be lled out and returned to KEITH WALKING FLOOR
India to activate this warranty.
Unloading system must only be used as recommended by KEITH WALKING FLOOR India for normal
use and service. This means the loading and/or unloading of uniformly distributed, non-corrosive material,
properly restrained and secured, on properly maintained public roads, with gross vehicle weights not in
excess of factory rated capacity. For stationary installations, normal use and service means the conveying
of uniformly distributed, noncorrosive materials, with weights not in excess of factory rated capacity. The
system must be installed according to KEITH WALKING FLOOR India installation instructions. Preventative
maintenance must be performed at regular intervals as specied in KEITH Manufacturing Co. manuals. See
below for circumstances that void the KEITH limited warranty.
Sole and Exclusive Remedy: If the product covered hereby fails to conform to the above stated warranty,
KEITH WALKING FLOOR India’s sole liability under this warranty and the owner’s sole and exclusive
remedy is limited to repair or replacement of the defective part(s) at a facility authorized by KEITH WALKING
FLOOR India.
THE WARRANTY SET FORTH ABOVE IS EXPRESSLY MADE IN LIEU OF ANY OTHER
WARRANTIES, EXPRESS, IMPLIED, OR STATUTORY. KEITH WALKING FLOOR INDIA
MAKES NO WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR WARRANTIES OF
MERCHANTABILITY. FURTHER, KEITH WALKING FLOOR INDIA WILL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIALDAMAGES SUCHAS, BUT NOT LIMITED TO, THE LOSS OF
USE OF THE PRODUCT, DAMAGE TO THE PRODUCT,ATTORNEY’S FEESAND THE LIABILITY
IN RESPECT TO ANY OTHER REASON.
TORT DISCLAIMER: KEITH WALKING FLOOR INDIA EXCLUDES ANY LIABILITY IN TORT WITH
RESPECT TO THEIR PRODUCTS, INCLUDING ANY LIABILITY BASED ON STRICT LIABILITY
IN TORT AND NEGLIGENCE.
If This Warranty Violates Law: To the extent any provision of this warranty, contravenes the law of any
jurisdiction, that provision shall be inapplicable in such jurisdiction and the remainder of the warranty shall
not be a󰀨ected thereby.
Warranty Return Policy
Any defective part(s) must be shipped freight prepaid to the KEITH WALKING FLOOR India facility. Before
returning any item for repair or replacement, contact KEITH WALKING FLOOR India at [phone]
or [e-mail] for a “Returned Goods Authorization” (RGA) number. Make sure the RGA
number is on the outside of the shipping container and all paperwork is included.
The following information is needed:
a. Company name e. Part number
b. Contact name f. Quantity
c. Address g. Reason for return
d. Phone number h. Customer’s account number

v DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
The following circumstances void the KEITH Limited Warranty:
• Unloading system is not installed properly.
• Wet kit is not as recommended by KEITH or using an end dump or dump truck wet kit.
• Malfunction or problems caused by equipment which was not supplied by KEITH.
• Malfunction caused by improper repair work or repair work which is carried out by third parties.
• Malfunction caused using contaminated oil or oil of the wrong type.
• Malfunction caused by excessive heat over 140 °F [60 °C] due to a bad hydraulic pump on the
truck or hydraulic wet kit or improper operation of the unloading system, for example, not fully
opening and closing the ball valve.
• Defects in electrical components caused by incorrect connection and/or incorrect voltage levels.
• Preventative maintenance is not performed at regular intervals as specied in KEITH manuals.
• Malfunction caused by corrosive materials.
• Malfunction caused by overloading or improper use as stated in KEITH manuals.
Examples of wear items which are not covered by KEITH Limited Warranty:
• Floor seals
• Floor bearings
• Floor slats
• End plugs in slats
• Filter elements and components
Released March 2022 DOC06479 Rev. B

vi DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
Warranty Registration Card
Note: To validate the warranty, the registration information must be lled out completely and returned to
KEITH WALKING FLOOR India within ten (10) days of purchase and/or installation.
Please ll out the Warranty Registration form on our website at www.KeithWalkingFloor.in or ll out the
Warranty Registration Card below and mail or email it to:
KEITH WALKING FLOOR India Private Limited
B Wing, Level 7, The Capital
Bandra Kurla Complex
Mumbai, Maharashtra 400051 India
Tel: [phone]
Email: [e-mail]
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
This warranty registration card must be completed and on le at KEITH WALKING FLOOR India in order
for the warranty period to begin on the purchase date. If no purchase date is registered, the beginning of
the warranty will automatically revert to the manufacture date.
Name / Company Name: _______________________________________________________________
Address: ____________________________________________________________________________
City, State: ___________________________________________ Postal Code: ___________________
Country:____________________________________________________________________________
Tel: _______________________________________________________________________________
E-Mail: _____________________________________________________________________________
SYSTEM DATA:
Date of Purchase: ____________________________________________________________________
Model / Serial Number: ________________________________________________________________
Purchased From: ____________________________________________________________________
Type of Material Loaded/Unloaded: ______________________________________________________
I have fully read the KEITH WALKING FLOOR India warranty information and fully understand and agree
to the terms of the warranty.
Name: ___________________________ Date: __________ Signature: __________________________

1 DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
1.0 Safety
1.1 General Safety
1.1.1 Intended Function and Expected Use
1.1.1.1. The KEITH®WALKING FLOOR®system is a reciprocating slat conveyor primarily
intended to load, hold, or unload bulk materials. It can also handle unit loads such as
pallets by using special handling techniques and possibly additional safety controls.
The system is supplied as a kit primarily intended for installation into mobile trailers
or truck bodies. The oor is often loaded through an open trailer top or through the
rear doors. The oor typically discharges material out the rear door. It is hydraulically
actuated, powered by a pump mounted either to a PTO or an electric motor. The
basic system is controlled by mechanically-actuated valves, but has the option for
electrically-actuated valves. The system is compatible with options and accessories
to improve performance. For example, it can be electrically controlled by hardwired
switches or a wireless remote. A CleenSweep®device can improve clean out. Floor
slat styles are selected based on the materials to be conveyed. The standard system
handles a wide array of materials in a non-hazardous, non-explosive environment.
Special modications may be required for special environments like food-grade
applications or explosive conditions.
1.1.2 Improper Use
1.1.2.1. This equipment has been manufactured utilizing state-of-the-art technology in
accordance with acknowledged safety regulations. Nevertheless, dangerous situations
could arise from improper use, which could endanger life and limbs of personnel and
cause severe damage to the equipment and other assets. This equipment may only
be used for its intended purpose. It may only be operated in impeccable technical
condition and in accordance with the proper use and this user manual. Problems,
which could a󰀨ect safety, must be resolved immediately. The manufacturer is not liable
for any damage caused by improper use or arbitrary modications. The installation,
commissioning, operation, and maintenance instructions must be followed as outlined
in this manual.
1.1.2.2. Personnel must not enter the danger zone(s) when the system is enabled. Specically,
nobody should be inside, under, or behind the trailer in the unloading zone during
operation. Additionally, no one should be in a full or lling trailer. Lock-out and tag-out
procedures must be followed before accessing the drive area.
1.1.2.3. The maximum load capacity must not be exceeded. (See 2.0 Specications section)
1.1.2.4. The hydraulic power source must not exceed the pressure and ow ratings. Install a
relief valve to ensure the maximum pressure is not exceeded.
1.1.2.5. Control circuitry must not be altered or bypassed.
1.1.2.6. Safeguards must not be altered or bypassed.
1.1.2.7. The oor structure must not be altered.
1.1.2.8. The oor should not be used to handle any material other than specied.
1.1.2.9. The user and system designer must understand the characteristics and safe handling
requirements of the material that is being conveyed.
1.1.2.10. Bulk materials are by nature unstable and owable. Avoid burial by avoiding contact
with the material.
1.1.3 Training
1.1.3.1. Operators must read and understand this manual before operating or maintaining the
machine. Only qualied, trained personnel may execute commissioning, operation,
and maintenance of the system.

2 DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
1.1.4 Personal Protective Equipment
1.1.4.1. Always wear protective equipment appropriate for risks associated with each phase of
the system’s life, including transportation, installation, assembly, operation, inspection,
maintenance, and dismantling, disabling, and scrapping. As a minimum, this includes the
following personal protective equipment:
• Safety glasses • Protective/traction shoes
• Gloves • Welding/grinding protection
• Helmets • Thermal protection such as coats
• Hearing Protection
1.1.5 Airborne Noise Emission
1.1.5.1. There is not a dened workstation; sound pressure levels emitted by the
WALKING
FLOOR
® modules were measured at a height of 1.6 meters from the oor surface and a
distance of 1 meter from the surface of the
WALKING FLOOR
®system at the drive area.
• The A-weighted emission sound pressure level = 74.8 dB
• The peak C-weighted instantaneous emission sound pressure level = below 130 dB
[63 Pa]
1.1.5.2. Slower oor speeds result in less noise.
1.1.6 Temperature
1.1.6.1. Operation of the system generates heat in the hydraulic oil. Hot oil can damage the
internal seals, resulting in a failure to operate.
1.1.6.2. Overheated oil can degrade rapidly. Hot oil and the resulting hot surfaces can cause burns.
Do not allow the oil temperature to exceed [60 °C] 140 °F.
1.1.6.3. KEITH recommends some or all of the following temperature control measures depending
on the circumstances. High duty cycle systems and hot environments will require more
control measures.
• Maintain adequate oil level in the reservoir.
• Install a thermometer or sensor to monitor oil temperature.
• Install a cooler.
• Set a sensor to automatically shut down the system if oil temperature exceeds
[60 °C] 140 °F.
1.1.7 Lighting
1.1.7.1. Do not use or service the system in an environment of insu󰀩cient light.
1.1.8 Movement Around the System
1.1.8.1. Hydraulic oil can be slippery. Clean up oil spills immediately.
1.1.9 Hydraulic Oil Safety
1.1.9.1. See the Material Safety Data Sheet (MSDS) for the oil used in your system for further
information about hydraulic oil safety.
1.1.9.2. In an accident involving high pressure equipment, hydraulic oil may be injected under
the skin. Such an accident may result in a small, sometimes bloodless, puncture wound.
However, due to the system’s driving force, material injected into a ngertip can be
deposited into the palm of the hand. Within 24 hours, there is usually a great deal of
swelling, discoloration, and intense throbbing pain. Immediate treatment at a surgical
emergency center is recommended.
1.1.9.3. Do not use high pressure systems in the vicinity of ames, sparks, and hot surfaces. Use
only in well ventilated areas.
1.1.9.4. Use only designated appropriate ll and drain ports for the oil.

3 DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
1.2 Design / Installation Safety
1.2.1 Kit Components
1.2.1.1. The kit consists of a drive unit, ooring, and miscellaneous boxed parts. These modules
are intended to be anchored in a shipping frame or stacked at and braced with dunnage
for shipping and storage.
1.2.2 Installation
1.2.2.1. Use designated lifting points if provided on drive or shipping frame.
1.2.2.2. Only use equipment with appropriate capacity ratings to lift and handle components.
1.2.2.3. Use appropriate lifting procedures when handling loose or boxed components.
1.2.2.4. The oor must be installed far enough away from other equipment or xtures to prevent
the moving parts of the oor module from creating a crush or pinch hazard.
1.2.3 Danger Zones
1.2.3.1. The reciprocating action of the oor creates pinch and shear points by nature. Specically,
drive area cylinder, cross-drive, and slats approaching each other, frame components, or
walls. These and any other relevant exposed areas must be guarded.
1.2.3.2. The oor must be incorporated into surroundings such that movement of the material on
the oor does not create crushing, burial, drawing in, or entrapment hazards. The system
must be designed to limit access to the material ow path.
1.2.4 Hydraulics
1.2.4.1. Hydraulic piping and components must be constructed of materials that are rated for
system pressures, and must be installed with best industry practices. Follow all pipe,
tubing, tting, and hose manufacturer installation and routing guidelines.
1.2.4.2. Hydraulic piping should be supported and isolated from vibration. Contact KEITH for
recommendations on installation.
1.2.4.3. Place protective shrouds around the hydraulic tubing in any areas that may have operators
or people frequently nearby.
1.2.5 Controls
1.2.5.1. The control devices must be located such that they are easily accessible for all sizes and
capacities of people, and allows the operator to move freely (whenever applicable).
1.2.5.2. Control devices must be located outside of danger zones, such that any exposed persons
in danger zones are visible from the control station.
1.2.5.3. An acceptable means must be provided to monitor the status and movement of the load.
1.2.5.4. The oor can generate enormous horizontal force which can destroy improperly designed
surroundings. The oor module must not be allowed to compact material against an end
wall or door, or end walls and doors must be designed to absorb these forces.
1.2.5.5. Do not allow the oor to move material toward the front of the trailer when material is
contacting the front wall. KEITH recommends installing limit switches to prevent this. In
the absence of a sensor switch, the operator must be keenly aware of the load position,
and the control system must require the operator to hold the run signal in the on position
to continue running, such that releasing the run signal causes the oor to stop (momentary
signal).
1.2.5.6. Material compacted against closed doors can force the doors open dangerously fast when
the door latch is released. The impact can cause serious injury or death. Do not allow the
oor to run when the doors are closed. Do not open a door when it is possible that material
may be compacted against it. KEITH strongly recommends installing a control interlock
switch to prevent the oor from running when the door is closed. KEITH also recommends
a door latch that can be remotely actuated by someone away from the door area unload
zone.

4 DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
1.3 Marking of Machinery
1.3.1 Safety Decals

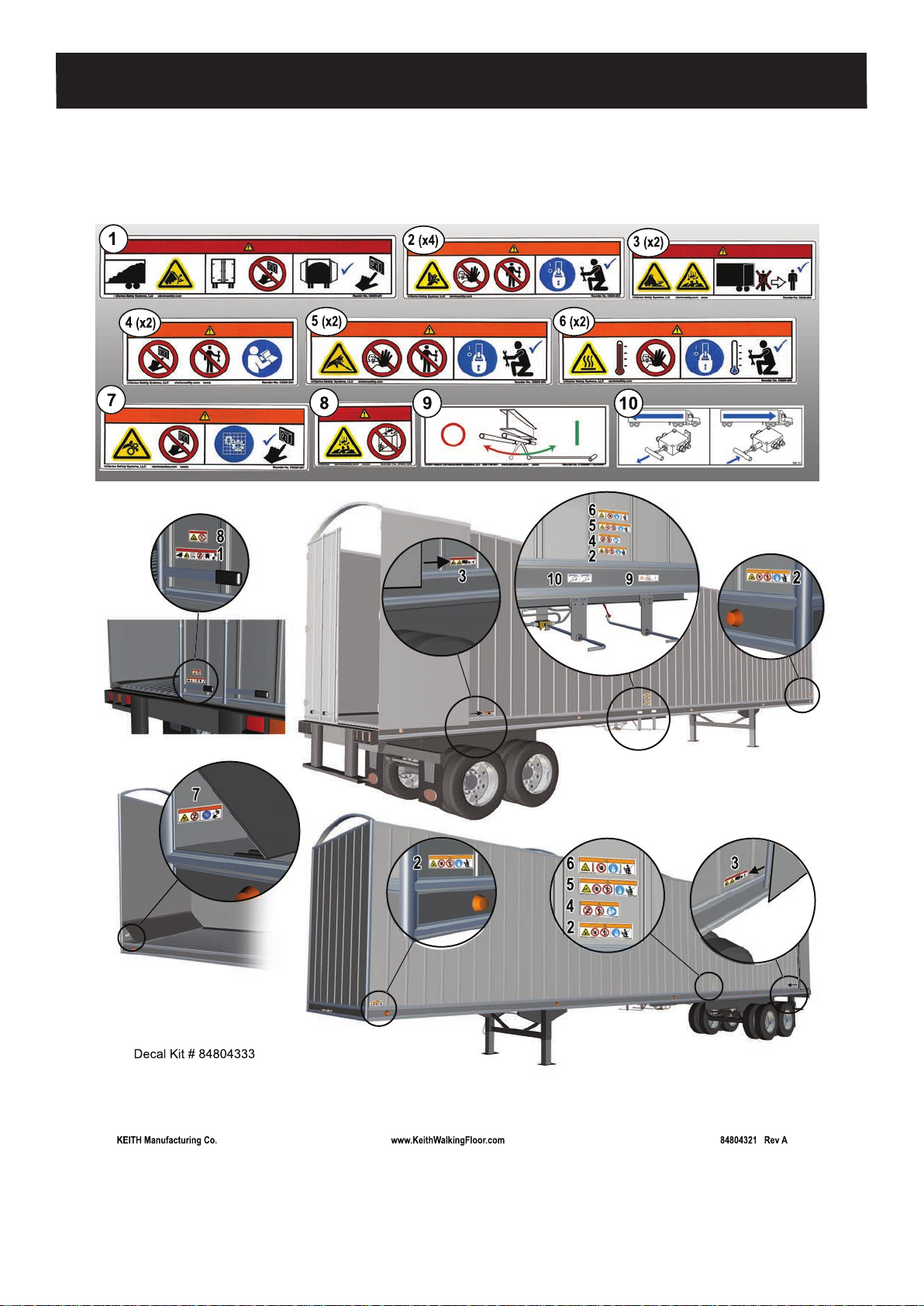

Safety Decal Placement Guide: RUNNING FLOOR II®DX/DX-i w/Manual Control Valve (Right Side Controls)

5 DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i

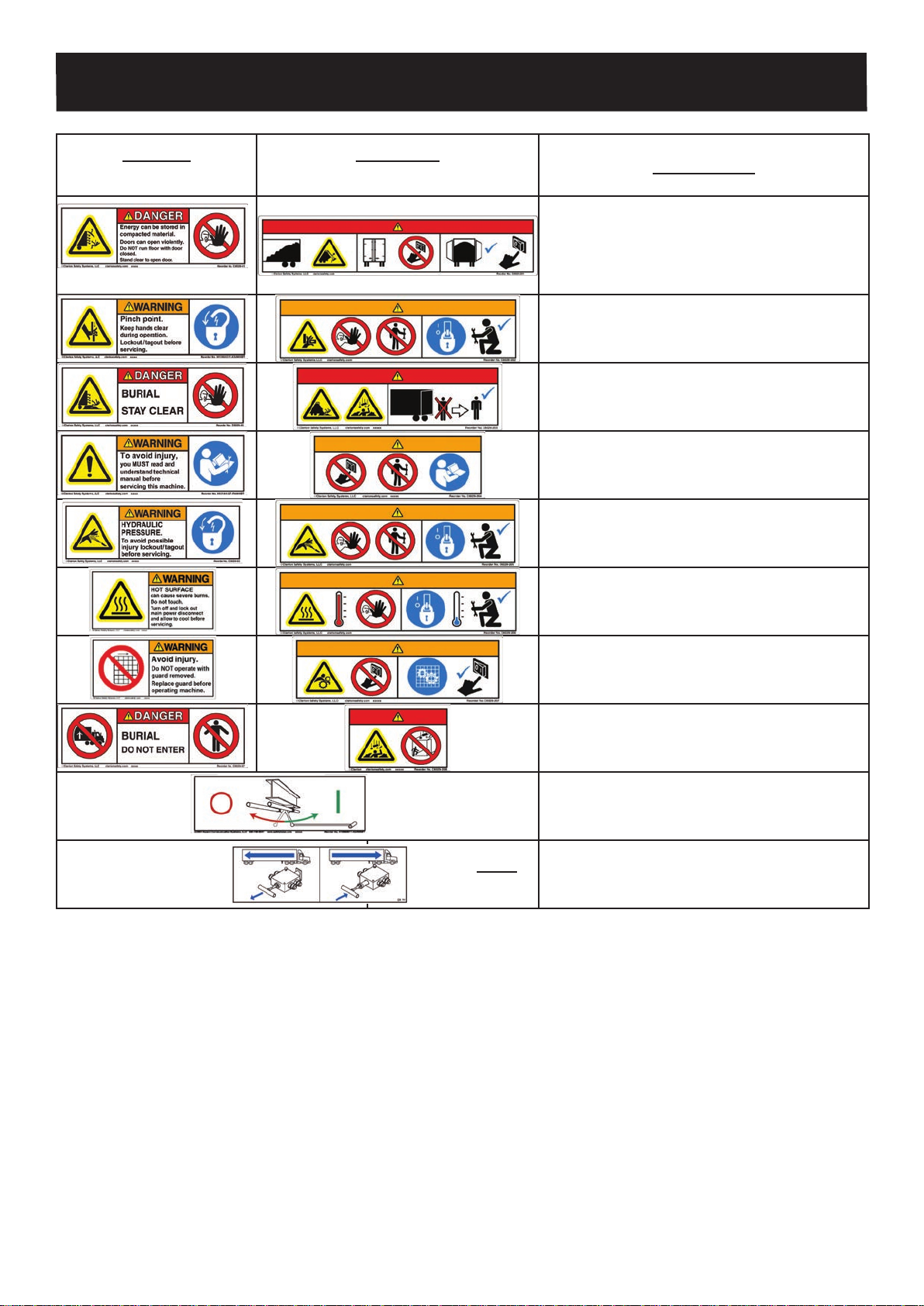

Worded
(Old - 2019) Wordless (2020 - Future) Description
Pressure can build when material is
compacted. Doors can open violently
causing serious injury or death. Do not
operate oor with doors closed. Stay clear to
open doors.
Pinch point can cut or crush causing serious
injury. Stay clear during operation. Lockout/
tagout before servicing.
Burial could cause serious injury or death.
Stay clear during operation.
To avoid injury, you MUST read and
understand technical manual before
operating or servicing this machine.
Hydraulic pressure can cause serious injury.
Stay clear during operation. Lockout/tagout
before servicing.
Hot surface can cause severe burns. Do
not touch. Turn o󰀨 and lock out main power
disconnect and allow to cool before servicing.
Avoid injury. Do NOT operate with guard
removed. Replace guard before operating
machine.
Burial could cause serious injury or death.
Do Not Enter when being loaded.
Pull handle out to turn oor on.
Push handle in to turn oor o󰀨.
Controls on Right
Side of Truck/Trailer Pull handle out to unload. Push handle in to load.

6 DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
1.3.2 Serial Plate
Please ll in the information from the serial plate attached to your drive system (See 3.3
Component Location Diagram). Over time these plates become di󰀩cult to read or even locate
and this information is crucial in determining the specic replacement parts for your system.
World Headquarters
MODEL: ____________________________
SERIAL #: ____________________________
D.O.M.: ____________________________
LOAD CAPACITY: ____________________________
MAX PRESSURE: ____________________________
MAX FLOW: ____________________________
DRIVE WEIGHT: ____________________________
WALKING FLOOR and KEITH are registered
trademarks of KEITH Manufacturing Co.

7 DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
2.0 Specications
2.1 Hydraulic Drive Unit
Drive Style: KRFII-3 KRFII-3.5
Cylinder Bore Diameter: 76 mm
[3.0 in] 89 mm [3.5 in]
Cylinder Stroke Length: 203 mm
[8.0 in] 203 mm [8.0 in]
Required Relief Valve
Pressure Range: Min: Max: 195 bar [2,800 PSI] 210 bar [3,000 PSI] 195 bar [2,800 PSI] 210 bar [3,000 PSI]
Load Capacity: 31.75 tonnes
[35 tons] 45.5 tonnes [50 tons]
Pump Flow Rate: 19 - 227 liters/min
[5 - 60 gal/min] 19 - 227 liters/min [5 - 60 gal/min]
Recommended Pump Flow Rate: 151 - 170 liters/min
[40 - 45 gal/min] 151 - 170 liters/min [40 - 45 gal/min]
* Floor Speed: 0.3 - 5 meters/min
[1 - 16.5 ft/min] 0.3 - 3.5 meters/min [1 - 11.5 ft/min]
Max Temperature: 60 °C
[140 °F] 60 °C [140 °F]
** Drive Weight: 454 - 500 kg
[1000 - 1100 lbs] 612 - 658 kg [1350 - 1450 lbs]
* Load/Unload times vary with pump ow rate, length of trailer, material type or other environmental variables.
** Varies by drive conguration and application.
Floor Speed vs Pump Flow Rate
meters/min
ft/min
liters/min
gal/min

8 DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
2.2 General Wet Kit Specications
Oil ISO-L-HM 46 hydraulic oil (As per ISO 11158). If operating the system below 0 °C [32 °F],
AW ISO 32 hydraulic oil is recommended.
* PTO &
Pump
Hollow axle: B8x 32x 36 DIN 5462 (ISO 14), Mounting Flange: ISO 7653 (80 mm x 80
mm M12 bolt-quantity 4) capable of producing between 151-227 liters/minute at less than
210 bar for optional operation.
Spherical head piston pump. Bezares FR110 or MR125, Spline axle: B8x32x36 DIN 5462
(ISO 14) or equivalent, Mounting Flange: ISO 7653 (80 mm x 80 mm, M12 bolt-qty (4)).
NOTE: Dump wet kit systems will not properly operate the WALKING FLOOR®unloader.
NOTE: Pumps with built-in pressure relief valves are NOT recommended.
Do not exceed the maximum pressure.
Filter
Filter should be 10 micron (or equivalent), on the return line. (The lter element should
be changed after the initial 6 hours of operation, then every 6 months thereafter. This may
vary with the operating environment).
KEITH recommends, but does not require, installing an inline pressure lter to increase
the life of the system.
Hydraulic
Reservoir
Sized to desired ow rate. Should hold approximately 1 liter [1 gallon] of oil for every liter
per minute [gallon per minute] you plan to pump, i.e. 151 liters/min [40 gal/min] = 151 liter
[40 gallon] reservoir. Minimum size 151 liters [40 gallons]
Suction
Line
Unless tank is mounted above the pump, the suction line from the tank to the pump
should be no more than 1.5 m [5 ft] in length with a minimum inside diameter of 51 mm [2
inch] [-32]. Must use suction hose ONLY!
Pressure
Line Hose from wet kit to trailer should be rated at 3000 PSI minimum with a minimum inside diameter of 25 mm [1 inch] [-16]. EN 856 4SP-06
Return
Line Hose from trailer to wet kit lter should be rated at 3000 PSI minimum with a minimum inside diameter of 25 mm [1 inch] [-16]. EN 856 4SP-06
* Pressure
Relief
Valve
High quality valve, capable of relieving maximum pump ow rate at 210 bar [3000 PSI].
Relief valve must be set above cracking pressure ~ 195 bar [2800 PSI] and no higher
than full open relief pressure ~ 210 bar [3000 PSI]
Contact KEITH in your region for specic recommendations and advice
regarding wet kits.
* If the information about your pump and pressure relief valve is not known, have a pressure/ow
check done by a professional.

9 DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i

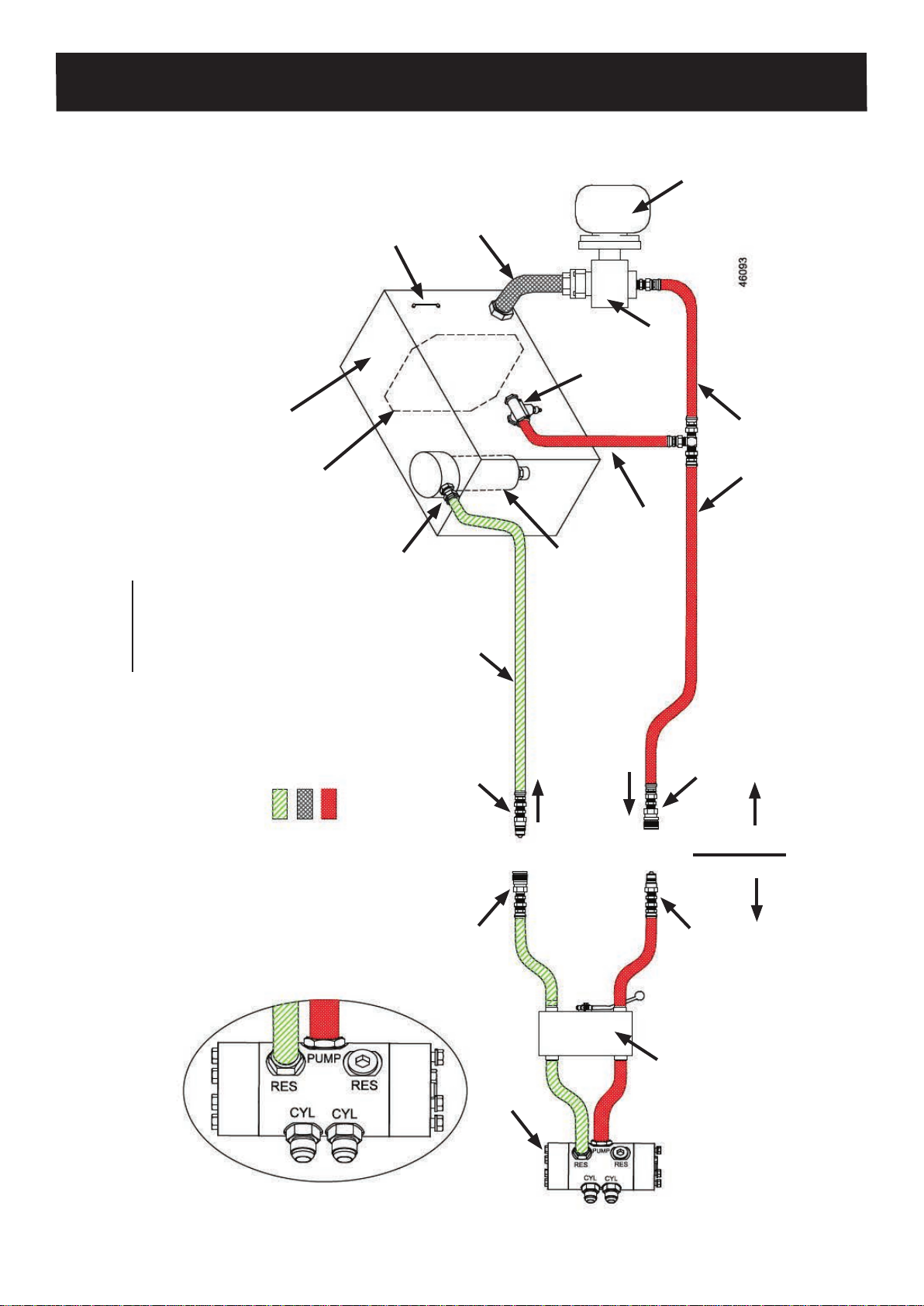

2.3 Floor to Wet Kit Diagram
Reservoir
Tank
25 mm [1 inch]
Return Hose
Return Suction Pressure
RETURN FLOW
PRESSURE FLOW
Filter
Pump
Pressure
Relief Valve
51 mm [2 inch]
Suction Hose
25 mm [1 inch]
Pressure Relief Hose
P.T.O.
IMPORTANT
To ensure proper operation of your KEITH®WALKING FLOOR®, the
specications and following diagram must be followed. Failure to
comply with these instructions may void the KEITH®Warranty.
25 mm [1 inch]
Male Quick Coupler
25 mm [1 inch]
Female Quick Coupler
Switching
Valve
On / O󰀨
Valve 25 mm [1 inch]
Male Quick Coupler
25 mm [1 inch]
Pressure Hose
WET KIT
FLOOR
25 mm [1 inch]
Female Quick Coupler
Sight
Gauge
Internal
Ba󰀪e
31.5 mm [1-1/4 inch]
Return Fitting

10 DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
3.0 Operation
3.1 How It Works
Initial Stage
All slats are staged together toward the direction of
material travel (discharge end).
Stage 1
The rst group of slats (approximately every 3rd slat)
moves under the load.
Load does not move.
Stage 2
The second group of slats moves under the load.
Load does not move.
Stage 3
The nal group of slats moves under the load.
Load does not move.
Stage 4
All slats move together.
Load moves with the oor toward the discharge end.
(Stages 1, 2 & 3 require more pressure than Stage 4.)
8175101

11 DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i

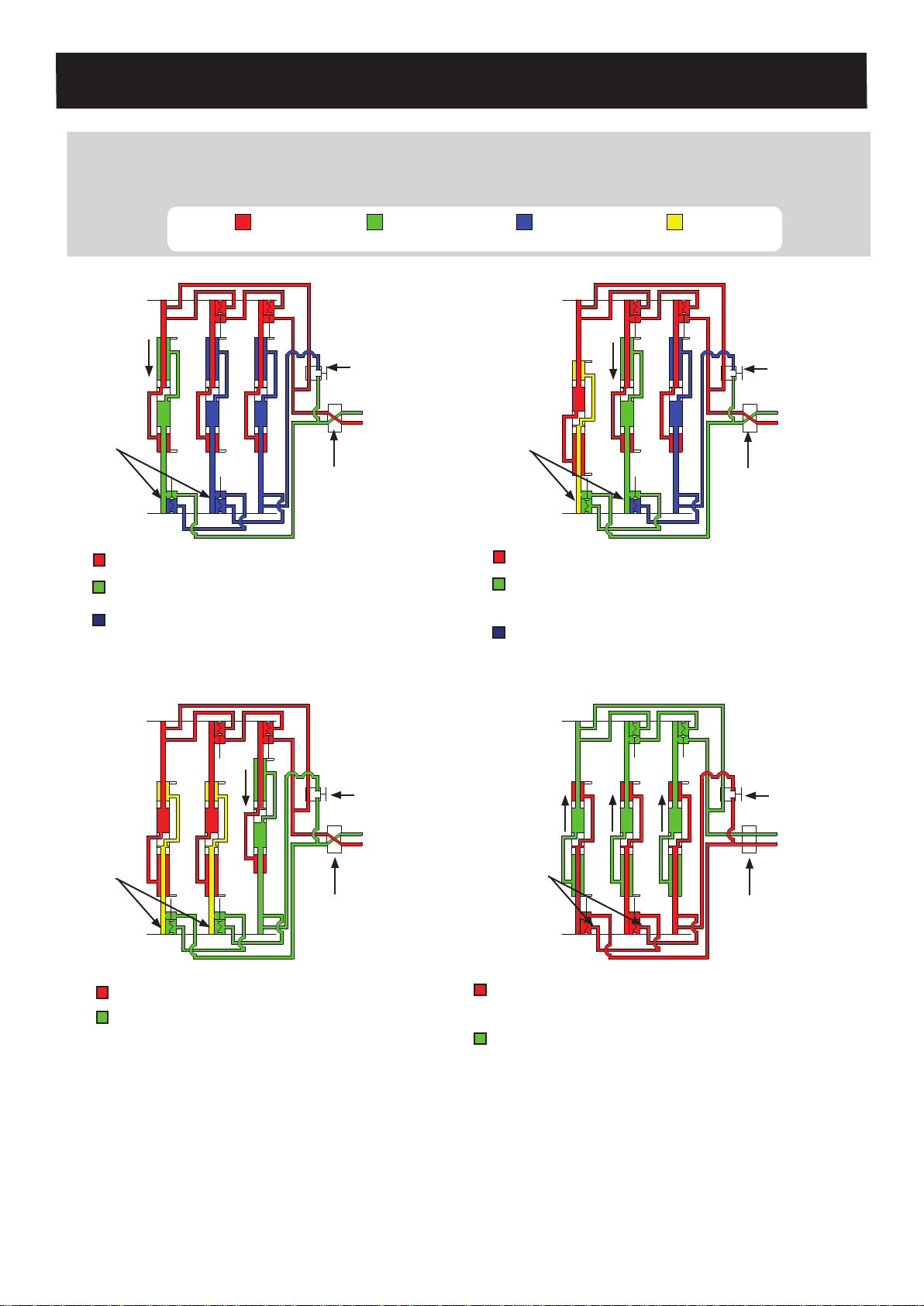

3.2 Oil Flow Diagram

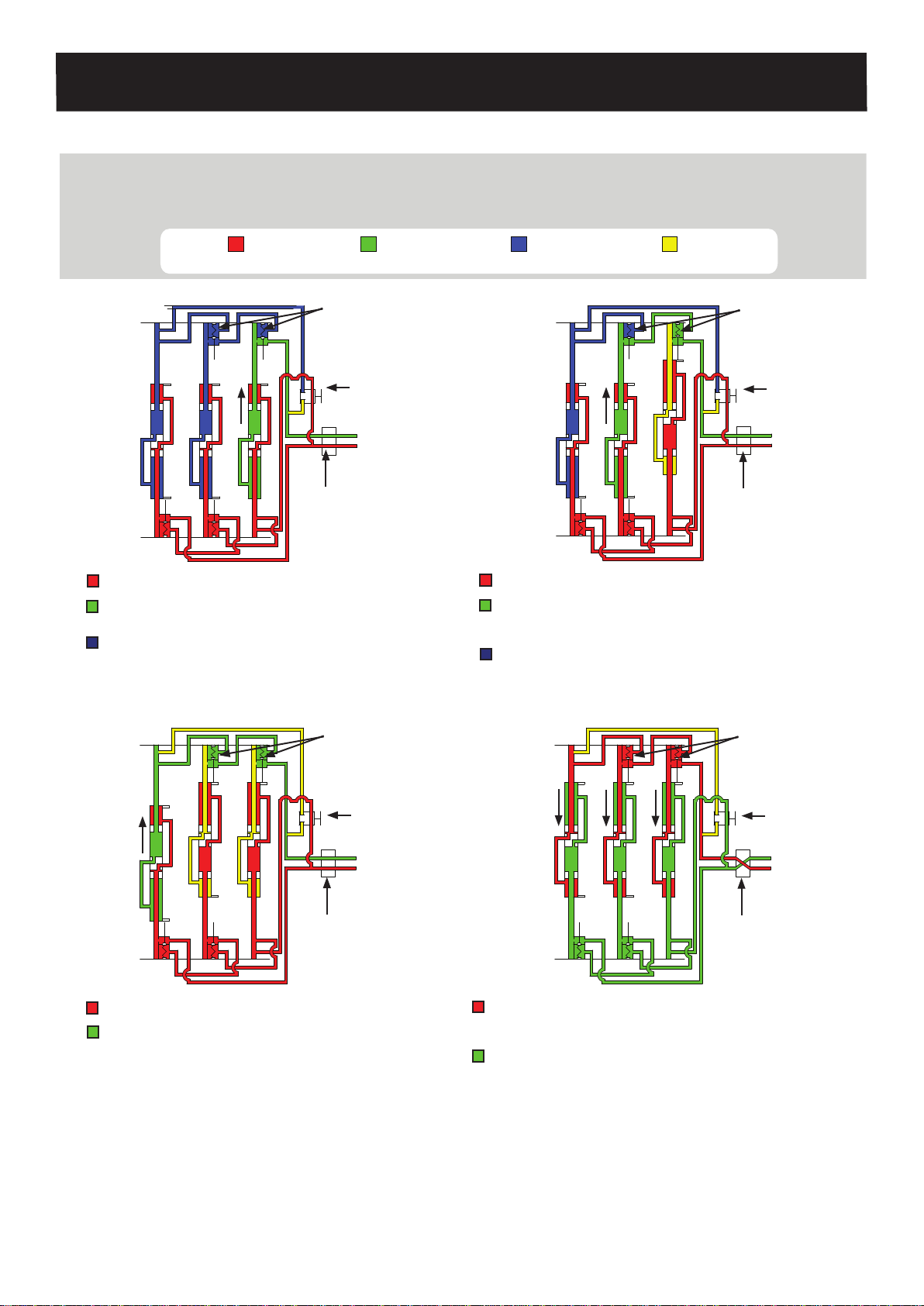

Pressure
Pressure
UNLOADING CYCLE
Pressure Return Blocked Return Oil Standing Oil
Check Valves
Control
Valve
Return
Switching
Valve
Stage 1
Pressure in the rear of all cylinders.
Cylinder #1 is open to return, causing it to move.
(Load does not move.)
Blocked by check valves.
Note: Stage 1 requires more pressure than stage 4.
Check Valves
Control
Valve
Return
Pressure
Switching
Valve
Stage 2
Pressure still in rear of all cylinders.
Cylinder #1 completes its full stroke, opening the check valve,
allowing the oil in cylinder #2 to escape, causing it to move.
(Load does not move.)
Blocked by check valve.
Note: Stage 2 requires more pressure than stage 1.
Check Valves
Control
Valve
Return
Switching
Valve
Stage 3
Pressure still in rear of all cylinders.
Cylinder #2 completes its full stroke, opening the check valve,
allowing the oil in cylinder #3 to escape to return, causing it to
move. (Load does not move.)
Note: Stage 3 requires more pressure than stage 2.
Revised 2019-11-25 DOC06209 Rev. B
Check Valves
Control
Valve
Return
Pressure
Switching
Valve
Stage 4
3 2 1 3 2
1
3 2 1
3
2 1
Cylinder #3 completes its stroke, shifting the switching valve, which
reverses pressure and return, transferring the pressure to the front of
all cylinders.
All cylinders are now open to return and move to the rear of the
trailer together, moving the load.
As the cylinders complete their stroke, cylinder #1 shifts the
switching valve, which reverses pressure and return, transferring the
pressure to the rear of all cylinders again and the cycle starts over.
Note: Stage 4 requires less pressure than stages 1, 2, or 3.
Front
Rear
Front
Rear
Front
Rear
Front
Rear

12 DOC06340 Rev. I
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
Pressure
Pressure
LOADING CYCLE
Pressure Return Blocked Return Oil Standing Oil
Control
Valve
Return
Switching
Valve
Stage 1
Pressure in the front of all cylinders.
Cylinder #3 is open to return, causing it to move.
(Load does not move.)
Blocked by check valves.
Note: Stage 1 requires more pressure than stage 4.
Control
Valve
Return
Pressure
Switching
Valve
Stage 2
Pressure still in front of all cylinders.
Cylinder #3 completes its full stroke, opening the check valve,
allowing the oil in cylinder #2 to escape, causing it to move.
(Load does not move.)
Blocked by check valve.
Note: Stage 2 requires more pressure than stage 1.
Control
Valve
Return
Switching
Valve
Stage 3
Pressure still in front of all cylinders.
Cylinder #2 completes its full stroke, opening the check valve,
allowing the oil in cylinder #1 to escape to return, causing it to
move. (Load does not move.)
Note: Stage 3 requires more pressure than stage 2.
Revised 2019-11-25 DOC06209 Rev. B
Control
Valve
Return
Pressure
Switching
Valve
Stage 4
3 2 1
3 2 1
3 2
1
3
2 1
Check
Valves Check
Valves
Check
Valves Check
Valves
Cylinder #1 completes its stroke, shifting the switching valve, which
reverses pressure and return, transferring the pressure to the rear of
all cylinders.
All cylinders are now open to return and move to the front of the
trailer together, moving the load.
As the cylinders complete their stroke, cylinder #3 shifts the switching
valve, which reverses pressure and return, transferring the pressure
to the front of all cylinders again and the cycle starts over.
Note: Stage 4 requires less pressure than stages 1, 2, or 3.
Front
Rear
Front
Rear
Front
Rear
Front
Rear

13 DOC06340 Rev.
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX-i
3.3 Component Location Guides
Drive
Frame
Ball Valve
(Manual)
RUNNING FLOOR II®DX-i 3.5”
Manual Controls (Right Side)
(Front of Trailer)
Return
Pressure
Serial numbers are
located underneath
front sti󰀨ener plate.
Adapter
Block Check Valves (2)
Cross-
Drives (3)
(Right Side of Trailer)
#1
#2
#3
Cylinders (3)
11
22
33
(Left Side of Trailer)
Switching
Valve
Adapter Block
(Rear of Trailer)
View From Underneath Trailer
CV Handle
LoadUnload
BV Handle
On
O󰀨
Control Valve
(Manual)
10350101
Check Valves (2)
Actuator
Rod (2)
Cross-Drive
Clamps (6)
