KeLi KS06M User manual

Foreword
Thank you for choosing KS06M safety light curtain!
KS06M safety light curtain is suitable for automation and machining field.
The device only protects the rectangular light curtain area between the emitter and the
receiver. If its installation position is incorrect, or the operation does not follow the
instructions and related safety rules, or the equipment actuator breaks down, the
device may not be able to play the protective role. Therefore, before installing this
device, please read the instructions carefully and fully understand the relevant items,
especially the "warning", "attention" and other contents; in use, please correctly
understand the performance of the safety light curtain and operate in strict accordance
with the instructions and related safety rules for safety light curtain.
The instructions only introduce the application of KS06M safety light curtain in the
pressure machine. The instructions are only used for reference when the safety light
curtain is used in other occasions.
As a result of the technical update of the product, when the product is inconsistent
with the relevant contents provided in the instructions, the material object shall
prevail. We will release the change notice on the company's website in time. Please
log in http://www.sdkeli.com for verification.
The instructions are interpreted by Shandong Keli Opto-electronic Technology Co.,
Ltd.. When reading or using the instructions, please contact us if there are any
uncertainties.

Contents
Danger Category and Special Symbol (1)
Part 1 Safety Needs (2)
1.1 Preventive Measures (2)
1.2 Safety Requirements (2)
1.3 Product Support (3)
Part 2 Product Introduction (4)
2.1 General (4)
2.2 Specification (4)
2.3 Selection Instruction (5)
2.4 Function and Appearance (6)
2.5 Part Dimensions (7)
2.6 Technical Parameters (10)
Part 3 Installation, Wiring and Commissioning (11)
3.1 Determination of Installation Position (11)
3.2 Installation of Light Curtain (16)
3.3 Wiring and Commissioning (21)
Part 4 Maintenance (22)

-1-
Danger Category and Special Symbol
Before the installation, operation or maintenance of KS06M safety light curtain, please read the
instructions carefully and familiarize yourself with the equipment through appearance. The
following special information may appear anywhere in the instructions to warn the potential
dangers or provide tips for information used to clarify or simplify certain procedure.
Warning
This is a safety warning label. The content of the label is very important. Operators must strictly
implement the safety information in the label to avoid possible personal injury.
Notice
This is the prompt label of key information. The content of the label is very important. The operator
must understand and strictly enforce the information according to the information requirements to
avoid possible legal disputes and product damages.
Please pay attention to the followings: Electrical equipment must be installed, operated, serviced
and maintained by qualified professionals.

-2-
Part 1 Safety Needs
Warning
KS06M safety light curtain must be installed and maintained by a professional.
Before the installation and use of KS06M safety light curtain, please carefully read and accurately
understand the instructions and operate in strict accordance with the relevant requirements in the
instructions.
The inconformity with the instructions may lead to the personnel injury or equipment damages.
1.1 Preventive Measures
Correct use, installation, maintenance and operation are the basis for the safety functions of KS06M
safety light curtain. This is the common responsibility of the purchaser, the installer and the person
in charge of the enterprise. The person in charge of the enterprise shall be responsible for the
necessary training of the employees. Training contents include: Installation, adjustment, use and
maintenance of equipment and related safety systems.
KS06M safety light curtain must be installed, repaired and maintained by a professional.
In this case, a professional means "a person who has been professionally trained and accredited, or
who has a wealth of knowledge and experience and has proven to be capable of solving such
problems" (ANSI B30.2-1983).
1.2 Safety Requirements
To use KS06M safety light curtain, you must comply with the following requirements:
ØThe controlled equipment should be able to respond reliably after KS06M safety light curtain
gives the disconnected signal, otherwise the safety function cannot be realized.
ØThe person in charge of enterprise and the users are responsible for compliance with any
applicable national and local laws, regulations and norms.

-3-
ØThe controlled equipment and safety - related parts should be properly set up to ensure that the
control logic error or control loop failure does not result in a risk of failure of KS06M safety light
curtain.
1.3 Product Support
Please operate KS06M safety light curtain according to the requirements of the instructions. For
more product and service information, please log in: www.shuangshou.com or call at 400-
666-0416.

-4-
Part 2 Product Introduction
2.1 General
KS06M safety light curtain conforms to the requirements of GB/T 19436.1 Safety
Level 4, GB/T 19436.2 Safety Level 4 and GB4584 2007. It is characterized by high
safety, tiny appearance, small invalid detection area and high detection accuracy (the
maximum accuracy is 14mm; it may be used to protect the fingers). It is applicable to
the automation field and machining field.
KS06M safety light curtain provides protection against dangerous areas at different
distances, such as 3m, 6m, 9m, etc. Users can choose the appropriate screen model
according to the actual width of the table-board.
KS06M safety light curtain provides two-channel PNP or NPN output control signal.
2.2 Specification
The specification of KS06M safety light curtain is shown as follows:

-5-
2.3 Selection Instruction
KS06M safety light curtain should be preferred for places with restricted installation space. The
appearance of this series of safety light curtain is tiny that the thickness is 25mm and the width is
30mm. The invalid detection area at both ends of the sensor is less than 7.5 mm. It basically can
realize the whole area coverage of the light curtain installation area.
ØChoose a reasonable length of protection: KS06M safety light curtain is divided into type A,
type B and type C according to the protection length. The protection length is respectively 0-3m,
0-6m, 2-9m. In order to ensure the stable operation of the system, the protection length of the
selected light curtain should be greater than the width of the table-board needs to be protected.
Notice
When the actual protection table-board width is larger than the rated protection length, it may lead
to unstable system work or shorten service life.
ØSelect reasonable detection accuracy: There are four kinds of detection accuracy for KS06M
safety light curtain: 14mm,20mm,30mm,40mm. The light curtain with the detection accuracy of
14mm can be used for finger protection; the light curtain with detection accuracy of 20mm and
30mm can be used for palm protection; the light curtain with detection accuracy of 40mm can be
used for arm protection and other occasions with lower requirements for the detection accuracy.
Warning
The size of the object that needs to be protected should not be less than the value of detection
accuracy of the light curtain. The company does not take any responsibility for any personal injury
caused by the lack of detection accuracy.

-6-
ØChoose a reasonable height of protection: The protection height of KS06M safety light curtain
is 150mm-2485mm; The protection height of light curtain should not be lower than that required by
relevant safety standards.
Warning
The company does not take any responsibility for any personal injury caused by the lack of
protection height.
ØSelect the appropriate form of output: KS06M safety light curtain provides two output forms,
namely PNP output and NPN output.
Warning
Because the contact with the machine tool shell may cause danger and invalidity after the
output cable is opened, we do not recommend the use of NPN output form. We shall not be
liable for any personal injury caused by the short circuit between the output cable and other
circuits
2.4 Function and Appearance
lSafety light curtain
KS06M safety light curtain consists of
emitter, receiver and transmission cable.
Emitter is the combination of the light
emitting unit, which is used to transmit
the light signal; receiver is the
combination of the light receiving unit,
which is used to receive and process the
light signal from the emitter, and transmit
the On-off state signal of light curtain to
the controlled equipment; The
transmission cable provides power supply
and communication channel to emitter
and receiver, and transmits the detection
results of light curtain to the controlled
equipment at the same time. Fig.2.4.1 Schematic diagram of light
curtain

-7-
lTransmission cable
Standard length of transmission cable:
The standard cable length of KS06M safety light curtain is type A: 1.5m, 3.5m; Type B: 1.5m, 6.5m;
Type C 1.5m, 9.5m.
When the configuration of the standard cable length cannot meet the requirements, it should be
customized when ordering.
The connection of each connection point of the transmission cable is shown in Fig.2.4.2.
Fig.2.4.2 Signal definition of transmission cable
2.5 Part Dimensions
Connector
LCS pipe-mounting fixing clamp Bracket seat

-8-
LCS vibration-reducer Bracket arm
LCS JZ mounting bracket LCS vibration-mounting bracket Steel pipe
Fig.2.5.1 Detail drawing of major parts

-9-
Table 2.5.1 List of protective height H, sensor length J and steel pipe L
Number
of
beams
Detection
capability
14mm
Detection
capability
20mm
Detection
capability
30mm
Detection
capability
40mm
Beam spacing
10mm Beam spacing 15mm Beam spacing 25mm Beam spacing 35mm
H J L H J L H J L H J L
6 175 190 500
8 175 190 500 245 260 500
10 225 240 500 315 330 500
12 165 180 500 275 290 500 385 400 750
14 195 210 500 325 340 750 455 470 750
16 150 165 500 225 240 500 375 390 750 525 540 750
18 255 270 500 425 440 750 595 610 1000
20 190 205 500 285 300 500 475 490 750 665 680 1000
22 315 330 500 525 540 750 735 750 1000
24 230 245 500 345 360 750 575 590 1000 805 820 1000
26 375 390 750 625 640 1000 875 890 1200
28 270 285 500 405 420 750 675 690 1000 945 960 1200
30 435 450 750 725 740 1000 1015 1030 1200
32 310 325 500 465 480 750 775 790 1000 1085 1100 1500
34 495 510 750 825 840 1200 1155 1170 1500
36 350 365 750 525 540 750 875 890 1200 1225 1240 1500
38 555 570 750 925 940 1200 1295 1310 1500
40 390 405 750 585 600 1000 975 990 1200 1365 1380 1750
42 615 630 1000 1025 1040 1500 1435 1450 1750
44 430 445 750 645 660 1000 1075 1090 1500 1505 1520 1750
46 675 690 1000 1125 1140 1500 1575 1590 2000
48 470 485 750 705 720 1000 1175 1190 1500 1645 1660 2000
50 735 750 1000 1225 1240 1500 1715 1730 2000
52 510 525 750 765 780 1000 1275 1290 1500 1785 1800 2000
54 795 810 1000 1325 1340 1750 1855 1870
56 550 565 750 825 840 1200 1375 1390 1750 1925 1940
58 855 870 1200 1425 1440 1750 1995 2010
60 590 605 1000 885 900 1200 1475 1490 1750 2065 2080
62 915 930 1200 1525 1540 1750 2135 2150
64 630 645 1000 945 960 1200 1575 1590 2000 2205 2220
66 975 990 1200 1625 1640 2000 2275 2290
68 670 685 1000 1005 1020 1200 1675 1690 2000 2345 2360
70 1035 1050 1500 1725 1740 2000 2415 2430
72 710 725 1000 1065 1080 1500 1775 1790 2000 2485 2500

-10-
2.6 Technical Parameters
Project Parameters Project Parameters
Working voltage DC21.6V-26.4V Response time ≤10ms
Power consumption <10W Insulation
resistance >100MΩ
Ambient temperature -10℃-55℃IP code IP65
Ambient humidity 35-95%RH Anti-light
interference
10000Lux (angle of incidence
≥5)
Dielectric strength No breakdown or flashover phenomenon under AC1500V in 60s
Beam spacing 10mm 15mm 25mm 35mm
Detection capability 14mm 20mm 30mm 40mm
Protection length Series A: 0-3m Series B: 0-6m Series C: 2-9m
Output characteristics
NPN type: When transmitting light, the transistor is ON, ≤200mA and the
output voltage is ≤4V. When shading light, the transistor is OFF, the output
voltage is ≤VCC-1V and the leakage current is <2mA.
PNP type: When transmitting light, the transistor is ON, ≤200mA and the
output voltage is ≤VCC-4V. When shading light, the transistor is OFF, the
output voltage is ≤1V and the leakage current is <2mA.

-11-
Part 3 Installation, Wiring and Commissioning
Notice
Before installing, please open the packing box and check the packing device according to the
packing list; When installing, turn off the power of the machine to avoid danger.
3.1 Determination of Installation Position
The installation position contains two elements of safety distance and high position.
In order to ensure the safety of the operator, the installation position of the safety light curtain must
conform to the requirements of safety distance and height, otherwise, there is still the possibility of
accidents.
3.1.1 Calculation of safety distance
lSafety distance is the minimum distance between the light curtain plane of a safety light curtain
and the cutting edge of a mold. The calculation method shall be determined according to the
braking mode of the pressure machine or with reference to the table below.

-12-
lFor a pressure machine in which the slider can stop at any position of the stroke, the safety
distance is calculated by formula (1).
Therein: S--Safety distance (mm);
K- The speed of a person's body or part near a dangerous area (mm /s);
T- Total braking time of the system (s);
C--Additional distance (mm);
lFor a pressure machine in which the slider can stop at any position of the stroke, the safety
distance is calculated by formula ( 2).
Therein: S--Safety distance (mm);
K- The speed of a person's body or part near a dangerous area (mm /s);
C--Additional distance (mm);
Ts- The time from the hand away from the light curtain to the slider of the pressure machine
reaching the bottom dead center (s). It can be calculated according to formula (3) or measured in
practice.
Determination of K value
lWhen the light curtain of safety light curtain is installed horizontally, the speed should be 1600
mm/s.
lWhen the light curtain of the safety light curtain is installed vertically, if the safety distance is
not more than 500 mm, the speed should be 2000 mm/s; If the safety distance is larger than 500
mm, the speed should be 1600 mm/s.
The determination of Tand Ts
lTotal braking time of the system T includes the response time of safety light curtain and
braking time of pressure machine.
lResponse time of safety light curtain is given by the supplier of safety light curtain.

-13-
lThe braking time of pressure machine should be measured according to the situations.
lThe calculation method of Ts is given in the following formula.
Therein: N- Number of engagement slots of clutch;
Tn- Time that the crankshaft rotates one cycle (S).
Determination of C value
lThe additional distance C is determined on the basis of the entry of hand into the light curtain
of safety light curtain (response area) without causing the response of safety light curtain.
lAccording to the detection accuracy of the safety light curtain, C value is selected according to
the rules of the following table when calculating the safety distance.
Detection accuracy (mm) Additional distance C(mm) Stroke start of safety light
curtain
≤14 0
Allowed>14-20 80
>20-30 130
>30-40 240 Not allowed
>40 850
Warning
The safety distance is one of the necessary conditions to ensure the protection function of the
safety light curtain. The safety distance must be calculated correctly and must be ensured
when installing!!
3.1.2 Determination of height position
Height position refers to the protection height of the safety light curtain relative to the upper and
lower position of the die of the machine tool. Namely under the premise of guaranteeing the safety
distance, the undermost light beam of safety light curtain should not be higher than the lower edge
of lower die and the uppermost light beam should not be lower than the upper edge of upper die, as

-14-
shown in Figure 3.1.1. This relates to the selection of protection height of safety light curtain.
The protection height should not be lower than that required light curtain protection height by
relevant safety standards.
Fig.3.1.1 Correct installation position
Fig.3.1.2 Incorrect installation position
( light curtain is too close to the die orifice)
Fig.3.1.3 Incorrect installation position
( light curtain is a little higher, the hand can stretch into it under the lowest beam)
Upper Die
Upper Die

-15-
Fig.3.1.4 Incorrect installation position
(light curtain is a little lower, the hand can stretch into it upside the highest beam)
3.1.3 Settings for auxiliary protection measures
When the horizontal distance between the safety light curtain plane of the safety light curtain and
the front end of the die exceeds 400 mm, additional auxiliary photoelectric or protective bars should
be installed to prevent the operator from entering the inside of the light curtain plane, as shown in
Figure 3.1.5. When the distance is less than 400mm, Auxiliary photoelectric or protective fence and
other safety measures may be taken.
Fig.3.1.5 Incorrect installation position
( light curtain is too far from the die orifice, operators could enter danger zone )
Warning
A. The height position is one of the necessary conditions to ensure the protection function of
the safety light curtain. The installation must ensure that the height is in the correct position.
B. When the machine tool slides, we must overhaul the machine tool timely. Otherwise, even
if the safety light curtain is installed in the right position, it will not ensure safety.
C. If it is necessary to replace the mold in the use process, we must adjust the position of
safety light curtain according to the above two items of requirements.
D. The company is not liable for any personal injury caused by the wrong location of the
installation.

-16-
3.2 Installation of Light Curtain

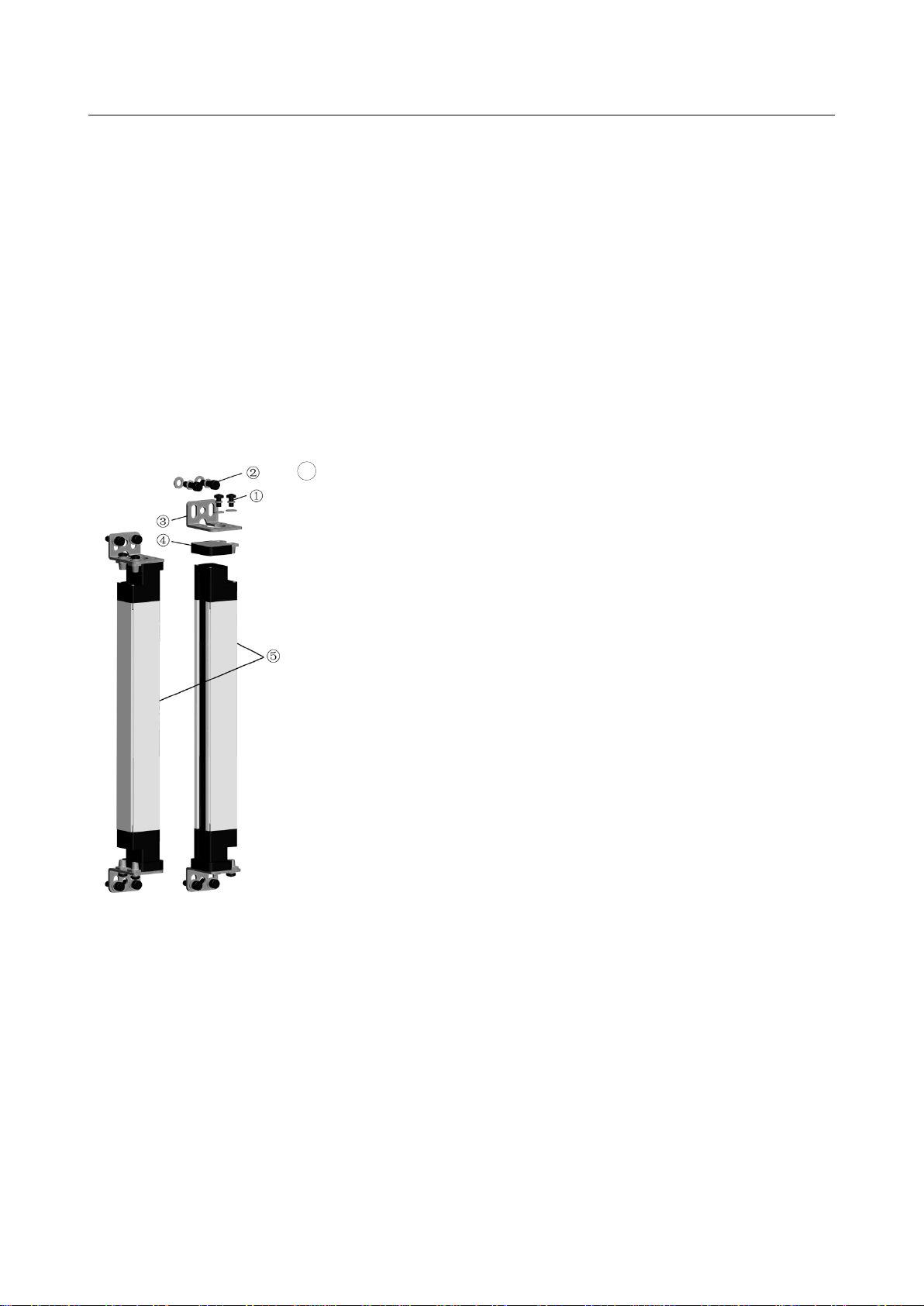

3.2.1 Common front mounting (PZ)
It refers to the installation mode that the emitter and receiver are directly installed on the machine
body with common mounting bracket. It is generally applicable to the closed pressure machine with
framed structure. Installing form as shown in Fig.3.2.1. The installation steps are as follows:
1M4×8 cross recessed screw, Φ4 elastic/plain washer
②M5×16 inner hexagon screw, Φ5 elastic/plain washer
③LCS vibration-mounting bracket
④LCS vibration-reducer
⑤Emitter/ Receiver
Fig.3.2.1 Common front mounting (PZ)
A. The installation position of emitter and receiver should be determined according to the
calculated safety distance and height. Care should be taken to ensure that the emitter can be
installed parallel to the receiver.
B. Connector plug-in of sensor should be penetrated the middle hole of LCS vibration-mounting
bracket. Pay attention to the bracket installation hole down when entering.
C. As shown in the graphical direction, connect LCS vibration-mounting bracket and LCS
vibration-reducer with M4x8 cross recessed screws.
D. Fasten LCS vibration-mounting bracket on the bed piece with M5x16 inner hexagon screws.

-17-
E. Adjust the position of emitter and receiver to make them parallel and aligned and tighten the
installation screws properly.
F. After commissioning, fasten all mounting screws.
3.2.2 Common side mounting (PC)
It refers to the installation mode that the emitter and receiver are directly installed on the machine
body with the ordinary mounting bracket. It is generally applicable to the closed pressure machine
with framed structure. Installing form as shown in Fig.3.2.2 The installation steps are as follows:
1M4×8 cross recessed screw, Φ4 elastic/plain washer
②M5×16 inner hexagon screw, Φ5 elastic/plain washer
③LCS vibration-mounting bracket
④LCS vibration-reducer
⑤Emitter/ Receiver
Fig.3.2.2 Common mounting (PC)

-18-
A. The installation position of emitter and receiver should be determined according to the
calculated safety distance and height. Care should be taken to ensure that the emitter can be
installed parallel to the receiver.
B. As shown in the graphical direction, connect LCS vibration-mounting bracket and LCS
vibration-reducer with M4x8 cross recessed screws.
C. Fasten LCS vibration-mounting bracket on the bed piece with M5x16 inner hexagon screws.
D. Adjust the position of emitter and receiver to make them parallel and aligned and tighten the
installations crews properly.
E. After commissioning, fasten all mounting screws.

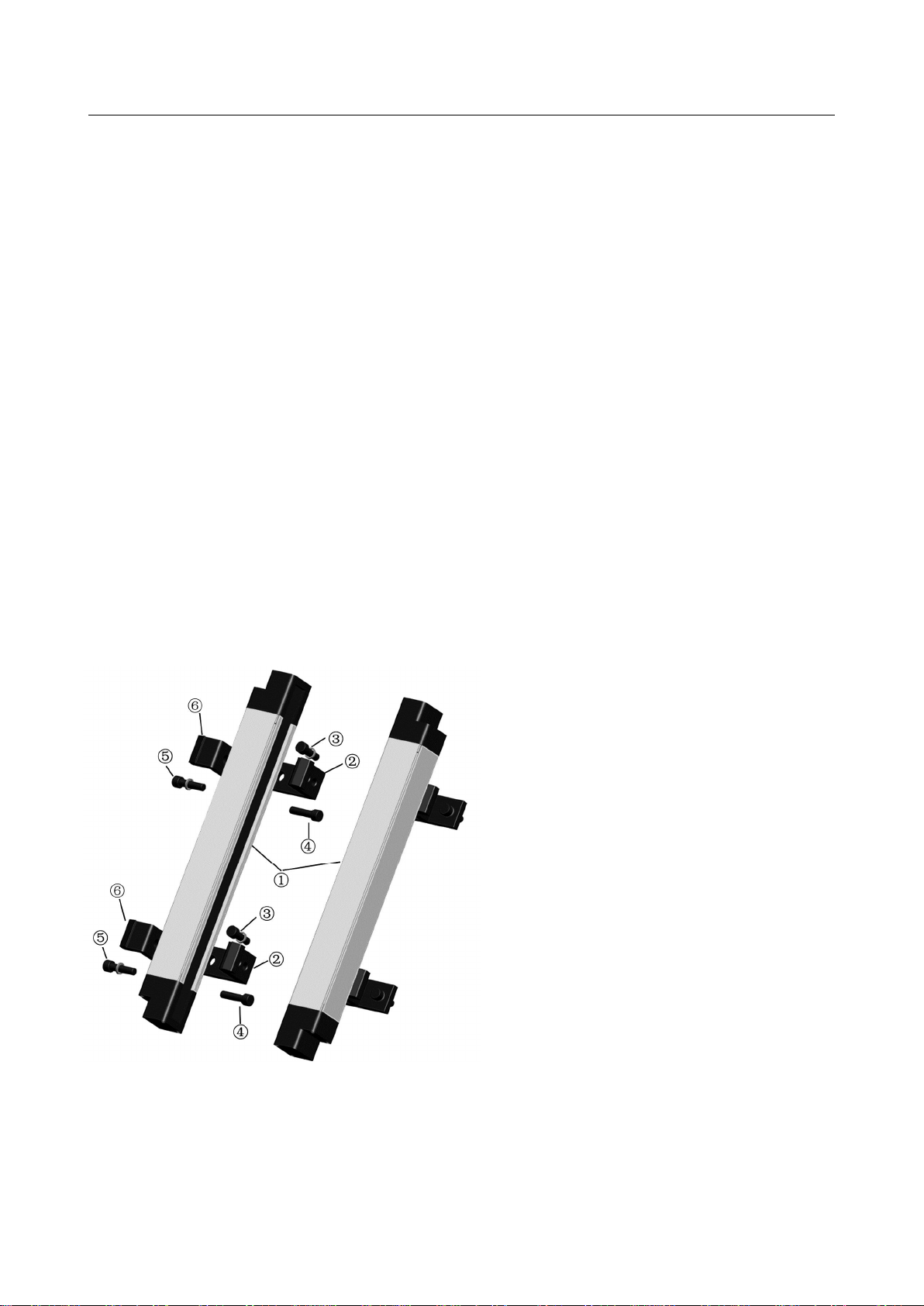

3.2.3 Clamping mounting (JZ) (select back clamping or side clamping)
It refers to the installation mode that the emitter and receiver are directly installed on the machine
body with the clamping mounting bracket. It is generally applicable to the occasions where it is not
convenient to adopt the upper and lower
mounting bracket in the framed structure.
Installing form as shown in Fig.3.2.3 The
installation steps are as follows:
①Emitter/ Receiver
②LCS mounting bracket
③M5×16 inner hexagon screw, Φ5
elastic/plain washer
④M5×16 inner hexagon screw
⑤M5×20 inner hexagon screw, Φ5
elastic/plain washer
⑥LCS clamping bracket
Fig.3.2.3 Clamping mounting (JZ)
A. The installation position of emitter and receiver should be determined according to the
calculated safety distance and height. Care should be taken to ensure that the emitter can be
