Kenmore 35932 User manual

ENGLISH
Owner's Manual
Manuel de l'usager
THROUGH-THE-WALL AIR CONDITIONER
CLIMATISEUR DE MURALES
Model, Modèle 35932
Distributed by Sears Canada Inc. Toronto, Ontario,Canada M5B 2B8
www.sears.ca
®ENERGY STAR
FRANÇAIS

- 2 -
TABLE OF CONTENTS
- 2 -
TABLE OF CONTENTS ........................2
WARRANTY..............................................2
SAFETY .....................................................3
Important Safety Instructions
......................3
ELECTRICAL REQUIREMENTS .......4
INSTALLATION ........................................5
Installation Requirements.........................5
Installation................................................6
Procedure A .............................................7
Procedure B .............................................8
Procedure C...........................................10
OPERATION ...........................................12
How and Why.........................................12
Normal Sounds ......................................12
Capacity and Running Time...................12
Features.................................................13
Using the Air Conditioner .......................13
Control Panel .........................................14
Remote Control......................................15
MAINTENANCE.....................................17
Air Filter Cleaning...................................17
Air Conditioner Cleaning ........................17
How to Remove the Front Grille.............17
How to Replace the Front Grille.............17
TROUBLESHOOTING .........................18
Before Calling for Service ......................18
FRANÇAIS...............................................20
MASTER PROTECTION
AGREEMENTS ......................................39
SERVICE NUMBERS ............Back Cover
WARRANTY
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails
due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to
arrange for free repair.
Five Year Limited Warranty on Sealed Refrigerant System
For five years from the date of purchase, when this product is installed, operated and maintained according to all supplied
instructions, the sealed refrigerant system will be repaired free of charge if it is defective in material or workmanship.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may not apply to you.
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
All warranty coverage applies for only 90 days from the date of purchase if this product is ever used for other than private
family purposes.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions suppl ied
with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

-3-
ENGLISH
SAFETY
IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your room air conditioner to avoid harm to yourself or
damage to your ROOM AIR CONDITIONER.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. Read product labels for flammability and
other warnings.
PREVENT ACCIDENTS
To reduce the risk of fire, electrical shock, or injury
to persons when using your air conditioner, follow
basic precautions, including the following:
• Be sure the electrical service is adequate for the
model you have chosen.
• If the air conditioner is to be installed in a window,
you will probably want to clean both sides of the
glass first. If the window is a triple-track type with a
screen panel included, you may want to remove
the screen completely before installation.
• Be sure the air conditioner has been securely and
correctly installed according to the instructions in
this manual.
Save this manual and installation instructions for
possible future use in removing or reinstalling this
unit.
• Use gloves when handling the air conditioner.
Be careful to avoid cuts from sharp metal fins on
front and rear coils.
ELECTRICAL INFORMATION
The complete electrical rating of your new room air
conditioner is stated on the serial plate. Refer to the
rating when checking the electrical requirements.
• Be sure the air conditioner is properly grounded.
To minimize shock and fire hazards, proper
grounding is important. The power cord is
equipped with a three-prong grounding plug for
protection against shock hazards.
• Your air conditioner must be plugged into a
properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install
the proper receptacle.
• Do not run air conditioner with packing sheet of
the back of the sleeve, and packing corner and
blue tape of the air conditioner. This could result in
mechanical damage within the air conditioner.
• Do not use an extension cord or an adapter
plug.
ENERGY SAVING IDEAS
• The capacity of the room air conditioner must fit
the room size for efficient and satisfactory
operation.
• Install the room air conditioner on the shady side
of your home. A window that faces north is best
because it is shaded most of the day.
• Do not block air flow inside with blinds, curtains, or
furniture; or outside with shrubs, enclosures, or
other buildings.
• Close the floor and wall registers and the fireplace
damper so cool air does not escape up the
chimney and into the duct work.
• Keep blinds and drapes in other windows closed
during the sunniest part of the day.
• Clean the air filter as recommended in the
MAINTENANCE section of this manual.
• Proper insulation and weather stripping in your
home will help keep warm air out and cool air in.
• External house shading with trees, plants or
awnings will help reduce the air conditioner's work
load.
• Operate heat producing appliances such as
ranges, washers, dryers, and dishwashers during
the coolest part of the day.
Grounding type
wall receptacle Do not under any
circumstances cut,
remove, or bypass
the grounding prong
from this plug.
Power supply cord
with 3-prong
grounding plug
Reset
Test

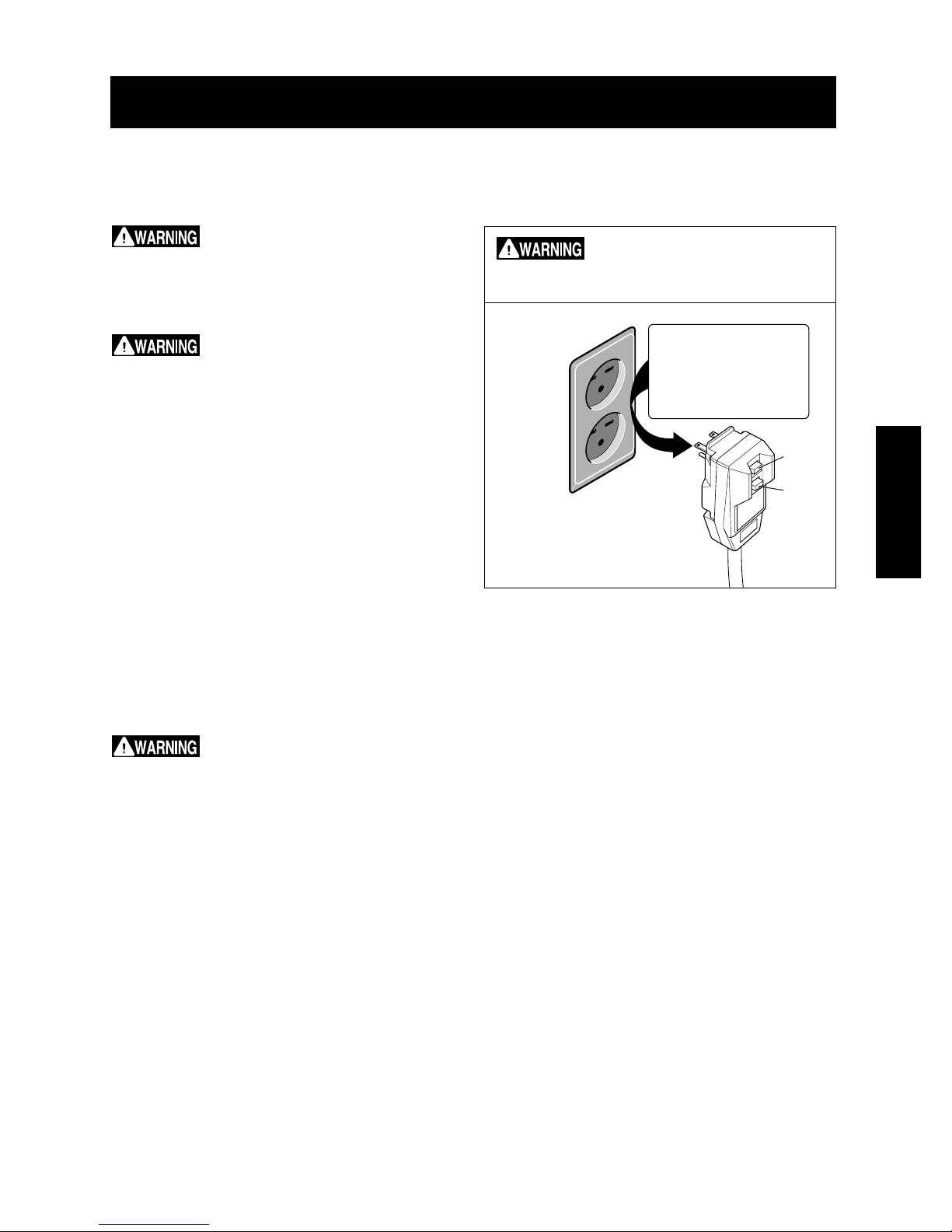

Avoidfirehazardorelectricshock.
Do not use an extension cord or an adapter plug.
Do not remove any prong from the power cord.

-4-

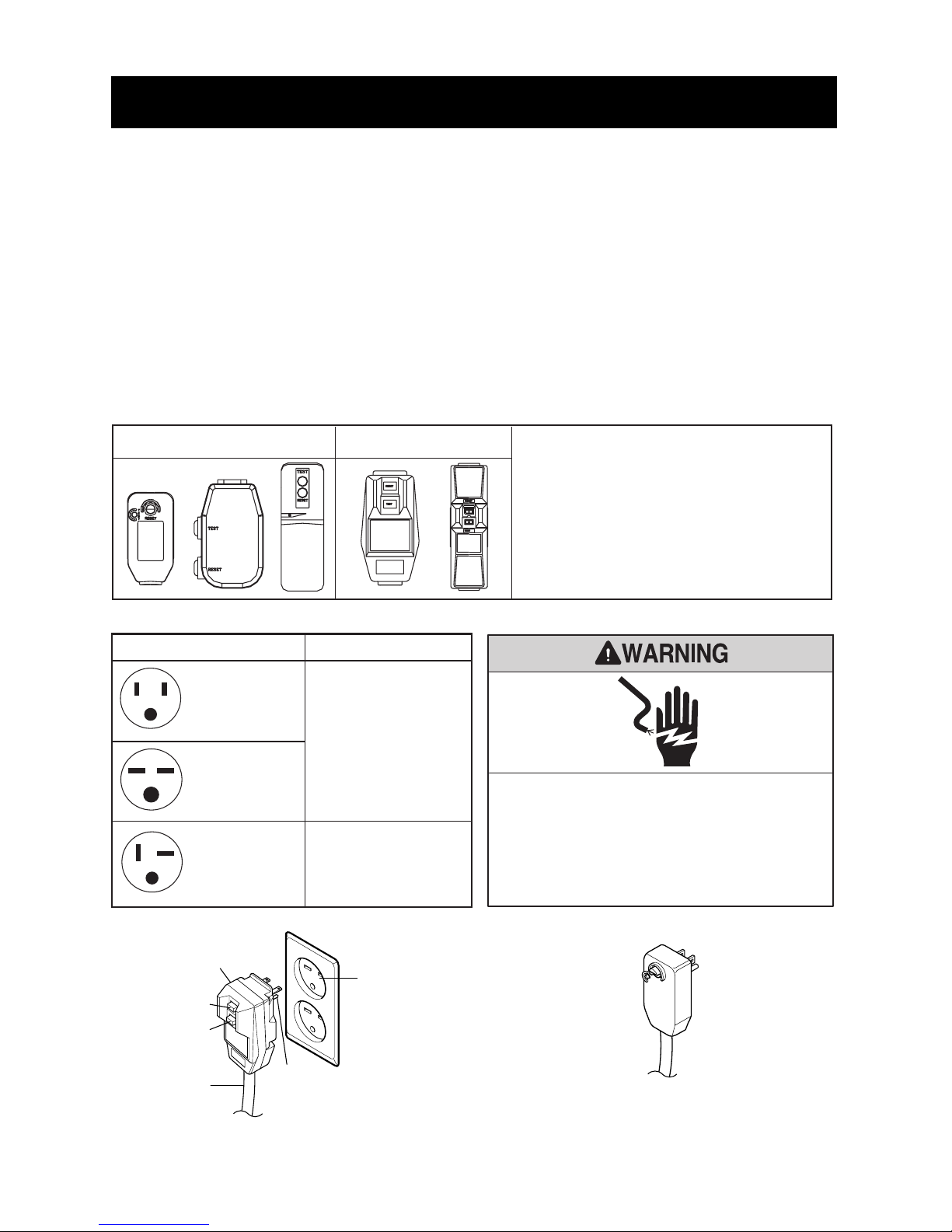

ELECTRICAL REQUIREMENTS
OBSERVE ALL LOCAL CODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUND PRONG.
ELECTRICAL GROUND IS REQUIRED ON
THIS APPLIANCE.
208/230-volt 60 Hz and 115-volt 60 Hz, AC
only, 15A fused and properly grounded
electrical supply is required. A time delay fuse
or time delay circuit breaker is recommended.
Use a dedicated circuit, serving only this
appliance.
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance must
be grounded. This appliance has a power
supply cord with a 3-prong grounding plug. To
minimize possible shock hazard, the cord must
be plugged into a mating grounding type wall
receptacle and grounded in accordance with
the National Electrical Code (ANSI/NFPA 70)
latest edition and all local codes and
ordinances. If a mating wall receptacle is not
available, it is the personal responsibility and
obligation of the customer to have a properly
grounded 3-prong wall receptacle installed by a
qualified electrician.
115V~ 230V~
Power cord may include a current interrupter
device. A test and reset button is provided on the
plug case. The device should be tested on a
periodic basis by first pressing the TEST button
and then the RESET button. If the TEST button
does not trip or if the RESET button will not stay
engaged, discontinue use of the air conditioner and
contact a qualified service technician.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Use Wall Receptacle Power Supply
Standard 125V,
3-wire grounding
receptacle rated
15A, 125V AC
Standard 250V,
3-wire grounding
receptacle rated
15A, 250V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Use 20 AMP. time
delay fuse or 20 AMP.
circuit breaker.
Standard 250V,
3-wire grounding
receptacle rated
20A, 250V AC
NOTE: The shape may be different according to its model.
3-prong
grounding
plug
Reset
Test
Ground
prong
Power
supply
cord
3-prong
grounding
type wall
receptacle
(208/230-volt 60 Hz)
(115-volt 60 Hz)

-5-
ENGLISH
INSTALLATION

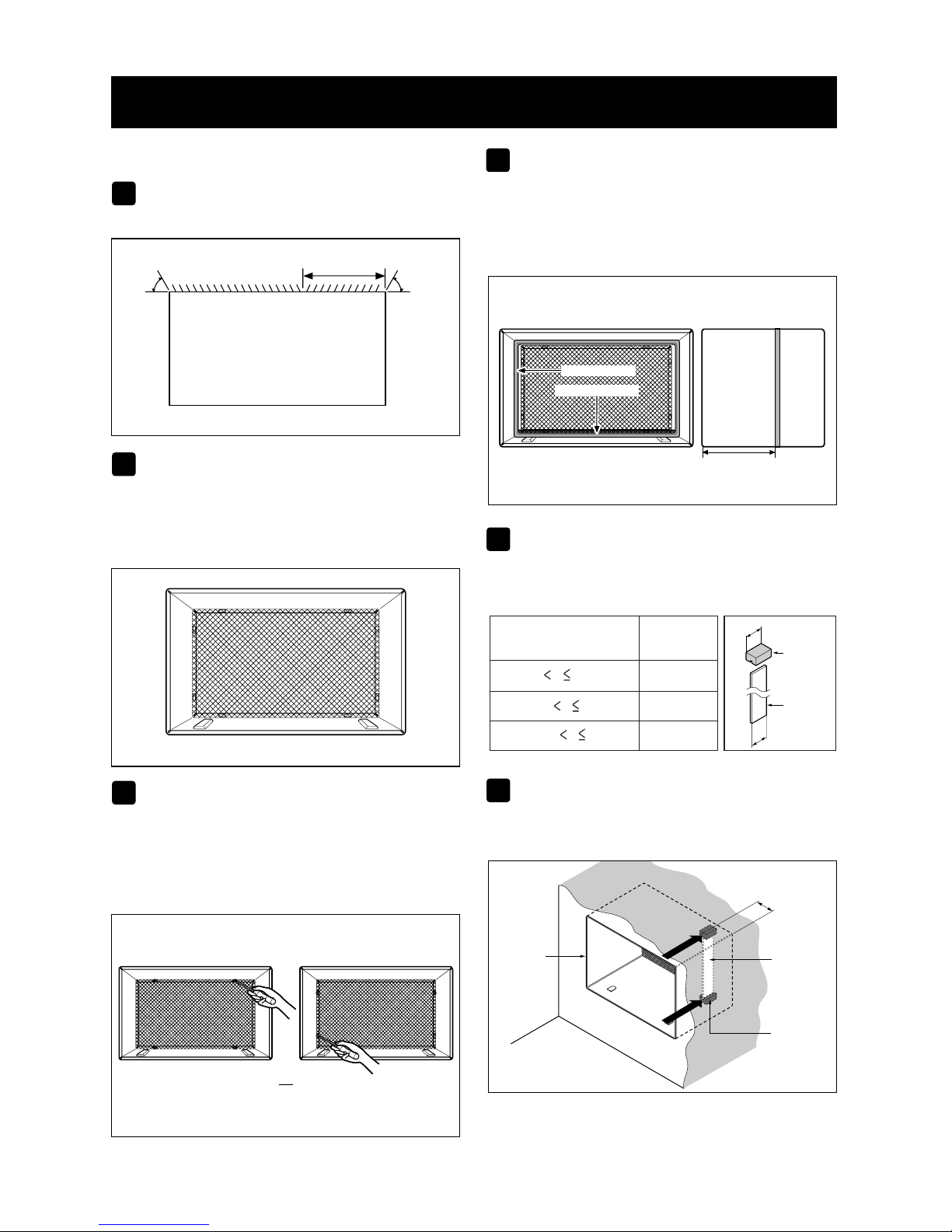

Remove packing materials from the wall sleeve and tape
from the air conditioner.
INSTALLATION REQUIREMENTS
If you use an existing wall sleeve, you should
measure its dimensions.
Install the new air conditioner according to these
installation instructions to achieve the best
performance. All wall sleeves used to mount the
new air conditioner must be in good structural
condition and have a rear grille to securely attach
the new air conditioner. (FIG. 1)
With the Kenmore sleeve, you can maintain the
best performance of the new air conditioner. (FIG. 2)
ELECTRICAL SERVICE
Check your available electrical service. The power
supply available must be the same as that shown
on the unit nameplate (found on left side of cabinet).
All models are equipped with a 3-prong service plug
to provide proper service and safe positive
grounding. Do not change plug in any way. Do not
use an adapter plug. If your present wall outlet does
not match your plug, call a qualified electrician to
make the necessary corrections. SAVE CARTON
for storage and this OWNER'S MANUAL for future
reference. The carton is the best way to store unit
during winter or when not in use.
INSTALLATION HARDWARE
14-13/32"
(366 mm)
24"(610 mm)
18-15/32"(468 mm)
20-3/32"
(511 mm)
1
10
5
6
7
8
3
2 4
9
2 Size options
2 Size options
To avoid risk of personal injury, property damage,
or product damage due to the weight of this
device and sharp edges that may be exposed:
•Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people
are needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
• Carefully inspect location where air conditioner
will be installed. Be sure it will support the weight
of the unit over an extended period of time.
•Handle air conditioner with care. Wear
protective gloves whenever lifting or carrying the
unit. AVOID the sharp metal fins of front and
rear coils.
•Make sure air conditioner does not fall during
installation.
CAUTION
REQUIRED TOOLS:
•Tight Fitting gloves
•Standard screwdriver
•Phillips screwdriver
•Pliers
•Sharp knife
•3/8-inch open end
wrench or adjustable
wrench
•1/4-inch hex socket
and ratchet
•Tape measure
•Electric drill
•1/4-inch drill bit
FIG. 1
Air Conditioner
ITEM NAME OF PARTS Q'TY
1 PLASTIC GRILLE 1
2 VERTICAL INSULATION STRIP 1
3 AROUND INSULATION STRIPS 2
4 HORIZONTAL INSULATION STRIP 1
5 SUPPORT BLOCK 2
6BAFFLE 1
7 TRIM FRAME 2
8SHIM 2
9 PLASTIC NUTS AND WASHER SCREWS 4
10 GRILLE REAR 1
15-17/32"
(394 mm)
16-23/32"
(425 mm)
25-7/8"
(656 mm)
Aluminum metal grille
FIG. 2
Kenmore Wall Sleeve

INSTALLATION
•Pick a location which will allow the conditioned air
to blow into the area you want. Good installation
with special attention to the proper position of the
unit will lessen the chance that service will be
needed.
ITEMS IN INSTALLATION HARDWARE
Youmaynotneedallpartsinthekit.Discard
unused parts
HOW TO INSTALL
Identify the existing wall sleeve before installing
the unit from the listed below.
NOTE: All wall sleeves used to mount the new Air
Conditioner must be in sound structural condition
and have a rear grille that securely attaches to
sleeve, or rear flange that serves as a stop for the
Air Conditioner.
Remove old air conditioner from existing wall
sleeve.
Clean the interior of an existing sleeve.
(Do not disturb seals.)
Wall sleeve must be securely fastened in wall
before installing the air conditioner. Use the
nails or screws through sleeve into wall, if
needed. Repaint sleeve if needed.
Prepare the wall sleeve for installation of the
unit. If you plan to use your existing wall sleeve,
and it is not Kenmore, use procedure B or C
below.
Install new unit into wall sleeve.
CAUTION: When installation is completed,
replacement unit MUST have a rearward slope as
shown. To achieve 1/4" slope, remove the backing
from the 11-13/16" shim strips and attach them as
shown below in Fig. 3. Place the higher portion of
shim to the front of the rib on base of wall sleeve.
-6-

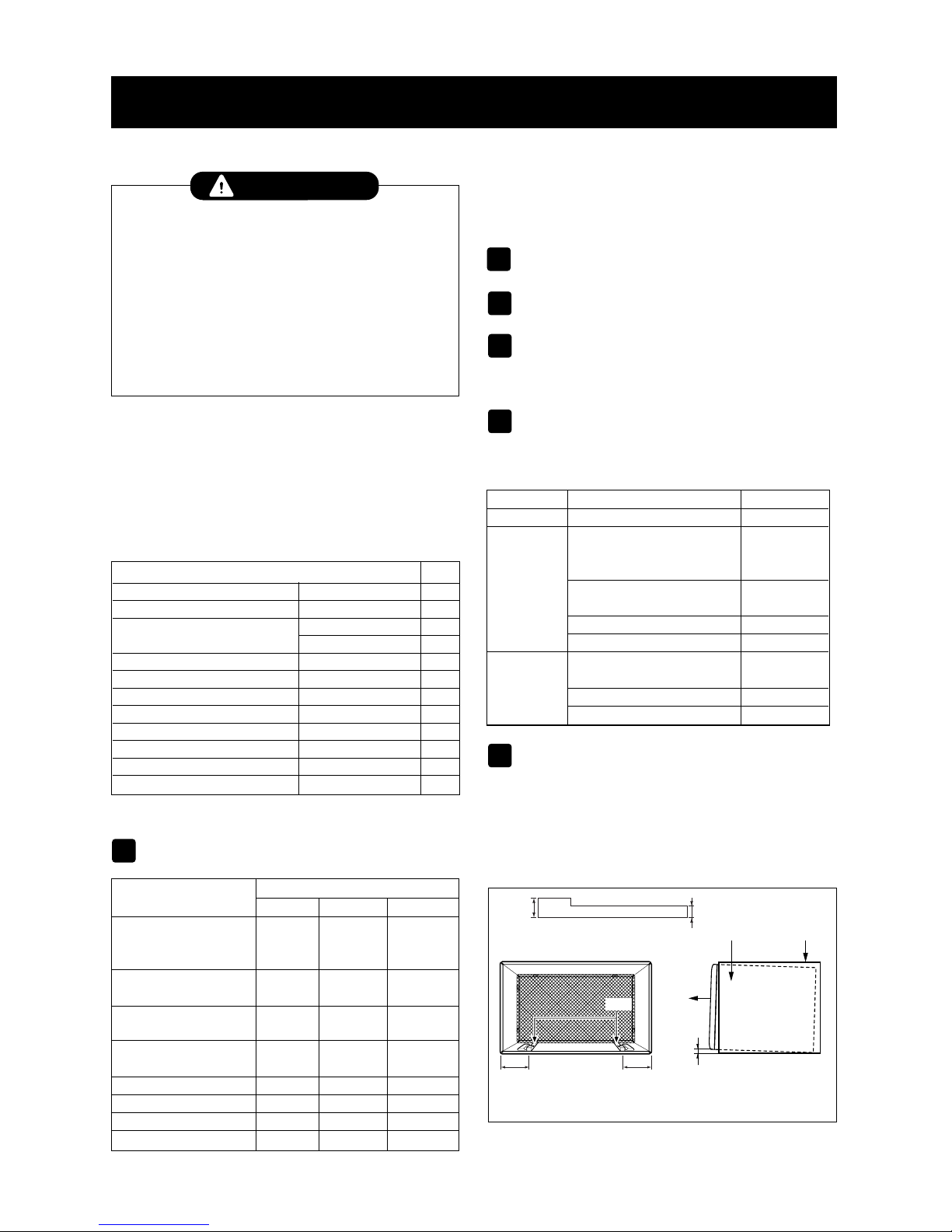

INSTALLATION
1
2
3
4
5
6
1/4"
Wall Sleeve
FRONT
UNIT
SHIM PLACEMENT UNIT INSTALLATION
1" high 3/4" High
Shim
6" 6"
FIG. 3
We strongly recommend the removal of the
old wall sleeve and the installation of a new
Kenmore Wall Sleeve.
If you decide to keep the existing wall sleeve,
you have to redirect the louvers at the back of the
wall sleeve illustration. The use of pliers is
recommended. If you DO NOT redirect, you run
the risk of poor performance or product failure.
This is not covered under the terms of the
Kenmore warranty.
CAUTION
ITEM (inches) Qty.
Plastic grille 263/4x16
1/21
Vertical insulation strip 159/16 x1
3/8x1 3/81
Around Insulation Strips 671/8x1
3/8x25/32 1
5927/32 x1
3/8x1 3/81
Horizontal Insulation Strip 237/32 x1
3/8x1
3/16 1
Support Block 13/4x1
3/8x4 5/16 2
Baffle 14 x 41/2 x
1/81
Shim 1113/16 x1x3/42
Trim Frame 2
Washer Screw 4
Nuts(Plastic) 4
Grille Rear 1
Wall Sleeve Dimensions (inches)
Brand Width Height Depth
White-Westinghouse
25-1/2 15-1/4 16, 17-1/2
Frigidaire or 22
Carrier (52F series)
General Electric 26 15-5/8 16-7/8
/Hotpoint
Whirlpool 25-7/8 16-1/2 17-1/8
or 23
Fedders/Emerson 27 16-3/4 16-3/4
or 19-3/4
Sears/Kenmore 25-7/8 15-17/32 16-23/32
Emerson/Fedders 26-3/4 15-3/4 15
Carrier (51S Series) 25-3/4 16-7/8 18-5/8
Friedrich 27 16-3/4 16-3/4
Procedure Brand
Depth(inches)
A Sears/Kenmore 16-23/32
White-Westinghouse
Frigidaire Carrier 16, 17-1/2
(52F series) or 22
BGeneral Electric 16-7/8
/Hotpoint
Whirlpool 17-1/8 or 23
Carrier (51S series) 18-5/8
Fedders/Emerson 16-3/4
or 19-3/4
CEmerson/Fedders 15
Friedrich 16-3/4

-7-
ENGLISH
INSTALLATION
PROCEDURE A
If you are using the new sleeve (optionally
supplied with your unit),skip to step 3.
Otherwise, install the plastic grille from the kit.
Cut the plastic grille to 25-1/2" wide and
15-1/4" high. Place the plastic grille to the
inside of the wall sleeve at the rear flange.
Fasten the 4 washer screws to secure the grille
to the wall sleeve. If you need plastic nuts to
mount plastic grille to the inside of the wall
sleeve, there are plastic nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are pressing into the square holes
of the rear flanges.
Remove the backing from the Vertical
Insulation strip 159/16 x1
3/8x1 3/8and attach that
to the inside right of the sleeve as shown
below. Remove the backing from the Around
Insulation strip 671/8x1
3/8x25/32 and attach that
to the inside front of the sleeve as shown
below.
Remove the metal rear grille and replace it with
the plastic rear grille.
Install the new unit into the wall sleeve.
To assemble trim, snap the tab of each piece
into the slot of the other piece as shown below.
Slide trim over the front of the air conditioner
until trim is flush with sleeve as shown below.
FIG. 4
Plastic rear grille
Remove the
metal rear grille
FIG. 7
Around Insulation
Vertical Insulation
9 1/2"6"
Indoor Outdoor
FIG. 6
or
FIG. 5
1
2
3
4
5
6
Wall
Trim (2 ea)
FIG. 8
•Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people are
needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
•When handling the air conditioner, be careful to avoid
cuts from sharp metal fins on front and rear coils.
•Make sure air conditioner does not fall during
removal.
•If unit does not operate after installation check, to be
sure the circuit interrupter has not been tripped. Refer
to the Troubleshooting guide for reset procedure.
CAUTION

PROCEDURE B
Redirect the louvers at the back of the wall
sleeve to 60°angle as shown in the FIG 9. The
use of pliers is recommended.
If the wall sleeve already has a rear grille, skip
to step 4. If the wall sleeve does not have a rear
grille or louvered panel, install the plastic grille
from the kit. Cut the plastic grille to 25-1/2" wide
and 15-1/4" high. Place the plastic grille to the
inside of the wall sleeve at the rear flange.
Fasten the 4 washer screws to secure the grille
to the wall sleeve. If you need plastic nuts to
mount plastic grille to the inside of the wall
sleeve, there are plastic nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are pressed into the square holes of
the rear flanges.
Remove the backing from the Vertical Insulation
strip 159/16 x1
3/8x1 3/8and attach that to the
inside right of the sleeve as shown below.
Remove the backing from the Around Insulation
strip 671/8x1
3/8x25/32 and attach that to the
inside front of the sleeve as shown below.
Remove the metal rear grille and replace it with
the plastic rear grille.
If the depth of your existing wall sleeve is less
than or equal to 18", skip to step 7. Otherwise,
cut the baffles and the support blocks according
to length "A" in the table below.
-8-
INSTALLATION
1
4
2
3
FIG. 10
Around Insulation
Vertical Insulation
9 1/2"6"
Indoor Outdoor
FIG. 12
or
FIG. 11
Rear Louvers
(Top View)
60°60°
7 3/32"
FIG. 9
Depth"D" of the existing
wall sleeve (inches)
Length "A"
(inches)
Support
Block
Baffle
A
A
3/4
1-3/4
4
18 D 18-
5
/ 8
18-
5
/ 8 D 19-
3
/ 4
19-
3
/ 4 D 22
5
6
Place the plastic grille
Fasten the screws
FIG. 14
Plastic rear grille
Remove the
metal rear grille
FIG. 13

-9-

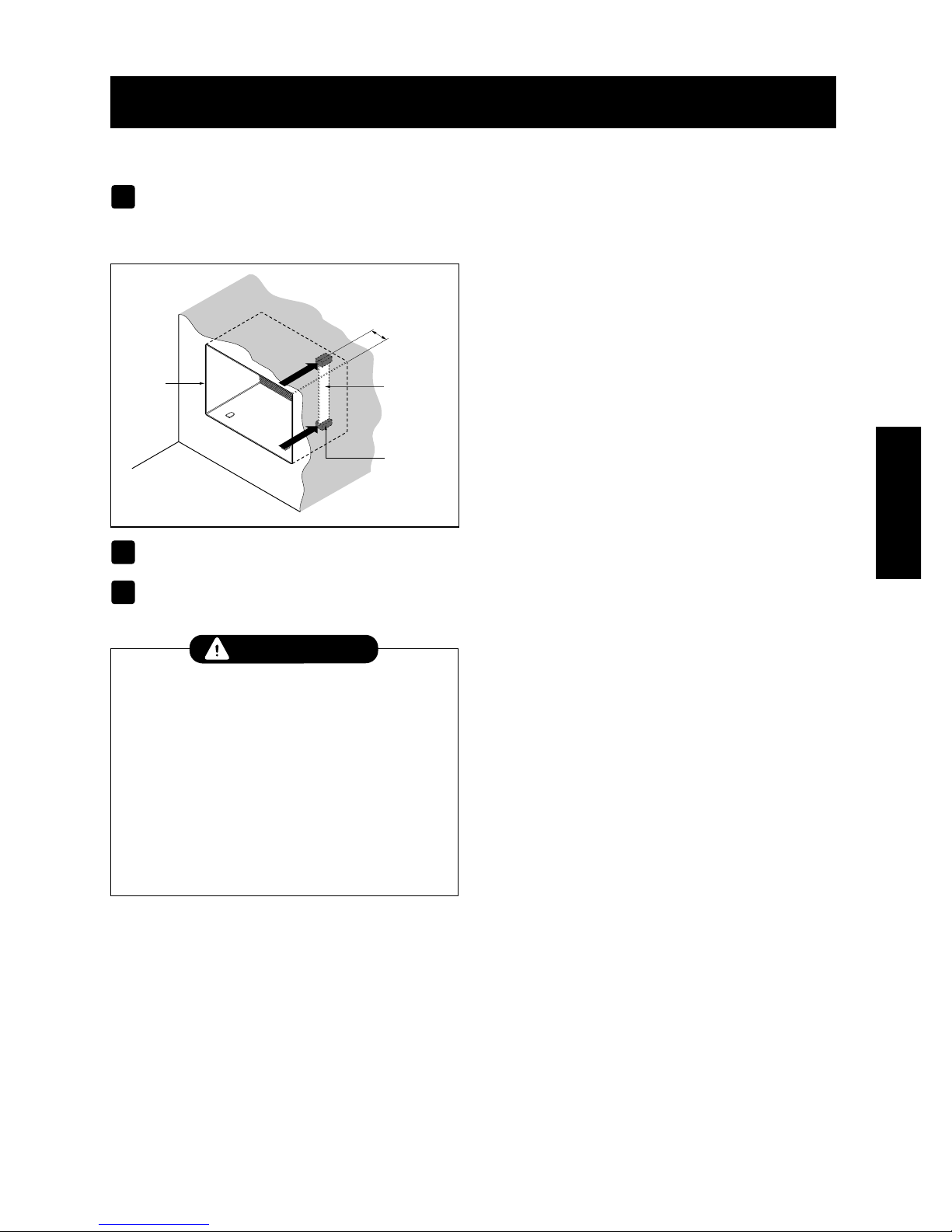

PROCEDURE B
Remove the backing from the support blocks
and attach them to the inside of the wall sleeve
as shown FIG 15. Slide the baffle into slots of
the support blocks.
Install the new unit into the wall sleeve.
Assemble trim as described in Step 6,
Procedure A.
INSTALLATION
9
ENGLISH
Wall
Wall
Sleeve Baffle
( 7
3/32
" )
Front Support
Block
FIG. 15
7
8
•Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people are
needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
•When handling the air conditioner, be careful to avoid
cuts from sharp metal fins on front and rear coils.
•Make sure air conditioner does not fall during
removal.
•If unit does not operate after installation check, to be
sure the circuit interrupter has not been tripped. Refer
to the Troubleshooting guide for reset procedure.
CAUTION

-10-
INSTALLATION
PROCEDURE C
Redirect the louvers at the back of the wall
sleeve to 60°angle as shown in the FIG 16.
The use of pliers is recommended.
If the wall sleeve already has a rear grille, skip
to step 4. If the wall sleeve does not have a rear
grille or louvered panel, install the plastic grille
from the kit. Cut the plastic grille to 26-1/2" wide
and 15-1/2" high. Place the plastic grille to the
inside of the wall sleeve at the rear flange.
Fasten the 4 washer screws to secure the grille
to the wall sleeve. If you need plastic nuts to
mount plastic grille to the inside of the wall
sleeve, there are plastic nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are pressed into the square holes of
the rear flanges.
Remove the backing from the Horizontal
Insulation strip 237/32 x1
3/8x1 3/16 and attach
that to the inside right of the sleeve as shown
below. Remove the backing from the Around
Insulation strip 5927/32 x1
3/8x1 3/8and attach
that to the inside front of the sleeve as shown
below.
If the depth of your existing sleeve is less than
or equal to 18”, skip to step 7. Otherwise, cut
the baffles and the support blocks according to
Length "A" in the table below.
Remove the backing from the support blocks
and attach them to the inside of the wall sleeve
as shown FIG 21. Slide the baffle into slots of
the support blocks
Depth"D" of the existing
wall sleeve (inches)
Length "A"
(inches)
Support
Block
Baffle
A
A
3/4
1-3/4
4
18 D 18-
5
/ 8
18-
5
/ 8 D 19-
3
/ 4
19-
3
/ 4 D 22
Wall
Wall
Sleeve Baffle
Front Support
Block
(7 3/32")
FIG. 21
FIG. 20
1
4
2
3
FIG. 17
8 1/2"
Indoor Outdoor
Around Insulation
Horizontal Insulation
FIG. 19
or
FIG. 18
Rear Louvers
(Top View)
60°
7 3/32"
60°
FIG. 16
5
6
Place the plastic grille
Fasten the screws

-11-
ENGLISH
PROCEDURE C
To achieve rearward slope for unit draining,
remove the backing from the 1113/16"shim
strips and attach them as shown below in Fig.
23. The higher portion of shim is to be placed
in front of the rib on the base of wall sleeve.
Remove the metal rear grille and replace it with
the plastic rear grille.
Install the new unit into the wall sleeve
Assemble trim as described in Step 6,
Procedure A.
INSTALLATION
8
9
10
7
FIG. 22
1" high 3/4" High
Shim (2EA)
6" 6"
FIG. 23
Plastic rear grille
Remove the
metal rear grille
FIG. 24
•Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people are
needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
•When handling the air conditioner, be careful to avoid
cuts from sharp metal fins on front and rear coils.
•Make sure air conditioner does not fall during
removal.
•If unit does not operate after installation check, to be
sure the circuit interrupter has not been tripped. Refer
to the Troubleshooting guide for reset procedure.
CAUTION

-12-
OPERATION
HOW AND WHY
Your room air conditioner provides the following
functions to make hot weather living more
comfortable:
•Cools and circulates room air.
•Lowers humidity by removing excess moisture.
•Filters out summertime dust, dirt, and some
airborne impurities.
The air conditioner performs these functions by
drawing room air through a filter which traps dust
and dirt particles. The air then passes over a
cooling coil which refrigerates the air and removes
excess moisture. The same air is then returned to
the room–cooler, drier, and cleaner. Moisture
removed from the room air is carried to the outside
and evaporated.
Your air conditioner is designed to be easy to
operate and to provide plenty of cooling power.
NORMAL SOUNDS FIG. 25
Aside from the regular fan motor and compressor
sounds coming from your air conditioner, you will
once in a while hear a pinging sound. This is the
result of moisture being picked up from the air in the
room and thrown against the air conditioner's fan.
This is normal and should not be cause for concern.
Also, do not be alarmed if you hear a slight hissing or
gurgling sound coming from your air conditioner after
it is off. These are normal coolant noises.
CAPACITY AND RUNNING TIME
Proper unit size is important in deciding the desired
comfort for the area you want to cool. The proper
size is determined by the number of square feet in
the area to be cooled.
Whenever the heat or humidity load is above normal
the air conditioner must run longer and more often
to keep the desired temperature you have selected.
Under heavy heat load conditions the air conditioner
may need to run constantly to keep the temperature
you want.
At times using the MED FAN setting to circulate the
room air may make it comfortable even though you
do not have the air conditioner set to cool the air.
This will decrease your cost of use.
Fan
You may hear air
movement from the
fan.
Condenser
You may hear
droplets of water
hitting the condenser,
causing a pinging or
clicking sound.
Unit Vibration
The unit may vibrate
and make noise
because of poor wall
or window
construction.
Compressor
The modern high
efficiency compressor
may have a high pitched
hum or pulsating noise
that cycles on and off.
'
F
TIMER POWER
MODE
TEMP
FAN
SPEED
F1LOW
F2MED
F3HIGH
Timer
Fan
Energy
Saver
Cool
FIG. 25

-13-
OPERATION
FEATURES

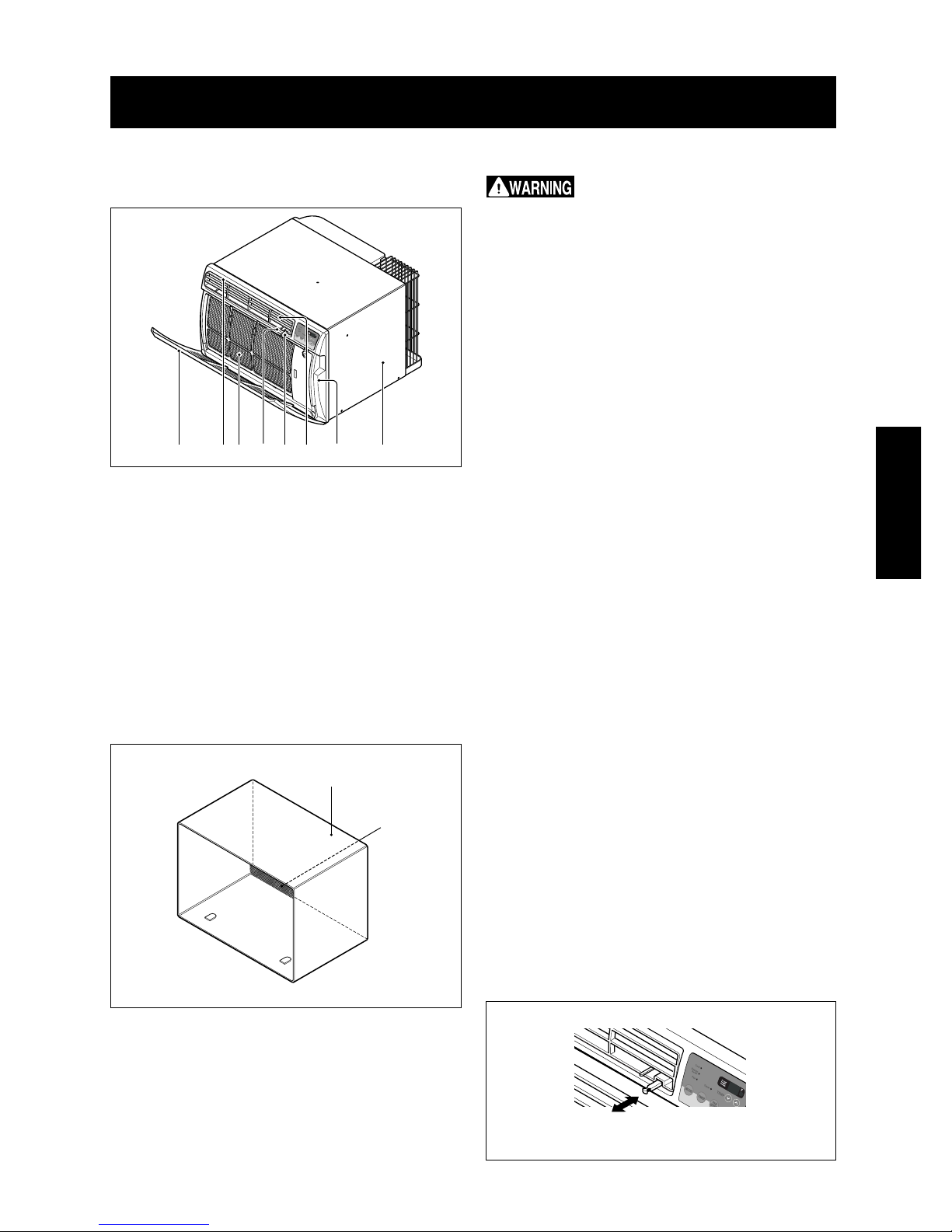

THE UNIT
1. CABINET
2. HORIZONTAL AIR DEFLECTOR
(Vertical Louver)
3. VERTICAL AIR DEFLECTOR
(Horizontal Louver)
4. AIR DISCHARGE
5. FRONT GRILLE
6. INLET GRILLE (Air Intake)
7. AIR FILTER
8. VENT CONTROL
THE SLEEVE AND THE REAR GRILLE
9. SLEEVE ASSEMBLY
(Including Aluminum Rear grille)
10. REAR GRILLE
(Aluminum Rear grille)
USING THE AIR CONDITIONER
To reduce the risk of fire, electric
shock, or injury to persons, read the important
SAFETY instructions section before operating this
appliance.
To begin operating the air conditioner after
installation, follow these steps:
1. Plug in the air conditioner. (To prevent electrical
hazards, do not use an extension cord or an
adapter plug.)
2. Set the TEMP control to the coolest setting.
3. Set the MODE control at the highest COOL level.
4. Adjust the louvers for comfortable air flow.
5. Once the room has cooled, adjust the TEMP and
MODE control to the setting you find most
comfortable.
NOTE : If the air conditioner is turned off, wait 3
minutes before restarting. This allows pressure
inside the compressor to equalize. Failure to wait 3
minutes before restarting may cause inefficient
operation.
If you move the TEMP control to a warmer, then
immediately back to a cooler setting, the unit will
shut off. Wait 3 minutes before restarting.
Refer to the AIR CONDITIONER FEATURES
section for other settings.
VENT CONTROL
The Vent Control allows the air conditioner to either
recirculate inside air (CLOSE) or exhaust air to the
outside (OPEN). (FIG. 28)
•The CLOSE position is used when maximum
cooling is desired. It may also be used for air
recirculation without cooling when the air
conditioner is set in the FAN position.
•The OPEN position removes stale air from the
room and exhausts it to the outside. Fresh air is
drawn into the room through your home's normal
air passages.
•The OPEN or CLOSE position can be used with
any fan selection.
156 7 2 83 4
FIG. 26
9
10
PULL OPEN / PUSH CLOSE
FIG. 27
FIG. 28
ENGLISH

-14-
OPERATION

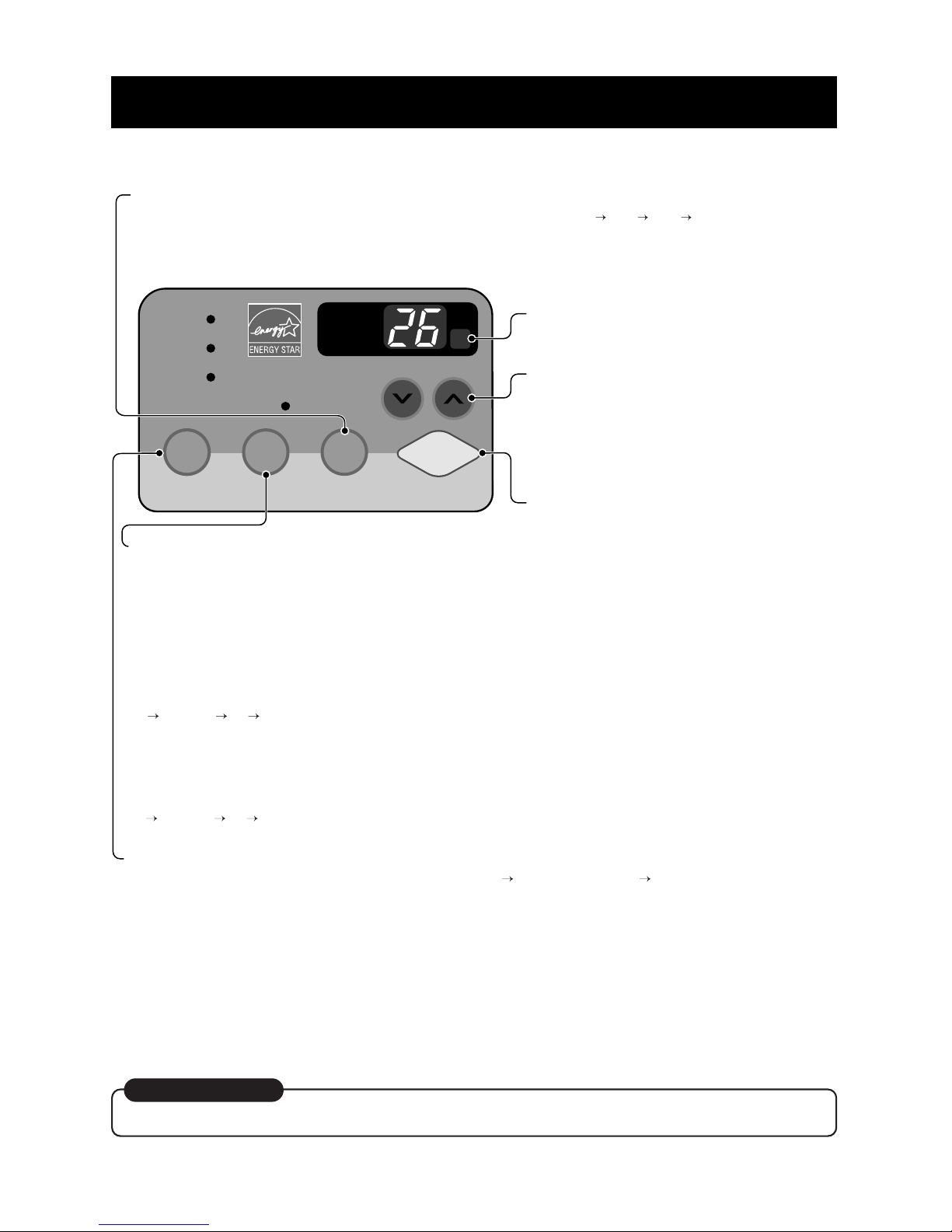

CONTROL PANEL
REMOTE CONTROL SIGNAL
RECEIVER
POWER
MODE
- Push this button to shift mode of operation from COOL ENERGY SAVER FAN.
- COOL:
• Fan runs continually for normal cooling operation
- ENERGY SAVER:
• The fan stops when the compressor stops cooling. Approximately every 3 minutes the fan will turn on
and the unit will check the room air temperature to determine if cooling is needed.
- FAN:
• Fan-only operation.
TIMER
- SHUT-OFF TIME
• You will usually use shut-off time while you sleep.
• If unit is running, use Timer to set number of
hours until shut-off.
• For your sleeping comfort, once Time is set, the
Temperature setting will raise 1°Cafter 30 min.,
and once again after another 30 min.
• Push Timer button to advance setting from 1Hour
2Hours ... 12Hours maximum.
- START TIME
• If unit is off, use Timer to set number of hours
before unit starts.
• Push Timer button to advance setting from 1Hour
2Hours ... 12Hours maximum.
TEMPERATURE SETTING
• Use this button to automatically control the
temperature of the room.
The temperature can be set within a range
of 60°F°(16°C) to 86°F(30°C) by increments of 11
• The setting appears in the display.
• To turn the air conditioner ON, push this
button.
To turn the air conditioner OFF, push the
button again.
• This button takes priority over any other
button.
• When you first turn it on, the unit is in
cool mode, High fan speed, Temperature
setting at 72°F(22°C).
FAN SPEED
• Every time you push this button, it advances the setting as follows: {High Low Med High}
1°C.
°
C
TIMERMODE
TEMP
FAN
SPEED
F1 LOW
F2 MED
F3 HIGH
Timer
Fan
Energy
Saver
Cool
POWER
AUTO RESTART
When power is restored after an electrical power failure, the unit will begin to run at its last setting.

-15-
OPERATION
REMOTE CONTROL
NOTE: The Remote Control will not operate properly if strong light shines on the sensor window of the Air
Conditioner or if there are obstacles between the Remote Control and the Air Conditioner.
Every time you push button, you will hear a beep from the Air Conditioner.
Power
Temp
Fan Speed
Timer Mode
POWER
•To turn the air conditioner ON, push this button.
To turn the air conditioner OFF, push the button again.
•This button takes priority over any other button.
•When you first turn it on, the unit is in cool mode, High fan speed,
Temperature setting at 22°C.
•Auto Restart
In the event at a power failure, the unit will run at the previous setting once
power returns.
TEMPERATURE SETTING
•Use this button to automatically control the temperature of the room.
The temperature can be set within a range of 16°Cto 30°Cby
increments of 1°C.
•The setting appears in the display.
FAN SPEED
•Every time you push this button it advances the setting as follows:
(High →Low →Med →High)
TIMER
- SHUT-OFF TIME
•You will usually use shut-off time while you sleep.
•If unit is running, use Timer to set number of hours until shut-off.
•For your sleeping comfort, once Time is set, the Temperature setting will
raise 1°Cafter 30 min, and once again after another 30 min.
•Push Timer button to advance setting from 1Hour → 2Hours → ... →
12Hours maximum.
- START TIME
•If unit is off, use Timer to set of hours before unit starts.
•Push Timer button to advance setting from 1Hour → 2Hours → ... →
12Hours maximum.
MODE
- Push this button to shift mode of operation from COOL → ENERGY SAVER → FAN.
- COOL:
•Fan runs continually for normal cooling operation
- ENERGY SAVER:
•The fan stops when the compressor stops cooling. Approximately every 3 minutes the fan will turn on
and the unit will check the room air temperature to determine if cooling is needed.
- FAN:
•Fan-only operation.
ENGLISH

-16-
OPERATION
INSERTING THE REMOTE CONTROL
BATTERIES
1. Remove the cover from the back of the remote
controller.
2. Insert two batteries.
•Be sure that the (+) and (
– ) directions are
correct.
•Be sure that both batteries are new.
3. Reattach cover.
•Do not use rechargeable batteries.
Make sure that both batteries are new.
•In order to prevent discharge, remove the batteries
from the remote control if the air conditioner is not
going to be used for an extended period of time
Keep the remote control away from extremely hot
or humid places.
To maintain optimal operation of the remote
control, the remote sensor should not be exposed
to direct sunlight.
•The remote control can be mounted on a wall
using the mountable holder.

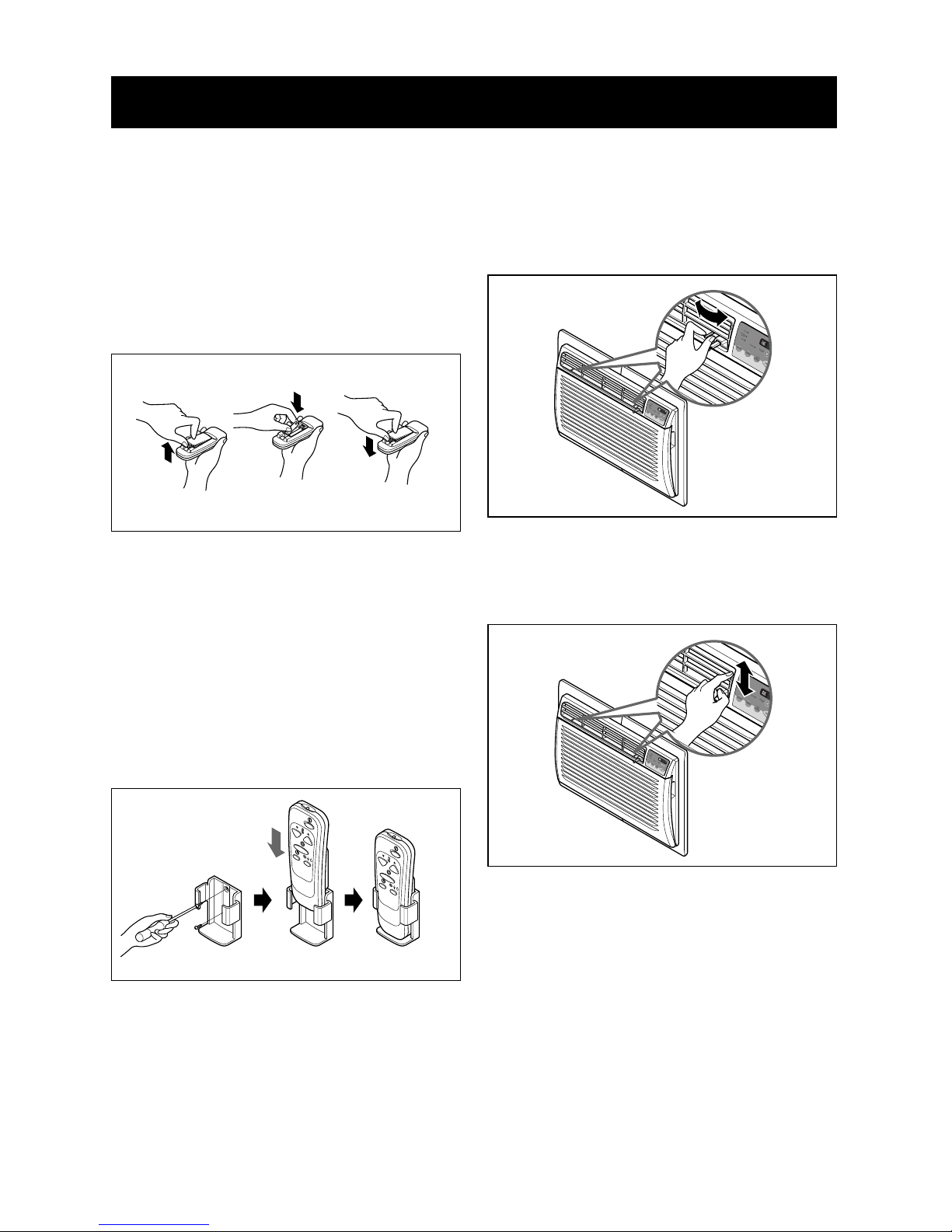

HORIZONTAL AIR-DIRECTION
ADJUSTMENT
•The horizontal air direction is adjusted by moving
vertical louver.
•The vertical louver control levers are located in the
right and left side of the air discharge.
VERTICAL AIR-DIRECTION ADJUSTMENT
•The vertical air direction is adjusted by moving the
horizontal louvers.
FIG. 31
FIG. 29
FIG. 30
FIG. 32

-17-
MAINTENANCE

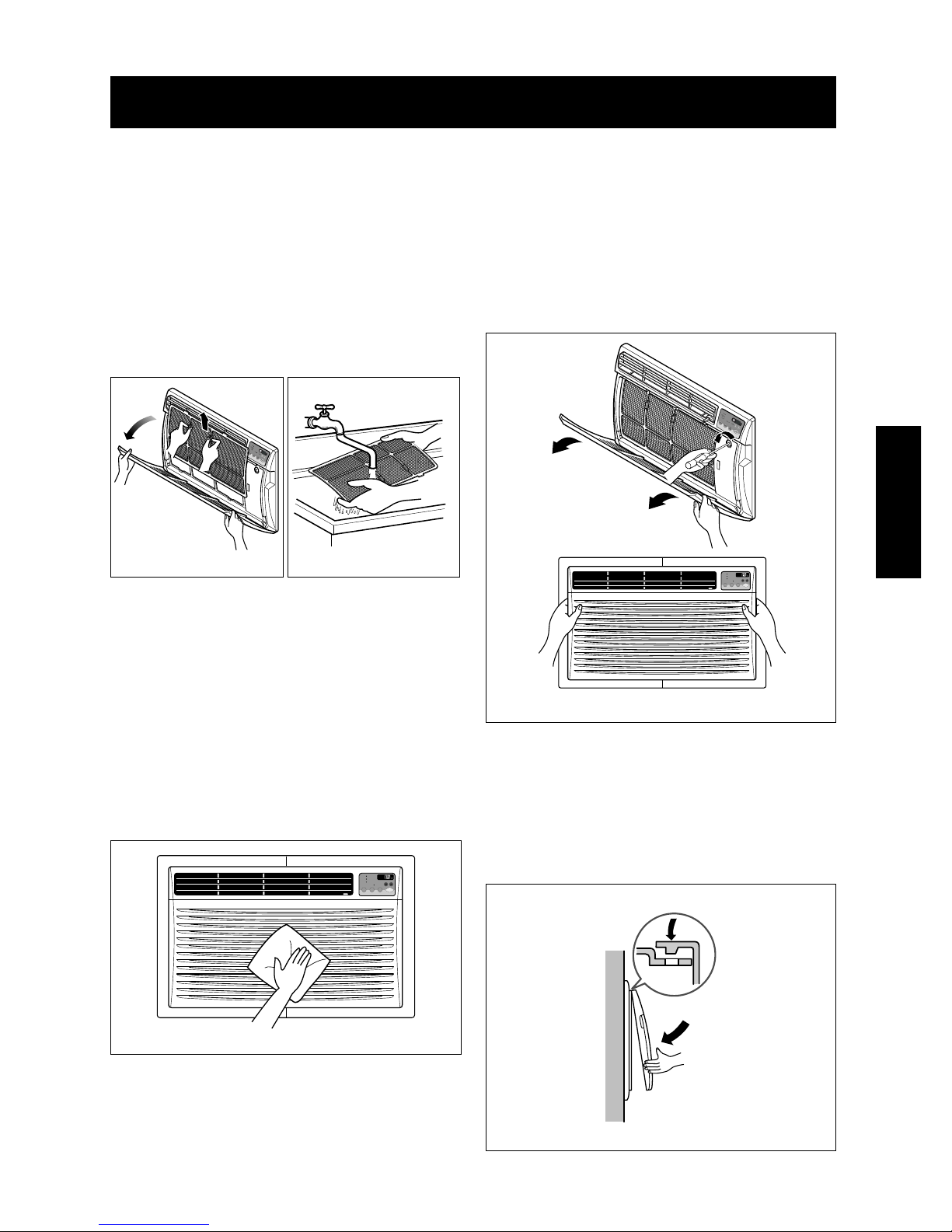

AIRFILTERCLEANING
The Air Filter will become dirty as it removes dust
from the inside air. It should be washed at least
every 2 weeks. If the Air Filter remains full of dust,
the air flow will decrease and the cooling capacity
will be reduced, possibly damaging the unit.
•Pull the inlet grille forward and pull out the air filter.
(FIG. 33)
•Wash the Air Filter under the faucet with warm
water. Be sure to shake off all the water before
replacing the filter. (FIG. 34)
AIR CONDITIONER CLEANING
Clean the front grille and inlet grille by wiping with a
cloth dampened in a mild detergent solution.
The cabinet may be washed with mild soap or
detergent and lukewarm water, then polished with
liquid appliance wax.
To ensure continued peak efficiency, the condenser
coils (outdoor side of the unit) should be checked
periodically and cleaned if they become clogged
with soot or dirt from the atmosphere. Brush or
vacuum exterior coils to remove debris from fins.
HOW TO REMOVE THE FRONT
GRILLE
•Open the inlet grille.
•Remove the screw securing the Front Grille.
•Push the grille up from the bottom and pull the top
of the grille away from the case to lift the top tabs
outoftheirslots.
HOW TO REPLACE THE
FRONT GRILLE
Attach the front grille to the cabinet by inserting the
tabs on the grille into the slots on the front of the
cabinet. Push the grille in until it snaps into place.
'
F
TIMERMODE
TEMP
FAN
SPEED
F1LOW
F2MED
F3HIGH
Timer
Fan
Energy
Saver
Cool
POWER
FIG. 36
FIG. 37
'
F
TIMERMODE
TEMP
FAN
SPEED
F1LOW
F2MED
F3HIGH
Timer
Fan
Energy
Saver
Cool
POWER
FIG. 33 FIG. 34
FIG. 35
ENGLISH

-18-
TROUBLESHOOTING
AIR FROM UNIT DOES NOT FEEL COLD ENOUGH.
Check if... Then...
THE AIR CONDITIONER COOLING, BUT ROOM IS TOO WARM –ICE FORMING ON COOLING COIL BEHIND INLET GRILLE.
Check if... Then...
THE AIR CONDITIONER COOLING, BUT ROOM IS TOO WARM
Check if... Then...
THE AIR CONDITIONER TURNS ON AND OFF RAPIDLY.
Check if... Then...
NOISE WHEN UNIT IS COOLING.
Check if... Then...
WATER DRIPPING INSIDE ROOM WHEN UNIT IS COOLING.
Check if... Then...
WATER DRIPPING OUTSIDE WHEN UNIT IS COOLING.
Check if... Then...
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Power is OFF. Push the power button.
Unit was turned off and then on too quickly. Set unit off and wait 3 minutes before restarting.
TEMP Control set warmer than room temperature. Set TEMP Control to a lower number.
FAN SPEED set at LOW. Push FAN SPEED button to set at HI.
TEMP Control set too warm. Set TEMP Control to a lower temperature.
Room temperature below 70°F (21°C). Cooling may not occur until room temperature rises above 70°F (21°C).
Temperature sensing tube touching evaporator coil, Straighten tube away from evaporator coil.
located behind front grille.
Outdoor temperature below 70°F (21°C). To defrost the coil, set the MODE to FAN, FAN speed to High.
Air filter may be dirty. Clean air filter. Refer to Maintenance section of owner's manual.
TEMP Control set too low.
To defrost the coil, set the MODE to Cool, Fan speed to high, and the
Temp control to a higher temperature.
Dirty air filter –air restricted. Clean air filter. Refer to Maintenance section of owner's manual.
TEMP Control set too warm. Set TEMP Control to a lower
temperature .
Front of unit is blocked by drapes, blinds, furniture, etc. Clear blockage in front of unit.
Air distribution is restricted.
Doors, windows, registers, etc. open. Cold air escapes. Close doors, windows, registers, etc.
Unit recently turned on in hot room. A
llow additional time to remove stored heat from walls, ceiling, floor, and furniture.
Outside temperature is extremely hot.
Unit is set to energy saver mode.
Sound of fan hitting water –from the moisture removal system. This is normal when humidity is high. Close doors, windows, and registers.
Window vibration –poor installation. Refer to installation instructions or check with installer.
The air conditioner is improperly installed. Tilt air conditioner slightly to the outside to allow water drainage. Refer to
installation instructions or check with installer.
The unit is removing large quantities of moisture This is normal during excessively humid days.
from humid room.
The Current interrupter Device is tripped. Press the RESET button located on the power cord plug.
If the RESET button will not stay engaged, discontinue use of the
air conditioner and contact a qualified service technician.
THE AIR CONDITIONER WILL NOT OPERATE
Check if... Then...
Set FAN SPEED on HI to minimize the cooling load.
Approximately every 3 minutes the fan will turn on and the unit will check
the room air temperature to determine if cooling is needed. This is
normal energy saver mode operation.
BEFORE CALLING FOR SERVICE
Check the following list to be sure a service call is really necessary. A quick reference to this manual may
help you avoid an unneeded service call.

-19-
MEMO

- 20 -
TABLE DES MA
.....................20
GARANTIE ..............................................20
...............................................21
Instructions de Sécurité Importantes
........21
........ 22
INSTALLATION ......................................23
Conditions d’Installation Requises .........23
Installation..............................................24
Procédure A ...........................................25
Procédure B ...........................................26
Procédure C...........................................28
FONCTIONNEMENT............................30
Comment et Pourquoi ............................30
Bruits Normaux ......................................30
Capacité et Temps de Marche...............30
Caracteristiques .....................................31
Emploi du climatiseur.............................31
Affichage ................................................32
Télécommande ......................................33
ENTRETIEN............................................35
Nettoyage du Filtre à Air ........................35
Nettoyage du Climatiseur.......................35
Comment Enlever la Grille Avant...........35
Comment Remplacer la Grille Avant......35
DES PROBLEMAS A RESOUDRE
........36
Avant de Contacter l’Assistance ............36
ASSISTANCE ...............Couverture Arrière
ACCORDS SUR LA PROTECTION
DU MASTER.......................................... 39
................................... Au dos
NUMÉROS DE SERVICE
TECHNIQUE
TIÈRES
TABLE DES MATI ÈRES
SÉCURITÉ
EXIGENCES ÉLECTRIQUES
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
Garantie Limitée d’une Année
S i cet appareil est installé, utilisé et entretenu selon toutes les instructions fournies avec, en cas de panne due à
des défauts de matériel ou de fabrication arrivées pendant la première année suivant la date d’achat marquez
1-800 -4-MY - HOME® pour arranger des réparations gratuites.
Cinq Années de Garantie Limitée pour le Système de Réfrigération Hermétique
Pendant les cinq années suivant la date d’achat, et s i cet appareil est installé, utilisé et entretenu selon toutes les
instructions fournies, le système de réfrigération hermétique sera réparé gratuitement en cas de dé faut matériel
ou de fabrication.
La couverture des garanties n’est valable que pour les 90 jours suivant la date d’achat si ce
produit est utilis é dans pour des raisons non familiales et privées.
Cette garantie ne recouvre que des d éfauts de matériel ou de fabrication.
Sears ne prend PAS en charge
:
1.Des éléments à usure sous un usage normal, y compris, entre autre, filtres, courroies, ampoules et sacs.
2.Un technicien qualifié pour instruire l’usager sur l’installation, le fonctionnement ou l’entretien corrects du produit.
3.Un technicien qualifié pour nettoyer ou ent retenir ce produit.
4.Des dégâts ou des pannes du produit s’il n’est pas install é, utilisé ou entretenu selon toutes les
instructions qui l’accompagnent.
5.Des dégâts ou des pannes du pro duit découlant d’accidents, d’abus, d’usage incorrect ou dans des buts différent
s à ce ux pour lesquel s il a été conçu.
6.Des dégâts ou des pannes du produit dus à l’utilisation de détergents, de produits nettoyants ou chimiques, ou
d’ustensiles différents à ceux qui sont recommandés dans les instructions qui l’accompagne
nt.
7.Des dégâts ou des pannes des pièces ou des systèmes issus de modifications non autorisées à l’appareil.
Négation de garanties tacites ; limitation des recours
Le seul et unique remède accordé à l’usager avec cette garantie limitée sera la réparation ici décrite. Les garanties
tacites, telles les garanties de conformité ou d’aptitude à des fins spécifiques, sont limitées à une année où à la
période la plus courte permise par la loi. Sears ne sera pas responsable pour des dommages accidentels ou
conséquents. Certains états ou provinces ne permettent pas d’exclusions ou de limitations sur les dommages
accidentels ou conséquents, ou la limitation de la durée des garanties tacites de conformité ou d’aptitude à des fins
spécifiques, et il est donc possible que ces exclusions ou limitations ne soient pas valables dans votre cas.
Cette garantie est seulement valable pour des appareils utilis és aux Etats -Unis ou au Canada.
Cette garantie vous accorde des droits particuliers,et il est possible que vous enayez d’autres qui varient d’ état en état.
GARANTIE
