Kenmore 9563591 Installation instructions

CONTENTS
SAFETY
.......... ..................................... .......................... 1-5
TO START THINGS COOKING

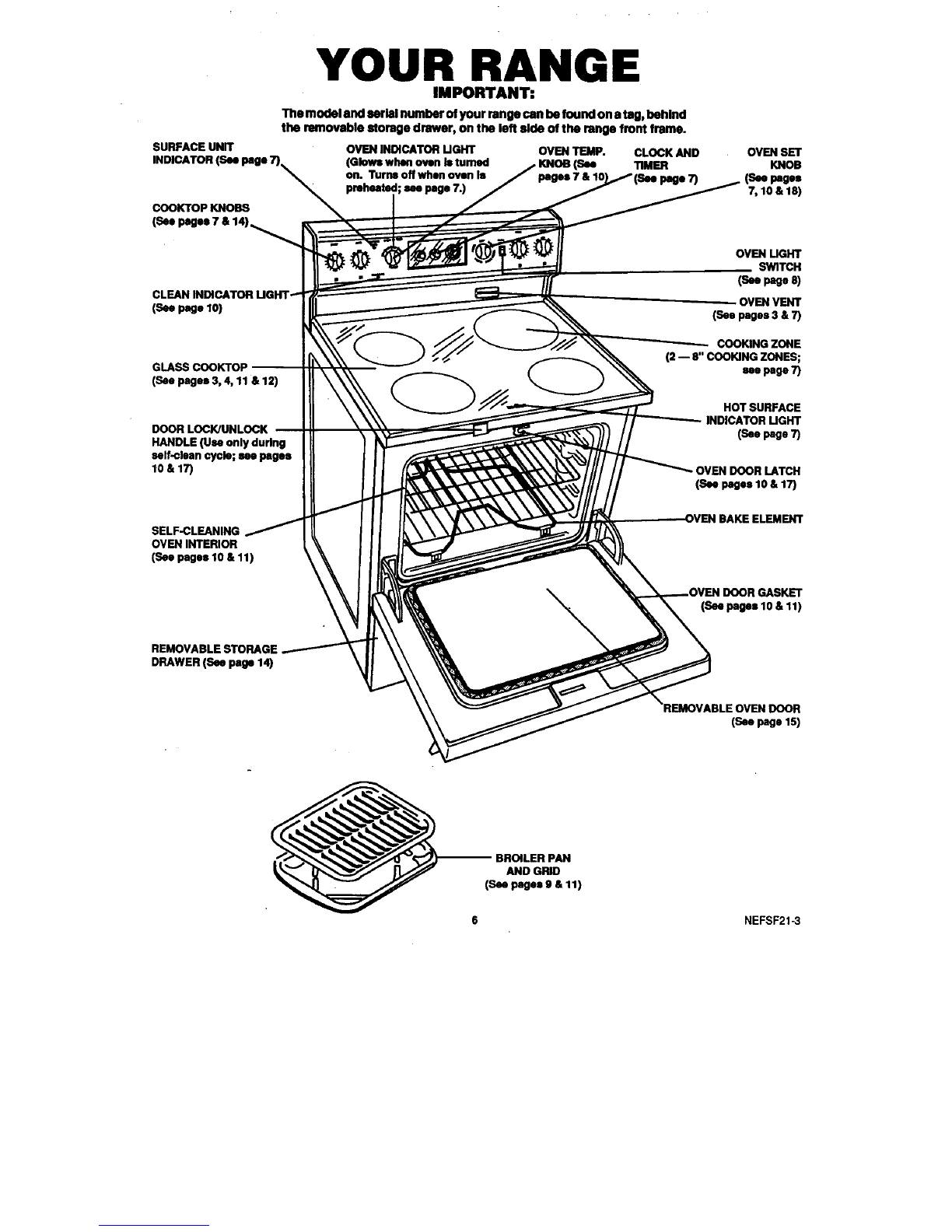

Features of Your Range ............................................. 6
Clock and Timer .......................................................... 7
Cooktop Cooking ........................................................ 7
Oven Cookl.,g ............................................................. 8
Broiling ........................................................................ 9
CLEANING
Self-Clean Cycle ........................................................ 10

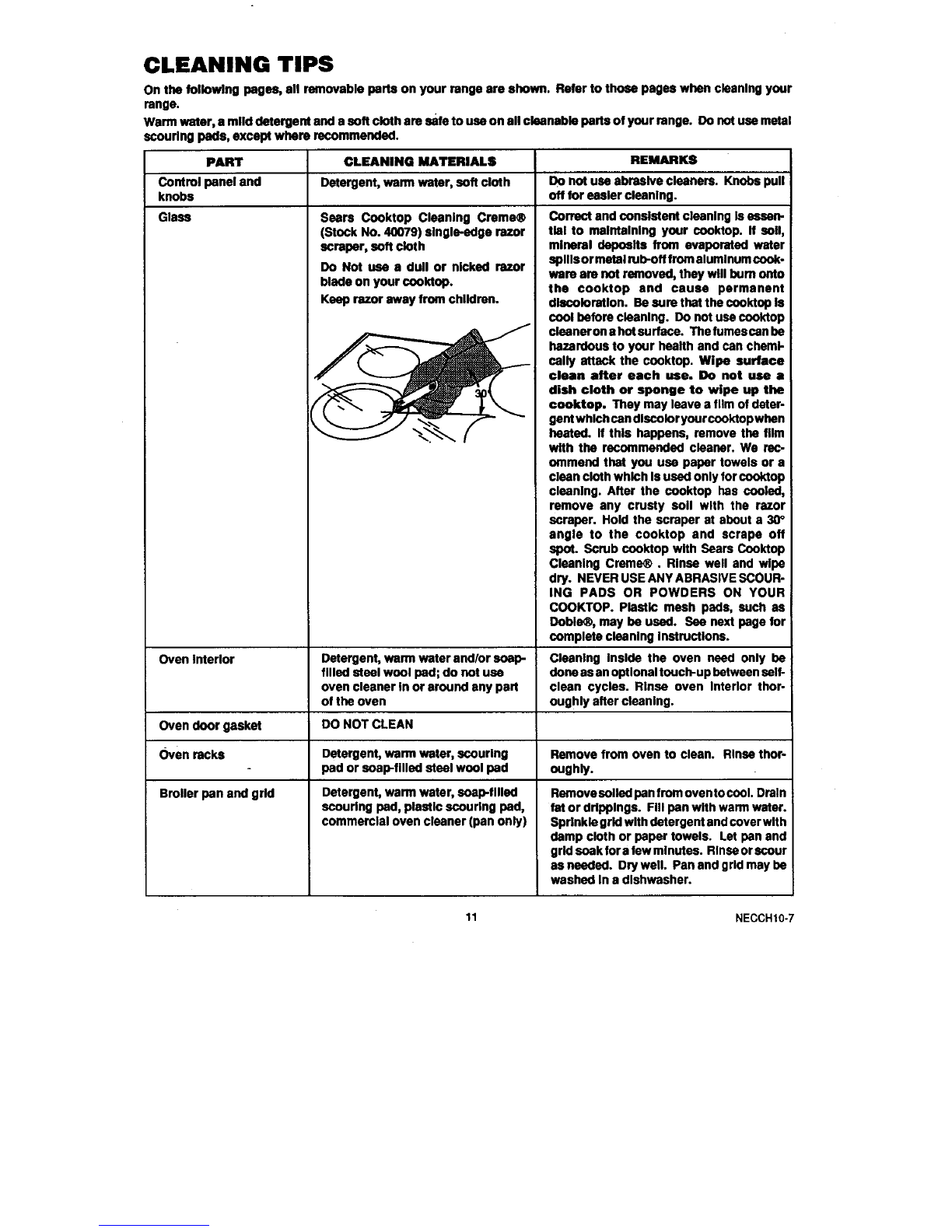

Cleaning Tlpe ...................................................... 11, 12
Removal of Packaging Tape .................................... 13
Removable Pertu ................................................. 14-15

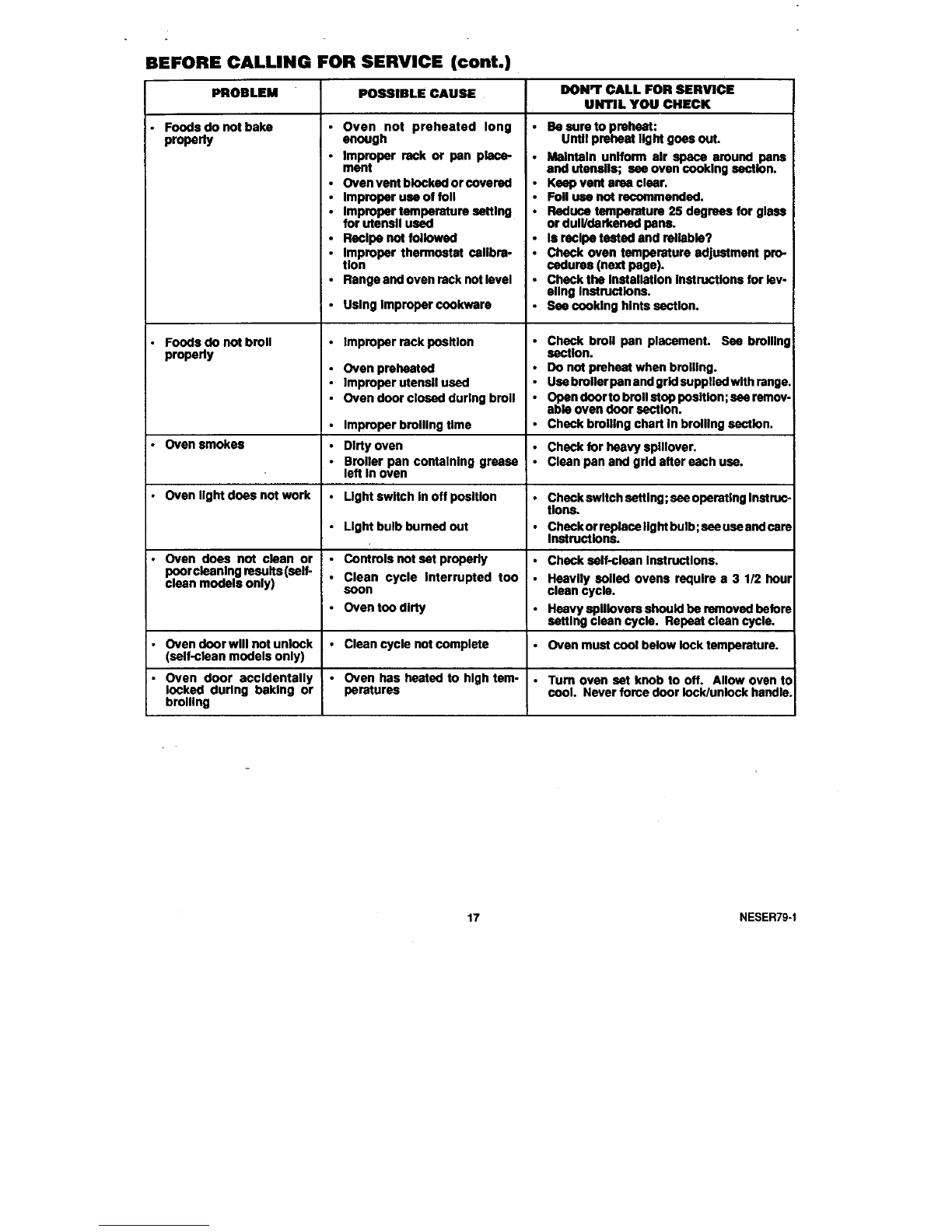

BEFORE CALLING FOR SERVICE
...................................................................... 16, 17
Temperature Adjustments ....................................... 18
WARRANTY
MODEL 95639
95635
USE
Kenmore
"CARE •SAFETY
MANUAL

ILwAn.,.o
• ALL RANGES CAN TIP
• INJURY TO PERSONS
COULD RESULT
•INSTALL ANTI-TIP
DEVICE PACKED
WITH RANGE
•SEE INSTALLATION
INSTRUCTIONS

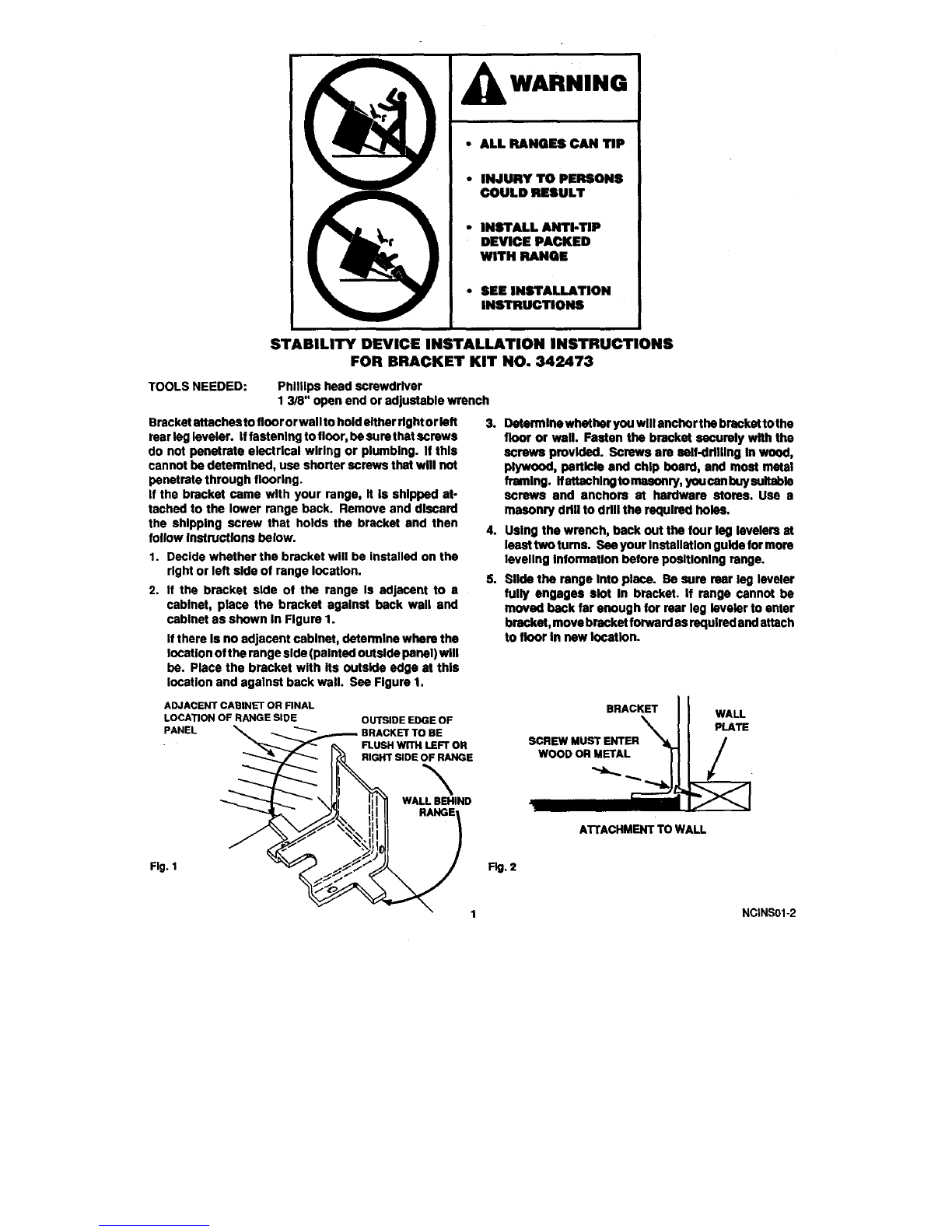

STABILITY DEVICE INSTALLATION INSTRUCTIONS
FOR BRACKET KIT NO. 342473
TOOLS NEEDED: Phillips head screwdriver
1 3/8" open end or adjustable wrench
Bracket attaches to floor or wall to hold either fight or left
raarleg leveler. If faetenlng tofloor, besumthat screws
do not penetrate electrical wiring or plumbing. If this
cannot be determined, use shorter screws that will not
penetrate through flooring.
If the bracket came with your range, It Is shipped at-
tached to the lower range back. Remove and discard
the shipping screw that holds the bracket and then
follow Instructions below.
1. Decide whether the bracket will be Installed on the
right or left side of range location.
2. If the bracket side of the range Is adjacent to a
cabinet, place the bracket against beck wall and
cabinet as shown In Figure 1.
If there Is no adjacent cabinet, determine where the
location of the range side (painted outside panel) will
be. Place the bracket with Its outside edge at this
location and agalnet back wall. See Figure 1.
3. Dstermlnewhether you will anchor tbe brscket tothe
floor or wall. Fasten the bracket securely with the
screws provided. Screws are sclf-dfilllng In wood,
plywood, particle and chip board, and most metal
framing. Ifettschleg tomesonry, you can buysuIfable
screws and anchors at hardware stores. USe a
masonry drill to drill the required holes.
4. Using the wrench, back out the four leg levelers at
lesst two tums. See your Inetalletlon guide for more
leveling Informstlon before positioning range.
5. Slide the range Into place. Be sure rear leg leveler
fully engages slot In bracket. If range cannot be
moved back far enough for rear leg leveler to enter
bracket, move bracket forward as requlrad and attach
to floor In new location.
ADJACENT CABINET OR FINAL
LOCATION OF RANGE SIDE
PANEL ___
OUTSIDE EDGE OF
BRACKET TO BE
FLUSHWITH LEFT OR
RIGHT SIDE OF RANGE
\
WALL BEHIND
BRACKET
SCREWMUSTENTER_
WOOD ORMETAL ]
WALL
PLATE
ATrACHMENT TOWALL
Fig. 1 Fig, 2
1 NCINS01-2

IMPORTANT INSTRUCTIONS
FOR YOUR SAFETY
SAVE THESE INSTRUCTIONS
Read all instructions before using this appliance. When using electrical
appliances, basic safety precautions should be followed, Including the following:
Teach children not to playwlth range
knobs or any other part of the range.
Never leave children alone or unat-
tended where a range Is In use.
CAUTION:
Items of Interest to children
should not be stored in cabinets
above the range or on the
becksplash of the range.- Chil-
dran climbing on the range to
reach Items could be seriously
injured.
Never iat anyone climb, sit or stand
on the open door or any other part of
the range. Their weight may make
the range tip over.
Never leave the oven door open when
you are not watching the range.
2 NESAFO8-5

Always keep the range area clear
and free from things that will bum.
CAUTION:
Never store things in an
oven or near cooktop elements/
burners. These things may catch
fire and plastic Items could melt.
Never use your range for warming
or heetlng aroom. You could be
burned or seriously Injured. Such
misuse could also cause damage to
the range.
Never wear loose clothing when
using your range. Such clothing
could catch fire.
Never use a towel or other bulky cloth
as apotholder. Such cloths could
catch fire on a hot element/burner.
Never lot pot handles stick out
over the front of the range. Turn
handles In so that they cannot be
bumped Into. Keep the handles
away from other hot surface ele-
ments,Jbumere.
Never leave cooktop elements/
burners unwatched at high heat
settings. Bollovers cause smok-
Ing and greasy splllovers could
catch fire,
3 NESAF09-2

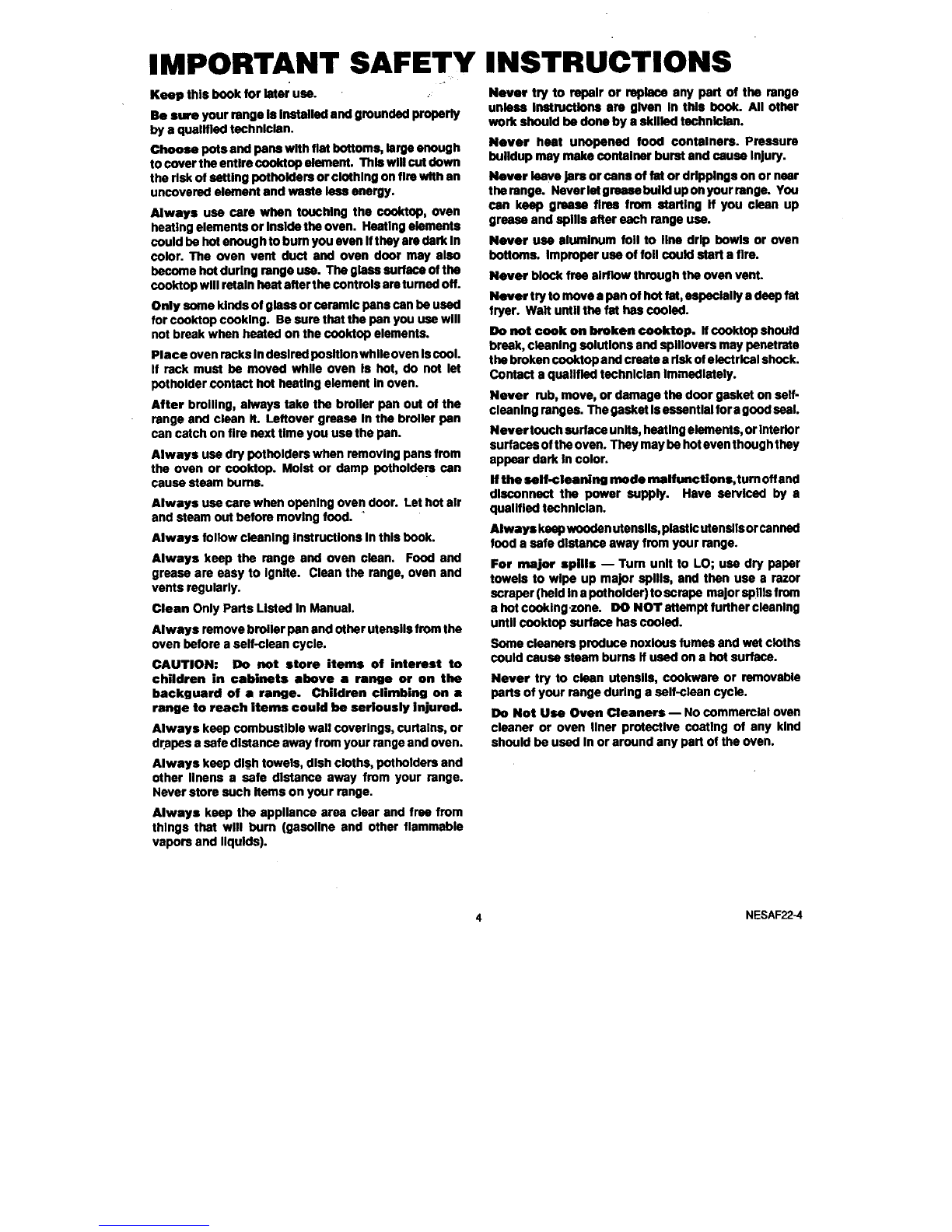

IMPORTANT SAFETY INSTRUCTIONS
Keep this book for later use.
Be sure your range is installed end grounded properly
by a qualified technician.
Choose pots and paps with fiat bottoms, large enough
to cover the entire cooktop element. This will cut down
the risk of setting potholders or clothing on fire with an
uncovered element and waste less energy.
Always use care when touching the cooktop, oven
heating elements or Inside the oven. Heating elements
could he hot enough to bum you even Ifthey are dark In
color. The oven vent duct and oven dour may also
become hot during range use. The glass surface of the
cooktop will retain heat after the controls are turned off.
Only some kinds of glass or ceramic pans can he used
for cooktop cooking. Be sure that the pan you use will
not break when heated on the cooktop elements.
Place oven racks Indesired position while oven Iscool.
If rack must he moved while oven is hot, do not let
potholder contact hot heating element In oven.
After broiling, always take the broiler pan out of the
range and clean It. Leftover grease In the broiler pan
can catch on fire next time you use the pan.
Always use dry potholders when removing pans from
the oven or cnoktop. Moist or damp potholders can
cause steam bums.
Always use care when opening oven door. Let hot air
and steam out before moving food.
Always follow cleaning instructions In this book.
Always keep the range and oven clean. Food and
grease are easy to Ignite. Clean the range, oven and
vents regularly.
Clean Only Parts Listed In Manual.
Always remove broiler pan and other utensils from the
oven before a serf-clean cycle.
CAUTION: Do not •tore items of interest to
children in cabinets above a range or on the
backguard of • range. Children climbing on •
range to reach items could be seriously injured.
Always keep combustible wall coverings, curtains, or
drabes a safe distance away from your range and oven.
Never try to repair or replace any part of the range
unless Instructions are given in this book. All other
work should he done by a akllled tschnlolan.
Never heat unopened food containers. Pressure
buildup may make container burst and cause injury.
Never leave jars or cans of fat or drippings on or near
therange. Neverletgrassebutlduponyourrange. You
can keep grease fires from starting if you clean up
grease and spllls after each range use.
Never use aluminum foil to line drip bowls or oven
bottoms, improper use of foil could start s fire.
Never block free alrffow through the oven vent.
Never try to move a pan of hot fat, eapeclally a deep let
fryer. Wall until the fat has cooled.
Do not cook on broken €ooktop. Ifcooktop should
break, cleaning solutions and splllovers may penetrate
the broken cool(top and create a risk of elsctrical shock.
Contact a quetlfled tschnlclan Immediately.
Never rub, move, or damage the door gasket on serf-
cleaning ranges. The gasket Isessential for a good seal.
Never touch surface units, heating elements, or interior
surfaces of the oven. They may be hot even though they
appear dark in color.
If the self.cleaning mode msalfunctions, turn off and
disconnect the power supply. Have ser#Icad by a
qualified technician.
Always keepwooden utensils, plastic utenslls or canned
food a safe distance away from your range.
For major spills -- Tum unit to LO; use dry paper
towels to wipe up major spills, and then use arazor
scraper (held in a potholder) to serape major spills from
e hot cooking-zone. DO NOT attempt further cleaning
until cooktop surface has cooled.
Some cleaners produce noxious fumes and wet cloths
could cause eteam burns If used on a hot surface.
Never try to clean utensils, coukware or removable
parts of your range during a self-clean cycle.
Do Not Use Oven Cleaners -- No commercial oven
cleaner or oven liner protective costing of any kind
should be used In or around any part of the oven.
Always keep dish towels, dish clothe, potholders and
other linens a safe distance away from your range.
Never store such Items on your range.
Always keep the appliance area clear and free from
things that will burn (gasoline and other flammable
vapors and liquids).
4 NESAF22-4

SAFETY INSTRUCTIONS (continued)
Read and understand this informa-
tion NOW!
Should you ever need it, you will
not have time for reading.
Be sure everyone in your home
knows what to do in case of fire•
Never use water on a grease fire -
it will only spread the flames•
COOKTOP GREASE FIRE
Never pick up a flaming pan...Instead:
1. Turn off the element.
2. Smother the fire with a tightly fitting pan lid,
baking soda or an extinguisher.
OVEN FIRE-
Do not try to move the pan!
1.Close oven door and turn controls off.
2. If fire continues, throw baking soda on the
fire, or use a dry chemical, foam, or halon
type extinguisher.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforce-
ment Act requires the governor of California to publish
a list of substances known to the state to cause birth
defects or other reproducUve harm and requires busi-
nesses to warn customers of potemlat exposure to such
substances.
The fiberglass insulation In self-clean ovens gives off a
very small amount of carbon monoxide during the
cleaning cycle. Exposure can be minimized by venting
with an open window or using a ventilation fan or hood.

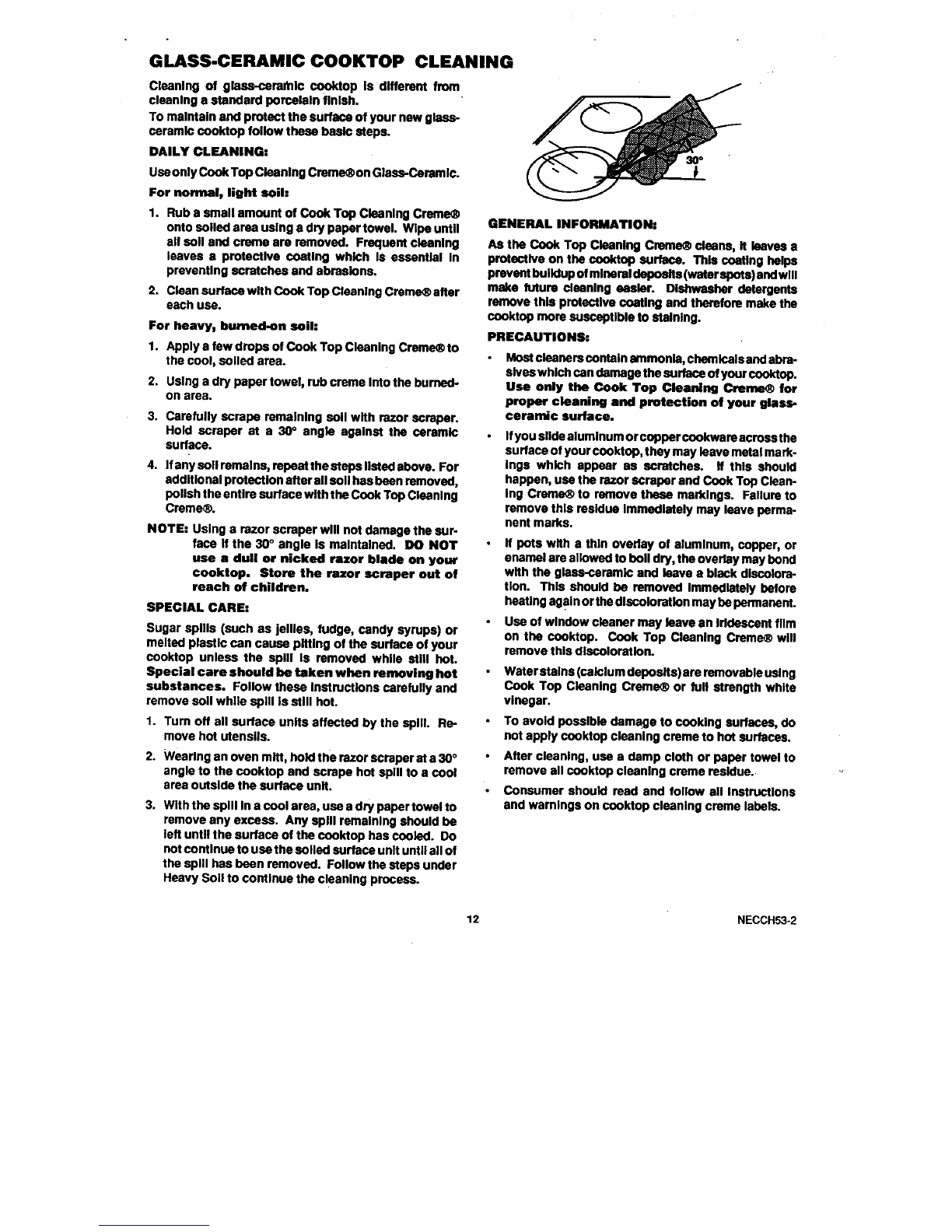

IMPORTANT INSTRUCTIONS
TO AVOID DAMAGE TO YOUR COOKTOP"
Never slide cookware across your cooktop.
DO NOT use a dish towel or sponge to wipe up the €ooktop. They may leave
a detergent film on the cookiop which may cause discoloration when heated. If this
occurs, remove the discoloration with a recommended cooktop cleaner.
Melted materials (plastic, aluminum foil, sugar, or foods with high sugar content)
can cause damage to the cooktop. If you accidentally melt anything on your
cooktop, turn unit to LO; wipe hot cooktop Immediately with several dry paper
towels. Scrape off remainder of burned material with razor scraper (held with
potholder) at 30 ° angle while unit Is warm. Be careful not to burn yourselfl After
cooking Is complete, turn unit to OFF. DO NOT attempt further cleaning until
cooktop surface has cooled.
DO NOT use scouring powders, plastic, nylon or metal cleaning pads. They may
scratch the cooktop.
DO NOT use chlorine bleach, ammonia, hydrofluoric acid, chemical oven cleaners,
or any other kind of chemical cleaner. They may discolor the cooktop.
To avoid possible damage to cooking surfaces, do not apply cooktop cleaning
creme to hot surfaces.
After cleaning, use a damp cloth or paper towel to remove all cooktop cleaning
creme residue.
Consumer should read and follow all Instructions and warnings on cooktop
cleaning creme labels.
5 NESAF23-3

SURFACEUNIT
INDICATOR(Seepage7)
COOKTOP KNOBS
(See pages 7 & 14)_
(See page 10)
GLASS COOKTOF
(See pages3, 4, 11 &12)
DOOR LOCK/UNLOCK
HANDLE (Use only during
self-clean cycle; see pages
10 & 17)
SELF-CLEANING
OVEN INTERIOR
(See pages 10 & 11)
YOUR RANGE
IMPORTANT:
The model and serial number of your range can be found on a tag, behind
the removable storage drawer, on the left side of the range front frame.
OVENINDICATORUGHT
(Glows when oven Isturned
on. Turnsoffwhen oven Is
preheated;see page7.)
OVENTEMP. CLOCK AND
TIMER
pagse 7 & page7)
OVENSET
KNOB
7, 10&18)
OVEN LIGHT
SWITCH
(See page 8)
(Sea pages3 &7)
COOKINGZONE
(2 -- 8" COOKINGZONES;
see page 7)
HOT SURFACE
INDICATOR UGHT
(see page 7)
OVENDOOR LATCH
(See pages10 & 17)
(Sse pageo 10 & 11)
REMOVABLE STORAGE
DRAWER (See page 14)
REMOVABLEOVENDOOR
(See page15)
BROILER PAN
AND GRID
(See pages g & 11)
6 NEFSF21-3

TO START THINGS COOKING
COOKTOP COOKING
The sign near each cook-top control knob shows which
element Is turned on by that knob.
O0 eO Oe O0
•0 O0 O0 O•
Left Left Right Right
Front Rear Rear Front
To operate cooktop controls:
1. Push to turn.
2. Set on or between marks for desired heat.
An Indlcstor light will glow when any cooktop element Is
on. OFF
-g.
_ -- COOKTOP CONTROL
/_fEO \
When an element Is turned on, the element can be seen
glowing red within a few seconds. The red glowwill rum
on and off (cycling) to maintain the selected heat set-
tings. With poor utensils, you will see frequent cycling
of the element off and on, Good, flat uteaslIs will
minimize the cycling. (See CHOOSING CORRECT
COOKWARE.)
CHOOSING CORRECT COOKWARE
For beat cooking results and energy efficient operation,
you should use pans that:
A. Have flat bottoms and
straight sldea.
B. Have light handles that do
not tilt pans.
C. Are about the same size as
the element.
NOTE= Cooktop temperatures increase with the
number of zone elements that are on. With 3 or
4 zones turned on, surface temperatures are
high, so be caraful when touching the =ooktop.
THE NOT INDICATOR LIGHT WILL GLOW WHEN
THE COOKTOP IS HOT TO THE TOUCH.
CLOCK AND OVEN CONTROLS TO SET THE CLOCK:
Push in and turn CLOCK KNOB to set time. Turn knob
without pushlng In to set timer hand back to OFF.
TO SET THE TIMER:
Turn CLOCK KNOB cou_ without pushing in.
To turn off buzzeraftertlme Is up, msettlmer handto OFF.
NOTE- The timer Is a reminder only and will not control
the range.
Please check the graphics on the control panel to ensure your oven is set correctly..,
FOR MODELS 9563591 & 9563991 FOR MODEL 9563992
OVEN •TEMP OVENSET
TO BAKE, ROAST OR BROIL"
Be sure that the OVEN SET KNOB isturned to BAKE for
baking or roasting or BROIL for broiling.
1. Set the OVEN TEMP KNOB to deslred iemparators or
to BROIL.
For broiling, the OVEN TEMP KNOB must be set to
500 BROIL.
2. When finished, turn OVEN SET KNOB to OFF.
OVEN •TEMP OVEN SET
TO BAKE, ROAST OR BROIL=
1. SettheOVENSET KNOBto BAKE/BROILforbaklng
or broiling.
2. Set the OVEN TEMP KNOB to the desired tempera-
ture for baking.
Set the OVEN TEMP KNOB to broil for broiling.
NEMTC56

CLOCK & OVEN CONTROLS (continued...)
NOTE: To set an automatic oven operafionp the
time of day must he correct on the clock,
AUTOMATIG OVEN OFF:
1. Turn the OVEN SET KNOB to TIME BAKE (oven
Indicator light will glow).
2. Push In and turn STOP TIME KNOB to sat time when
oven will turn off. DELAY START TIME should show
same as clock.
3. Sat OVEN TEMP KNOB to desired tempamtum.
4. When finished, tom OVEN SET KNOB to OFF.
AUTOMATIC OVEN ON AND OFF:
1. Turn the OVEN SET KNOB to TIME BAKE.
2. Push In and turn DELAY START TIME KNOB to set
time when oven will turn on.
3. Push In and turn STOP TIME KNOB to sat time when
oven will turn off.
4. Set OVEN TEMP KNOB to desired temperature.
5. When finished, turn OVEN SET KNOB to OFF.
OVEN LIGHT
Use the switch on the control panel to turn the light on
and off when the door is closed.
CAUTION=
Foods that are highly perishable,
such as milk, eggs, fish, stuffings,
poultry and pod(, should not be al-
lowed to sit out for mere than one
hour before or after cooking. Room
temperature promotes the growth
of harmful bacteria. Be sure that
the oven light is off because heat
from the bulb will speed harmful
bacteria growth.
OVEN COOKING
DO NOT lock the oven door with the door latch
during baking, The latch is used for self.cleaning
only.
When cooking a food for the first time In your new
oven, use time given on recipes as a guide.
Your new oven has been set correctly at the factory
and Is more apt to be accurate then the oven it
replaced.
After you have used your oven for awhile, If you feel
your oven should be hotter or cooler, you can adjust
Ityourself. See TEMPERATURE ADJUSTMENTS
In this manual.
• Always follow recipe carefully.
• Measure ingredients properly.
Use proper pan placement.
Place pans on the oven racks with 1"to 1 1/2" of air
space on all sides of each pen. Avoid overcrowding
the oven. Paps too close to each other, to the oven
oven walls or to the oven bottom block the free
movement of air. Improper air movement causes
uneven browning and cooking.
when baking several Items, stagger pans so that no
pan Is directly above another.
2 cake layers
rf
4cake layers
Opening the door too olles to check food dudng
baking will allow heat lose and may cause poor
baking results.
Let the oven preheat thoroughly before cooking
baked products. Listen for preheat notification tone
(If edulpped) or watch forths Indlcator llghtto go off.
If your range does not have either of these features,
preheat for 10 minutes and put the food In the oven.
There may he some odor when the oven Isfirst used.
This Is caused by the heating of new parts and
Insulation.
Do not cover an entire oven rack with foil. The foil
can block normal heat flow and cause poor baking
results, Do not place any foil dlrecUy abavethe bake
element, Foil used on the oven bottom under the
element may damage the oven surface; therefore, It
should not be used,
Cookies should he baked on flat cookie sheets
without sides to allow the air to circulate properly.
When recipes require preheating, have food nearby
before you open the oven door. If the oven door Is
allowed to remain open for more than a brief time,
the preheat temperature will be lost.
Oven temperatures should be reduced 25 degrees
below recommended temperatures Ifexterior of pen
Is predarkened, darkened by age or oven proof
glass.
8NEOVC21

BROILING
Broiling is cooking by direct heat from the broil
burner. Tender cuts of meat or marinated meat
should be selected for broltlng. For best results
steaks and chops should be st least 3/4" thick.
After placing food on the broiler pan, put the pen on
the rack In the oven. The recommended rack post-
tion and cooking time can be found In the chart st
fight.
The closer the food Is to the broil burner, the faster
the meat browns on the outside, yet stays red to pink
In the center. Moving the meat fartheraway from the
burner lets the meat cook to the center white brown-
Ing outside. Side one should be cooked I - 2 mlnutea
longer than side two.
Your oven door should be open to the broil
stop position while broiling. If the door is
closed the food will roast and not broil.
Use only the broiler pan and grid that camewlth your
range for broiling. They are designed for proper
drainage of fat and ,quids and help prevent spatter,
smoke or fire.
Do not preheat when broiling. Preheating may
cause the thermostat to cycle the broil burner off
and on. For even broiling on both sides, start the
food on a cold pan.
Trim the outer layer of fat from steaks and chops.
Slit the fatty edges to keep the meat from curling.
For maximum juiciness, salt the first side just before
turning the meat. Salt the second side just before
serving.
Brush chicken and fish with butter several times as
they broil. When broiling fish, grease the grid to
prevent sticking and broil with skin side down. It IS
not necessary to turn fish.
Never leave e soiled broiler pen in the range,
Grease In the pan may smoke or burn the next time
the oven Is used.
Be sure you know the correct procedure for
putting out e grease fire. See the section on
safety.
DO NOT lock the oven door with the door latch
dining baking. The latch is used for serf.clean-
ing only.
POSITIONING BROILER PAN
Food
Steak - 1" Thick
Rare
Medium
Well Dons
Ground Beef Patties
Medium - 1" Thick
Medium -1/2" Thick
Lamb Chops - 1" Thick
Pork Chops - 1" Thick
Pork Chops - 1/2" Thick
Ham Slice - 1/2" Thick
i Fish (Fillets)
Chicken (Pieces)
Frankfurters
Bacon
Rack
PosiUon
4 ,, Highest
1 . Lowest
Total Tlroe
(minutes)
4 9-11
3 13-15
3 21-23
3
4
3
3
3
3
3
2
3
3
16-18
7-9
16-21
27-29
16-18
11-12
11-13
45-55
8-11
9-11
This chart Is a general guide. The size, welgM, thick-
ness, and starting temperature of the food, as well as
your own personal preference, will affect the cooking
time. Tlmea In the chert are based on the food being at
refrigerator temperature.
Do not cover the entire broiler
grid with foil. Poor drainage of
hot fat may cause e broiler fire.
If • fire starts, close the oven
door end turn controls off. If
fire continues, throw baking
soda on the fire. Do not pet
water on the fire.
9 NEBRL03-4

THE SELF-CLEAN CYCLE
BEFORE A CLEAN CYCLE
1. Removethe broil panandgrld,oven rocks, all utensils
and any foil that may be In the oven. Do not try to
clean utensils or any other objects in the oven during
a self-ctean cycle, d oven recks are left in the
range during a clean cycle, they will darken,
lose their luster and become herd to slide. If
you choose to leave the racks in the oven, you can
polish the edges of the rocks with steel wool and
apply a small amount of vegetable oil to the rack
edges after the self-clean cycle. This will make the
racks easier to slide.
2. Soil on the oven front frame, under the front edge of
the cooktop, the door liner outside the door gasket
and the front edge of the oven cavity (about 1" Into the
oven) will not be cleaned during a clean cycle (see
Illustration below). Clean these areas by hand before
starting a clean cycle.
Use hot water with a Seal) filled steel wool pad, then
rinse well.
FRONT FRAME
TO SET A CLEAN CYCLE:
Recommended Cleaning Times:
Light Soil ............................................ 1 1/2 hours
Moderate Soil .................................... 2 1/2 hours
Heavy SOIl .......................................... 3.1/2 hours
1. Set DELAY START TIME KNOB on the clock to the
present time of day.
2. Set the STOP TIME knob to the time of dey when you
want the clean cycle to end.
Note: The oven will not unlock until the
temperature has dropped to a •ate level after
the •top time.
3. Turn OVEN SET KNOB to CLEAN.
4. Turn OVEN TEMP KNOB counterelockwise to CLEAN.
Turn the knob all the way until it stops.
5. Slide the door lock/unlock handle all the way to the
right to lock the door. You may need to press on the
door slightly to get it to lock.
SUDE DOOR LOCK/UN-
LOCK HANDLE TO THE
RIGHT TO LOCK DOOR
DOORUNER
3. Wipe up heavy splllovers on the oven bottom. Too
much soil may cause smoking during the clean cycle.
4. DO NOT rub or clean the door gasket (seal). The
fiberglass meterlal of the gasket has an extremely low
resletance to abrasion. An Intact and well-fitting oven
door gasket Is essential for energy efficient oven
operetlon and good baking results. If you notice the
gasket becoming worn, frayed or damaged In any
way, or if It has become dlsplsced on the door, you
should have It-replaced. The door gasket Is designed
with a 5" to 6" gap at the bottom to allow proper air
cireulatlon.
For your safety, the oven door cannot
he unlocked while the oven is at clean-
ing temperature. After • clean cycle,
the door cannot he unlocked until the
temperature has dropped to a safe level.
10
TO INTERRUPT A CLEAN CYCLE:
1. Turn STOP TIME knob to the current time of day.
2. Allow sufficient time for cooling.
Do not force the door lock handle. Slide door lock/
unlock handle to left to unlock door.
3. Allow sufficient time for cooling.
WHEN A CLEAN CYCLE IS FINISHED:
1. Stop time will be the same as the time of day.
2. Allow sufficient time for cooling. Do not force the
door lock handle. Slide door lock/unlock handle to
left to unlock door.
3. Turn OVEN SET KNOB to OFF. Tum OVEN TEMP
KNOB clockwise.
AFTER A CLEAN CYCLE
After a clean cycle, you may notice some white ash In the
oven. Just wipe It up with a damp cloth.
Ifwhite spots remain, scrub them with a seal)filled steel
wool pad. Be sure to rinse thoroughly with a white
vinegar and water mixture. These deposits are usually
a salt residue that cannot be removed by the clean cycle.
If the oven Is not clean after one clean cycle, the cycle
may be repeated. NESCL22-3

CLEANING TIPS
On the following pages, all removable parts on your range are shown. Refer to those pages when cleaning your
range.
Warm water, s mild detergent and a soft cloth are safe to use on all claanable parts of your range. DOnot use metal
scouring pads, except where recommended.
PART CLEANING MATERIALS REMARKS
Control panel and Detergent, warm water, soft cloth Do not use abrasive cleaners. Knobs pull
knobs off for easier cleaning.
Glass
Oven interior
Oven door gasket
Oven racks
Broiler pan and grid
Sears Cooktop Cleaning Creme®
(Stock No. 40079) singis-adge razor
scraper, soft cloth
DO Not use a dull or nicked razor
blade on your cooktop.
Keep razor away from children.
Detergent, warm water and/or soap-
filled steal wool pad; do not use
oven cleaner In or around any part
of the oven
DO NOT CLEAN
Detergent, warm water, scouring
pad or soap-filled steal wool pad
Detergent, warm water, soap-filled
scouring pad, plastic scouring pad,
commercial oven cleaner (pan only)
Correct and consistent cleaning Is e_men-
tlal to maintaining your cooktop. If soil,
mineral deposIts from evaporated water
spills or metal rub-oft from aluminum cook-
ware are not removed, they will bum onto
the cooktop and cause permanent
discoloration. Be sure that the cooktop is
cool before cleaning. DOnot use cooktop
cisaner on a hot sorface. The fumescan he
hazardous to your health and can chemk
rally attack the cooktop. Wipe surface
clean after each use. Do not use a
dish cloth or sponge to wipe up the
cooktop. They may leave a film of deter-
gent which candiscoloryour cooktopwhen
heated. If this happens, remove the film
with the recommended cleaner. We rec-
ommend that you use paper towels or a
clean cloth which Is used only for cooklop
cleaning. After the cooktop has cooled,
remove any crusty soil with the razor
scraper. Hold the scraper at about a 30°
angle to the cooktop and scrape off
spot. Scrub cooktop with Sears Cooktop
Clesnlng Creme_. Rlnea well and wipa
dry. NEVER USE ANY ABRASIVE SCOUR-
ING PADS OR POWDERS ON YOUR
COOKTOP. Plastic mesh pads, such as
DObis®, may be used. See next page for
complete cleaning Inetructlons.
Cleaning Inside the oven need only be
done as an optional touch-up between self-
clean cycles. Rinse oven Interior thor-
oughly alter cleaning.
Remove from oven to clean. Rinse thor-
oughly.
Removesolled pan from oven to cool. Drain
fat or drippings. Fill pan with warm water.
Sprinkle grid with detergent and cover with
damp cloth or paper towels. Let pan and
grid soak for a few minutes. Rinse or scour
as needed. Dry well. Pan and grid may he
washed In a dishwasher.
11 NECCH10-7

GLASS-CERAMIC COOKTOP CLEANING
Cleaning of glase-ceramlc cooktop Is diffemot from
cleaning e standard porcelain finish.
TO maintain and protect the surface of your new glass-
ceramic cooktop follow those basic stops.
DALLY CLEANING:
Useonly Cook Top Cleaning Creme_ on Glass-Ceramic.
For normal, light soil:
1. Rub a small amount of Cook Top Cleaning Creme_
onto soiled area using • dry peper towel. Wipe until
all soil and creme are removed. Frequent cisanlng
leaves a protective coating which Is essential In
preventing scratches and abrasions.
2. Cleaansurface with Cook Top Cleaning Creme® atter
each Use.
For heavy, burned-on soil:
1. Apply a few drops of Cook Top Clsenlng Creme® to
the cool, soiled area.
2. Using a dry paper towel, rub creme Into the burned.
on area.
3. Carefully scrape remaining soil with razor scraper.
Hold scraper at a 30 ° angle against the ceramic
surface.
4. Ifany soil remains, repeat lhe steps listed above. For
additional protection after all soil has been removed,
polish the entire surface with the Cook Top Cleaning
Creme®.
NOTE: Using a razor scraper will not damage the sur-
face If the 30° angle Is maintained. DO NOT
use a dull or nicked razor blade on your
€ooktop. Store the razor scraper out of
reach of children.
SPECIAL CARE:
Sugar spills (such as jellies, fudge, candy syrups) or
melted plastic can cause pitting of the surface of your
cooktop unless the spill Is removed while still hot.
Special care should he taken when removing hot
substances. Follow these instructions carefully and
remove soil whlis spill is atlll hot.
1. Tum off all surface units affected by the spill. Re-
move hot utensils.
2. Wearing an oven mitt, hold the razor scmper at a 30°
angle to the cooktop and scrape hot spill to a cool
area outside the surface unit.
3. With the spill in acool area, use a dry paper towel to
remove any excess. Any spill remaining should be
left until the surface of the cooktop has cooled. Do
not continue to Use the soiled surface unit Until all of
the spill has been removed. Follow the steps under
Heavy Soil to continue the cleaning process.
GENERAL INFORMATION:
AS the Cook Top Cleaning Creme_ cleans, it leaves •
profsotlve on the cooktop surface. This coating helps
prevent buildup of mineraldepoeits (wateropots) and will
make future cleaning easier. Dishwasher detergents
remove this prntectlve coating and therefore make the
cooktop more susceptible to staining.
PRECAUTIONS:
Most cleaners contain ammonia, chemicalsand abra-
sives which can damage the surface of your cooktop.
Use only the Cook Top Cleaning Creme_ for
proper cleaning and protection of your glass-
ceramic surface.
Ifyou slide aluminum or copper cookware across the
surface of your cooktop, they may leave metal mark-
Ings which appear as scratches. If this should
happen, use the razor scraper and Cook Top Clean-
Ing Creme_ to remove these markings. Failure to
remove this residue Immediately may leave psrma-
nent marks.
If pots with a thin overlay of aluminum, copper, or
enamel are elk)wed to boll dry, the overlay may bond
with the gisss-ceramic and leave a black discolora-
tion. This should be removed Immedistely before
heating ag.alnor the dlscolorstlon may be permanent.
Use of window cleaner may leave an iridescent film
on the cooktop. Cook Top Cleaning Creme® will
remove this discoloration.
Water stains (calcium deposits) are removable using
Cook Top Cleaning Creme® or full strength white
vinegar.
To avoid possible damage to cooking surfaces, de
not apply cooktop cleaning creme to hot surfaces.
After cleaning, use a damp cloth or paper towel to
remove all cooktop cleaning creme residue.
Consumer should read and follow all Instructions
and warnings on cooktop cleaning creme labels.
12 NECCH53-2

REMOVAL OF PACKAGING TAPE:
When packaging tape Is removed from your appliance, you may find some adhesive still on the product. TOremove
the adhesive and assure you do not damage the finish, use an application of household liquid dishwsshlng detergent,
mineral o11,or cooking oil. Apply with asoft cloth. DO NOT use s plastic pad or equivalent. Wipe dry and then apply
an appliance pellsh to thoroughly cisan and protect the surface. This precadura Is also sere for the face ofmicrowave
doors and other plastic parts.
NOTE: The plastic tape that Is not removed from chrome trim on range parts CANNOT be removed If baked on.
HOME CANNING TIPS
In surface cooking of foods other than canning, the use
of large-diameter pots (extending more than 1" beyond
edge of drip pan) Is not recommended. However, when
canning with weter-bsth or pressure canner, Isrge-dl-
ameter pots may be used. This Isbecause boiling water
temperatures (even under pressure) are not harmful to
cooktop surfaces surrounding heating unit.
HOWEVERm DO NOT USE LARGE DIAMETER
CANNERS OR OTNERL&RGE DIAMETER POTS
FOR FRYING OR BOILING FOODS OTHER THAN
WATER.
MOStsyrup or sauce mixtures-- and all types of frying
-- cook st temperatures much hlgherthen boiling water.
Such temperatures could eventually harm cooktop sur-
faces surrounding heating units.
OBSERVE FOLLOWING POINTS IN
CANNING
1. Bring water to boll on HIGH heat, then after boiling
has begun, adjust heat to lowest setting to maintain
boll (saves energy and best uses surface unlt)o
2. Besurecannerlltsovercenterofsurfacaunlt. If your
range does not allow canner to be cantered on
surface unit, use smaller-diameter pots for good
canning results.
3. Flnt-bottomedcannereglvebestcannlngresults. Be
sure bottom of canner Isflat or slight Indentstlon fits
snugly over surface unit. Canners with flanged or
rippled bottoms (often found in enamelware) are not
recommended.
RIGHT WRONG
4. When canning, use recipes from reputable sources.
Reliable recipes are available from the manufacturer
of your canner; manufacturers of glass jars for can-
ning, such as Bell and Kerr; and the United States
Department of Agriculture Extension Servlca.
,Remember, In following the recipes, that canning Is
a process that generates large amounts ofsteam. Be
careful while canning to prevent bums from steam or
heal.
NOTE: If your range Is being operated on low power
(voltage), canning may take longer than expected,
even though dlrecUons have been carefully fol-
lowed. The process may be Improved by:
(1) using e pressure canner, and
(2) for fastest heating of large water quantitlss,
begin with HOT tap water.
13 NEMNT76-2

REMOVABLE KNOBS
The control knobs may be removed for easy cleaning by
pulling the knob straight off stem. Besumthat the knob
Is In the OFF position before removal.
Hint: Slip a thin cloth (such as a handkerehlef) or a plsce
of string under and around the knob edge and pull up.
MOLDED
RIB
Caution- Read these instructions
carefully before replacing the
knobs. Replacing the knobs int-
properly will damage the knobs end
the spring clip on the stems, If this
happens, the knobs will fit loosely,
To replace the knob:
1. The knob stem has a groove In each side. The Groove
on one side has a spring clip. The other Groove is
clear (see Illustration).
SPRING
CUP
2. Chsck the Inside ofthe knob and find the molded rib.
3. Replace the knob by flttln Gthe molded rib Inside the
knob Into the clear groove on the stem.
REMOVABLE STORAGE DRAWER
This drawer gives you space for keeping cook.
ware and bakeware. Plastics end flammable
material should not be kept in this drawer.
Do not overload the storage drawer. Ifthe drawer Istoo
heavy, Itmay slip offthetrackwhen opened. Toopenthe
drawer, Grasp the center of the handle and pull straight
out.
To remove:
Pull drawer straight out and lift over the guide stops.
To replace:
Lift over the Guide stops and slide drawer Into place.
I ISGUIDE STOP
fl
REPLACING THE OVEN LIGHT
Be sure that the light switch is in the off position.
Do not touch hot oven bulb. Do not touch oven
bulb with wet hands. Do not wipe oven light area
with wet cloth.
Never touch the electrically live collar on the
bulb when replacing it.
Elactrical power must be shut off if you have to
replace a broken bulb.
1. Unscrew Glass cover and remove.
2. Replace the bulb with a 40 watt appliance bulb.
3. Replace the cover.
•GLASS RETAINER
Note: We recommend you uea a 40 watt appliance bulb
that Is no longer than 3 1/2".
14 NEMNT39-1

REMOVABLE OVEN RACKS
Be careful not to scratch the oven finish when
installing or removing oven racks.
To Install:
1. Sat the raised beck edge of the rack on a pair of rack
guides°
2. Push the rack In until you resch the bump In the rack
guide, then lift the front of the rack and push the rack
all the way In.
TO remove:
1. Pull the oven rack out, then up.
Some models have one standard oven rack and one
folding oven rack.
The folding rack can be easily stored away when not In
use.
NOTE: The recks are designed with stop licks.
When the racks are placed correctly on
the rack supports end extended from the
oven, the stop lock prevents the racks
from tilting when you are removing foods
from the oven or place food on them.
NOTE: Forbestperlormance, removeovenrimks
dining • €lean cycle, if oven racks are
left in the range daring a self-clean cycle,
they will darken, lose their luster and
become herd to slide.
If you choose to leave the racks in the
oven, you can polish the edges of the
racks with steel wool end apply a small
amount of vegetable oil to the rack edges
after the self-clean cycle.
BUMP IN
RACK _
REMOVABLE OVEN DOOR
To remove:
1. Open the door to the stop position (see Illustration).
2. Grasp the door at each side and lift up and off the
hinges. Do not lift doorbythe handle. Glass breakage
or damage to the door may result.
NOTE: When the door is removed and hinge arms
are at stop position, do not bump or try to move
the hinge arms. The hinges could snap back
causing an injury to the hands or damage to the
porcelain on the front oi the range. Cover the
hinges with toweling or empty towel rolls while
working in the oven area.
To replace:
1. Hold the door over the hinges with the slots st the
bottom edge of the door lined up with the hinges.
The hinge arms must still be in the stop
position.
2. Slide the door down onto the hinges as far as it will
go and close the door.
STOP (BROIL) POSITION
HINGE
15 NEMNT75-1

BEFORE CALLING FOR SERVICE
Save time and money - Check this list before you call for service.
To ellmlnste unnecessary servlca calls, first, read all the Instructions In thle manual carefully. Then, If you have e
problem, always check this list of common problems and possible solutions before you call for service.
If you do have a problem you cannot fix yourself, call your nearest Sears Store or Service Center for help. When
calling, have this manual and your Repelr Parts List handy with the model, serlel number and purchase date.
PROBLEM POSSIBLE CAUSE
• Tiny scratches or abra- -
slons on cooktop
(May appear as cracks) "
Metal marking on
cooktop
(May appear as scratches)
•Darkstreaksandspecks
on cooktop
Areas of discoloration
on cnoktop
• Range does not work;
totally Inopuratlve
Oven does not heat;
cooktop zones OK
•Cooktop zone does not
work; oven OK
Foods cook slowly on
the cooktop
Use of Incorrect cleaning ma-
terials
Coarse particles (salt, etc.)
between cookware bottoms
and cooktop. Be sure cook-
ware botfomsand cooktop are
clean before use.
Cookwara with rough bottoms
Sliding or scraping metal
utenslle and cookware across
cooktop
Encrusted bollovers or grease
spatters
• Incorrect cleaning materials
•Mlneral deposlts from water or
food
• No power to range
•Clock set Incorrectly
• Oven controls set Incorrectly
•Improper operatlon of control
• Improper cookware
DON'T CALL FOR SERVICE
UNTIL YOU CHECK
• Tiny scratches are not removable and do
not effect cooking. In time, the scratches
will become smoother and less visible.
• Use recommended cooktop cleaners.
•Use razor scraper.
Use razor scraper and follow directions In
cleaning chart.
Use recommended cleaners In cleaning
chart.
•use recommended cleaners.
•Use razor scraper.
•Check household circuit breaker or fuse.
•Check power cord to be sure It Is
plugged In.
•Check clock Instructions.
•Check oven control instructions.
Be sure knob Is pushed In while turning.
Use pens that have flat bottoms and atight
fitting lid (Ifapplicable). PansshouId match
cooking zone size. Read tha cooktop cook-
Ing section for complete Informatlon.
(continued, next page)
16 NESFR78

BEFORE CALLING FOR SERVICE (cont.)
POSSIBLE CAUSE DON'T CALL FOR SERVICE
UNTIL YOU CHECK
PROBLEM
• Foods do not bake
properly
• Foods do not broil
properly
• Oven not preheated long
enough
•Improper rack or pan place-
ment
• Oven vent blocked or covered
• Improper use of foil
•Improper temperntum setUng
for utensil used
• Recipe not followed
•Improper thermostat calibra-
tion
•Range and oven rock not level
•Using Improper cookware
Be sure to preheat:
Until prehent light goes out.
Malntaln uniform alr space around pans
and utensils; see oven cooking section.
•Improper rack posltlon
• Oven preheated
•Improper utensil used
• Oven door closed during broil
•Improper brolllng tlme
•Dirty oven
Broller pan contalnlng grease
left In oven
• Light swltch In off posltlon
•Light bulb burned out
•Controls not set properly
•Clean cycle Interrupted too
soon
• Oven too dlrty
•Keep vent am clear.
•Foil use not recommended.
•Reduce temperntum 25 degrees for glass
or dull/darkened pans.
•Is recipe teated and mlleble?
Check oven temperature adjustment pro-
eadums (next page).
•Check the Installation Instructions for lev-
eling Instructions.
• See cooking hints secUon.
•Check broil pan placement. See brolllng
section.
•Do not preheat when broiling.
•Use broller pan and grid supplled wlth range.
•Open door to broll atop poslUon; sea remov-
able oven door secUon.
Check broiling chart In brolllng section.
• Oven smokes . Check for heavy splllover.
•Clean pan and grid after each use.
• Oven light does not work •Check switch eatUng; see operatlog Inatruc-
tlons.
•Check or roplace light bulb; see use and care
Inatructlons.
• Oven does not clean or • Check self-clean Instructions.
poor cleanlng results (self-
clean models only) •Heavlly solled ovens requlre a 3 1/2 hour
clean cycle.
•Heavy splllovem should be removed before
setUng clean cycle. Repeat clean cycle.
• Oven door will not unlock Clean cycle not complete • Oven must cool below lock temperature.
(self-clean models only)
•Oven door accidentally Oven has heated to high tem- • Turn oven set knob to off. Allow oven to
locked during baking or peratures cool. Never force door lock/unlock handle.
broiling
17 NESER79-1

"DO IT YOURSELF"
TEMPERATURE ADJUSTMENTS
You may feel that your new oven cooks differently than
the oven It replaced. We recommend that you use your
new oven a few weeks to become more familiar with It,
following the times given In your recipes as a guide.
If you think your new oven Is too hot (bumlng foods) or
not hot enough (foods am undercooked) you can adjust
the temperature yourself. The appearance and texture
of foods are better Indicators of oven accuracy than an
Inexpensive oven thermometer. We do not recommend
the use of Inexpensive thermomsters, such as those
found In grocery stores, to check the temperature set-
tlng of your new oven. These thermometers can vary by
20-40 degrees. In addition, the oven door must be
opened to read these thermometers. Opening the door
will change the temperature of the oven.
To decide how much to change the temperature, set the
oventempersture25°F higher (If foods are uedercooked)
or 25°F lower (it foods are burning) then the temperature
In your recipe, then bake. The results of this "test"
should give you an idea of how much the tempersture
should be changed.
To a4ust knob:
1. Turn OVEN SET KNOB to OFF and remove the knob
by pulling straight OfL
2. Look st the back of the knob. The arrow pointing to
the canter of the bottom screw Indicates the original
factory setting.
3. Use a screwdriver to loosen the two scr-_vs abeut 2
turns each.
4. Holdtheknobhandis(Aon lllusUaUon)whlletumlngthe
disk(BonHIustrallon)InthedeWmd dlrectlantolrlcrease
ord_meae themmpereture.{SsellusnUon belowlor
"Self-Claan"rhenncex_") As you turn, you should be
able to hear clicks and feel notches or teeth. Each
click or notch is 15°F. You can turn up to 2clicks or
notches in either direction.
5. When you reach the desired adjustment, retlghten
both screws.
(See illustration below-use the arrows in
the gray area to Bake your temperature
adjustmnt.)
GRAPHICS FOR
MODELS 9563591 & 9563991: GRAPHICS FOR MODEL 9563992:
TOMAKEOVEN
COOLER
TURNOISK
TOMAKEOVEN
HOTTER
TURNDISK
"A" "B"
KNOB DISK ".4,"
KNOB
"B"
DISK
ARROW
18 NESER8O-3

NOTES
19
