Kenwood DNX7140 - Navigation System With DVD player User manual

GPS NAVIGATION SYSTEM
DNX7140
DNX7000EX
MONITOR WITH DVD RECEIVER
DDX714
DDX7034BT
INSTRUCTION MANUAL
Kenwood Corporation
((t II] DOLB~ ~ db
AAe DIGITAL I2.0+0igitaIOut
€D H3' Radio®
READY '!JREADY
~,. _. Designed for
~ _. Windows
llol Media
1M
VI D E 0
o Bluetooth®
fOl Madefor
@J iPod
OWorks
with
iPhone
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain
the best
performance from your new
GPS Navigation System/DVD Receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the
warranty card, and
in the space provided below. Refer to the model and serial numbers
whenever you call upon your Kenwood dealer for information or service on the product.
Model DNX7140/DNX7000EX/DDX714/DDX7034BT
Serial number _
US Residents Only
©B64-4361-00101 (KW/K2W/RW)

c~~;-~-i;;),.
, .; "'f::'/j .> C.-. '" .f, _~.'
How to read this manual
Before
Use
Notes
,,-,
4
6
7
( Initla:~:;~~
Functions ofthe buttons on the front
panel 10
Getting Started 12
How to Display the Navigation Screen 12
How to Select the Source 12
How to Set aMedium / a Device 13
Basic Operation 14
How to Display the Sou rce Control Screen 14
How to Display Top Menu Screen 15
Operation on the Playback Screen of Visual
Sources
16
How to Display the Easy Control Screen 17
Watching DVDNideo CD
Playback Screen
Easy Control Screen
Source Control Screen
DVD-VIDEO Disc Menu
DVD-VR Menu Control
Video
CD Zoom Control
Music DiscI Audio File Listening &
Video Filel Picture File Watching 22
Source Control Screen 22
List Select 23
USB device select 24
Link search (Audio File in USB) 25
Playback Screen (Video file, Picture file) 25
Easy Control Screen (Video file, Picture file) 26
Picture Control 26
Movie Menu Control 26
iPod Control 27
Playback Screen 27
Easy Control Screen 27
Source Control Screen 28
iPod List 28
Link search (Music file) 29
2DNX7140/DNX7000EX/DDX714/DDX7034BT
Radio Listening 30
Source Control Screen 30
Preset Select 31
Auto Memory 31
Manual Memory 32
Radio Text 32
Set Station Name 33
Traffic Information 33
Search by Program Type 34
TV Watching 35
Function During TV Screen 35
Easy Control Screen 35
Source Control Screen 36
Auto Memory 37
Manual Memory 37
Preset Select 38
Set Station Name 38
SIRIUS/XM Control 39
Source Control Screen 39
Channel Search 40
Channel
Memory 40
Direct Channel Search
41
HD Radio Control 42
Source Control Screen 42
Auto Memory 43
Manual Memory 43
~~i~m~e M
Channel Search 44
Direct
Search 45
iTunes Tagging (HD Radio Tagging) 45
Bluetooth Audio Control 46
Before Use 46
Source Control Screen 46
Other Functions 47
How To Use the Character Entry Screen 47
External Device Power Supply Control 47
Muting Audio Volume upon Reception of
Phone Call
Screen Control
Screen Control

,:
I
77
83
86
78
78
79
71
72
73
83
73
75
75
84
85
85
80
81
81
82
76
76
64
64
65
65
66
66
66
67
67
68
69
69
70
63
63
Setup Menu
How to Display SETUP Menu Screen
[Information]
Mileage Tracker
Vehicle Maintenance
Gas Mileage Analysis
Vehicle Setup
Software Information
[System]
User Interface
Language Setting
Touch Panel Adjustment
Clock Setup
Security Setup
Monitor Angle Control
EXT SW Setup
Setup
Memory
[Display]
Entering Background
Panel Color Coordinate
Screen Control
[Bluetooth SETUP]
Registering Bluetooth Unit
Registering Bluetooth Unit PIN Code
Bluetooth Unit Connection
[AV-IN SETUP]
AV Input Setup
[AV Interface]
AV Interface Setup
[Navigation]
Navigation Setup
[Audio SETUP]
DSP Bypass Control
Speaker Setup
Car Type (DTA) Setup
[DVDSETUP]
DVD Setup
DVD Language Setup
DVD Parental Level Setup
Disc Setup
[USB SETUP]
USB Setup
[iPod SETUP]
iPod Setup
[SIRIUS SETUP]
SIRIUS Parental Code Setup
SIRIUS Parental Lock Setup
SIRIUS Parental Lock Channel Select
[TV SETUP]
TV Setup
,
"
59
59
59
60
60
61
61
62
94
95
96
98
100
Audio Control
Audio Control Menu
Audio Control
Equalizer Control
Graphic
Equalizer Setup
Zone Control
Space Enhancer
Position
c "
Remote Controller 87
Battery installation 87
Remote Controller mode switch 87
Common operations (AUD mode) 88
DVDNCD (DVD mode) 89
Music Disc/Audio fileNideo file/ Picture file
(AUD mode) 90
Radio (AUD mode) 91
NAVI (NAVI mode) 91
TV (TV mode) 92
Status bar Indicator items
DVD Language Codes
Help? Troubleshooting
Help? Error
Specifications
Hands Free Unit Control 50
Before Use 50
Downloading the Phonebook 50
Receiving a Call 50
During a Call 50
Call Waiting 51
Making a Call 51
Calling by Phonebook 52
Calling by Entering a Phone Number 52
Making a Call Using Call Records 53
Calling by Voice Recognition 53
Controlling Tone-based Services 54
Setting Up the Hands-Free Phone 54
Voice Registration 55
Key Word Voice Registration 56
Phone Number Preset 57
SMS (Short Message Service) 57
English. 3

Switches to the source control screen to use
various functions.
ID
Display the Source Control Screen
:-y=e to
Seieer"»
5'11 ODeration on the Source Control screen
.... 4 •••••••••••••••••••••••••••••
•
•
•
•
•
•
••
••
•
•
•
•
•
•
•
•
•r ... ·j ·('~·,~l~·~ ~(_ •.• ~ ~-~~':~ f~~,' -r/~ ').~~ .. ~ '~i· ••••••
t-fVl .)~~:~,_J1C,~ tc '.IIL : I~I ; -'-i.) >./drl\.. ... ,
••
The displays and panels shown in this manual
are examples used
to provide clear explanations
of the operations.
For this reason, they may be different from
the
actual displays or panels used, or some display
patterns may be different.
[AM] Switches to trw AM band.
Usc r.hc r\F.EKj tt) t.h(::
Multi Function
(!-
C:m'~--9999-
.... -.. ..
( - SEn: AMf PRF "L~lne rTY CRSC ¢:;-
1M .. RIdgevIew ~_ 9999999-
• ••••••••••••••••••••••• ! •••
[CRSC]~f.;;wTurrls rhe CFSC functicn On
01 Off
••
••••• •
• •
• •
••
•••
Display
"AUTO,..
"AUT02"
"MANU"
firm······················
• •••••••••••
•• •: Next page. :
•••••••••••••••••••••••••••• • •••••••••••
The above operation example with the mark
differs from the actual operation.
4DNX7140/DNX7000EX/DDX714/DDX7034BT

About the model groups
If ljifferentfunctions are used indifferent
modelgroupsAhe model groupsare
described as shown below.
Nam~s.ofmodelsjr;'ldlJded in each
·groupare as ,follows:
DNXmodels
ONX7140, DNX1000EX .
DDXmodels
DDX714, DDX7034BT
Function Icon
Icons r~presentin,g aV~jfable functions are
shown below. . "'. .., . .
.~QEO:FunCi:tjon of DVD~VIDE();pl(lYeback.
~VR:Function of DVDNR playback.
. ~cQ :Fundibtl.6f\1ideo,'CD playbacK:' ' ..
. ,8
A
CQ",: Function oieD (CD~PA) pl~yb~c .
nction of Audio Hie playback.
Functionof MPEG ·file playback.
Eundionof JPEG file playback.,'
~ .. 2'~t:Function,of Disc ({:;IVD, CD) medi~k
FuoctionofU5B devit:;e.,
Function of FM reception.
~us:fundion of SIRIUS source:
¢~Ptt :Funttion of XM source.
Ptess2seconds ot more'
Pr ebutton, denot~ by ~ mm.: for '2 .
se dSOf more.
lridicat~s.to·pres~ and .. h 'e. button
untilope,ration starts ortb.e ~creen.chi'mges.
Tl1e J~ft.example indic.afes to press the butt.on
for1 sec6~ds. : ',';
English 5

... i£;~·~~~~~~t~7;"

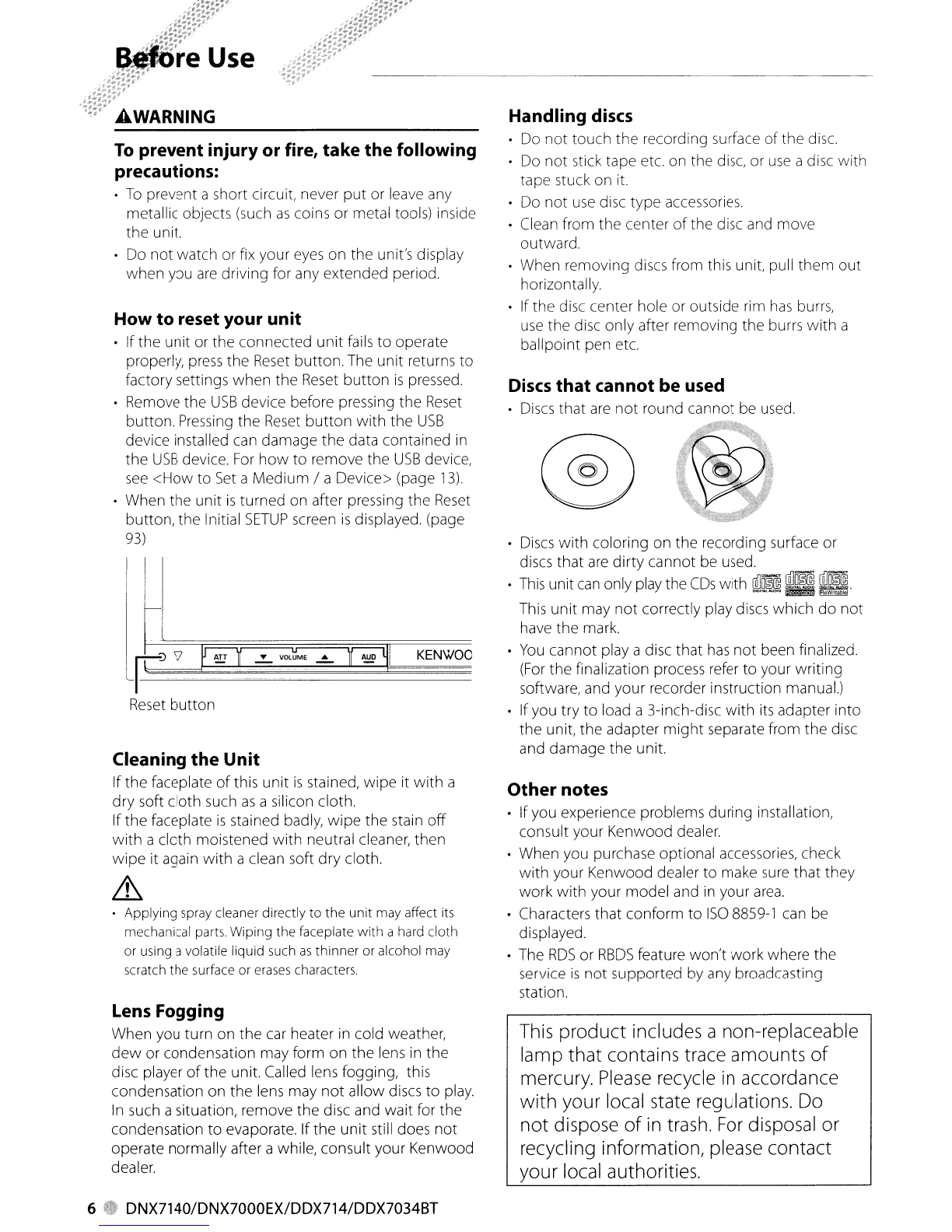

1Wfi)"re Use
\\j~l\::ARNING
To prevent injury or fire, take the following
precautions:
o To prevent ashort circuit, never put or leave any
metallic objects (such
as coins or metal tools) inside
the unit.
oDo not watch or fix your eyes on the unit's display
when you
are driving for any extended period.
How to reset your unit
oIfthe unit or the connected unit fails to operate
properly,
press the Reset button. The unit returns to
factory settings when the
Reset button is pressed.
•Remove the
USB device before pressing the Reset
button. Pressing the Reset button with the USB
device installed can damage the data contained in
the USB device. For how to remove the USB device,
see <How to Set aMedium / a Device> (page 13).
oWhen the unit is turned on after pressing the Reset
button, the Initial SETUP screen is displayed. (page
93)
~=.='V=~AT:::T~~"'~VO=LUM=E~"'~~A~UD~==K=E=NW=O=O=O
Reset button
Cleaning the Unit
Ifthe faceplate of this unit is stained, wipe it with a
dry soft cloth such
as asilicon cloth.
Ifthe faceplate
is stained badly, wipe the stain off
with acloth moistened with neutral cleaner, then
wipe it again with aclean soft
dry cloth.
&
oApplying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate
with ahard cloth
or using avolatile liquid such
as thinner or alcohol may
scratch the surface or
erases characters.
Lens Fogging
When you turn on the car heater in cold weather,
dew or condensation may form on the lens in the
disc player
of the unit. Called lens fogging, this
condensation on the lens may
not allow discs to play.
In such asituation, remove the disc and wait for the
condensation to evaporate. Ifthe unit still does
not
operate normally after awhile, consult your Kenwood
dealer.
6DNX7140/DNX7000EX/DDX714/DDX7034BT
Handling discs
oDo not touch the recording surface of the disc.
oDo not stick tape etc. on the disc, or use adisc with
tape stuck on it.
oDo not use disc type accessories.
•Clean from the center
of the disc and move
outward.
oWhen removing discs from this unit, pull them out
horizontally.
oIf the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with a
ballpoint pen etc.
Discs that cannot be used
Discs that are not round cannot be used.
• Discs with coloring on the recording surface or
discs that
are dirty cannot be used.
o This unit can only play the CDs with ~~
This unit may not correctly play discs which do not
have the mark.
o You cannot playa disc that has not been finalized.
(For the finalization process refer to your writing
software, and your recorder instruction manual.)
oIfyou try to load a3-inch-disc with its adapter into
the unit, the adapter
might separate from the disc
and damage the unit.
Other notes
•Ifyou experience problems during installation,
consult your Kenwood dealer.
oWhen you purchase optional accessories, check
with your Kenwood dealer to make
sure that they
work with your model and
in your area.
•Characters that conform to ISO 8859-1 can be
displayed.
oThe RDS or RBDS feature won't work where the
service
is not supported by any broadcasting
station.
This product includes anon-replaceable
lamp
that contains trace amounts of
mercury. Please recycle in accordance
with your local state regulations. Do
not dispose of in trash. For disposal or
recycling information, please contact
your local authorities.

List of playable discs
recorded in the same disc, only the playback system
recorded at the first setout is played.
• Acceptable media
CD-RiRW/ROM, DVD±R/RW, mass-storage-class
USB device, iPod with KCA-iP301V
Playable disc file format
ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
•Playable USB device file system
FAT 1 6, FAT32
Although the audio files are complied with the standards
listed above, the play maybe impossible depending on
the types or conditions of media or device.
Playing order ofthe Audio file
In the example offolder/file tree shown below, the
files are played in the order from CD to @.
o CD (OJ) D: Folder
J'>G) J> :Audio file
OJ
L-
rn
f-J'>0
GJ LJ'>@
eJ'>0
OJtJ'>®
J>@
An online manual about audiO files is put on the
site, wwwkenwood.com/audiofilel On this online
manual, detailed information
and notes which are
not written in this manual are provided. Make sure
to read through the online manual as well.
Remark
Only CD layer can be
played.
o
--
o
--
x
--
x
x
x
--
f::::.
DVD+R
CCCD
Photo CD
DVD+RW
CD-EXTRA
Super video CD
Video CD (VCD)
Dualdisc
Super audio CD
--
DVD-R DL (Dual layer) 0 .
DVD+R DL (Double layer) 0 Only video format
DVD-RAM x
Music CD -0- CD-TEXT/8-cm (3 inch)
----c=-~-- __ discs supported.
CD-ROM 0 MP3/WMA/AAClWAV/
CD-R -0- JPEG playback
----=-~-- -- Multisession supported
CD-RW 0 Packet write not supported.
DTS-CD
Only music CD session can
~_----,-,-,--=-- .::.:be:....<:p=laL::.ye=d.-,--------o--~_,_____
HDCD f::::. Sound quality of normal
CD music
CD
Disc Standard Support
~ ----.,.....-- ----- ...:......:......:..._---...:...-
DVD DVD Video 0
--
DVD Audio x
--
~~-"cDV~Dc-'-V=-,-R 0_ Not compatible with CPRM.
DVD-R 0 MP3/WMA/AAClWAV/
-----,c-=--=cc--- --- JPEG/MPEG Playback
DVD-RW 0 Multi-border /Multisession/
-0- (Playback depends on
authoring conditions)
-0- Compatible with 8-cm (3
inch) discs
0: Playback is possible.
£:": Playback is partly possible
x : Playback is impossible.
Use of IIDualDisc
ll
When playing a "Dual Disc" on this unit, the surface
of the disc that is not played may be scratched
while the disc is inserted or ejected. Since the music
CD surface does not conform to the CD standard,
playback may be impossible.
(A "Dual Disc" is a disc with one surface containing
DVD standard signals and the other surface
containing music CD signals.)
AboutVideo files
• Acceptable video files
MPEG 1, MPEG2
• Extensions
mpg, mpeg, m1 v, m2v
• Acceptable media
CD-R/RW/ROM, DVD±RlRW, mass-storage-c1ass
USB device, iPod with KCA-iP30lV
Acceptable discs, disc formats, USB device file system,
file and folder names and playing order are the same
as those for audio files. See <About Audio files>.
About Audio files
• Playable Audio file
AAC -LC (.m4a), MP3 (.mp3), WMA (.wma), Linear
PCM (WAV) (.wav)
(§2
About Picture files
• Acceptable picture files
JPEG
• Extensions
jpg, jpeg
•If music ofnormal CD and other playback systems are
Nextpage~
English 7

Notes
•Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-class
USB device
Acceptable discs, disc formats,
USB device file system,
file and folder names and playing order
are the same
as those for audio files. See <About Audio files>.
About Satellite Radio tuner
This unit supports Satellite Radio tuners which are
released by SIRIUS and XM.
Optional accessories below are necessary for
connection.
SIRIUS tuner: Conversion cable CA-SR20V
XM tuner: XM interface Box KCA-XM 1 OOV
Refer to the instruction manual of Satellite radio
tuner
• You cannot connect a USB device via a USB hub
and Multi Card Reader
•
Take backups of the audio files used with this unit.
The files can be erased
depending on the operating
conditions
of the USB device.
We shall have no compensation for any damage
arising
out of erasure of the stored data.
•No
USB device comes with this unit. You need to
purchase acommercially available USB device.
•When connecting
the USB device, usage of the
CA-Ul EX (option) is recommended.
Normal playback
is not guaranteed when acable
other than the
USB compatible cable is used.
Connecting acable whose total length
is longer
than 5 m can result in abnormal playback.
Navigation units that can be connected to
this unit (DDX models only)
•KNA-G51O*I G431 * • KNA-DV4100
•KNA-DV3100 •KNA-DV2100
*Update the navigation software
to the latest
version.
For how to update the software, refer to the
instruction manual
of the navigation unit.
HD Radio that can be connected to this
unit
• KTC-HR300 • KTC-HR200
When you connect an HD Radio, Tuner features of
the unit are disabled and changed to HD Radio tuner
features.
TV tuner that can be connected to this unit
(DDX7034BT only)
• KTC-V300N
D
-iPhone3G
8GB 16GB
o
• iPhone 3G
· iPod nanG (2nd generation)
• iPod nanG (4th generation)
· iPod classic
· iPod touch (2nd generation)
[J
iPhone
o 4GB 8GB 16GB
iPod/iPhone that can be connected to this
unit
Made for
•
iPod nano (1st generation)
• iPod nanG (3rd generation)
• iPod with video
• iPod touch (1 st generation)
Works with
• iPhone
•Update iPod/iPhone software to the latest version.
•
You can control an iPod/iPhone from this unit by
connecting an iPod/iPhone (commercial product)
with Dock connector using an optional accessory
iPod
connection cable (KCA-iP30lV). The word
"iPod" appearing in this manual indicates the iPodl
iPhone connected with the KCA-iP301V (optional
accessory).
•
By connecting your iPod/iPhone to this unit with
an optional accessory iPod connection cable (KCA-
iP301 V), you can supply power to your iPod/iPhone
as well as charge it while playing music. However,
the power of this unit must be on.
~
~
•Ifyou start playback after connecting the iPod, the
music that has been played by the iPod is played
first.
In this case, "RESUMING" is displayed without
displaying afolder name, etc. Changing the browse
item will display acorrect title, etc.
•When
the iPod is connected to this unit,
"KENWOOD" or
"./" is displayed on the iPod to
indicate that you cannot operate the iPod.
About USB device
• In this manual, the word "USB device" is used for
flash memories and digital audio players which
have
USB terminals.
•
When the USB device is connected to this unit,
it can be charged
up provided that this unit is
powered.
Install
the USB device in the place where it will not
prevent you from driving your vehicle properly.
8DNX7140/DNX7000EX/DDX714/DDX7034BT

Region codes in the world
The DVD players are given aregion code according to the country or area it is marketed, as shown in the
following
map.
.'
.. '
""
: .....
..'
;/00:···· .
, .----_ ... __ ,
...
. '. "
!-·:,~·3,::~ •. :: ..... ~ . ~ . "-- ..
... ~'Wi •. ~~ J .' .; •
••• ~'T', ••• ~ • '-1..
'\" .. tI1t..... ....m
: ".- L1J
(i)!
~ ., ~~
. .,
..
.......................................... ~
DVD disc marks
Indicates the type of screen for the image. The left mark
1
1609 1LB 1
indicates that a wide image picture (16:9) is displayed
o on a standard TV set screen (4:3) with a black band at
both the top and bottom of the screen (letter box).
SymbOl>
~
@))
®
ER
Indicates a region number. The discs with this mark can
be played with any DVD player.
Indicates the number of audio languages recorded. Up
to 8 languages can be recorded in a movie. You can
select a favorite language.
Indicates the number of subtitled languages recorded.
Up to 32 languages can be recorded.
If a DVD disc has scenes shot from multiple angles, you
can select a favorite angle.
Operation regulatory marks
With this DVD, some functions of this unit such as the
play function may be restricted depending on the
location where the
DVD is playing. In this case, the
following
marks will appear on the screen. For more
information,
refer to the disc manual.
Prohibition Mark
<9
Discs with limited period of use
Do not leave discs with alimited period of use in this
unit. If
you load an already expired disc, you may not
be able to remove it from this unit.
English 9

Remote control
sensor
51 indicator (page 68)
For DDX models
r;-y
\/
~~=~ ~i!i~;'
KENWOOD
"~LLr; ~
------ -
----~
•
on Reset butt
(page 6)
1m: Press for more than 1second
oAttenuation of the volume On/Off.
IIIII Keep the tag data of the currently listening music of
HD Radio. -k4:[)
Volume adjustment.
Displays Graphic Equalizer screen.*'
-~
IIIII Rear view display On/Off.*2
~
,~A'~1'-:i!m" ·I,fj'~el,·~~· . ~~~~.~"'~~:''''j'r:~'' .. '
J:l!i,.Wft-, 'I ~U\ ..... ~ ","' ~~$,*'r" .
*'_~_ .. ~ .. _~....... 'IIfI.:.PI .""."'#1## ~-.w..:<'#r''''''~~'' . ., ;,
Displays the navigation screen.
When the navigation screen has already been displayed, it switches
to the currently selected source screen.
IIIII Picture in Picture function On/Off.*3 -CliJ
*1 The display may not switch to
Audio Control Menu screen in some
conditions.
*2The function
of the [AUD] button
can be changed to the display off
function. See <User Interface> (page
66).
*3 When the Screen Switching function
(page
11) is activated, this function is
disabled.
Displays theTop Menu screen. -~
oTurns the power On.
Displays the Source Select screen. -mJ
IIIIITurns the power Off.
10 0DNX7140/DNX7000EX/DDX714/DDX7034BT

Functions of the buttons on the front panel
G.. @M~1 •• (j*1_\"~Jj~B;~i~}slll'2c
Hands Free control On/Off.
IIIm •While watching the navigation screen or playback
screen
of avisual source
Displays
the Easy Control screen. -cu::J
•While watching the screen other than the above
Screen Switching function On/Off.*4
-CllJ
"BSK~.Qdels~~*tfff),~.; .. <e.;) ••.•
VJ!!:-~:::J_~.~),~.-.._ ... __ ';~~"*Jw~~~~::;;Yr:,/""W"';'0"';"'/<"".,,,
Hands Free control On/Off.
IIIm Displays the Easy Control buttons. -cu::J
CD Opens the panel and ejects the disc.
Closes
the panel.
~
~
*4When the Picture in Picture function
(page
11) is activated, this function is
disabled.
~1il:~K~IBAd.,/f~llI~=~..;!:i~_~~~~~~~~~~.~;~~)l;~i0)?) ;):
Picture in Picture function
Two screens, the navigation screen and source screen, are displayed. When Picture in Picture
function is on, touching the source screen switches between the R-CAM image and source image.
Screen Switching function
Switching between the navigation screen and the source control screen with one touch operation.
11 ~
<llIIIII 'F
English 11

How to Display the Navigation Screen How to Select the Source
Source Select screen
Sources can be selected from the Source Select
screen.
.. Page 18
.. Page 22
.. Page 22
.. Page 27
.. Page 22
.. Page 30
.. Page 39
.. Page 42
.. Page 35
.. Page 46
For how to operate each source, see the
following pages.
(£) DVD-VIDEO/ DVD-VRI
Video
CD disc
[lto=El'~~
wy
The Source Select screen appears.
Touch
the icon of the source.
Use aorD to turn the page.
(£)CD
(£) Audio file/ Video file/
Picture file disc
II iPod
~USB
tl TUNER
..,. SIRIUS/ XM
tl HD RADIO
_TV
IJ' Bluetooth
~
~
The navigation screen appears.
The navigation screen appears.
~
...
•... '
-.- -..:-.".->
1> .,-
•For how to set up and use the navigation function,
see the Navigation Instruction Manual.
•For DDX models, an optional navigation system needs
to be connected. See <Navigation unit that can be
connected
to this unit> (page 8) for connectable
navigation units.
~
~
• For Disc media, iPod, and USB, the input is switched to
the source as the media or the device is set.
12 DNX7140/DNX7000EX/DDX714/DDX7034BT

How to Set aMedium IaDevice
Press the [~] button to open/close the front
panel.
If adisc is already inserted, it is ejected by
pressing the [~] button .
•iPod
To disconnect the iPod, stop the playback
by touching the [~II] button on the source
control screen, and then disconnect the iPod.
See <Source Control Screen> (page 28).
• USB device
To disconnect the USB device, touch the [~]
button on the source control screen, and
then disconnect the USB device. See <Source
Control Screen> (page 22).
~
~
• The playback starts automatically after setting the media
or the device.
Getting Started
English 13

How to Display the Source Control Screen
On the Source Control screen you can find all the
control buttons for the selected source.
Source Control Screen
• For how to use each button, see the operation pages
ofeach source.
While watching
the navigation screen
The Source Control Screen appears.
~
~
•The screen will return to the navigation screen by
touching the same part of the Source Control screen.
llt~.~
~
14 ~ DNX7140/DNX7000EX/DDX714/DDX7034BT
The Source Control Screen appears.
While watching the
Easy Control Screen
Ilttt=B,.- ~
---------~--
1m
~_ 1Itl-=~_ '_f:lIJ_~~ ,_1,'
The Source Control Screen appears.

How to DisplayTop Menu Screen
Top Menu Screen is the entrance to aU the
functions. You can enter source operation screen
as well as various setup menu from this screen.
Top Menu screen
Touch the [MENU] button on any screen.
The Top Menu Screen appears.
• For DDX models
Pressing the [TOP] button on the front panel also
displays the Top Menu Screen.
Basic Operation
Buttons
on the Top Menu screen
[NAVCi)] Switches to the navigation screen.
[SRC~] Switches to the source control screen
ofthe selected source.
[TEL'] Switches to the Hands Free Main
screen.
[NAV SETUP] Displays Navigation SETUP screen.
(Instruction manual of the Navigation part)
(DNX models only)
[SRC SETUP] Displays SETUP Menu screen. (page
63)
[TEL SETUP] Displays the Hands Free Setup
screen. (page 54)
[MH Displays Audio Control Menu screen. (page
59)
[.] Displays Source Select screen.
[IIYSW] Displays the EXT SW (External Switch)
Control screen. (page 47)
The buttons listed below are common for
many screens.
[MENU] Displays Top Menu screen.
[. Opens the function bar. The buttons shown
below appear.
[P}] Displays the currently selected source
screen.
[Mll Displays Audio Control Menu screen.
(page 59)
[,.....] Displays SETUP Menu screen. (page
63)
[IIY SW] Displays the EXT SW (External
Switch) Control screen. (page 47)
8] Closes the function bar.
English 15

Basic Operation
Operation on the Playback Screen of
Visual Sources
While watching visual sources, basic operation is
possible by touching the screen.
The screen has 4
function areas. The function of
each area is different depending on the sources.
(Some areas are unavailable
for some sources.)
P/~yback screen of avisual source
Basic operation of each area
[] Reverse search.
!IJ Displays Menu control screen (DVD-VIDEO,
DVD-VR source), Picture control buttons
(sources with picture files), or Zoom control
buttons
(Video CD).
Switches TV band.
W Forward search.
[!] Displays source information screen.*
•For the function of each touching area, see the pages
of each source.
* Source information screen
~
~
.The information display is cleared automatically aher
approximately 5seconds.
16 DNX7140/DNX7000EX/DDX714/DDX7034BT
How to display the playback screen
Ilt~.~~
-------a----J
The Source Select screen appears.
Touch
the icon of the source.
The Playback screen
of avisual source appears.

How to Display the Easy Control Screen
Basic operation buttons of the selected source
can be displayed on the playback screen of
visual sources so that you can control the source
without switching the screen.
Easy Control Screen
Buttons on the Easy Control Screen
[ .. ] Changes the function as follows by touching
the [ .. jbutton.
[SCRN] Displays Screen Control screen (page
49).
[TEL] Switches to the Hands Free Main
screen (page 51).
[EXT SW] Switches to the EXT SW Control
screen (page 47).
[~), [~), [-), [~II)
Buttons for source control. The buttons are
different depending on the source. See the
operation
pages of each source.
While watching the visual source
Illo=a._~
-------a--
DmI
The Easy control screen appears.
~
~
• Easy Control screen is hidden when you touch the central
part ofthe monitor.
Basic Operation
English 17

Set the remote controller mode switch to "DVD" mode before starting operation, see <Remote Controller mode switch>
(page
87).
Playback Screen
Basic functions are available even when the
playback screen is displayed.
DDisplay the Playback Screen
See <Operation on the Playback Screen of Visual
Sources> (page
16).
DOperation on the Playback Screen
OJ, W JiiV1QEQ Searches for achapter.
,~VR. Searches for achapter.
~G:'Idl!o;.m Selects ascene (when PBC is
On) or atrack (when PBC is Off).
[l],~VJQEO Displays the Menu Control 1Screen
(page
20).
. C»lffl: Displays the Menu Control Screen
(page
21).
~Ci"Kk!9.m Displays the Zoom Control Screen
(page
21).
WDisplays Source Information Screen.
@2
•The information display is cleared automatically after
approximately 5seconds.
18 DNX7140/DNX7000EX/DDX714/DDX7034BT
Easy Control Screen
Displays the basic operation buttons on the
screen.
DDisplay the Easy Control Screen
See <How to Display the Easy Control buttons>
(page 17).
DOperation on the Easy Control Screen
OJ, [l] Switches to the Playback Screen.
WDisplays the Source Control Screen.
[~], [~] Searches for a chapter/ scene/
track.
[_] Stops playing.
[~II] Plays or pauses.
Source Control Screen
Switches to the source control screen to use
various playback functions.
DDisplay the Source Control Screen
See <How to Display the Source Control
Screen> (page
14)
DOperation on the Source Control Screen

GVideoCD
[~II] Plays or pauses.
[_] Stops playing.
When touched twice, the disc is played from
its beginning when you play it the next time.
[AI.] Ejects a disc.
[ ..... ], [~] Fast Forwards or Fast Backwards.
[~], [~]
~Q£Q Searches for a chapter.
,_CiVn:)ffl, Searches for achapter.
~.m. Selects a scene (when PBC is On) or a
track (when
PBC is Off).
[ .... ,], [I"] mih'llflEQ" ~'lRi Slow Forwards or
Backwards.
[~] Switches to the playback screen.
OJ Information display
Volume
Label.
"Title" Title Number Display
"Chap" Chapter Number Display
"Scene" ScenefTrack Number Display
"~" Play Mode Display
"T"I "C"I "R"I "P" Play Time Display
Use the [TIME] to change play time
display.
[... ] When ... appears, the text display is
scrolled by touching it.
Multi Function
\.~
~ ,. Ridgeview Road 9999
------
r;-:=--;;T;' '-'i~~-~~~- ."~~..::-~'"'-~ -
------------- ~-~"
[~] Closes the multi function bar
~IM).VlDEO
[REP] Switches the Repeat Play operations in
the following sequence.
Title Repeat, Chapter Repeat, Repeat Off
[TIME] Switches the play time display in the
following
sequence.
Chapter ("C"), Title (''1''), remaining titles ("R
U
)
.(£>pw.VR
[REP] Switches the Repeat Play operations in
the following sequence.
Title Repeat, Repeat Off
[TIME] Switches the play time display in the
following
sequence.
Title (''1''), remaining titles ("R
U
)
[PLST] Switches between the original mode
and Play list mode.
illVideoCD
[REP] Switches the Repeat Play operations in
the following sequence.
Track Repeat, Repeat Off (Available when the
PBC is off)
[TIME] Switches the play time display in the
following
sequence.
Track (UP
U
), remaining discs ("R
U
)
(Effective only
when the
PBC function is off)
[PBC] Turns the PBC On or Off. (only when VCD
Ver 2.0 is in use)
English 19

Watching DVDlVideo CD
DVD-VIDEO Disc Menu
Selects an option from the DVD-VIDEO Disc
Menu.
DDisplay the Playback Screen
See <Operation on the Playback Screen of Visual
Sources> (page
16).
DDisplay the Menu Control 1screen
II Operation on the Menu Control 1screen
[Menu]
Calls the Menu.
[Next] Displays the Menu Control 2screen.
[~], [~], [ ..... ], [~] Selects amenu option.
[Enter] Enters your menu selection.
[Return] Returns
to the previous menu screen.
[Top] Displays the Top Menu.
[Highlight] Highlight Control.
[Exit]
Exits the Menu Control 1screen.
II Operation on the Highlight Control
Highlight control lets you control
DVD Menu
by touching the menu
button directly on the
screen.
r' Er-l'ter' r~~~ ~- -Ne-x't '1 ""Exit ,-'
"'~~~'- _.I'
20 DNX7140/DNX7000EX/DDX714/DDX7034BT
~
~
• To cancel Highlight Control, press the [TEL] button for
more than 1second.
oThe Highlight Control is cleared automatically after
approximately
10 seconds.
11 Operation on the Menu Control 2screen
[Previous] Displays the Menu
Cantrall screen.
[Angle] Switches the picture angle.
[SUB] Switches the subtitle language.
[Audio] Switches the voice language.
[Zoom] Displays the Zoom Control screen.
[Exit]
Exits the Menu Control 2screen.
D Operation on the Zoom Control screen
[Zoom] Changes the zoom ratio at 4levels
(2
times, 3times, 4times, or off) each time you
touch.
