Kenwood KCH-14 User manual

HANDHELD CONTROL HEAD
INSTRUCTION MANUAL
KCH-16
THANK YOU
We are grateful you have chosen Kenwood for your mobile applications.
We believe this easy-to-use handheld control head will provide dependable
communications to keep personnel operating at peak efciency.
Only basic operations are explained in this instruction manual. For a detailed
explanation on the operations, refer to the Transceiver's instruction manual .
FEATURES
• The KCH-16 is a full-control optional microphone for use with the
TK-5710/ 5810 P25/ FM analog Dual Mode transceiver.
• By connecting the KCH-16 to the optional KRK-11 handheld
control head interface kit, you can control the transceiver using
the microphone in the same way that the KCH-14/15 can be used.
NOTICES TO THE USER
◆Government law prohibits the operation of unlicensed transmitters within
the territories under government control.
◆ Illegal operation is punishable by ne and/or imprisonment.
◆ Refer service to qualied technicians only.
One or more of the following statements may be applicable:
FCC WARNING
This equipment generates or uses radio frequency energy. Changes or
modications to this equipment may cause harmful interference unless
the modications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an unauthorized
change or modication is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE
FCC
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can generate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that the interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer for technical assistance.
PRECAUTIONS
Observe the following precautions to prevent re, personal injury,
and KCH-16/ transceiver damage.
• Do not drop the KCH-16; strong impacts can damage the internal
components.
• Do not over stress the KCH-16 cable by pulling on it with
excessive force.
• Do not attempt to congure the KCH-16/ transceiver while driving;
it is too dangerous.
• Do not disassemble or modify the KCH-16/ transceiver for any
reason.
• Do not expose the KCH-16/ transceiver to long periods of direct
sunlight, nor place it near heating appliances.
• If an abnormal odor or smoke is detected coming from the
KCH-16 or transceiver, switch the KCH-16/ transceiver power off
immediately, and contact your Kenwood dealer.
UNPACKING AND CHECKING EQUIPMENT
Note: The following unpacking instructions are for use by your Kenwood
dealer, an authorized Kenwood service facility, or the factory.
Carefully unpack the Handheld Control Head. We recommend that
you identify the items listed in the following table before discarding
the packing material. If any items are missing or have been damaged
during shipment, le a claim with the carrier immediately.
Supplied Accessories
Item Part Number Quantity
Hanger
(with 4 x 16 mm self-tapping screws) J19-5482-XX 1 set
Instruction manual B62-2101-XX 1
SPECIFICATIONS
Operating temperature range -30℃ 〜+60℃
Microphone impedance 2.2 kΩ (Max)
Dimensions (W × H × D)
without projections 58 × 125 × 31.5 mm
2.3 × 4.9 × 1.2 inches
with projections 68 × 125 × 36 mm
2.7 × 4.9 × 1.4 inches
Weight
Cable not included Approx. 185 g / 6.5 oz
Cable included Approx. 280 g / 9.9 oz

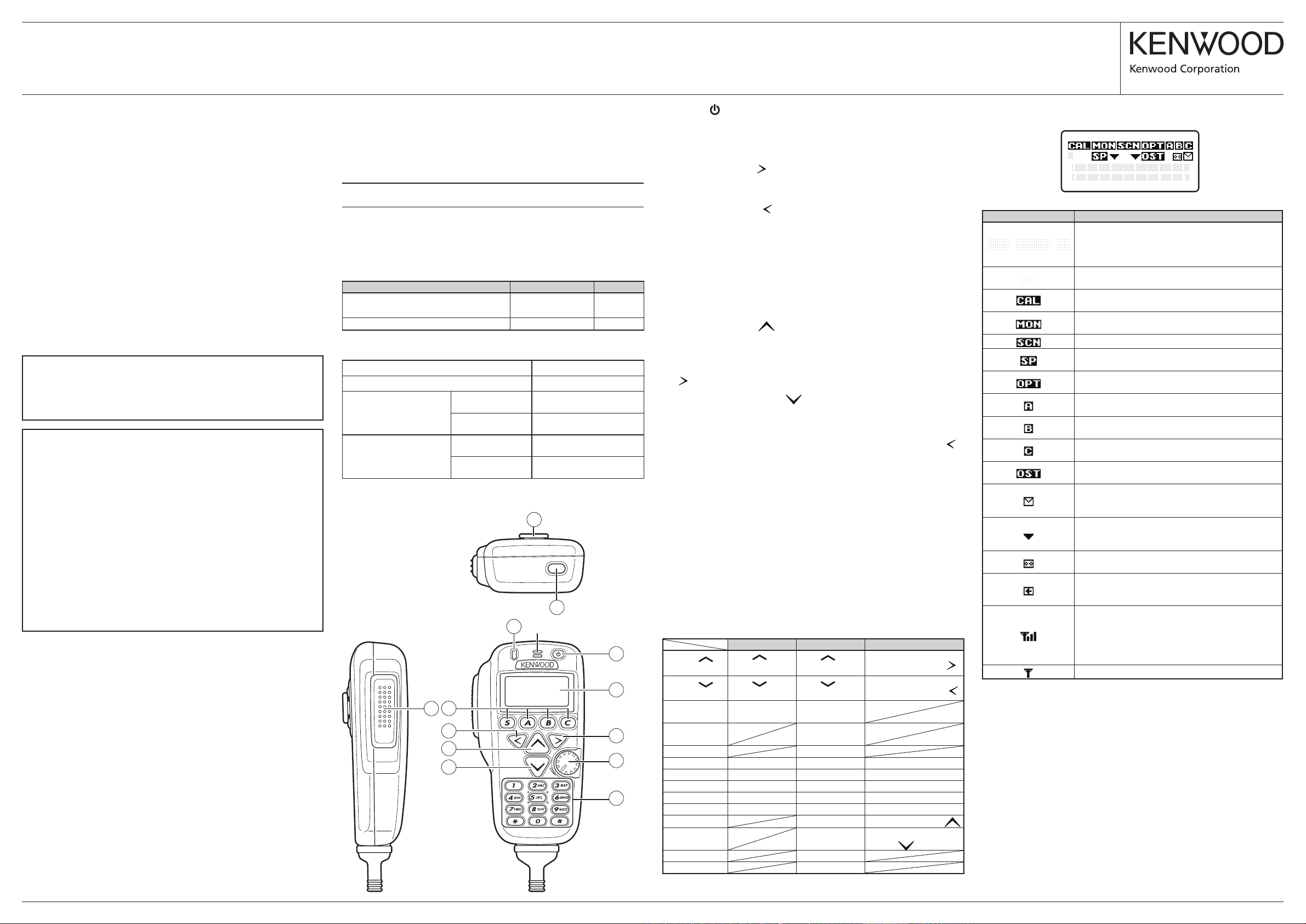

GETTING AQUAINTED
Handheld Control Head
qPower switch
Press to switch the transceiver ON. Press and hold for
approximately 1 second to switch the transceiver OFF.
wDisplay
eRight (Zone Up) key
Press to increase the zone number (Default setting). Also press to
increase setting adjustments.
rLeft (Zone Down) key
Press to decrease the zone number (Default setting). Also press to
decrease setting adjustments.
tVOL (Volume) control
Rotate clockwise to increase the volume level. Rotate
counterclockwise to decrease the volume level.
yDTMF keypad
Press the keys on the keypad to make DTMF calls.
The default setting is None (no function).
uUp (Channel Up) key : PF 6 (Programmable Function)
key
Press to increase the channel number (Default setting).
Your dealer can also enable the CH key to be used when making
setting adjustments, as an optional method for using the Right
key.
iDown (Channel Down) key :PF 7 (Programmable
Function) key
Press to decrease the channel number (Default setting).
Your dealer can also enable the CH key to be used when making
setting adjustments, as an optional method for using the Left
key.
oS/A/B/C/Orange (Programmable Function) keys
Press to activate their programmable functions.
The default setting is None (no function).
!0TX/ BUSY indicator
The TX/ BUSY indicator lights red while transmitting and green
while receiving.
⑪PTT (Push-To-Talk) switch
Press and hold this switch, then speak into the microphone to call
a station.
⑫HOOK
Key name (function) comparison
(in regards to the KCH-14/ KCH-15)
Indicator Description
Displays the operating zone and channel
numbers or zone and channel names. Also
displays various text messages depending on
the function being used.
Displays various characters depending on
dealer settings.
Appears when a received call is using optional
signaling.
Appears when the Monitor function is active
and when the transceiver squelch is open.
Appears when you are using Scan mode.
Appears when the external speaker function is
activated.
Appears when the Scrambler or Encryption
function is activated.
Appears when the AUX A function has been
activated.
Appears when the AUX B function has been
activated.
Appears when the AUX C function has been
activated.
Appears when using the Operator Selectable
Tone function.
Appears when there is a FleetSync message
stored in the transceiver memory. Flashes
when a new FleetSync message has arrived.
Appears when the selected zone (left icon) or
channel (right icon) is added to the scanning
sequence.
Appears when the Auto Recording function on
the VGS-1 option is activated.
Appears when the Auto Reply Message on the
VGS-1 option is activated. (The location of this
icon is the same as the Auto Recording icon.)
The numbers of bars indicates the strength
of incoming signals. The antenna plus 3 bars
represents a strong signal while only the
antenna represents a weak signal. No antenna
means no signal is present.
Flashes when out of range.
Display
• Use of the KCH-16/ transceiver while you are driving may be
against trafc laws. Please check and observe the vehicle
regulations in your area.
• Do not use options not specied by Kenwood.
Microphone
1
11
1
2
2
3
5
6
7
4
8
10
9
9
KCH-14 KCH-15 KCH-16
GRP
(Zone Up)
GRP
(Zone Up)
GRP
(Zone Up) Right (Zone Up)
GRP

(Zone Down)
GRP

(Zone Down)
GRP

(Zone Down) Left (Zone Down)
CH (Channel) CH (Channel
Up/Down)
CH(Channel
Up/Down)
MON
(Monitor) MON (Monitor)
SCN (Scan) SCN (Scan)
PF 1 PF 1 (None) PF 1 (None) S(None)
PF 2 PF 2 (None) PF 2 (None) A(None)
PF 3 PF 3 (None) PF 3 (None) B(None)
PF 4 PF 4 (None) PF 4 (None) C(None)
PF 5 PF 5 (None) PF 5 (None) Orange (None)
PF 6 PF 6 (None) Up (Channel Up)
PF 7 PF 7 (None) Down (Channel
Down)
PF 8 PF 8 (None)
PF 9 PF 9 (None)
OPERATION
1 Hold the KCH-16 approximately 3 ~ 4 cm (1.5 inches) from your
mouth when speaking.
2 To hang the KCH-16, use the hook provided on its reverse side.
© B62-2101-00 (M)
