Kenwood PKT-23 Installation manual

Kenwood U.S.A. Communications Sector
PKT-23
UHF Ultra Small Compact Portable Radio
Copyright © 2013 JVC KENWOOD Corporation All rights reserved.
EASY PROGRAMMING INSTRUCTIONS

■PKT-23 Portable
Ultra Small Compact Radio
1.5W / 0.5W Transmit Power
4 channels
99 Pre-Programmed UHF Frequencies
QT (39) and DQT (168) Coded Squelch
2 Programmable Function Keys
Channel Scan
Super Lock (Manager Key Lock)
Voice Guided Self-Programming Mode
Bell Tone Alert
VOX Ready
Wireless Clone
Built-in 1,430mAh Li-ion Battery
3-Hour Fast Charger (KSC-44)
Spring Action Belt Clip (KBH-20)
1.5W - 99 UHF BRS Frequencies Preprogrammed
2-year Warranty

■Key Features
■PKT-23 offers 1.5 watts of power, providing a
coverage area up to 5 miles for direct radio-to-radio
communication.
■The built-in 1,430mAh Li-ion battery provides up
to 15 hours of use w/o an accessory and 17 hours
of use with an audio accessory.
■KSC-44K charges the battery full in 3 hours, but
the micro USB port also provides a conventional
way of charging utilizing your smart phone charger.
Powerful Operation
Talk Range
Open area
w/o obstructions Up to 5.0miles (8 km)
Residential areas
(near building) Up to 1.5miles (2.4 km)
In steel and/or concrete
reinforced building Up to 225,000sq.ft (20,900sq.m)
In high-rise buildings Up to 17 floors
Battery Life (5-5-90 duty cycle)
Without
Audio Accessory Saver off: 11 hours
Saver on: 15 hours
With
Audio Accessory Saver off: 12 hours
Saver on: 17 hours
Charging Time
With KSC-44 3.0 hours
With micro USB 3.6 hours
Note: Talk range will vary based on terrain and conditions Audio Accessory provides not only secure
communications but also longer operation time. Utilize the Micro USB cable to charge the radio
at office, home or even while you are in a car driving
Efficient
Secure
Charging
on-the-go

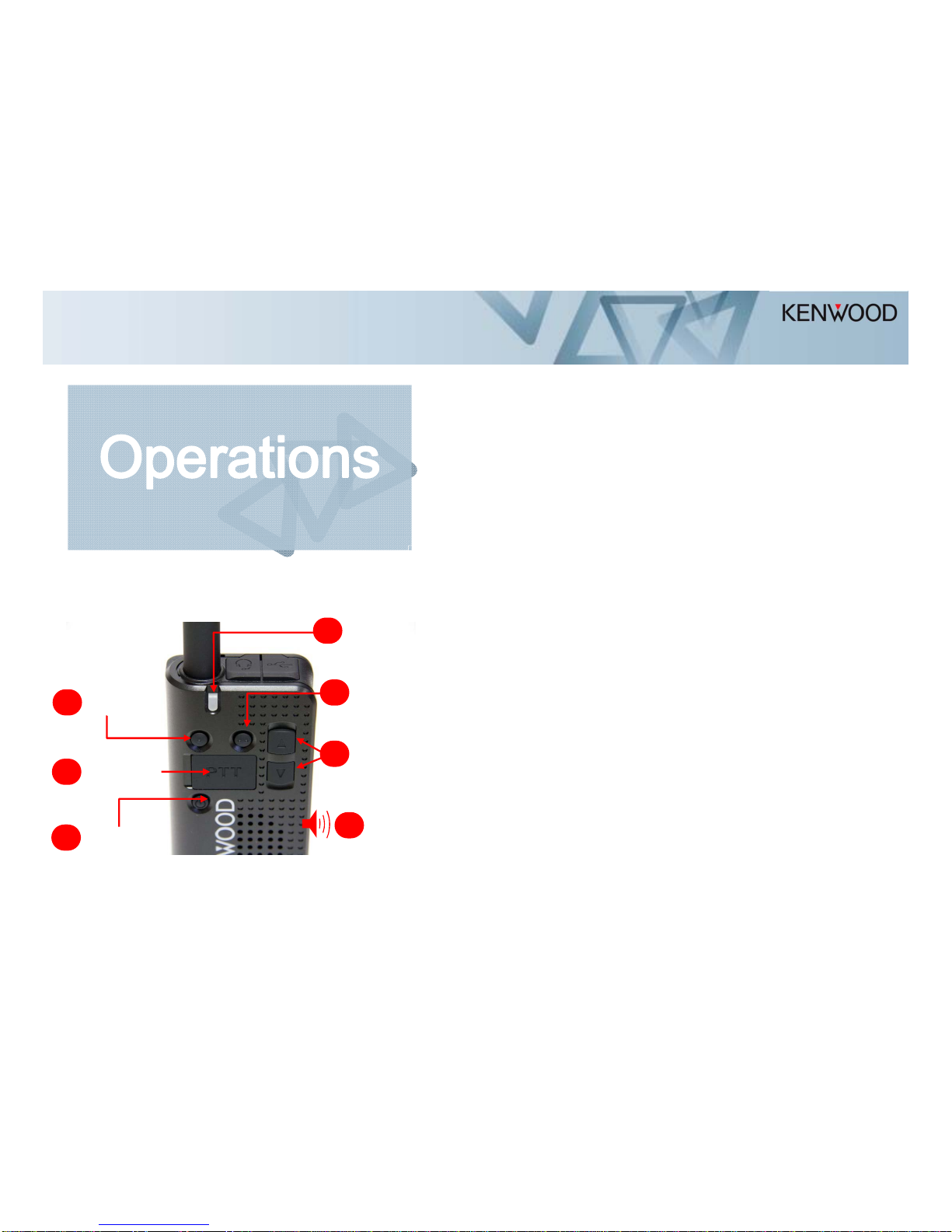

■Basic Operation
❶Power Switch
Hold for 2 seconds to turn the radio power ON and OFF.
Momentarily press while the radio is ON to see the Battery Level
Guide.
❷PTT Switch
Press and hold, then speak into the microphone to transmit.
❸UP/DOWN Keys
Press these keys to adjust the volume, change the channel, and
select options form the list in the self-programming mode.
❹Programmable Function Key #1
Press this key to activate/deactivate channel scan. Hold for 2
seconds to activate Super Lock-P function. Other functions can be
assigned from the function list. [refer to PF Key Assignment]
❺Programmable Function Key #2
Hold this key for 2 seconds to stop / start monitoring QT/DQT.
Another function can be assigned from the function list. [refer to PF
Key Assignment]
❻LED Indicator
Indicate various status/functions of the radio.
[RED] Transmitting, [GREEN] Receiving a call,
[Blinking BLUE] Standby, [Blinking RED] Low Battery
❼Voice Guide & Beep Tone
Notify various status/functions of the radio.
BASIC
Power Switch
PTT Switch
Function 1 Key Function 2 Key
UP/Down Keys
LED Indicator
Voice Guide
& Beep Tone
1
23
45
6
7

■Basic Operation
BASIC
BASIC
Operations (Volume Range 0 ~ 7)
1. Press Up key for volume Up.
2. Press Down key for volume Down.
Indications
1. Beeps according to volume level.
2. Max./Min. tone beeps at the limit.
Operations
1. Press PF2 Key.
2. Up/Down to scroll the channels.
3. Wait for 2 sec. until beep tones sound.
(the channel is set when the beep tones
sound)
Indications
1. Channel Number is announced.
2. Yellow LED blinks a number of times for
the current channel #.
BASIC
Operations
1. Press PWR key.
Indications
1. Light blue LED flashes the number of
times for battery levels:
LED Indicator Battery Level
Blinks 3 Times High
Blinks 2 Times Medium
Blinks 1 Times Low

■Basic Operation
BASIC
BASIC
Operation (ON)
1. Press PF1 key to enable SCAN.
Indications
1. Single beep sounds.
2. Green LED blinks while SCAN is ON.
Operation (OFF)
1. Press PF1 key to disable SCAN.
Indications
1. Double beeps sound.
2. Green LED stops blinking.
Operations (Activate)
1. Hold PF1 Key for 4 sec. to activate Super
Lock-P
Indications
1. Single beep sounds.
Operations (Deactivate)
1. Turn the radio OFF, hold the PF2 key and
turn the radio ON. Once Yellow LED
lights, release the PF2 key.
The ONLY operations allowed in Super Lock-P mode
are PTT, Squelch Off, Monitor, Volume Up/Down, and
Power On/Off.
BASIC
Operations (ON)
1. Hold PF2 key for 1 sec. to turn on Monitor.
Indications
1. Single beep sounds
Operations (OFF)
1. Hold PF2 key for 1 sec. to turn off Monitor.
Indications
1. Double beeps sound

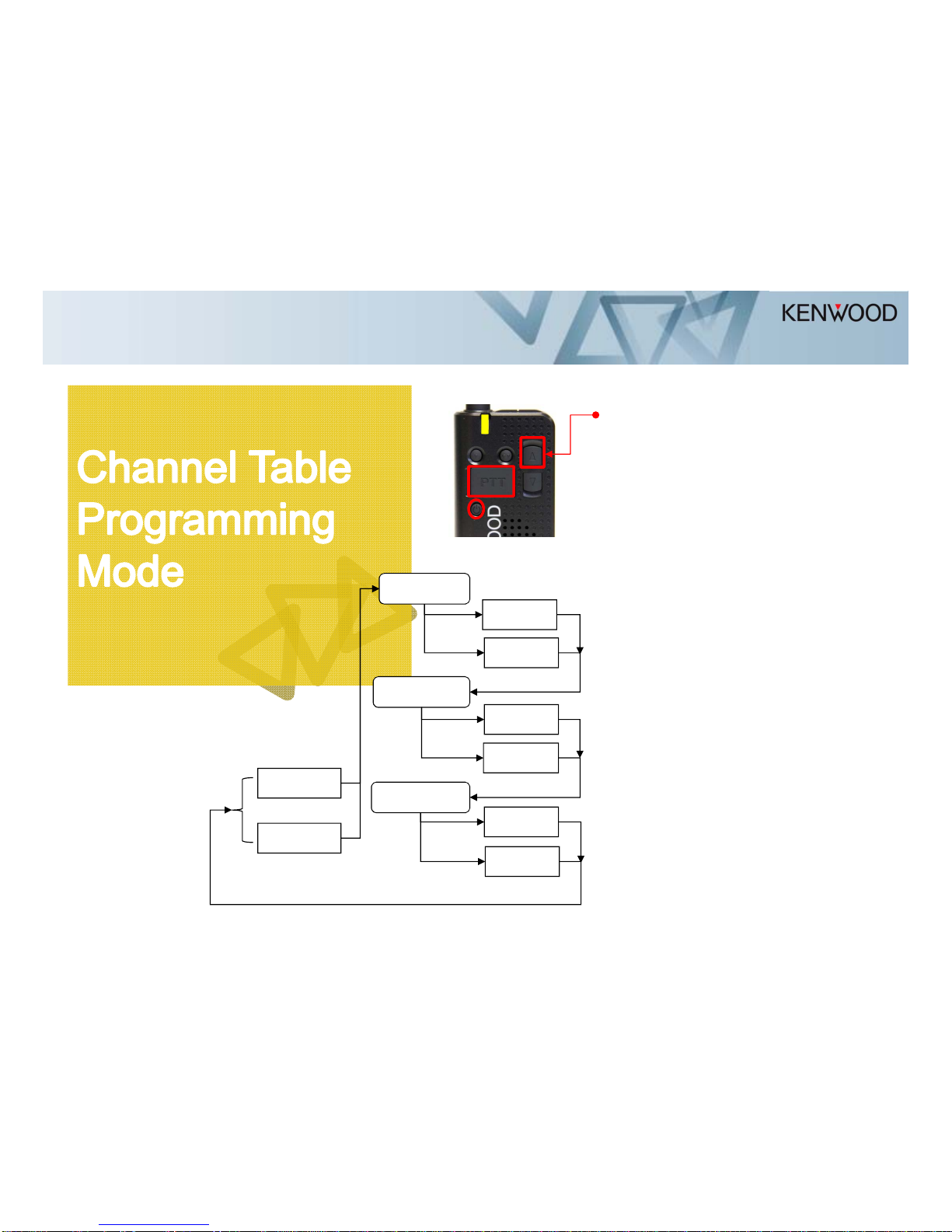

■Self Programming Mode
SELF PROGRAMMING
Mode Entry
1. Hold PWR + PF2 + UP to enter the mode.
Indications
1. Yellow LED lights.
2. Announces “Setup”
Operations
1. Use the [Up]/ [Down] keys to select the key
assignment from the table.
2. Press [PF1] to confirm the function chosen
to be assigned to [PF1] Press
OR
2. Hold [PF1] for 2 sec to confirm the function
chosen to be assigned to [PF1] Hold.
OR
2. Hold [PF2] for 2 sec to confirm the function
chosen to be assigned to [PF2] Hold.
3. Hold the [PTT] for 3 sec. Radio will store
the current configuration and confirmation
tone sounds and radio is reset and back to
normal operation.
4. To exit without save, hold [PWR] key.
Power off tone sounds and radio is off
without key function changes.
Table # Functions [PF1] Press [PF1] Hold [PF2] Hold
0 None ○○○
1 Low Transmit Power ○○○
2 Monitor ○○○
3 RX/TX Frequency Scan ○○○
4Scan ○○○
5 Squelch Off ○○○
6 Super Lock-C N/A ○○
7 Super Lock-P N/A ○○
8 Tone Alert ○○○
Self Programming Timer is 20 seconds
First, turn Off the radio,
then operate keys to enter each mode.

■Self Programming Mode
SELF PROGRAMMING
Mode Entry
1. Hold PWR + PTT + UP to enter the mode.
Indications
1. Yellow LED lights.
2. Announces “Self” + “Channel One”
Operations
1. Use the [Up], [Down] keys to select the
channel.
2. Confirm the channel by press [PTT]. Radio will
go to frequency setup after channel
confirmation mode.
3. Use the [Up], [Down] keys to select frequency
from the frequency table and table number will
be announced.
4. Press [PTT] to confirm the selected frequency,
radio will go on to QT/DQT setup mode. "QT"
will be announced in the QT/DQT setup mode.
5. Use the [Up], [Down] keys to select QT or
DQT setup mode. "QT" or "DQT" will be
announced when selected. Press [PTT] to
confirm the setup mode.
6. In the QT/DQT setup mode, select QT/DQT
from the QT/DQT table, and table number will
be announced.
7. Press [PTT] to confirm the table number.
Radio will go back to Channel select mode.
8. Repeat the step 1 to 7 to setup another
channel’s frequency & QT/DQT.
9. To save & exit, hold [PF2] + [PTT] for 3 sec., a
confirmation tone sounds and radio is reset
and back to normal operation mode.
10. To exit without save, press & hold [PWR].
Power off tone sounds and radio is off.
Self Programming Timer is 20 seconds
First, turn Off the radio,
then operate keys to enter each mode.
Frequency
Table Down
Frequency
Table Up
Channel
Up
Channel
Down
Frequency
Setup mode
PTT
Up
Down
PTT
QT/DQT
Setup mode
DQT Mode
QT Mode
Up
Down
PTT
QT/DQT
Setup mode PTT
QT/DQT
Table Up
QT/DQT
Table Down
Down
Up

■Self Programming Mode
SELF PROGRAMMING
Mode Entry
1. Hold PWR + UP to enter the mode.
Indications
1. Yellow LED lights.
2. Announces “VOX”
Operations
1. Use [PF1] key to increase the vox gain level
and voice will announce the level (Total 5
level).
2. Use the [Up] & [Down] to select the channel to
configure the VOX per channel status
3. In the selected channel, press [PF2] to control
VOX ON/OFF of the channel.
4. To exit and save, hold [PTT] for 3 sec.,
confirmation tone sounds and radio is reset
and back to normal operation.
5. To exit without save, press & hold [PWR].
Power off tone sounds and radio is off.
Self Programming Timer is 20 seconds
First, turn Off the radio,
then operate keys to enter each mode.
Select Channel [Up]
Select Channel [Down]
[PF1]
Increase VOX level
[PF2]
VOX ON/OFF per Channel

■Self Programming Mode
SELF PROGRAMMING
Mode Entry
1. Hold PWR + PF2 + DOWN to enter the mode.
Indications
1. Yellow LED lights.
2. Announces “CLONE”
Operations
1. Use the [Up], [Down] keys to select clone
frequency from the Frequency Table. Table #
will be announced. (BRS Table: 99)
2. Set all the cloning radios (Master & Slaves) at
the same Frequency Table.
3. Press [PTT] of the Master Radio to start clone.
4. If clone is successful, the Slave radios will
beep once and go back to normal operation
mode.
5. If clone is unsuccessful, the Slave radios will
beep 3 times as an error indicator and stay in
clone mode.
6. The Master radio will beep once after cloning
(transmission) is completed and stay in clone
mode. To exit, hold [PWR]. Power off tone
sounds and radio is off.
*During cloning, the Master’s red LED is on during
transmission; the Slaves’ green LED are on when
start receiving the data.
Self Programming Timer is 20 seconds
First, turn Off the radio,
then operate keys to enter each mode.
Master Radio Slave Radio

■Self Programming Mode
SELF PROGRAMMING
Mode Entry
1. Hold PWR + PTT to enter the mode.
Indications
1. Yellow LED lights.
2. Announces “Confirm”
Operations
1. Use the [Up], [Down] keys to select the
channel for the channel information.
Channel Information:
[Channel Table # + QT/DQT Table # + VOX*]
* If VOX is enabled
2. To exit, hold [PWR]. Power off tone sounds
and radio is off.
Self Programming Timer is 20 seconds
First, turn Off the radio,
then operate keys to enter each mode.
SELF PROGRAMMING
First, turn Off the radio,
then operate keys to enter each mode.
Mode Entry
1. Hold PWR + PTT + UP + DOWN to enter
the mode.
Indications
1. Yellow LED lights.
Operations
1. Release all keys within 2 sec.
2. The radio will reset all default frequencies,
VOX function, VOX gain level & Key
Assignment settings.
3. Voice will announce "Confirm" after step 2
operation is completed.
4. Radio will reset and return to normal
operation.

■Self Programming Mode Self Programming Timer is 20 seconds
Table
No. Frequency (MHz) Table No. Frequency (MHz) Table No. Frequency (MHz) Table No. Frequency (MHz)
1464.5000 26 462.8375 51 467.8875 76 452.7625
2464.5500 27 462.8625 52 467.9125 77 452.8625
3467.7625 28 462.8875 53 469.4875 78 456.1875
4467.8125 29 462.9125 54 469.5125 79 456.2375
5467.8500 30 464.4875 55 469.5375 80 456.2875
6467.8750 31 464.5125 56 469.5625 81 468.2125
7467.9000 32 464.5375 57 462.1875 82 468.2625
8467.9250 33 464.5625 58 462.4625 83 468.3125
9461.0375 34 466.0375 59 462.4875 84 468.3625
10 461.0625 35 466.0625 60 462.5125 85 468.4125
11 461.0875 36 466.0875 61 467.1875 86 468.4625
12 461.1125 37 466.1125 62 467.4625 87 468.5125
13 461.1375 38 466.1375 63 467.4875 88 468.5625
14 461.1625 39 466.1625 64 467.5125 89 468.6125
15 461.1875 40 466.1875 65 451.1875 90 468.6625
16 461.2125 41 466.2125 66 451.2375 91 456.3375
17 461.2375 42 466.2375 67 451.2875 92 456.4375
18 461.2625 43 466.2625 68 451.3375 93 456.5375
19 461.2875 44 466.2875 69 451.4375 94 456.6375
20 461.3125 45 466.3125 70 451.5375 95 457.3125
21 461.3375 46 466.3375 71 451.6375 96 457.4125
22 461.3625 47 466.3625 72 452.3125 97 457.5125
23 462.7625 48 467.7875 73 452.5375 98 457.7625
24 462.7875 49 467.8375 74 452.4125 99 457.8625
25 462.8125 50 467.8625 75 452.5125 00 OFF
*Bandwidth is all 12.5 kHz
Channel
#Table No. Frequency (MHz)
12464.5500
28467.9250
39461.0375
410 461.0625

■Self Programming Mode Self Programming Timer is 20 seconds
Channel
#QT/DQT Table No. Tone
1QT 1 67.0 Hz
2QT 1 67.0 Hz
3QT 1 67.0 Hz
4QT 1 67.0 Hz
No. QT No. QT No. QT
167 16 114.8 31 192.8
271.9 17 118.8 32 203.5
374.4 18 123 33 210.7
477 19 127.3 34 218.1
579.7 20 131.8 35 225.7
682.5z 21 136.5 36 233.6
785.4 22 141.3 37 241.8
888.5 23 146.2 38 250.3
991.5 24 151.4 39 69.3
10 94.8 25 156.7 40 Custom
11 97.4 26 162.2 41 Custom
12 100 27 167.9 42 Custom
13 103.5 28 173.8 43 Custom
14 107.2 29 179.9 44 Custom
15 110.9 30 186.2 45 Custom
No. DQT No. DQT No. DQT No. DQT No. DQT No. DQT
1D023N 30 D205N 59 D465N 88 D031I 117 D243I 146 D506I
2D025N 31 D223N 60 D466N 89 D032I 118 D244I 147 D516I
3D026N 32 D226N 61 D503N 90 D043I 119 D245I 148 D532I
4D031N 33 D243N 62 D506N 91 D047I 120 D251I 149 D546I
5D032N 34 D244N 63 D516N 92 D051I 121 D261I 150 D565I
6D043N 35 D245N 64 D532N 93 D054I 122 D263I 151 D606I
7D047N 36 D251N 65 D546N 94 D065I 123 D265I 152 D612I
8D051N 37 D261N 66 D565N 95 D071I 124 D271I 153 D624I
9D054N 38 D263N 67 D606N 96 D072I 125 D306I 154 D627I
10 D065N 39 D265N 68 D612N 97 D073I 126 D311I 155 D631I
11 D071N 40 D271N 69 D624N 98 D074I 127 D315I 156 D632I
12 D072N 41 D306N 70 D627N 99 D114I 128 D331I 157 D654I
13 D073N 42 D311N 71 D631N 100 D115I 129 D343I 158 D662I
14 D074N 43 D315N 72 D632N 101 D116I 130 D346I 159 D664I
15 D114N 44 D331N 73 D654N 102 D125I 131 D351I 160 D703I
16 D115N 45 D343N 74 D662N 103 D131I 132 D364I 161 D712I
17 D116N 46 D346N 75 D664N 104 D132I 133 D365I 162 D723I
18 D125N 47 D351N 76 D703N 105 D134I 134 D371I 163 D731I
19 D131N 48 D364N 77 D712N 106 D143I 135 D411I 164 D732I
20 D132N 49 D365N 78 D723N 107 D152I 136 D412I 165 D734I
21 D134N 50 D371N 79 D731N 108 D155I 137 D413I 166 D743I
22 D143N 51 D411N 80 D732N 109 D156I 138 D423I 167 D754I
23 D152N 52 D412N 81 D734N 110 D162I 139 D431I 168 D645I
24 D155N 53 D413N 82 D743N 111 D165I 140 D432I 169 Custom
25 D156N 54 D423N 83 D754N 112 D172I 141 D445I 170 Custom
26 D162N 55 D431N 84 D645N 113 D174I 142 D464I 171 Custom
27 D165N 56 D432N 85 D023I 114 D205I 143 D465I 172 Custom
28 D172N 57 D445N 86 D025I 115 D223I 144 D466I 173 Custom
29 D174N 58 D464N 87 D026I 116 D226I 145 D503I 174 Custom
