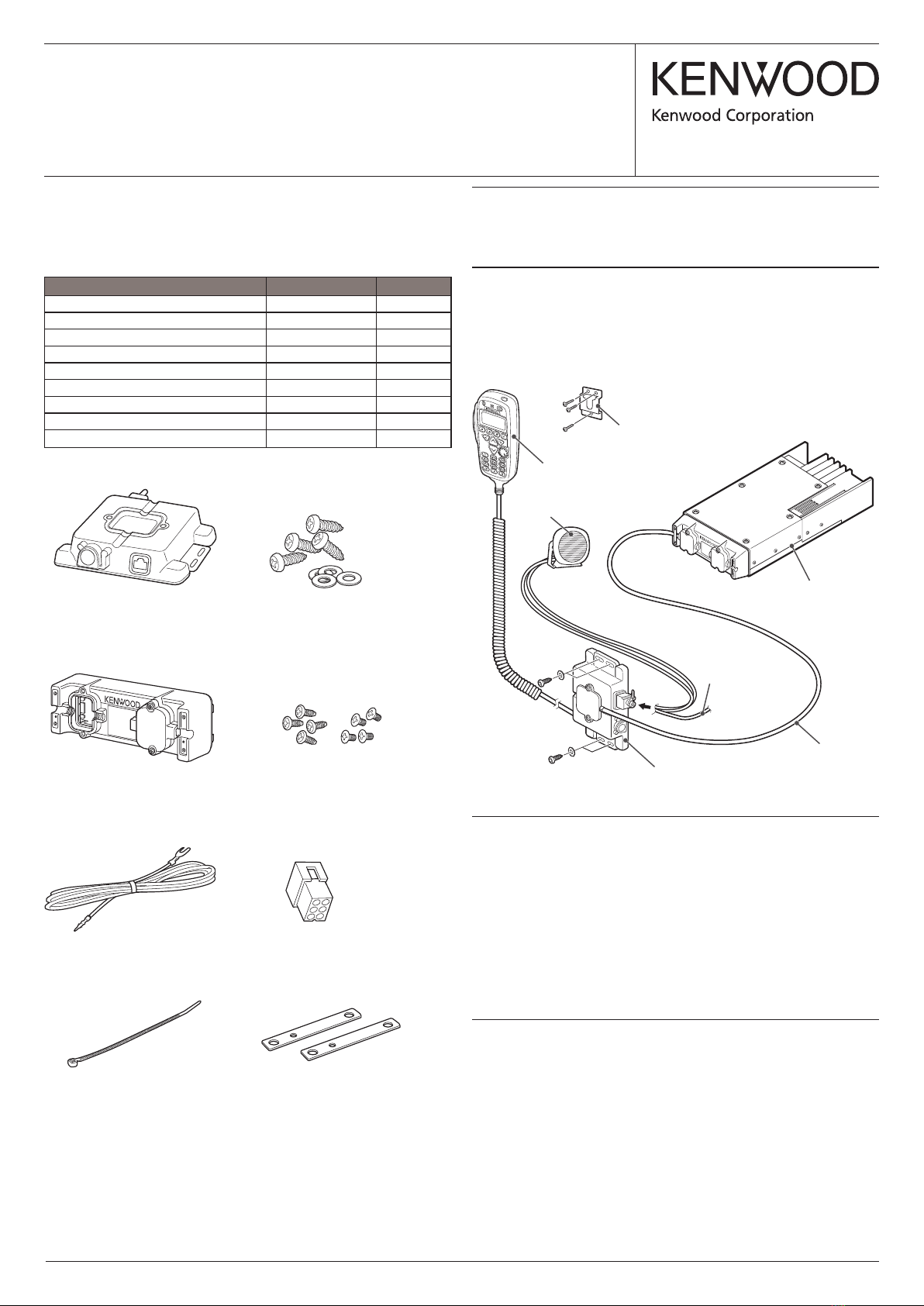

KRK-11
HANDHELD CONTROL HEAD INTERFACE KIT
INSTRUCTION MANUAL © B62-2102-00 (M)
Features
・This is an optional accessory for the KCH-16.
・You can connect an external speaker to the interface box.
supplied accessories
Item Part Number Quantity
Interface Box −1
Main body panel assembly −1
Ground cable E30-3085-XX 1
Retaining band J61-0307-XX 1
Retaining bracket J21-4354-XX 2
Connector E59-0426-XX 1
Screw set N99-2069-XX 1
Screw set N99-2070-XX 1
Instruction manual B62-2102-XX 1
Main body panel assembly
Screw set : N99-2069-XX
(For Interface box)
Interface box
Ground cable
Retaining band Retaining bracket
Screw set N99-2070-XX
(For Main body panel assembly)
Connector
Note:
◆The following instructions are for use by your Kenwood dealer, an
authorized Kenwood service facility, or the factory.
◆Refer to the Service manual for detailed information regarding the
installation of the KCH-16.
installation
The following tools and parts are required for installing the handheld
control head interface kit.
・Phillips No. 2 screw driver
・KCT-22 Remote Control Cable
Transceiver
External speaker
(Option)
KCT-22 (Option)
Remote Control
Cable
Interface box
KCH-16
hanger
Note:
◆When connecting the KCH-16 to the Interface box, do not connect
the MIC to the programming connector of the Interface box.
◆The programming connector of the interface box is dedicated to
programming.
◆The control connector of the interface box is dedicated to the
KCH-16; do not use this connector for other equipment.
◆The optional jack is supplied for future expansion. It cannot be used
at this time.
◆Do not remove the covers or caps of connectors that are not
currently being used.
◆After connecting the KCH-16 and turning on the power, do not
remove the KCH-16.
KCT-18 (Option)
Ignition Sense Cable
